Tableof Contents
Introduction------------------------------------------------------------------------------ 1
Important Safety Instructions-------------------------------------------------------- 2
Remote Control-------------------------------------------------------------------------- 5
Front and Rearpanel illustration--------------------------------------------------- 7
Connecting to aTelevision----------- ----------------------------------------------- 8
Connecting to aTelevision andVideo--------------------------------------------- 9
Connecting to a Surround Sound System--------------------------------------- 10
Getting Started ------------------------------------------------------------------------ 11
------------------------------------------------------------------------- 13
Basic Operations---------------------------------------------------------------------- -16
--------------------------------------------------------------------- 19
Channel List----------------------------------------------------------------------------- 20
Favourite List--------------------------------------------------------------------------- 21
--------------------------------------------------- 21
------------------------------------------------- 21
Help and Advice------------------------------------------------------------------------- 23
Technical Specifications -------------------------------------------------------------24
Switching on forthe first time----------------------------------------------------- 11
Automatic channelscan------------------------------------------------------------ 12
Manual channel scan----------------------------------------------------------------12
System Setting
A/V Setting---------------------------------------------------------------------------- 13
Antenna Power----------------------------------------------------------------------- 14
First TimeInstallation--------------------------------------------------------------- 14
System Info---------------------------------------------------------------------------- 14
Change Pin Code---------------------------------------------------------------------15
Software Update--------------------------------------------------------------------- 15
Changing Channels----------------------------------------------------------------- 16
Volume Control---------------------------------------------------------------------- 18
Teletext/Subtitle----------------------------------------------------------------------18
TV Format------------------------------------------------------------------------------18
Pausing the currentpicture---------------------------------------------------------18
Channel Schedule
Delete a channel----------------------------------------------------------------------20
Lock/Unlock a channel---------------------------------------------------------------20
Adding channels tofavourite list
Remove favourite channelsfrom favourite list----------------------------------21
Accessing thefavourite channels

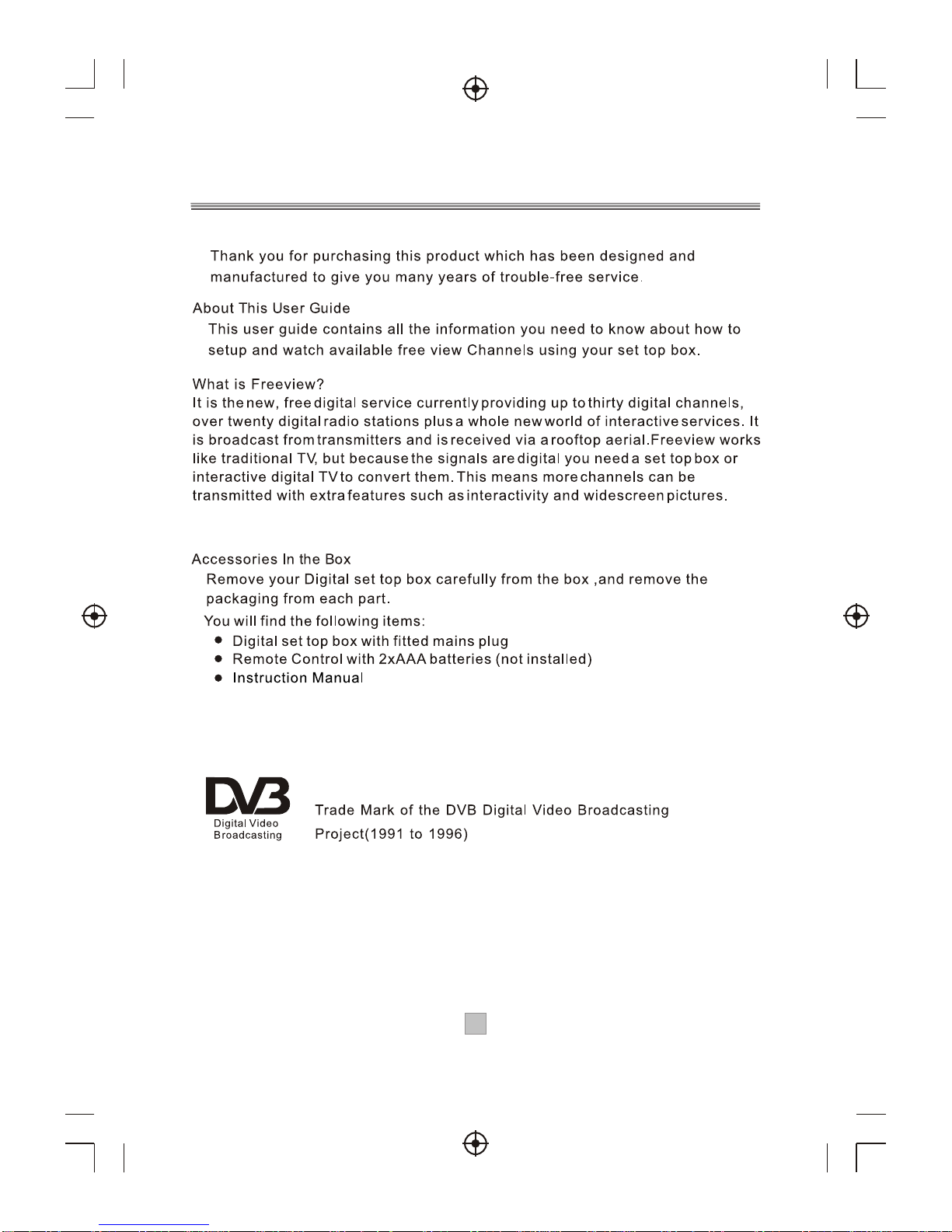

Introduction
11
22
33
44
OK
DTV/VCR
MUTE
PAUSE
123
456
7890
TEXT
FAVOURITE
STANDBY
LANGUAGESUBTITLE WIDE
P+
P-
VOL+
RECALL
VOL-
EXITMENU
INFOEPG
Remote Control
55
Remote Key Function:
1. DTV/VCR Used to switch betweenthe VCR SCARTinput
and the DTV outputmode.
2. MUTE Used to turn the sound on or off.
3. P+:Used to change thechannels.
4. PAUSE Used to pause orplayback the programme being
viewed .
5. P-:Used change the channels.
6. EXIT Used to return tothe previous screen ormenu.
7. OK Used to confirm aselection within a menu.
8. CURSORS(Up/Down/Left/Right): Used to move around
the menu screens.
9. INFO Used to display informationabout the channel being
viewed or further informationabout the programme whenin
small EPG screen.
10 FAVOURITE Used to access yourfavourite channels.
11. RECALL Used to switch betweenthe last two viewed
channels.
12. LANGUAGE Used to switch betweendifferent audio
languages that are broadcasted.
13. WIDE:Used to change theTV picture aspect.
14. STANDBY Used to switch the set top box toon and off.
15. VOL+ Used to change thevolume.
16. VOL- Used to change thevolume.
17. MENU Used to open themain menu window.
18. EPG Used to display informationabout the programme being
viewed and what's onnext.
19. NUMBER KEYS Used to select channelnumbers or input
numbers in menus.
20. TEXT:Used to open interactivedigital teletext display if
teletext available in thebroadcasted stream.
21. SUBTITLE:Used to switch amongdifferent subtitles that
are broadcasted.
22. COLOUR KEYS(Red/Green/Yellow/Blue):Used to operate
different functions inTEXT screen or othermenus.
Note: SUBTITLE/TEXT/LANGUAGE may not be available
for all channels.
66
Installing the Batteries
Remove the batterycover from theremote control andput 2xAAAsize batteries
inside the compartment.
The diagram insidethe battery compartmentshows the correctway to installthe
batteries.
OPEN
CLOSE
1.Open the cover 2.Install batteries 3.Close the cover
Using the RemoteControl
Touse the remotecontrol, point ittowards the frontof the digitalset top box
The remote controlhas a rangeof up to7 metres fromthe set topbox at anangle
of up to60 degrees.
The remote controlwill not operateif its pathis blocked.
Sunlight or verybright light willdecrease the sensitivityof the remote
control.
Serial No.:
VCR O OVCR O O TVTV SERVICE
100-240V~
50/60Hz
CoaxialCoaxial
Digital
Audio
RISK OF ELECTRIC SHOCK
DO NOT OPEN COVER
CAUTION
DIGITAL TERRESTRIAL RECEIVER
POWER SUPPLY: 100-240V~ 50/60Hz
MAX POWER CONSUMPTION: 10WATTS
F01SDB
ANT IN RF OUT
RF INTV OUT
77
Front Panel andRear Panel Illustration
1. Front panel
1 POWER BUTTON: Used to switch theset top box onand off.
2 STANDBYINDICATOR: Used to visuallyshow power stateof the set top box, thegreen
LED will belit if theset top boxis turned onand the redLED will belit if theset top box
is in standbymode.
3REMOTE CONTROL SENSOR: Used to receivethe signal fromthe remote control.
4 CHANNEL UP/DOWN: Used to changechannels without usingthe remote control.
34
88

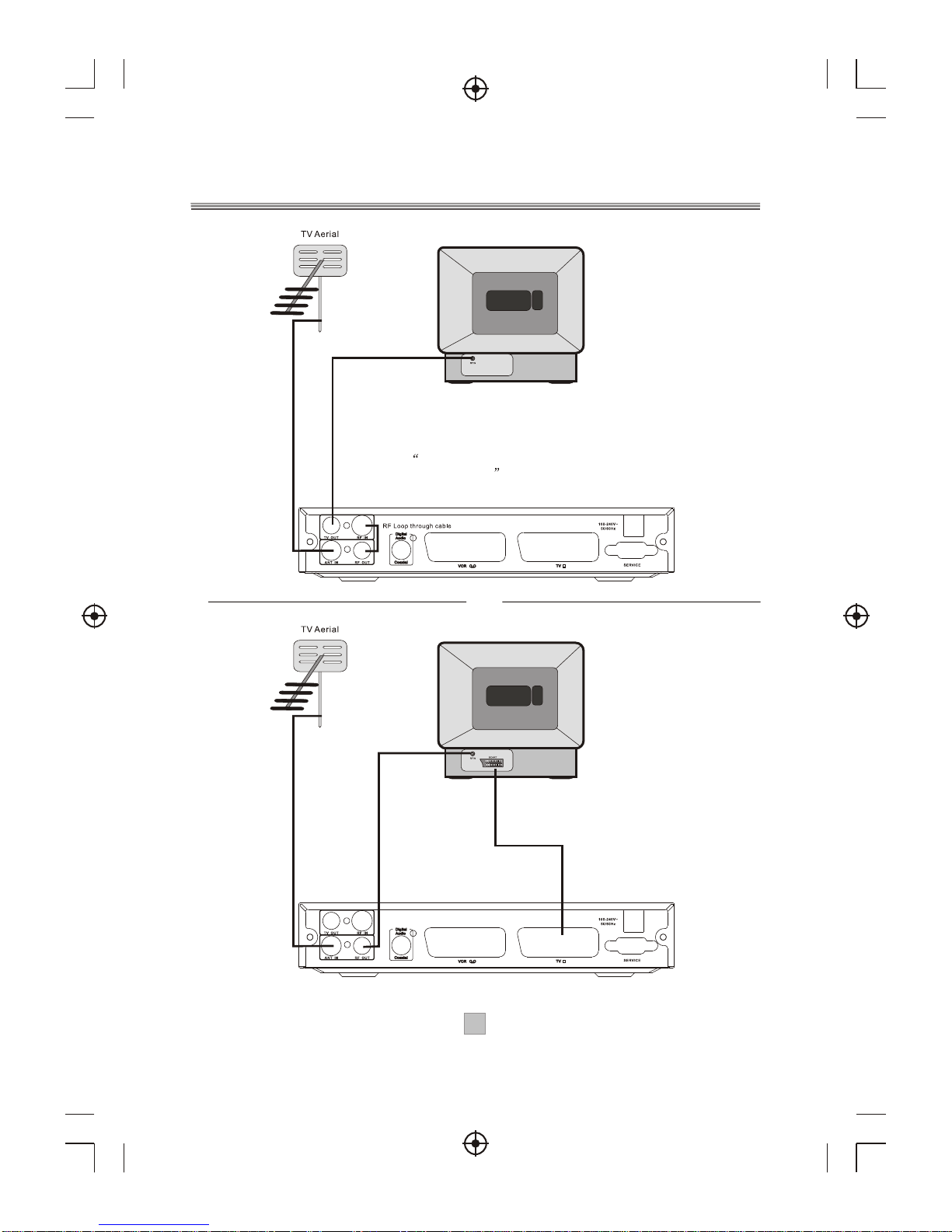

Connecting to aTelevision
TV
Set top box
TV
Set top box
OR
With RF
modulator
Without RF
modulator
The RF modulator mayinterfere with
one of the broadcastchannels: please
see If you donot have a scart
socket on yourTV . Please referto Page22.
!
