1.Introduction

The purpose of this document is to describe and list all the functionalities and

capabilities of DSRC OBU from an end user point of view.

The acronyms DSRC stands for “Dedicated Short Range Communications” which is

the technology that allows V2X communications based on Standard 802.11p.

The following data is related to the DSRC OBU for what concerns FCC Certification.

Model Name: TCU-FITAX-3.5

FCC ID: 2AVOU-AAA2020FTX35

In addition, the Main Board contains an LTE Module with P/N being SC20ASA-8GB-STD,

the FCC ID of which is: XMR201706SC20A

2.DSRC OBU System Description

2.1 DSRC OBU - General Assembly Overview

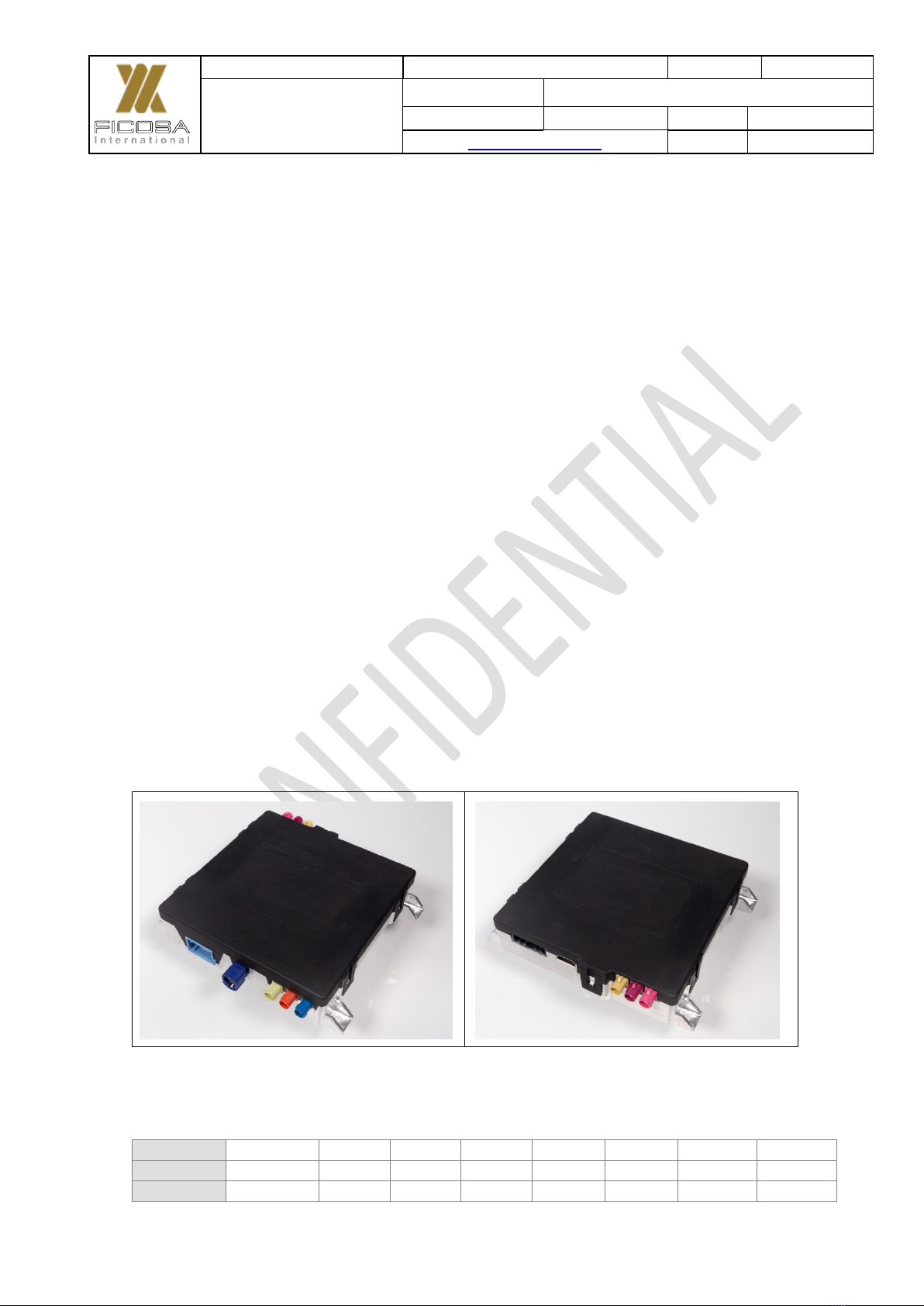

The following pictures show an overview of the DSRC On-Board-Unit from Top and

Bottom Side.

Figure 1. Top View of the DSRC Units (Plastic side).

Project

DATE

22/06/20

TCU-FITAX-3.5

FCC Certification

REFERENCE

LEVEL

V01.04

SHEET

7/45

Link to TOP INDEX

MVT

Version:

V01.00

V01.01

V01.02

V01.03

V01.04

Author:

MVT

Date:

23/03/20

11/05/20

20/05/20

22/05/20

22/06/20

FICOSA INTERNATIONAL S.A. 2016. This document or its contents may not be communicated

or distributed to third parties or reproduced in whole or in part without the express permission of FICOSA

Figure 2. Bottom View of the DSRC Units (Metal side)

The OBU Bottom side is made of metallic material in order to ease thermal dissipation

of the most critical components.

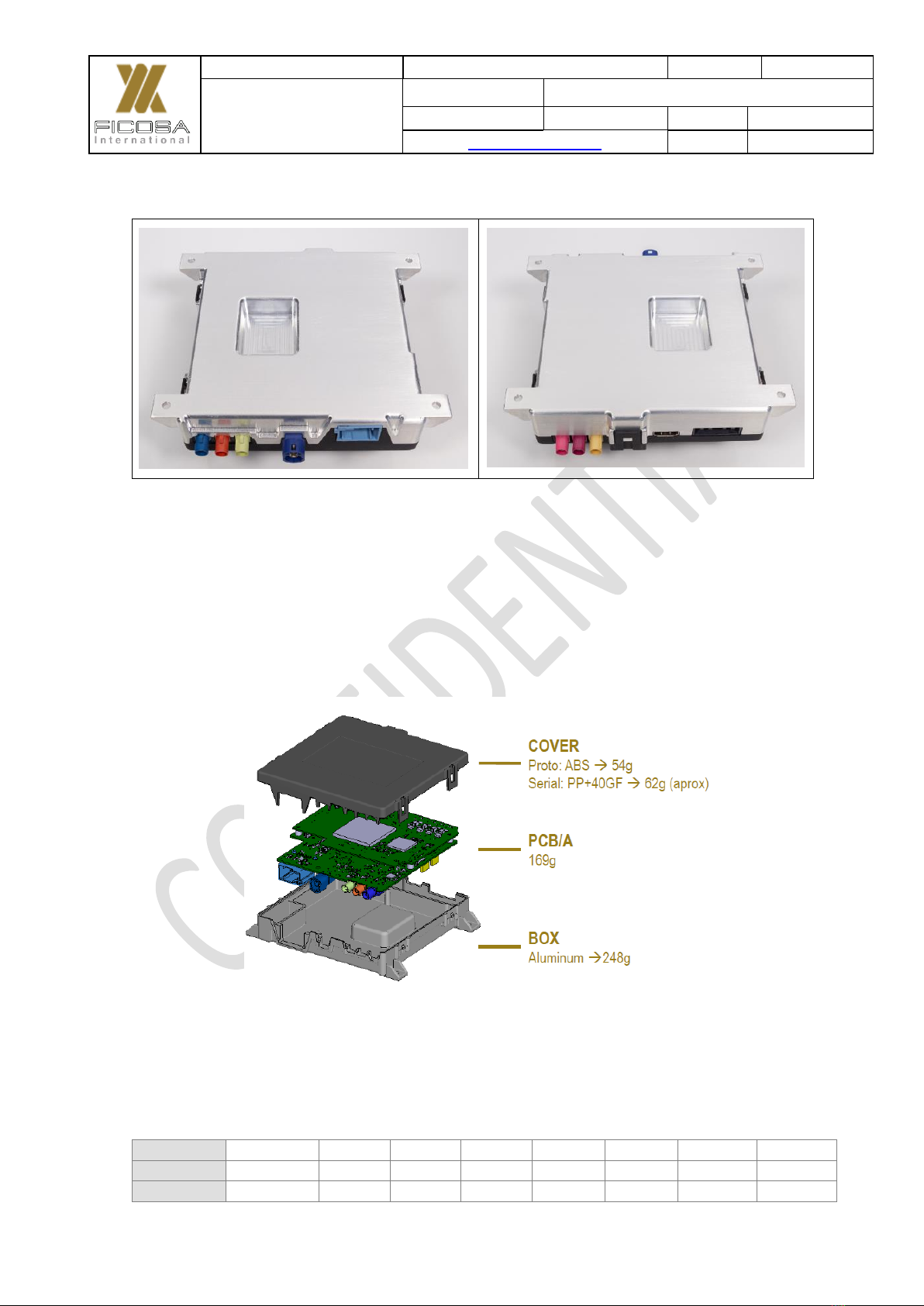

In addition, below is shown a breakdown of the DSRC OBU Mechanical Assembly

along with the weight for each individual item.

Figure 3. DSRC OBU Mechanical Breakdown and Weight

The Total Weight of the Unit is 470 g.

Project

DATE

22/06/20

TCU-FITAX-3.5

FCC Certification

REFERENCE

LEVEL

V01.04

SHEET

8/45

Link to TOP INDEX

MVT

Version:

V01.00

V01.01

V01.02

V01.03

V01.04

Author:

MVT

Date:

23/03/20

11/05/20

20/05/20

22/05/20

22/06/20

FICOSA INTERNATIONAL S.A. 2016. This document or its contents may not be communicated

or distributed to third parties or reproduced in whole or in part without the express permission of FICOSA

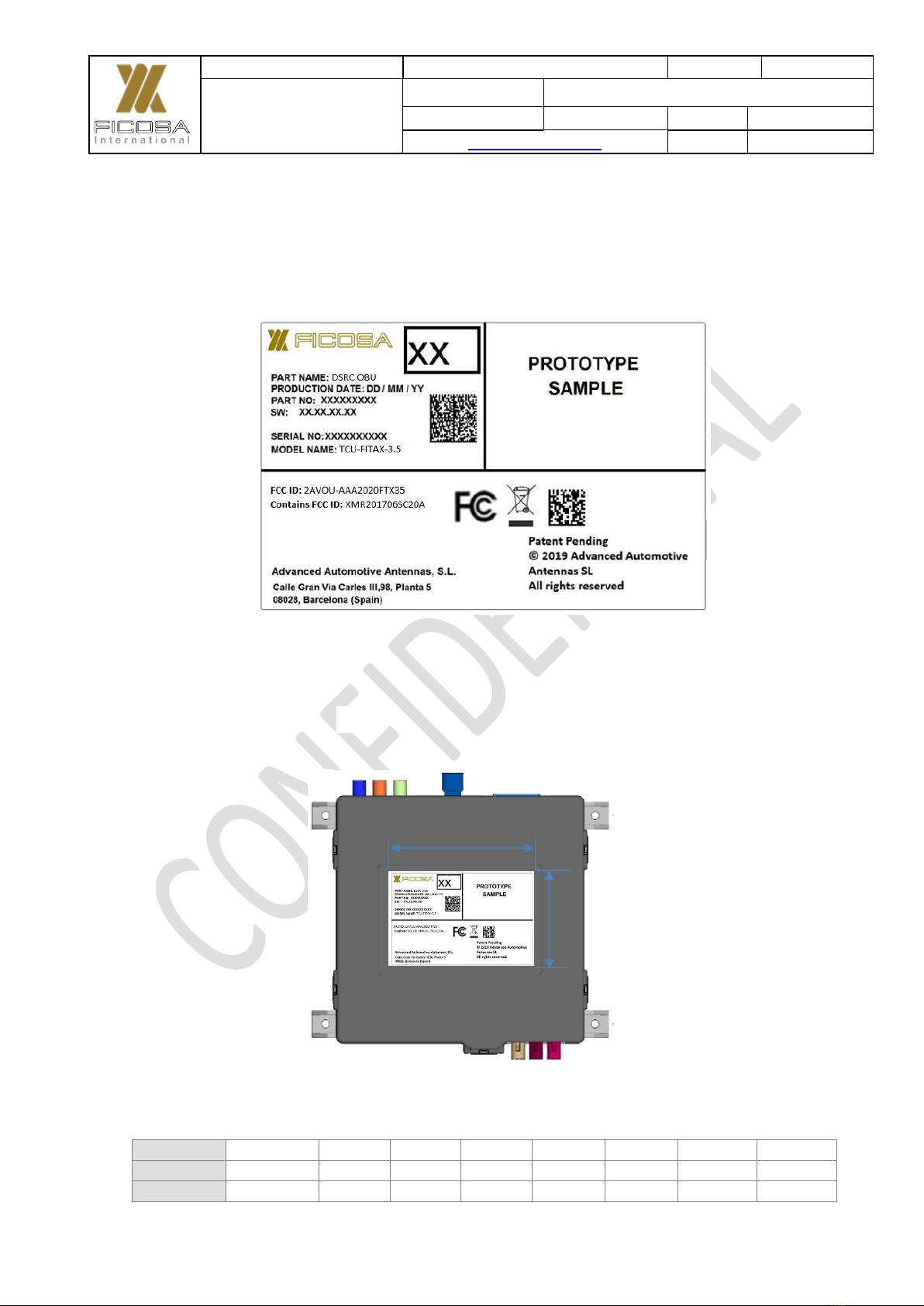

2.2 DSRC OBU - Label Details

The template of the DSRC OBU label is captured in Figure 4 along with the relevant

dimensions.

Figure 4. DSRC OBU Label Description

There is a specific area on the Top Side of the DSRC OBU to allocate the Label as

shown below.

Figure 5. DSRC OBU Label Placement and Dimensions

85 ± 0.5 mm

55 ± 0.5 mm

Project

DATE

22/06/20

TCU-FITAX-3.5

FCC Certification

REFERENCE

LEVEL

V01.04

SHEET

9/45

Link to TOP INDEX

MVT

Version:

V01.00

V01.01

V01.02

V01.03

V01.04

Author:

MVT

Date:

23/03/20

11/05/20

20/05/20

22/05/20

22/06/20

FICOSA INTERNATIONAL S.A. 2016. This document or its contents may not be communicated

or distributed to third parties or reproduced in whole or in part without the express permission of FICOSA

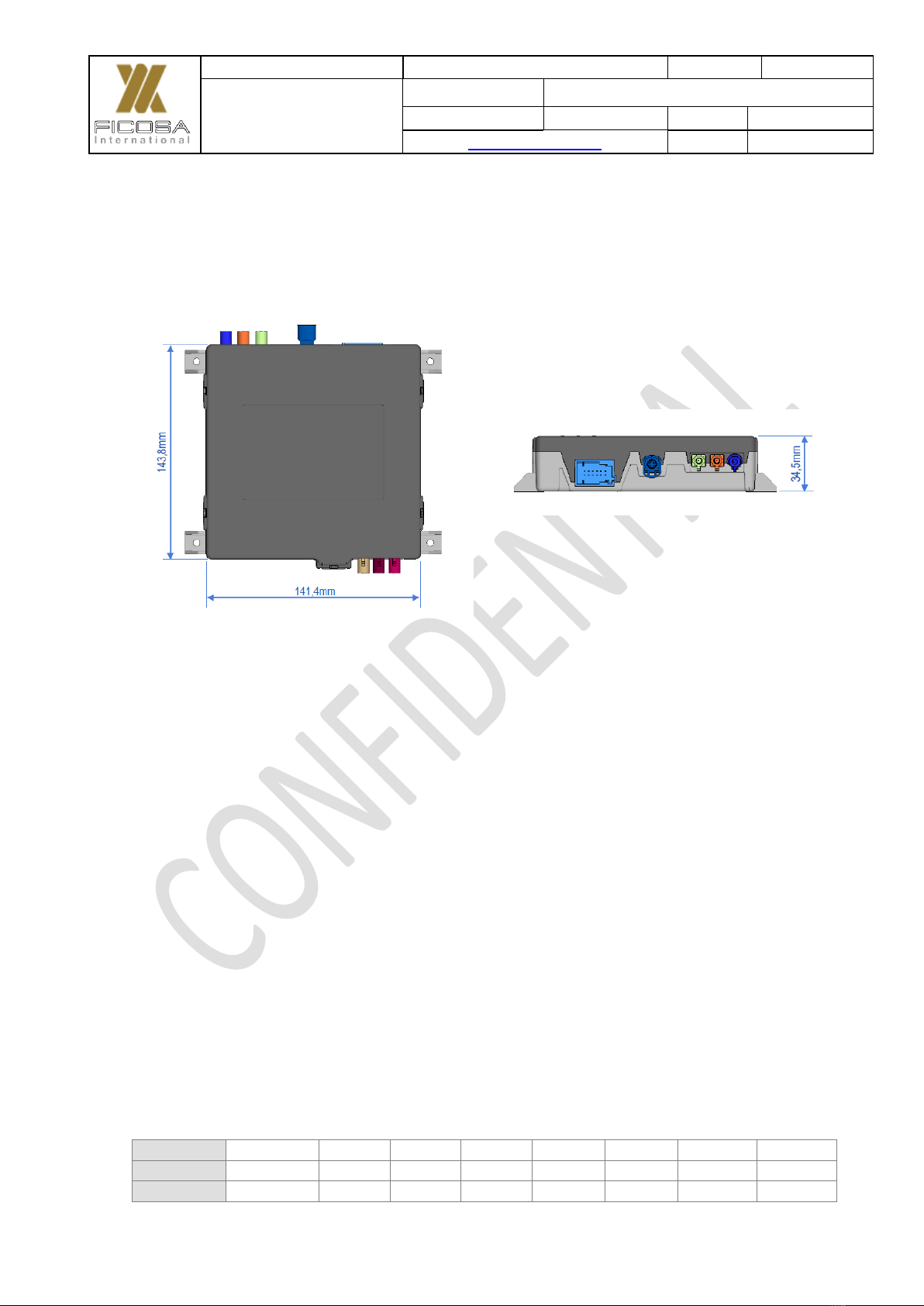

2.3 DSRC OBU - External Dimensions

Below are shown the overall dimensions of the DSRC OBU.

Figure 6. DSRC OBU Overall Dimensions

2.4 DSRC OBU - Boards

The DSRC OBU consist of two boards:

Main Board: This Board provides the V2X Communications capability. It

contains mainly the Main Processor, the RF Front-End, GNSS Receiver and

Power Management.

HMI Board: The HMI Board provides the Wifi/BT, LTE connectivity, HDMI,

Audio and Ethernet interfaces as well as CAN interfaces. In addition, it includes

an Android Microprocessor to develop 3er Party Applications.

2.5 DSRC OBU - System Architecture Overview

The below picture shows the System Architecture of the V2X Main Board.

Project

DATE

22/06/20

TCU-FITAX-3.5

FCC Certification

REFERENCE

LEVEL

V01.04

SHEET

10/45

Link to TOP INDEX

MVT

Version:

V01.00

V01.01

V01.02

V01.03

V01.04

Author:

MVT

Date:

23/03/20

11/05/20

20/05/20

22/05/20

22/06/20

FICOSA INTERNATIONAL S.A. 2016. This document or its contents may not be communicated

or distributed to third parties or reproduced in whole or in part without the express permission of FICOSA

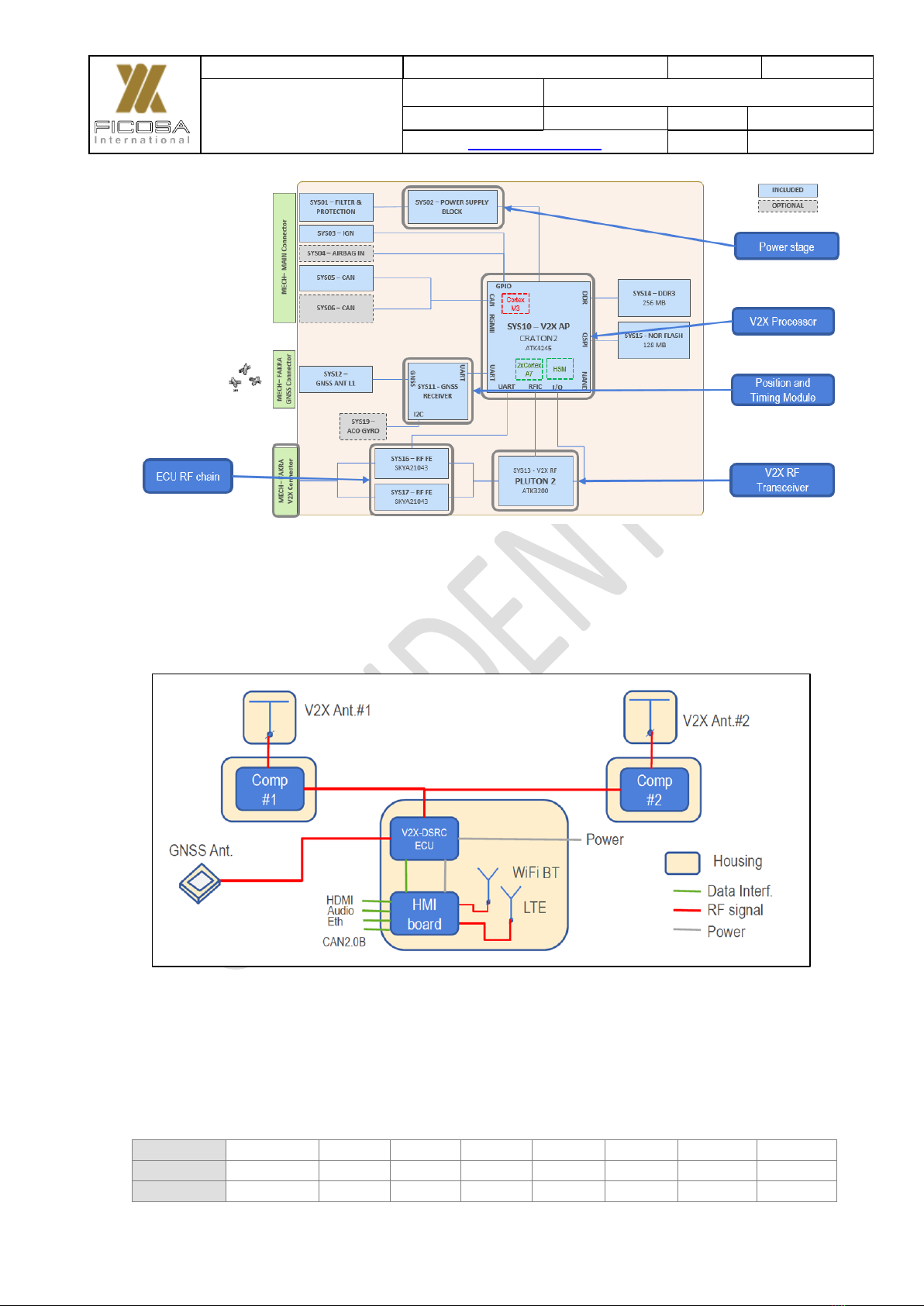

Figure 7. Main Board System Architecture

The following Figure shows the Architecture of the OBU as Assembly, V2X Main

Board + HMI Board.

Figure 8. DSRC OBU System Architecture (Main + HMI Board)

Although the Antennas are shown in the above diagram to aid understanding of the

overall system, these particular items are not supplied as part of DSRC OBU Product.

The OBU will provision Antenna Interfaces but the Antennas themselves are

responsibility of the party in charge of vehicle integration.

Indice

Altri manuali Ficosa Unità di controllo

Ficosa

Ficosa TCU H-D MY20 Manuale utente

Manuali Unità di controllo popolari di altre marche

Festo

Festo Compact Performance CP-FB6-E Manuale elenco delle parti

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuale utente

JS Automation

JS Automation MPC3034A Manuale utente

JAUDT

JAUDT SW GII 6406 Series Guida rapida

Spektrum

Spektrum Air Module System Manuale utente

BOC Edwards

BOC Edwards Q Series Manuale utente

KHADAS

KHADAS BT Magic Manuale utente

Etherma

Etherma eNEXHO-IL Manuale utente

PMFoundations

PMFoundations Attenuverter Manuale utente

GEA

GEA VARIVENT Manuale utente

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuale utente

Altronix

Altronix LINQ8PD Istruzioni per il montaggio

Eaton

Eaton Powerware Series Manuale utente

WAGO

WAGO 750-407/040-000 Manuale utente

Sony

Sony CCU-590 Manuale utente

Graco

Graco 25D614 Manuale utente

Task Force Tips

Task Force Tips YE-RF-900 Manuale di programmazione

Shini

Shini SPV-U Series Manuale utente
