Fisher & Paykel RF201A Istruzioni per il montaggio

Ice & Water refrigerator

Installation instructions

and user guide

NZ AU GB AE HK SG IE

E402B, E442B, E522B, RF610A, RF540A, RF201A models

Contents

Introduction 2

Safety and warnings 3

Installation instructions 5

Before you start using your Ice & Water refrigerator 15

All about the display 16

Using your water dispenser 18

Using your ice maker 19

Using the display options 21

Measured Fill 21

Freezer Chill and Bottle Chill 22

The temperature of your refrigerator and freezer 23

Settings/User warnings 24

Active Smart™ special features 26

Water filter 28

Measured Fill Calibration 30

Active Smart™ maintenance 31

Cleaning and caring for your refrigerator 32

On vacation/holiday 35

Refrigerator sounds 36

Storing food in your refrigerator 37

Storing food in your freezer 38

Troubleshooting 40

Manufacturers warranty 44

Customer care 45

Filter performance data sheet 47

The models shown in this user guide may not be available in all markets and are subject to

change at any time. For current details about model and specification availability in your country,

please go to our website www.fisherpaykel.com or contact your local Fisher & Paykel dealer.

Important!

SAVE THESE INSTRUCTIONS

Thank you for buying a Fisher & Paykel Active Smart™ refrigerator with automatic ice dispensing

and chilled water through the door.

At Fisher & Paykel we are very proud of this refrigerator. We feel we have achieved water

dispensing through the door without compromising storage space or access in the refrigerator.

During our testing we have enjoyed the health benefits of having cool filtered water so

accessible, while minimising the number of door openings.

Thousands of hours of food care research and 70 years of refrigeration experience has been

programmed into your refrigerator to give you the best possible performance.

We hope you enjoy your new refrigerator.

Fig.1 Ice & Water Refrigerators

Introduction

Important!

It is important that this User Guide should be retained with your Ice & Water refrigerator for

future reference. Should the appliance be sold or transferred to another owner, please ensure

that the User Guide is left with the appliance. This will ensure that the new owner can familiarise

themselves with the information and warnings contained within the Guide.

WARNING!

Electric Shock Hazard

Read and follow the SAFETY AND WARNINGS outlined in this User Guide

before operating this appliance.

Failure to do so can result in death, electric shock, fire or injury to persons.

Use this appliance only for its intended purpose as described in this User Guide.

Important safety precautions

Warning

When using this appliance always exercise basic safety precautions including the following:

Danger

This appliance is not intended for use by children or infirmed persons without supervision. This

is especially important when using the freezer drawer compartment. Young children should be

supervised to ensure they do not play with the appliance.

Risk of child entrapment. Before you throw away your old refrigerator or freezer:

– Take off the doors

– Leave the shelves in place so that children may not easily climb inside.

Disposal

Extreme care must be taken when disposing of your old appliance to avoid hazards. The

refrigerant gas must be safely removed and for the safety of young children, remove doors.

Your Fisher & Paykel Appliances Authorised Service Centre will be able to give advice on

environmentally friendly methods of disposing of your old refrigerator or freezer.

Electrical

This appliance must be properly installed in accordance with the installation instructions before

it is used.

Never unplug your refrigerator or freezer by pulling on the power cord.

Always grip the plug firmly and pull straight out from the outlet.

Do not plug in any other appliance at the same power point as your refrigerator or freezer or use

extension cords or double adapters.

Repair or replace immediately all electric service cords that have become frayed or otherwise

damaged. Do not use a cord that shows cracks or abrasion along its length or at either the plug

or appliance end.

If the power supply cord is damaged, it must only be replaced by your Fisher & Paykel Appliances

Authorised Service Centre because special purpose tools are required.

Safety and warnings

4Safety and warnings

When moving your appliance away from the wall, be careful not to roll over or damage the

power cord.

Unplug your refrigerator or freezer before cleaning or replacing the lightbulb.

Storing food and drinks

Never store volatile or flammable materials in your refrigerator or freezer as they may explode.

Never freeze liquids in glass containers. Liquid expands during freezing, which may cause the

container to explode.

Never freeze carbonated drinks. They may explode.

Do not consume food if it is too cold. Food removed from the freezer compartment may be cold

enough to cause damage when brought into contact with bare skin eg frozen ice cubes.

Power failure – food safety

Do not refreeze frozen foods that have thawed completely. Follow the recommendations below if

you discover food in your freezer has thawed:

1) Ice crystals still visible – food may be refrozen but should be stored for a shorter period than

recommended.

2) Thawed but refrigerator cold – refreezing generally not recommended. Fruits and some

cooked food can be refrozen but use as soon as possible. Meat, fish, poultry – use immediately or

cook then refreeze. Vegetables – discard as they usually go limp and soggy.

3) Thawed but warmer than 4˚C (38˚F). Red meat can be cooked immediately and refrozen but

use as soon as possible. Discard all other frozen foods.

Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

Cleaning

Many commercially available cleaning products contain solvents which may attack plastic

components of your refrigerator or freezer and cause them to crack. Please refer to the cleaning

care section of this booklet for further advice.

Installation instructions

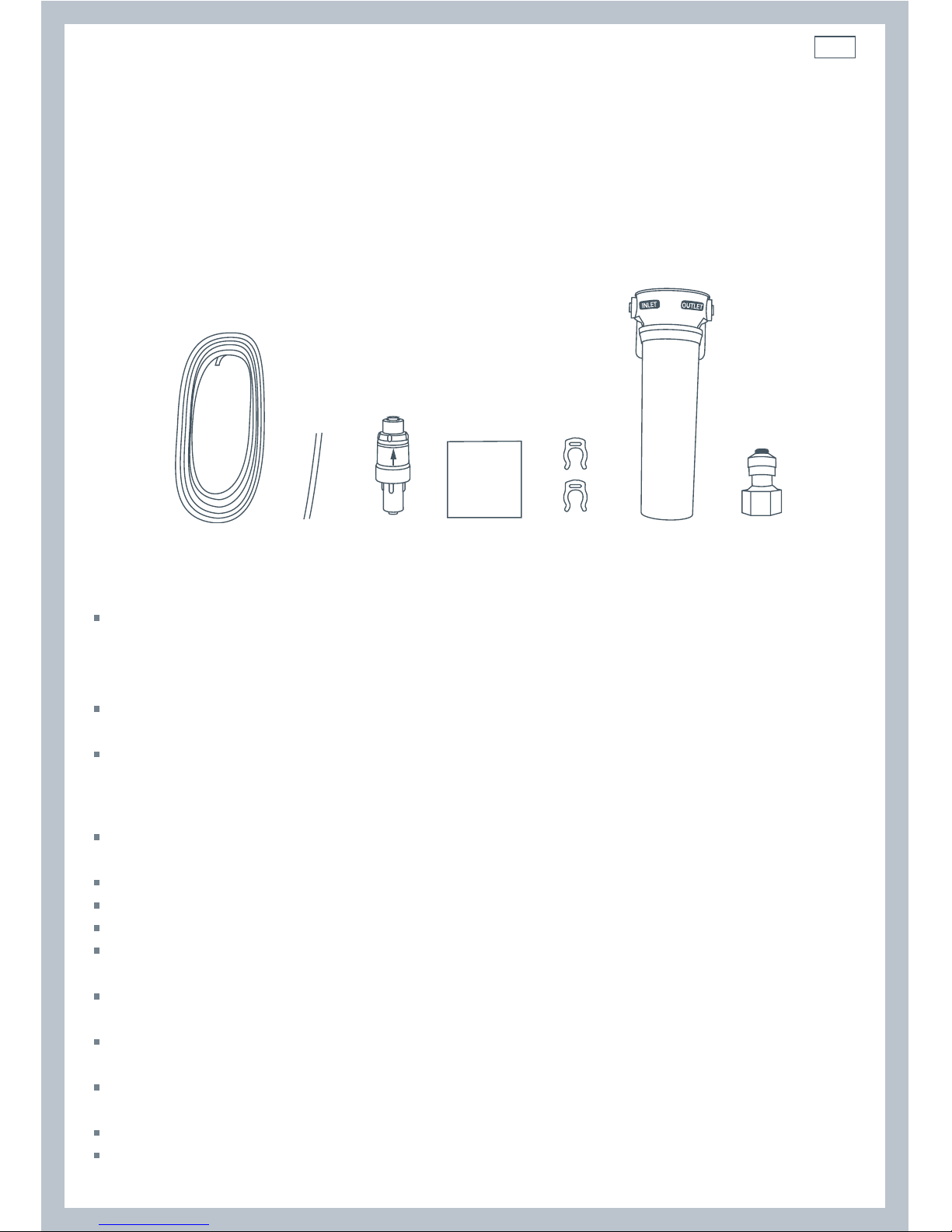

Contents of filter kit

4 m (13 ft) white 6 mm (¼”) tubing

1 x 200 mm (8”) blue tubing

1 x pressure reducing valve (PRV)

1 x double sided foam

2 x locking keys

1 x water filter cartridge and head

1 x tap connection – 15 mm (½”) BSP

Fig.2 Water connection kit

1234567

Important!

It is imperative the pressure reducing valve (PRV) is fitted prior to the filter. This valve ensures

the water will not flow back into the mains from the refrigerator water system. If the PRV is not

fitted to the connection line your Ice & Water refrigerator features may not function in some

circumstances.

It is recommended that an authorised plumber in your state or town is used to install the water

connection.

The new tubings supplied with the machine are to be used, old tubings should not be used.

Installation precautions/warning

DO NOT use with water that is microbiologically unsafe or of unknown quality without

adequate disinfection before or after the system.

WARNING – connect to potable water supply only.

DO NOT install on line pressure above 900 kPa (130 psi) or below 150 kPa (22 psi).

DO NOT use on hot water supply (38°C [100°F max.]).

DO NOT install near electrical wires or water pipes that will be in the path of drilling when

selecting the location of filter system.

DO NOT mount filter in such a position so that it will be struck by other items, such as

wastebaskets, etc.

DO NOT install the filter in direct sunlight as prolonged exposure to light can weaken plastic

components.

DO NOT install in a location that is susceptible to freezing temperatures as damage to the

housing could occur.

DO NOT screw filter to fridge.

AVOID contamination of pipes during installation.

6Installation instructions

Installation instructions:

Ensure that refrigerator is not plugged into a power supply.

Locate isolation tap for water connection – cold water feed

only (dishwasher or sink mixer taps) – if you can’t find the

connection tap, contact an authorised plumber in your state

or town to fit your water connection.

Connect the 200 mm (8”) blue tubing to the outlet of the

PRV (blue collet) and the inlet connection of the water filter

cartridge as shown in Diagram 1. Gently pull on both ends

to ensure it is locked.

Connect the white 6 mm (¼”) tubing to the outlet of the

water filter cartridge as shown in Diagram 2. Gently pull to

ensure it is locked.

Measure the required length of tubing to run from the PRV

to the water connection point.

Cut the tubing making sure the ends are square and clean.

Connect the tubing to the tap connection and the base

of the PRV (white collet) and then to the tap as shown in

Diagram 3. Please note that the tap connection supplied

should fit most installation situations. If your tap requires a

different fitting, please contact an authorised plumber

in your state or town to purchase the correct fitting.

Connect one locking key to each side of the water

filter cartridge in between the cartridge and the

locking collet as shown in Diagram 4.

To flush the water filter and check for leaks, aim the

end of the tubing into a bucket, turn isolating tap on

and run at least 3 litres (3 qt) of water through. Once

complete, turn isolating tap off.

Locate desired position for water filter noting carefully the

following points:

It is recommended to fit the filter in a vertical

orientation with the water filter head at the top. This will

minimise water leakage when replacing cartridge.

Ensure the filter is in a convenient location to access

every 6 months for replacement. We suggest that

this location is beside the water filter supply tap in the

cupboard beside the refrigerator.

A minimum clearance of 64 mm (2 ½”) from the

bottom of the filter cartridge is required to perform

cartridge removal.

Do not screw filter to fridge.

Diagram 3

Fig.5 Tap connection

Fig.3 PRV connection

Diagram 1

INLET

Diagram 4

Fig.6 Locking key

Diagram 2

Fig.4 Waterline connection

Installation instructions

Attach double sided foam to the back of the water filter head as shown in

Diagram 5. Write the date to be replaced on the filter (date installed + 6

months). Remove double sided foam backing and attach filter to the desired

position as located in step 10 (refer to previous page).

Run the 6 mm (¼”) tubing to back of the fridge ensuring there is enough

tubing to pull out the refrigerator for service.

Connect tubing into the water (solenoid) valve located on the right hand side of

the unit (compressor) compartment as shown in Diagram 7. Beware of hot pipes.

Pull gently on tubing to ensure it is locked in as shown in Diagram 8.

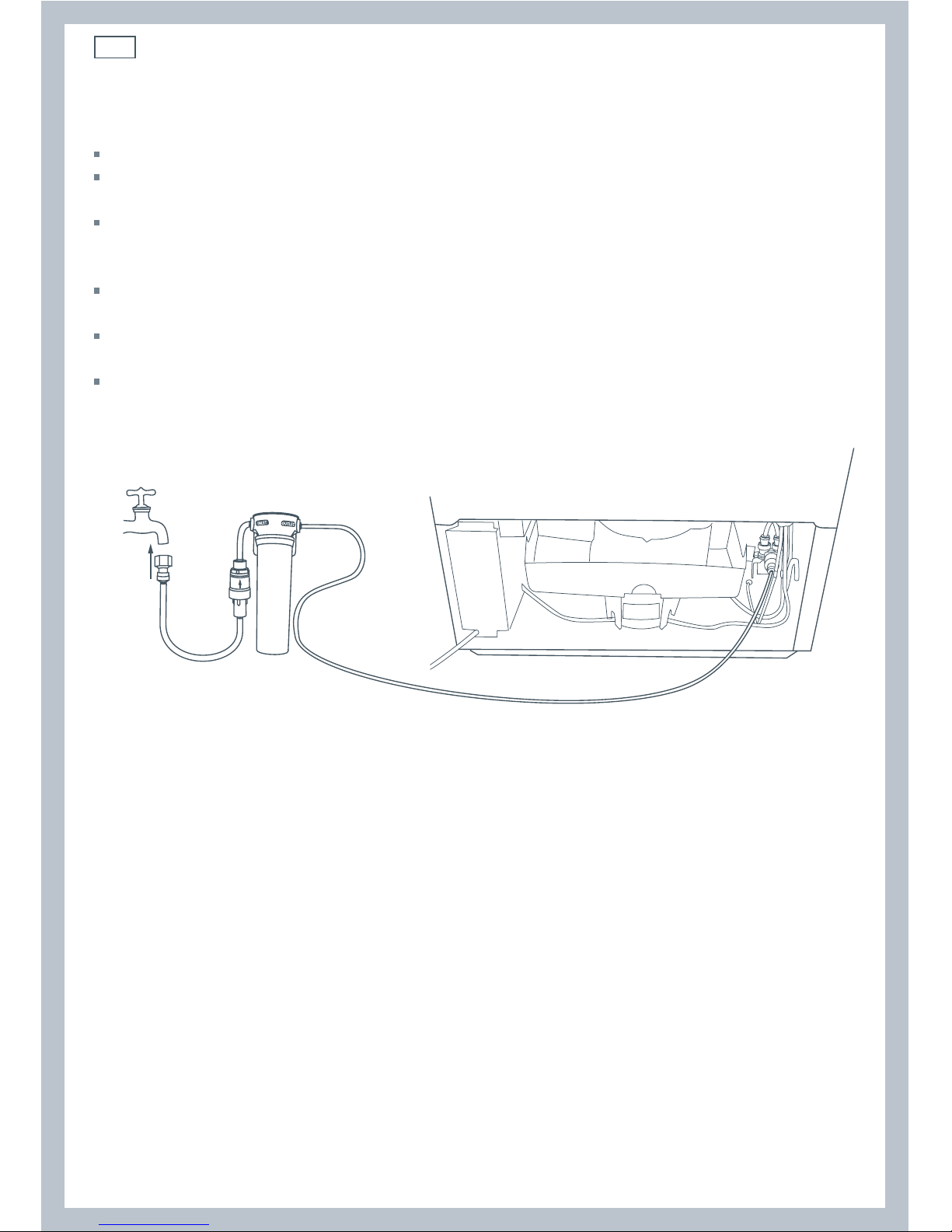

The completed installation should look like Diagram 9 on page 8.

Fig.8 Waterline connection

to refrigerator

Diagram 7

Diagram 6

Diagram 8

Turn isolating tap on and check that all connections are dry and free of drips. If not, please alert

the plumber.

Coil water line tubing behind the fridge. Push your refrigerator into place being careful not to

kink or squash the water line running into the water (solenoid) valve.

Read pages 9 – 14 carefully, and then turn refrigerator on.

The first time you require water out of the dispenser, there will be a delay while the water

reservoir fills up. As this is happening, the symbol will flash. Once the reservoir is full, this

symbol will stop flashing.

Run a further 3 litres (3 qt) through the system, stopping intermittently to ensure the reservoir is

flushed out. Failure to do this will result in excessive dripping from your dispenser.

Press until the Ice menu is highlighted then press to turn on the ice maker. Press

together to force a cycle. The ice tray will flip. Force another cycle. The ice tray will flip and spill

the water into the ice bin. Empty water and replace bin.

You are now ready to enjoy chilled water and ice dispensing from your Active Smart™ refrigerator.

Please note that once installation is complete a few drips may appear out of the dispenser over

the next few days as the remaining trapped air is cleared.

Diagram 5

Fig.7 Double sided

foam attachment

8Installation instructions

Important!

All connections must be checked for leaks.

If unsure of connection process and/or leaks then contact your local plumber to install and check

the system for you.

Ensure white 6 mm (¼”) tubing is routed away from sharp objects, sharp corners (beware of

kinking tube as this will stop water flow), clear of the refrigerator unit compartment and not in a

location where it can be squashed.

Ensure all push-fit connections are firmly pushed into place. The tube should push in 20 mm (¾”)

before reaching the stop.

If tubing is removed at any point, re-cut the end and re-insert. Tubing must be fully inserted to

avoid leaks.

To remove tube from connection points, turn off the isolating tap, push in the collet and gently

pull tubing at the same time.

Diagram 9

Fig.9 Connection to water supply

System tested and certified by NSF International against NSF/ANSI Standard 53 for the reduction

of Asbestos, Atrazine, Benzene, Cyst, Carbofuran, Lead, Lindane, Mercury, P-Dichlorobenzene,

Toxaphene & Turbidity; against Standard NSF/ANSI 42 for the reduction of Chlorine Taste and

Odour and Nominal Particulate Class I to a capacity of 2,838 Litres (750 gallons).

Altri manuali per RF201A

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Fisher & Paykel Frigorifero

Fisher & Paykel

Fisher & Paykel RS7621SLK1 Manuale utente

Fisher & Paykel

Fisher & Paykel ACTIVESMART RF605QDUVX1 Manuale utente

Fisher & Paykel

Fisher & Paykel ActiveSmart E402B Istruzioni per il montaggio

Fisher & Paykel

Fisher & Paykel ACTIVESMART RS9120W Manuale utente

Fisher & Paykel

Fisher & Paykel E331T Istruzioni per il montaggio

Fisher & Paykel

Fisher & Paykel ActiveSmart E372B Manuale utente

Fisher & Paykel

Fisher & Paykel ACTIVESMART RF605Q Guida alla risoluzione dei problemi

Fisher & Paykel

Fisher & Paykel RS7621SRHK1 Manuale utente

Fisher & Paykel

Fisher & Paykel ACTIVESMART RS9120W Manuale utente

Fisher & Paykel

Fisher & Paykel IZONA CoolDrawer RB90S Istruzioni per il montaggio

Fisher & Paykel

Fisher & Paykel RB2470BRV Manuale utente

Fisher & Paykel

Fisher & Paykel ActiveSmart RF135B Istruzioni per il montaggio

Fisher & Paykel

Fisher & Paykel ACTIVESMART RS32A72 Manuale utente

Fisher & Paykel

Fisher & Paykel RS6121FRJK2 Manuale utente

Fisher & Paykel

Fisher & Paykel RS36W80 series Manuale utente

Fisher & Paykel

Fisher & Paykel ACTIVESMART RF500QNUB1 Manuale utente

Fisher & Paykel

Fisher & Paykel RS2484SRK1 Manuale utente

Fisher & Paykel

Fisher & Paykel RS36A80U1 Manuale utente

Fisher & Paykel

Fisher & Paykel E402BRXFDU G FP SX Manuale utente

Fisher & Paykel

Fisher & Paykel RB60V18 Istruzioni per il montaggio

Fisher & Paykel

Fisher & Paykel ACTIVESMART RS32A72 Manuale utente

Fisher & Paykel

Fisher & Paykel RS36W80 series Manuale utente

Fisher & Paykel

Fisher & Paykel RF201ADUX Istruzioni per il montaggio

Fisher & Paykel

Fisher & Paykel RS6019BRU Manuale utente

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente
