FLOS F1037046 Manuale utente
REV. 1
DATE 24/08/2021
1
BON JOUR UNPLUGGED
Designed by Philippe Starck, 2015
F1037046
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
2
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.

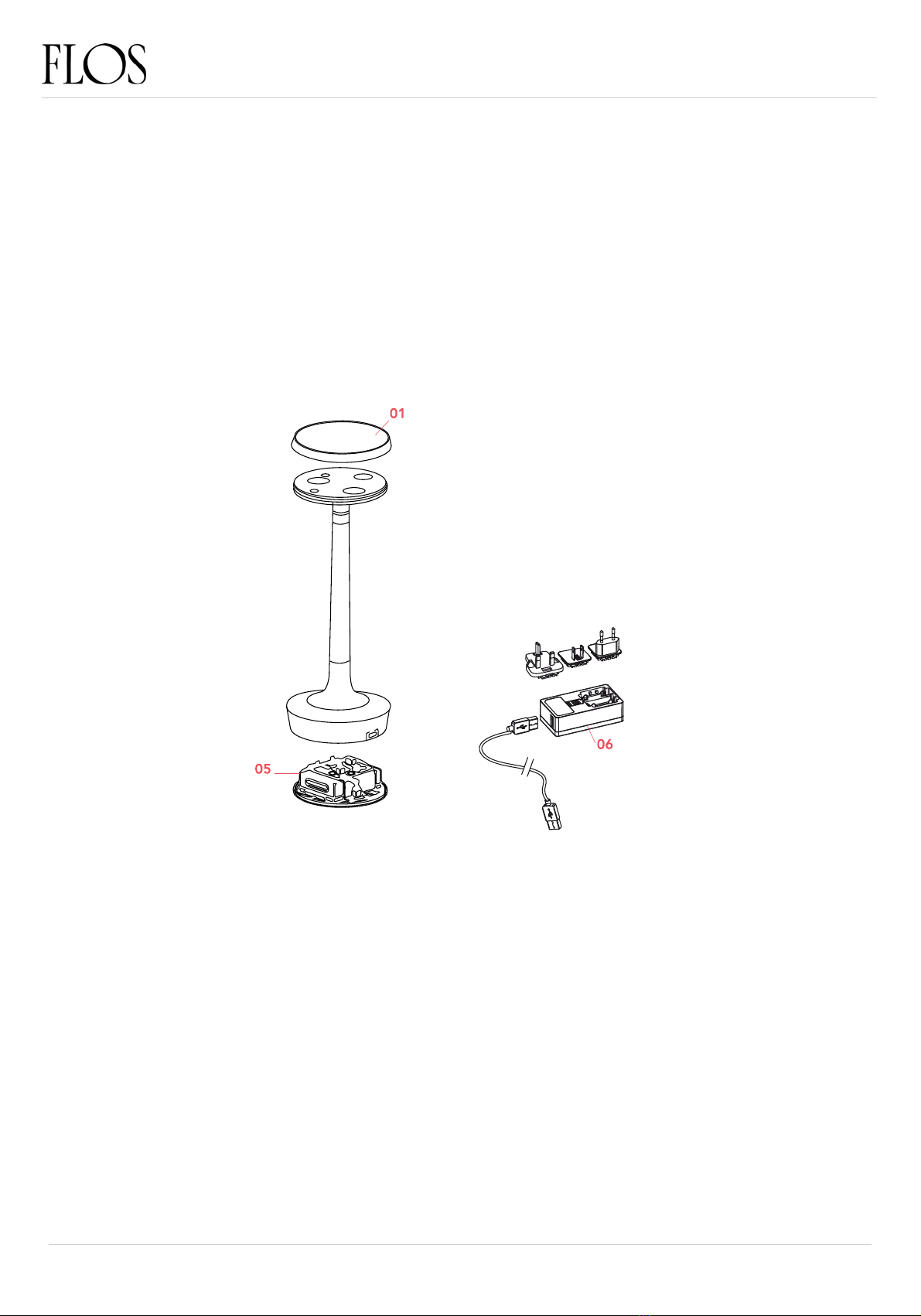

01. RF25459 –Top cover matt chrome assembly
05. RF1037200 –Base assembly with NEW battery kit
06. RF1035109 – Power charger with electrical cable & plugs
BON JOUR UNPLUGGED
F1037046
REV. 1
DATE 24/08/2021
EN
3

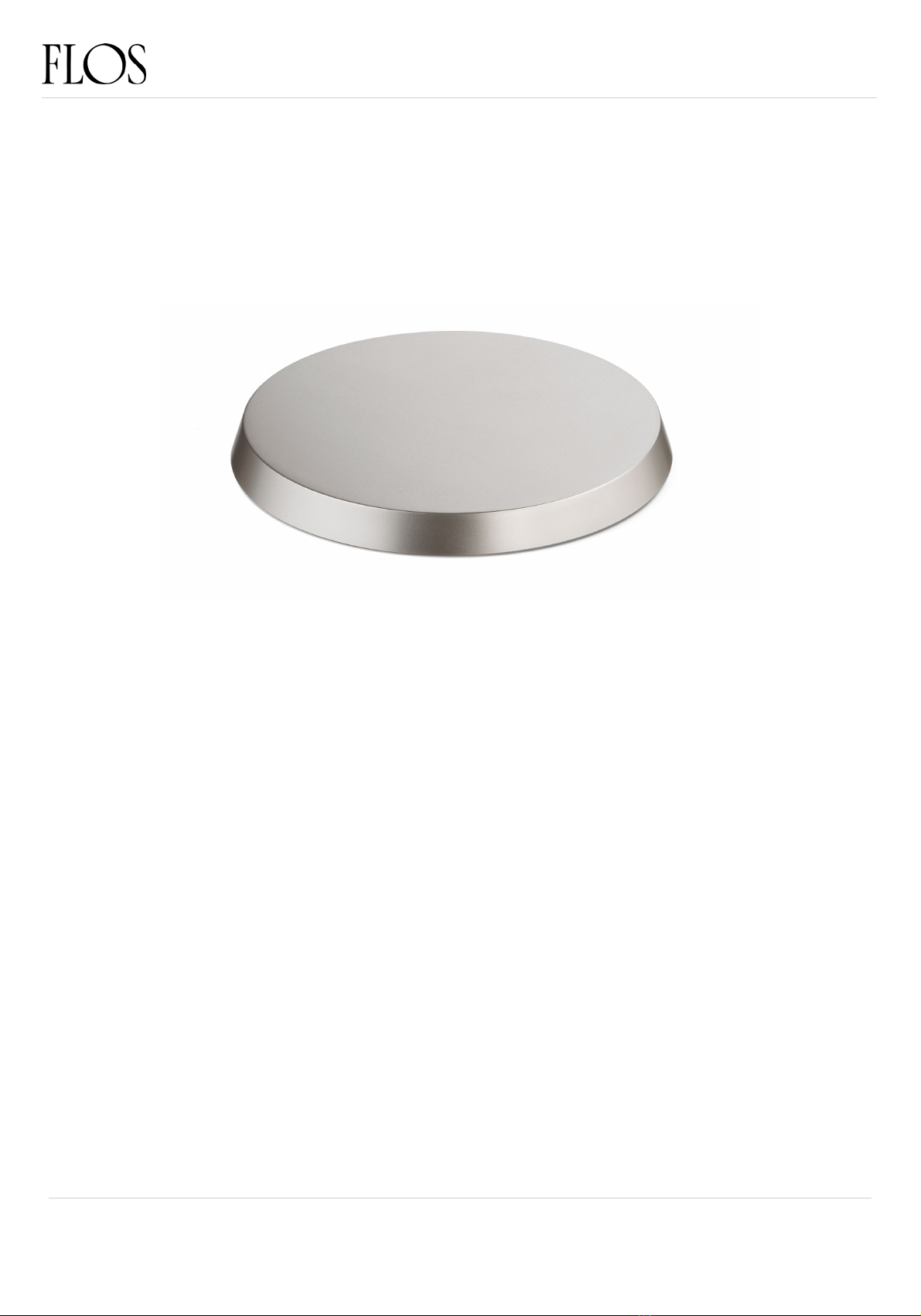

RF25459
TOP COVER MATT CHROME ASSEMBLY
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
BON JOUR UNPLUGGED
F1037046
REV. 1
DATE 24/08/2021
4
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
Support the lampshade (A) (Optional, not included) on the device body's profile (B);
mount the TOP COVER (C) on the device body making sure you accurately position
the three magnet disks (D) in their housings in the body (E) so that the TOP COVER
(C) on completion of the assembly uniformly adheres to the body's profile.
EN
Fig.1
REV. 1
DATE 24/08/2021
RF25459
TOP COVER MATT CHROME ASSEMBLY
BON JOUR UNPLUGGED
F1037046
E
A
C
B
D
C
EN
5
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
RF1037200
BASE ASSEMBLY WITH NEW BATTERY KIT
REV. 1
DATE 24/08/2021
BON JOUR UNPLUGGED
F1037046
6
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
Remove the base assembly with battery kit:
It’s necessary to remove the rubber pad (A) from
underneath the lamp base.
Unfasten the three fixing screws (B).
Fig.1
Fig.2
A
B
RF1037200
BASE ASSEMBLY WITH NEW BATTERY KIT
REV. 1
DATE 24/08/2021
BON JOUR UNPLUGGED
F1037046
7
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
Remove the damaged base assembly with battery
kit (C) from the lamp body (D).
Disconnect the connector (E) using a small clamp
from the battery kit.
Assemble now the new spare-part:
Connect the connector (E) to the battery kit (C).
Fig.3
Fig.4
C
E
D
C
RF1037200
BASE ASSEMBLY WITH NEW BATTERY KIT
REV. 1
DATE 24/08/2021
BON JOUR UNPLUGGED
F1037046
8
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
Assemble the base the new battery kit (C) to the
lamp body (D).
Remarks!!! ensure that the USB port is in
correspondence with the opening slot of the lamp
body.
Fasten the three fixing screws (B).
Fig.5
Fig.6
C
D
B
RF1037200
BASE ASSEMBLY WITH NEW BATTERY KIT
REV. 1
DATE 24/08/2021
BON JOUR UNPLUGGED
F1037046
9
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
Apply the new rubber pad (A) underneath the
lamp base.
Fig.7
Fig.8
A
A
RF1037200
BASE ASSEMBLY WITH NEW BATTERY KIT
REV. 1
DATE 24/08/2021
BON JOUR UNPLUGGED
F1037046
EN
10
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.

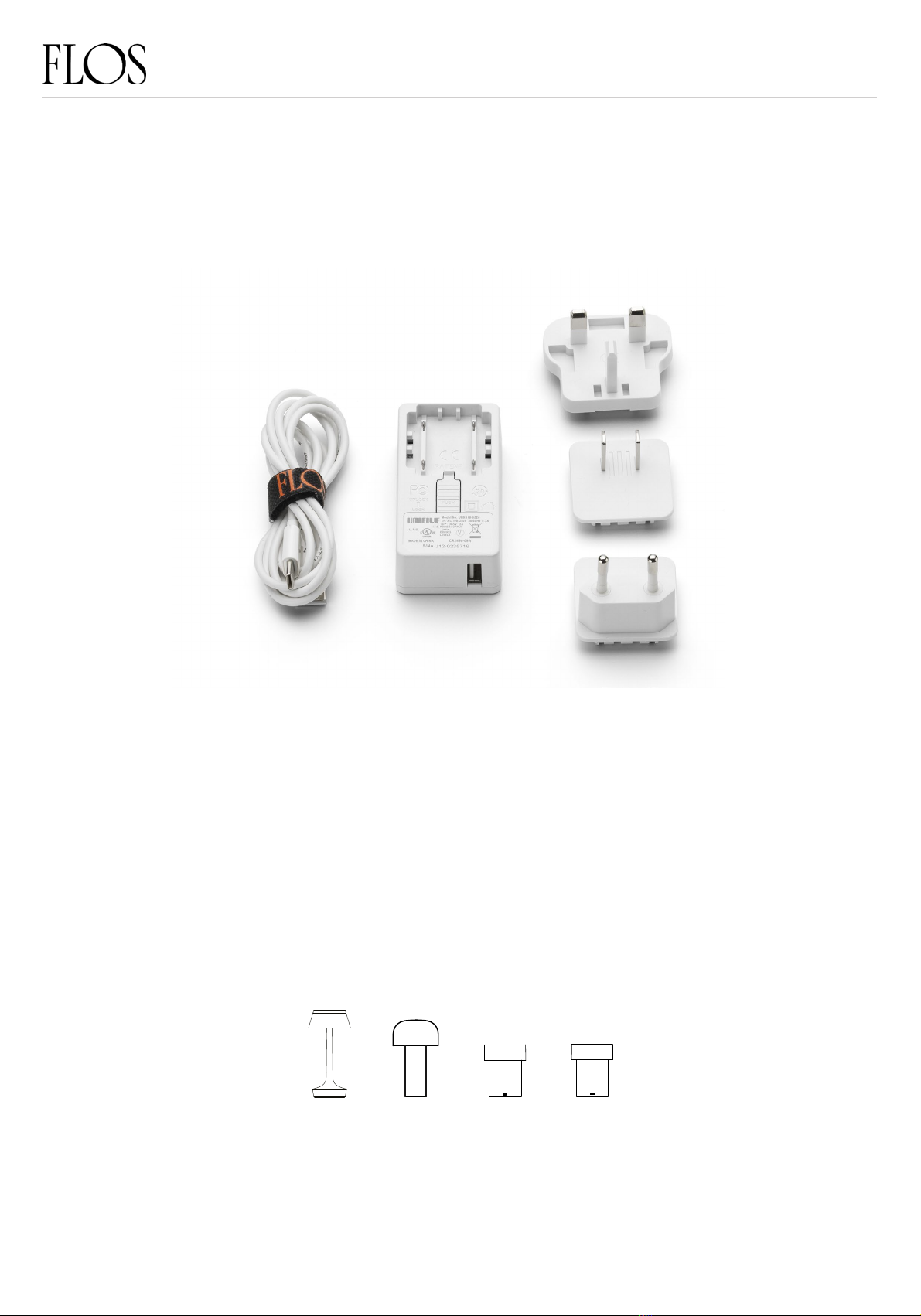

RF1035109
POWER CHARGER WITH ELECTRICAL CABLE & PLUGS
REV. 1
DATE 24/08/2021
BON JOUR UNPLUGGED
F1037046
Bon Jour
Unplugged
p.10
Bellhop
Battery
p.03
Last Order
Clear
p.09
Last Order
Fluted
p.09
