FLOS FU317935 Manuale utente
REV. 1
DATE 24/02/2022
1
IC C/W2
Designed by Michael Anastassiades, 2014
FU317935
©2021 Flos - All rights reserved - www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
2
©2021 Flos - All rights reserved - www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.

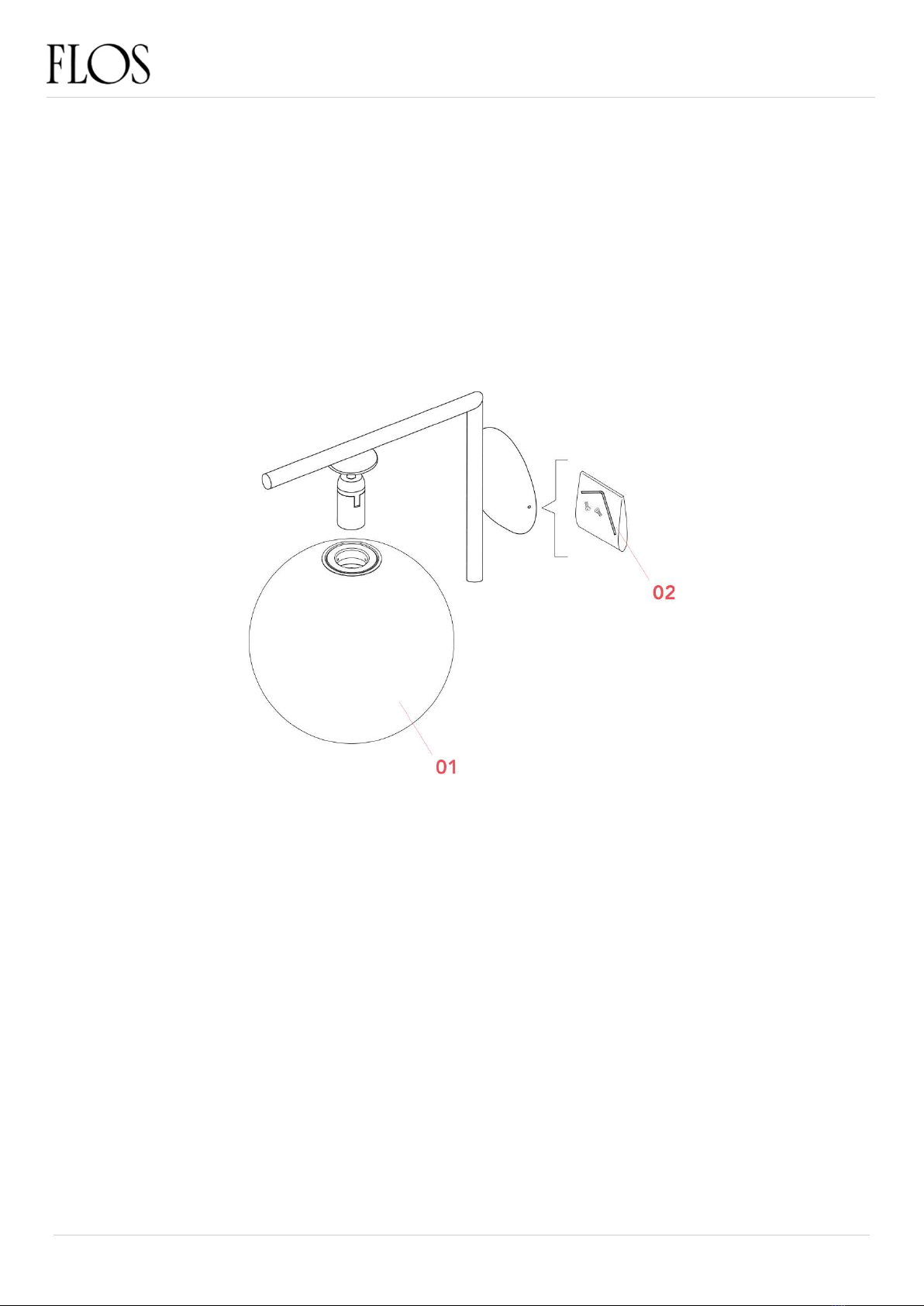

01. F3137035 – Glass diffuser 2 assembly for red burgundy version
02. RF3160100 – Kit with screws and Allen key
IC C/CW2
FU317935
REV. 1
DATE 24/02/2022
EN
3
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos - All rights reserved - www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
F3137035
GLASS DIFFUSER 2 ASSEMBLY FOR RED BURGUNDY VERSION
IC C/W2 FU317935
REV. 1
DATE 24/02/2022
Ic-CW2
double
p.03
Ic-F2
p.03 Ic-S2
p.03
Ic-CW2
p.03
Ic T2
p.03
4
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos - All rights reserved - www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
Assemble the glass diffuser (E) by fastening it delicately to the lamp body’s
ferrule (F).
E
Fig.1
F
REV. 1
DATE 24/02/2022
IC C/W2 FU317935
F3137035
GLASS DIFFUSER 2 ASSEMBLY FOR RED BURGUNDY VERSION
EN
5
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos - All rights reserved - www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
RF3160100
KIT WITH SCREWS AND ALLEN KEY
REV. 1
DATE 24/02/2022
IC C/W2 FU317935
Ic-CW1
double
p.05
Ic-CW2
p.05 Ic-S1
p.08
Overlap
p.06
Ic-CW1
p.05 Ic-CW2
double
p.05
Ic-S2
p.08
6
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos - All rights reserved - www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
Before proceeding in installing the screws, please verify that the glass diffuser
(M) has been removed. If not, please remove to the glass diffuser (M) to avoid
possible damages.
Fig.1
H
RF3160100
KIT WITH SCREWS AND ALLEN KEY
REV. 1
DATE 24/02/2022
IC C/W2 FU317935
7
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos - All rights reserved - www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
Position the lamp body (C) on the wall attachment and assemble the lamp
body by fastening the 2 screws (A) with the Allen key.
HINTS!!! To carry-out this operation position the lamp body close to the wall
attachment, tilt the body and slightly and tip it slightly to the left, to then fasten
it with a slight clockwise rotation.
Fig.2
RF3160100
KIT WITH SCREWS AND ALLEN KEY
REV. 1
DATE 24/02/2022
IC C/W2 FU317935
A
C
A
8
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos - All rights reserved - www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
Assemble back the glass diffuser (H) by fastening it delicately to the lamp
body’s ferrule (I).
Fig.3
H
REV. 1
DATE 24/02/2022
RF3160100
KIT WITH SCREWS AND ALLEN KEY
I
IC C/W2 FU317935
