Fluke 87V Manuale utente

80 Series V

Multimeters

PN 2101973

May 2004 Rev.2, 11/08

Specifications are subject to change without notice.

All product names are trademarks of their respective companies.

Getting Started Manual

Multimeters

Introduction

XW Warning

Read "Safety Information" before you use the Meter.

Except where noted, the descriptions and instructions in this manual

apply to Series V Models 83 and 87 multimeters (hereafter referred to as

“the Meter”).

Model 87 appears in all illustrations.

Contacting Fluke

To contact Fluke, call one of the following telephone numbers:

USA: 1-888-44-FLUKE (1-888-443-5853)

Canada: 1-800-36-FLUKE (1-800-363-5853)

Europe: +31 402-675-200

Japan: +81-3-3434-0181

Singapore: +65-738-5655

Anywhere in the world: +1-425-446-5500

USA Service: 1-888-99-FLUKE (1-888-993-5853)

Or, visit Fluke's Web site at www.fluke.com.

To register your product, visit register.fluke.com

Safety Information

The Meter complies with:

•EN61010-1:2001

•ANSI/ISA S82.01-2004

•CAN/CSA C22.2 No. 1010.1:2004

•UL610101-1

•Measurement Category III, 1000V, Pollution Degree 2

•Measurement Category IV, 600V, Pollution Degree 2

In this manual, a Warning identifies conditions and actions that pose

hazards to the user. A Caution identifies conditions and actions that may

damage the Meter or the equipment under test.

Electrical symbols used on the Meter and in this manual are explained in

Table 1.

XWWarning

To avoid possible electric shock or personal injury, follow

these guidelines:

•Use this Meter only as specified in this manual or the

protection provided by the Meter might be impaired.

•Do not use the Meter if it is damaged. Before you use

the Meter, inspect the case. Look for cracks or

missing plastic. Pay particular attention to the

insulation surrounding the connectors.

•Make sure the battery door is closed and latched

before operating the Meter.

•Replace the battery as soon as the battery indicator

(M) appears.

•Remove test leads from the Meter before opening the

battery door.

•Inspect the test leads for damaged insulation or

exposed metal. Check the test leads for continuity.

Replace damaged test leads before you use the

Meter.

•Do not apply more than the rated voltage, as marked

on the Meter, between the terminals or between any

terminal and earth ground.

80 Series V

Getting Started Manual

•Never operate the Meter with the cover removed or the

case open.

•Use caution when working with voltages above 30 V

ac rms, 42 V ac peak, or 60 V dc. These voltages pose

a shock hazard.

•Use only the replacement fuses specified by the

manual.

•Use the proper terminals, function, and range for

measurements.

•Avoid working alone.

•When measuring current, turn off circuit power before

connecting the Meter in the circuit. Remember to

place the Meter in series with the circuit.

•When making electrical connections, connect the

common test lead before connecting the live test lead;

when disconnecting, disconnect the live test lead

before disconnecting the common test lead.

•Do not use the Meter if it operates abnormally.

Protection may be impaired. When in doubt, have the

Meter serviced.

•Do not operate the Meter around explosive gas, vapor,

or dust.

•Use only a single 9 V battery, properly installed in the

Meter case, to power the Meter.

•When servicing the Meter, use only specified

replacement parts.

•When using probes, keep fingers behind the

finger guards on the probes.

•Do not use the Low Pass Filter option to verify the

presence of hazardous voltages. Voltages greater than

what is indicated may be present. First, make a

voltage measurement without the filter to detect the

possible presence of hazardous voltage. Then select

the filter function.

WCaution

To avoid possible damage to the Meter or to the equipment

under test, follow these guidelines:

•Disconnect circuit power and discharge all high-

voltage capacitors before testing resistance,

continuity, diodes, or capacitance.

•Use the proper terminals, function, and range for all

measurements.

•Before measuring current, check the Meter's fuses.

(See "Fuse Test" in the Users Manual on the 80 Series

V User Manual CD.)

Multimeters

Safety Information

Table 1. Electrical Symbols

BAC (Alternating Current) JEarth ground

FDC (Direct Current) IFuse

XHazardous voltage PConforms to European Union directives.

WRisk of Danger. Important information. See Manual. $ Conforms to relevant Canadian Standards Association directives.

M Battery. Low battery when displayed. TDouble insulated

RContinuity test or continuity beeper tone. E Capacitance

CAT III

IEC Overvoltage Category III

CAT III equipment is designed to protect against

transients in equipment in fixed-equipment

installations, such as distribution panels, feeders

and short branch circuits, and lighting systems in

large buildings.

CAT

IEC Overvoltage Category IV

CAT IV equipment is designed to protect against transients from the

primary supply level, such as an electricity meter or an overhead or

underground utility service.

tUnderwriters Laboratories GDiode

sInspected and licensed by TÜV Product Services.

80 Series V

Getting Started Manual

The Meter's Features

Tables 2 through 5 briefly describe the Meter's features.

Table 2. Inputs

Terminal Description

A Input for 0 A to 10.00 A current (20 A overload for 30 seconds maximum), current frequency, and duty cycle measurements.

A Input for 0 μA to 400 mA current measurements (600 mA for 18 hrs.) and current frequency and duty cycle.

COM Return terminal for all measurements

I Input for voltage, continuity, resistance, diode, capacitance, frequency, temperature (87), and duty cycle measurements.

Multimeters

The Meter's Features

Table 3. Rotary Switch Positions

Switch Position Function

Any Position When the Meter is turned on, the Meter model number briefly appears on the display.

J AC voltage measurement

Press Afor low pass filter (K) (87 only).

LDC voltage measurement

600 mV dc voltage range

MPress Afor temperature (T) (87 only).

N Press Efor continuity test.

eResistance measurement

Press Afor capacitance measurement.

O Diode test

P AC current measurements from 0 mA to 10.00 A

Press Afor dc current measurements, from 0 mA to 10.00 A.

Q AC current measurements from 0 μA to 6000 μA

Press Afor dc current measurements from 0 μA to 6000 μA.

80 Series V

Getting Started Manual

Table 4. Pushbuttons

Button Switch

Position Function

N Selects capacitance

M Selects temperature (87 only)

J Selects ac low pass filter function (87 only)

P Switches between dc and ac current

Q Switches between dc and ac current

(Yellow)

Power-up Disables automatic power-off feature (Meter normally powers off in 30 minutes).

The Meter reads “PoFF” until Ais released.

B Any switch

position

Power-up

Starts recording of minimum and maximum values. Steps the display through MAX, MIN, AVG (average), and present

readings. Cancels MIN MAX (hold for 1 second).

Enables the Meter’s calibration mode and prompts for a password.

The Meter reads “CAL“ and enters calibration mode. See the 80 Series V Service Information.

C Any switch

position

Switches between the ranges available for the selected function. To return to autoranging, hold the button down for 1

second.

Power-up

Switches between °C and °F.

Enables the Meter’s smoothing feature. The Meter reads “5___” until Cis released.

Multimeters

The Meter's Features

Table 4. Pushbuttons (cont.)

Button Switch

Position Function

D Any switch

position

MIN MAX

recording

Frequency

counter

Power-up

AutoHOLD (formerly TouchHold) captures the present reading on the display. When a new, stable reading is detected, the

Meter beeps and displays the new reading.

Stops and starts recording without erasing recorded values.

Stops and starts the frequency counter.

Turns on all LCD segments.

Any switch

position

Turns the backlight on, makes it brighter, and turns it off.

For Model 87, hold Hdown for one second to enter the HiRes digit mode. The “HiRes” icon appears on the display.

To return to the 3-1/2 digit mode, hold Hdown for one second. HiRes =19,999

E Continuity

ReE

MIN MAX

recording

Hz, Duty

Cycle

Power-up

Turns the continuity beeper on and off

Switches between Peak (250 μs) and Normal (100 ms) response times.

Toggles the meter to trigger on positive or negative slope.

Disables the beeper for all functions. The Meter reads “bEEP” until Eis released.

80 Series V

Getting Started Manual

Table 4. Pushbuttons (cont)

Button Switch Position Function

(Relative mode)

Any switch position

Power-up

Stores the present reading as a reference for subsequent readings. The display is zeroed, and the stored reading

is subtracted from all subsequent readings.

Enables zoom mode for the bar graph. Refer to Zoom Mode in the Users Manual located on the 80 Series V User

Manuals CD. The Meter reads “2rEL” until Fis released.

Any switch position

except diode test

Power-up

Press Gfor frequency measurements.

Starts the frequency counter.

Press again to enter duty cycle mode.

Enables the Meter’s high impedance mode when the mV dc function is used.

The Meter reads “Hi2” until Gis released.

Multimeters

The Meter's Features

aom1_af.eps

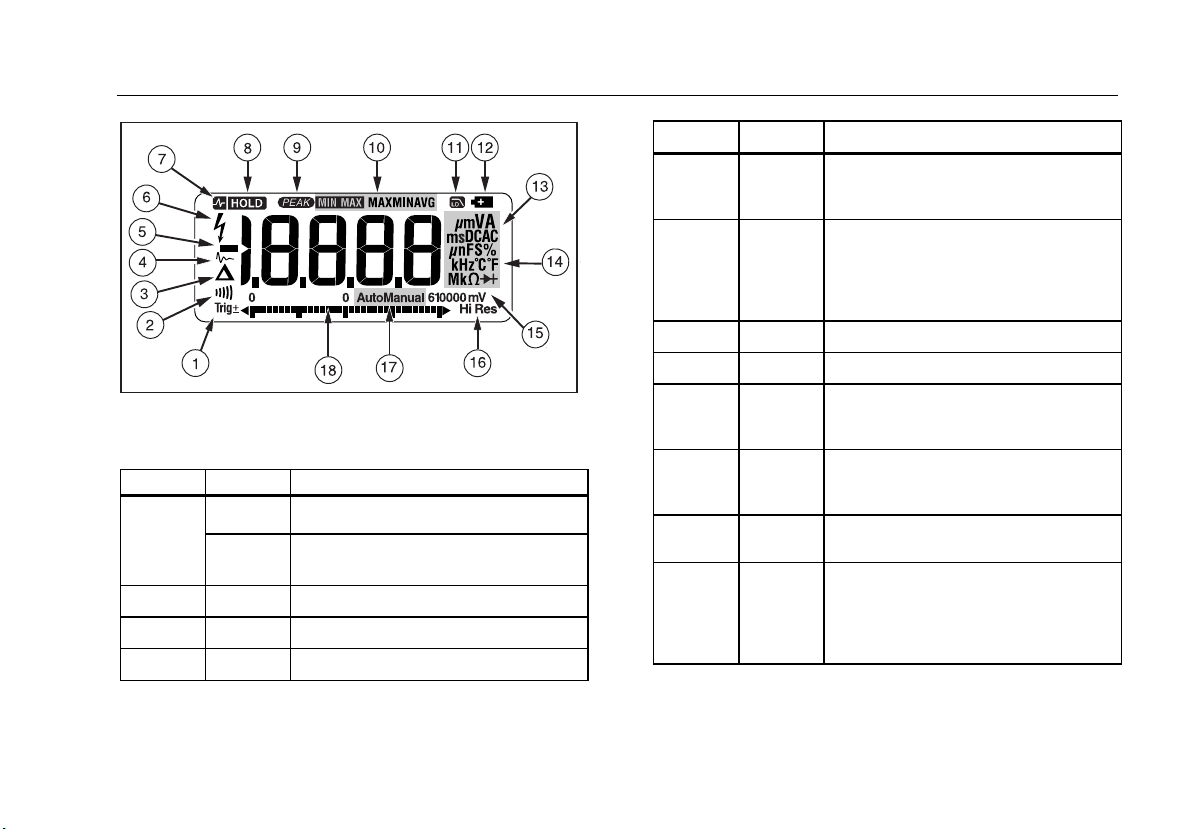

Figure 1. Display Features (Model 87)

Table 5. Display Features

Number Feature Indication

Y Polarity indicator for the analog bar graph.

TrigY Positive or negative slope indicator for

Hz/duty cycle triggering.

B X The continuity beeper is on.

C W Relative (REL) mode is active.

D g Smoothing is active.

Number Feature Indication

E -Indicates negative readings. In relative

mode, this sign indicates that the present

input is less than the stored reference.

F ZIndicates the presence of a high voltage

input. Appears if the input voltage is 30 V

or greater (ac or dc). Also appears in low

pass filter mode. Also appears in cal, Hz,

and duty cycle modes.

G RS AutoHOLD is active.

H S Display Hold is active.

I p Indicates the Meter is in Peak Min Max

mode and the response time is 250 μs (87

only).

MAX MIN

AVG

Indicators for minimum-maximum

recording mode.

K K Low pass filter mode (87 only). See “Low

Pass Filter (87).

L b

The battery is low. XWWarning: To

avoid false readings, which could lead to

possible electric shock or personal injury,

replace the battery as soon as the battery

indicator appears.
