Fluke III Series Manuale utente

English 73 Series III Instruction Sheet.

Panel

Series III Multimeter

Instruction Sheet

Read First: Safety Information

WTo avoid damage to the meter, electric shock or injury:

•Never use the meter if the meter or test leads look damaged.

•Be sure the test leads and rotary switch are in the correct

position for the desired measurement.

•Never measure resistance in a circuit when power is applied.

•Never touch the probes to a voltage source when the test

leads are plugged into the 10 A or 300 mA input jack.

•Never use the meter on circuits that exceed 4800 volt-amps.

•Never apply more than the rated voltage between any input

jack and earth ground.

•Be careful when working with voltages above 60 V dc or 30 V

ac rms. Such voltages pose a shock hazard.

•Keep your fingers behind the finger guards on the test probes

when making measurements.

WWarning

To avoid false readings, which could lead to possible

electric shock or personal injury, replace the battery

as soon as the low battery indicator (M) appears.

Symbols

WCaution: Important Information. See instruction sheet.

MAN Manual Range.

TDouble Insulation.

MLow battery. Replace battery.

CAT II Overvoltage Installation Category per IEC 61010-1-95.

CAT II instruments protect against transients from

equipment supplied from the fixed installation, e.g., TV,

PC, and household appliances.

PN 1646063 February 2002 (English)

1997, 1998,2002Fluke Corporation. All rightsreserved. Printed inChina.

99 Washington Street

Melrose, MA 02176

Phone 781-665-1400

Toll Free 1-800-517-8431

Visit us at www.TestEquipmentDepot.com

English 73 Series III Instruction Sheet.

Panel

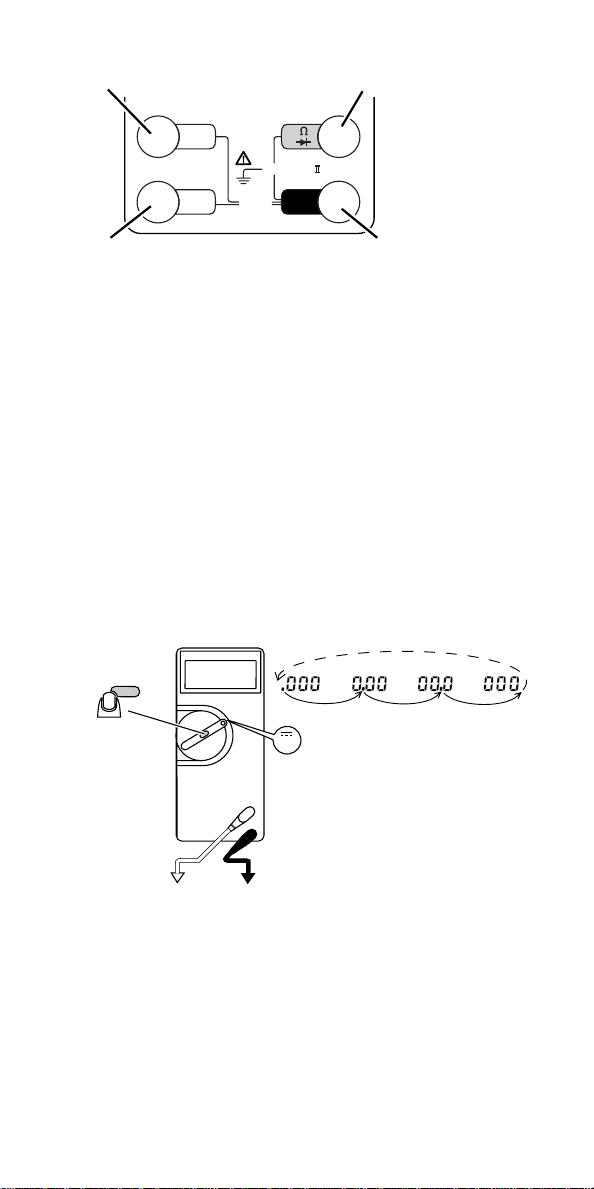

Terminals

300

10A

FUSED

600V CAT

COM

Milliamps

Amps Volts, Ohms, Diode Test

Common Terminal

hr2f.eps

See Specifications for overload protection.

Pushbutton

Use the pushbutton to either select a fixed range or put the meter

in the Automatic Touch Holdmode.

Autorange

The meter defaults to autorange when first turned on.

Manual Range

Manual ranging is available in V ac, V dc, ohms, A ac, and A dc.

The manual range mode and Touch Hold mode are mutually

exclusive. MAN is displayed when the meter is in the manual

range mode.

Momentary

MAN

hr14f.eps

To return to autorange, press Rfor 1 second or change the

measurement function.

English 73 Series III Instruction Sheet.

Panel

Automatic Touch Hold Mode

WWarning

To avoid electric shock, do not use the Touch Hold

mode to determine if a circuit with high voltage is

dead. The Touch Hold mode will not capture

unstable or noisy readings.

The Touch Hold mode automatically captures and displays stable

readings. Press Rfor 2 seconds. HOLD is displayed when

the meter is in the Touch Hold mode.

2 seconds

V DC V DC

_+_

single

beep

V V V

HOLD HOLD

V DC

HOLD

hr3f.eps

When the meter captures a new input, it beeps and a new

reading is displayed.

Note

Stray voltages can produce a new reading.

To exit the Touch Holdmode, press Ror change the

measurement function. The Touch Hold mode and manual range

mode are mutually exclusive.

Bar Graph

The bar graph shows readings relative to the full scale value of a

displayed measurement range and indicates polarity.

hr16f.eps

English 73 Series III Instruction Sheet.

Panel

Standby

If the meter is on but is inactive for an hour (20 minutes in diode

test), the screen goes blank and displays selected bar graph

segments.

To resume operation, turn the rotary switch or press R.

AC and DC Voltage

(KLmL)

+_+_

V AC V DC

Volts AC Volts DC Millivolts DC

hr4f.eps

Resistance

(e)

Turn off the power and discharge all capacitors. An external

voltage across a component will give invalid resistance readings.

hr6f.eps

English 73 Series III Instruction Sheet.

Panel

Diode Test

(G)

Forward Bias

Single Beep

Reverse Bias

Shorted

Open or

Good Diode

Bad Diode

Good Diode

hr7f.eps

English 73 Series III Instruction Sheet.

Panel

Continuity Test

( R)

+_+_

hr5f.eps

If continuity exists (resistance < 210 Ω), the beeper sounds

continuously. The meter beeps twice if it is in the Touch Hold

mode.

Current

(?A)

WWarning

To avoid injury, do not attempt a current

measurement if the open circuit voltage is above the

rated voltage of the meter.

To avoid blowing an input fuse, use the 10 A jack until you are

sure that the current is less than 300 mA.

Turn off power to the circuit. Break the circuit. (For circuits of

more than 10 amps, use a current clamp.) Put the meter in series

with the circuit as shown and turn power on.

hr8f.eps

English 73 Series III Instruction Sheet.

Panel

Holster

The snap-on holster absorbs shocks and protects the meter and

comes with a Flex-Stand. To protect the front of the meter, put

the meter face down in the holster.

hr15f.eps

Maintenance

WWarning

To avoid electric shock, personal injury, or damage to

the meter:

•Do not service this product other than as described

in this Instruction Sheet unless you are a qualified

technician and have the required equipment and

service information.

•Remove any input signals prior to removing test

leads and opening case.

•When servicing the meter, use only specified

replacement parts.

•Do not allow water to get in the case.

WCaution

To avoid damaging meter components, lift up the

end of the battery as shown.

To avoid contamination or static damage, do not

touch the circuit board without proper static

protection.

For maintenance procedures not described in this Instruction

Sheet, contact a Fluke Service Center.

English 73 Series III Instruction Sheet.

Panel

Internal Fuse Test

300 mA

Ω

5-8 Ω

<0.5

OK OK

10 A

OK OK

hr10f.eps

Battery and Fuse Replacement

WWarning

To avoid false readings, which could lead to

possible electric shock or personal injury, replace

the battery as soon as the low battery indicator (M)

appears.

Note

Before opening the case, make sure the test leads are

removed and the rotary switch is turned to OFF.

F1 F2

hr11f.eps

English 73 Series III Instruction Sheet.

Panel

Cleaning

To clean the meter, use a damp cloth and mild detergent; do not

use abrasives or solvents on the meter.

Contacting Fluke

To contact Fluke, call:

1-888-99-FLUKE (1-888-993-5853) in U.S.A

1-800-36-FLUKE in Canada

+31-402-678-200 in Europe

+81-3-3434-0181 Japan

+65-738-5655 Singapore

+1-425-446-5500 from other countries

Visit Fluke’s web site at:

www.fluke.com.

http://register.fluke.com.

Item Description Part

No. Qty.

BT1 Battery, 9 V,

NEDA 1604/IEC 6F22

NEDA 1604A/IEC 6LR61

696534

614487

F1* Fuse, F630 mA, 250 V,

Min Interrupt Rating 1500 A, IEC 127-1 740670 1

F2* Fuse, F11 A, 1000 VAC/DC,

Min Interrupt Rating 17 kA 803293 1

* For safety, use exact replacement

English 73 Series III Instruction Sheet.

Panel

General Specifications

Maximum Voltage Between

any Terminal and Earth

Ground

600 V

Display Digital: 3,200 counts, updates 2.5/sec

Analog: 31 segments, updates 25/sec

Response Time of Digital

Display V ac < 2 s

V dc < 1 s

Ω< 1 s to 320 kΩ, < 2s to 3.2 MΩ,

< 10 s to 32 MΩ

Operating Temperature 0°C to 50°C

Storage Temperature -40°C to 60°C

Temperature Coefficient 0.1 x (specified accuracy) / °C

(<18°C or >28°C)

Electromagnetic Compatibility

in RF field of 3 V/m on all

functions except MΩ

Total accuracy = Specified accuracy

plus +2.0 % of range for all functions

except:

320.0 mV range: total accuracy =

specified accuracy + 1.0 % of range

320.0Ωrange: total accuracy =

specified accuracy + 8 % of range

Relative Humidity

except 32 MΩRange:

32 MΩRange only:

0 % to 90 % (0 °C to 35 °C)

0 % to 70 % (35 °C to 50 °C)

0 % to 80 % (0 °C to 35 °C)

0 % to 70 % (35 °C to 50 °C)

Altitude Operating: 2000 meters

Storage: 12,000 meters

Battery Type 9 V, NEDA 1604 or 6F22 or 006P,

or NEDA 1604A or 6LR61

Battery Life 2000 hrs typical with alkaline

1600 hrs typical with carbon zinc

Continuity Beeper 4096 Hz

Shock, Vibration per MIL-T-PRF 28800F Class III,

Sinusoidal, Non Operating

Size (H x W x L) 2.8 cm x 7.5 cm x 16.6 cm

(1.12 in x 2.95 in x 6.55 in)

Weight 340 g (12.0 oz)

Safety 600 V CAT II per ANSI/ISA S82.01-

1994, EN 61010-1: 1993, CSA C22.2

No 1010.1-92, UL 3111-1.

EMC Regulations EN 61326-1: 1997

Certifications/Listings
