Fluke 718 Series Istruzioni per l'uso e l'installazione

PN 1274353

May 1999

718

Pressure Calibrator

Pump Rebuild Kit

Service Information

Introduction

Use the following diagrams to rebuild the Fluke 718

Pressure Calibrator pump.

How to Contact Fluke

To order accessories, receive operating assistance, or

get the location of the nearest Fluke distributor or

Service Center, call one of the following telephone

numbers:

USA and Canada: 1-888-99-FLUKE (1-888-993-

5853)

Europe: +31 402-678-200

Japan: +81-3-3434-0181

Singapore: +65-738-5655

Anywhere in the world: +1-425-356-5500

Address correspondence to:

Fluke Corporation Fluke Europe B.V

P.O. Box 9090 P.O. Box 1186,

Fluke Everett, WA 5602 BD Eindhoven

98206-9090 The Netherlands

U.S.A.

Or, visit Fluke’s Web site at www.fluke.com.

LIMITED WARRANTY & LIMITATION OF LIABILITY

This Fluke product will be free from defects in material and

workmanship for 90 days from the date of purchase. This warranty

does not cover fuses, disposable batteries or damage from

accident, neglect, misuse or abnormal conditions of operation or

handling. Resellers are not authorized to extend any other warranty

on Fluke’s behalf. To obtain service during the warranty period,

send your defective tester to the nearest Fluke Authorized Service

Center with a description of the problem.

THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER

WARRANTIES, SUCH AS FITNESS FOR A PARTICULAR

PURPOSE, ARE EXPRESSED OR IMPLIED. FLUKE IS NOT

LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR

CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM

ANY CAUSE OR THEORY. Since some states or countries do not

allow the exclusion or limitation of an implied warranty or of

incidental or consequential damages, this limitation of liability may

not apply to you.

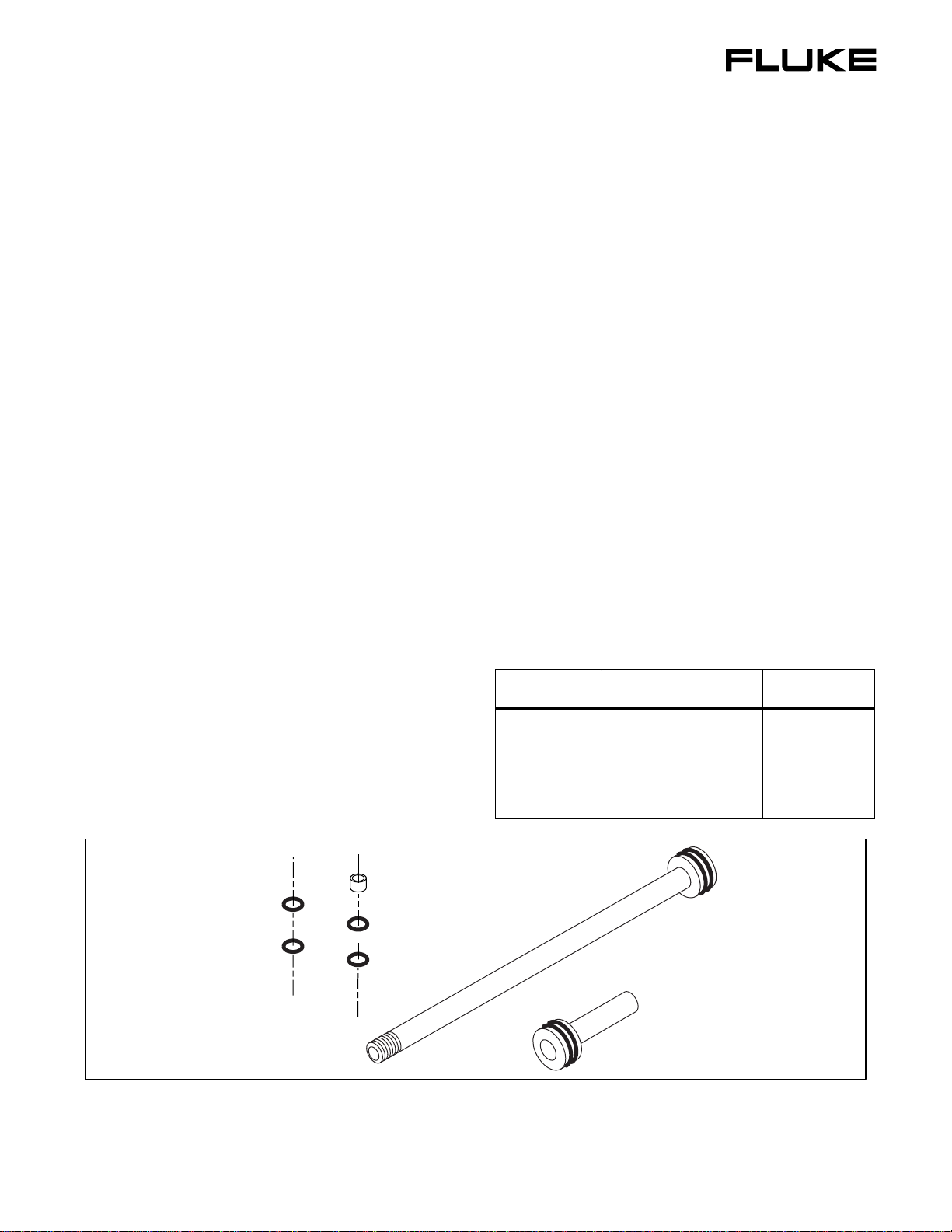

Parts List

Reference

Designator Description Part Number

MP11-14 O-ring 146688

MP15 Nylon Spacer 687449

MP16 Piston, Pump -

MP17 Piston, Vernier -

Not Shown 718 Pump Rebuild Kit

Service Information 1270835

MP12

MP11 MP13

MP15

MP14 MP16

MP17

zc01f.eps

Figure 1. Pump Rebuild Kit Parts

718 Pump Rebuild Kit

Service Information

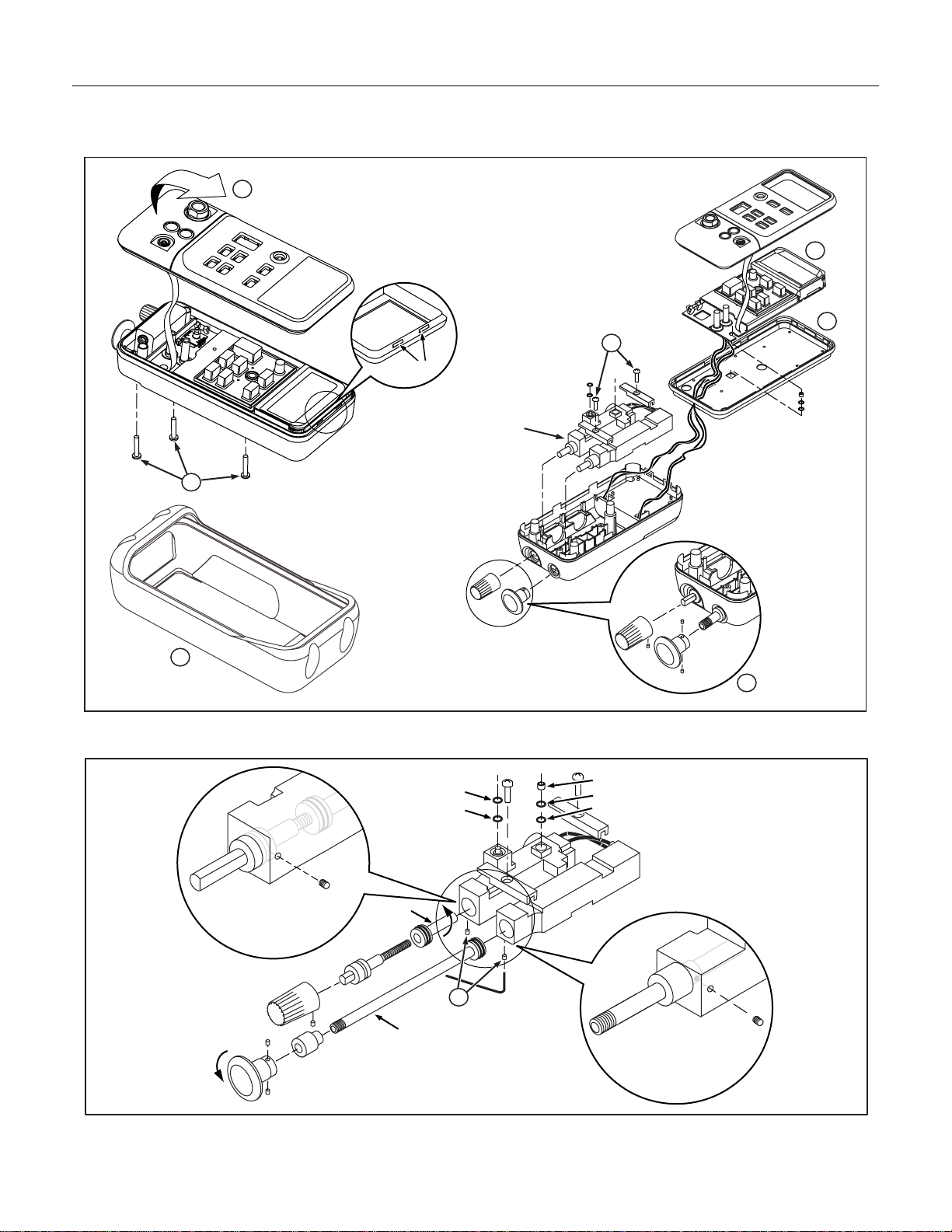

Assembly Drawings

See Detail A

Snaps

zc02f.eps

Figure 2. Disassembly

MP12

MP11 MP13

MP15

MP14

MP16

MP17

1/16"

zc03f.eps

Figure 3. Detail A
