The toughest scopes

ever built.

ScopeMeter® now takes you into CAT IV

environments with four-channel testing.

See more,

fix more,

go where you’ve

never gone with a

scope before.

The 190 Series ScopeMeter® oscilloscopes from

Fluke, with electrically isolated channels, are

safety rated for industrial applications. These

scopes combine rugged portability with the

high performance of bench oscilloscopes to

take you from troubleshooting microelectronics

all the way into power electronic applications.

Choose from two or four channel models

with a wide range of bandwidth options.

Fast sampling rates up to 2.5GS/s, 400 ps

resolution and deep memory of 10,000 samples

per channel allow high-accuracy capture and

display of waveform details, noise, and other

disturbances.

Perform timing or amplitude related

measurements on three phases or three-

axis control systems or simply compare and

contrast multiple test points in a circuit under

test. Features like TrendPlot™, ScopeRecord™,

and Connect-and-View™ help you quickly

diagnose industrial machinery, automation

and process controls, and power electronics to

minimize repair costs and downtime. These

features make the oscilloscopes easy to use

especially when diagnosing the most difficult

problems like complex waveforms, intermittent

events and signal fluctuations or drift.

New Li-ion battery technology keeps your

scope on the job, all day.

Fluke 190 Series ScopeMeter test tools

are available with two or four channels,

60MHz to 200 MHz. Choose the model

that’s right for your environment and

budget.

ScopeMeter® portable

oscilloscopes take you

into territory that standard

bench scopes can’t

go: where it’s harsh,

hazardous and dirty.

Built to with-

stand harsh

environments

with the highest

safety ratings

Rated all the way to CAT IV

ScopeMeter test tools are rugged solutions built

for industrial troubleshooting. The new Fluke

190 Series II are double-insulated floating

oscilloscopes safety rated for measurements in

CATIII 1000V/CAT IV 600V environments. The

two-channel Fluke 190C Series is rated CAT II

1000V/CAT III 600 V.

Measure from mV to kV safely

Independent isolated inputs allow you to make

measurements in mixed circuits having different

ground references and reduces the risk of acci-

dental short circuits.

Conventional bench oscilloscopes without

special differential probes and isolation trans-

formers can only reference measurements to

line power earth ground.

With standard probes that cover a wide appli-

cation range from mV to kV, you’re ready for

anything from microelectronics to heavy-duty

medium voltage electrical applications.

The only IP-51 rated scopes on the

market

Rugged and shock-proof, ScopeMeter portable

oscilloscopes are built for harsh environments.

With its sealed case, it can endure dust, drips,

humidity and airborne pollutants. Every time

you reach for the scope you can be confident it

will work reliably.

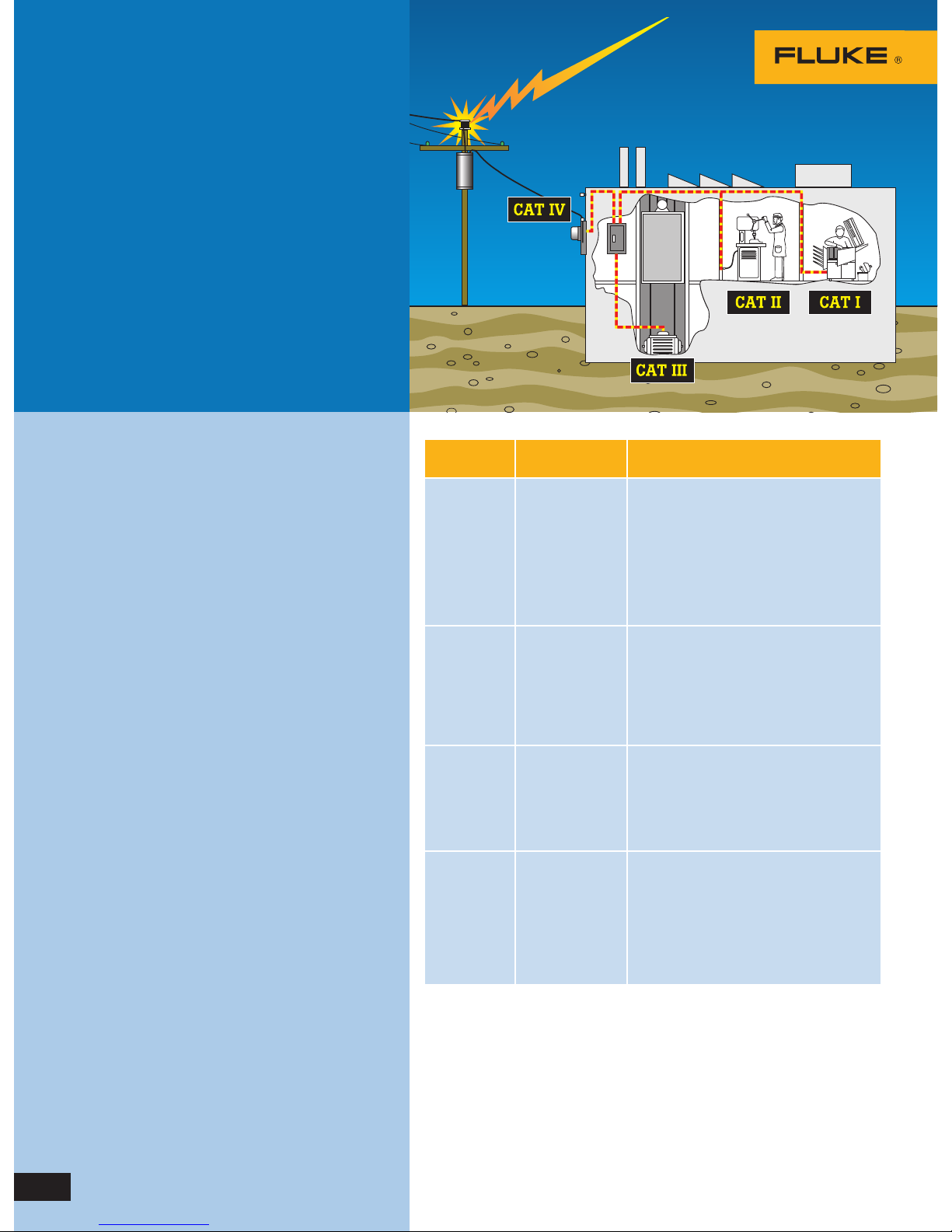

Overvoltage

category In brief Examples

CAT IV Three-phase at

utility connection,

any outdoor

conductors

• Refers to the “origin of installation,” that

is, where low-voltage connection is made

to utility power

• Electricity meters, primary overcurrent

protection equipment

• Outside and service entrance, service

drop from pole to building, run between

meter and panel

• Overhead line to detached building,

underground line to well pump

CAT III Three-phase

distribution,

including single-

phase commercial

lighting

• Equipment in ﬁxed installations, such as

switchgear and polyphase motors

• Bus and feeder in industrial plants

• Feeders and short branch circuits,

distribution panel devices

• Lighting systems in larger buildings

• Appliance outlets with short connections

to service entrance

CAT II Single-phase

receptacle

connected loads

• Appliance, portable tools, and other

household and similar loads

• Outlet and long branch circuits

– Outlets at more than 10 meters (30 feet)

from CAT III source

– Outlets at more that 20 meters (60 feet)

from CAT IV source

CAT I Electronic • Protected electronic equipment

• Equipment connected to (source) circuits

in which measures are taken to limit

transient overvoltages to an appropriately

low level

• Any high-voltage, low-energy source

derived from a high-winding resistance

transformer, such as the high-voltage

section of a copier

Table 1. Overvoltage installation categories. IEC 61010 applies to low-voltage

(< 1000 V) test equipment.

Multiply your

diagnostic

powers with

the new four-

channel Fluke

190 Series II

Introducing the first four-channel scope

with CAT IV rating

The first CAT III 1000 V/CAT IV 600 V rated,

four-channel portable scope on the market,

the new Fluke 190 Series II brings an unprec-

edented combination of performance and

ruggedness into the field.

Take on new challenges in industrial

machinery, automation and process

controls, power conversion electronics

Analyze timing and amplitude relationships of

multiple signals simultaneously, easily compare

and contrast waveform traces spotting irregu-

larities with ease.

• For three-phase power applications like

industrial motors and drives, UPS and invert-

ers for wind energy, and diesel locomotive

controls for transportation

• For three-axis testing when you need to

measure input, output and control signals

simultaneously

The ultimate in portability

New high-performance batteries take advantage

of Li-ion technology to keep you going strong

for a full shift. With the easy-access battery

door you can make battery swaps fast.

New USB connectivity makes it easy to

capture and share waveforms

The new Fluke 190 Series II offers two USB

ports, electrically isolated from measurement

input circuits. Easily transfer data to a PC.

Archive and share waveforms with OEMs,

colleagues and support staff. Store unlimited

waveforms, screen captures and instrument

setups onto USB memory devices.

AC to DC

conversion

Mains

supply

Mechanical

output

Motor (load) Cable interface

DC to AC converter

DC lter

and buffer

bus

voltage

Gnd

+Vdc

-Vdc

Input

Safety control

Feedback

Analog/Digital

Output

Condition

Transducers

Measurements’

Process/Display

Power Supply

Analog

Digital

What could you

do with four

channels?

Take multiple measurements

simultaneously and track down the

root cause of your most complex

troubleshooting challenges.

Easily diagnose timing-related issues

with multiple signals

• Real-time inspection of multiple related

signals simultaneously

• Measure a combination of input and output

signals and system safety interlocks and

feedback loops

Find problems in industrial systems

including:

• Circuit voltage/current overloading

• Attenuation/input impedance mismatch

• Signal fluctuation/drift

• Conditioning circuits signal integrity

• Test point verification for critical signals

• Input/output/feedback timing issues

• Induced noise and disturbances

• Random shutdowns/reset

Diagnose VSDs or power inverters and

converters

• Harmonics, transients and loads in three-

phase power input

• Troubleshoot dc to ac converters for faulty

control circuits or output IGBT gate stages

• Cable interface—test PWM output for reflec-

tions and transients

In three-phase systems like variable speed drives, UPS or

back-up generators, use four channels to diagnose power

input, dc to ac converters, or cable interface problems.

For industrial electronics, four channels allows you to

perform three-dimensional testing, measuring input,

output and feedback signals simultaneously.

Fluke ScopeMeter

test tools work

harder to make

your job easier

Use the 27,000 points memory of

ScopeRecord and zoom in for maximum

detail.

Cursors and zoom features of the

Fluke 190 Series help you to analyze

the captured TrendPlot.

Connect-and-View™ captures even the

most complex motor drive signals.

See what’s happening with

fast real-time high resolution

sampling. ScopeMeter offers a

sample rate of up to 2.5 GS/s

with up to 400 ps resolution

Connect-and-View™

triggering for an instant,

stable display

If you’ve used

other scopes, you

know how tricky

triggering can be. If settings

are incorrect, results can be

unstable or incorrect. Connect-

and-View™ automatically sets up

correct triggering by recognizing

signal patterns. Without touch-

ing a button, you get a stable,

reliable and repeatable display

of virtually any signal including

motor drive and control signals.

It’s especially fast and conve-

nient when you’re measuring a

number of test points in rapid

succession.

ScopeRecord™ mode for

high resolution waveform

recording up to 48 hours

ScopeRecord™ memory stores up

to 27,000 data points per chan-

nel, capturing fast intermittents

and glitches as short as 8 ns.

(Two sets of multiple-channel

recordings can be stored for later

analysis.)

• Stores events like motion

profiles, UPS, power supply

and motor start-ups

• With the Stop on Trigger

mode, the ScopeMeter auto-

matically recognizes a power

failure and stores the wave-

form data preceding it

• With the waveform zoom (up

to 100x) you can look at the

smallest details, like individual

power cycles

TrendPlot™ paperless

recorder—records up to

16 days to help you find

intermittent faults

The toughest faults to find are

those that happen once in a

while. These intermittents can

be caused by bad connections,

dust, dirt, corrosion, or simply

broken wiring or connectors.

Line outages, sags or starting

and stopping of a motor can

also cause a machine to stop.

You may not be around when

it happens, but the Fluke

ScopeMeter will.

• Plot minimum and maximum

peak values and average over

time up to 16 days

• Plot any combination of volt-

ages, amps, temperature,

frequency and phase for all

four inputs, all with time and

date stamp to pinpoint faults

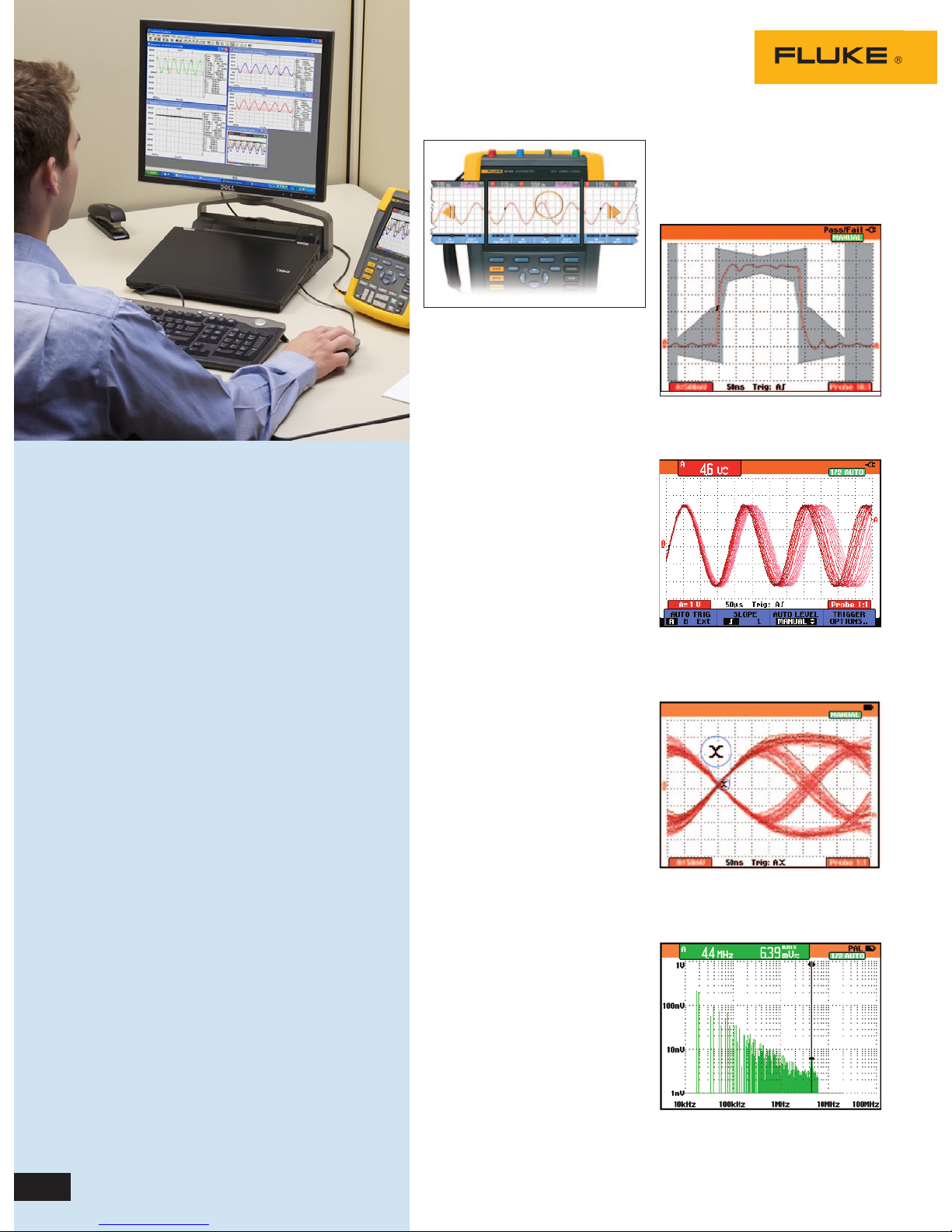

FlukeView® ScopeMeter software for

documenting, archiving and analysis

Get more out of your ScopeMeter with

FlukeView® ScopeMeter® SW90W Software for

Windows.

• Documentation—transfer waveforms, screens

and data to your PC for printing or importing

data into a report

• Add text to ScopeMeter settings—give

operators guidance when recalling settings

• Archives—create a library of waveforms for

easy reference, waveform comparison, or

pass/fail testing

• Analysis—use cursors, perform spectrum

analysis or export data to another analysis

program

• Connect to your PC with optically isolated

USB port

Look back in time with

automatic capture and dis-

play of last 100 screens

It’s frustrating to see a one-time

anomaly flash and miss it. Fluke

ScopeMeter will solve the prob-

lem by letting you look back in

time with a touch of the replay

button.

• In normal use, the instrument

continuously memorizes the

last 100 screens. As each new

screen is acquired, the oldest

is discarded.

• At any moment you can

“freeze” the last 100 screens

and scroll through picture-by-

picture or replay as a “live”

animation

• Use cursors for further analysis

• With advanced triggering you

can capture up to 100 specific

events (Two sets of 100

captured screens with individ-

ual time stamps can be stored

for later recall or downloaded

to a PC.)

Pass/Fail testing of actual signal

against a reference template.

Persistence, FFT,

mathematics and

pass fail waveform

envelope testing

Cursors and automatic

waveform measurements

With 30 automatic measure-

ments, cursors, zoom and a

real-time clock, the ScopeMeter

will perform automatic power

and Vrms measurements on the

specific portion of the waveform

you select within a specified

time span.

Digital Persistence mode gives analog

scope-like display of complex and

modulated signals.

Frequency Spectrum shows an

overview of frequencies contained

in a signal.

Dual-slope triggering used to

capture the eye-pattern on a digital

datastream.

A broad family

of ScopeMeter

models

One, two or four input channels—

choose the model that fits your

applications and budget.

Fluke offers the broadest range

of bandwidths in portable

oscilloscopes—from 20MHz to

200MHz.

ScopeMeter 190 Series II: Be prepared for

anything in a CAT IV world with three-axis

and three-phase testing.

• Four independent isolated inputs

• Choose 100 MHz or 200 MHz bandwidth

• Fast sample rate: up to 2.5 GS/s with up to

400 ps resolution

• Single shot, pulse width and video triggering

• Deep memory: 10,000 point per trace wave-

form capture

• CAT III 1000 V/CAT IV 600 V, safety rated

• Up to seven hours of operation with high-

performance Li-ion batteries, standard

• Battery door for conveniently swapping out

batteries to extend usage time

• Isolated USB ports, for memory devices and

PC connectivity

• Security slot to lock down instrument using

standard Kensington® lock

• Plus all the standard features of ScopeMeter

including TrendPlot™, Connect-and-View™

triggering and ScopeRecord™

ScopeMeter 190C Series:

Bench performance in a

rugged two-channel handheld

for automation and process

control applications.

• Dual input

• Choose your bandwidth:

60MHz, 100MHz, 200MHz

• High-resolution color display

• Fast sample rate up to

2.5 GS/s with up to 400 ps resolution

• CAT II 1000V/CAT III 600V safety rated

• Plus all the standard features of ScopeMeter including

TrendPlot™, Connect-and-View™ triggering and ScopeRecord™

ScopeMeter 120 Series:

Three-in one simplicity for

electrical or electromechanical

troubleshooting.

• It’s an oscilloscope, a multimeter

and a paperless recorder in one

affordable, easy-to-use instrument

• Dual input

• Up to seven hours of battery

operation

• CAT III 600 V safety rated

• Automatic measurements

• Choice of 40MHz or 20 MHz

bandwidth

• Two 5,000 count true-rms digital multimeters

• Includes standard ScopeMeter features like Connect-and-View™

and TrendPlot™ recording

• Model 125 offers bus health and power measurements

for industrial network testing

ScopeMeter 215C and 225C:

ScopeMeter for Industrial Bus Health

Testing leverages the full functionality

of the 199C and 196C.

• Get the full functionality of a high-

performance two-channel ScopeMeter plus

powerful test capabilities to diagnose a wide

variety of industrial bus systems

• In bus health test mode, it automatically

analyzes the electrical signals passing through

the bus, and compares the parameters to

industry standard values for that bus type

• Or select an ‘Eye pattern’ display to visually check the overall

signal quality

• Choose 200 MHz or 100 MHz bandwidth models

Industrial Industrial Electronics Electronic Field Service

Technologies Electrical Electro-

mechanical

Process

Controls

Automation Medical

Imaging

Avionics A/V and

Security

Systems

Equipment Switch gear,

interlocks,

VFD drives,

pumps, fans,

furnaces,

presses,

mixers,

refrigeration

Actuators,

linear motors,

pressure, level,

flow, positioning

sensors, cutters,

and packaging

equipment

Transducers

and sensors,

loop controllers,

calibrated

gauges

PLC´s, sensors,

transducers,

motion

controllers,

rotary encoders,

scanners,

readers, printers

XRay, MRI,

ultrasound

imaging

equipment

Flight line

navigation

systems,

communication

systems, radars,

on board aircraft

control systems

Retail security

devices,

surveillance

and monitoring

equipment, RFID

120 Series: Electrical and Electromechanical Troubleshooting

123 •

124 •

190C Series: Industrial Electronics, Automation and Process Control Testing

192C •

196C • •

199C • • • •

190 Series II: Four-Channel Industrial Electronics Applications

190-104 • • • •

190-204 • • • •

Industrial Network Bus Health Troubleshooting

125 • •

215C and 225C • •

Which ScopeMeter fits you?

Fluke ScopeMeter Quick Selection Guide

Features

Fluke 190C Series Fluke 190C Series

with Bus Health

Fluke 190 Series II

192C 196C 199C 215C 225C 190-104 190-204

Bandwidth 60 MHz 100 MHz 200 MHz 100 MHz 200 MHz 100 MHz 200 MHz

Number of inputs 2 + 1 2 + 1 2 + 1 2 + 1 2 + 1 4 4

Dual Input TrendPlot™• • • • • • •

Four Input TrendPlot™— — — — — • •

ScopeRecord™ Mode • • • • • • •

Automatic capture

and replay last

100 screens

• • • • • • •

Bus Health test mode — — — ••— —

Safety, power and warranty

EN61010-1 CAT II 1000 V 1000 V 1000 V 1000 V 1000 V — —

EN61010-1 CAT III 600 V 600 V 600 V 600 V 600 V 1000 V 1000 V

EN61010-1 CAT IV — — — — — 600 V 600 V

Battery 4 hrs, NiMH 4 hrs, NiMH 4 hrs, NiMH 4 hrs, NiMH 4 hrs, NiMH 7 hrs, Li-ion 7 hrs, Li-ion

Connectivity

USB PC interface optional optional optional optional optional standard standard

USB memory port — — — — — standard standard

RS-232 interface to PC optional optional optional optional optional — —

Comprehensive selection guides will be available on the web and in the datasheet

Mainframes

ScopeMeter 190 Series II

Fluke 190-104, ScopeMeter Series II 100 MHz 4 Channel

Fluke 190-104/S, ScopeMeter Series II 100 MHz 4 Channel with SCC Kit

Fluke 190-204, ScopeMeter Series II 200 MHz 4 Channel

Fluke 190-204/S, ScopeMeter Series II 200 MHz 4 Channel with SCC Kit

ScopeMeter 190C Series

Fluke 192C, ScopeMeter 60 MHz

Fluke 192C/S, ScopeMeter 60 MHz with SCC Kit

Fluke 196C, ScopeMeter 100 MHz

Fluke 196C/S, ScopeMeter 100 MHz with SCC Kit

Fluke 199C, ScopeMeter 200 MHz

Fluke 199C/S, ScopeMeter 200 MHz with SCC Kit

Fluke 225C, ScopeMeter (200 MHz/2.5 GS/s) with Bus Health Test Functions

Fluke 225C/S, ScopeMeter (200 MHz/2.5 GS/s)

with Bus Health Test + SCC190 kit

Fluke 215C, ScopeMeter (100 MHz/1 GS/s) with Bus Health Test Functions

Fluke 215C/S, ScopeMeter (100 MHz/1 GS/s) with Bus Health Test + SCC190 Kit

Optional accessories

Accessories for ScopeMeter 190 Series II

SW90W, FlukeView® ScopeMeter® Software for Windows

C290, Hard Shell Carrying Case

SCC290, FlukeView Software and Carrying Case kit

BC190, Battery Charger/Power Adapter for Fluke 190 Series ScopeMeter

BP291, Double Capacity Li-ion Battery Pack for Fluke 190 Series II

HH290, Hanging Hook

EBC290, External Battery Charger

VPS420-R High Working Voltage Probe, 100:1, Red and Black

AS400, Probe Accessory Extension Set

Accessories for ScopeMeter 190C Series

SW90W, FlukeView ScopeMeter Software for Windows

C190, Hard Shell Carrying Case

SCC190, FlukeView Software, cable and carry case kit

BC190, Battery Charger/Power Adapter for Fluke 190 Series ScopeMeter

BP190, Rechargeable NiMH Battery Pack for Fluke 190C Series

OC4USB, Optically isolated interface cable for USB

VPS420-R High Working Voltage Probe, 100:1, Red and Black

Fluke. Keeping your world

up and running.®

Ordering

information

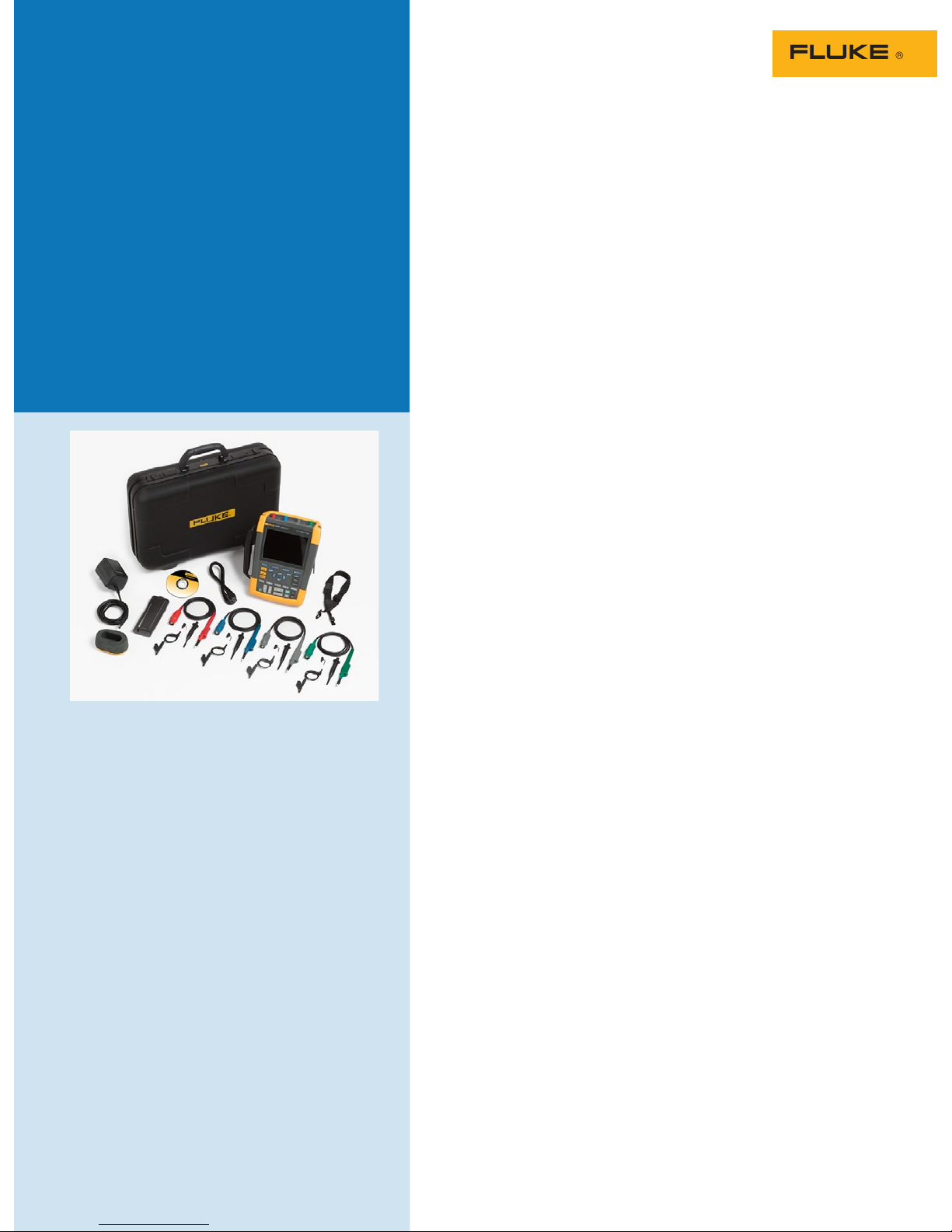

Fluke 190 Series II instruments include a set of four

probes, hanging strap, USB cable with mini-B con-

nector, double capacity Li-ion battery BP291, battery

charger/power adapter BC190, a FlukeView demo pack-

age and users manuals on CD-ROM. The /S-versions

also include the C290 hard-shell carrying case and the

FlukeView software package.

Altri manuali per ScopeMeter 190-104

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Fluke Apparecchiature di prova

Fluke

Fluke 719PRO Manuale utente

Fluke

Fluke SimpliFiber Pro Manuale utente

Fluke

Fluke 1550C Manuale di istruzioni

Fluke

Fluke Hart Scientific 9101 Manuale utente

Fluke

Fluke 730G Manuale utente

Fluke

Fluke ScopeMeter 192B Manuale utente

Fluke

Fluke ScopeMeter 190-502 Manuale utente

Fluke

Fluke ScopeMeter 190-202 Manuale utente

Fluke

Fluke 1507 Manuale utente

Fluke

Fluke 709 Manuale utente

Fluke

Fluke 754 Manuale utente

Fluke

Fluke Versiv Manuale utente

Fluke

Fluke 1550C Manuale per l'uso e la cura

Fluke

Fluke 990DSL Manuale utente

Fluke

Fluke VisiFault Visual Fault Locator Manuale utente

Fluke

Fluke 729 Pro Manuale utente

Fluke

Fluke DTX Series Manuale utente

Fluke

Fluke 1503 Manuale utente

Fluke

Fluke 368 FC Guida di riferimento

Fluke

Fluke 9040 Manuale del proprietario

Fluke

Fluke 7380 Manuale utente

Fluke

Fluke T5-600 Manuale utente

Fluke

Fluke 6109A Manuale utente

Fluke

Fluke 721-1601 Manuale per l'uso e la cura

Manuali Apparecchiature di prova popolari di altre marche

SMART

SMART KANAAD SBT XTREME 3G Series Manuale utente

Agilent Technologies

Agilent Technologies BERT Serial Manuale utente

Agilent Technologies

Agilent Technologies N3280A Manuale utente

Vernier

Vernier Go Direct Voltage Manuale utente

Lifeloc

Lifeloc R.A.D.A.R. Manuale utente

Mercury

Mercury TSL01 Manuale utente

MAHA

MAHA MBT Series Manuale utente

Fuji Electric

Fuji Electric P-61 Manuale utente

ETC

ETC SealerAtor Manuale utente

Skyfine

Skyfine ETHYWAY V2 Manuale utente

Appion

Appion G5 Twin Manuale utente

PCB Piezotronics

PCB Piezotronics 8159-0112A Manuale utente

BW Technologies

BW Technologies MicroDock II Manuale utente

Sun Nuclear

Sun Nuclear 1027 Manuale utente

Biomark

Biomark HPR LITE READER Manuale utente

Hioki

Hioki 3169-20 Manuale utente

Ashcroft

Ashcroft ATE-100 Manuale utente

Rohde & Schwarz

Rohde & Schwarz RTA4000 Manuale utente
