Forest CORNLINPL160 Manuale utente

Making British gardens great

TALL CORNER LINEAR PLANTER

INSTRUCTIONS (1600x1600mm)

ISSUE: 0121

Tape Measure

We recommend using the following tools (not supplied):

Drill & 2mm

Drill Bit

Spirit Level

FIXING PACK CONTAINS:

Forest Garden, Oak Drive, Hartlebury Trading Estate, Hartlebury, Worcestershire, DY10 4JB

REMINDER

Always pre-drill before

screwing.

IMPORTANT

Assembly requires 2+

adults.

Missing something or need more information?

Call our aftersales team on

0333 321 3142

Visit our website for spare instructions and

more information

www.forestgarden.co.uk

Pozidrive

Screwdriver

1 2

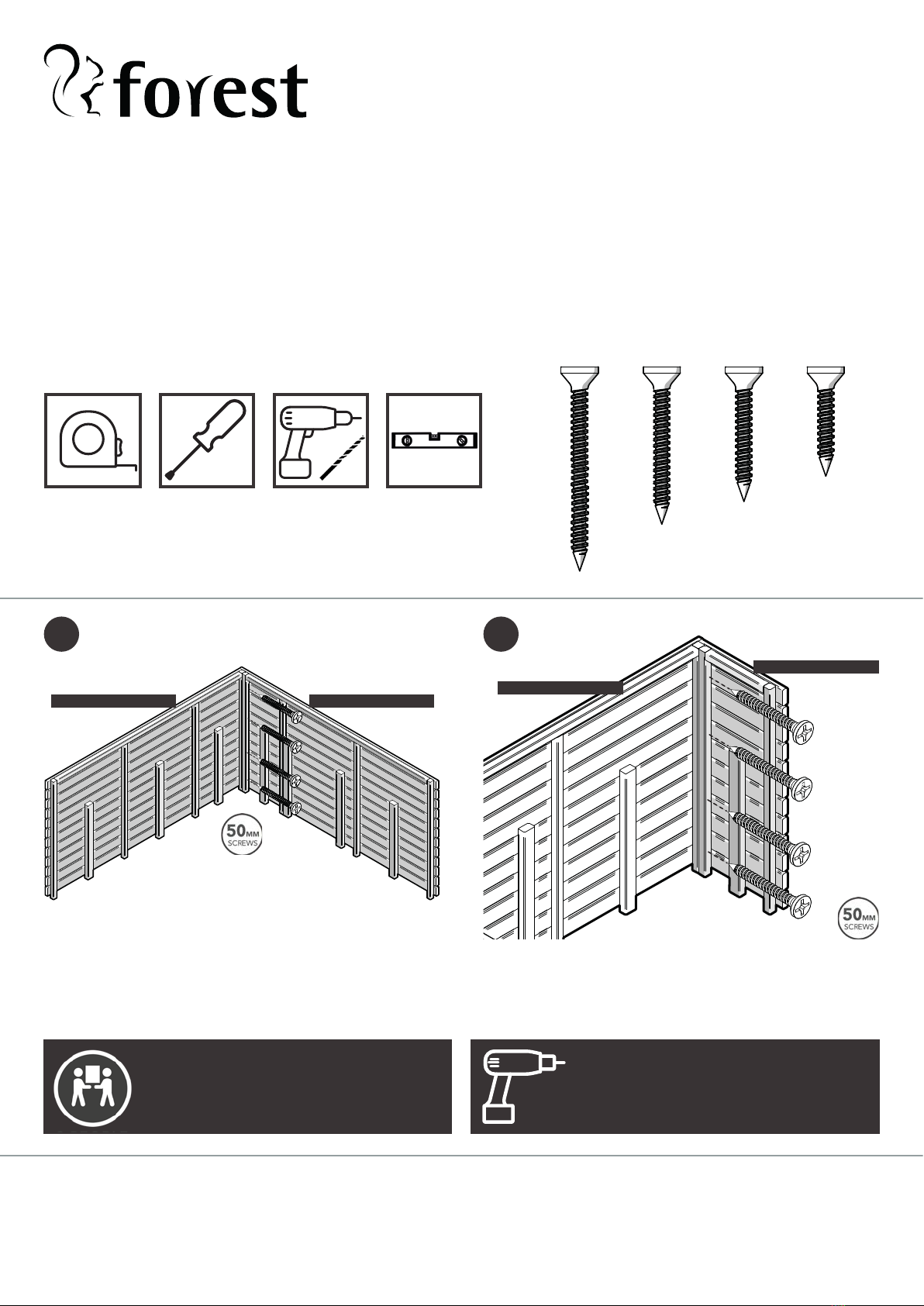

Position the Back Panels in your desired location. Begin

at the back corner and secure the Back Panels together

as shown above.

Secure the rst End Panel (360mm) to the Back Panel

(1600mm).

4 x 50mm Screws

QTY: 20

3.5 x 30mm Screws

QTY: 18

END PANEL (360mm)

BACK PANEL (1580mm) BACK PANEL (1600mm)

6 x 100mm Screws

QTY: 14

5 x 70mm Screws

QTY: 4

FIXING PACK CODE: CORNLINPL160FPPLEASE KEEP PLASTIC BAGS AND SMALL PARTS AWAY FROM CHILDREN

BACK PANEL (1600mm)

Secure the rst Front Panel (1248mm) to the End

Panel (360mm), using 50mm screws.

3 4

Secure the rst Front Panel (1248mm) to the second

Front Panel (1200mm), using 70mm screws.

FRONT PANEL (1248mm)

FRONT PANEL (1200mm)

70MM

SCREWS

Secure the other End Panel (360mm) to the Front

Panel and Back Panel, using 50mm screws. Screw in

between the slats into the battens.

Insert the Short Base (1200mm) into the space

provided. The Short Base will slot into the section with

the End Panel attached.

Insert the Long Base (1560mm) into the space

provided. The Long Base will butt up against the Short

Base in the corner.

SHORT BASE (1200mm)

LONG BASE (1560mm)

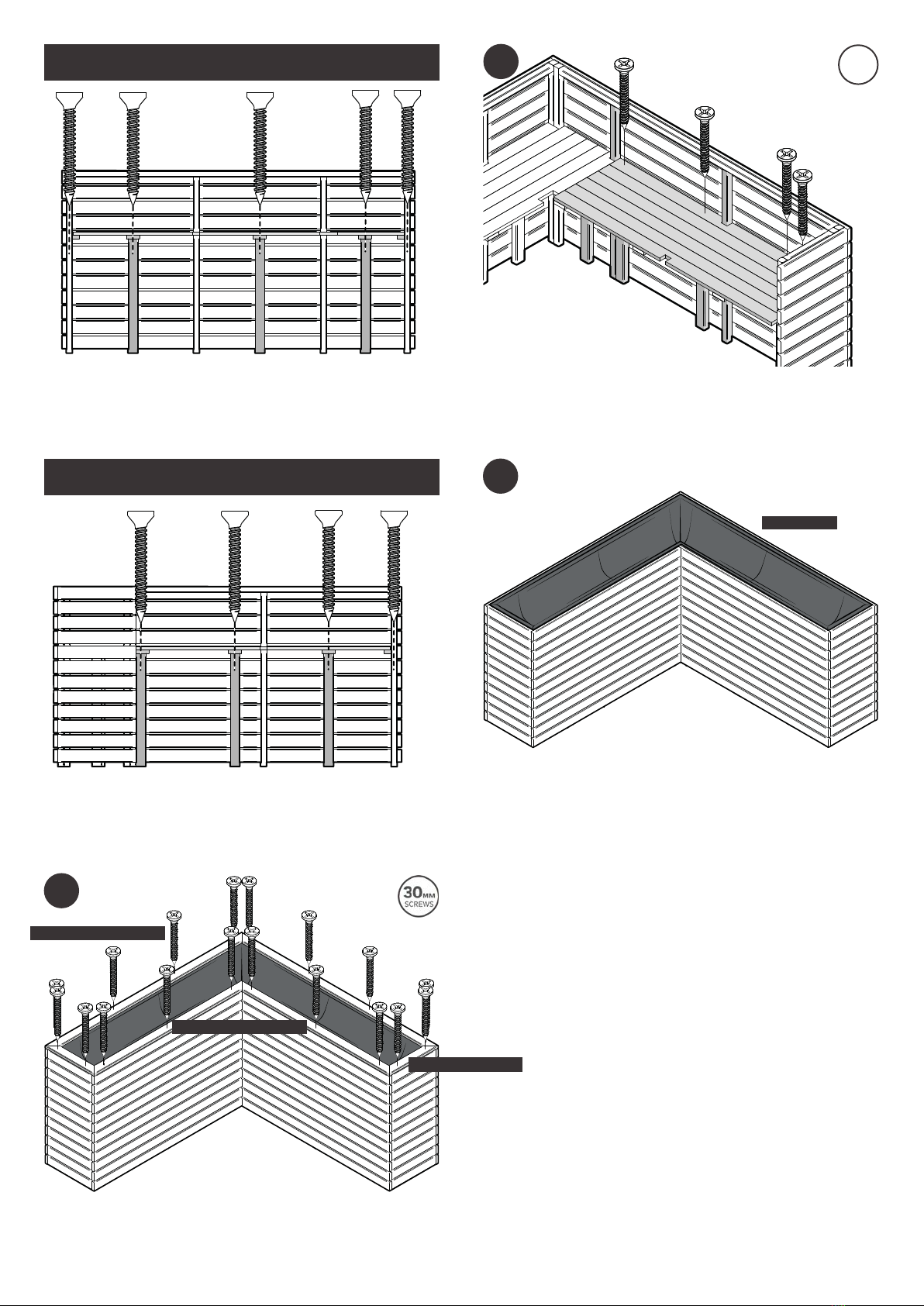

Fix the Long Base (1560mm) into place, by screwing

into the battens beneath as shown above.

100MM

SCREWS

Fix the Short Base (1200mm) into place, by screwing

into the battens beneath as shown above.

The Short Base (1200mm) will sit on top of the

battens provided. The panel battens will sit into the

base’s notches.

The Long Base (1560mm) will sit on top of the battens

provided. The panel battens will sit into the base’s

notches.

100MM

SCREWS

TOP TIP - MARK OUT WHERE EACH BATTEN IS LOCATED TO ENSURE YOU

SCREW DIRECTLY INTO THEM ONCE THE BASE SITS ON TOP.

TOP TIP - MARK OUT WHERE EACH BATTEN IS LOCATED TO ENSURE YOU

SCREW DIRECTLY INTO THEM ONCE THE BASE SITS ON TOP.

Layout and position the Jute Liner material inside

your planter. Overlap over the top edge and use the

Fascias to hold into place.

Secure the Fascias to the Panels. Ensure the Jute Liner

is held in position when screwing the Fascias into place.

JUTE LINER

FRONT PANEL FASCIA

BACK PANEL FASCIA

END PANEL FASCIA

CHECK & TIGHTEN ALL FIXINGS APPLIED TO THE

PRODUCT ON A REGULAR BASIS

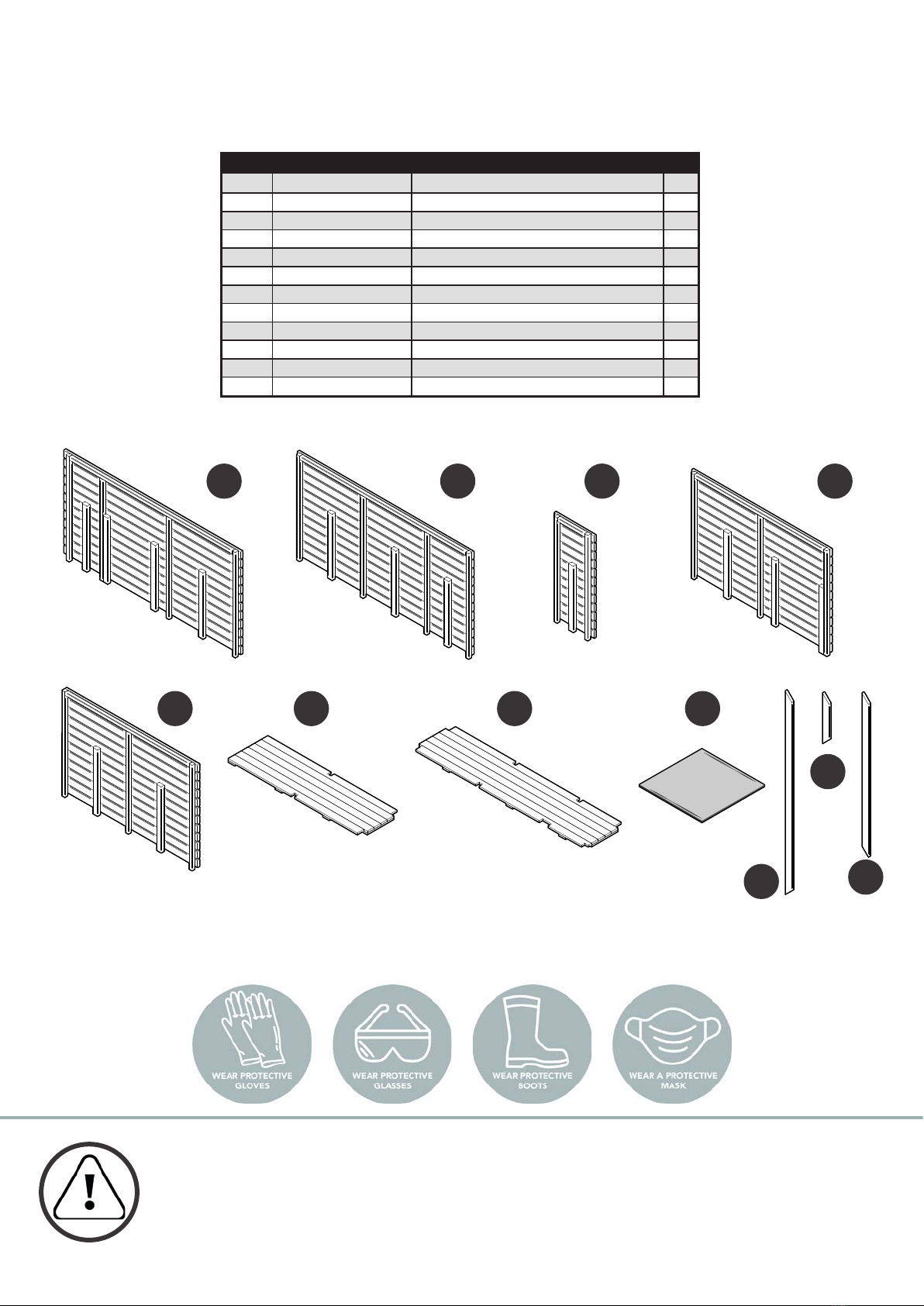

CHECK YOU HAVE ALL YOUR PARTS.

(The parts do not have codes on them. They are listed below should you need to order one.)

The components provided may be heavy. Please lift with caution and with a minimum of 2 people.

Label Part Code Description No.

ASPLP1600TCR Back Panel 1600x828x48mm 1

BSPLP1580TCR Back Panel 1580x828x48mm 1

CSPLP0360TCR End Panel 360x828x48mm 2

DSPLP1248TCR Front Panel 1248x828x48mm 1

ESPLP1200TCR Front Panel 1200x828x48mm 1

FSPFB1200 Short Base 1200x360x30mm 1

GSPFB1560 Long Base 1560x360x30mm 1

HJLINER160160 Jute Liner 1

I60201600PAII45PT Back Panel Fascia 1600x60x20mm 2

J60200400PAII45PT End Panel Fascia 400x60x20mm 2

K60201260PAII45PT Front Panel Fascia 1260x60x20mm 2

Tall Corner Linear Planter 1600x1600mm (CORNLINPL160)

TREATED TIMBER CONTAINING A BIOCIDAL PRODUCT

CONTROL OF WOOD DESTROYING ORGANISMS

Active Ingredients - Propiconazole, Tebuconazole, IPBC, Permethrine, Benzyl-C12-16-Alkyldimethyl Chlorides. (Dip Treated)

Basic Copper Carbonate, DDA Carbonate, DDA Chloride. (Pressure Treated)

Wear gloves when handling. Avoid inhalation of sawdust. Do not use in contact with drinking water or food. Do not use for animal

bedding or in sh ponds. Dispose of treated wood responsibly.

HEALTH & SAFETY

We strongly recommend that PPE (Personal Protective Equipment) is used throughout your build to ensure you are protected from

any potential health and safety risks. Do not exempt yourself from wearing PPE.

Use the labelled components to help identify the part code and description.

ABCD

E F G
