INFORMATION
This building is pressure treated to ensure longevity of all timber components and to protect against rot. This may leave a colour difference on some parts that will even out as the moisture
content stabilises. This will not need additional treatment.
- This product must be built on a solid level base.
- The roof of this building is not a load bearing structure.
- Please keep all plastic bags and small parts away from children
- Timber is a natural material. It will shrink and swell as a result of varying moisture content.
- Due to the nature of the material the doors may need some trimming for a neater fit.
Technical Help line: 0333 7777 089 8.30 am and 5.00 pm Monday to Friday.
Please check all parts prior to assembly
Assembly of damaged parts may be deemed to be acceptance and this may affect the remedies you are entitled to.
If the product is not constructed in accordance with the instructions, or is altered in any way (e.g. painted), the manufacturer cannot be held liable for any resulting damage
This article contains biocidal products to give protection against wood destroying insects & wood rotting fungi. Contents may vary.
May contain : Basic copper carbonate (Copper (II) carbonate – Copper (II) hydroxide (1:1), Cupric oxide, Copper hydroxide carbonate, oxyethyl, ammoniumpropionate, Copper HDO,
Propiconazole, Tebuconazole, Boric acid, Benzalkonium chloride.
Wear gloves when handling freshly treated wood. Avoid breathing dust when cutting treated or untreated wood. Dispose of off-cuts responsibly – do not burn.

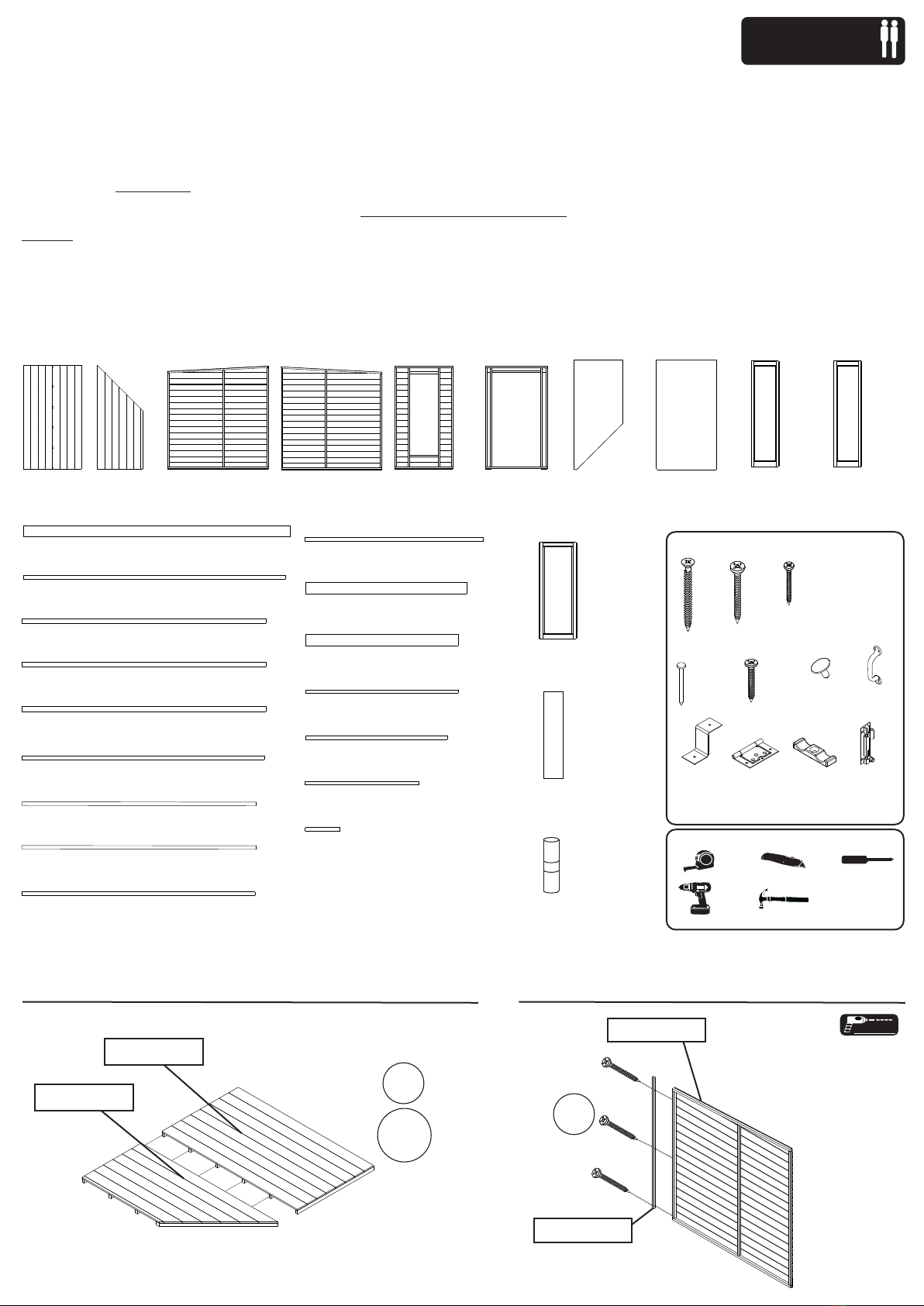

Panel 1 (Floor)
Size: 1956x1100
Qty: 1
CS77BFL1
Panel 2 (Floor)
Size: 1966x856
Qty: 1
CS77BFL2
Panel 3 (Right Back)
Size: 1900x1929mm
Qty: 1
OPCS77RHP
Panel 4 (Left Back)
Size: 1900x1929mm
Qty: 1
OPCS77LHP
Panel 5 (Window)
Size: 1100x1930mm
Qty: 2
OPCSUM77WP
Panel 6 (Front)
Size: 1170x1930mm
Qty: 1
TPCS77DP
Panel 7 (Roof 1)
Size: 2070x928mm
Qty: 1
207009288TRI
Panel 8 (Roof 2)
Size: 2070x1143mm
Qty: 1
207011438TRI

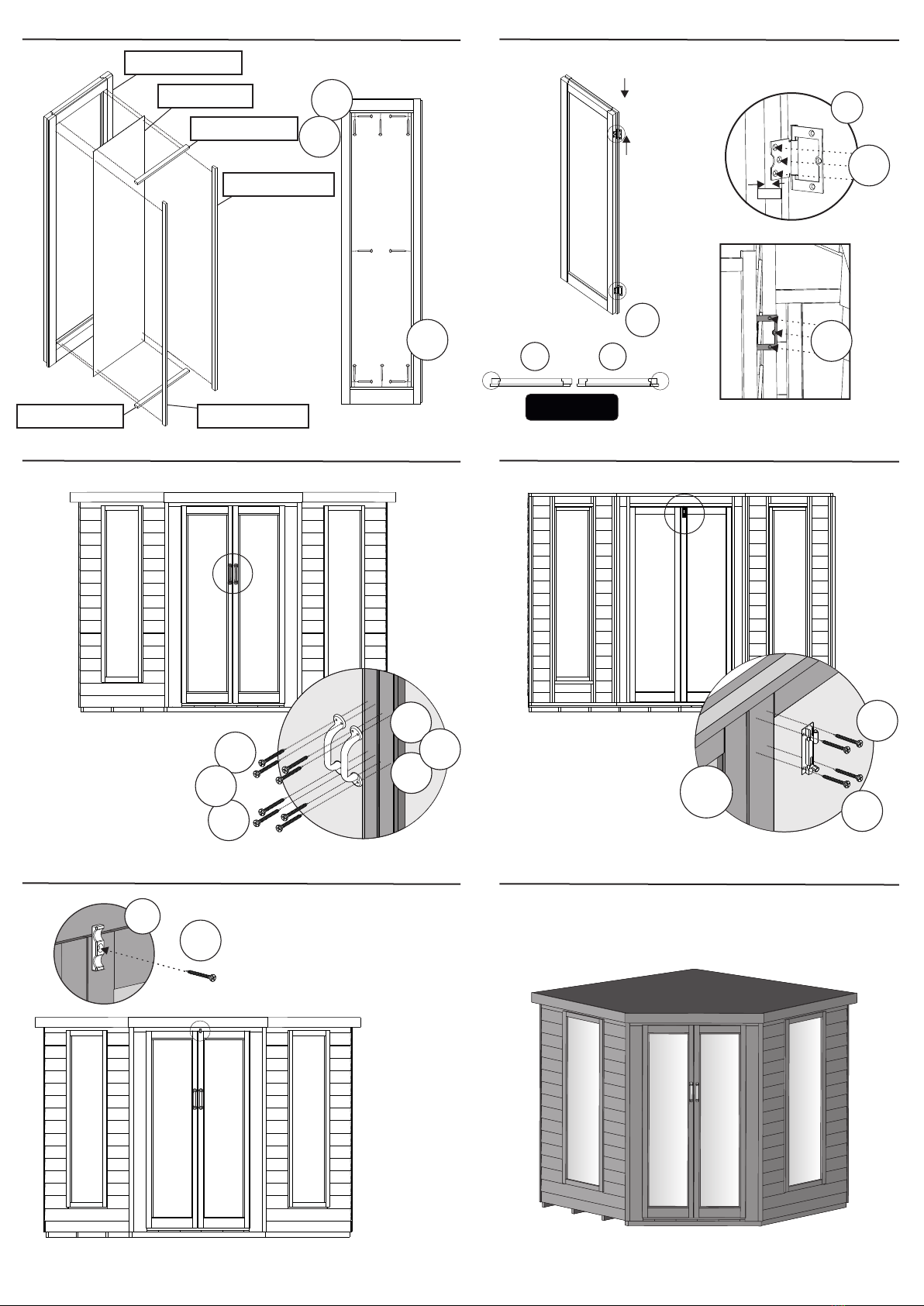

Door Panel (Right)
Size: 475x1796mm
Qty: 1
SHDR475X1796RHPT
Important : Assembly
of this shed requires a
minimum of two adults.
Door Panel (Left)
Size: 475x1796mm
Qty: 2
SHDR475X1796LHPT

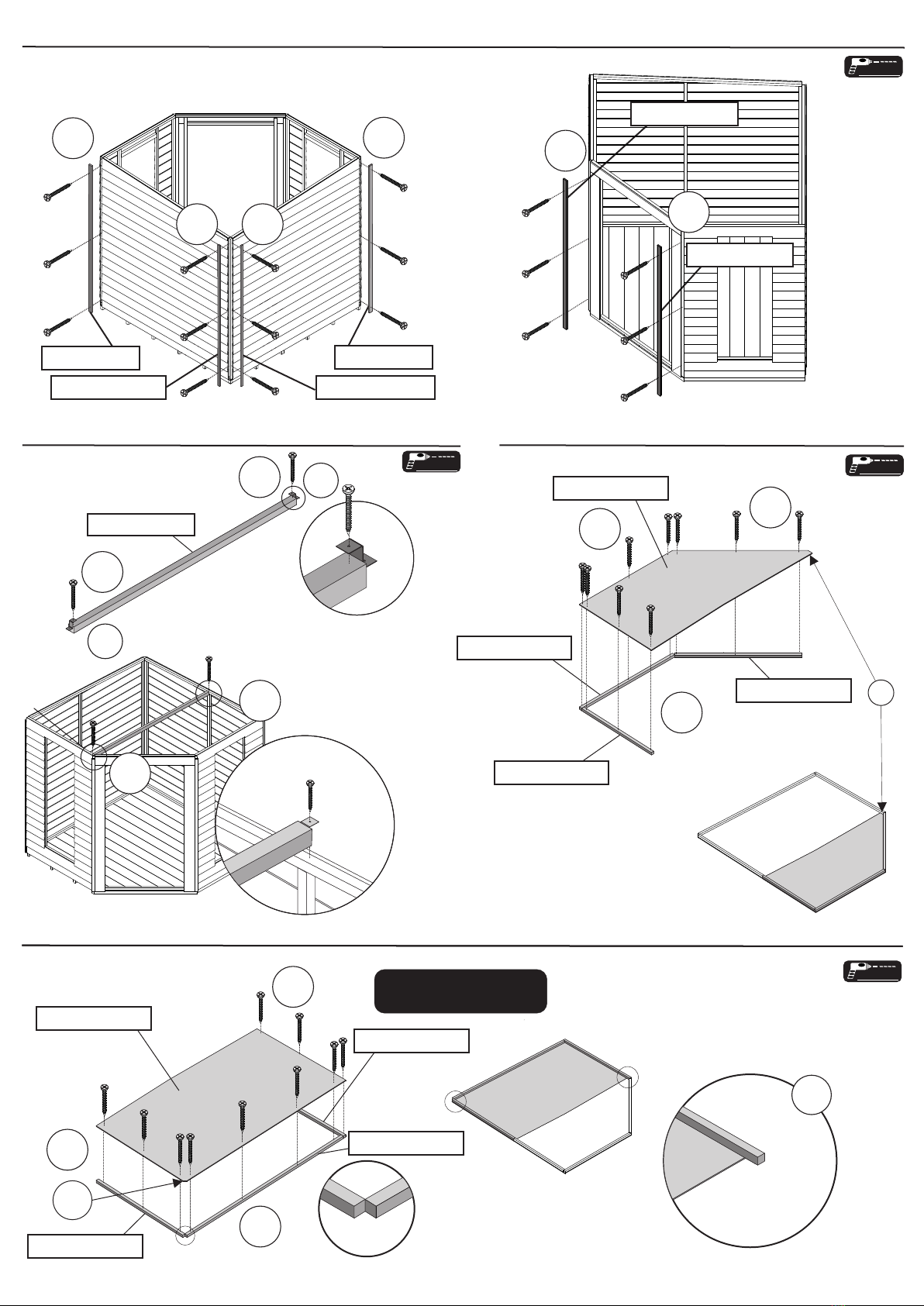

NO
Screws
Panel 1 (Floor)
Size: 1956x1100mm
Panel 2 (Floor)
Size: 1966x856mm
PLACE
IN
LOCATION
3x
50mm
Screws
MUS T PR E DRILL

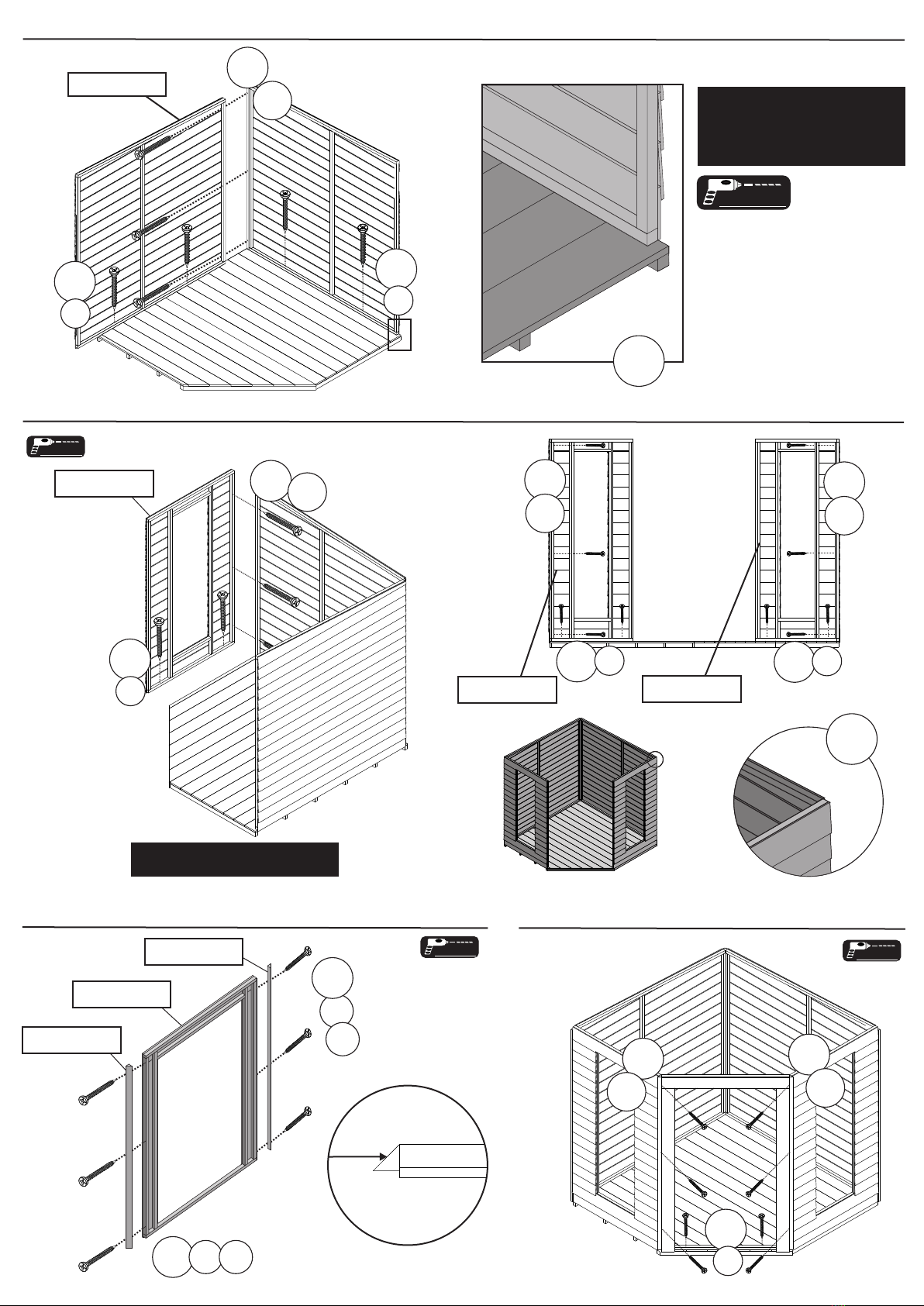

Batten 6 (Back Batten)
Size: 28x28x1829mm
Panel 3 (Right Back)
Size: 1900x1929mm
Step 1 Step 2
INSTRUCTIONS
Fixing Pack: OPCSUM77FP
Flush Hinge
Qty 4
Turn Button
Qty 1
Z’ Bracket
Qty 2
40mm Screw
Qty 20
Felt
Tacks
Qty 60
50mm Screw
Qty 22
20mm Screw
Qty 44
Door Handle
Qty 2
Window 2(Window)
Size: 1633x372mm
Qty: 2
PW163337202

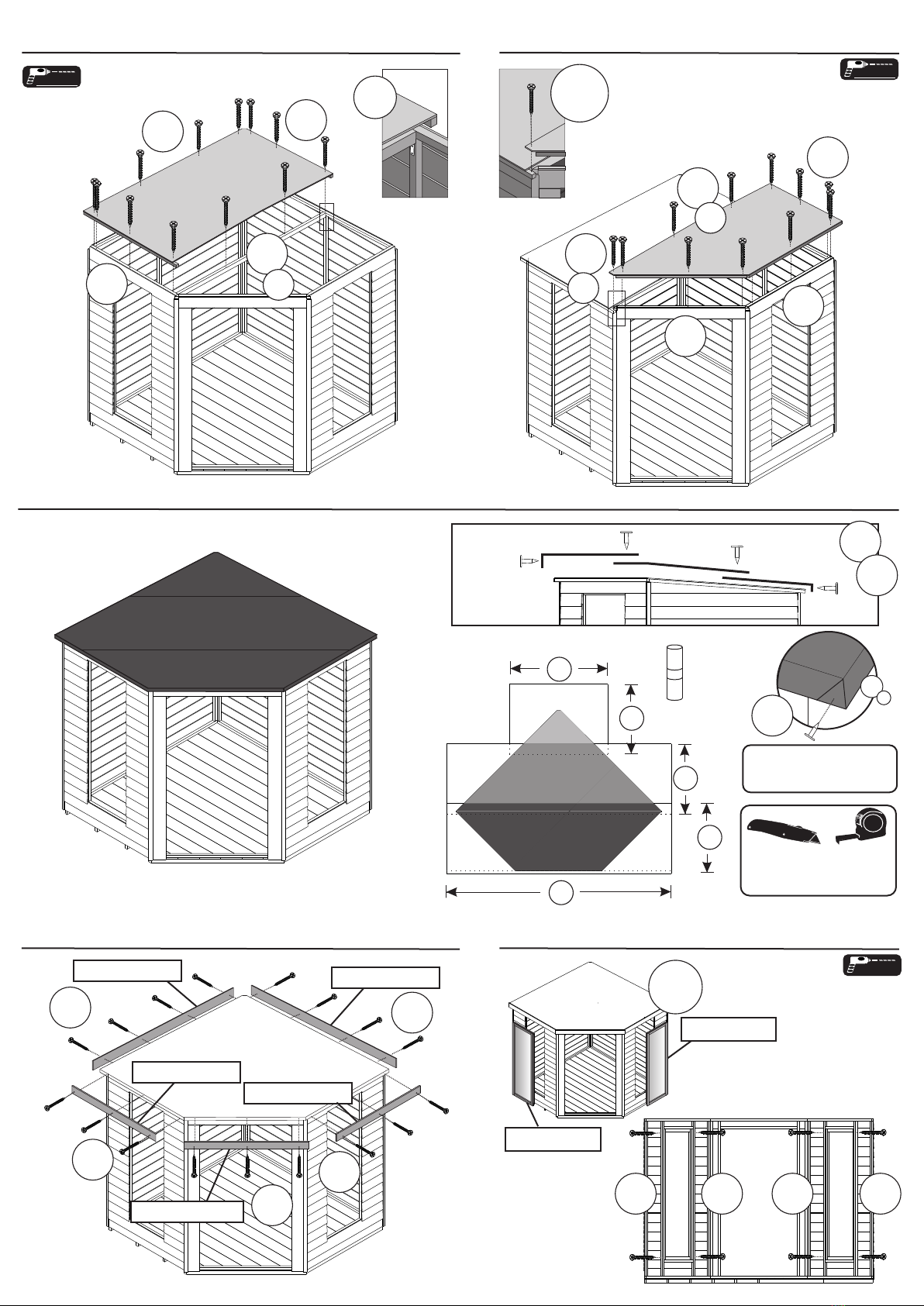

Felt Roll (Felt)
Size: 7.8m
Qty: 1
Batten 5 ( Far Back Cover)
Size: 28x12x1839mm
Qty: 1
28121839PPT
Batten 10 (Roof Joint 1)
Size: 28x28x1195mm
Qty: 3
28281195P
Batten 6 (Back Batten)
Size: 28x28x1829mm
Qty: 1
28281829P
Batten 3 (Back Cover)
Size: 44x16x1915mm
Qty: 2
44161915PPT
Batten 4 (Roof Support)
Size: 45x45x1900mm
Qty: 1
45281900P
Batten 9 (Roof Side Cover)
Size: 90x12x1200mm
Qty: 2
90121200PPT
Batten 8 (Roof Front Cover)
Size: 90x12x1265mm
Qty: 1
90121265PPT
Batten 12 (Roof Joint 2)
Size: 28x28x896mm
Qty: 1
28280896P
Batten 11 (Roof Joint 4)
Size: 28x28x1114mm
Qty: 1
28281114P
Batten 2 (Angled)
Size: 32x32x1930mm
Qty: 2
32321930SPT
Batten 1 (Roof Joint 3)
Size: 28x28x2010mm
Qty: 1
28282010P
Pozi Drive Screwdriver
Tools needed (Not supplied)
Sharp KnifeTape Measure
HammerDrill
Batten 7 (Door Window 1)
Size: 24x12x1612mm
Qty: 4
24121612PPT
Batten 13 (Door Window 2)
Size: 24x12x375mm
Qty: 4
24120375PPT
Window (Window)
Size: 1595x518mm
Qty: 2
SUMWIN1595518PTBI
Cracked Bolt
Qty 1
Panel Pins
Qty 24
30mm Screw
Qty 82
Batten 5B ( Far Back Cover)
Size: 40x12x1839mm
Qty: 1
40121839PPT
Batten 0 (Roof Back Cover)
Size: 90x12x2038mm
Qty: 2
90122038PPT
Batten 3B (Front Cover)
Size: 40x12x1915mm
Qty: 2
40121915PPT
