FOREVER ICON AW-100 Manuale utente

MANUAL

Smartwatch AW-100

(full version)

Thank you for purchasing a product by Forever. Before use, please

refer to the User’s manual, and save it for future reference. Do not

disassemble the device on your own – all repairs should be done

by a service technician. Use only original parts and accessories

provided by the manufacturer. We hope that the product by Fore-

ver fullls your expectations.

Description

1. Main button

2. Touch panel / display

Basic specication

Waterproofness: IP68

Battery capacity: 310 mAh

Bluetooth: 5.0

Charging time: 2 hours

Operating temperature: -10˚C to 50˚C

SAFETY NOTES

- Avoid impacts between the device and hard objects since this may

damage the device

- Avoid contact of the device with solvents or other chemicals

- Keep away from strong magnetic elds

- Avoid contact of the smartwatch with water if the water tempera-

ture exceeds 35˚C

- Do not repair the device on your own

- Do not throw it into re, there is a risk of explosion

First launching

When using the device for the rst time, take it out of the package

and charge it using the supplied charging station. Correct con-

nection will be indicated by vibrations and display of an icon that

shows the battery charging status. Date and time of the device will

be automatically synchronized and set after establishing connec-

tion with a dedicated application via Bluetooth. Language of the

device will be automatically adapted to the one set in the phone.

To activate the smartwatch, press and hold main button for 5 se-

conds. Activation will be indicated with vibrations.

EN Charging

Place the smartwatch on the dedicated docking station in a way

to connect charging connectors together, and then connect USB

cable to a power source.

After completion of the charging process, disconnect the smar-

twatch from the power source.

Turning the smartwatch on/o

Turning on: Press and hold main button for 5 seconds until the

smartwatch activates, which will be indicated by vibrations.

Turning o: Scroll the main screen down to open a pop-up menu

and select the symbol , and then conrm activation of the smar-

twatch.

Forever GoFit application installation

Find application called “Forever GoFit” in Google Play or App Store and

install it. You may always scan the QR code located on the package.

NOTE:

The operating system of the phone must have the following mini-

mum specications to run the application and support the smar-

twatch:

Android 5.1 or higher

iOS 10.0 or higher

Connect the smartwatch with the phone

1. Activate Bluetooth in your phone.

NOTE:

To be able to use all functions of the application and the smar-

twatch, during the rst launching, allow the application to access

all required functions, and then also activate access to notications

in settings.

2. Activate “Forever GoFit” in the phone. Start using the application

as a “Guest” by clicking the upper right part of the screen or select

“Register” and follow the steps below:

– enter the email address you want to use to create an account

– press the button (obtain verication)

– a verication code, which must be entered in the indicated eld,

will be sent to your email

– enter and remember your user password

3. After logging into the application, you will see the main screen, in which

you should click button or select menu in the upper left corner.

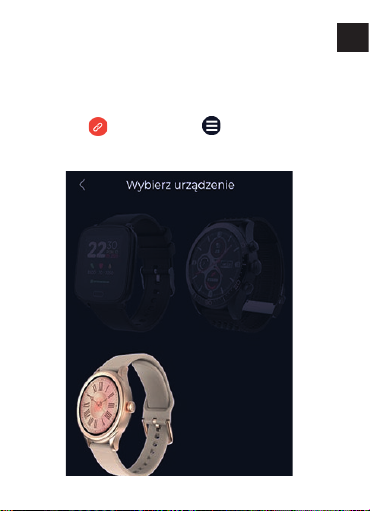

4. Select the smartwatch model you want to connect with by clicking

its picture:

EN 5. Conrm the selected model by clicking “YES”. If a wrong model has

been selected, click “NO” and select the correct one.

6. Select “JW-100” model from the list of devices and conrm con-

nection by pressing “YES”. The connection will be established within

several seconds and all data will be automatically synchronized. If the

automatic synchronization won’t start, select button in the lower ri-

ght corner of the screen to perform manual synchronization.

Description of the application

User’s prole information

After correct logging in and carrying out synchronization, press

the menu button in the upper left corner, and then click the user

name to enter the prole setting. Here, check whether all the data

is correct. Providing actual data is necessary for correct operation

of the algorithm that calculates your steps, calories and covered

distance with the highest possible accuracy.

Description of the main panel

1. Menu button

Expands the user’s panel that allows to carry out settings descri-

bed in subsection 1.1

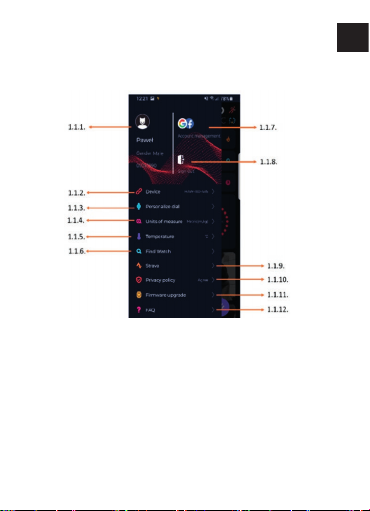

1.1 Set ting s

1.1.1. User’s information

Click it to change settings, such as: prole photo, user name, sex,

date of birth, height, weight, change password

1.1.2. Settings and functions of the device

Access to extended information, settings and functions of the

smartwatch, such as: information regarding the date of last syn-

chronization, information regarding the current version of the

software, information regarding MAC number of the device, remo-

te camera, alarm clock, notication regarding lack of exercise, re-

minders about hydration, hand on which the smartwatch is worn,

automatic backlight of the screen via wrist movement, daily heart

rate monitoring, notications from the application, settings reset,

EN disconnection of the smartwatch and the application

1.1.3. Select one of the clock faces and send it to the smartwatch

1.1.4. Measurement units

Select the units of measurements you want to receive

1.1.5. Temperature

Select the temperature units used to show the current weather

on the main screen

1.1.6. Find the smartwatch

Click to call the smartwatch, which will start to vibrate in order to

notify you about its current location

1.1.7. Connection with Google and Facebook accounts

Connect the application with Google or Facebook account to ena-

ble sharing data gathered in the application

1.1.8. Logout

Click to logout from the currently used application account

1.1.9. Strava

It allows to connect with an account in Strava application and send

information to the account from the smartwatch

1.1.10. Privac y polic y

Read the privacy policy and accept it in order to protect your data

1.1.11. Update

Check if the smartwatch has the latest version of the software.

If not, update you smartwatch to fully use all available functions.

1.1.12. FAQ

Most frequently asked questions and answers

1.1.13. Application information

Shows the current application version.

2. Number of steps

Shows the number of steps taken in a given day and the degree of

completion of an assumed goal. Click to go to more detailed data

or check its history.

3. Weekly trainings

Shows detailed data regarding trainings, broken down into par-

ticular weeks.

4. Heart rate monitor

Readout of daily heart rate measurement and the dynamic heart rate.

The daily heart rate section is responsible for periodic measure-

ments of the heart rate during the whole day. The smartwatch

carries out automatic measurements after the user activates the

function in the device settings.

5. Sleep monitoring

To carry out a measurement or sleep analysis, wear the smar-

twatch for the entire night. The device will prepare a sleep schedu-

le based on the user’s motions during sleep.

6. GPS sport mode

Measurement of the selected sports discipline, including recor-

ding of the route using the smartphone’s built-in GPS module.

Click the icon to go to the map, select the sport, and then press

start to begin measurements.

7. Weather

Current weather in a given town

8. Calories, Distance, Exercise Time

Data collected from particular measurements from a given day.

After clicking the requested measurement, we go to its history.

9. Activity

Shows activity during a given day, broken down into hours.

ENEN The smartwatch interface description

Note: to set a given clock face, scroll the touch screen left.

After a moment, correct setting will be indicated by a green

symbol visible in the center of the display.

Smartwatch

faces

Select one of three faces available in the

smartwatch. You may also send an additio-

nal, fourth clock face, selected from among

all faces available in the application. Scroll

the touch screen left to set the selected

clock face

Note: scroll the touch screen right to go to the list of particular func-

tions presented below:

Sport data Select to see data regarding the number of

steps, covered distance and burnt calories

in a given day

Heart rate

monitor

Select to carry out a heart rate measure-

ment in a given moment. The measure-

ment will start automatically, and its com-

pletion will be indicated via vibrations.

Messages

Preview of recently received messages and

notications from the application, to which

the smartwatch obtained access through

the settings in Forever GoFit application
