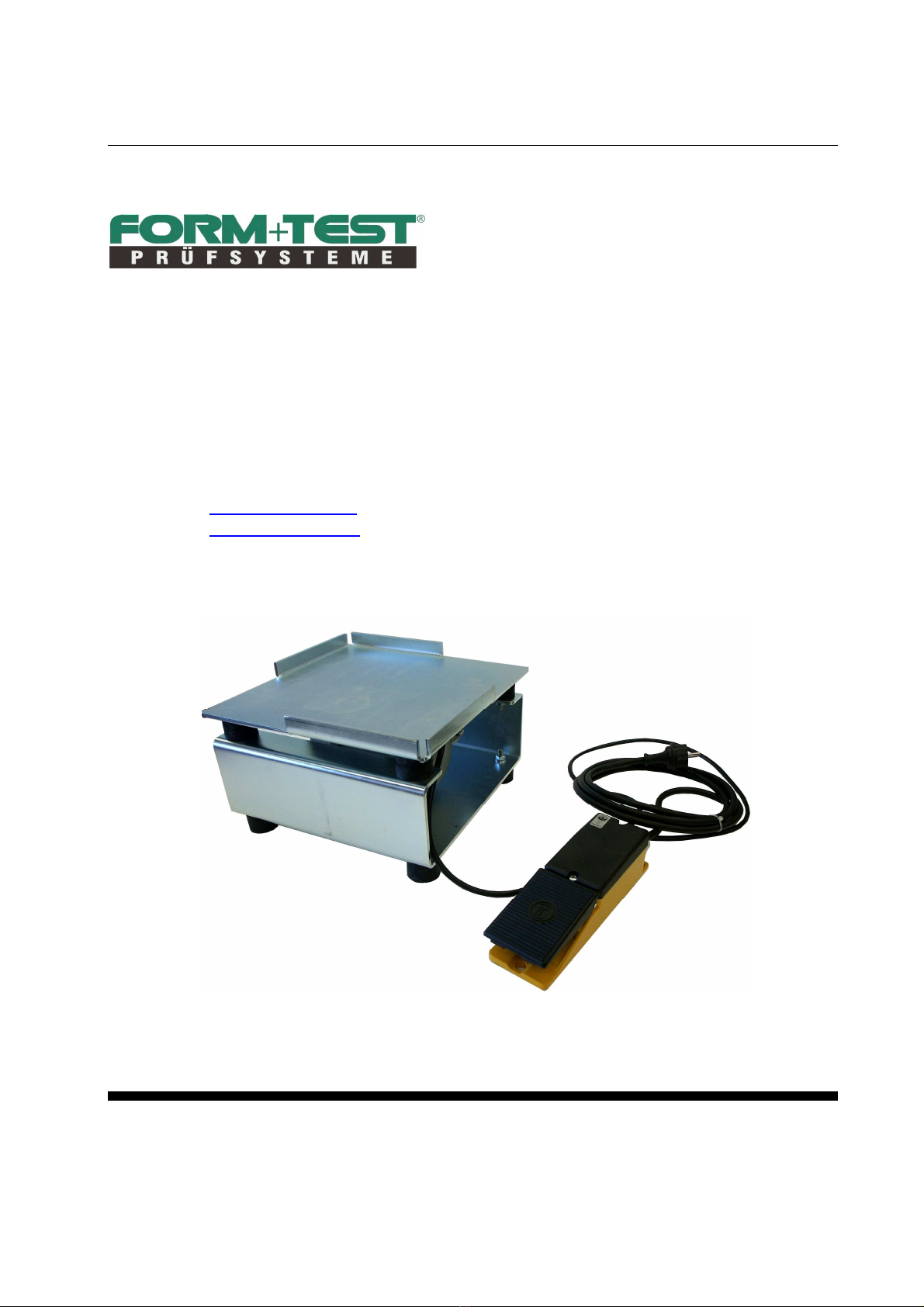

FORM+TEST B17134 Manuale utente
Vibrating table 3000 RPM
page: 1
310 x 310 mm
Form + Test Seidner & Co. GmbH
Zwiefa ter Straße 20
D-88499 Ried ingen
Tel.: 00 49 / 73 71 / 93 02- 0
Fax : 00 49 / 73 71 / 93 02- 99
E-Mail: info formtest.de
Internet: www.formtest.de
Instruction manual
Item number B17134
Vibrating table 3000 RPM
page: 2
310 x 310 mm
Acceptance
Test outside conditions of de ivery. The de ivery shou d be compared
to the bi of ading and checked whether a is comp ete. It is a so
to check whether a regu ar accessories are inc uded in the de ivery.
This is to see in this book et under "genera data", in the machine card or on a
specia page. Specia accessories cou d be seen on the packing ist.
If damage is to be suspected it has to be recorded immediate y.
The extent of the damage shou d be described as exact as possib e on
the bi of ading or any other document or e se, the de ivery of the
machine shou d be refused.
If any damage due to the transport is noticed after acceptance on y,
the agent shou d be informed immediate y and a record shou d be made
on the spot, either in his or his representative's presence. Do not touch
anything before the above mentioned record has been made.
After the damage has been recorded and the document has been signed by
the agent or his representative, we beg to inform us as exact as possib e about
the extent of the damage. This information wi enab e us to judge whether the
damage cou d be repaired
owith spare parts
orequires the presence of one of our mechanical engineers
owhether the whole machine must be returned to our factory.
If there is no objection or damage in transit, the comp eteness of the batch
is to be checked on the basis of the bi of de ivery.
Vibrating table 3000 RPM
page: 3
310 x 310 mm
General informations
The information of this product is pub ished regard ess of protection by a patent.
The names of the goods are used without warranty regarding the free usabi ity.
The used trade marks are the registered trade marks of the respective company.
We bestowed great care upon making up this manua ; mistakes, however,
cannot be exc uded tota y. The editor and writer cannot take any ega
responsibi ity or undertake any iabi ity for incorrect information and its
consequences.
We are a ways thankfu for suggestions or references at mistakes.
A rights reserved, even the rights for photomechanica reproduction and storing
in e ectronic media.
The manufacturer cannot take any ega responsibi ity or undertake any iabi ity
for accidents, injuries or their consequences which resu t from improper
operation of the testing device. This app ies to the operators a we as to
other persons.
The operator has to take the respective safety precautions.
Vibrating table 3000 RPM
page: 4
310 x 310 mm
Application
The vibrating tab e is on y suited for compression of ready-mixed concrete in
specimens. A demands, imits and security devices dec ared in this instruction
manua have to be maintained abso ute y. Every usage further on is not
conventiona . In need of specia methods of operating or conditions you have
to ask for consu tation and agreement of the producer.
Description of the vibrating table
ocase and vibrating p ate are made of stee sheet
ofoot switch
ovibrating engine
Electric construction
The supp y vo tage for the vibrating tab e has to be 230 V / 50 Hz.
The vibrating tab e is connected through a safe contact p ug to the power
supp y system and it is ready to operate immediate y.
Vibrating table 3000 RPM
page: 5
310 x 310 mm
Basic security manifestation
On y persons who were instructed to the use of the machine are a owed to
operate with the tab e independent y.
The vibrating tab e is bui t to the state-of-art and to the accredited technica
norms. However by using the machine it cou d occur damages to e ectrica
advices.
If the operational safety is compromised by defects or damages, the vibrating
table has to be decommissioned immediately and can’t be used again until all
safety hazards are eliminated.
Starting up
1. Position the tab e on even and sustainab e ground
2. Connect p ug to power supp y system
3. Put samp e onto the vibrating p ate
4. Push foot button
5. To finish vibrating process unfix foot button
Vibrating table 3000 RPM
page: 6
310 x 310 mm
Incorrect use
Not intended and thereby impermissib e are
ooperation of the vibrating tab e for other intentions
opositioning on ground which is uneven or isn’t ab e to take a oad
Warranty
Our genera vending and de ivery conditions count on principa .
The producer takes over the guarantee that the instruction manua is keeping
with the technica and functiona adjustments of then de ivered storage
cabinet.
The producer reserves the right for adding information to this instruction manua .
The producer grants a guarantee of 12 months.
Attrition parts are out of question.
The producer is not iab e for damages which were caused by a ienated
use of the storage cabinet or the disregard of instructions.
If the vibrating tab e is changed constructive y or if you change something in its
functiona construction without agreement of the producer, then the guarantee
is inva id.
Vibrating table 3000 RPM
page: 7
310 x 310 mm
Technical data
Vo tage: 230V – 50Hz; 013 kW; 0,60 A
Out-of-ba ance: 0,44 kN; 3000 UPM
Size (L x D x H): 320 x 320 x 200mm
Size of tab e: 310 x 310mm
Weight: 17, 5 kg
Maintenance
The vibrating tab e is virtua y free of maintenance.
Advice:
The accident prevention regu ation demands from ocation disp aced e ectrica
devices to repeat measurements according to VDE 0701 about every 6 months.
Troubleshooting
Activities at e ectrica devices are on y a owed to qua ified persona .
In case of fai ure the vibrating tab e is to set apart from the power supp y.
Vibrating table 3000 RPM
page: 8
310 x 310 mm
Spare parts and after sale-service
If you need further information, p ease do not hesitate to contact us.
Form + Test Seidner & Co. GmbH
Zwiefa ter Straße 20
D-88499 Ried ingen
Tel.: 00 49 / 73 71 / 93 02- 0
Fax : 00 49 / 73 71 / 93 02- 99
E-Mail: info formtest.de
Internet : www.formtest.de
