Establish an appropriate listening level with the main source before
pairing.
• If no sound is heard, do not adjust output level, as damage may
occur to your speakers.
• Check the music source is active before pairing.
• The blue LED indicates when devices are paired.
• Check source device is connected to WiFi.
• Change music source or app.
• Make sure device is in play mode.
Specifications

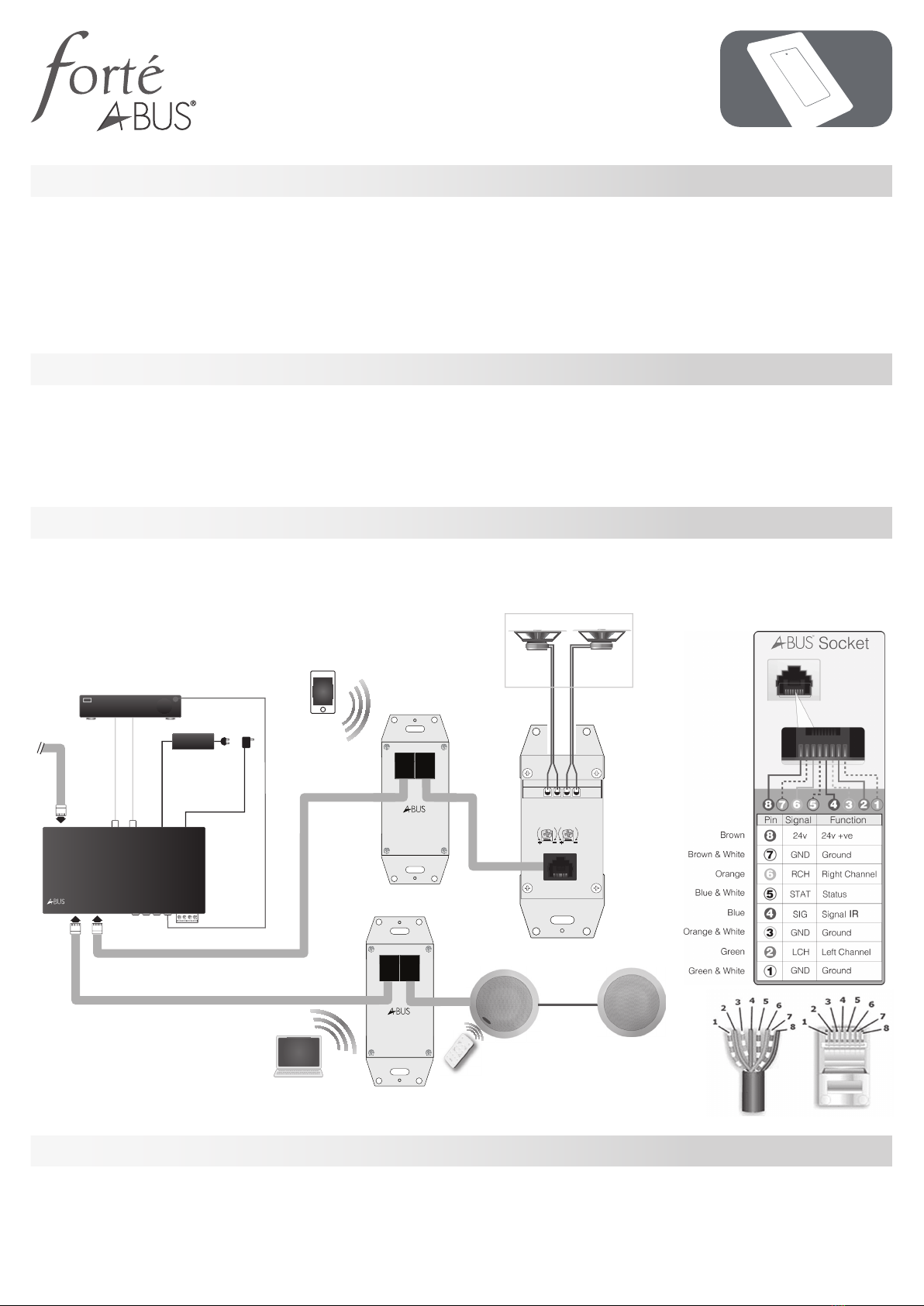

Bluetooth Input: A-BUS (RJ-45 Socket TIA568A)
Ver.4+ EDR, A2DP, AVRCP, aptX, SBC
Output: A-BUS (RJ-45 Socket TIA568A)
Operating range: >15 Meters (subject to local conditions)
Connection Not paired : Connected to main source
When paired : Bluetooth streaming
Indicator When paired : Blue LED
Re-Naming: via PC (mini-USB)
Approvals: FCC, C-Tick, CE
Mounting: Single gang (US)
Size: 107 H x 43 W x 25 D (overall 30 D) mm
Troubleshooting Check List:
Warranty
Forte A-BUS offers a 12-month warranty with proof of purchase.
Please contact your place of purchase for more details or visit
www-forte-electronics.com
A-BUS is a registered trademark of LeisureTech Electronics. The A-BUS technology is covered by the following patents - United States US
7,181,023, 7,668,318 , 6,389,139; Australia AU 739808; New Zealand NZ 502982; Mexico MX 241196; Canada CA 2301062.
All features and specications are subject to change without notice www.leisuretech.com.au
Pairing each AB-BT20 requires the identication of an individual code
number beginning with the prex AB (ABxxx). This code number can
be replaced with individual room name identication such as Bedroom
1, Study, Patio, etc. prior to installation.
To download the renaming software visit www.a-bus.com/bt. Once
downloaded and installed, connect the AB-BT20 via the mini USB
socket located at the side of the unit to your PC and start the program,
follow the on screen prompts to rename the device.
Room Identification
Bluetooth Source Volume Level Compatibility
The audio output level from Bluetooth enabled devices, can vary from
brand to brand. The Bluetooth LIM has been adjusted to be equal to
the output of most Bluetooth devices, in some cases the level may be
higher. Most devices have their own adjustable volume level and it is
recommended that this is used to adjusted the output level to match
the main audio source’s volume level.
Operating Range
Bluetooth devices are intended to provide wireless communication
between enabled devices within a room. The AB-BT20 has been
designed to provide reliable operating range in difcult situations. In
good situations, its range can be up to 15 meters (50’); however, this
distance can be reduced signicantly by a number of local factors
such as transmission interference from other communication devices,
electrical wiring and room construction materials, such as brick walls
and concrete oors, etc. When the Bluetooth LIM is operating near
maximum range, the signal may intermittently drop in and out, as
signal strength varies.

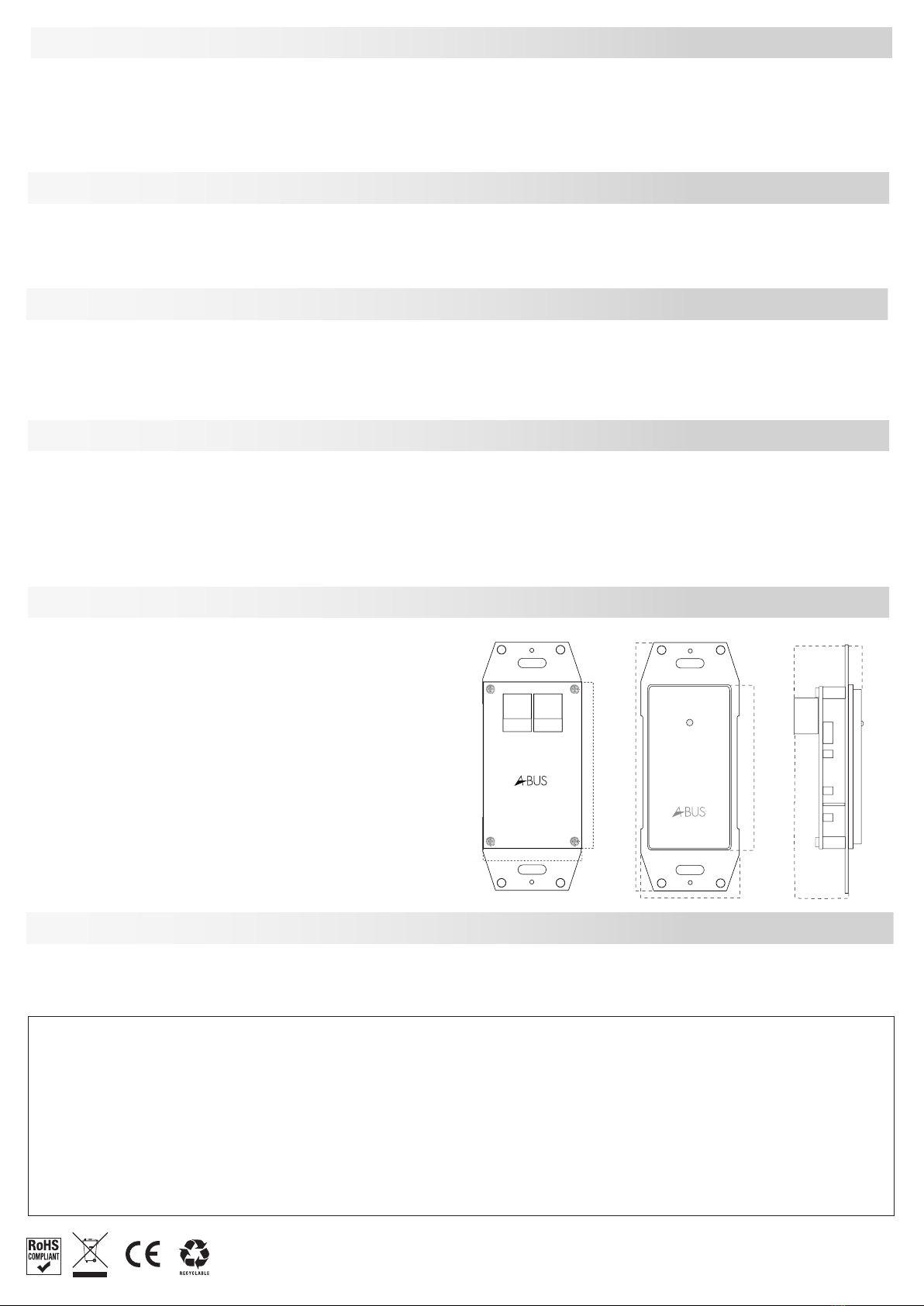

42mm
