845GV4MR-ES Easy Installation Guide
P/N: 91-181-U45-M0-00
Remark:
The above motherboard layout is provided for reference only;
please refer to the physical motherboard.

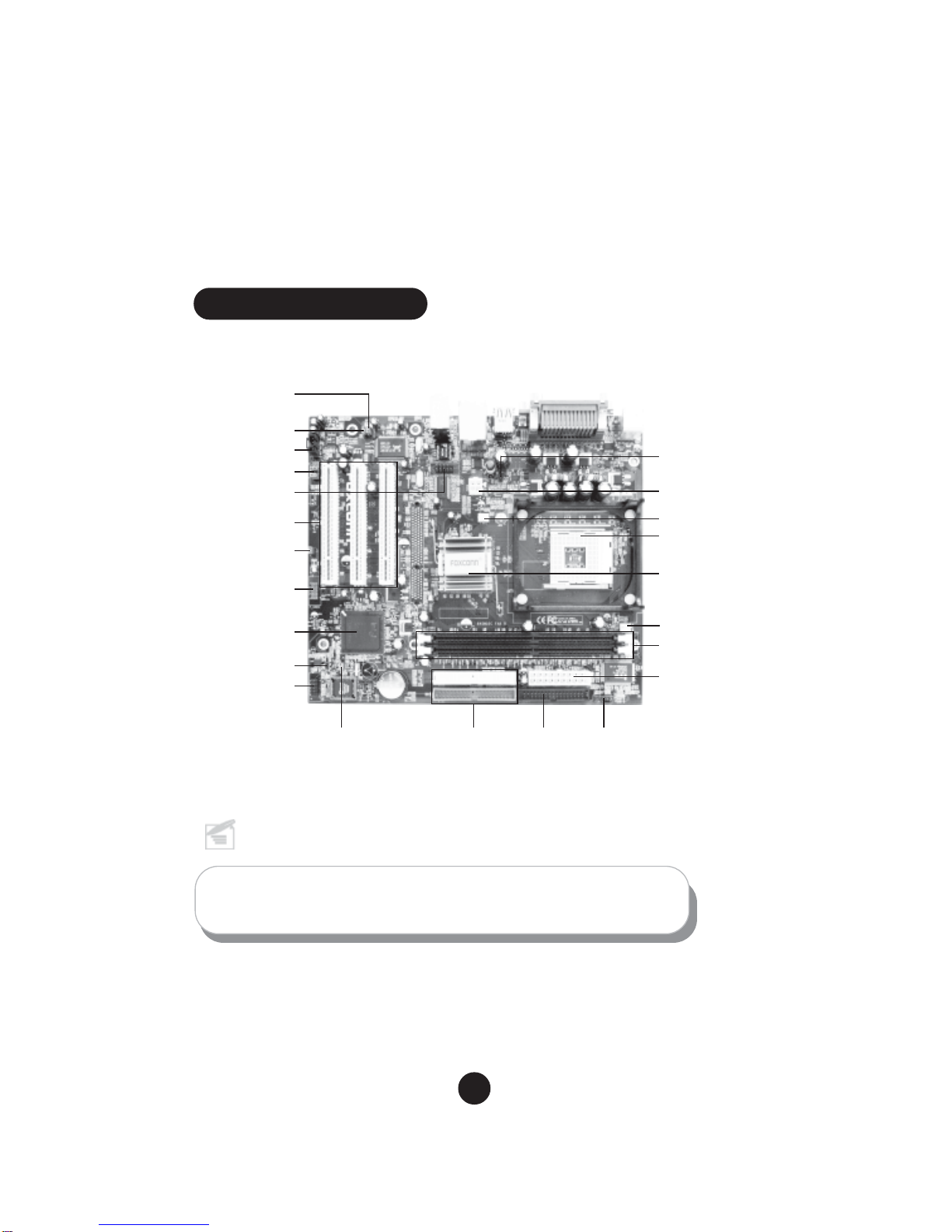

Motherboard Layout
12VATXPowerConnector
ATXPowerConnector
ATA33/66/
100IDE
Connectors
184-pinDIMMSlots
North Bridge: Intel®
845GVChipset
SouthBridge: Intel®
ICH4 Chipset
Clear CMOS
Jumper FDD
Connector
FrontAudioConnector
IRConnector
SystemFANConnector
478-pinCPUSocket
CD_INAudioConnector
PCIExpansionSlots
USB2.0Connector
FrontPanelConnector
BIOS-ProtectionJumper
CPUModel Selection
Jumper
COM2Connector
CPUFAN Connector
JP4USBPowerSelec-
tionJumper
JP3USBPowerSelec-
tionJumper
JP5USBPowerSelec-
tionJumper
2

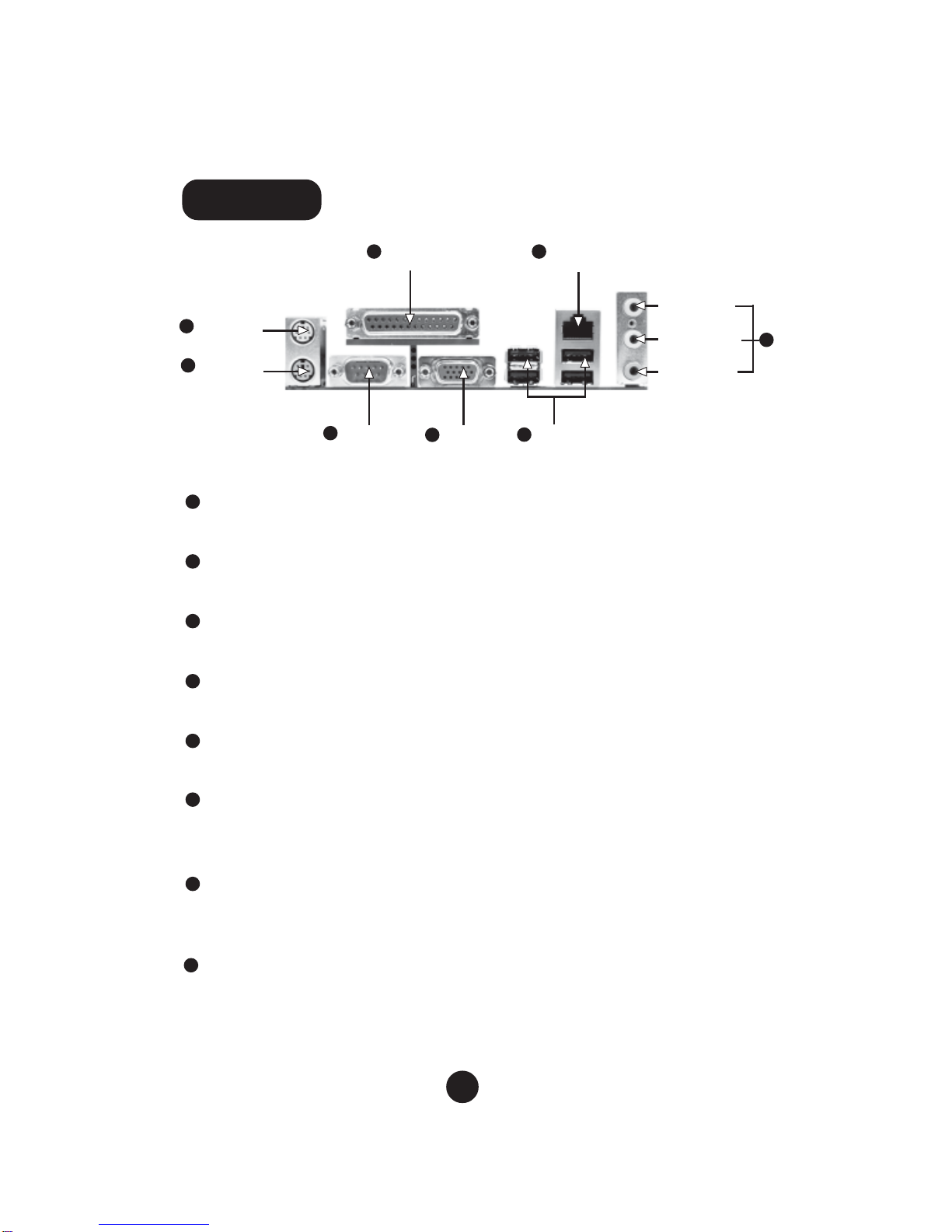

Serial Port
(COM1)
PS/2 Mouse Connector
This green 6-pin connector is for a PS/2 mouse.
PS/2 Keyboard Connector
This purple 6-pin connector is for a PS/2 keyboard.
Serial Port (COM1)
This 9-pin COM1 port is for pointing devices or other serial devices.
Parallel Port (Printer Port)
This 25-pin port connects a parallel printer, a scanner, or other devices.
VGA Connector
The VGA connector is for output to a VGA-compatible device.
USB 2.0 Ports
These four Universal Serial Bus (USB) ports are available for connecting USB
2.0 devices.
LAN Connector
This port allows connection to a Local Area Network (LAN) through a network
hub.
Line-in jack, Line-out jack, Microphone jack
When using a two-channel sound source, the Line-out jack is used to connect to
speakers or headphones; the Line-in port connects to an external CD player,
tape player or other audio device. The Microphone jack is used to connect to the
microphone.
7
PS/2Mouse
Connector
ParallelPort
(Printer Port) 10Mb/100Mb
LANConnector
Line-in jack
Line-out jack
Microphone
jack
4
6
5
7
8
PS/2 Keyboard
Connector
3
Rear Panel
2
1
VGA
Connector USB2.0 Port x4
3
4
5
6
8
1
2
3
845GV4MR-ES Motherboard (x1)
Foxconn Utility CD (x1) (optional)
Easy Installation Guide (x1)(optional)
IDE Ribbon Cable (x1) (optional)
FDD Ribbon Cable (x1) (optional)
I/O Shield (x1) (optional)
SPDIF Cable (x1) (optional)
USB 2.0 Cable (x1) (optional)

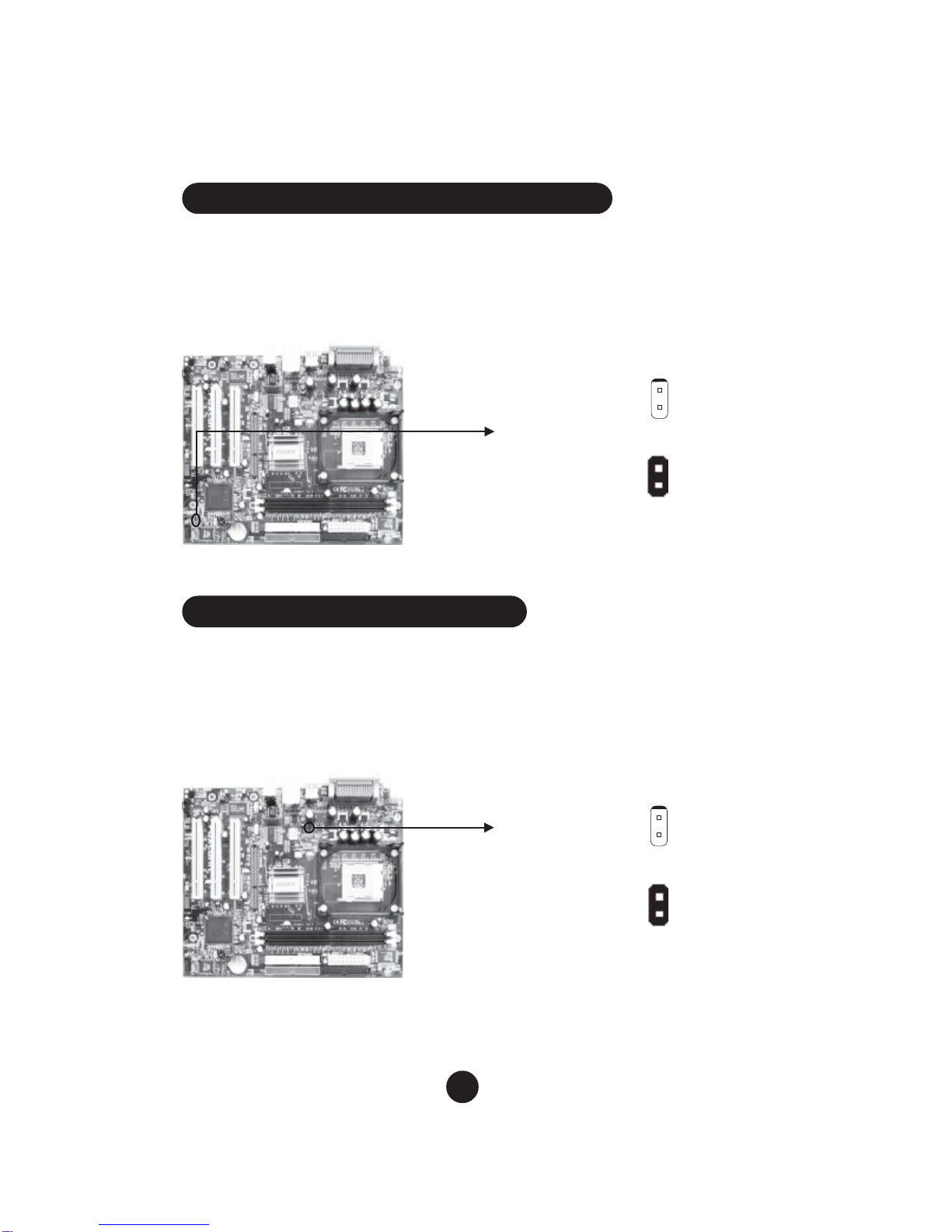

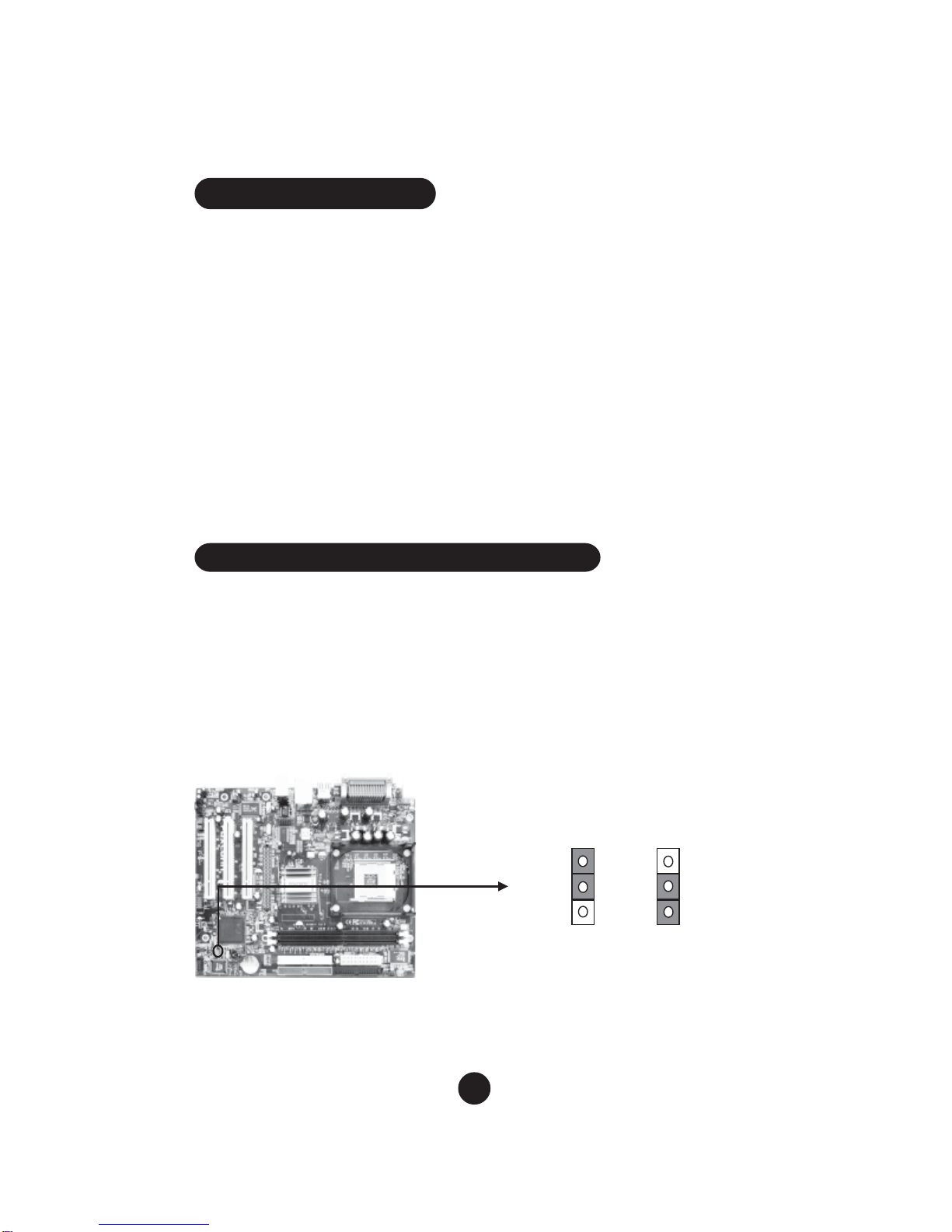

1. Clear CMOS Jumper: CLR_CMOS
Accessory Checklist
This motherboard uses the CMOS RAM to store all the parameters.The CMOS
can be cleared by resetting the CMOS jumper.
How to clear CMOS?
1. Turn off the AC power supply and connect pin 1 and 2 together using the
jumper cap.
2. Return the jumper setting to normal (pin 2 and 3 together with the jumper cap).
3. Turn the AC power supply back on.
Clear
CMOS Normal Status
(Default)
11
4
The default status for JP2 is Open, which supports the Prescott and Northwood
CPU. If JP2 set as Close, then it supports the Willamette CPU.
3. CPU Selection Jumper: JP2
Open
(Default)
JP2
Close
2
1
2
1
The motherboard BIOS is inside the FWH. If the jumper BIOS_WP set as Close,
the system BIOS is protected from being attacked by a serious virus, such as the
CIH virus. You will be unable to flash the BIOS to the motherboard when the
system BIOS is protected.
2. BIOS-Protection Jumper: BIOS_WP
Open
Disabled Protection
BIOS_WP
1
2
1
2
Close
Enabled Protection
(Default)
5

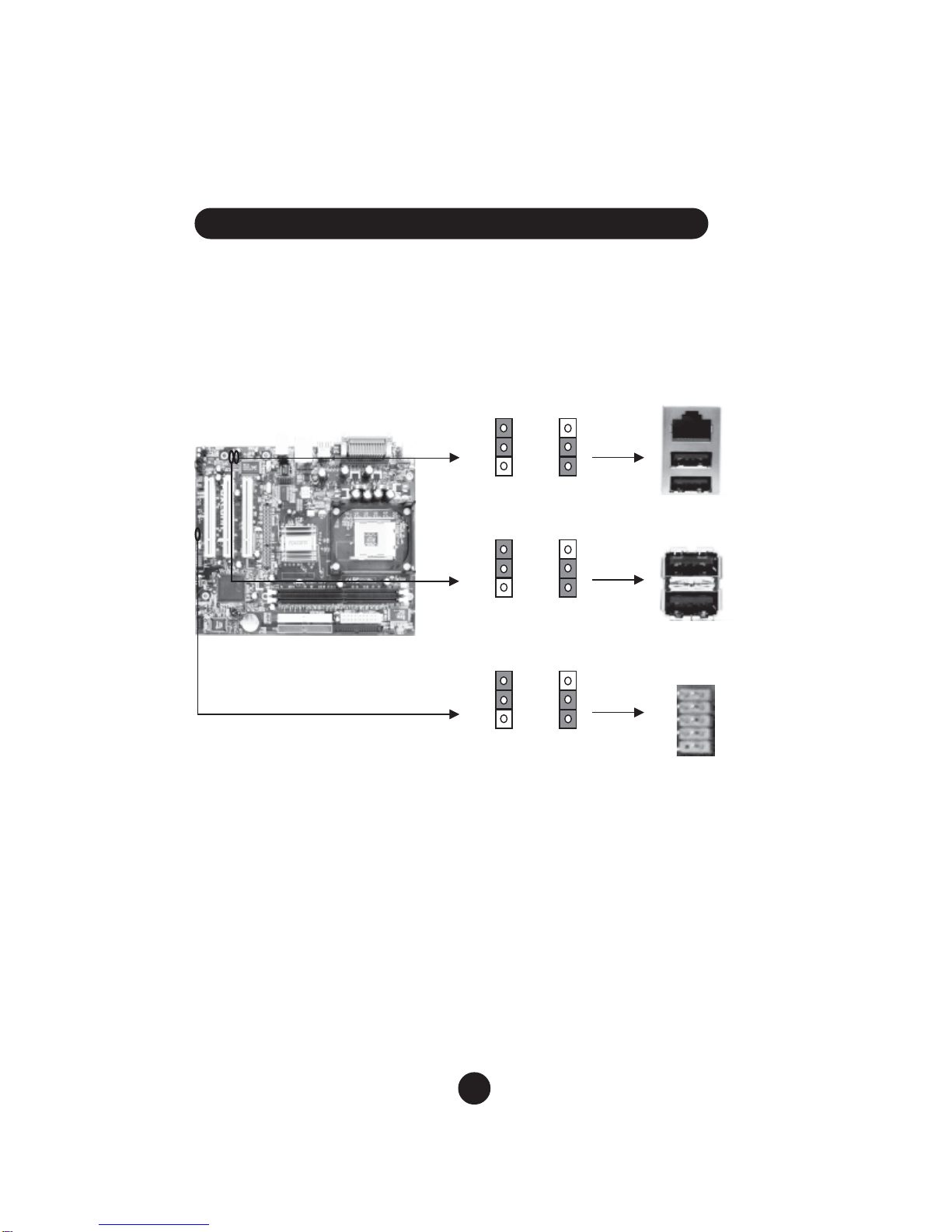

The motherboard uses JP3, JP4, JP5 jumper to select USB power. JP3 is for USB,
JP4 is for NIC_USB, JP5 is for Front USB (F_USB1). Pin 1 and 2 together (default)
select +5V_SYS power, which not supports USB device wake up function. Pin 2
and 3 together select +5V_SB, which supports USB device wake up function.
4. USB Power Selection Jumper: JP3, JP4, JP5
+5V_SYS
(Default)
11
+5V_SB
JP4
JP3
11
+5V_SB
+5V_SYS
(Default)
JP5
11
+5V_SB
+5V_SYS
(Default)
NIC_USB
USB
F_USB1
for
for
for
6

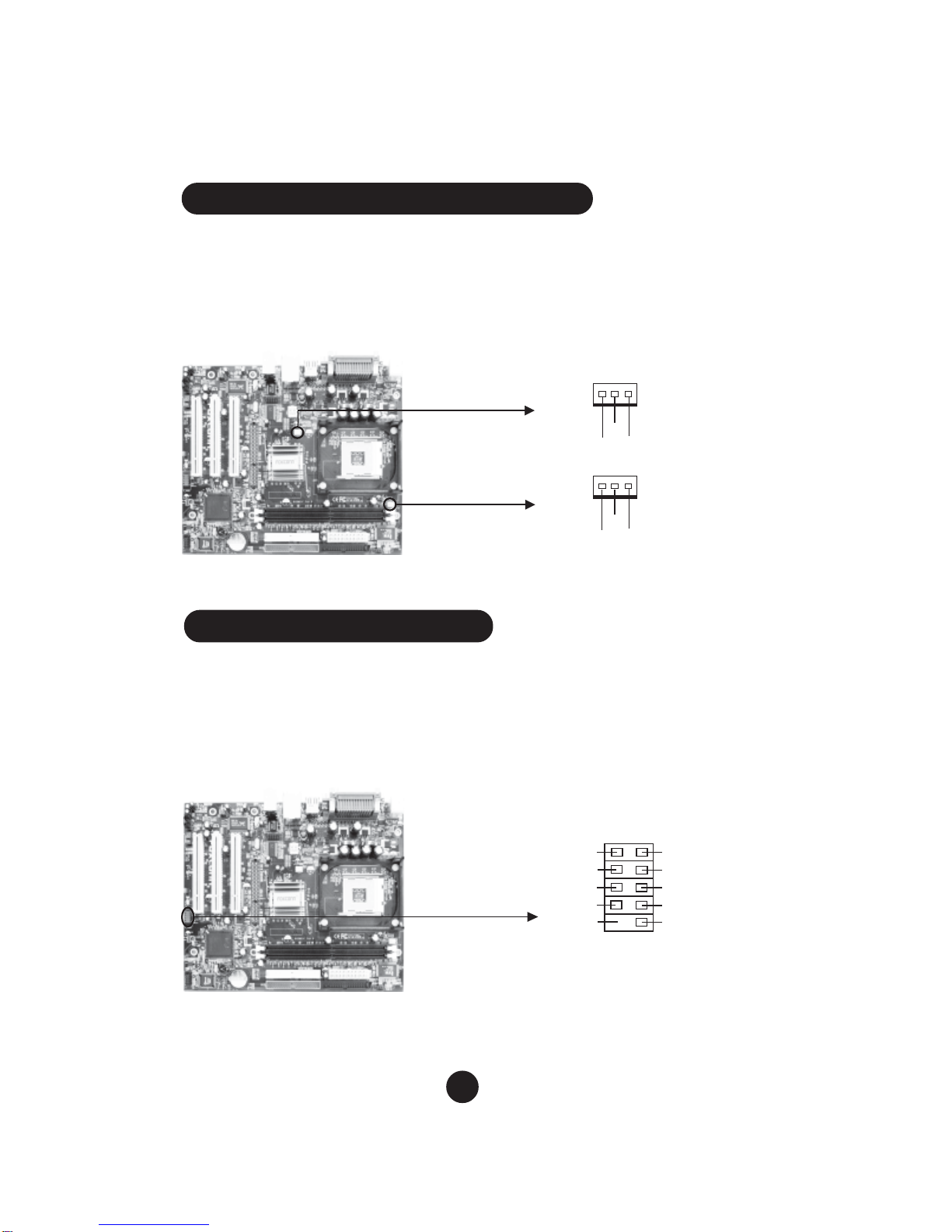

The fan speed of FAN1 and CPU_FAN can be detected and viewed in ‘‘PC Health
Status’’ section of the CMOS Setup. These fans will be automatically turned off
after the system enters S4 and S5 mode.
5. Fan Connectors: FAN1, CPU_FAN
FAN1
+12V
SENSE
GND
1
CPU_FAN
+12V
SENSEGND
1
Besides four USB ports on the rear panel, the series of motherboard also have
one 10-pin header on board which may connect to front panel USB cable (optional)
to provide two additional USB ports.
6. USB 2.0 Header: F_USB1
D1-
VCC
NC
GND
D1+
F_USB1
D0+
Empty
GND
VCC
1 2
9 10
D0-
7
Attach the power LED, IDE LED, reset switch and power switch connectors to the
corresponding pins.
7. Front Panel Connector: FP1
NC
IDE-LED+
GND
PLED+
PWRBTN#
PLED-
GND
IDE-LED-
EMPTY
RESET
2
1
109
FP1
CD_IN is Sony standard CD audio connector, it can be connected to a CD-ROM
drive through a CD audio cable.
8. CD_IN Connector: CD_IN
CD_IN
CD_R
1
CD_L
GND
8

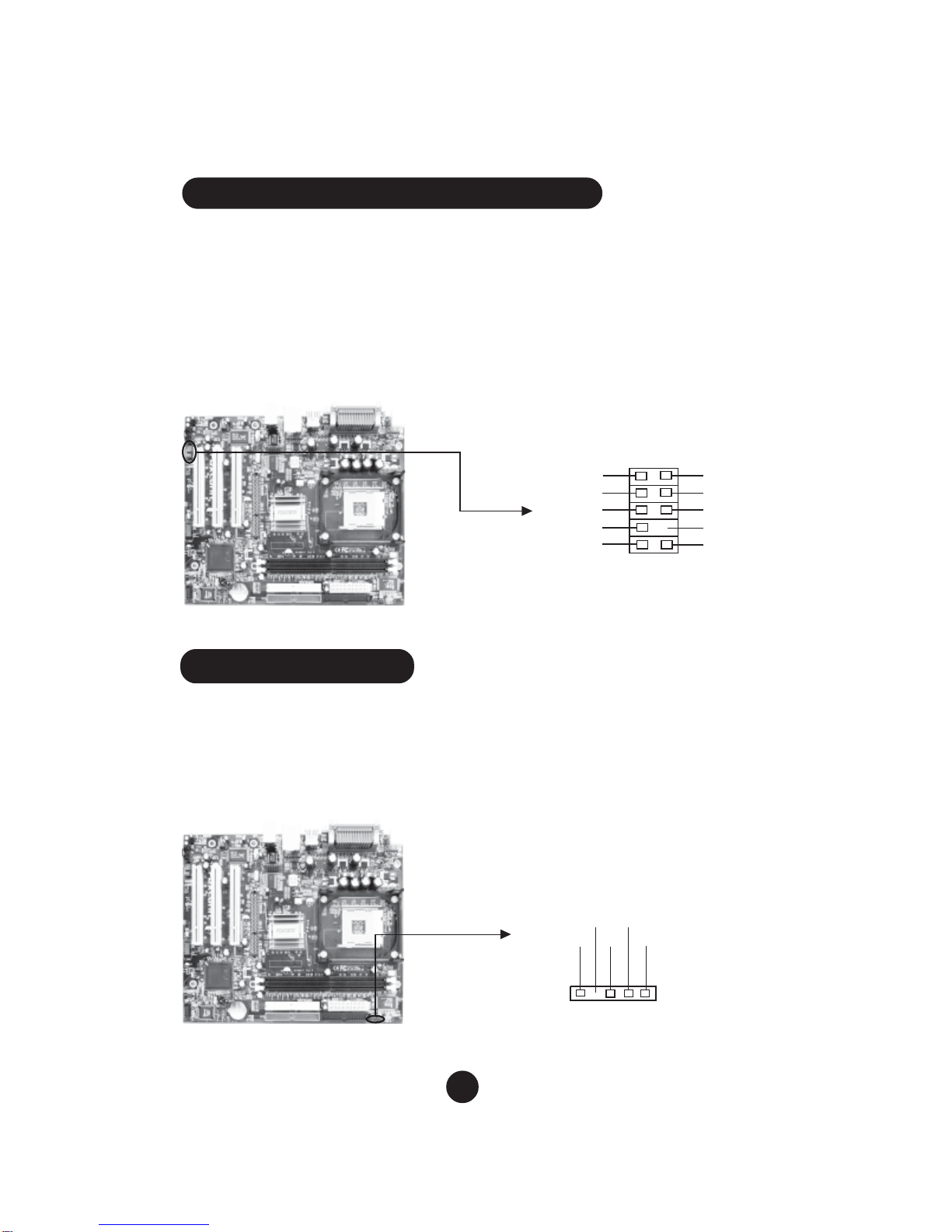

The audio interface provides two kinds of audio output choices: the Front Audio,
the Rear Audio. Their priority is sequency from high to low(Front Audio to Rear
Audio). If headphones are plugged into the front panel of the chassis(using the
FrontAudio), then the Line-out (the RearAudio) on the rear panel will not work. If
you do not want to use the Front Audio, pin 5 and pin 6, pin 9 and pin 10 must be
SHORT, and then the signal will be sent to the rear audio port.
MIC_IN AGND
A5V
R_OUT FR_OUT
NC Empty
L_OUT FL_OUT
F_AUDIO
910
MIC_VCC
12

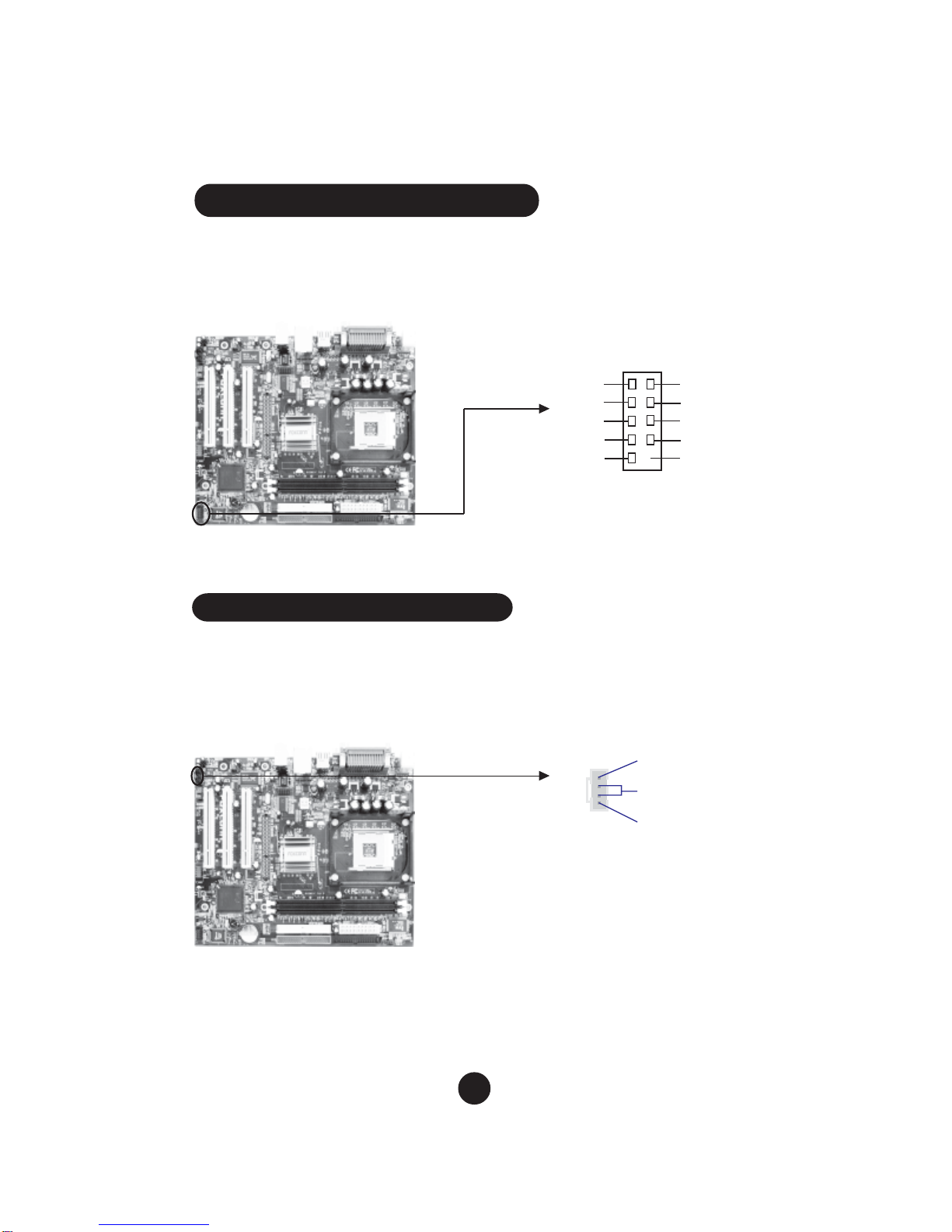

9. Front Audio Connector: F_AUDIO
The connector supports wireless transmitting and receiving device. Before using
this function, configure the settings of IR Mode from the “Integrated Peripherals”
section of the CMOS Setup.
10. IrDA Header: IR
IR
+5V
GND
IRRX IRTX
Empty
1
9

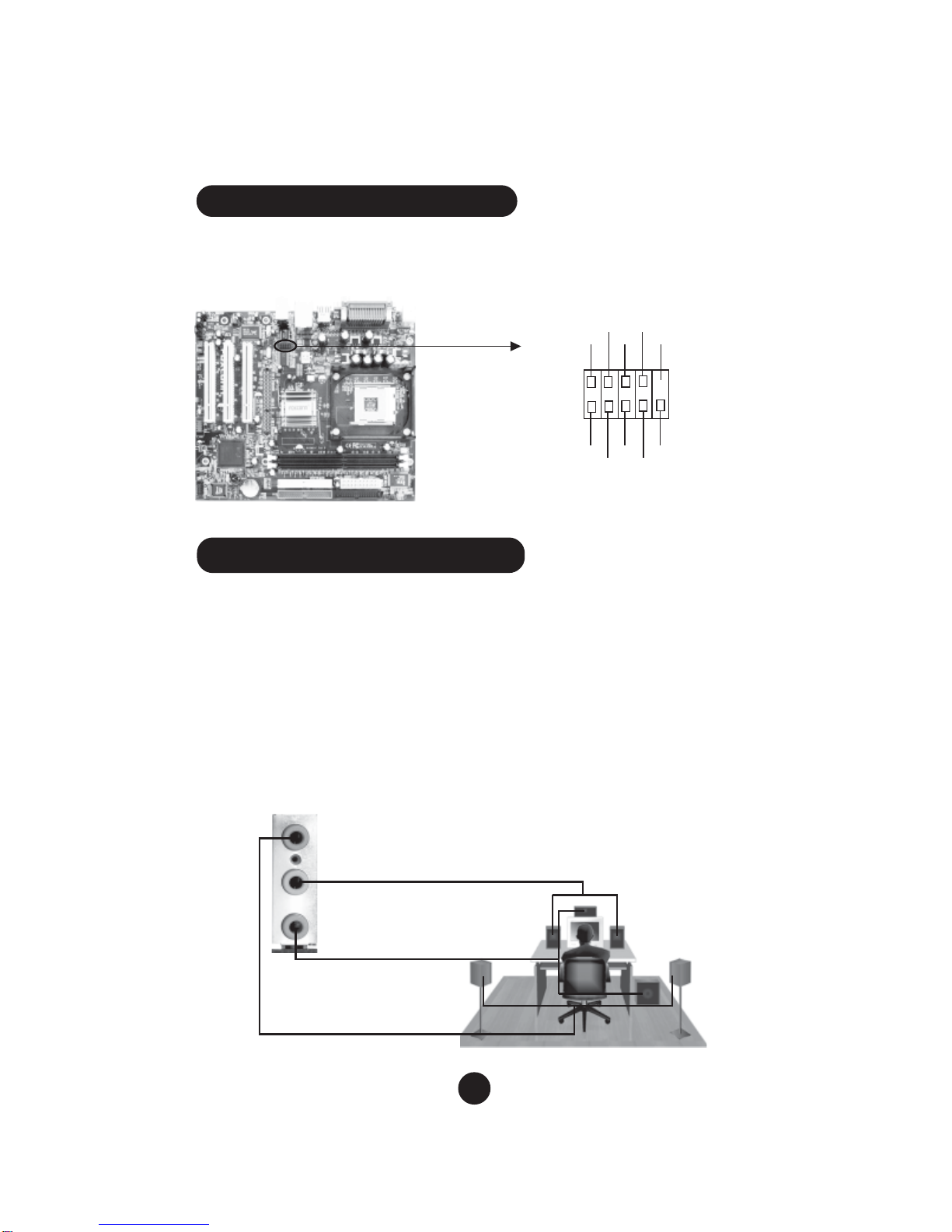

This motherboard attached a serial connector for your computer, you only need
connect it with cable, then link devices to cable port.
11. COM2 Connector: COM2
COM2
TXD RTS#
DCD#
CTS#
GND
DSR# Empty
DTR#
RI#
9
10
RXD
1
2
12. 5.1 Channel Audio Effects
The motherboard is equipped with the Realtek ALC655 chip, which provides sup-
port for 6-channel audio output, including 2 front, 2 rear, 1 center and 1 subwoofer
channel. ALC655 allows the board to attach 4 or 6 speakers for a better surround
sound effect. To apply this function, you have to install the audio driver in utility CD
as well as an audio application supporting 5.1 Channel. Picture bellow repre-
sents the standard location of all speakers in 5.1 Channel sound track. Connect
the front speaker to the green audio output; connect the surround sound speaker
to the blue audio input; connect the center speaker/subwoofer to the red Micro-
phone input.
Front
Left Front
Right
Rear Left Rear Right
Center
Blue
Green
Red
Subwoofer
10

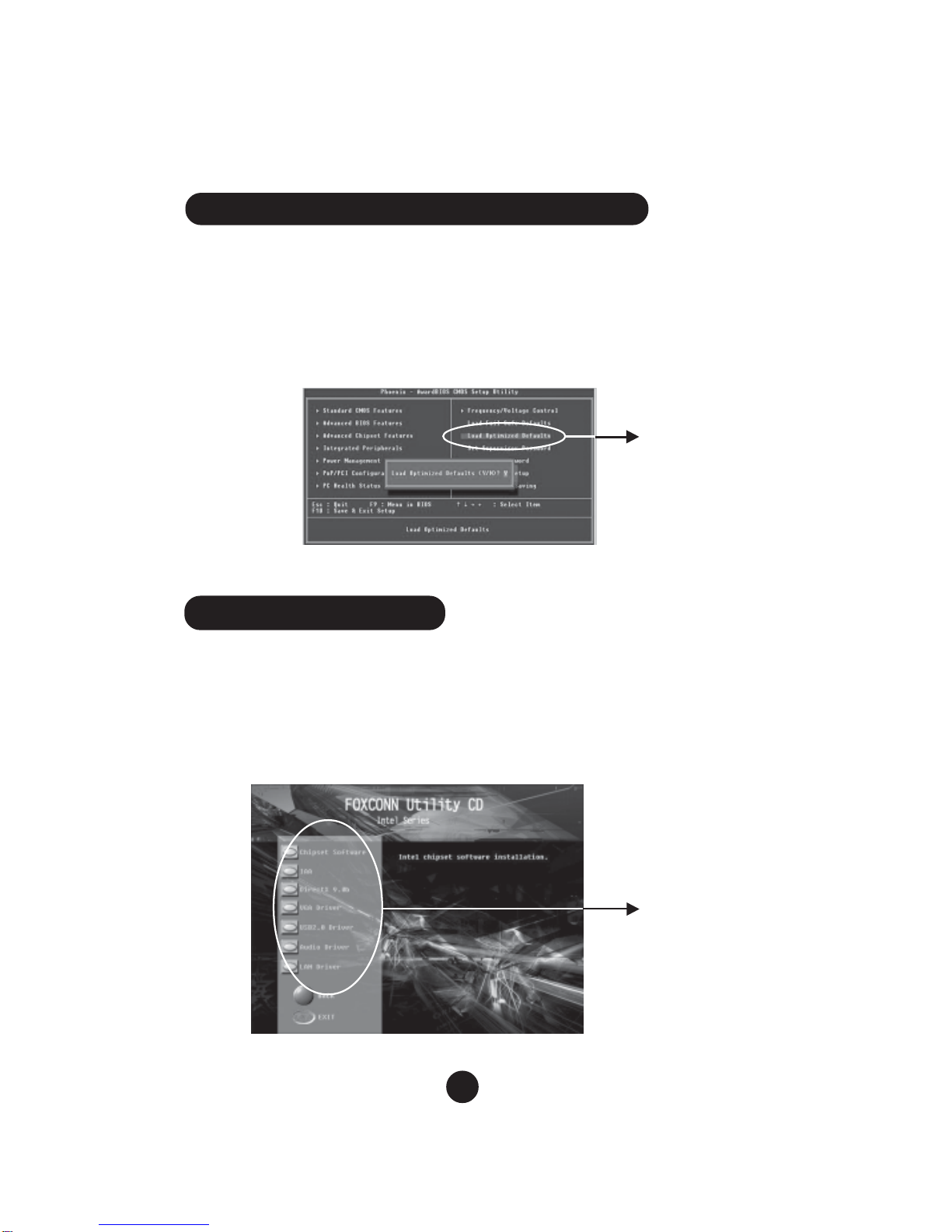

14. Foxconn Utility CD
This motherboard comes with one Utility CD. To begin using the CD, simply insert
the CD into your CD-ROM drive. The CD will automatically display the main menu
screen. After selecting Install Driver, you can install its Chipset Software, IAA,
DirectX 9.0, VGA Driver, USB 2.0 Driver, Audio Driver, LAN Driver from this CD.
Follow the screen
order to install the
motherboard
drivers.
After you finish the setting of jumpers and connect correct cables. Power on and
enter the BIOS Setup, Press <Del> during POST (Power On Self Test). Choose
“Load Optimized Defaults” for recommended optimal performance. Please en-
sure your system components are good enough for optimized defaults.
13. Power on and Load Optimized Defaults
Select this option
and press <Enter>.
