MMDS0508

Target Interface

Revised 2002/04/30

Freescale Semiconductor, Inc.

For More Information: www.freescale.com

Metrowerks, the Metrowerks logo, and CodeWarrior are registered trademarks of Metrowerks

Corp. in the US and/or other countries. All other tradenames and trademarks are the property of

their respective owners.

The reproduction and use of this document and related materials are governed by a license

agreement between Metrowerks Corp. and its licensee. Consult that license agreement before

use or reproduction of any portion of this document. If you do not have a copy of the license

agreement, contact your Metrowerks representative or call 800-377-5416.

Metrowerks reserves the right to make changes to any product described or referred to in this doc-

ument without further notice. Metrowerks makes no warranty, representation or guarantee regard-

ing the merchantability or fitness of its products for any particular purpose, nor does Metrowerks

assume any liability arising out of the application or use of any product described herein and spe-

cifically disclaims any and all liability. Metrowerks software is not authorized for and has not

been designed, tested, manufactured, or intended for use in developing applications where

the failure, malfunction, or any inaccuracy of the application carries a risk of death, serious

bodily injury, or damage to tangible property, including, but not limited to, use in factory

control systems, medical devices or facilities, nuclear facilities, aircraft or automobile navi-

gation or communication, emergency systems, or other applications with a similar degree of

potential hazard.

Documentation stored on electronic media may be printed for non-commercial personal use only,

further to the license agreement related to the product associated with the documentation. Subject

to the foregoing non-commercial personal use, no portion of this documentation may be repro-

duced or transmitted in any form or by any means, electronic or mechanical, without prior written

permission from Metrowerks.

USE OF ALL SOFTWARE, DOCUMENTATION AND RELATED MATERIALS ARE SUB-

JECT TO THE METROWERKS END USER LICENSE AGREEMENT FOR SUCH PRODUCT.

How to Contact Metrowerks

Corporate Headquarters Metrowerks Corporation

9801 Metric Blvd.

Austin, TX 78758

U.S.A.

World Wide Web http://www.metrowerks.com

Ordering & Technical Support Voice: (800) 377-5416

Fax: (512) 997-4901

Freescale Semiconductor, Inc.

For More Information: www.freescale.com

TOC–3MMDS0508 Target Interface

Table of Contents

1 General Description 5

1.1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.2 MMDS Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.3 System Components . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2Installation 9

2.1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.2 Configuring the Platform Board . . . . . . . . . . . . . . . . . . . . . . 11

2.2.1 Factory Test Header (J1) . . . . . . . . . . . . . . . . . . . . . . . . 11

2.2.2 Port Voltage Control Headers (J2–J4) . . . . . . . . . . . . . . . . . . . 12

2.3 Installing the EM . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.4 Removing the EM . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.5 Making Cable Connections. . . . . . . . . . . . . . . . . . . . . . . . 14

2.5.1 Host Computer Connection . . . . . . . . . . . . . . . . . . . . . . 14

2.5.2 Bus State Analyzer Connection . . . . . . . . . . . . . . . . . . . . . 14

2.5.3 Target Cable Connection . . . . . . . . . . . . . . . . . . . . . . . . 15

2.5.4 Power Connection . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3 Connector Information 17

3.1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.2 Reset Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.3 RS232 Serial Connector . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.4 Logic Cables and Connectors . . . . . . . . . . . . . . . . . . . . . . . 18

3.5 Power Supply Fuse Replacement . . . . . . . . . . . . . . . . . . . . . 20

4 MMDS Target Component 23

4.1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4.2 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4.2.1 MMDS0508 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4.2.2 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4.3 Definitions, Acronyms and Abbreviations . . . . . . . . . . . . . . . . . . 25

4.3.1 DLL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4.3.2 Dynamic Linking . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4.3.3 MMDS0508 Server . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4.3.4 Modal Dialog . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Freescale Semiconductor, Inc.

For More Information: www.freescale.com

Table of Contents

TOC–4 MMDS0508 Target Interface

4.3.5 MCU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4.3.6 EM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4.4 Interfacing Your System and the Target . . . . . . . . . . . . . . . . . . . 25

4.4.1 Hardware Connection . . . . . . . . . . . . . . . . . . . . . . . . . 25

4.5 Loading the MMDS0508 Target. . . . . . . . . . . . . . . . . . . . . . 26

4.6 Communication Configuration . . . . . . . . . . . . . . . . . . . . . . 27

4.6.1 Communication Device Specification . . . . . . . . . . . . . . . . . . 28

4.6.2 Data Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.7 The Debugger Status Bar for the MMDS . . . . . . . . . . . . . . . . . . 29

4.8 MMDS0508 Menu Entries . . . . . . . . . . . . . . . . . . . . . . . . 29

4.8.1 Communication Baud Rate . . . . . . . . . . . . . . . . . . . . . . . 30

4.8.2 Memory Configuration . . . . . . . . . . . . . . . . . . . . . . . . 31

4.8.3 Personality (.MEM) Files . . . . . . . . . . . . . . . . . . . . . . . 32

4.8.4 Signals Emulation . . . . . . . . . . . . . . . . . . . . . . . . . . 34

4.8.5 Bus Tracing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

4.9 Default Target Setup . . . . . . . . . . . . . . . . . . . . . . . . . . 36

4.9.1 Motorola ESL Parameters . . . . . . . . . . . . . . . . . . . . . . . 36

4.10 Bus Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

4.10.1 Introduction to the Bus Analyzer . . . . . . . . . . . . . . . . . . . . 37

4.10.2 Using the Bus Analyzer . . . . . . . . . . . . . . . . . . . . . . . . 38

4.10.3 Collecting Data . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

4.10.4 Viewing Collected Data . . . . . . . . . . . . . . . . . . . . . . . . 47

4.10.5 Scrolling the Display . . . . . . . . . . . . . . . . . . . . . . . . . 53

4.10.6 Dumping the Bus analyzer data to a file . . . . . . . . . . . . . . . . . . 57

A Appendix 59

A.1 MMDS Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

A.1.1 Baud Rate Command . . . . . . . . . . . . . . . . . . . . . . . . . 59

A.1.2 Trigger Commands . . . . . . . . . . . . . . . . . . . . . . . . . . 60

A.1.3 Bus Analyzer Commands . . . . . . . . . . . . . . . . . . . . . . . 66

A.1.4 Target Signal Emulation Commands . . . . . . . . . . . . . . . . . . . 77

A.1.5 Reset Commands . . . . . . . . . . . . . . . . . . . . . . . . . . 77

A.1.6 Other Commands . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Freescale Semiconductor, Inc.

For More Information: www.freescale.com

1–5MMDS0508 Target Interface

General Description

1.1 Introduction

The M68MMDS05/08 Motorola Modular Development System (MMDS) is a tool for

developing embedded systems based on an MC68HC05 or MC68HC08

microcontroller unit (MCU). A modular emulation system, the MMDS provides

interactive control of a microcontroller application when connected to your target

system.

The MMDS environment allows for source-level debugging and simplifies writing

and debugging code. These features significantly reduce development time.

A complete MMDS includes a station module, an emulation module (EM), and a

target cable assembly. The EM completes MMDS functionality for a particular MCU

or MCU family.

1.2 MMDS Features

MMDS features include:

• Real-time, non-intrusive, in-circuit emulation

• Real-time bus state analysis

• MC68HC11K1 system controller, for fast command transfer

• Compliance with ECC92 European electromagnetic compatibility standards

• Four complex data breakpoints, each qualified by an address, an address range,

data, or externally connected logic clips.

• 32 variables or real-time variables, plus a 32-byte block of real-time memory,

mappable anywhere within a 1-kilobyte window over the 64-kilobyte HC05/HC08

memory map.

•64 kilobytes of emulation memory, to accommodate the largest available ROM

size of current HC05/HC08 MCUs.

Freescale Semiconductor, Inc.

For More Information: www.freescale.com

General Description

System Components

1–6 MMDS0508 Target Interface

• 64 hardware instruction breakpoints over the 64-kilobyte memory map

• A personality file for each EM. (Each personality file defines a memory-map.)

• Latch-up resistant design (47-Ωseries resistor on I/O connections to the target

system) to make power-up sequencing unimportant.

• Built-in bus state analyzer that includes:

• 8K x 64 real-time trace buffer

– Four hardware triggers, for controlling real-time bus analysis and to

provide breakpoints

– Nine triggering modes

– Display of real-time trace data as raw data, disassembled instructions, raw

data and disassembled instructions, or assembly-language source code

– As many as 8190 pre- or post-trigger points

– Trace buffer that can be filled as you single-stepping through user software

– 16-bit time tag, or an optional 24-bit time tag that sacrifices eight logic

clips

– Eight software selections for the time tag clock source, permitting wide

time variance between analyzer events

– 16 general-purpose logic clips, five of which can be used to trigger the bus

state analyzer sequencer

• Four software-selectable internally generated oscillator clock sources

• Built-in power supply with 85 to 264 VAC input

• RS-232 operation speeds as high as 57600 baud

• Compact size: 15.38 inches (390.6 mm) deep, 10.19 inches (258.83 mm) wide, and

2.75 inches (69.85 mm) high. The station module weighs 6.0 pounds (2.72 kg).

For connection instructions, configuration instructions, and other related information,

see the installation section of this hardware addendum. For similar information with

regard to EMs, see the corresponding EM user's manual.

1.3 System Components

The MMDS components include:

•Station module: the MMDS enclosure, containing the platform board and the

internal power supply. The access panel in the enclosure top lets you insert an EM

easily.

Freescale Semiconductor, Inc.

For More Information: www.freescale.com

General Description

System Components

1–7MMDS0508 Target Interface

•9-lead RS-232 serial cable: the cable that connects the station module to the host-

computer RS-232 port.

•Serial adapter: a DB9M-to-DB25F RS-232 adapter, for use with a 25-pin host-

computer serial port.

•Two logic clip cable assemblies: twisted-pair cables that connect the station

module to your target system, a test fixture, a clock, an oscillator, or any other

circuitry useful for evaluation or analysis. One end of each cable assembly has a

molded connector, which fits into the pod A or pod B connector of the station

module. Leads at the other end of each cable terminate in female probe tips. Ball

clips come with the cables.

Separately purchased components are:

•Emulation module (EM): a printed circuit board that completes MMDS

functionality for one or more MCUs. The two DIN connectors on the bottom of the

EM fit into connectors on the top of the MMDS0508 platform board, providing

power and signal connections. The EM also has a connector for the target cable.

Each EM comes with its own user’s manual.

•Target cable: a flat, flexible cable that connects the MMDS to the target system.

The cable’s emulator terminator mates to the EM target connectors; the cable’s

head terminator mates to a target head adapter. (A target cable and target head

adapter make up a target cable assembly.)

•Target head adapter: a target-cable adapter that plugs into the MCU socket of the

target system. (For some EMs, the target head adapter plugs into a surface-mount

adapter.)

Freescale Semiconductor, Inc.

For More Information: www.freescale.com

General Description

System Components

1–8 MMDS0508 Target Interface

Freescale Semiconductor, Inc.

For More Information: www.freescale.com

2–9MMDS0508 Target Interface

Installation

2.1 Introduction

Complete MMDS installation consists of:

• Configuring the platform board,

• Configuring the emulation module (EM),

• Installing the EM, and

• Making system cable connections.

This section explains all items except EM configuration. (As EM configuration is

specific to each EM, you must follow the instructions of your EM user's manual.)

Additionally, this sections explains how to remove an EM from the station module.

Figure 2.1 shows the right side of the MMDS station module, with the access panel

open. Callouts indicate the reset switch and power LED (on the front of the station

module), and the logic cable A and B connectors (on the right side of the station

module). (Alternate names for the logic cable connectors are pod A and pod B.) If you

use logic clip cables, always attach the black clip to ground.

Figure 2.2 shows the left side of the station module, with the access panel closed.

Callouts indicate the power cord socket, the power switch, and the 9-pin RS-232 serial

connector. The circular, +5 V out connector is reserved for possible future features. (A

spacer covers the final enclosure cutout, for a future connector.)

Freescale Semiconductor, Inc.

For More Information: www.freescale.com

Installation

Introduction

2–10 MMDS0508 Target Interface

Figure 2.1 M68MMDS0508 Station Module (Right Side)

Freescale Semiconductor, Inc.

For More Information: www.freescale.com

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Freescale Semiconductor Hardware per computer

Freescale Semiconductor

Freescale Semiconductor i.MX35 Manuale utente

Freescale Semiconductor

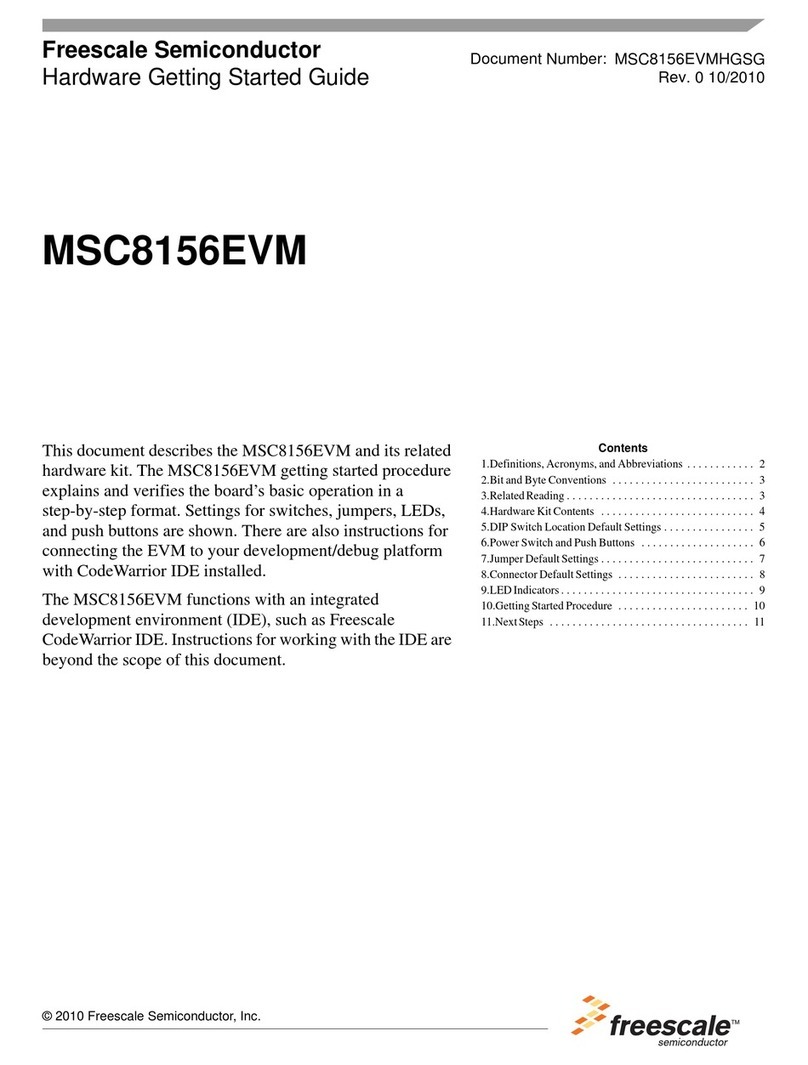

Freescale Semiconductor MSC8156EVM Manuale utente

Freescale Semiconductor

Freescale Semiconductor Windows Embedded CE 6.0/Windows CE 5.0 i.MX31 PDK... Manuale utente

Freescale Semiconductor

Freescale Semiconductor MCS08QG8 Manuale utente

Freescale Semiconductor

Freescale Semiconductor Motorola MMDS0508 Manuale utente

Freescale Semiconductor

Freescale Semiconductor M9328MX21ADSE Manuale utente

Freescale Semiconductor

Freescale Semiconductor MPC8272ADS Manuale utente

Freescale Semiconductor

Freescale Semiconductor TWR-S12GN32 Manuale utente

Freescale Semiconductor

Freescale Semiconductor TWR-WIFI-G1011MI Manuale utente

Freescale Semiconductor

Freescale Semiconductor Demonstration Board DEMO9S08AC60E Manuale utente

Freescale Semiconductor

Freescale Semiconductor FRDM-STBC-SA9500 Guida di riferimento

Freescale Semiconductor

Freescale Semiconductor TWR-MPC8309 Manuale utente

Freescale Semiconductor

Freescale Semiconductor DSP56366 Manuale utente

Freescale Semiconductor

Freescale Semiconductor FRDM-KL25Z Manuale utente

Freescale Semiconductor

Freescale Semiconductor MPC8309 Manuale utente

Freescale Semiconductor

Freescale Semiconductor NXP 56F8014 Manuale utente

Freescale Semiconductor

Freescale Semiconductor MCF5329 Manuale utente

Freescale Semiconductor

Freescale Semiconductor 56F8013 Manuale utente

Freescale Semiconductor

Freescale Semiconductor 56F827 Manuale utente

Freescale Semiconductor

Freescale Semiconductor SC140 DSP Core Manuale utente

Freescale Semiconductor

Freescale Semiconductor PowerQUICC III MPC8555E Manuale di istruzioni

Freescale Semiconductor

Freescale Semiconductor FRDM-K64F Manuale utente

Freescale Semiconductor

Freescale Semiconductor 802.15.4/Zigbee Manuale utente

Freescale Semiconductor

Freescale Semiconductor MC68HC908MR16 Manuale utente

Manuali Hardware per computer popolari di altre marche

EMC2

EMC2 VNX Series Manuale del proprietario

Panasonic

Panasonic DV0PM20105 Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuale utente

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuale utente

Raidon

Raidon iT2300 Manuale utente

National Instruments

National Instruments PXI-8186 Manuale utente

Hauppauge

Hauppauge WinTV-HVR-2250 Manuale utente

Kontron

Kontron CP6002 Manuale utente

Manhattan

Manhattan 702843 Manuale utente

Aphex

Aphex 230 Manuale utente

AMD

AMD Phenom II Manuale operativo

Intel

Intel NUC 12 Pro Manuale utente

dbx

dbx Zone Pro 1260 Manuale utente

Galaxy

Galaxy GHDX2-2430S-24F4D Manuale utente

Intel

Intel AXXRMFBU4 Manuale utente

Kontron

Kontron DIMM-PC/MD Manuale utente

ST X-NUCLEO-SAFEA1B Istruzioni operative

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuale utente
