Freescale Semiconductor KIT33879AEKEVBE Manuale utente

Freescale Semiconductor

User’s Guide

Document Number: KT33879UG

Rev. 1.0, 11/2008

KIT33879AEKEVBE Evaluation Board

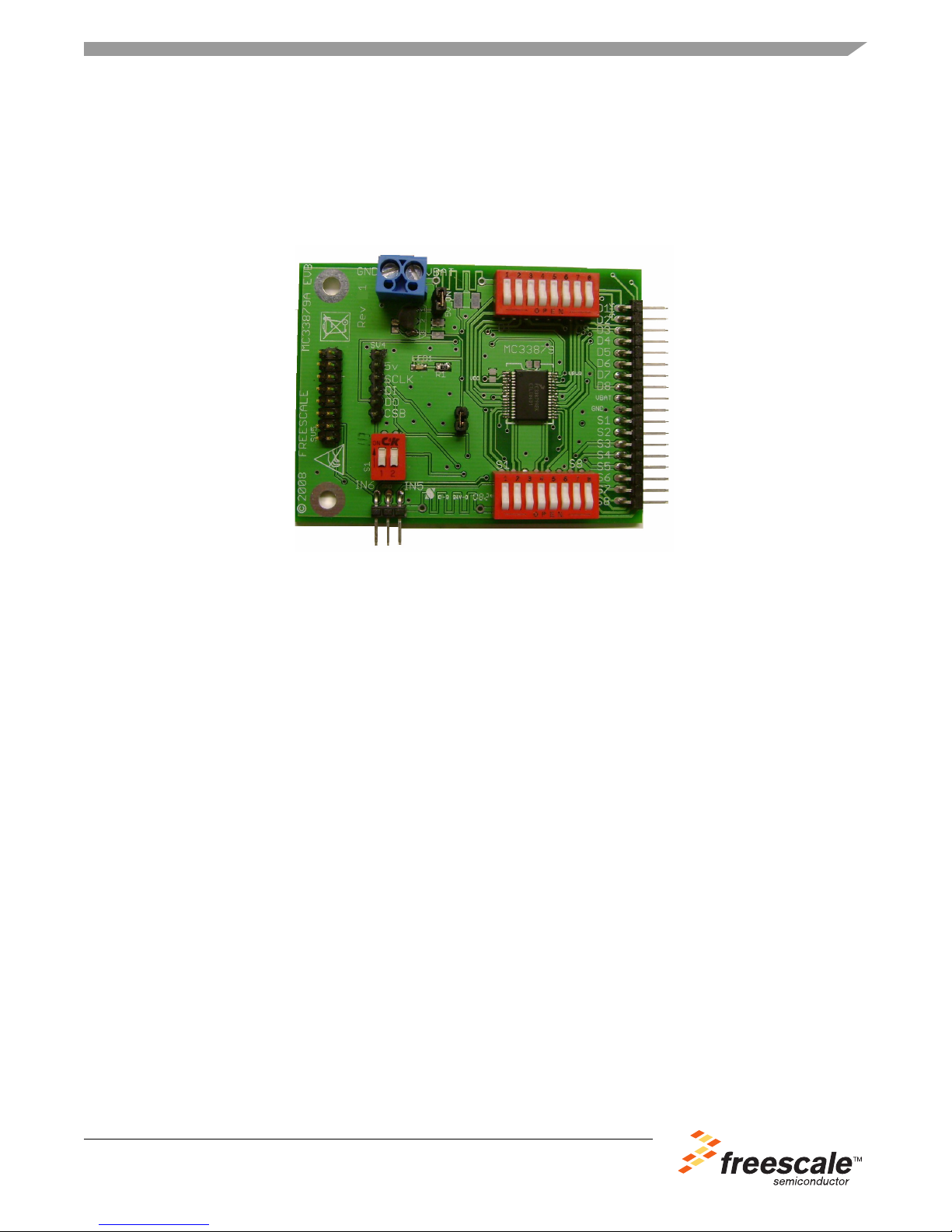

Figure 1. KIT33879AEKEVEBE Evaluation Board

Table of Contents

1 Kit Contents / Packing List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2 Important Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

3 Using the EVB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

4 Hardware Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

6 Installing SPIGen Freeware on your Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

7 KIT33879AEKEVBE Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

9 KIT33879AEKEVBE Board Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

13 Bill of Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

14 References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

15 Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

KIT33879AEKEVBE Evaluation Board, Rev. 1.0

2Freescale Semiconductor

Kit Contents / Packing List

1 Kit Contents / Packing List

• KIT33879AEKEVBE

• CD33879

KIT33879AEKEVBE Evaluation Board, Rev. 1.0

Freescale Semiconductor 3

Important Notice

2 Important Notice

Freescale provides the enclosed product(s) under the following conditions:

This evaluation kit is intended for use of ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY. It

is provided as a sample IC pre-soldered to a printed circuit board to make it easier to access inputs, outputs, and

supply terminals. This EVB may be used with any development system or other source of I/O signals by simply

connecting it to the host MCU or computer board via off-the-shelf cables. This EVB is not a Reference Design and is

not intended to represent a final design recommendation for any particular application. Final device in an application

will be heavily dependent on proper printed circuit board layout and heat sinking design as well as attention to supply

filtering, transient suppression, and I/O signal quality.

The goods provided may not be complete in terms of required design, marketing, and or manufacturing related

protective considerations, including product safety measures typically found in the end product incorporating the

goods. Due to the open construction of the product, it is the user's responsibility to take any and all appropriate

precautions with regard to electrostatic discharge. In order to minimize risks associated with the customers

applications, adequate design and operating safeguards must be provided by the customer to minimize inherent or

procedural hazards. For any safety concerns, contact Freescale sales and technical support services.

Should this evaluation kit not meet the specifications indicated in the kit, it may be returned within 30 days from the

date of delivery and will be replaced by a new kit.

Freescale reserves the right to make changes without further notice to any products herein. Freescale makes no

warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does

Freescale assume any liability arising out of the application or use of any product or circuit, and specifically disclaims

any and all liability, including without limitation consequential or incidental damages. “Typical” parameters can and

do vary in different applications and actual performance may vary over time. All operating parameters, including

“Typical”, must be validated for each customer application by customer’s technical experts.

Freescale does not convey any license under its patent rights nor the rights of others. Freescale products are not

designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or

other applications intended to support or sustain life, or for any other application in which the failure of the Freescale

product could create a situation where personal injury or death may occur.

Should Buyer purchase or use Freescale products for any such unintended or unauthorized application, Buyer shall

indemnify and hold Freescale and its officers, employees, subsidiaries, affiliates, and distributors harmless against

all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim

of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that

Freescale was negligent regarding the design or manufacture of the part.Freescale™ and the Freescale logo are

trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective

owners. © Freescale Semiconductor, Inc. 2008

KIT33879AEKEVBE Evaluation Board, Rev. 1.0

4Freescale Semiconductor

Using the EVB

3 Using the EVB

Warning: Always wear Safety Glasses when working around electronic modules and when

soldering.

Note: The on-board 5V linear regulator is not reverse battery protected.

1. The KIT33879AEKEVBE Evaluation card allows the customer to quickly evaluate features of the device with a

simple bench top setup.

2. Using a standard USB cable, the USB to SPI dongle board and the enclosed SPIGen SPI Driver software, you

can use a personal computer to provide the Serial Peripheral Interface (SPI) communication with this EVB

(see SETUP_EVB).

3. Connect power supply to the +12V and GND terminals on the EVB's power terminal block. Make sure the

voltages provided are in accordance with the device data sheet and that the supply currents are sufficient to

supply the output driver load conditions

4. With power applied to the KIT33879AEKEVBE evaluation card, the MCZ33879AEK device will be in NORMAL

mode with a LED illuminated showing power is connected correctly. The MCZ33879AEK device is now ready

to receive SPI commands or have PWM signals applied to IN5 and IN6.

5. To use SPIGen, Go to the Windows Start menu, then Programs, then SPIGen, and click on the SPIGen icon.

The SPIGen “Generic SPI Generator” GUI will appear. Go to the File menu in the upper left hand corner of the

GUI, and select Open, then browse the CD to find and select the 33879A_EVB_CONFIGURATION_FILE.spi.

file for the KIT33879AEKEVBE. Click Open, and SPIGen will open a specifically configured SPI command

generator for the KIT33879AEKEVBE. The configuration file will set all parameters for SPI signals from the PC

and provide a list of commands that may be sent to the EVB.

KIT33879AEKEVBE Evaluation Board, Rev. 1.0

Freescale Semiconductor 5

Hardware Setup

4 Hardware Setup

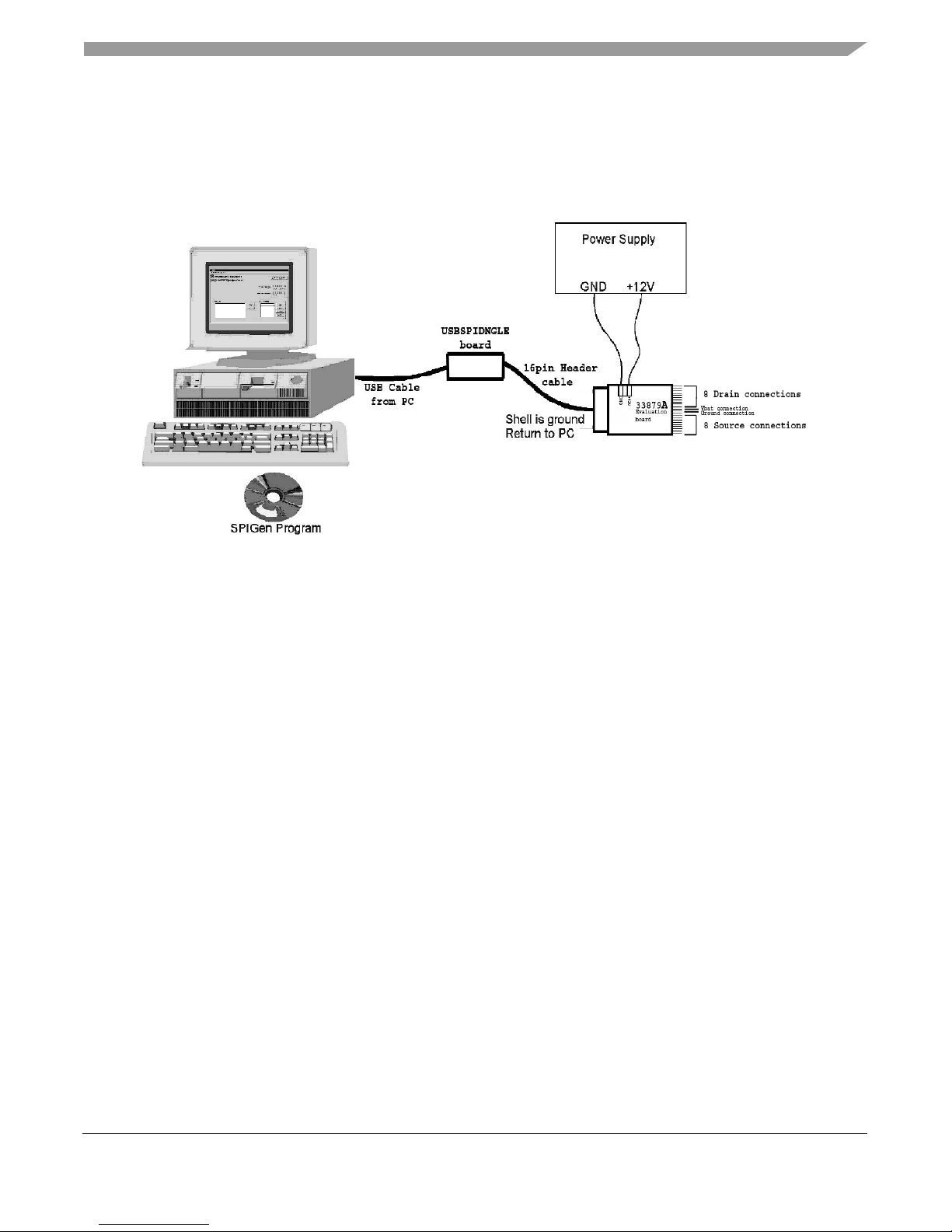

Figure 5. KIT33879AEKEVBE Hardware Setup

KIT33879AEKEVBE Evaluation Board, Rev. 1.0

6Freescale Semiconductor

Installing SPIGen Freeware on your Computer

6 Installing SPIGen Freeware on your Computer

There are two different versions of SPIGen. One is designed to run on Windows 95/98/Me, and the other

is designed to run on Windows NT/2000/XP. Be sure to choose the appropriate installation program for

your computer. The version number for SPIGen should be 5.0.1 or greater.

Each version of SPIGen includes a README.txt file which will describe the operating systems that the

software should be installed on. Before you install the program, refer to the SPIGen README.txt file to

check the compatibility of the installation program and your computer operating system.

To install the software from the CD-ROM, insert the CD-ROM into your CD drive. Click the Start button,

and then click “Run…”.

If you are running Windows 95, Windows 98, or Windows Me, type

“D:\SPIGen_Win_95_98_Me\Setup.exe” in the box, and then click “OK”.

If you are running Windows NT, Windows 2000, or Windows XP, type

“D:\SPIGen_Win_NT_2000_XP\Setup.exe” in the box, and then click “OK”.

Several temporary files will be copied to your computer, and then the Installation Wizard will guide you

through the rest of the process.

To use SPIGen, Go to the Windows Start menu, then Programs, then SPIGen, and click on the SPIGen

icon. The SPIGen "Generic SPI Generator" GUI will appear. Go to the File menu in the upper left hand

corner of the GUI, and select Open, then browse the CD to find and select the SPIGen Configuration ".spi"

file for the EVB you are using. Click Open, and SPIGen will open a specifically configured SPI command

generator for your EVB.

KIT33879AEKEVBE Evaluation Board, Rev. 1.0

Freescale Semiconductor 7

KIT33879AEKEVBE Schematic

7 KIT33879AEKEVBE Schematic

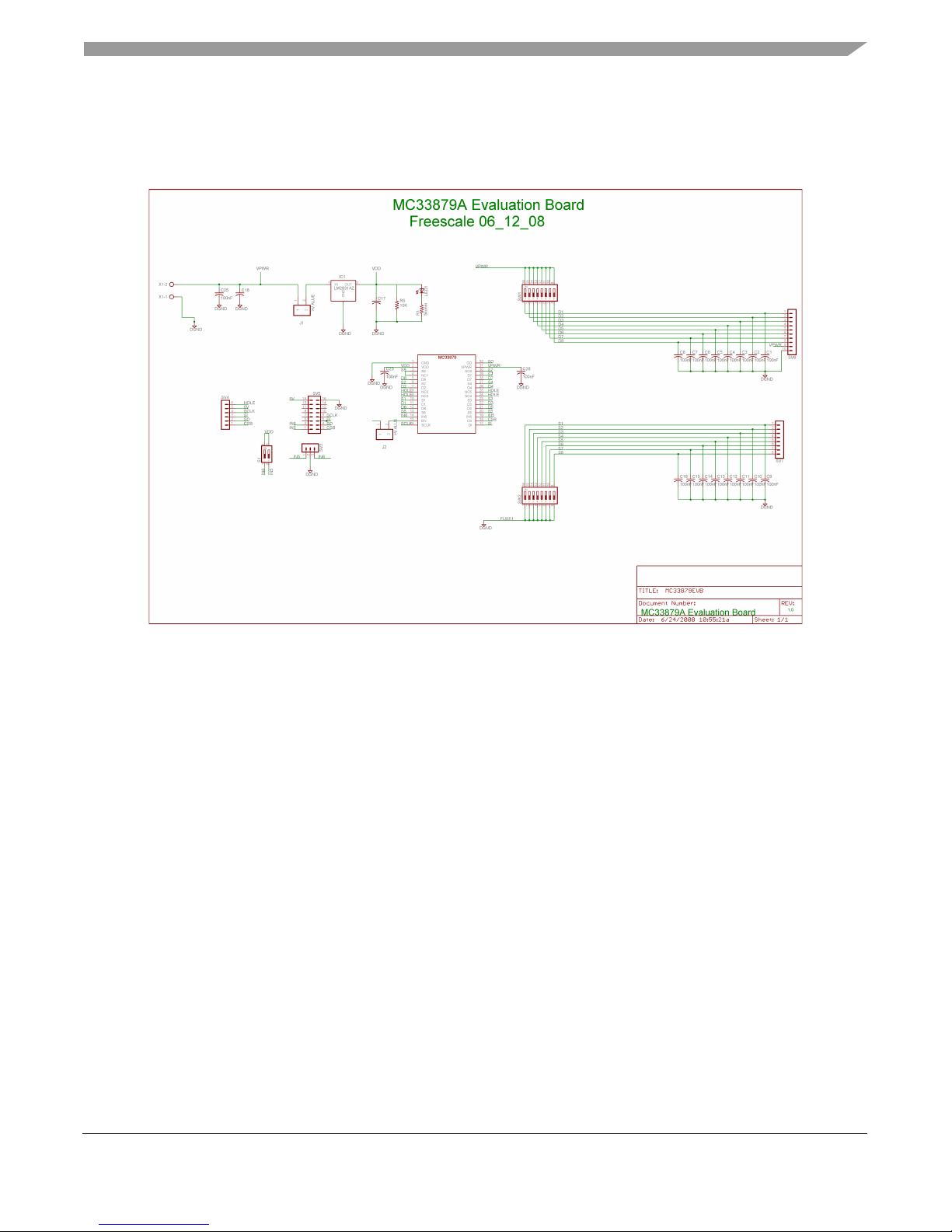

Figure 8. Schematic

KIT33879AEKEVBE Evaluation Board, Rev. 1.0

8Freescale Semiconductor

KIT33879AEKEVBE Board Layout

9 KIT33879AEKEVBE Board Layout

9.1 Assembly Drawing

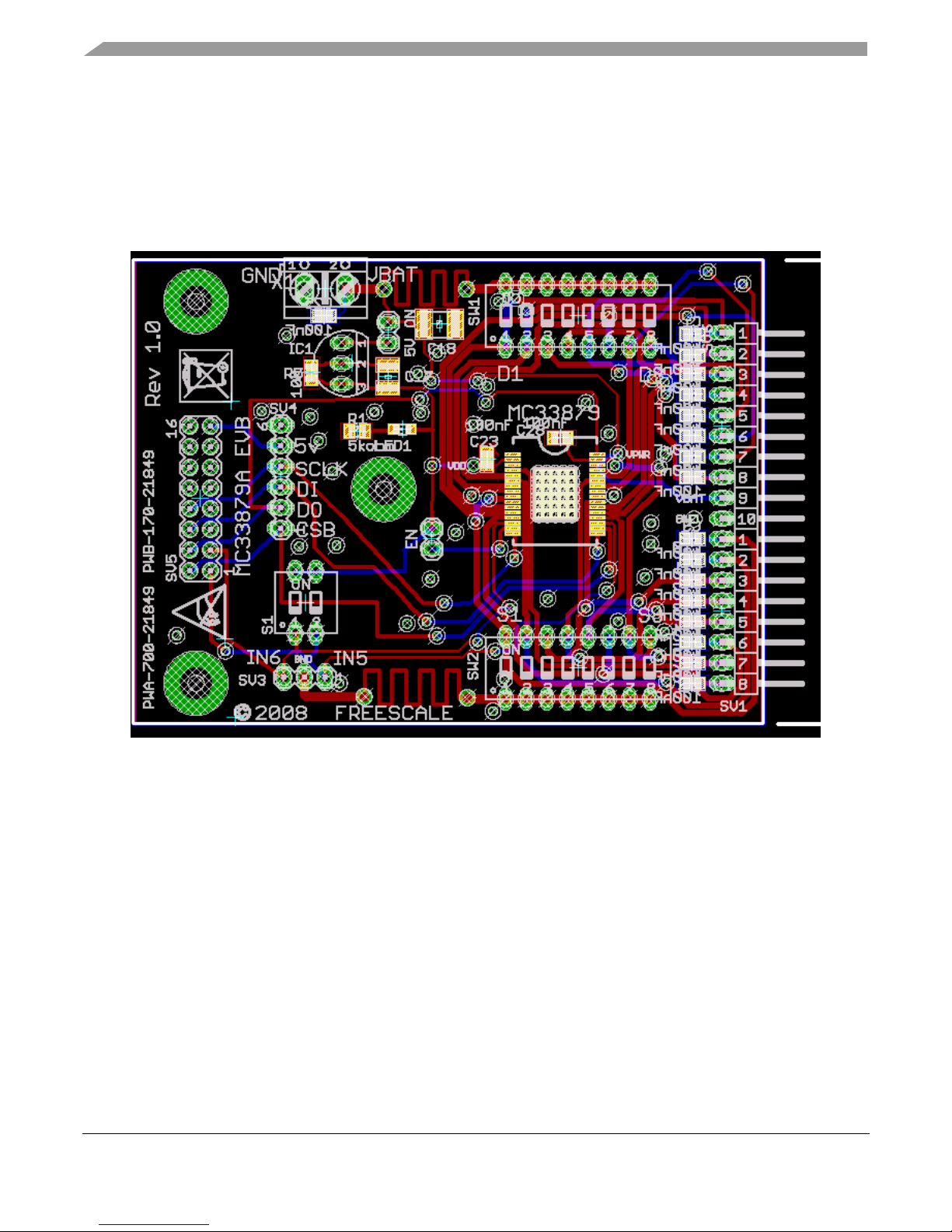

Figure 10. KIT33879AEKEVBE Assembly Layer Top

KIT33879AEKEVBE Evaluation Board, Rev. 1.0

Freescale Semiconductor 9

KIT33879AEKEVBE Board Layout

10.1 PCB Top

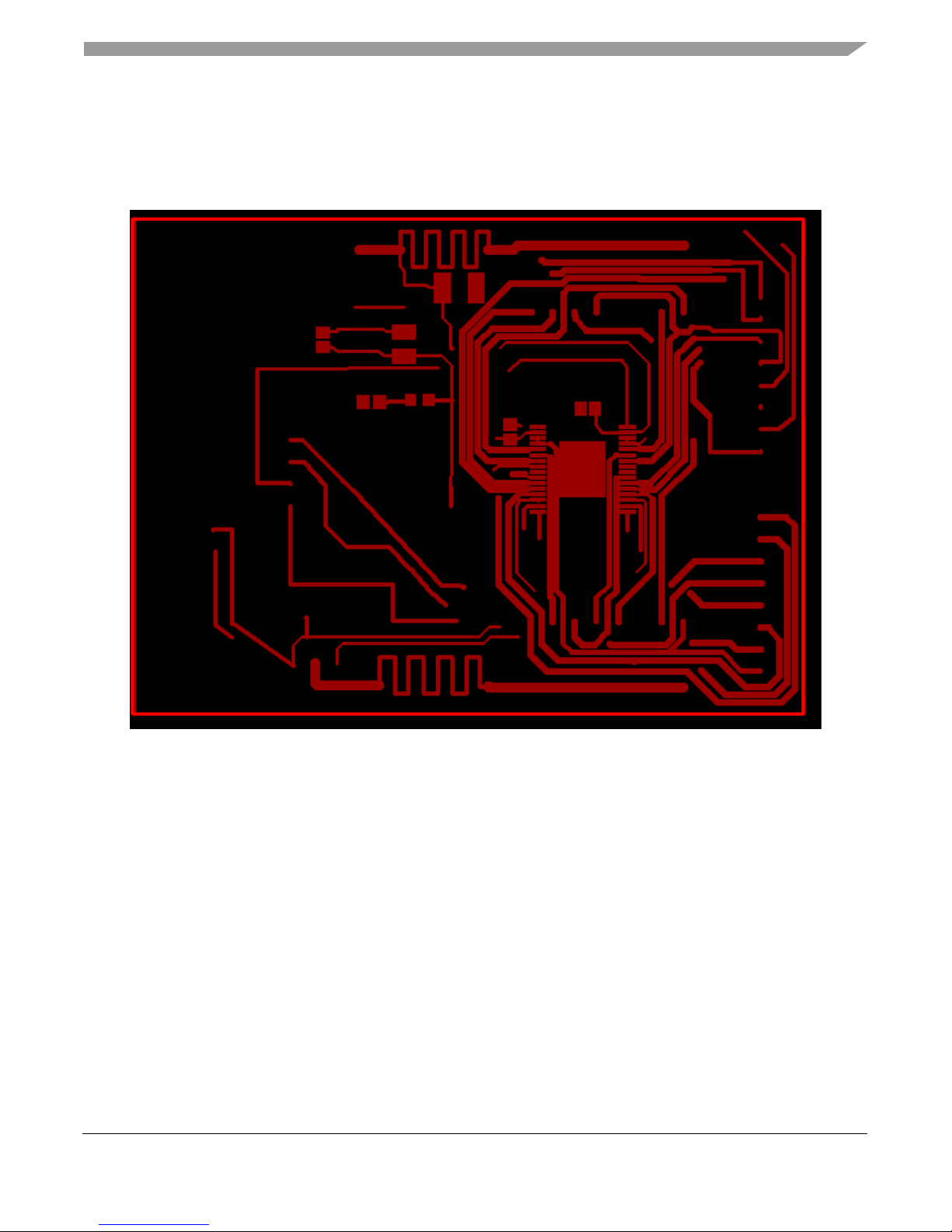

Figure 11. PCB Top

KIT33879AEKEVBE Evaluation Board, Rev. 1.0

10 Freescale Semiconductor

KIT33879AEKEVBE Board Layout

11.1 PCB Bottom

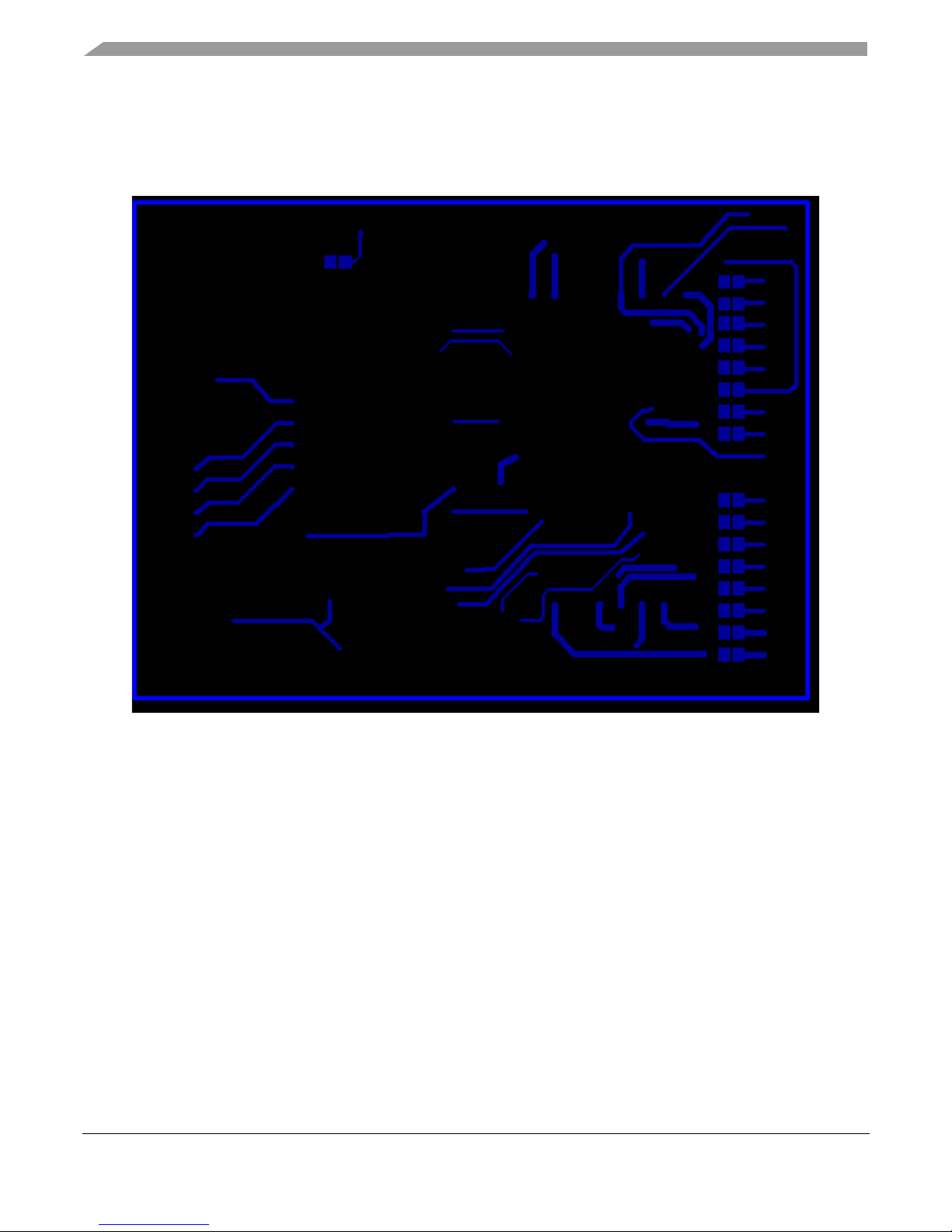

Figure 12. PCB Bottom
