Friedrich CP10 Manuale utente

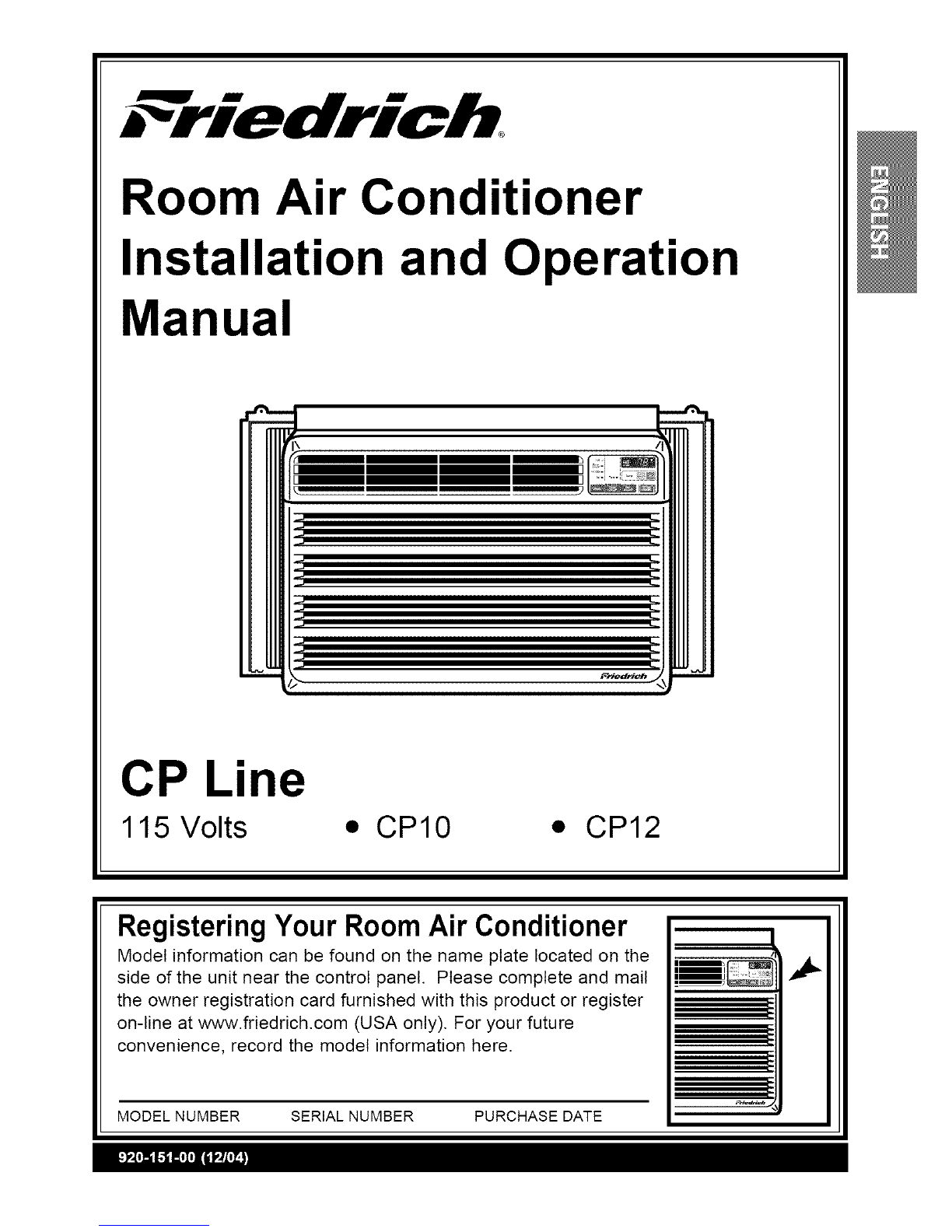

Room Air Conditioner

Installation and Operation

Manual

CP Line

115 Volts • CP10 • CP12

Registering Your Room Air Conditioner

Model information can be found on the name plate located on the

side of the unit near the control panel. Please complete and mail

the owner registration card furnished with this product or register

on-line at www.friedrich.com (USA only). For your future

convenience, record the model information here.

MODEL NUMBER SERIAL NUMBER PURCHASE DATE

Congratulations! Thank you for choosing

Friedrich.

Your Friedrich unit is designed for

maximum comfort and quietness.

Table of Contents

Introduction .................................................................................. 2

Safety Precautions ....................................................................... 3

How to operate your Friedrich ................................................... 5

Adjusting the Air Flow Direction................................................. 6

Care and Maintenance ................................................................. 7

Hardware Location ....................................................................... 8

Installation Instructions ........................................................ 14

Troubleshooting Tips ................................................................. 16

Warranty ...................................................................................... 17

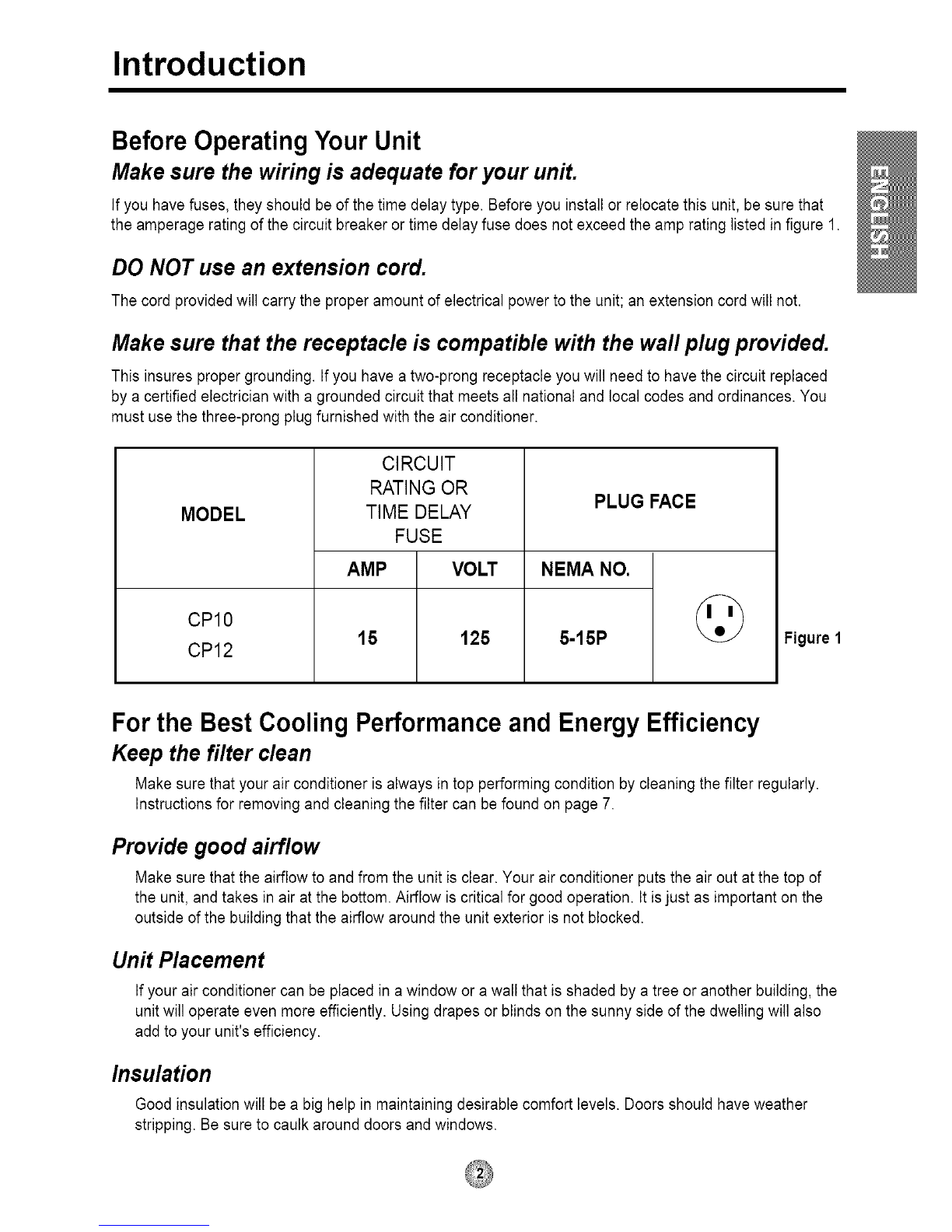

Introduction

Before Operating Your Unit

Make sure the wiring is adequate for your unit.

If you have fuses, they should be of the time delay type. Before you install or relocate this unit, be sure that

the amperage rating of the circuit breaker or time delay fuse does not exceed the amp rating listed in figure 1.

DO NOT use an extension cord.

The cord provided will carry the proper amount of electrical power to the unit; an extension cord will not.

Make sure that the receptacle is compatible with the wall plug provided.

This insuresproper grounding. If you have a two-prong receptacle you will need to have the circuit replaced

by a certified electricianwith a grounded circuit that meets all national and local codes and ordinances. You

must use the three-prong plug furnished with the air conditioner.

MODEL

CPIO

CP12

CIRCUIT

RATING OR

TIME DELAY

FUSE

AMP VOLT

15 125

PLUG FACE

NEMA NO.

5-15P @Figure 1

For the Best Cooling Performance and Energy Efficiency

Keep the filter clean

Make sure that your air conditioner isalways in top performing condition by cleaning the filter regularly.

Instructions for removing and cleaning the filter can be found on page 7.

Provide good airflow

Make sure that the airflow to and from the unit is clear. Your air conditioner puts the air out at the top of

the unit, and takes in air atthe bottom. Airflow iscritical for good operation. It isjust as importanton the

outside of the building that the airflow around the unit exterior is not blocked.

Unit Placement

If your air conditioner can be placed in a window or a wall that is shaded by a tree or another building,the

unitwill operate even moreefficiently. Using drapes or blinds on the sunny side of the dwelling will also

add to your unit's efficiency.

/nsu/ation

Good insulation will be a big help in maintaining desirable comfort levels. Doors should haveweather

stripping. Be sure to caulk around doors and windows.

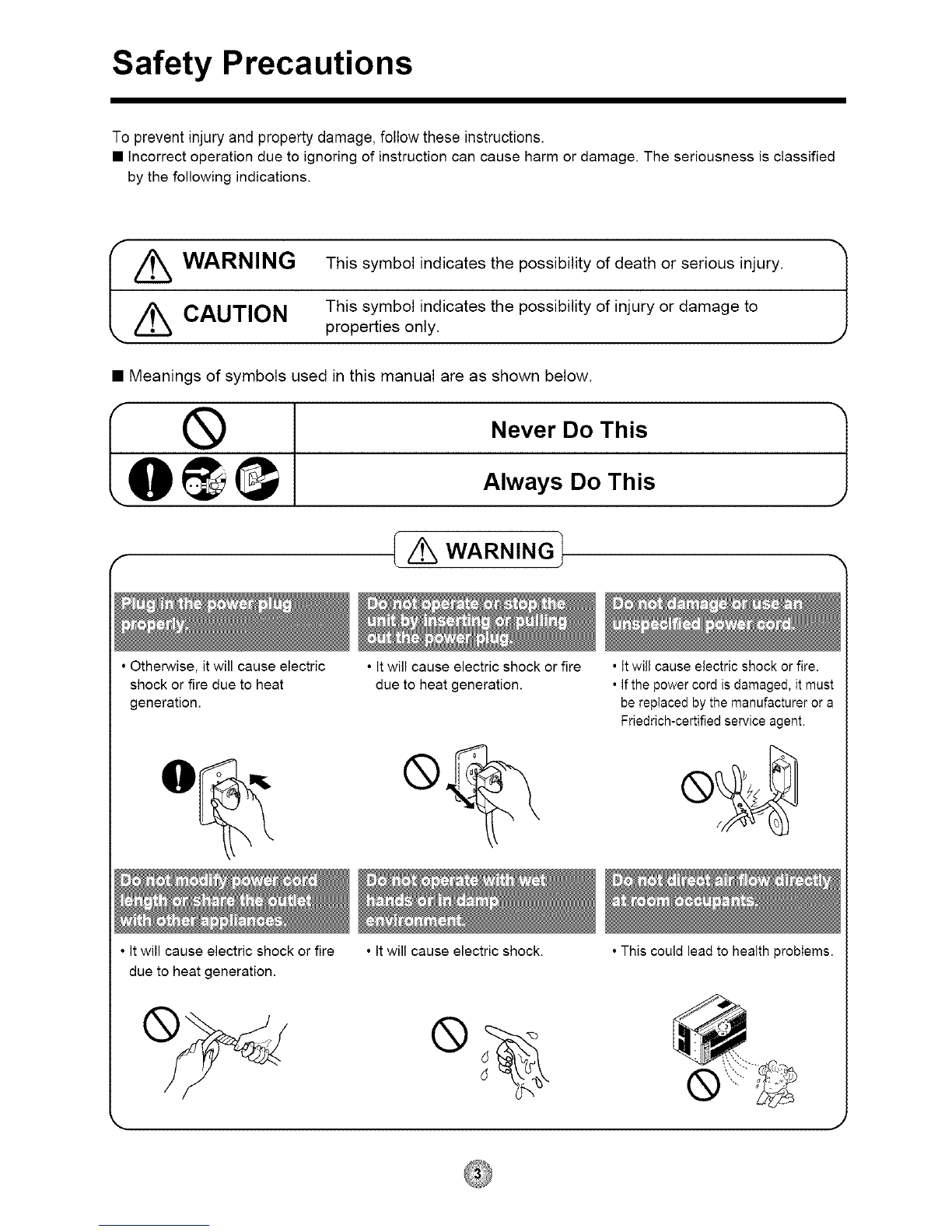

Safety Precautions

To prevent injury and property damage, follow these instructions.

• incorrect operation due to ignoring of instruction can cause harm or damage. The seriousness is classified

by the following indications.

f/_ WARNING This symbol indicates the possibility of death or serious injury. J

/_ CAUTION This symbol indicates the possibility of injury or damage to

k. properties only.

• Meanings of symbols used in this manual are as shown below.

fQNever Do This 1

_.O @ (_ Always Do This

I_ WARNING}

• Otherwise, it will cause electric

shock or fire due to heat

generation.

• it will cause electric shock or fire

due to heat generation.

• it will cause electric shock or fire.

• if the power cord is damaged, it must

be reptaced by the manufacturer or a

Friedrich-certified service agent.

• it will cause electric shock or fire

due to heat generation.

•it will cause electric shock. • This could lead to health probiems.

• They are sharp and may cause

an injury. • Water may enter the unit and

degrade the insulation. It may

cause an electric shock.

• Since the fan rotates at high

speed during operation, it may

cause an injury.

• It could cause dust to

accumulate on the heat

exchanger.

• It may cause a fire or

deformation of the cabinet.

• This could injure the pets

or plants. • Do not use this air conditioner to

preserve precision devices, food,

pets, plants, and art objects.

It may cause deterioration of

quality, etc.

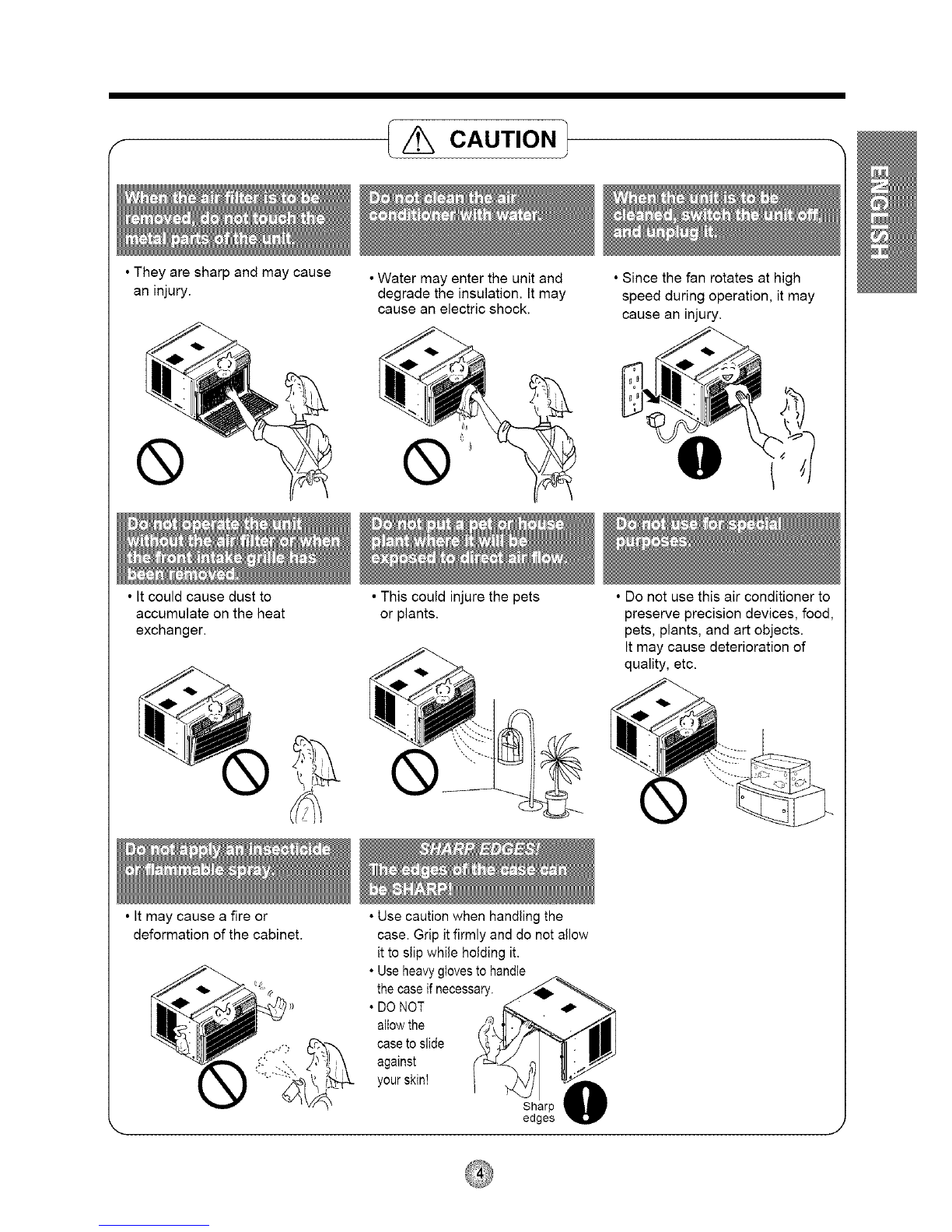

• Use caution when handling the

case. Grip it firmly and do not allow

it to slip while holding it.

• Use heavy gloves to handle

the case if necessary.

• DO NOT

allow the

case to slide

against

your skin!

Sharp

edges

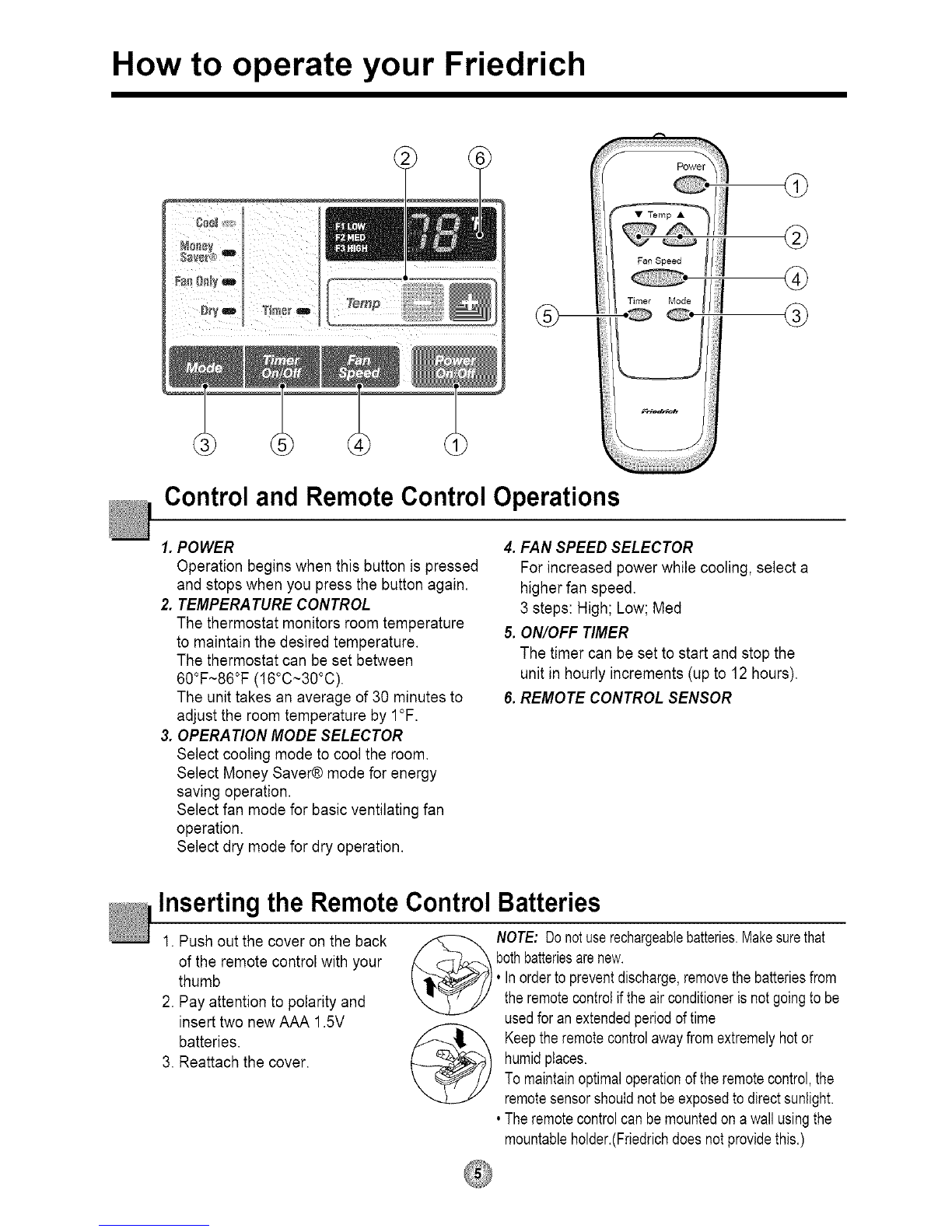

How to operate your Friedrich

•Temp •

Fan Speed

Timer _o l/ il (_

Control and Remote Control Operations

1.POWER

Operation begins when this button ispressed

and stops when you press the button again.

2. TEMPERATURE CONTROL

The thermostat monitorsroom temperature

to maintain the desired temperature.

The thermostat can be set between

60°F~86°F (16°C~30°C).

The unittakes an average of 30 minutesto

adjust the room temperature by I°F.

3. OPERATIONMODE SELECTOR

Select cooling mode to coolthe room.

Select Money Saver@mode for energy

saving operation.

Select fan mode for basic ventilating fan

operation.

Select dry mode for dry operation.

4. FAN SPEED SELECTOR

Forincreasedpowerwhile cooling, select a

higher fan speed.

3 steps: High; Low; Med

5. ON/OFF TIMER

The timer can be set to start and stop the

unit in hourly increments (up to 12 hours).

6. REMOTE CONTROL SENSOR

Inserting the Remote Control Batteries

1. Pushout the cover on the back

of the remote control with your

thumb

2. Payattention to polarity and

insert two newAAA 1.5V

batteries.

3. Reattach the cover.

NOTE:Donotuserechargeablebatteries.Makesurethat

bothbatteriesarenew.

•Inorderto preventdischarge,removethebatteriesfrom

theremotecontroliftheairconditionerisnotgoingto be

usedforanextendedperiodoftime

Keeptheremotecontrolawayfromextremelyhotor

humidplaces.

Tomaintainoptimaloperationoftheremotecontrol,the

remotesensorshouldnotbeexposedtodirectsunlight.

• Theremotecontrolcanbemountedon awallusingthe

mountableholder.(Friedrichdoesnotprovidethis.)

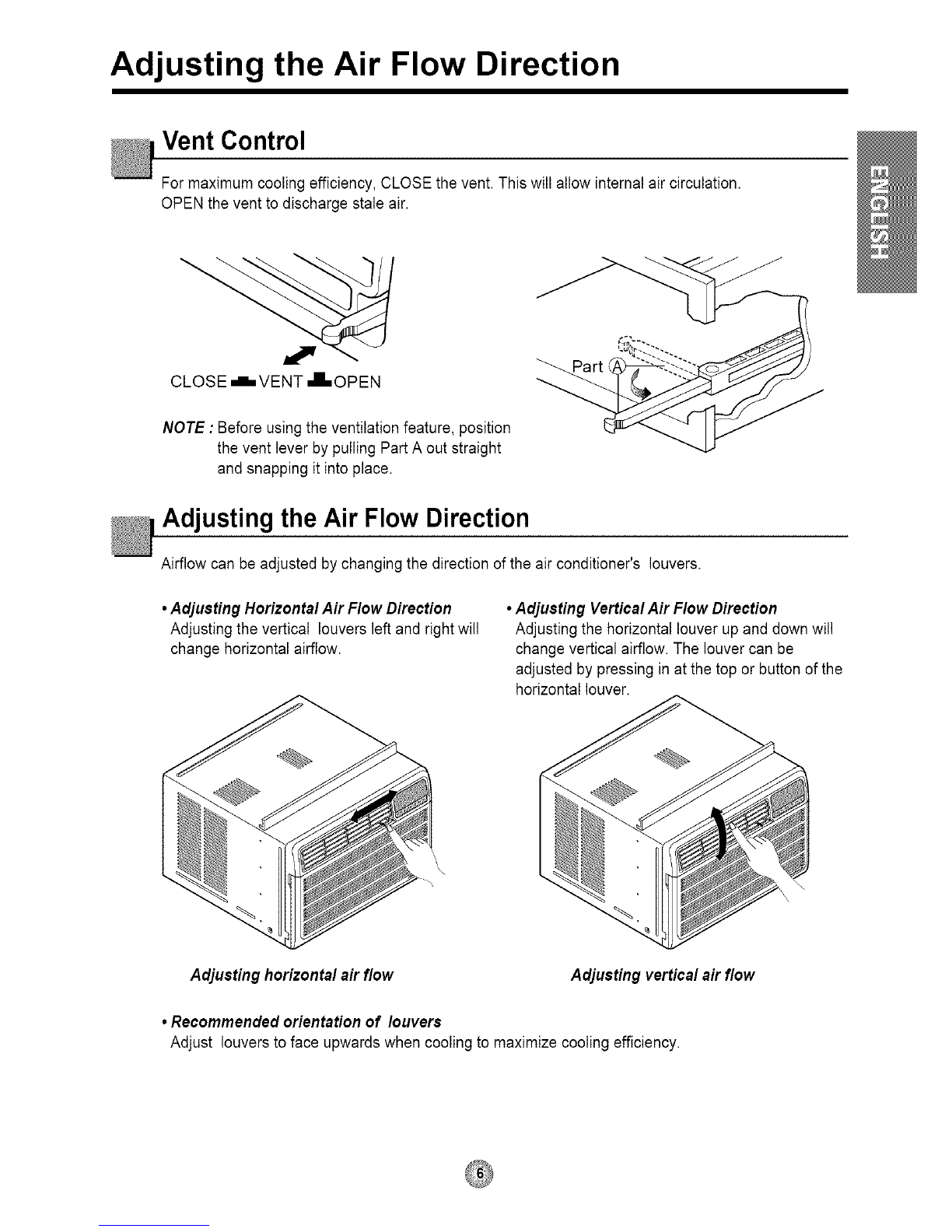

Adjusting the Air Flow Direction

Vent Control

Formaximum coolingefficiency, CLOSE the vent. This will allow internal air circulation.

OPEN the vent to discharge stale air.

NOTE : Before usingthe ventilationfeature, position

the vent lever by pulling PartA out straight

and snapping it into place.

*.uJ_'qp. -.

Part "" :_::--'.'."

Adjusting the Air Flow Direction

Airflow canbe adjustedbychanging the directionoftheair conditioner's louvers.

•Adjusting Horizontal Air Flow Direction

Adjusting the vertical louvers left and right will

change horizontal airflow.

• Adjusting VerticalAir Flow Direction

Adjusting the horizontal louverup and down will

change vertical airflow. The louver can be

adjusted by pressing in at the top or button of the

horizontal louver.

Adjusting horizontal air flow Adjusting vertical air flow

•Recommended orientation of louvers

Adjust louvers to face upwards when cooling to maximize cooling efficiency.

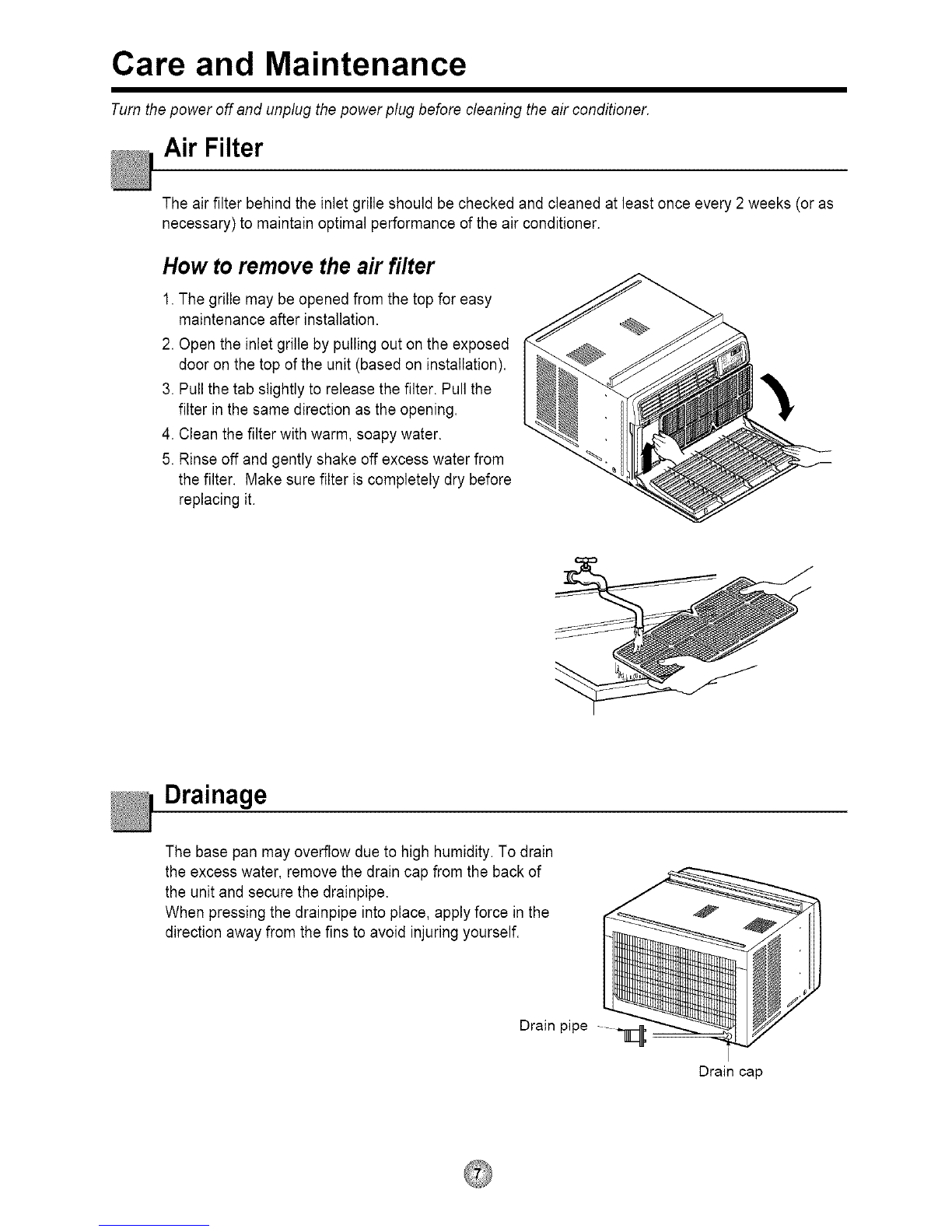

Care and Maintenance

Turnthe power off and unplug the power plug before cleaning theair conditioner.

Air Filter

The air filter behind the inlet grille should be checked and cleaned at leastonce every 2weeks (or as

necessary) to maintain optimal performance of the air conditioner.

How to remove the air filter

1.The grille may be opened from the top for easy

maintenanceafter installation.

2. Open the inlet grille by pulling out on the exposed

door on the top ofthe unit (based on installation).

3. Pull the tab slightly to release the filter. Pull the

filter in the same direction as theopening.

4. Clean thefilter with warm, soapy water.

5. Rinse off and gently shake off excess water from

the filter. Make surefilter is completely dry before

replacing it.

Drainage

The base pan may overflow due to high humidity. To drain

the excess water, remove the drain cap from the back of

the unitand secure the drainpipe.

When pressing the drainpipe intoplace, apply force in the

direction away from the fins to avoid injuring yourself.

Drain pipe _]___

Drain cap

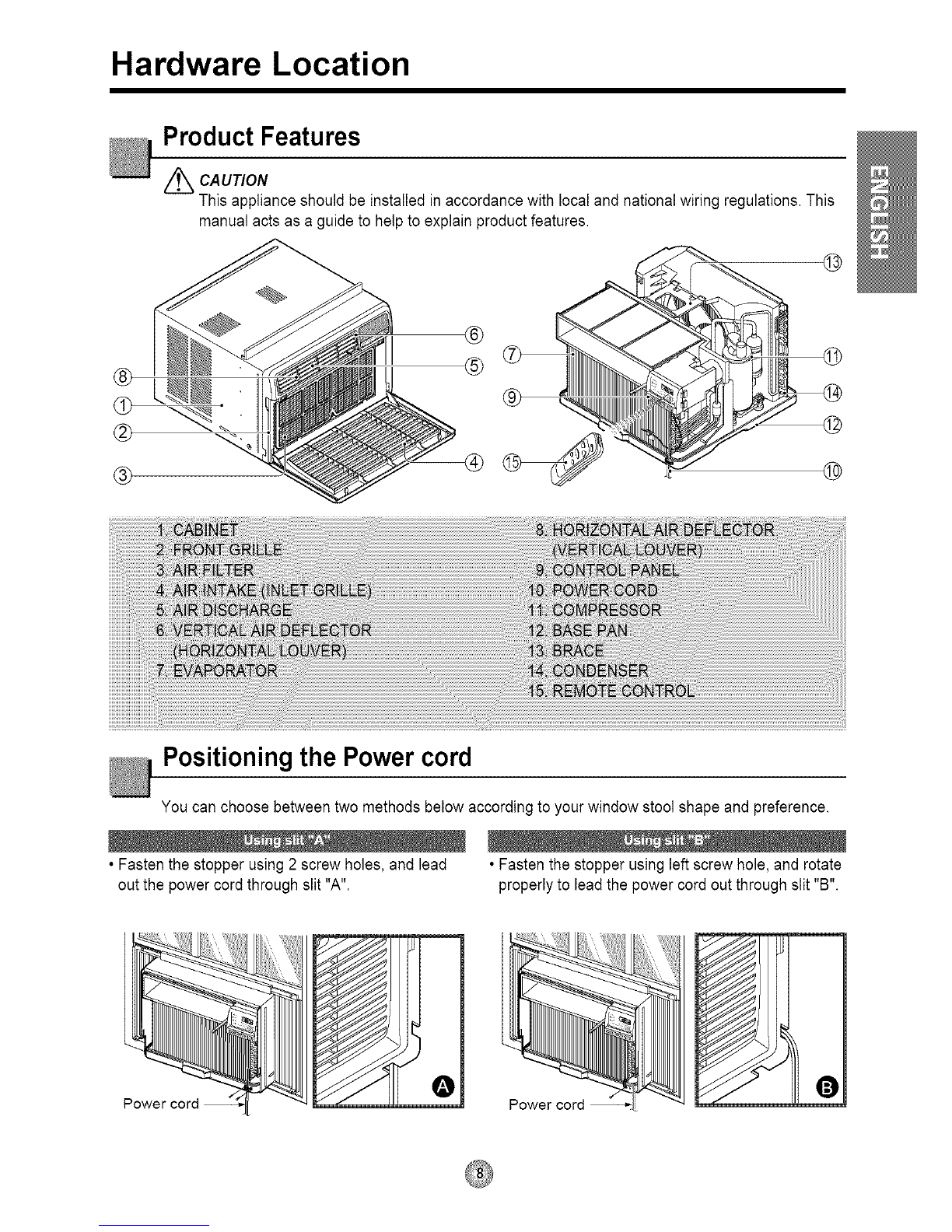

Hardware Location

Product Features

//_ CAUTION

This appliance should be installed in accordancewith local and nationalwiring regulations.This

manualacts as a guide to help to explain product features.

@®

Positioning the Power cord

You can choose between two methods below according to your window stool shapeand preference.

• Fastenthe stopper using 2 screw holes, and lead ° Fastenthe stopper using left screw hole, and rotate

out the powercord through slit "A". properly to lead the power cord out through slit "B".

Power Power

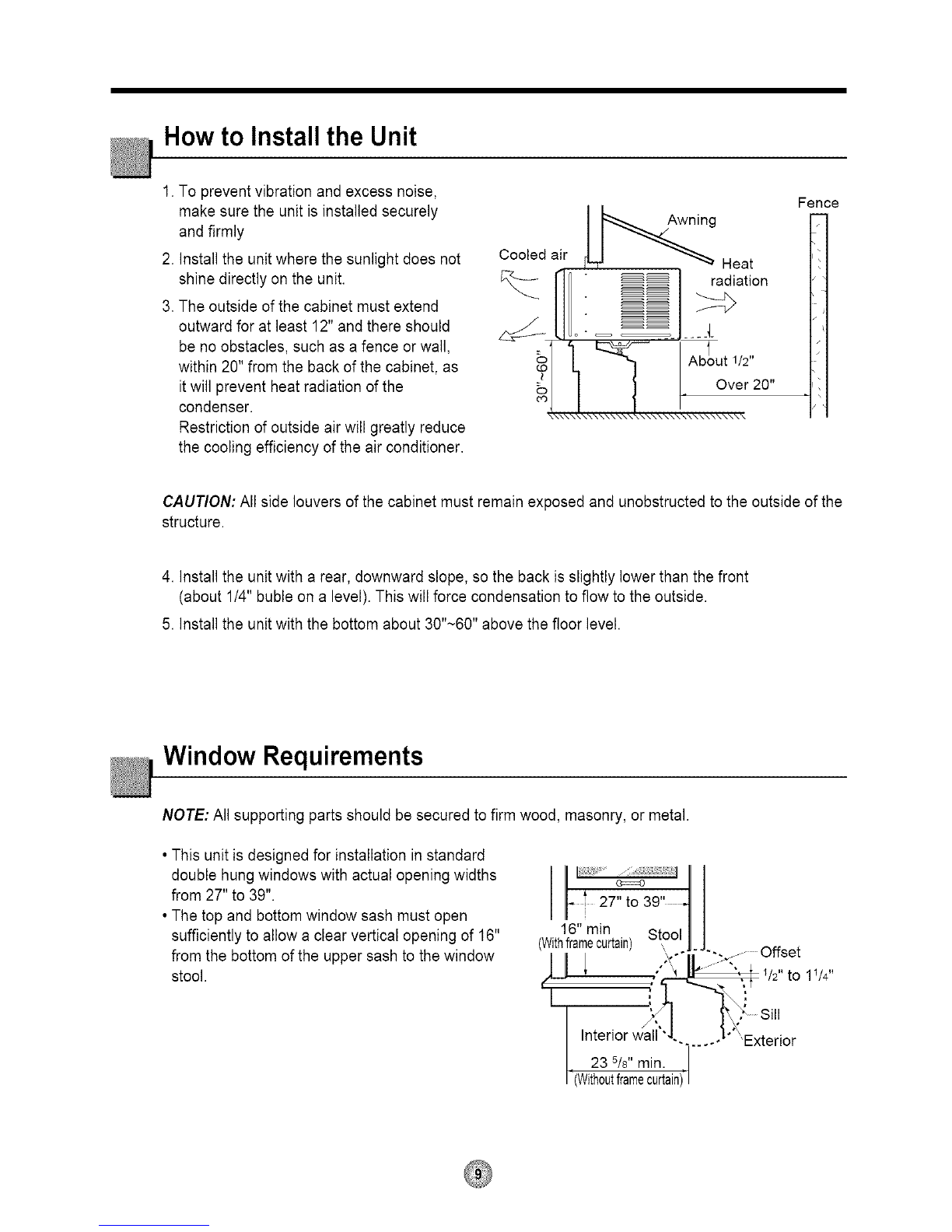

How to Install the Unit

1.To prevent vibration and excess noise,

make sure the unitis installed securely

and firmly

2. Install the unitwhere the sunlight does not

shinedirectly on the unit.

3.The outside of the cabinet must extend

outward for at least 12"and there should

be no obstacles, such as a fence or wall,

within 20"from the back of the cabinet, as

itwill prevent heat radiation of the

condenser.

Restriction ofoutside air will greatly reduce

the cooling efficiencyof theair conditioner.

Cooled air

Awning

Heat

Fence

CAUTION: All side louvers of the cabinet must remain exposed and unobstructed to the outside ofthe

structure.

4. Install the unitwith a rear, downward slope, so the back is slightly lower than the front

(about 114"bubleon a level). This will force condensation to flow to the outside.

5. Install the unitwith the bottom about 30"~60''above the floor level.

Window Requirements

NOTE: All supporting parts should be secured tofirm wood, masonry, or metal.

• This unit is designedfor installation in standard

double hung windows with actual opening widths

from 27"to 39".

•The top and bottomwindow sash must open

sufficiently to allow a clear vertical opening of 16"

from the bottom ofthe upper sash to thewindow

stool.

ili27,,to39,,...........

. 16 min . Stool

/w@Tramecur_an) ,, Jl............ Offset

I iL"i\ :

5,1

Interior wall ".]" .... L"X,Exterior

, 23 5/8 min. ,/

I (Withoutframecurtain)/

Altri manuali per CP10

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Friedrich Condizionatore d'aria

Friedrich

Friedrich WS08B10A-A Guida

Friedrich

Friedrich CP14-18-24 CP14N10 Istruzioni per la costruzione

Friedrich

Friedrich PDH15K5 Istruzioni operative originali

Friedrich

Friedrich Floating Air Pro Multi-Zone FPHMR42A3A Manuale utente

Friedrich

Friedrich V(E Manuale utente

Friedrich

Friedrich Twin Temp EM24L34 Manuale utente

Friedrich

Friedrich M09CJ Manuale utente

Friedrich

Friedrich PTAC Series Manuale utente

Friedrich

Friedrich WallMaster WS08B10A Manuale utente

Friedrich

Friedrich MR18Y3H Istruzioni per la costruzione

Friedrich

Friedrich KP08A10 Istruzioni per la costruzione

Friedrich

Friedrich ZoneAire P09B Manuale utente

Friedrich

Friedrich M12CJ Manuale utente

Friedrich

Friedrich 9368987053 Manuale utente

Friedrich

Friedrich MW09Y3FM Manuale utente

Friedrich

Friedrich Q Series Guida

Friedrich

Friedrich WallMaster WE10 Manuale utente

Friedrich

Friedrich Twintemp EL36 Manuale utente

Friedrich

Friedrich Room Air Conditioners Manuale utente

Friedrich

Friedrich QStar SQ05 Manuale utente

Friedrich

Friedrich Hazardgard SH15L30-A Guida

Friedrich

Friedrich Floating Air Pro-Premiere FPHW091 Manuale utente

Friedrich

Friedrich VRP Series Guida

Friedrich

Friedrich SH15 Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Samsung

Samsung AS09HM3N Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente
