Frigidaire FAC051K7A1 Manuale utente

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FAC051K7A1 FAC051K7A white USA

FAC051K7A2 FAC051K7A white USA

BTU-COOLING

5000BTU

Publication No.

5995348025

010103

-EN/SERVICE /DJH

345

ROOM AIR CONDITIONER

Model No.

FAC051K7A

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309107201

OWNER’S GUIDE - # 309000825

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O.BOX 212378, AUGUSTA, GA 30917

06/01 2

Publication No. FAC051K7A

5995348025

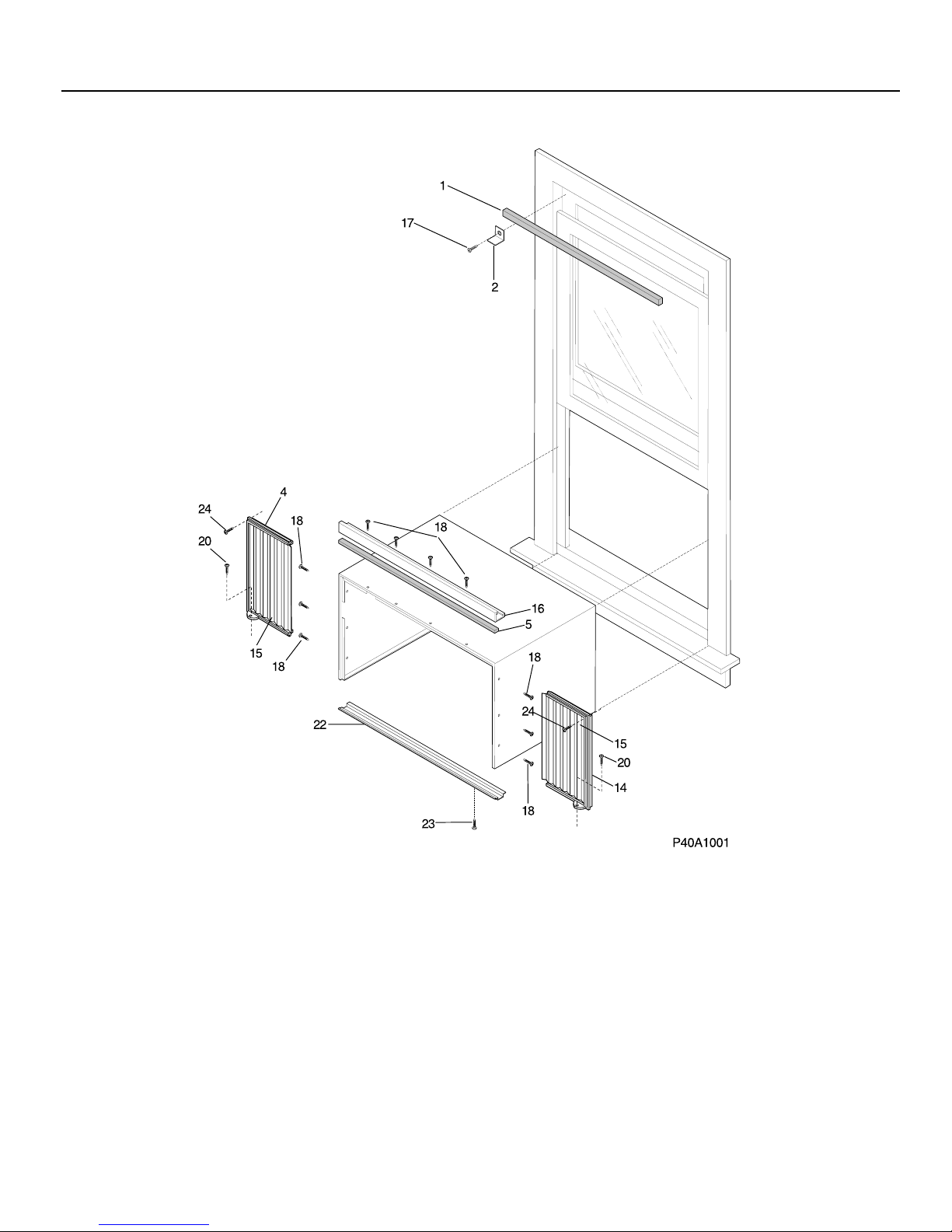

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 06/01

* = Non-Illustrated Parts

FAC051K7A Publication No.

5995348025

CABINET FRONT AND WRAPPER

A = FAC051K7A (FAC051K7A1)

B = FAC051K7A (FAC051K7A2)

POS. NO PART NO DESCRIPTION

1 5304407729 A B Seal-window frame,stuffer

2 5303211056 A B Bracket

4 5304414120 A B Extension-frame,LH ,w/accordian

5 08016226 A B Seal-top rail

14 5304414121 A B Extension-frame,RH ,with accordian

16 5304417362 A B Rail-top

17 3002803 A B Screw,wood, type 17 ,10-12 x 0.750

18 5303303691 A B Screw,truss head ,8-18AB x 0.375 ,w/nibs

20 5303295750 A B Screw,pan head ,8-18 x 0.750

22 5304403252 A B Retainer,bottom

23 3001806 A B Screw,23(T) ,10-32 x 0.310

24 5308002974 A B Screw,wood,type 17 ,8-15 x 0.500

06/01 4

Publication No. FAC051K7A

5995348025

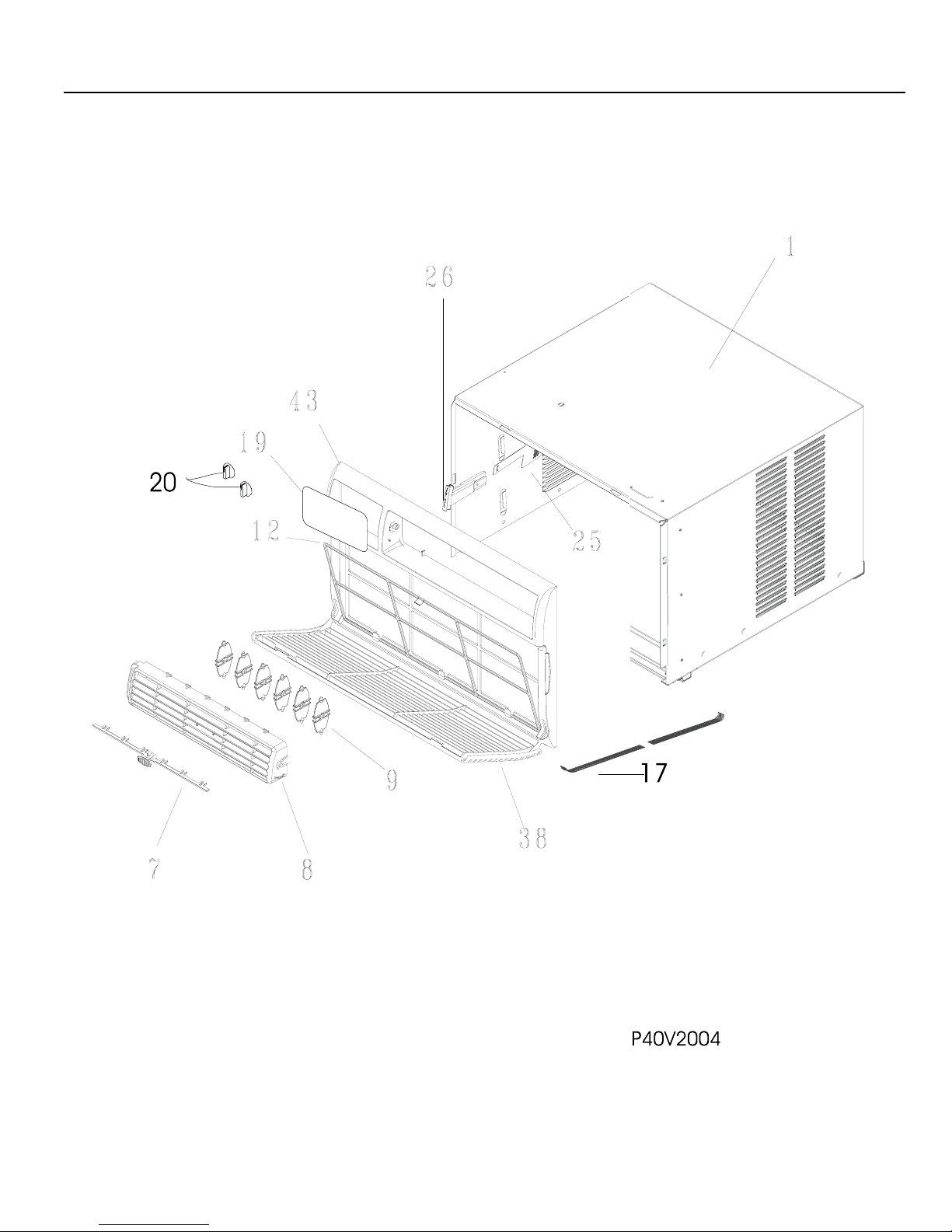

CONTROLS

# = Fast-moving Parts 5 06/01

* = Non-Illustrated Parts

FAC051K7A Publication No.

5995348025

CONTROLS

A = FAC051K7A (FAC051K7A1)

B = FAC051K7A (FAC051K7A2)

POS. NO PART NO DESCRIPTION

1 5304413783 A B Cabinet

8 309639301 A B Louver,horizontal

12 309343501 A B Filter-air,7.12 x 17.31 ,no frame

17 309640101 A B Front-cabinet,2 way ,complete assy

18 5303303691 A B Screw,truss head ,8-18AB x 0.375 ,w/nibs

19 309342901 A B Dial Plate

20 309306811 A B Knob-control,rotary

22 5303001775 A B Spacer,plate

38 309639201 A B Panel,cabinet front

43 309639101 A B Frame,cabinet front

06/01 6

Publication No. FAC051K7A

5995348025

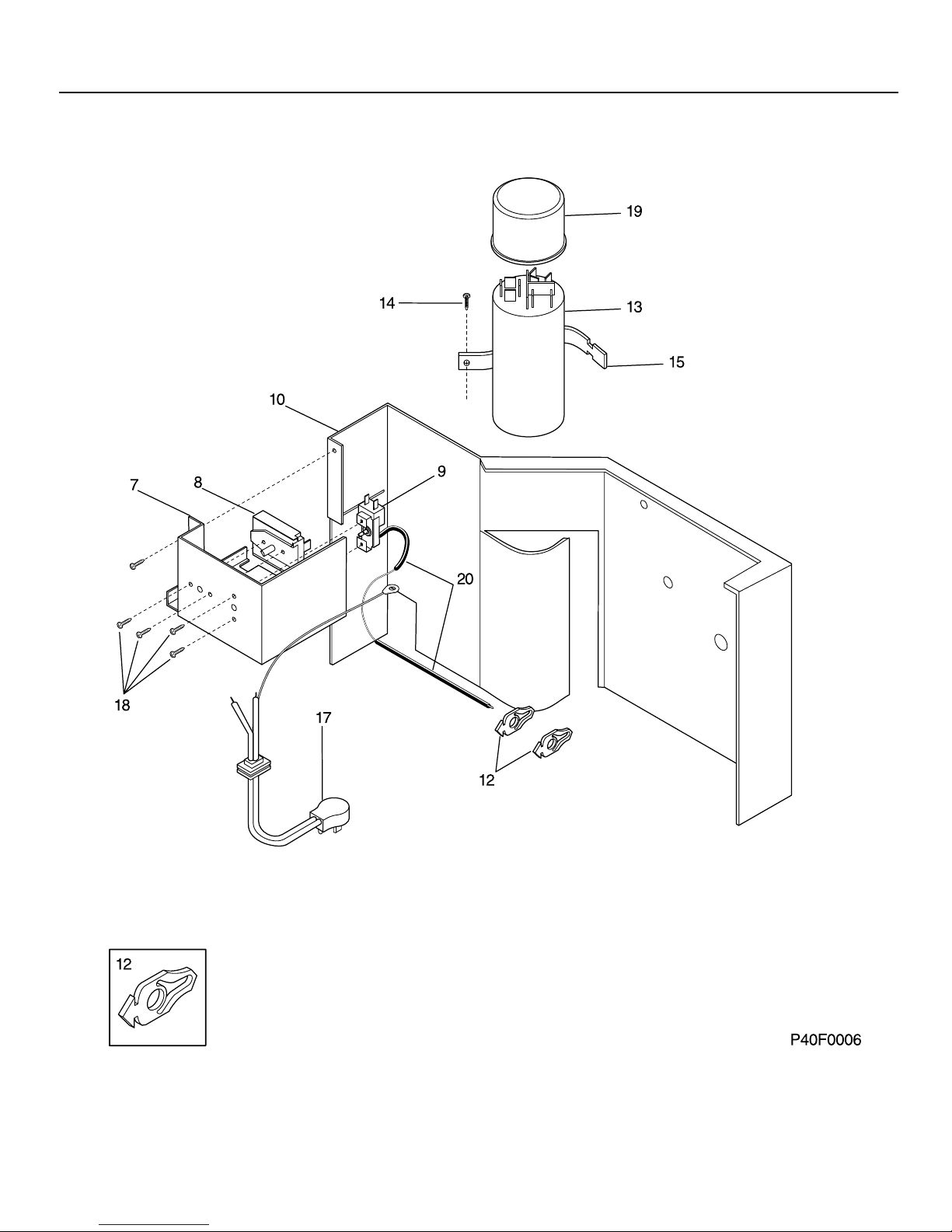

AIR HANDLING PARTS

# = Fast-moving Parts 7 06/01

* = Non-Illustrated Parts

FAC051K7A Publication No.

5995348025

AIR HANDLING PARTS

A = FAC051K7A (FAC051K7A1)

B = FAC051K7A (FAC051K7A2)

POS. NO PART NO DESCRIPTION

7 309350302 A B Control Box

8 # 5303318550 A B Switch-selector

10 309602404 A B Bulkhead

10* 309111201 A B Grommet,wire protector

13 # 5303303125 A - Capacitor,370 V ,35+5 microfarad

13 # 5304413779 - B Capacitor

15 5303303086 A B Strap-capacitor

17 # 309343101 A B Cord-electric power,18 AWG ,115 V

18 5303007754 A B Screw,6-32 x 0.188

19 5303302855 A B Cover,capacitor

06/01 8

Publication No. FAC051K7A

5995348025

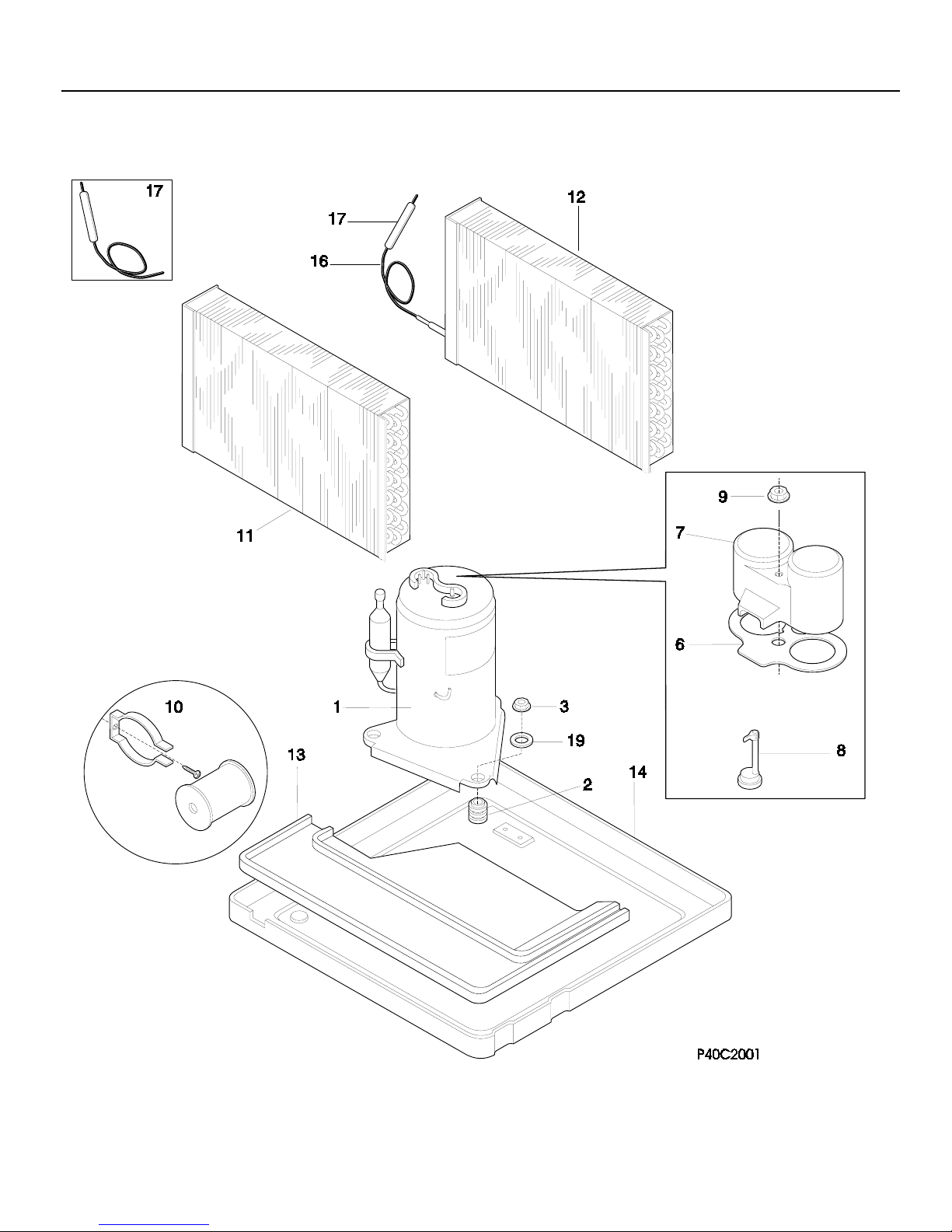

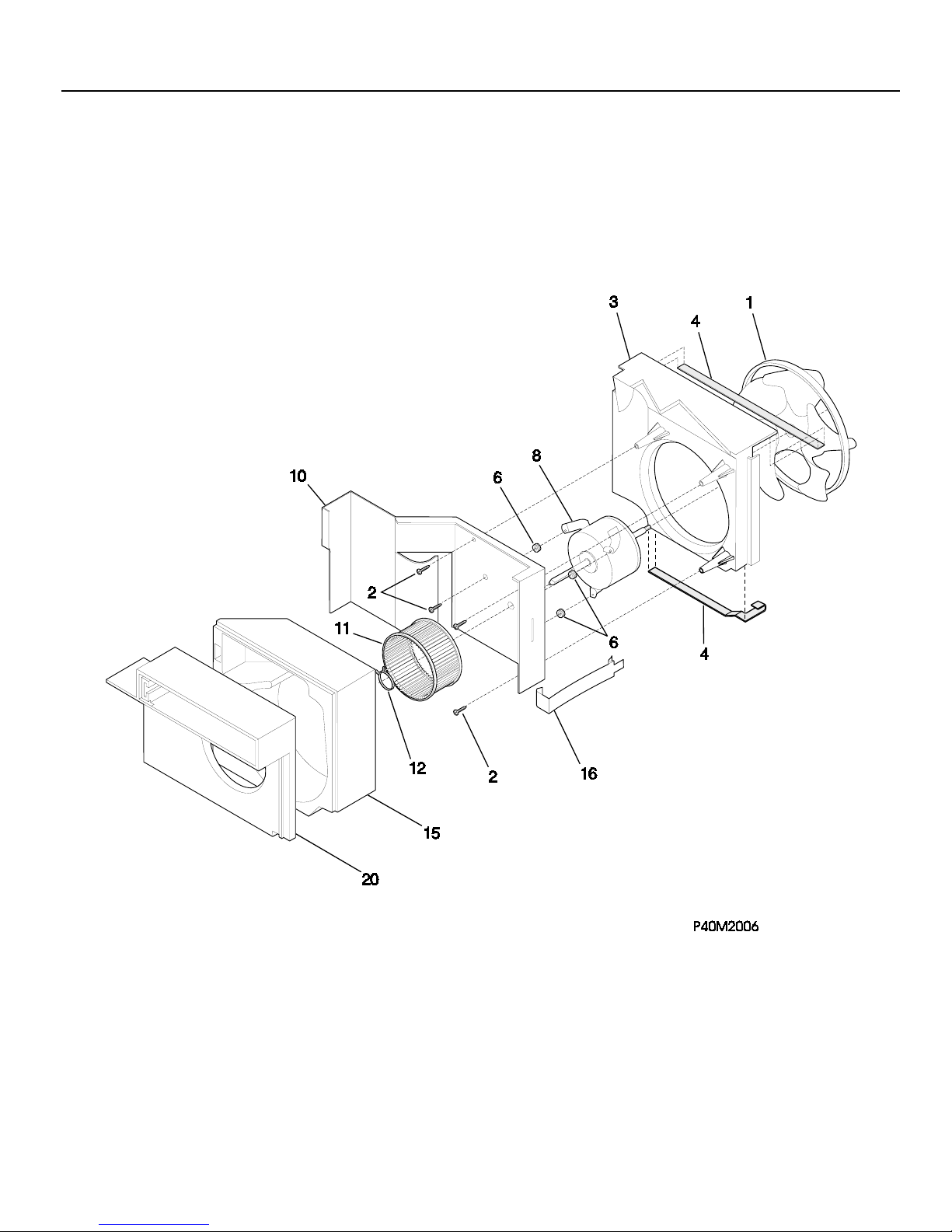

COMPRESSOR PARTS

# = Fast-moving Parts 9 06/01

* = Non-Illustrated Parts

FAC051K7A Publication No.

5995348025

COMPRESSOR PARTS

A = FAC051K7A (FAC051K7A1)

B = FAC051K7A (FAC051K7A2)

POS. NO PART NO DESCRIPTION

1 # 309624502 A - Fan Blade,with clamp

1 # 309624506 - B Fan Blade,with clamp

2 3202975 A B Screw,10-16 x 0.72 ,square drive

3 309624201 A B Housing-fan

4 5303270043 A B Seal,condenser

6 5300105402 A - Grommet,motor ,(3)

6 08007481 - B Nut,keps ,motor mtg

8 # 309627302 A - Motor-fan,3 speed

8 # 309642701 - B Motor-fan

10 309602403 A B Bulkhead

11 # 309603301 A - Blower Wheel

11 # 309631702 - B Blower Wheel

12 5303012110 A - Clamp-blower

12 309112101 A - Clamp-blower

12 327161302 - B Clamp-blower

15 5304407653 A B Housing-blower

16 309100201 A B Clip

20 5303303573 A B Plate-blower housing

06/01 10

Publication No. FAC051K7A

5995348025

WINDOW MOUNTING PARTS
