Frigidaire FAS183K2A2 Manuale utente

PRODUCT NO. BASE MODEL NO. MARKET BTU-COOLING

FAS183K2A2 FAS183K2A USA 18000BTU

Publication No.

5995353652

010514

-EN/SERVICE /DJH

345

ROOM AIR CONDITIONER

Model No.

FAS183K2A

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309107701

OWNER’S GUIDE - # 309000825

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O.BOX 212378, AUGUSTA, GA 30917

08/01 1

Publication No. FAS183K2A

5995353652

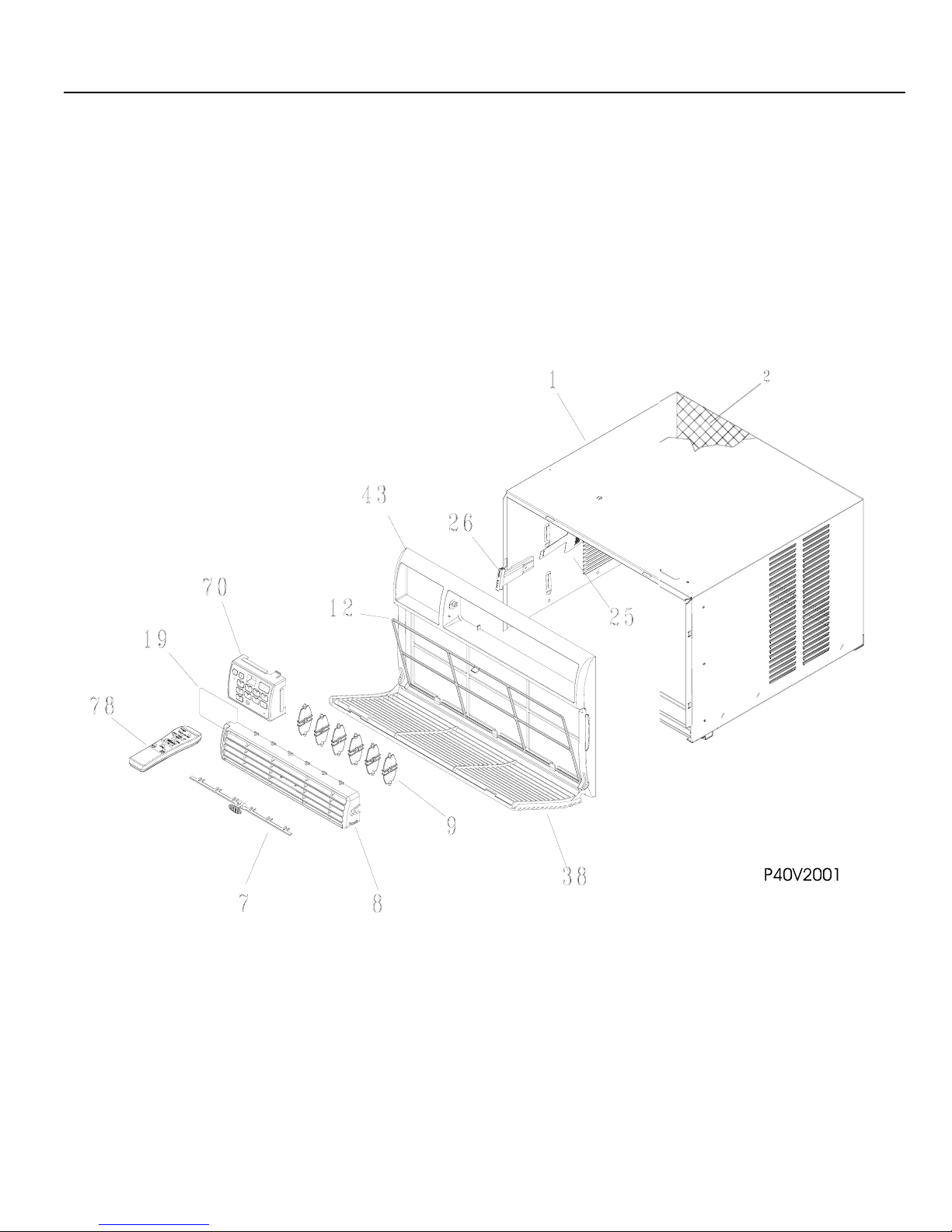

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 2 08/01

* = Non-Illustrated Parts

FAS183K2A Publication No.

5995353652

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309632704 Cabinet,sleeve ,top louvers

2 309632804 Grille,rear ,with rail

7 309631104 Link,vertical louver

8 309633305 Louver Assy,horizontal

9 309631004 Louver

12 309631404 Filter-air,molded plastic

17 309633205 Front-cabinet,complete assy

19 309633506 Dial-plate

20 309307013 Knob-control

21 5303212504 Seal-sleeve/chassis,bottom

25 309321401 Door-vent,actuator

26 309330404 Handle-vent,gray

26 309330206 Detent Assy-vent,with adhesive

26A 309330202 Detent-vent

29 5303293767 Screw,truss head ,8-18 x 0.625 ,front ,(2),square drive

43 309630904 Panel,cabinet front

08/01 3

Publication No. FAS183K2A

5995353652

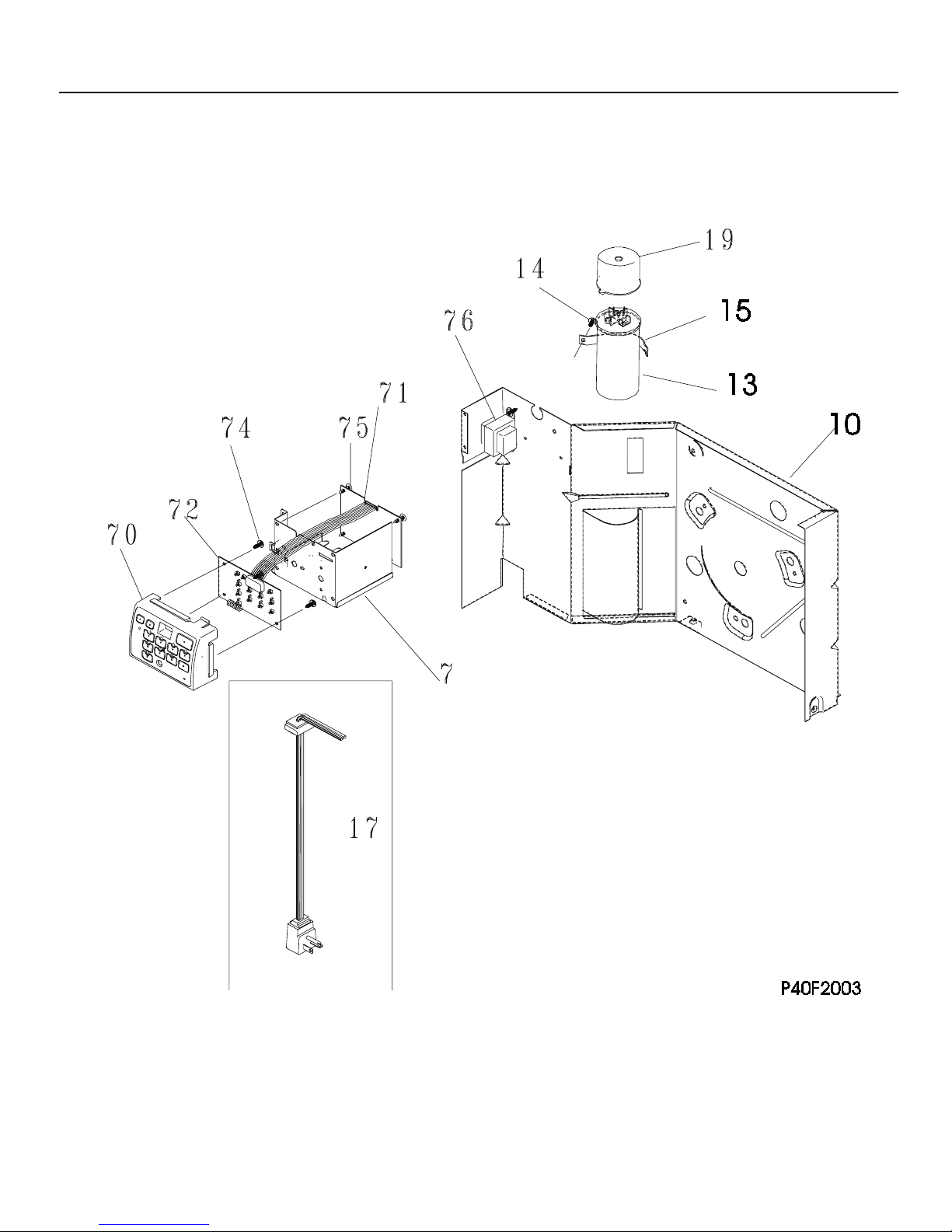

CONTROLS

# = Fast-moving Parts 4 08/01

* = Non-Illustrated Parts

FAS183K2A Publication No.

5995353652

CONTROLS

POS. NO PART NO DESCRIPTION

7 309630401 Control Box

8 # 5303323284 Switch-selector

9 # 5304408295 Control-temperature,20 Amp

10 309623601 Bulkhead,control system

13 # 5303317228 Capacitor,370 V ,30+6

14 5303015427 Screw,truss head ,8-18AB x 0.47

15 5303303077 Strap-capacitor

16 # 5304408751 Wiring Harness

17 # 309343112 Cord-service,type C 16AWG

18 5303007754 Screw,6-32 x 0.188

35 3200761 Spacer-control bulb

08/01 5

Publication No. FAS183K2A

5995353652

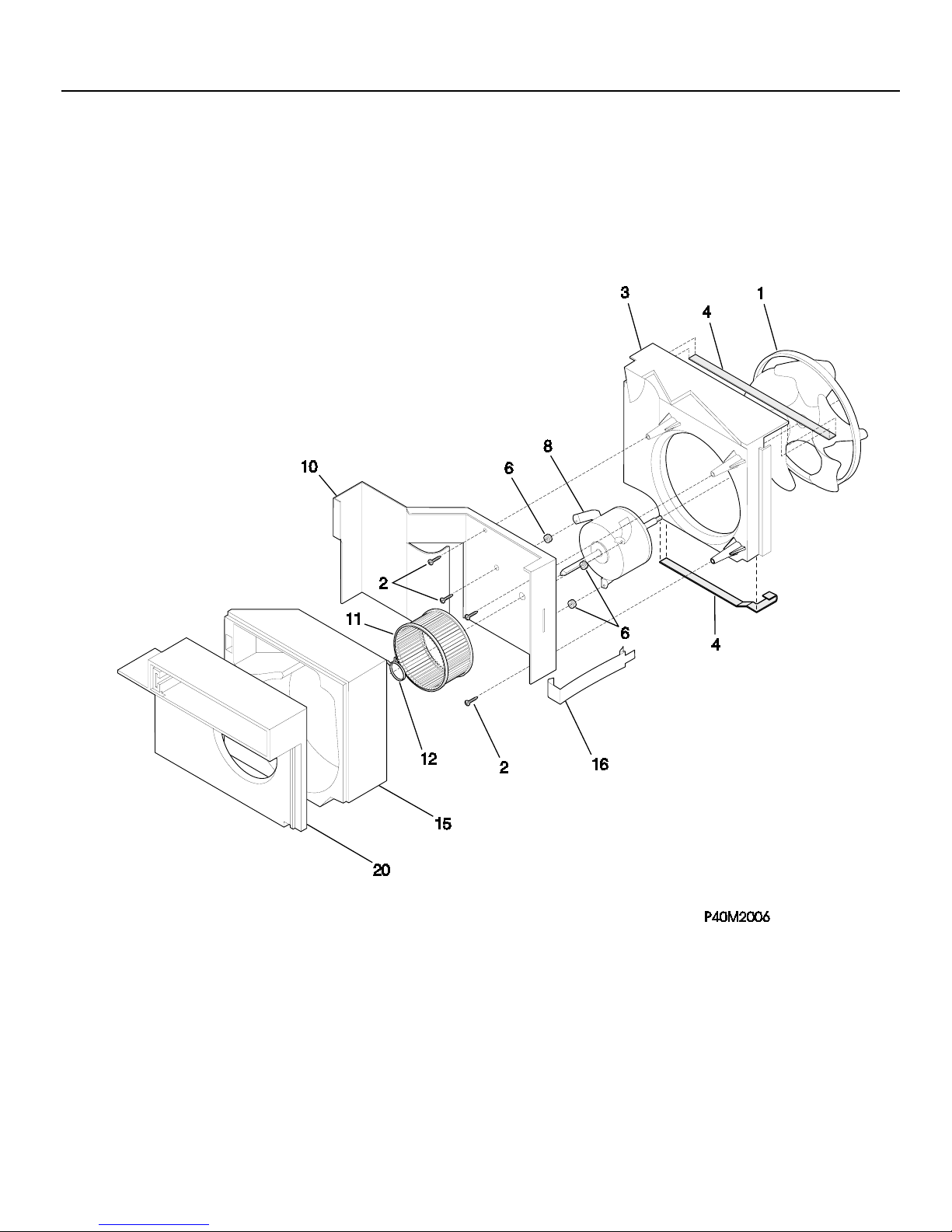

AIR HANDLING PARTS

# = Fast-moving Parts 6 08/01

* = Non-Illustrated Parts

FAS183K2A Publication No.

5995353652

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 5303311048 Fan Blade,with clamp

2 3202975 Screw,10-16 x 0.72 ,square drive

3 5303015305 Housing-fan,upper

4 3016696 Seal,fan housing ,upper

5 5303015311 Seal,fan housing ,lower

6 5303015304 Housing-fan,lower

8 # 309630603 Motor-fan,GE 3sp ,48/fr ,230/60

9 5303015306 Bracket,shroud/bulkhead

10 309623401 Bulkhead,air system

11 309633001 Blower Wheel,plastic ,with clamp

13 309630302 Cover-top

15 309630101 Housing-blower,evap scroll

20 309630201 Plate-blower housing,scroll plate

21 5303212504 Seal-sleeve/chassis,bottom

08/01 7

Publication No. FAS183K2A

5995353652

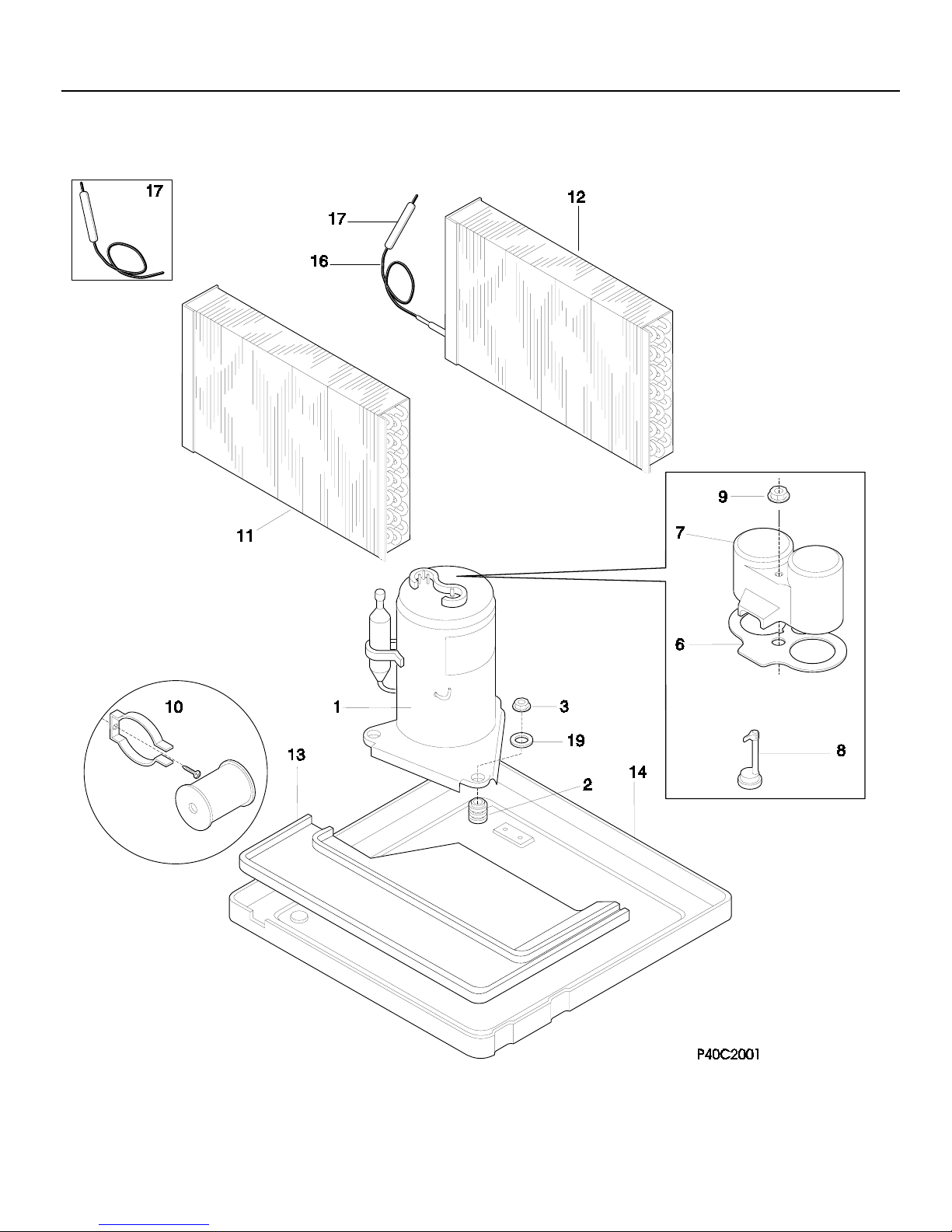

COMPRESSOR PARTS

# = Fast-moving Parts 8 08/01

* = Non-Illustrated Parts

FAS183K2A Publication No.

5995353652

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 5304403268 Compressor

2 5303286606 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 5303002068 Gasket,terminal cover

7 5303002067 Cover,compr terminal

7* 5303002069 Wire-Bale,terminal cover

11 # 309634101 Evaporator

12 # 5303306719 Condenser

13 309623501 Tray-evaporator

14 309632906 Base stud ASSY

16 5308017120 Capillary Tube,45 inch long ,cut to length

19 5303002664 Washer,compressor mtg

19* 309112501 Washer,metallic

08/01 9

Publication No. FAS183K2A

5995353652

WINDOW MOUNTING PARTS

P40A0006
