Frigidaire FAH10EP2T Manuale utente

Product No. FAH10EP2T1

Series TTW/Builder

Volts 230/208

BTU-Cooling 10000/9800 BTU

BTU-Heating 10000/8500 BTU

Wiring Diagram 81902506

Owner's Guide 819042072en

Installation Instructions 819042236en

Market North America

M40L0007.eps M40C0013.eps M40M0013.eps 81902506.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995438826

05/06/07

(EN/SERVICE/KC)

099

ROOM AIR

CONDITIONER

Model No.

FAH10EP2T

Publication No: 5995438826 FAH10EP2T1

06/05 2

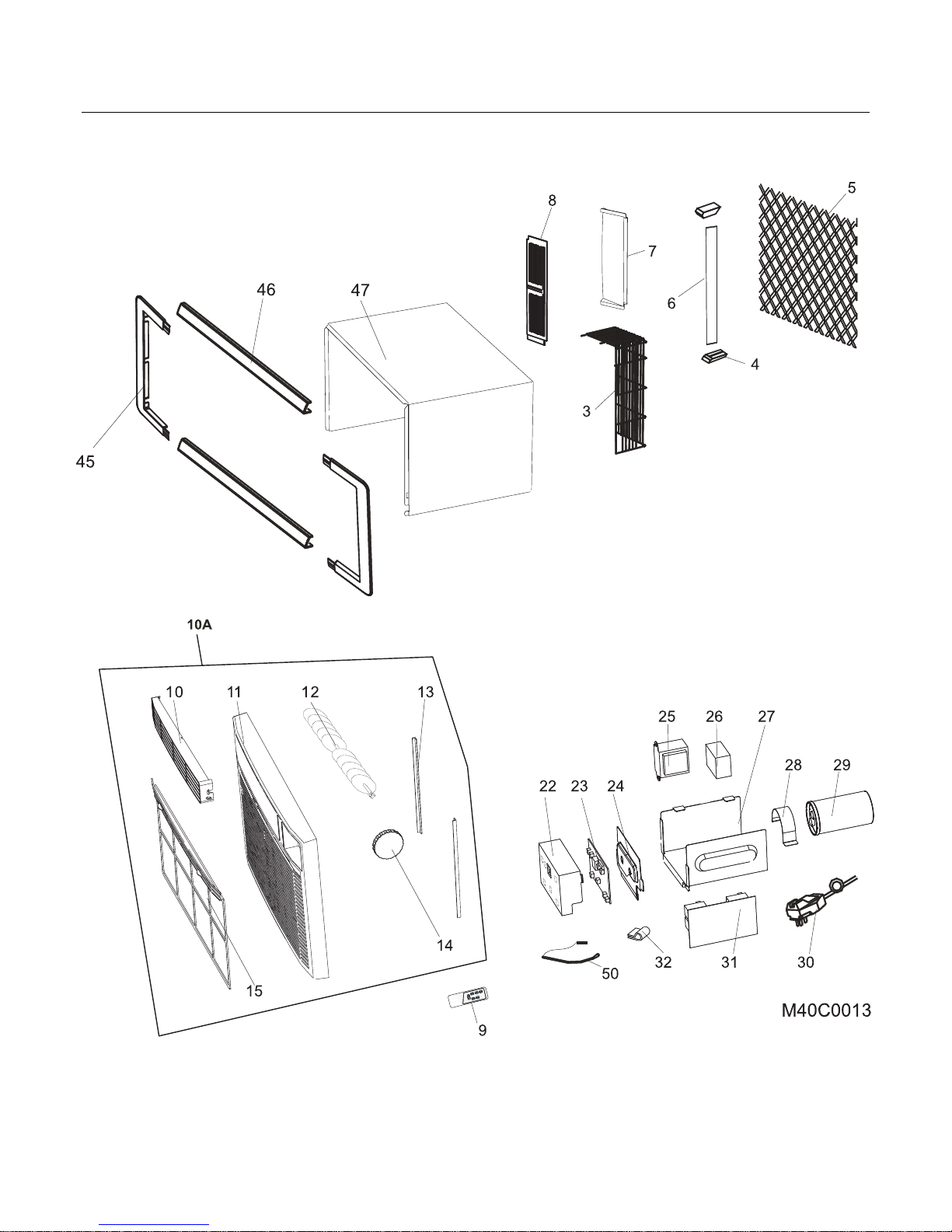

CABINET, FRONT, CONTROLS

FAH10EP2T1 Publication No: 5995438826

# Functional Parts 3 06/05

* Non-Illustrated Parts

CABINET, FRONT, CONTROLS

POS. NO PART NO. DESCRIPTION

3 5304447987 Grille, air intake, side

4 5304447988 Block, spacer support, (2)

5 5304447989 Screen, grille, plastic mesh, rear

6 5304447990 Spacer, sleeve baffle, tapered

7 5304447991 Panel, rear grille, plastic

8 5304447992 Grille, steel, rear

9 # 5304447993 Remote Control, transmitter

10A 5304448486 Front Assembly, complete panel, includes 10, 11, 12, 13, 14, 15

10 5304447994 •Louver, horizontal

11 5304447995 •Panel, grille, front

12 5304447996 •Louver, vertical

13 5304447997 •Bracket, air filter mt.

14 5304447998 •Dial, adjuster wheel, louver

15 5304447999 •Filter, air, plastic frame

22 5304448006 Console, control cover

23 # 5304448057 PC Board, display/input

24 5304448008 Cover, control box, front plate

25 # 5304447937 Transformer

26 # 5304448072 Capacitor, fan motor

27 5304448010 Control Box

28 5304447808 Strap, capacitor mtg.

29 # 5304448073 Capacitor, run

30 # 5304448074 Power Cord, LCDI, with test/reset

31 # 5304448076 PC Board, control/power

32 5304447802 Clip, cable clamp

45 5304448048 Trim, window frame, vertical

46 5304448049 Trim, window frame, horizontal

47 5304448050 Cabinet, wrapper/sleeve

50 # 5304448125 Thermistor, temp sensor, indoor

Publication No: 5995438826 FAH10EP2T1

06/05 4

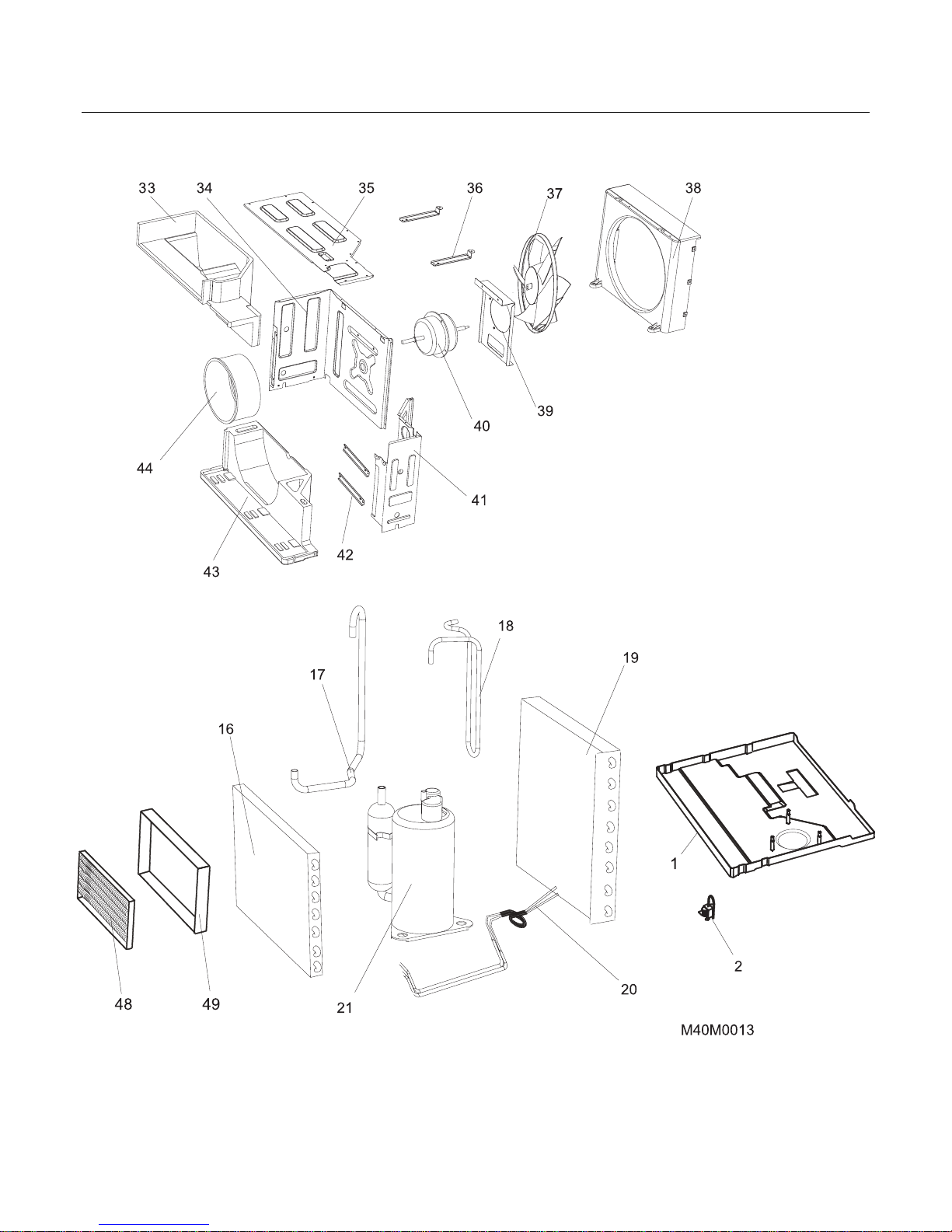

COOLING & AIR FLOW SYSTEMS

FAH10EP2T1 Publication No: 5995438826

# Functional Parts 5 06/05

* Non-Illustrated Parts

COOLING & AIR FLOW SYSTEMS

POS. NO PART NO. DESCRIPTION

1 5304448056 Base, unit chassis

2 # 5304447943 Valve, water drain, temp sensor

16 # 5304448061 Evaporator

17 # 5304448063 Suction Tube

18 # 5304448065 Discharge Tube

19 # 5304448003 Condenser

20 # 5304448067 Capillary Tube

21 # 5304448069 Compressor Assembly, w/electricals, drier, grommets

33 5304448059 Scroll, blower housing, top

34 5304448016 Bulkhead, panel, left side

35 5304448018 Cover, blower scroll, top plate

36 5304448040 Bar, linkage

37 # 5304448041 Fan Blade, axial flow

38 # 5304448042 Shroud, fan housing

39 5304448043 Bracket, fan motor mount

40 # 5304448075 Motor, fan

41 5304448017 Bulkhead, panel, right side

42 5304448045 Plate, linkage

43 5304448060 Scroll, blower housing, bottom

44 # 5304448047 Blower Wheel, centrifugal fan

48 # 5304448077 Heater

49 5304448078 Frame, heater cover, steel

Publication No: 5995438826 FAH10EP2T1

06/05 6

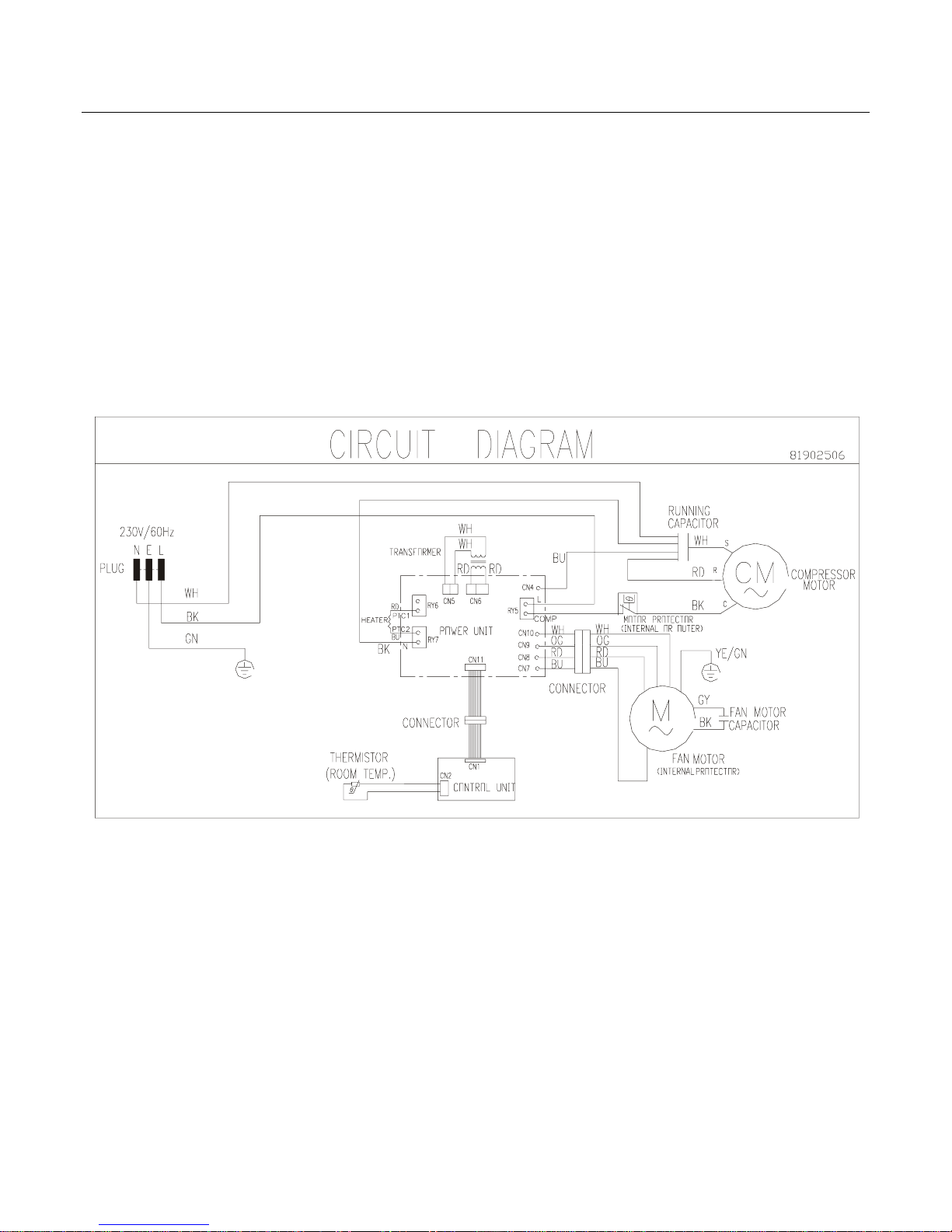

WIRING DIAGRAM

81902506
