Frigidaire FAS185J2A3 Manuale utente

PRODUCT NO. BASE MODEL NO. MARKET BTU-COOLING

FAS185J2A3 FAS185J2A USA 18000BTU

Publication No.

5995355467

010630

-EN/SERVICE /DJH

345

ROOM AIR CONDITIONER

Model No.

FAS185J2A

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309343701

OWNER’S GUIDE - # 309000823

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O.BOX 212378, AUGUSTA, GA 30917

08/01 2

Publication No. FAS185J2A

5995355467

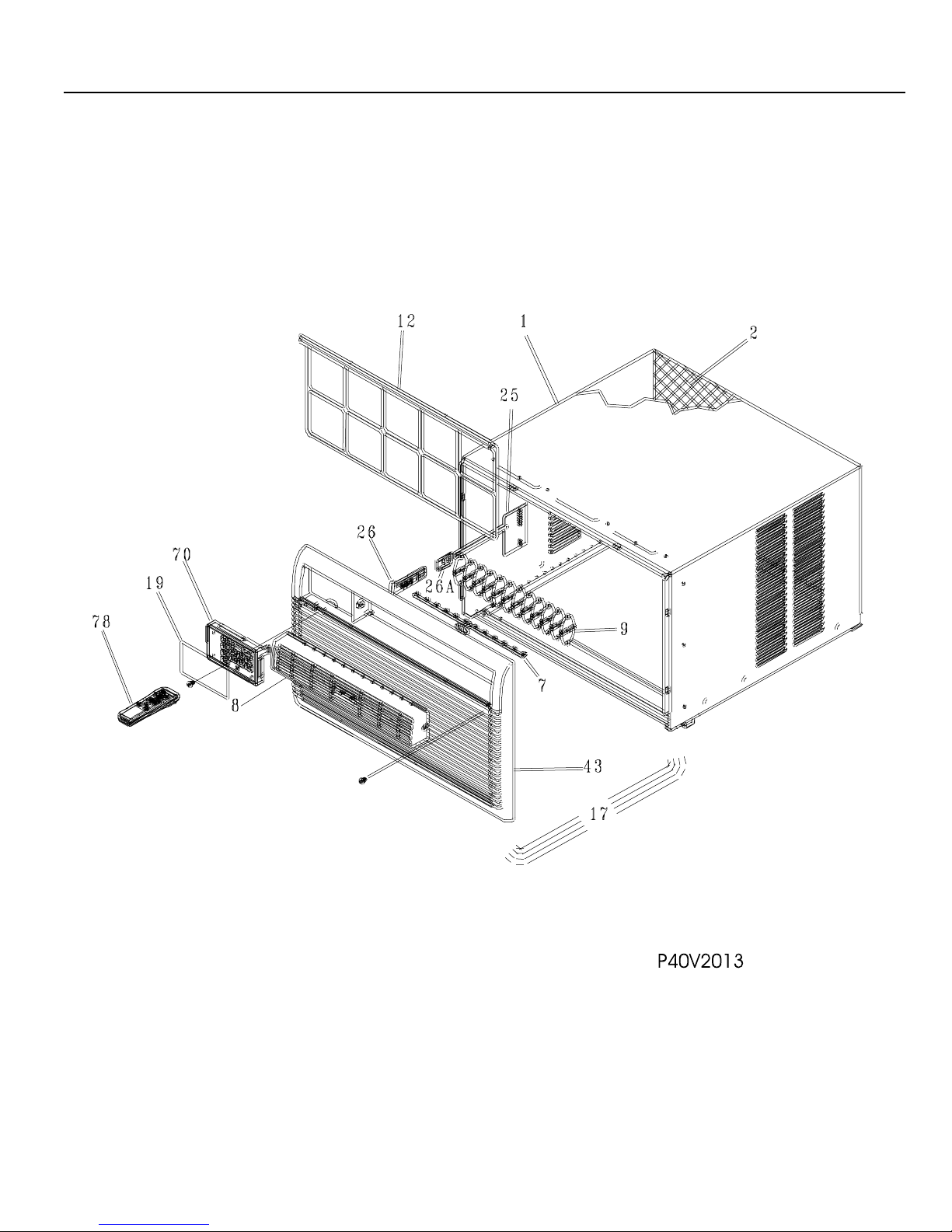

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 08/01

* = Non-Illustrated Parts

FAS185J2A Publication No.

5995355467

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309632704 Cabinet,sleeve ,top louvers

2 309632804 Grille,rear ,with rail

7 309631104 Link,vertical louver

8 309633305 Louver Assy,horizontal

9 309631004 Louver

12 309631404 Filter-air,molded plastic

17 309633205 Front-cabinet,complete assy

19 309341002 Overlay,Frig Gallery

25 309321401 Door-vent,actuator

26 309330206 Detent Assy-vent,with adhesive

26 309330404 Handle-vent,gray

26A 309330202 Detent-vent

43 309630904 Panel,cabinet front

70 309342401 Enclosure,elec control mt

78 309350502 Remote Control,transmitter ,with batteries

08/01 4

Publication No. FAS185J2A

5995355467

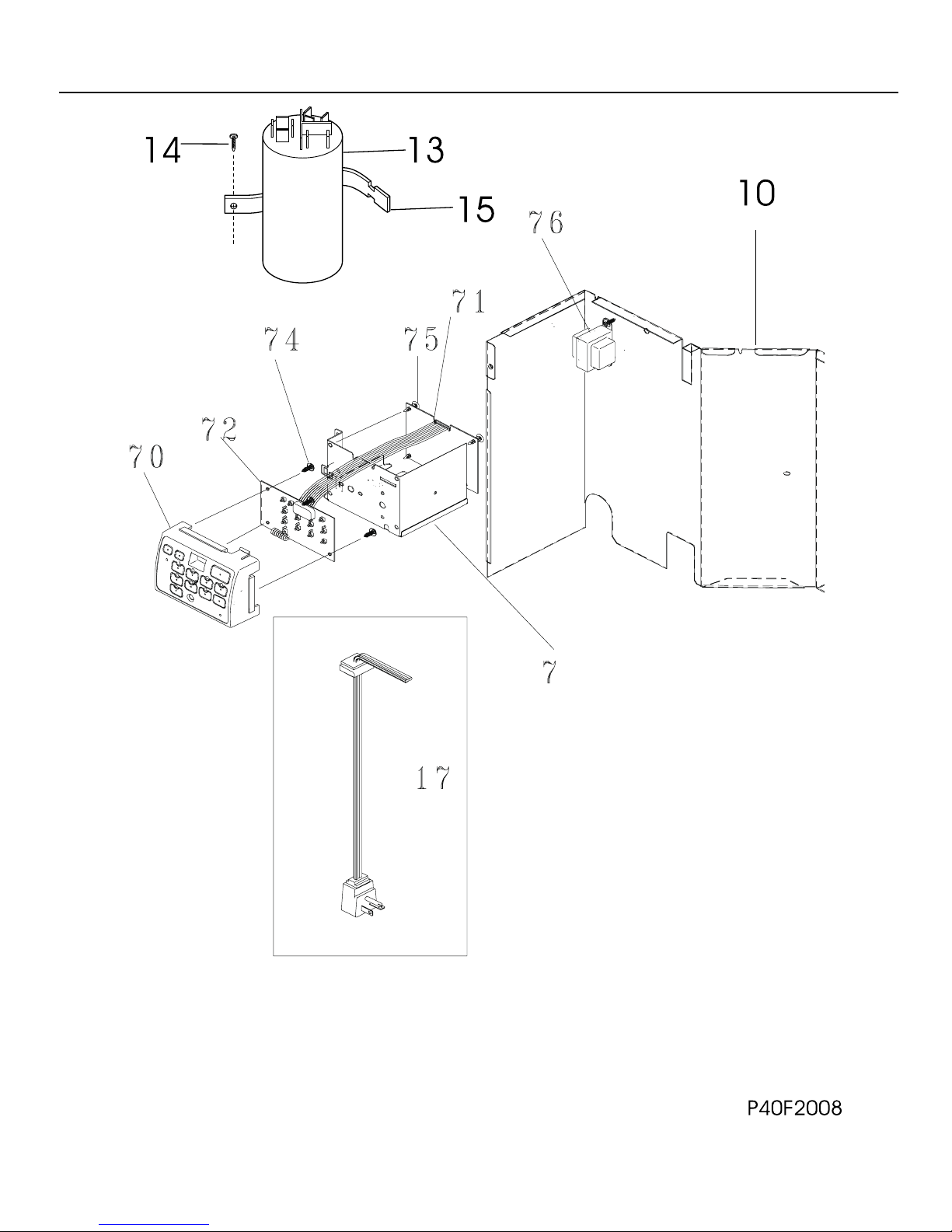

CONTROLS

# = Fast-moving Parts 5 08/01

* = Non-Illustrated Parts

FAS185J2A Publication No.

5995355467

CONTROLS

POS. NO PART NO DESCRIPTION

7 309630403 Control Box

10 309623601 Bulkhead,control system

10* 309331801 Clip-control bulb,(2)

13 # 5303317228 Capacitor,370 V ,30+6

14 3015312 Screw,8-18AB x 0.500

15 5303303077 Strap-capacitor

16 # 5304408751 Wiring Harness

17 # 309343112 Cord-service,type C 16AWG

70 309342401 Enclosure,elec control mt

71 # 309350401 PC Board,power,Sagem

72 # 309350403 Board-input,Sagem HD

72* 5304417643 Ribbon Protector

74 5303301590 Screw-bracket

75 5304413781 Support-pc board

76 309111602 Transformer,240/12 Volt

08/01 6

Publication No. FAS185J2A

5995355467

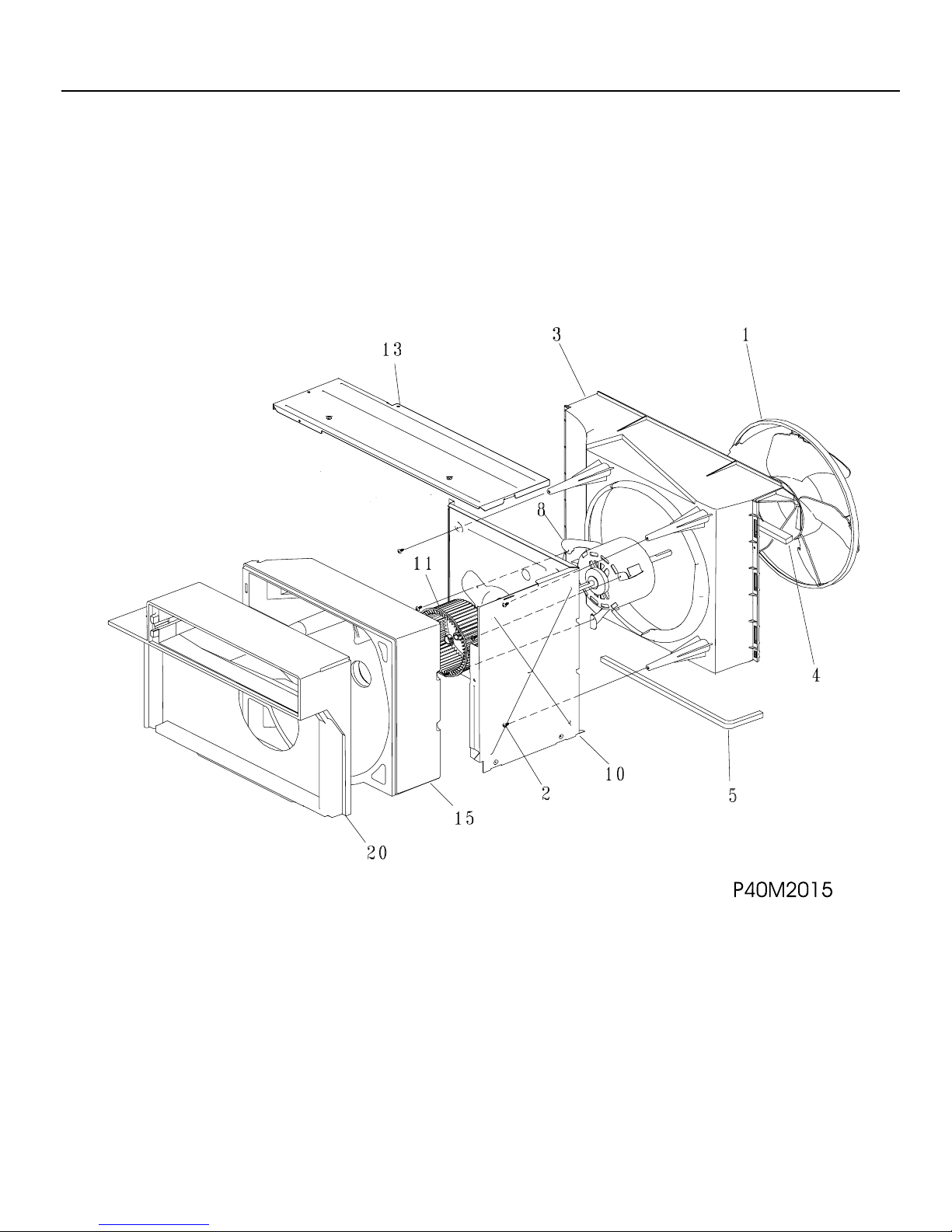

AIR HANDLING PARTS

# = Fast-moving Parts 7 08/01

* = Non-Illustrated Parts

FAS185J2A Publication No.

5995355467

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 5303311048 Fan Blade,with clamp

2 3202975 Screw,10-16 x 0.72 ,square drive

3 5303015305 Housing-fan,upper

4 3016696 Seal,fan housing ,upper

5 5303015311 Seal,fan housing ,lower

6 5303015304 Housing-fan,lower

8 # 309630603 Motor-fan,GE 3sp ,48/fr ,230/60

9 5303015306 Bracket,shroud/bulkhead

10 309623401 Bulkhead,air system

11 309633001 Blower Wheel,plastic ,with clamp

13 309630302 Cover-top

15 309630101 Housing-blower,evap scroll

20 309630201 Plate-blower housing,scroll plate

08/01 8

Publication No. FAS185J2A

5995355467

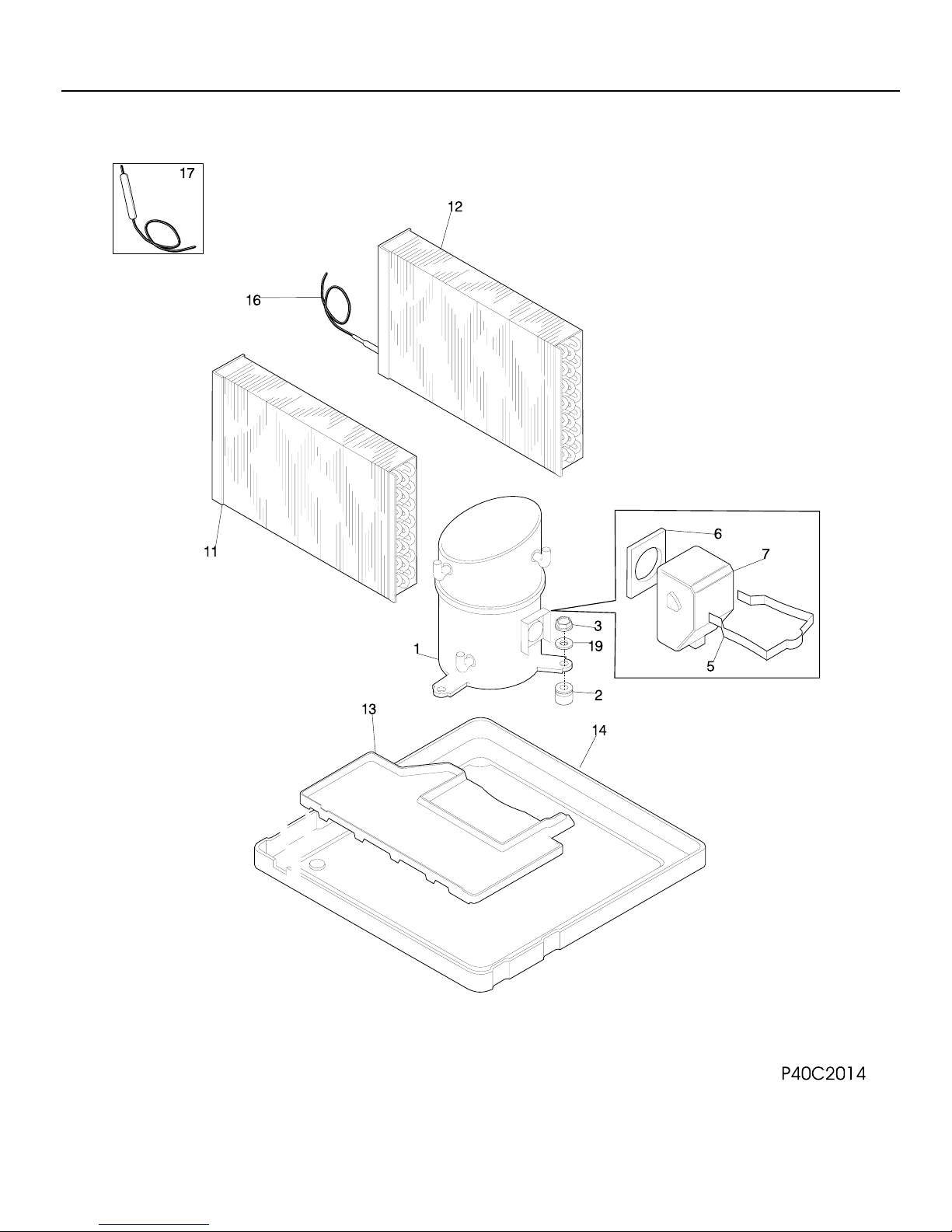

COMPRESSOR PARTS

# = Fast-moving Parts 9 08/01

* = Non-Illustrated Parts

FAS185J2A Publication No.

5995355467

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 5304403268 Compressor

2 5303286606 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

5 5303002069 Wire-Bale,terminal cover

6 5303002068 Gasket,terminal cover

7 5303002067 Cover,compr terminal

11 # 309634101 Evaporator

12 # 5303306719 Condenser

13 309623501 Tray-evaporator

14 309632906 Base stud ASSY

16 5308017120 Capillary Tube,45 inch long ,cut to length

19 5303002664 Washer,compressor mtg

19* 309112501 Washer,metallic

08/01 10

Publication No. FAS185J2A

5995355467

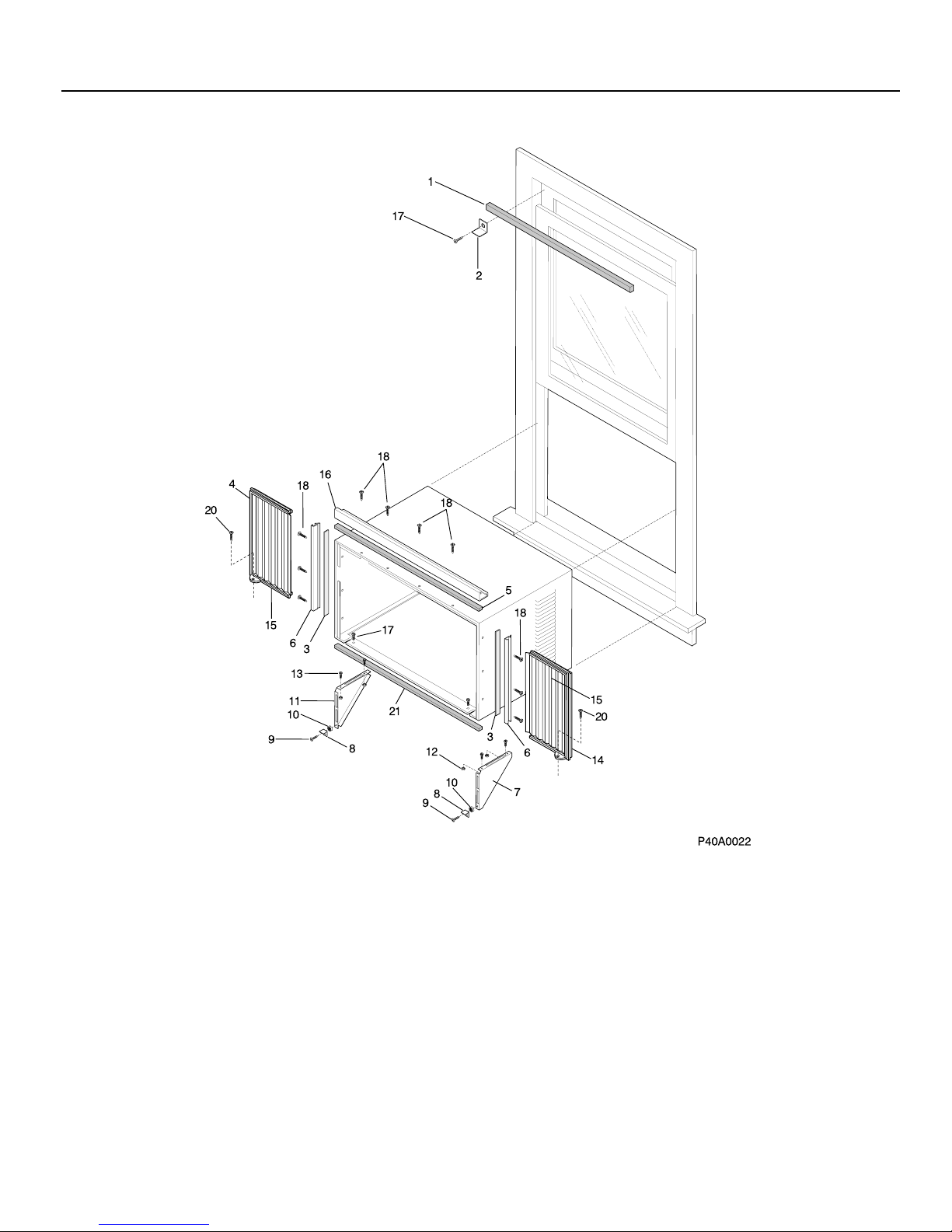

WINDOW MOUNTING PARTS
