All about the

Installation

of your

Split Type Room Air Conditioner

7651-249-668-1adanaC7651-249-668-1ASU

Safety precautions

DANGER! Avoid Serious Injury

or Death

1. Do not attempt to install the split air

conditioner by yourself.

2. This air conditioner contains no

user-serviceable parts. Always call

an authorized Electrolux servicer for

repairs.

3. When moving the air conditioner,

always call an authorized Electrolux

servicer for disconnection and

re-installation.

4. Do not insert or place fingers or

objects into the air discharge area in

the front of the indoor unit.

5. Do not insert or place fingers or

objects into the air discharge area

in the outdoor unit.

6. Do not start or stop the air conditioner

by unplugging the power cord or

turning off the power at the electrical

box.

7. Do not cut or damage the power cord.

8. If the power cord is damaged it should

only be replaced by an authorized

Electrolux servicer.

9. In the event of a malfunction (sparks,

burning smell, etc.) immediately stop

the operation, disconnect the power

cord, and call an authorized Electrolux

servicer.

10.Do not operate the air conditioners

with wet hands

11.Do not pull on the power cord.

12.Do not drink any water that is drained

from the air conditioners.

1. Provide occasional ventilation

during use. Do not direct airflow at

fireplaces or other heat related

sources as this could cause flare ups

or make units run excessively.

2. Do not climb on or place objects on

the outdoor unit.

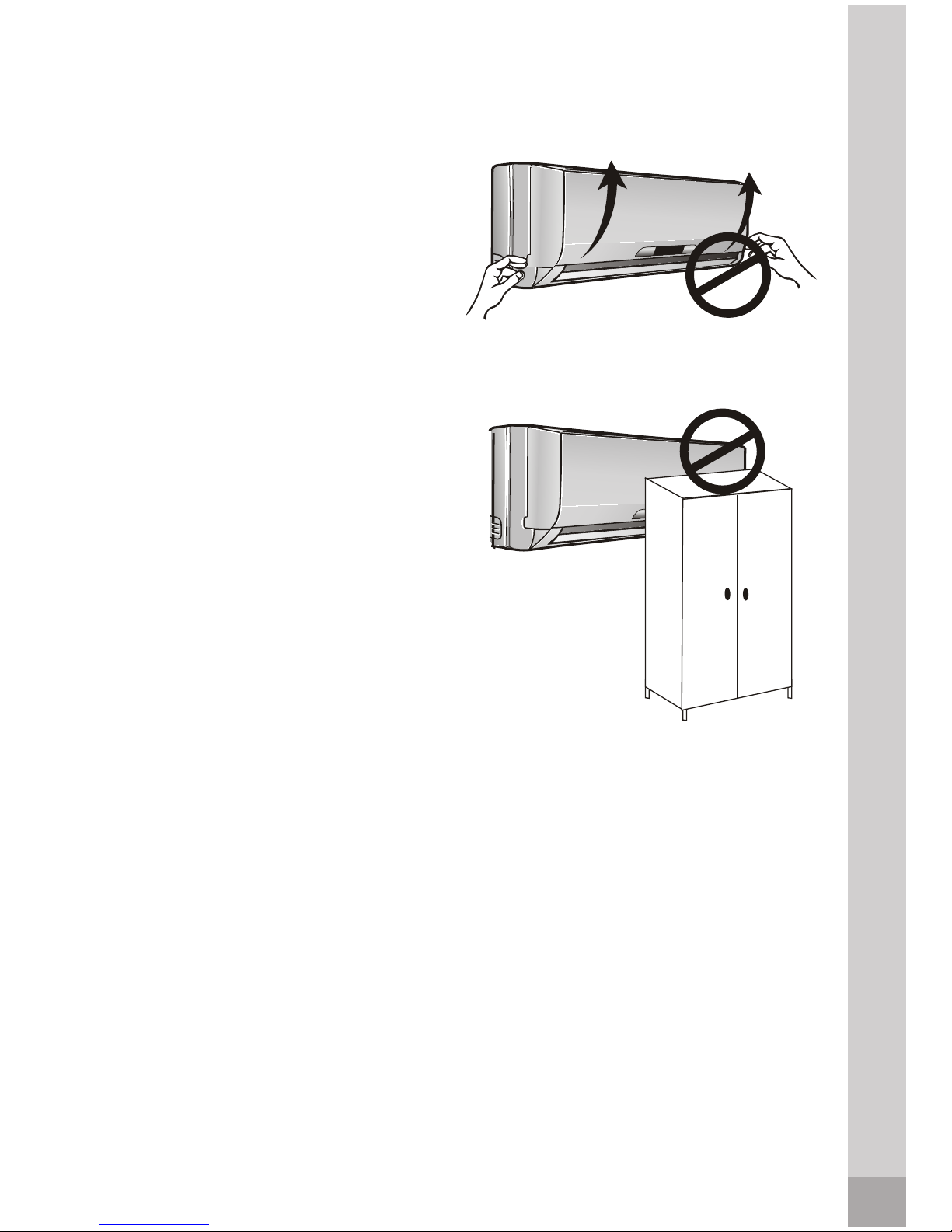

3. Do not hang objects off the indoor

unit.

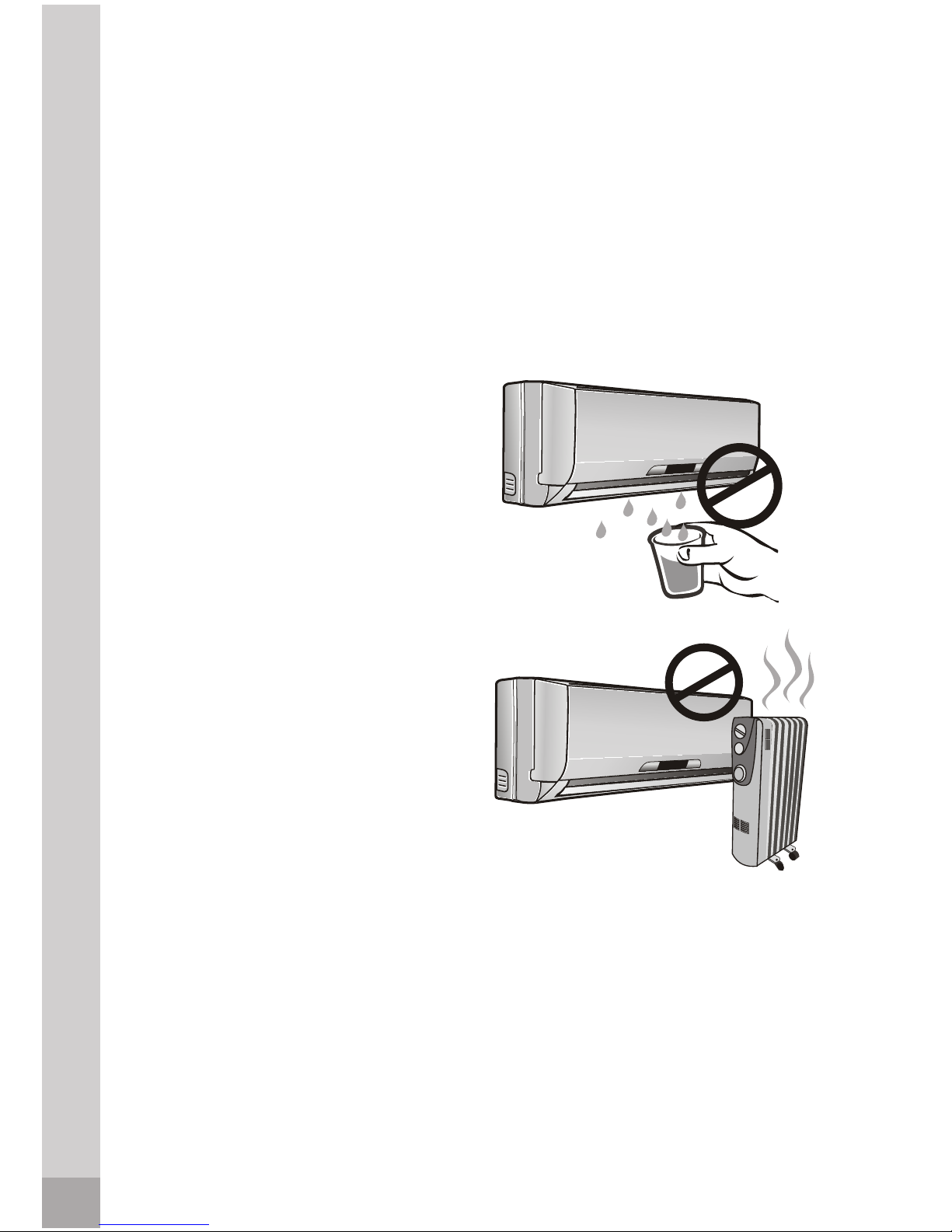

4. Do not place containers containing

water on the indoor and/or outdoor

units.

5. Turn off the air conditioner at the

power source when it will not be

used for an extended period of time.

6. Periodically check the condition of

the outdoor unit’s installation base

for any damage.

7. Do not apply heavy pressure to the

radiator fins of the indoor and/or

outdoor units.

8. Operate the indoor unit with air

filters in place.

9. Do not block or cover the intake

grille, discharge area and outlet

ports.

10.Ensure that any electrical/electronic

equipment is one yard away from

the indoor unit and outdoor unit.

11.Do not use or store flammable

gases near the indoor and/or

outdoor units.

CAUTION! Avoid Injury or

damage to the unit or other

property

Safety precautions

This appliance must be installed by a qualified licensed HVAC

technician in accordance with all applicable codes. All electrical

connections should be performed by a licensed electrician.

To prevent injury to the user or other people and property damage, the

following instructions must be followed.

Incorrect operation due to ignoring of instructions may cause harm or

damage. The seriousness is classified by the following indications.

1. Connect with the power properly.

Otherwise, it may cause electric

shock or fire due to excess heat

generation.

shock.

sounds, smell, or smoke comes

from it. It may cause fire and

electric shock.

switching on or off the power. It

may cause electric shock or fire due

to heat generation.

damp environment. It may cause

electric shock.

electric parts. It may cause failure of

05 Safety precautions

3. Disconnect the power if strange

machine, electric shock or fire.

2. Always ensure effective grounding.

No grounding may cause electric

4. Do not operate or stop the unit by

5. Do not operate with wet hands or in

6. Do not allow water to run into

heating appliances. It may cause

fire and electric shock.

unspecified power cord. It may

cause electric shock or fire.

9.Do not damage or use an

8. Do not use the power cord close to

flammable gas or combustibles,

such as gasoline, benzene, thinner,

etc. It may cause an explosion or fire.

7. Do not use the power cord near

power cord and ensure that the

is danger of fire or electric shock.

cord will not be compressed. There

10.Do not place heavy object on the

operation. It may cause electric

removed, do not touch the metal

parts of the unit. It may cause an

injury.

Safety precautions

shock or injury.

and electric shock.

It may cause failure of appliance

11.Do not open the unit during

13.Do not disassemble or modify unit.

14.When the air filter is to be

switch off, and turn off the circuit

breaker. Do not clean unit when

power is on as it may cause fire,

electric shock or injury.

to air flow.

not using the unit for a long time.

15.When the unit is to be cleaned,

16.Avoid direct exposure of occupants

17.Turn off the main power switch when

18.The air conditioner may be dusted

with an oil free cloth, or washed

with a cloth dampened in a solution

of warm water and mild dishwashing

detergent. Rinse thoroughly and wipe

dry. Wring excess water from cloth

before wiping around controls.

Clean filter once every two weeks.

inlets or inside of air-outlet. It may

cause failure of appliance or

accident.

concern of damage due to falling

of unit.

due to prolonged exposure. If

bracket damages, there will be

the outdoor unit will not damage

19.Ensure that the installation bracket of

20.Always insert the filters securely.

22.Do not place obstacles around air-

cause failure.

Operation without filters may

from air conditioner. It contains

12.Do not drink water drained

contaminants and could make

you sick.

dedicated power circuit. No

installation may cause fire and

electric shock.

21.Always install circuit breaker and a

8. The site must allow for the easy

removal of the connector pipe and

drain hose.

9. The unit must be installed at a site

protected from direct sunlight.

Precautions for Installation

Installation at the following sites may cause problems. If you must inevitably install

2. Sites with a high concentration of salinity, such as coastal areas.

3. Sites with sulfuric gas, such as hot water springs.

4. Sites with high frequency equipment, such as wireless equipment, welding

machines and medical installations.

5. Sites with flammable gases or volatile material.

6. Sites with special environmental conditions.

7. Laundry rooms.

Indoor Unit

1. The unit must be installed at a site

that does not obstruct the flow of

air.

2. The site must support the weight of

the indoor unit.

3. The site must be easily accessible

for maintenance and replacement

of the air filter.

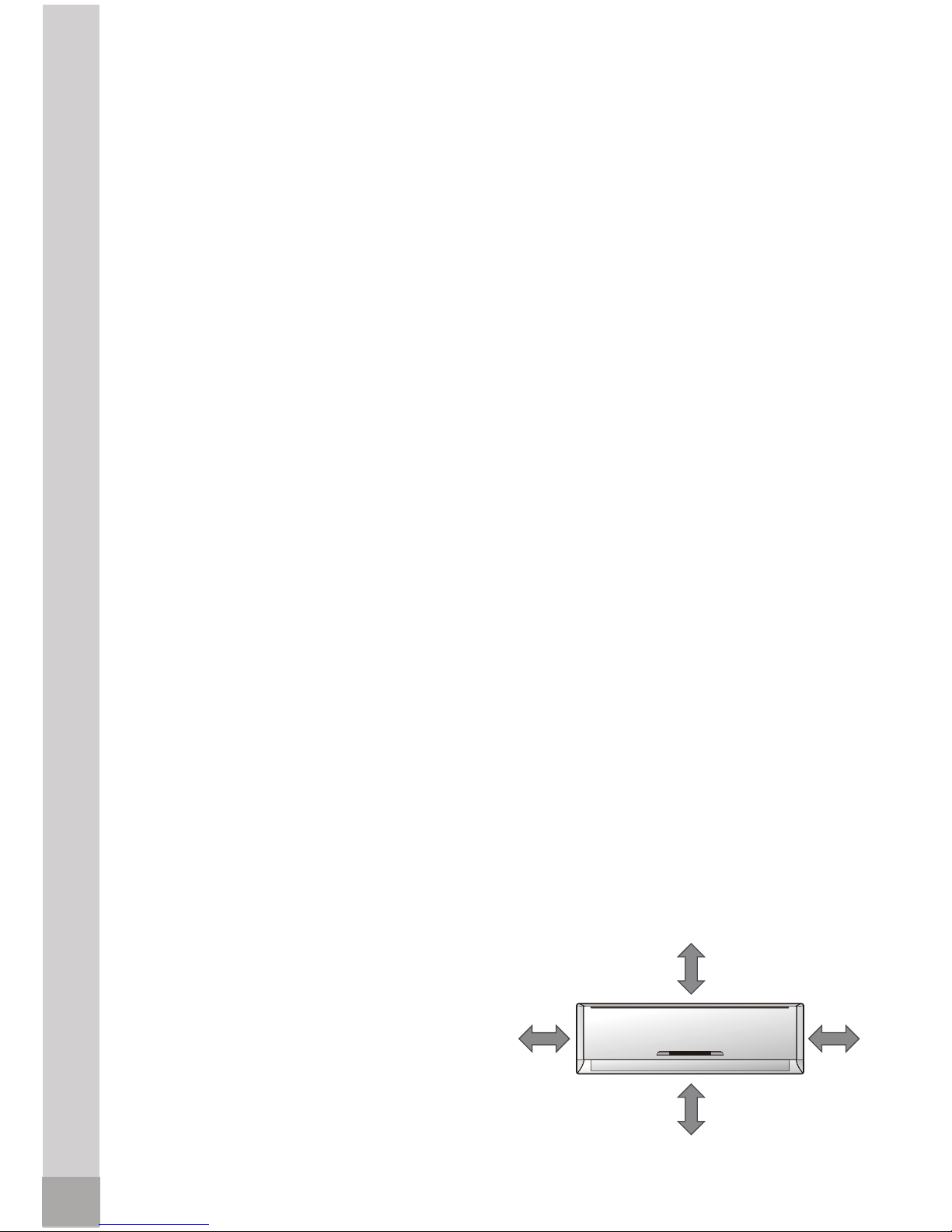

4. The site must allow for the

necessary space around the indoor

figure.

that the unit be installed at the

Choosing the installation site

the unit at one of these sites, please consult your local distributor beforehand:

1. Sites with machine oil.

unit, as shown in the sideward

meter) between the unit and radio

5. There should be at least 3 feet (1

feet (2.3 meters) from the ground.

flammable gases.

7. The indoor unit must be at least 7.5

6. It must be far from fire, smoke or

center.

or television devices. It is ideal

than 6"

than 5"

than 7.5'

than 5"

1. Carefully read the installation manual before beginning.

2. Follow each step as shown.

4. Pay attention to danger and safety notices

Installation Warnings

3. Observe all local, state and national electric codes. This appliance must be

installed by a qualified licensed HVAC technician in accordance with all

applicable codes. All electrical connections should be performed by a licensed

electrician.

Outdoor Unit

1. The outdoor unit must be

installed at a convenient site

that is not exposed to strong

winds. The site should be dry

and well ventilated.

2. The site must support the weight

of the outdoor unit and allow

for vertical installation.

3. There must not be the possibility

of increased noise and vibration

at the site.

4. The unit must be installed at a

site where the noise produced

by its operation and air

discharge does not disturb the

neighbors or animals.

5. The site cannot have any

leakage of flammable gases.

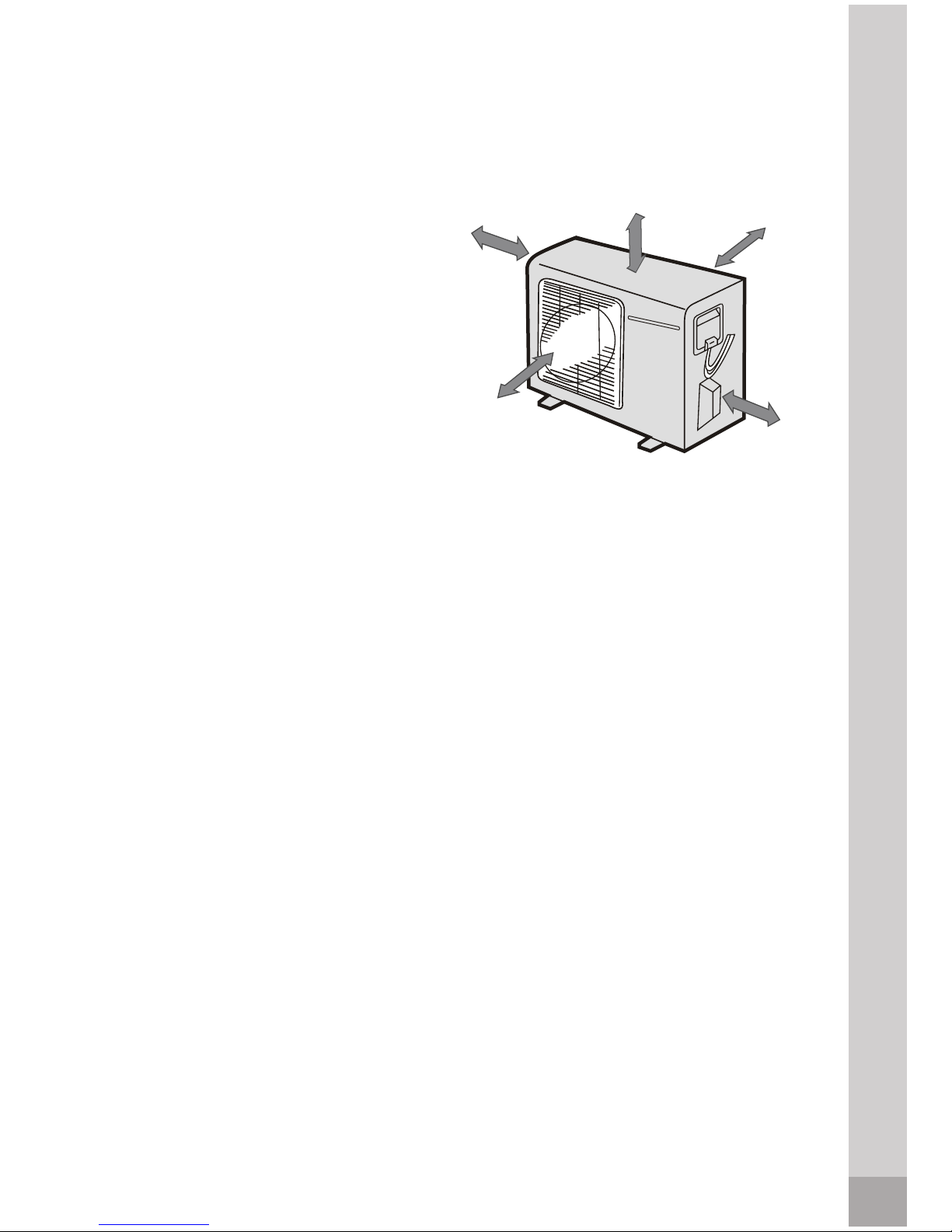

space around the unit, as shown

access the installation site.

Choosing the installation site

in the figure.

6. The site must provide enough

7. Children must not be able to

than 1 feet

than 2 feet

than 1 feet

than 2 feet

than 6.6 feet

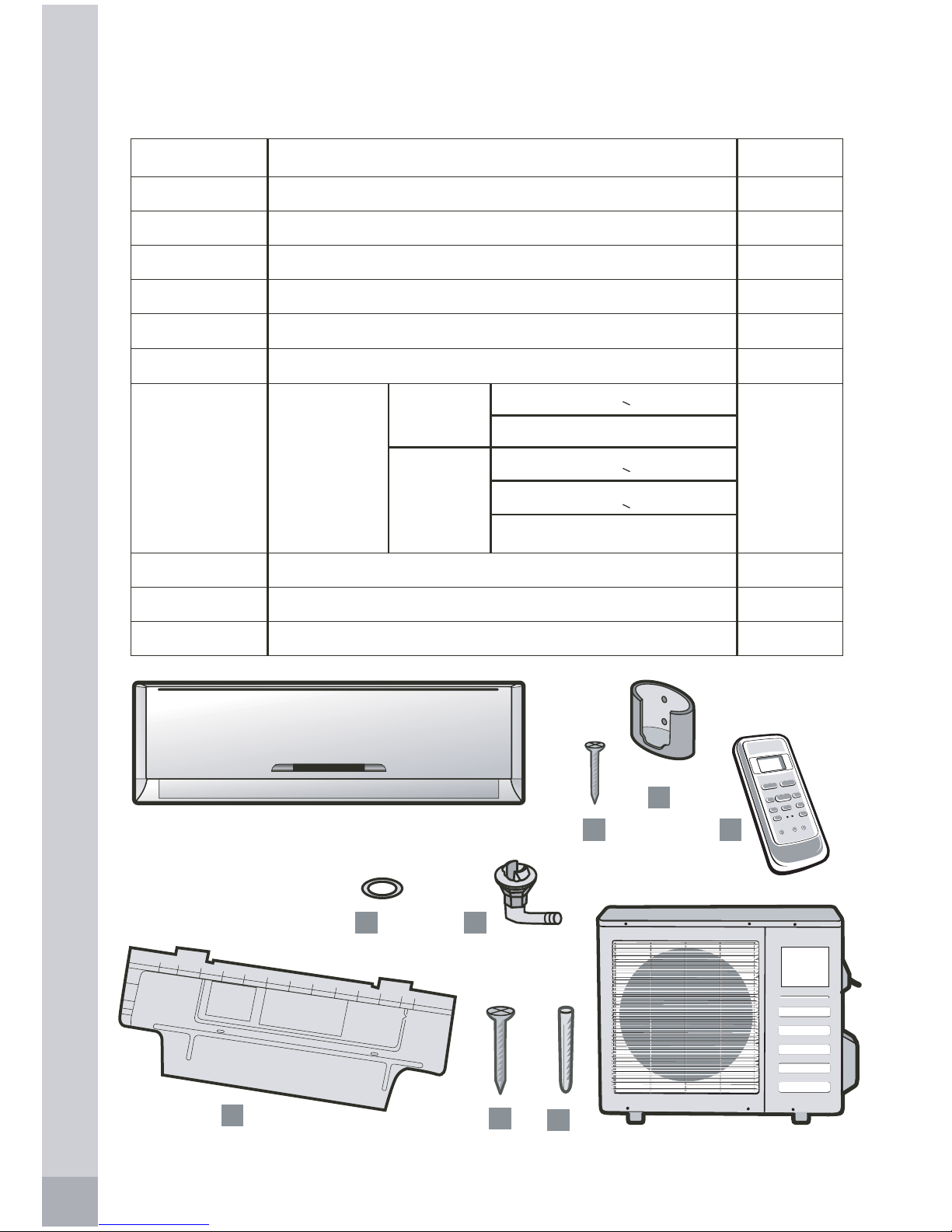

Parts list

Indoor unit

Outdoor unit

Parts list

Installation plate

Clip anchor

Seal

Drain Joint

Remote controller

Remote Controller holder

Connecting

pipe

assembly

Liquid side

Gas side

NUMBER PART NAME QTY

(capacity < 12000 Btu's)

(capacity < 9000 Btu's)

(capacity > 12000 Btu's)

Ø3/8"

Ø1/4"

Ø1/2"

Ø3/8"

Ø5/8"

Self-tapping screw A #7X1"

Self-tapping screw B #7X3/4"

6Connecting cable

10 10

(capacity > 12000 Btu’s)

Attention

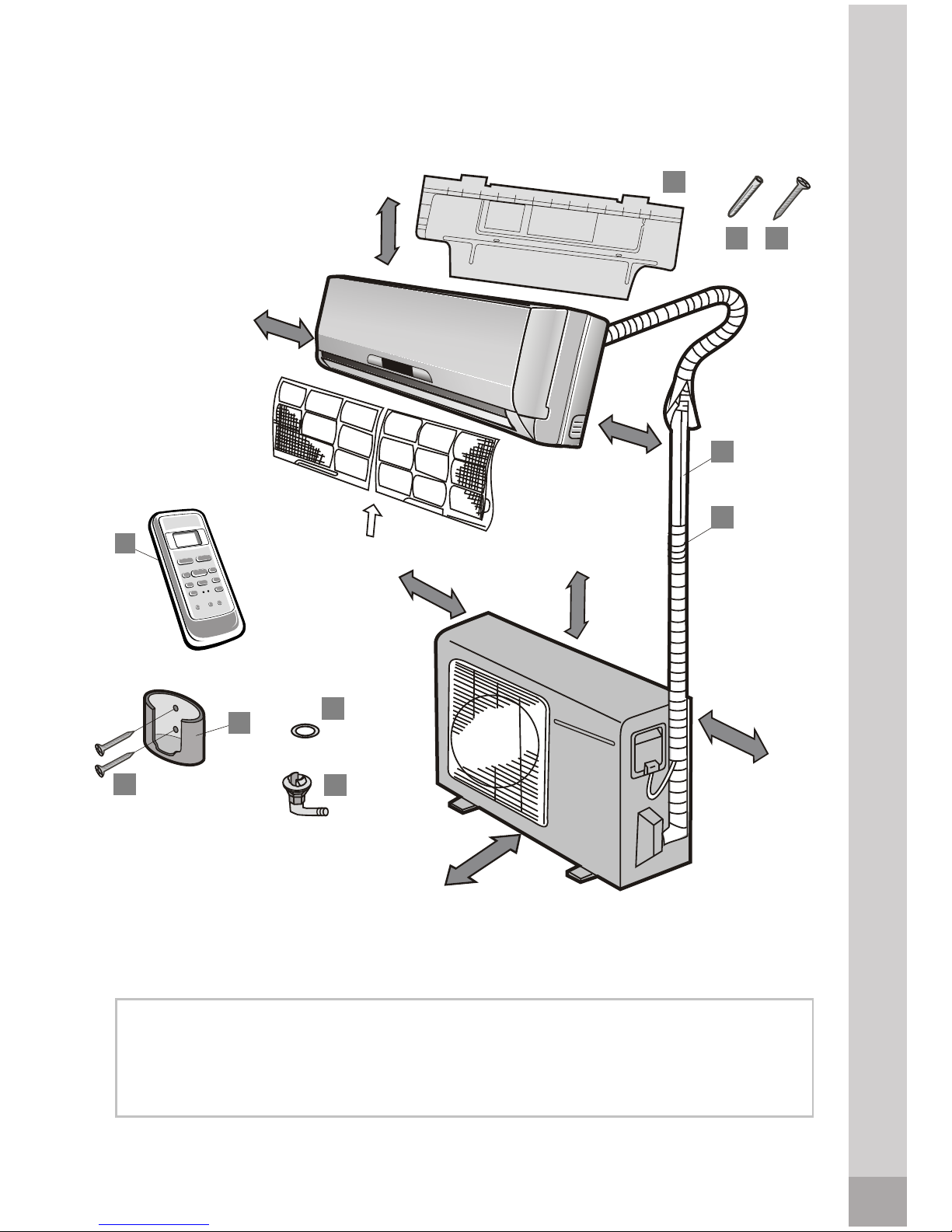

1. This illustration is for explanation purposes only.

Indoor unit

Outdoor

unit

Air filter

Parts list

2. Copper tubes must be insulated independently

More than 5"

More than 6"

More than 5"

More than 2 feet

than 2 feet

More than 6.6 feet

More than 1 feet

Attention

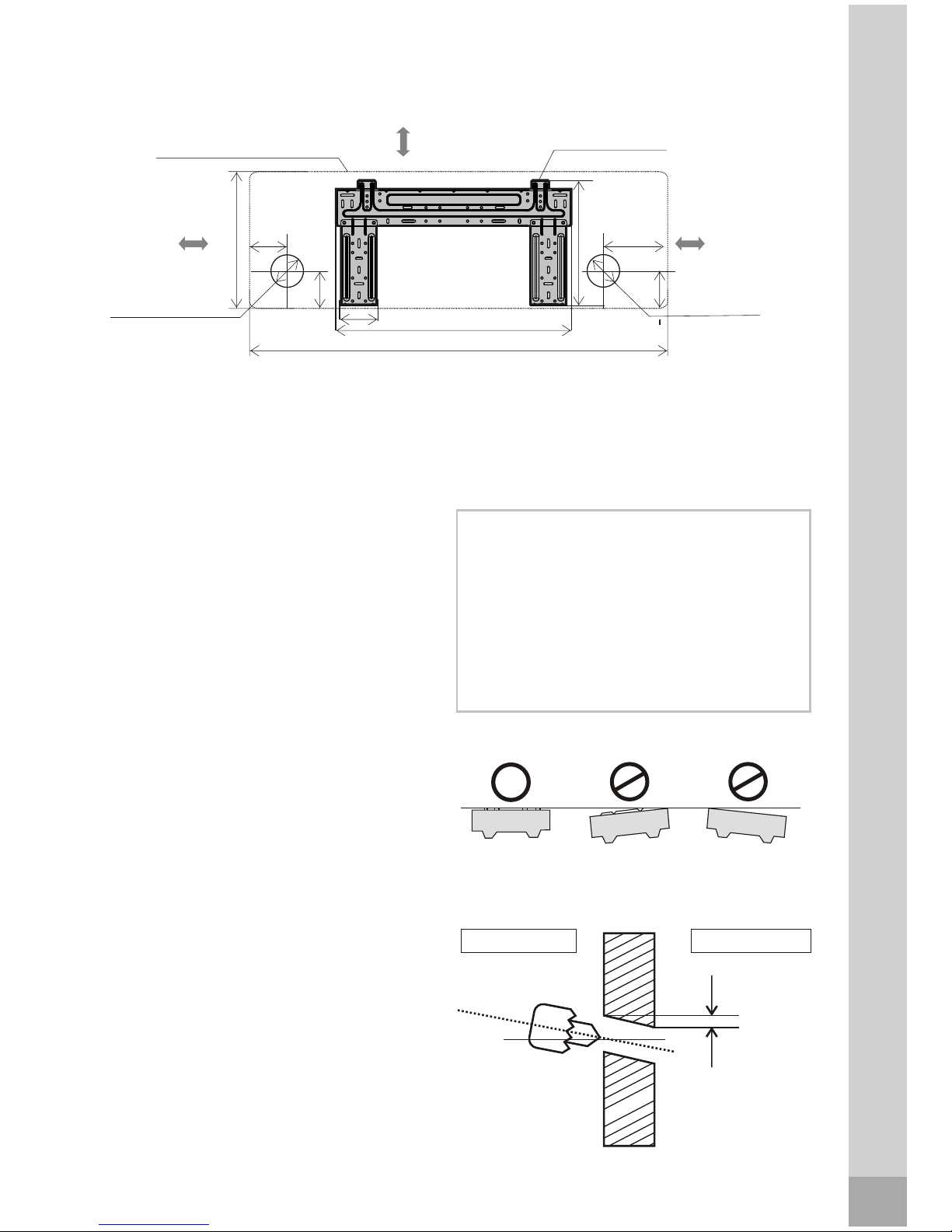

Fixing the Installation Plate

Drilling the Hole

1. Install the installation plate

horizontally over the structural

parts on the wall using the spaces

indicated on the plate, as shown

2. In the case of tiled, concrete or

diameter holes. Place anchorage

supports for the appropriate

assembly screws.

3. Fix the installation plate to the

1. Determine the position of the

installation plate and drill the

downward.

2. Always use a pipe cover with an

Installation plate

Fit the Installation Plate and drill holes

in the wall according to the wall

structure and corresponding mounting

points on the installation plate

(Dimensions are in “mm” unless

otherwise stated).

Wall

Indoor unit Outdoor unit

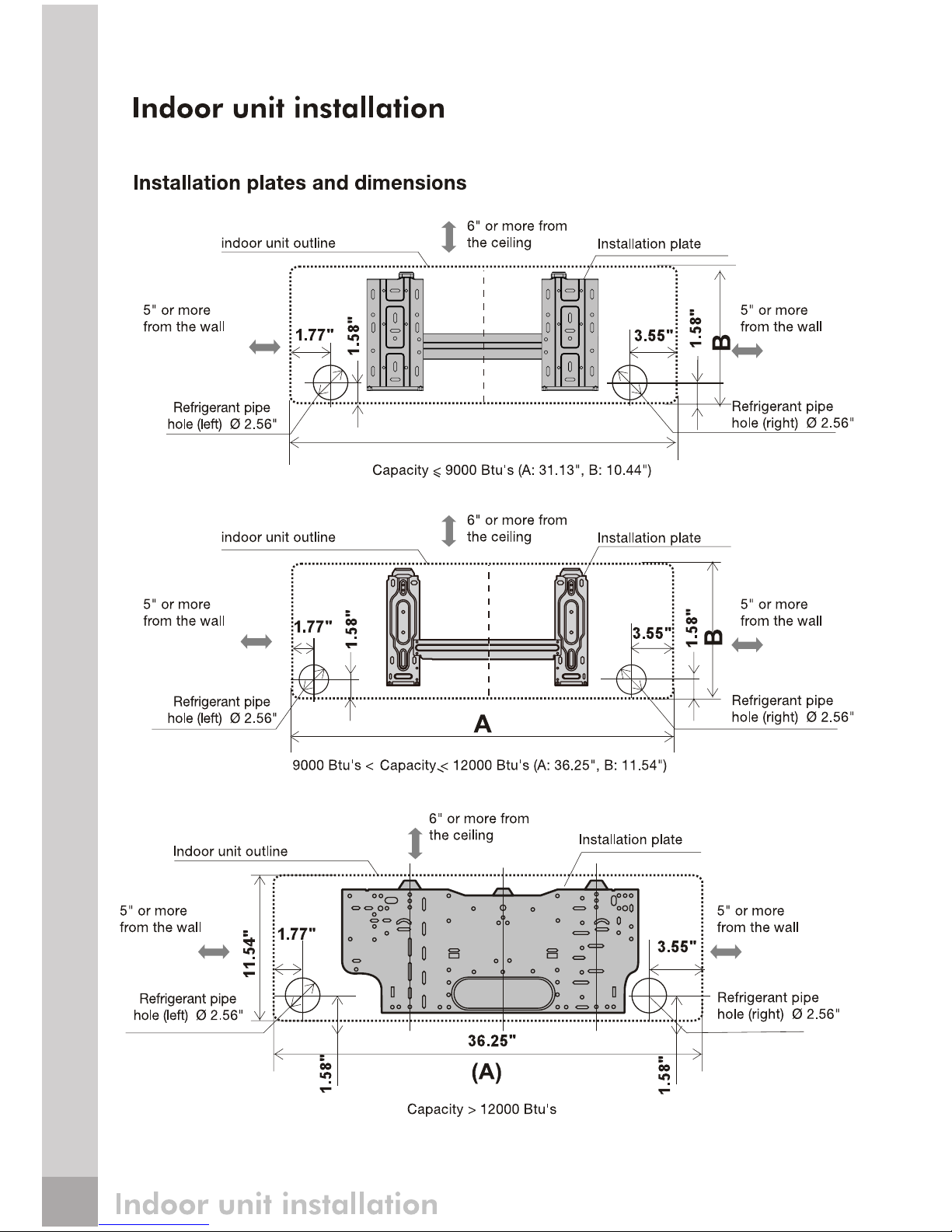

Indoor unit installation

(B)

Indoor unit outline Installation plate

the ceiling

from the wall from the wall

Refrigerant pipe Refrigerant pipe

Capacity

12000 Btu's

3.15

in the figures above.

A type screws.wall with eight

hole for the pipes using the

pipe hole so that it is tilted slightly

opening when drilling.

6" or more from

5" or more

hole (left) Ø 2.56" hole (right) Ø 2.56"

5" or more

3.55"

1.77"

10.72"

11.54"

19.27"

1.77"

36.25"

0.2"-0.28"

4. At all times securing to the wall

studs is recommended.

similar walls, create 0.2 inch

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Frigidaire Condizionatore d'aria

Frigidaire

Frigidaire FFRH2522R2E0 Manuale del proprietario

Frigidaire

Frigidaire LRA050XT728 Manuale del proprietario

Frigidaire

Frigidaire FHPW142AC1 Manuale utente

Frigidaire

Frigidaire FRA102BT110 Manuale del proprietario

Frigidaire

Frigidaire FRA065AT7 Manuale utente

Frigidaire

Frigidaire FAA064P7 Manuale utente

Frigidaire

Frigidaire FGRC084WA1 Manuale del proprietario

Frigidaire

Frigidaire ELECTRONIC CONTROL AIR CONDITIONER Manuale utente

Frigidaire

Frigidaire FRA122BU1 Istruzioni per l'installazione

Frigidaire

Frigidaire Gallery FGRC1044T1E00 Manuale utente

Frigidaire

Frigidaire CRA256ST211 Manuale del proprietario

Frigidaire

Frigidaire FAS296N2A Manuale utente

Frigidaire

Frigidaire FRA155MT112 Manuale del proprietario

Frigidaire

Frigidaire FRA10EHT2 Manuale utente

Frigidaire

Frigidaire FAC127S1AB Manuale utente

Frigidaire

Frigidaire Home ComfortFRA086HT1 Manuale utente

Frigidaire

Frigidaire FAC102P1AA Manuale utente

Frigidaire

Frigidaire Home ComfortFRA08PZU1 Manuale utente

Frigidaire

Frigidaire FAH10EP2T Manuale utente

Frigidaire

Frigidaire Home ComfortFRA086HT1 Istruzioni per l'installazione

Frigidaire

Frigidaire Home Comfort FRA106HT1 Istruzioni per l'installazione

Frigidaire

Frigidaire FFPA1222R11 Manuale del proprietario

Frigidaire

Frigidaire FRA054XT7 Manuale del proprietario

Frigidaire

Frigidaire FAX052P7A14 Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Samsung

Samsung AS09HM3N Manuale utente

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente

Webasto

Webasto Frigo Top 25 DS Manuale utente

Mitsubishi Electric

Mitsubishi Electric MSC-GE20VB Manuale utente
