Frigidaire FRS184YS2 Manuale utente

frigidaire.com

Signature Features

Eortless™ Temperature

Control

Our air conditioners maintain the preset

room temperature, so you will remain

comfortable at all times.

Ready-Select®Controls

Easily select options with the touch of a

button.

Eortless™ Clean Filter

Our anti-microbial filter cleans the air,

removing harmful bacteria.

Remote Control

Allows you to precisely control the

temperature and fan speed from across

the room.

Ductless Mini-Split

Air Conditioner

Product Dimensions

Evaporator (Indoor) Model

Height 11-3/4"

Width 37"

Depth 7-7/8"

Product Dimensions

Condenser (Outdoor) Model

Height 27-1/2"

Width 35-1/16"

Depth 13-3/8

More Easy-To-Use Features

Energy and Cost Savings

A split system helps avoid the energy

losses that normally come with ductwork.

This loss can amount to up to 40% due to

leaks, tears and long lengths.

Inverter Technology

Allows the unit to maintain room

temperatures while operating at a

lower and quieter speed.

Multi-Speed Fan

Features three different fan speeds, for

more cooling flexibility.

Sleep Mode

Quiet operation keeps you cool without

keeping you awake. Plus, Sleep Mode

gradually increases room temperature

after being activated.

Quickly Cools

Turbo Mode for that quick cool-down

when you first turn it on

Comfort Control Design

Easily control the direction of your cool air,

wherever your unit is.

Eortless™ Restart

Automatically resumes operating at its

previous settings when power is restored

to your unit.

24 Hour On/O Timer

ENERGY STAR®

1Photo may not represent actual model.

FRS184YC21Outdoor

FRS184YW21Indoor

Home Comfort

FRS184YS2

Performance

Cool

BTUs

18,000

RAC Indoor/Outdoor Ductless A/C Split Models

Frigidaire Baseline

Model Numbers

System Model Number

Indoor Unit Part Number

Outdoor Unit Part Number1

Performance

BTU (Cool)

Cooling Area (Sq. Ft.)

SEER (Air Conditioner)

Inverter Technology

Electrical

Volts

Amps (Cool) Indoor/Outdoor

Watts (Cool) Indoor/Outdoor

Fuse (Amps) Indoor/Outdoor

Features

Controls

Fan Speeds (Cool/Fan)

Low Voltage Start-Up

Turbo Fan

Auto Fan

Energy Saver

Sleep Mode

24 Hour On/O Timer

Remote Control

Air CFM (High/Med/Low) Indoor

Air Direction Control (Vert. / Horz.)

Air Discharge (Full-Width)

Filter Type

Filter Access

Air Direction Control - Horizontal

Air Direction Control - Vertical

dB (Indoor) (High/Med/Low)

dB (Outdoor)

Warranty2

Included Accessories

Drain Kit (Outdoor Unit)

Installation Plate (Indoor Unit)

Line Set (Indoor Unit)

Remote Holder (Indoor Unit)

Certiﬁcations

ENERGY STAR®

Performance

Speciﬁcations

Refrigerant

Shipping Weight (Approx.)

Specifications

subject to change.

1Includes 16.4 ft. line set.

2Warranty 5 year sealed system / 1 year full parts and labor.

1Illustration may not represent actual model.

All refrigeration and electrical work must be performed by a certiﬁed and licensed

refrigeration technician for full parts and labor warranty validation. Insulated line sets

and control wires are required and available for Frigidaire split systems in 16.4 ft.

length. Each line set is equipped with ﬂare nuts on both ends. Each system requires

one line set for each indoor unit installed.

NOTE: For planning purposes only. Always consult local and

national electric codes. Refer to Product Installation Guide for

detailed installation instructions on the web at frigidaire.com.

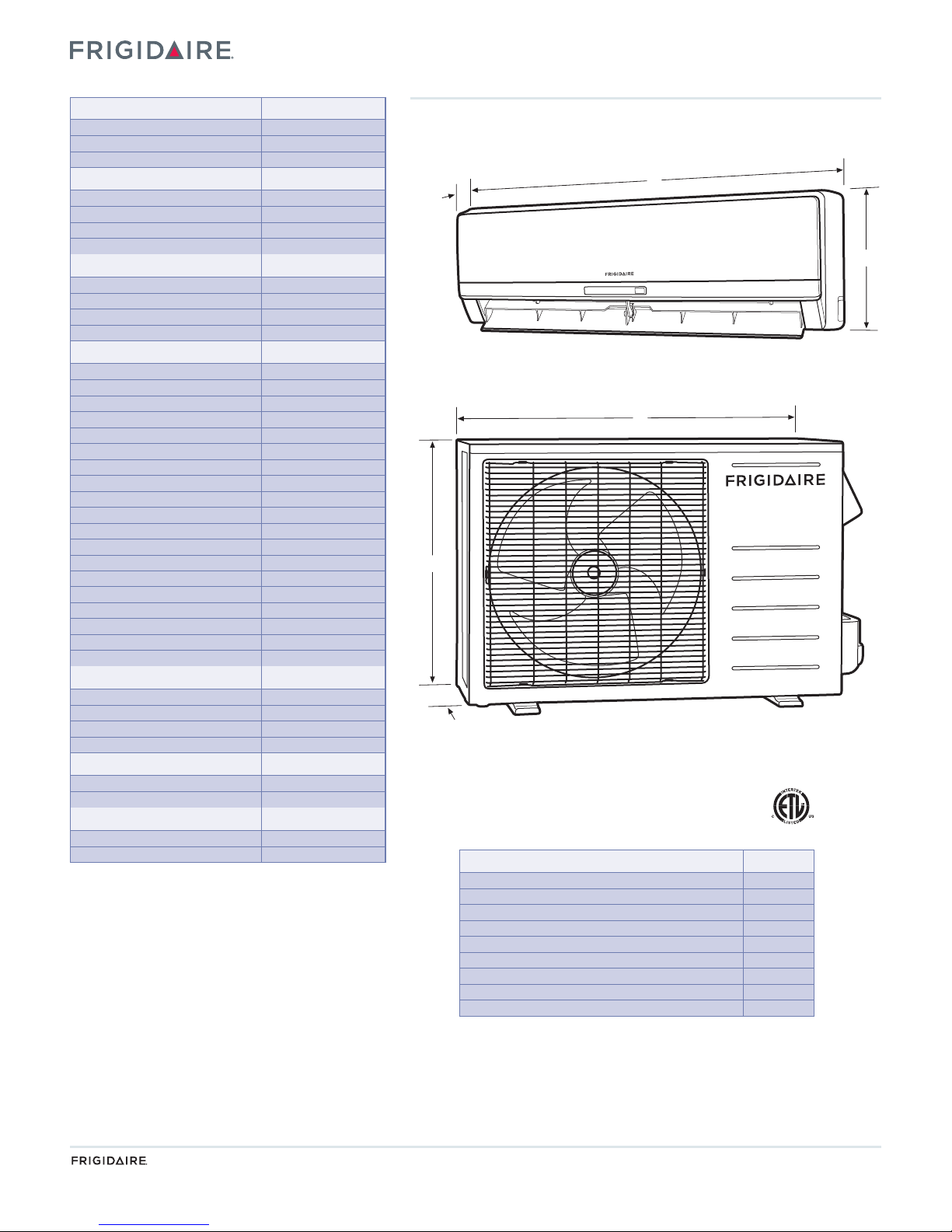

Product Dimensions

Indoor –

A - Height

B - Width

C - Depth

Max. Wall Thickness

Outdoor –

A - Height

B - Width

C - Depth

Accessories information available

on the web at frigidaire.com

11-3/4"

37"

7-7/8"

18"

27-1/2"

35-1/16"

13-3/8"

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

FRS184YS2

FRS184YW2

FRS184YC2

18,000

1,100

Yes

230 / 208

0.3 / 6.6

23 / 1,500 (380-2,650)

3.15 / 25

Ready-Select®Controls

3 / 3

Yes

Full-Function

270 / 224 / 190

Yes/Yes

Bottom

Antimicrobial Mesh

Slide-Out

Manual

Swing

44 / 40 / 35

Yes

ARI

R410a

121

FRS184YC21Outdoor

FRS184YW21Indoor

Home Comfort

FRS184YS2Ductless Mini-Split Air Conditioner

TS-FRS184YS2-06/11-1

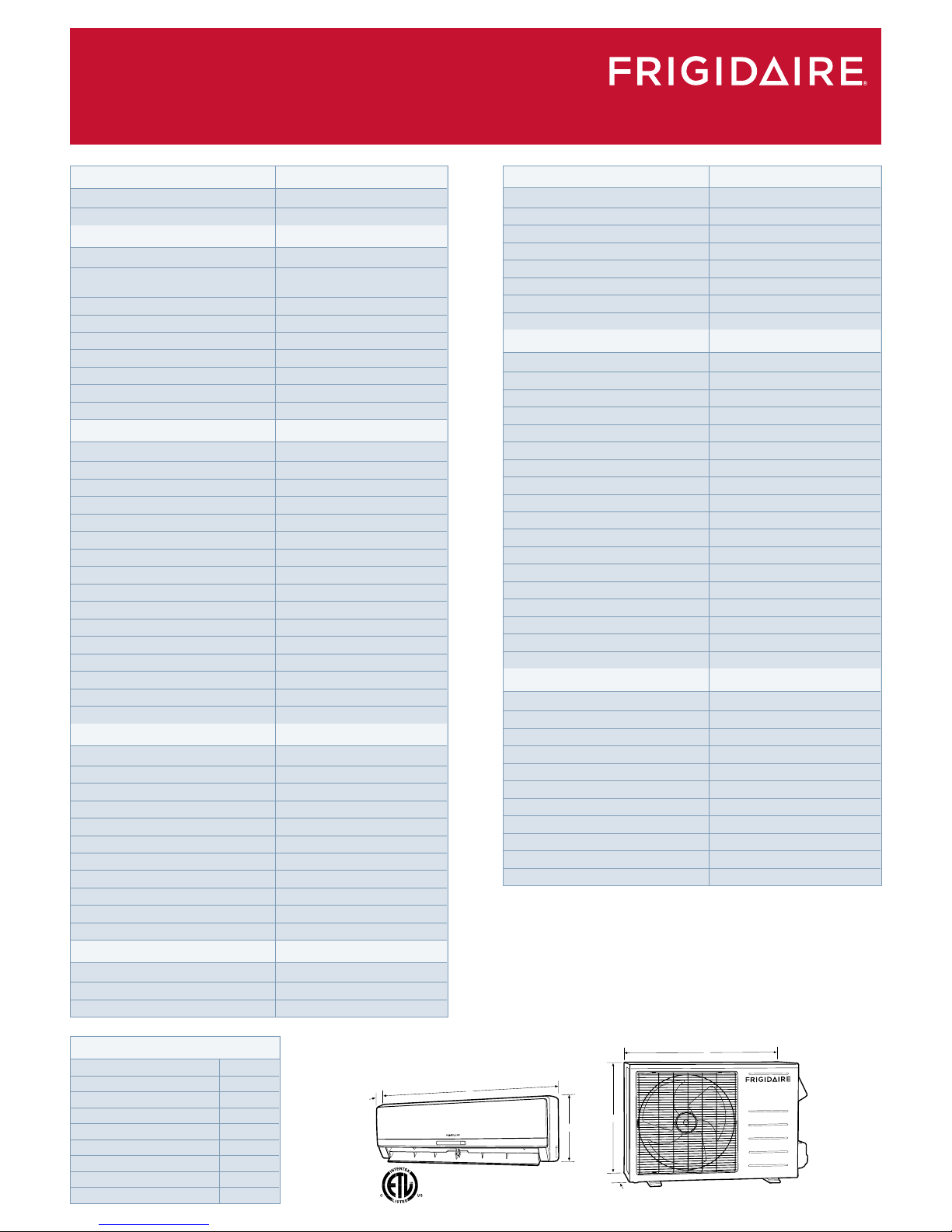

Ductless Mini-Split System Air Conditioners

Servicer Technical Data Sheet

FRS184YS2

REFRIGERANT SYSTEM

Refrigerant

Ounces

Control

Lineset

Maximum Height

Maximum Line length

Discharge Vapor Line (od)

Suction (od)

OUTDOOR UNIT

Sound rating

Net Weight

Shipping Weight

Dimensions (H x W x D)

Recommended Fuse

Minimum Amps

Running Current

Fan Type

Fan Diameter/Number of Speeds

Drive Type

Motor Watts

Number of Poles and RPM

CFM (High)

Coil Type

Fin Type

Pipe Type

Fin Rows (FPI)

Tube Size

OPERATING RANGE

Cooling

Heating

Cooling

Heating

R410A

51.15

electric expansion valve

16.4 ft

49.2 ft

98.43 ft

6 mm (1/4")

12 mm (1/2")

£ 54 dB (A)

110.23 lb

121.25 lb

27.56" x 35.04" x 13.38"

25 A

14 A

13.8/12.5 A

Axial

20.47"-2

dc motor

60 W

2-690/500 rpm

1904

aluminum ﬁn & copper tube

ﬂat

innergroove copper

¢ 7.15 mm (9/32")

Indoor Air

intake temp

90° F db/wb

41° F db/wb

81° F db/wb

32° F db/wb

Outdoor Air

intake temp

115° F db/wb

41° F db/wb

75° F db/wb

5° F db/wb

POWER

Circuit Amps

Maximum Fuse Size

CAPACITIES

Cooling

Amps

Watts

Min/Max Cooling

SEER

EER

Low Ambient Temperature

Voltage/Frequency/Phase

Dehumidiﬁcation

INDOOR UNIT

Sound Rating

Net Weight

Shipping Weight

Dimensions (H x W x D)

Full Loaded Amps

Number of Fan Speeds

Fan Type

RPM at High Speed)

Motor Watts

Full Loaded Amps

Coil Type

Fin Type

Pipe Type

Fin Rows (FPI)

Tube Diameter

Drain Connection Size

FEATURES

Controls

Remote Control

Temperature Control

Timer

Air Louvers

Horizontal

Vertical

Low Voltage Restart

Self-Diagnosis

Quiet Operation

Air Filter

COMPRESSOR

Controls

Remote Control

Temperature Control

13.8/12.5 A

25 A

18000 Btu

7.59/6.86 A (Rated Current

under cooling mode)

1500 W

6000/22350 Btu

5° F £T £115° F

208V/230V /60Hz/1P

4.22PT/H

46/44/40/35dB (A)

28.66 lb

37.47 lb

11.73" x 37.01" x 7.87"

0.27 A

cross ﬂow

1350 RPM

20 A

0.25 A

aluminum ﬁn & copper tube

window

inner-wing

¢ 7.15 mm (9/32")

¢ 16 mm (5/8")

microprocessor

lcd wireless

16-30° C

24 hr

2 pieces

manual

swing

built-in

yes

washable, anti-mold

C-6RZ146H1A

twin rotary DC inverter

8.4 A

41 A

CFRS184YC2 Outdoor

FRS184YW2 Indoor

PRODUCT DIMENSIONS

Indoor –

A - Height

B - Width

C - Depth

Max. Wall Thickness

Outdoor –

A - Height

B - Width

C - Depth

11-3/4"

37"

7-7/8"

18"

27-1/2"

35-1/16"

13-3/8"

SS-FRS184YS2-06/11-1

POWER

Circuit Amps

Maximum Fuse Size

CAPACITIES

Cooling

Amps

Watts

Min/Max Cooling

SEER

EER

Low Ambient Temperature

Voltage/Frequency/Phase

Dehumidiﬁcation

INDOOR UNIT

Sound Rating

Net Weight

Shipping Weight

Dimensions (H x W x D)

Full Loaded Amps

Number of Fan Speeds

Fan Type

Motor Watts

Full Loaded Amps

COMPRESSOR

Type

Amps

Locked Rotor Amps

13.8/12.5 A

25 A

18000 Btu

7.59/6.86 A (Rated Current

under cooling mode)

1500 W

6000/22350 Btu

5° F £T £115° F

208V/230V /60Hz/1P

4.22PT/H

46/44/40/35dB (A)

28.66 lb

37.47 lb

11.73" x 37.01" x 7.87"

0.27 A

cross ﬂow

20 A

0.25 A

C-6RZ146H1A

twin rotary DC inverter

8.4 A

41 A

Job: ______________________________

Location:__________________________

Engineer:__________________________

Submitted to: ______________________

Reference:_________________________

Approval: _________________________

Date: _____________________________

Submitted by:______________________

Construction: ______________________

Unit Number: ______________________

Drawing Number:___________________

CFRS184YC2 Outdoor

FRS184YW2 Indoor

OUTDOOR UNIT

Sound Rating

Net Weight

Shipping Weight

Dimensions (H x W x D)

Recommended Fuse

Minimum Amps

Running Current

Drive Type

Motor Watts

CFM (high)

FEATURES

Controls

Remote Control

Temperature control

Timer

Air Louvers

Horizontal

Vertical

Low Voltage Restart

Self-Diagnosis

Quiet Operation

Air Filter

REFRIGERANT SYSTEM

Refrigerant

Ounces

Lineset

Maximum Height

Maximum Line length

Discharge Vapor Line (od)

Suction (od)

£ 54 dB (A)

110.23 lb

121.25 lb

27.56" x 35.04" x 13.38"

25 A

14 A

13.8/12.5 A

dc motor

60 W

1904

microprocessor

lcd wireless

16-30° C

24 hr

2 pieces

manual

swing

built-in

yes

washable, anti-mold

R410A

51.15

16.4 ft

49.2 ft

98.43 ft

6 mm (1/4")

12 mm (1/2")

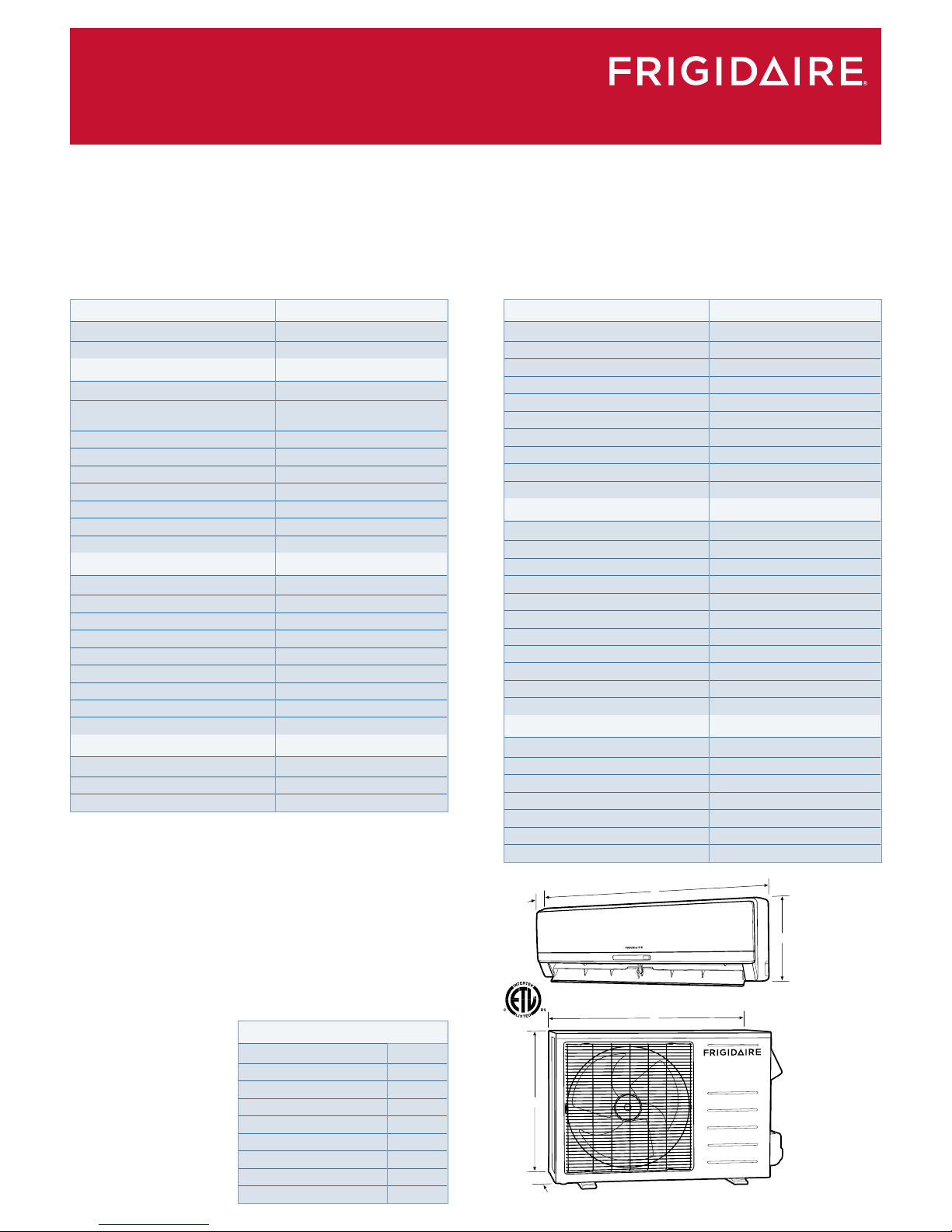

Ductless Mini-Split System Air Conditioners

Submittal Sheet

FRS184YS2

PRODUCT DIMENSIONS

Indoor –

A - Height

B - Width

C - Depth

Max. Wall Thickness

Outdoor –

A - Height

B - Width

C - Depth

11-3/4"

37"

7-7/8"

18"

27-1/2"

35-1/16"

13-3/8"

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Frigidaire Condizionatore d'aria

Frigidaire

Frigidaire FAL125M1A1 Manuale utente

Frigidaire

Frigidaire FRA053XT7 Manuale del proprietario

Frigidaire

Frigidaire FRS093LS1 Istruzioni per l'installazione

Frigidaire

Frigidaire CRA106BT110 Manuale del proprietario

Frigidaire

Frigidaire FAS155K1A4 Manuale utente

Frigidaire

Frigidaire FAC126P1 Manuale utente

Frigidaire

Frigidaire FAC105L1A2 Manuale utente

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Frigidaire

Frigidaire FAC127S1AB Manuale utente

Frigidaire

Frigidaire FRP12PTT2R Manuale utente

Frigidaire

Frigidaire FAC065L7A1 Manuale utente

Frigidaire

Frigidaire FRA084KT7 Manuale del proprietario

Frigidaire

Frigidaire FAS182P2A1 Manuale di servizio

Frigidaire

Frigidaire FAH12EN2T3 Guida rapida

Frigidaire

Frigidaire FFRH2522R2E0 Manuale del proprietario

Frigidaire

Frigidaire FAK085R7V - Slider/Casemen Room Air... Manuale utente

Frigidaire

Frigidaire 220201d036 Manuale utente

Frigidaire

Frigidaire Gallery GHWW083WB1 Manuale del proprietario

Frigidaire

Frigidaire FFRE06W3S14 Manuale del proprietario

Frigidaire

Frigidaire FRA122CT110 Manuale del proprietario

Frigidaire

Frigidaire Gallery FGRC0844U1E00 Manuale utente

Frigidaire

Frigidaire FAH12EM2T1 Guida rapida

Frigidaire

Frigidaire FFRE1233S1 Manuale del proprietario

Frigidaire

Frigidaire FGRQ0633U1 Manuale del proprietario

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Samsung

Samsung AS09HM3N Manuale utente

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente

Webasto

Webasto Frigo Top 25 DS Manuale utente

Mitsubishi Electric

Mitsubishi Electric MSC-GE20VB Manuale utente
