Frigidaire FGC36S9H Manuale utente

PRODUCT NO. FACTORY NO. COLOR MARKET

FGC36S9HBA 3775742399061 BLACK U.S.A.

GAS COOKTOP

Model No.

FGC36S9H

Inc.

FACTORY PARTS CATALOG

GAS COOKTOP

WIRING DIAGRAM # - 318047100

OWNER’S GUIDE # - 318200651

INSTALLATION INSTR. # - 318063914

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200 Publication No.

5995324539

990609

-EN/SERVICE

377

SIMMER SIMMER

OFF

OFFOFFOFF

OFF

Galler y

PROFESSIONAL SERIES

Publication No. FGC36S9H

5995324539

06/99 2

COOKTOP

136

137

137 LAP22T0010

22A

22B

19A

19B

20A

20 20

45 16

132

19B

FGC36S9H Publication No.

5995324539

# = Functional Part 306/99

* = Non-Illustrated Part

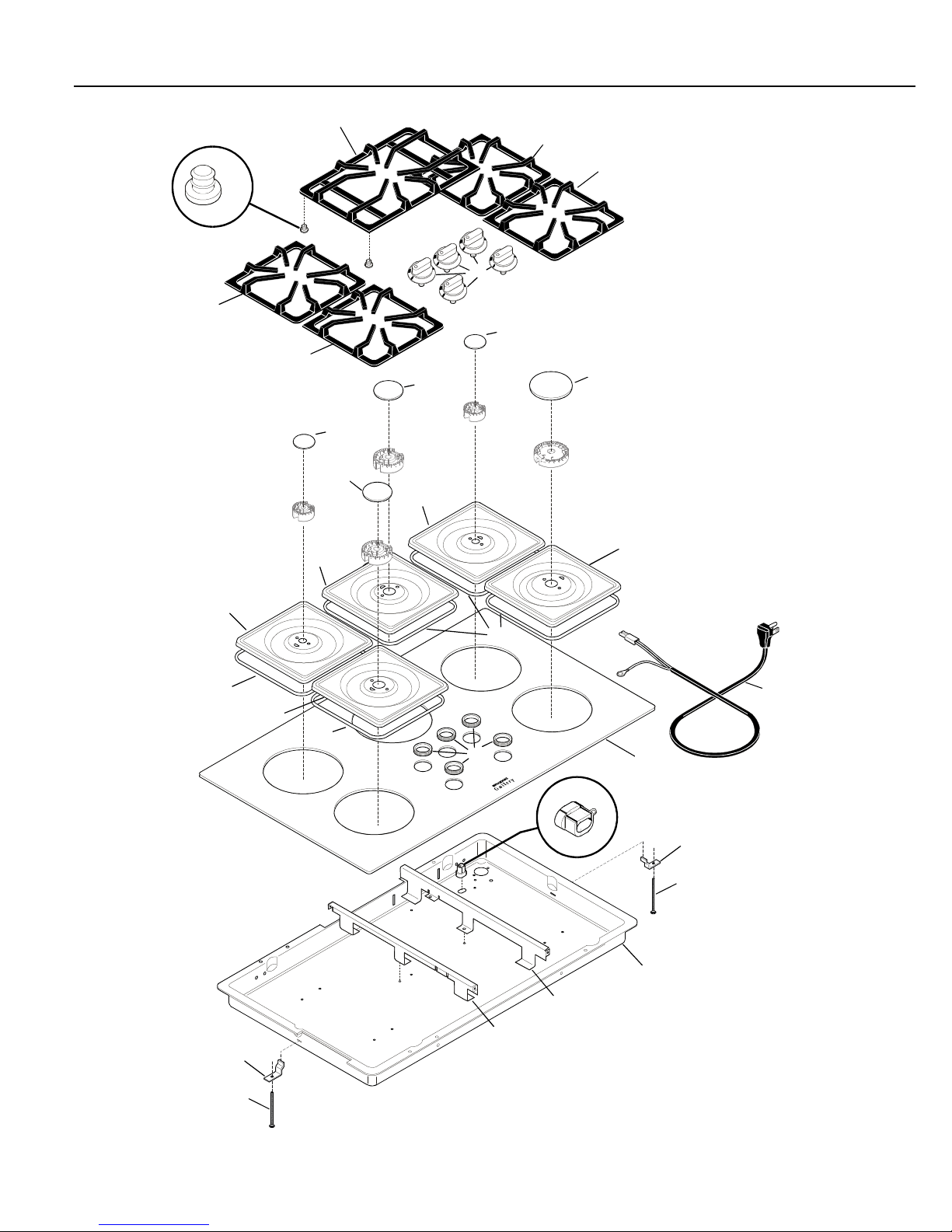

COOKTOP

A=FGC36S9H (FGC36S9HBA)

POS. NO PART NO DESCRIPTION

3318171400 ASupport main top

16 318079606 AGlass cooktop assy black

19 318168114 APan-burner medium black

19A 318168124 APan-burner large black

19B 318168104 APan-burner small black

20 318120305 AGrate black

20A 318024803 AGrate center

22 318076410 ACap-burner medium black

22A 318076420 ACap-burner large black

22B 318076400 ACap-burner small black

31 318053900 AGasket vent

43 318099100 AKnob-control black

45 318146200 ABushing

46 318077000 ABurner Box

47 5303303991 ACord-electric power

55 318096700 ASpacer center grate

132 3201437 ABushing-snap

136 5303935029 AFixation support

137 5303323138 AScrew, 10-24 X 2 ½

*5303211311 AScrew, #8 X ½

*5303300265 AScrew, 8-18 X ½

Publication No. FGC36S9H

5995324539

06/99 4

BURNER

814

10A

77A

76A

10B

LAP22B0011

FGC36S9H Publication No.

5995324539

# = Functional Part 506/99

* = Non-Illustrated Part

BURNER

A=FGC36S9H (FGC36S9HBA)

POS. NO PART NO DESCRIPTION

1 318177200 AManifold Pipe

2 # 5303935042 AValve-top burner

2A 318087001 AValve-top burner

3 # 316032002 ASwitch-ignitor

4 # 318167705 ATube-burner

5 # 318167704 ATube-burner

6318167706 ATube-burner

7318167713 ATube-burner

8 # 318079000 ASpark Module

10 318148001 AMedium burner

10A 318148002 ALarge burner

10B 318148000 ASmall burner

13 318054505 ATube connector manifold

14 # 5308007974 ARegulator-pressure

24 318054000 AElbow fiting

35 5303307978 ABushing-insulation

62 318160200 ACover spark module

72 5303323141 AScrew valve 1/4-20 X 5/16

74 318148700 AIgnitor-top burner

75 318148800 AClip

76 318167801 AMixing tube

76A 318167800 AMixing tube

77 318112010 ABracket burner

77A 318112000 ABracket-burner

79 318167712 ATube-burner

*5303211311 AScrew, #8 X ½

*08011955 AScrew, 10-24 X 3/8

*5304403558 AScrew, 10-16 X 0.250

*318127409 ALP kit

Publication No. FGC36S9H

5995324539

06/99 6

WIRING DIAGRAM

TOP BURNER IGNITER

BOUGIE D’ALLUMAGE-BRULEUR

SURFACE DE CUISSON
