Frigidaire FDB989GFC1 Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR WIRING DIAGRAM

FDB989GFC1 FDB989GF Pro Design stainless 154278902

FDB989GFW1 FDB989GF Pro Design white 154278902

Publication No.

5995310744

980722

-EN/SERVICE /JLT

821

24" BUILT-IN

DISHWASHER

Model No.

FDB989GFC1

FDB989GFW1

FACTORY PARTS CATALOG

DISHWASHER

SERVICE DATA SHEET # - 154278902

OWNER’S GUIDE # - 154256003

INSTALLATION INST - 154309603

101 Masters Blvd.

Anderson, SC 29624

7/98 2

Publication No. FDB989GFC1, FDB989GFW1

5995310744

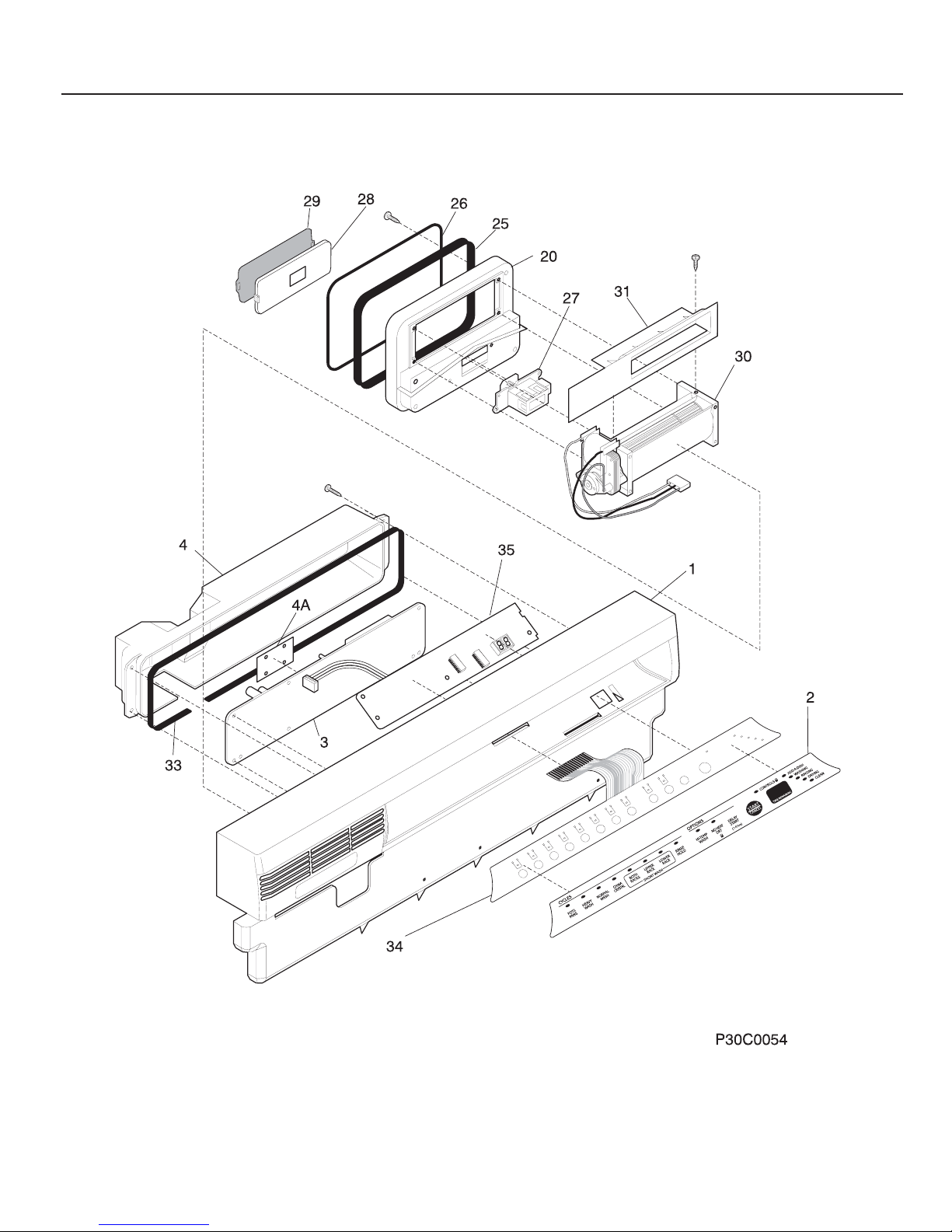

CONTROL PANEL

# = Fast Moving Part 3 7/98

* = Non-Illustrated Part

FDB989GFC1, FDB989GFW1 Publication No.

5995310744

CONTROL PANEL

A = FDB989GF (FDB989GFC1)

B = FDB989GF (FDB989GFW1)

POS. NO PART NO DESCRIPTION

1 154253103 A - Panel-control,black

1 154253101 - B Panel-control,white

2 154254903 A - Insert-control pnl,black

2 154254901 - B Insert-control pnl,white

3 # 154320603 A B Control

4 154287901 A B Cover-control

4A 154301301 A B Cover-pc protector

20 154228301 A B Duct-dynamic

25 154229201 A B Seal-chamber

26 154303901 A B Gasket-vent

27 154226701 A B Actuator-wax

28 154226901 A B Valve-vent

29 154226401 A B Gasket-valve

30 154226802 A B Blower-crossflow

31 154228101 A B Chamber-vapor

33 154292402 A B Gasket-cover

34 # 154322801 A B Keypad,12pad

35 # 154227901 A B Board-display

* 154200401 A B Screw,6-10 x 3/8 ,pan plask

* 154283901 A B Screw,#8-10 ,3/8 phillips

* 154301202 A B Harness-wiring,main

* 154302403 A - Nameplate

* 154302401 - B Nameplate

7/98 4

Publication No. FDB989GFC1, FDB989GFW1

5995310744

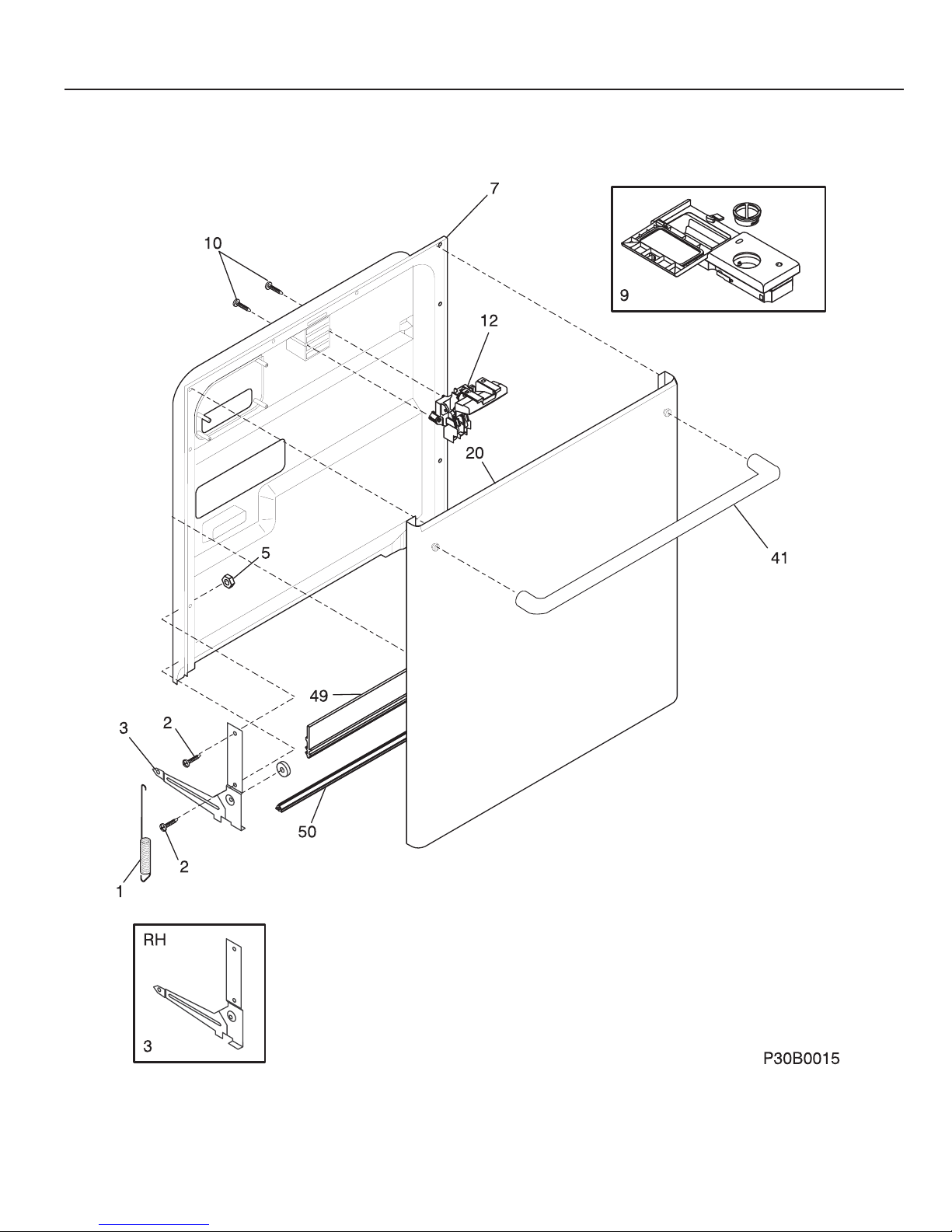

DOOR

# = Fast Moving Part 5 7/98

* = Non-Illustrated Part

FDB989GFC1, FDB989GFW1 Publication No.

5995310744

A = FDB989GF (FDB989GFC1)

B = FDB989GF (FDB989GFW1)

POS. NO PART NO DESCRIPTION

1 154226002 A B Spring-door,(2)

2 154093301 A B Screw-arm assy

3 154225902 A B Arm Assy,LH

3 154225901 A B Arm Assy,RH

3* 154211501 A B Pin-arm

5 154079601 A B Nut-arm assy

7 154299002 A B Door-inner assy

9 154230101 A B Dispenser-det/rinse aid

10 154304301 A B Screw-latch mtg,(2)

12 # 154308103 A - Latch assy,black

12 # 154308101 - B Latch assy,white

20 154284204 A B Door,stainless

41 154207004 A B Towel bar assy

41* 154222201 A B Screw-shoulder

49 154297602 A B Gasket-door,bottom

50 154211401 A B Support-door hinge

* 154200601 A B Screw-#10-16 x 3/8

* 154213801 A B Cleaner,stainless steel

* 154253201 A B Insulation,door

* 5300808749 A B Screw,C.R. truss ,#8 .625

DOOR

7/98 6

Publication No. FDB989GFC1, FDB989GFW1

5995310744

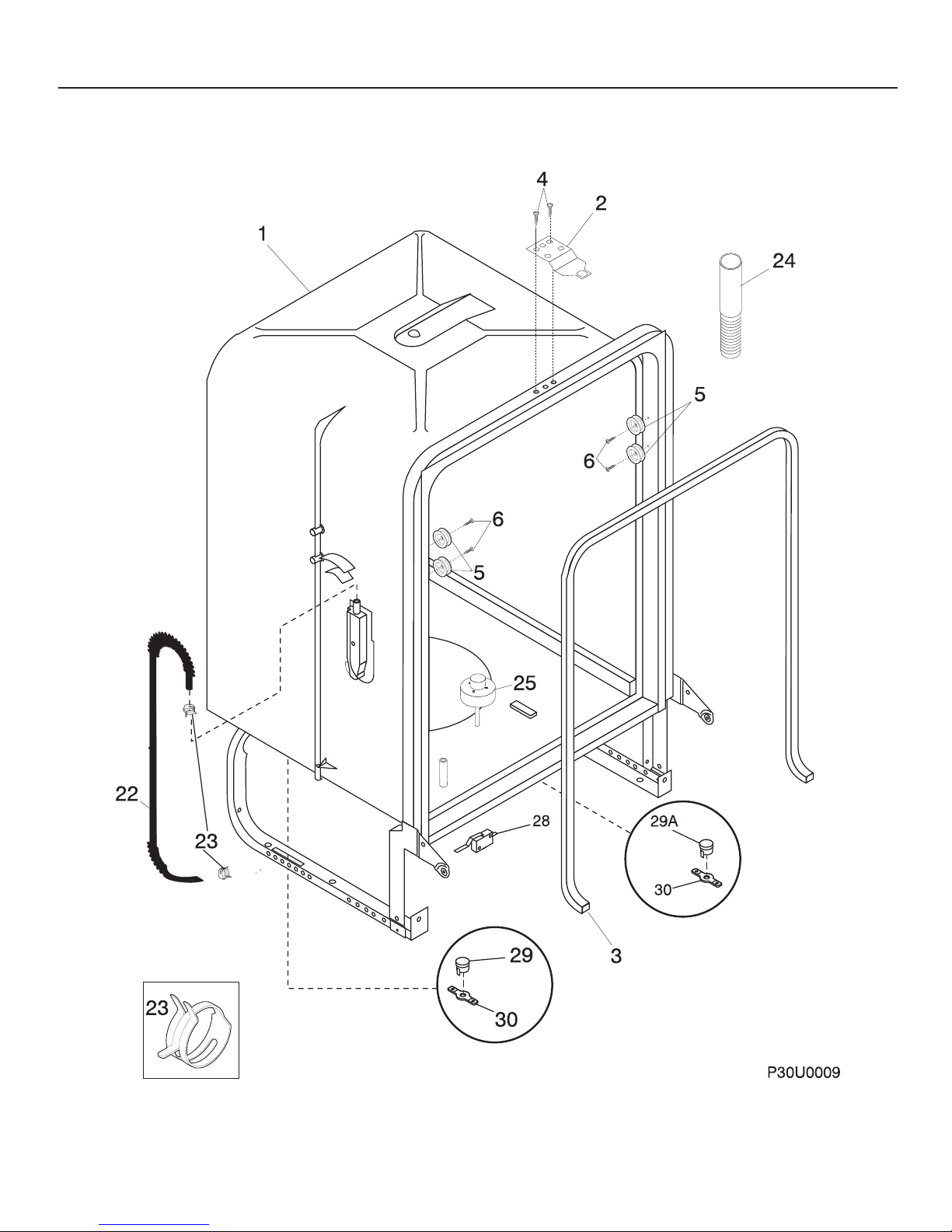

TUB

# = Fast Moving Part 7 7/98

* = Non-Illustrated Part

FDB989GFC1, FDB989GFW1 Publication No.

5995310744

A = FDB989GF (FDB989GFC1)

B = FDB989GF (FDB989GFW1)

POS. NO PART NO DESCRIPTION

1 # 154209301 A B Tub assy,w/frame parts

2 154211601 A B Strike-door

3 # 154211801 A B Gasket-tub

4 5300807270 A B Screw

5 154080001 A B Roller-tub

6 5303943103 A B Screw w/washer,(8)

22 154239801 A B Tubing-water inlet

23 5303318539 A B Clamp-tubing,(2)

24 # 154225602 A B Hose-drain

25 # 154209701 A B Float

28 # 154225501 A B Switch-float

28* 154200701 A B Screw-#10-32 x 3/8

28* 154209801 A B Bracket-float switch

29 # 154290204 A B Thermostat,re-settable

29A# 154227501 A B Thermister

30 154241101 A B Retainer-thermostat

30* 154297701 A B Screw,retainer-thermo

* 154041001 A B Screw,plask #1 ,10-10 x 9/16

* 154238305 A B Insulation

* 154249401 A B Dampener-tub,front

* 154249402 A B Dampener-tub,back

TUB

7/98 8

Publication No. FDB989GFC1, FDB989GFW1

5995310744

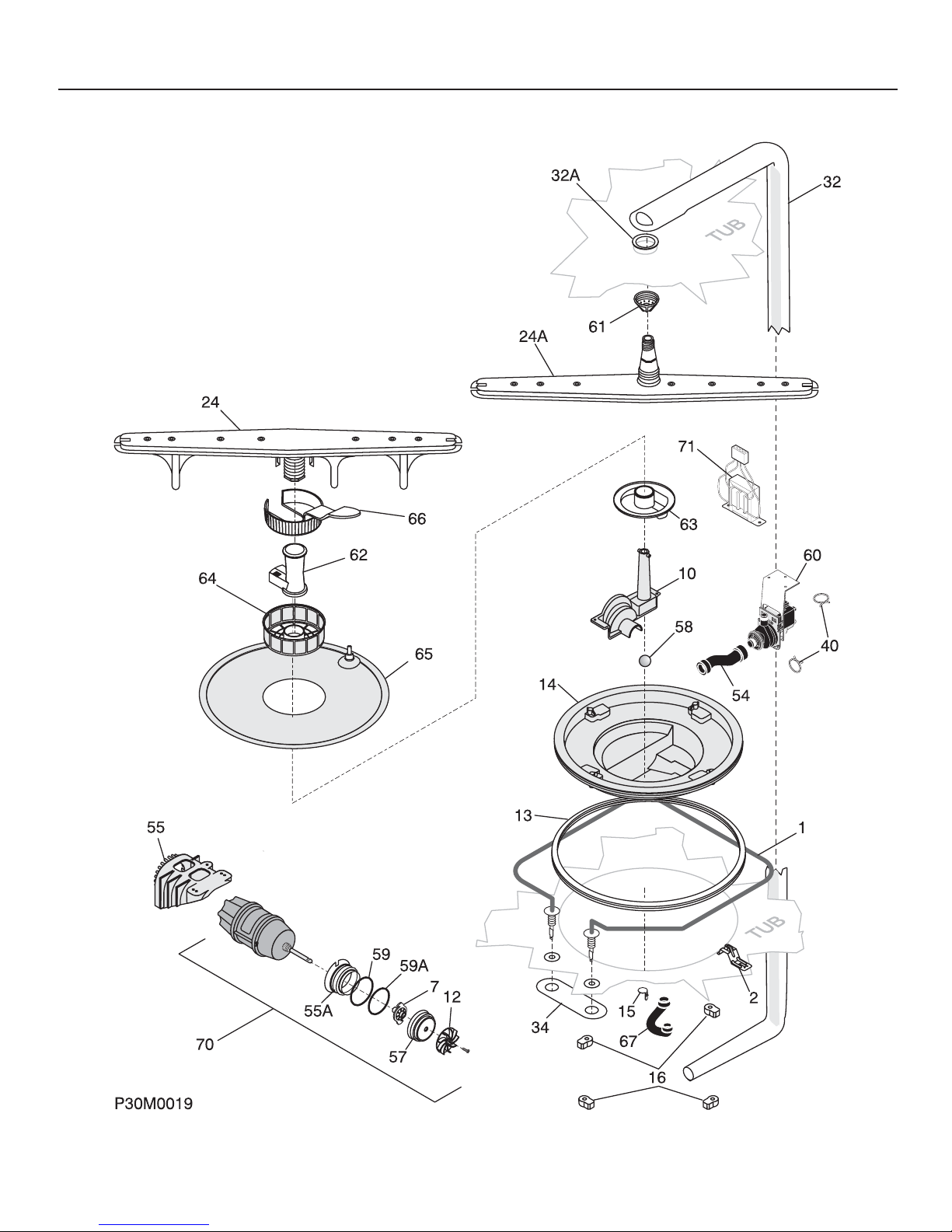

MOTOR & PUMP

# = Fast Moving Part 9 7/98

* = Non-Illustrated Part

FDB989GFC1, FDB989GFW1 Publication No.

5995310744

A = FDB989GF (FDB989GFC1)

B = FDB989GF (FDB989GFW1)

POS. NO PART NO DESCRIPTION

1 # 154247601 A B Heater

1* 154106201 A B Nut-heater,(2)

1* 154289801 A B Shield-heater terminal

2 154322501 A B Bracket-heater

2* 5300810094 A B Screw-heater bracket

7 154245901 A B Macerator

10 154245501 A B Cover-volute

12 154245801 A B Impeller

12* 154282701 A B Screw,ss impeller

13 154246801 A B Gasket-sump

14 154335403 A B Housing-sump

15 # 154246701 A B Check valve

16 154246502 A B Retainer,sump

24 # 154250901 A B Spray arm-lower,w/cover

24* 154252001 A B Nut-spray arm

24A 154313601 A B Spray arm-center

32 154251701 A B Tube-delivery

32A 154251601 A B Gasket-delivery tube

34 154064901 A B Washer-insulating

40 154106801 A B Clamp-hose

40 154247301 A B Clamp,drain pump

54 154234401 A B Hose-connector

55 154245601 A B Bracket-motor

55A 154246201 A B Bracket-motor,front

56 # 154245706 A B Motor,circulation

57 154246001 A B Barrel,front

57* 154246101 A B Barrel,rear

58 154246402 A B Check ball

59 154246901 A B O-ring,rear

59A 154247001 A B O-ring,front

60 154247501 A B Drain Pump Assy

60* 154234501 A B Bracket-motor,drain

61 154250201 A B Nozzle,3rd level ,spray arm

62 154294101 A B Support-spray arm

63 154252201 A B Base-soil director

64 154252301 A B Filter-soil director

65 154283003 A B Filter Assy

66 154252701 A B Trap-glass

67 154246601 A B Hose-drain,shunt

70 # 154291504 A B Motor & Pump Assy,includes#7,#12 ,

#57A,#59 & #59A,#55A,#56,#57

* 154200601 A B Screw-#10-16 x 3/8

* 154241101 A B Retainer-thermostat

* 154247101 A B Clamp,drain side

* 154247201 A B Clamp,intake

* 154247401 A B Clamp,connector pump

* 154287201 A B Screw,motor mounting

* 154329001 A B Cover-fan

* 5303316032 A B Screw,truss ss ,8 .625

* # 154289901 A B Transformer

MOTOR & PUMP

7/98 10

Publication No. FDB989GFC1, FDB989GFW1

5995310744

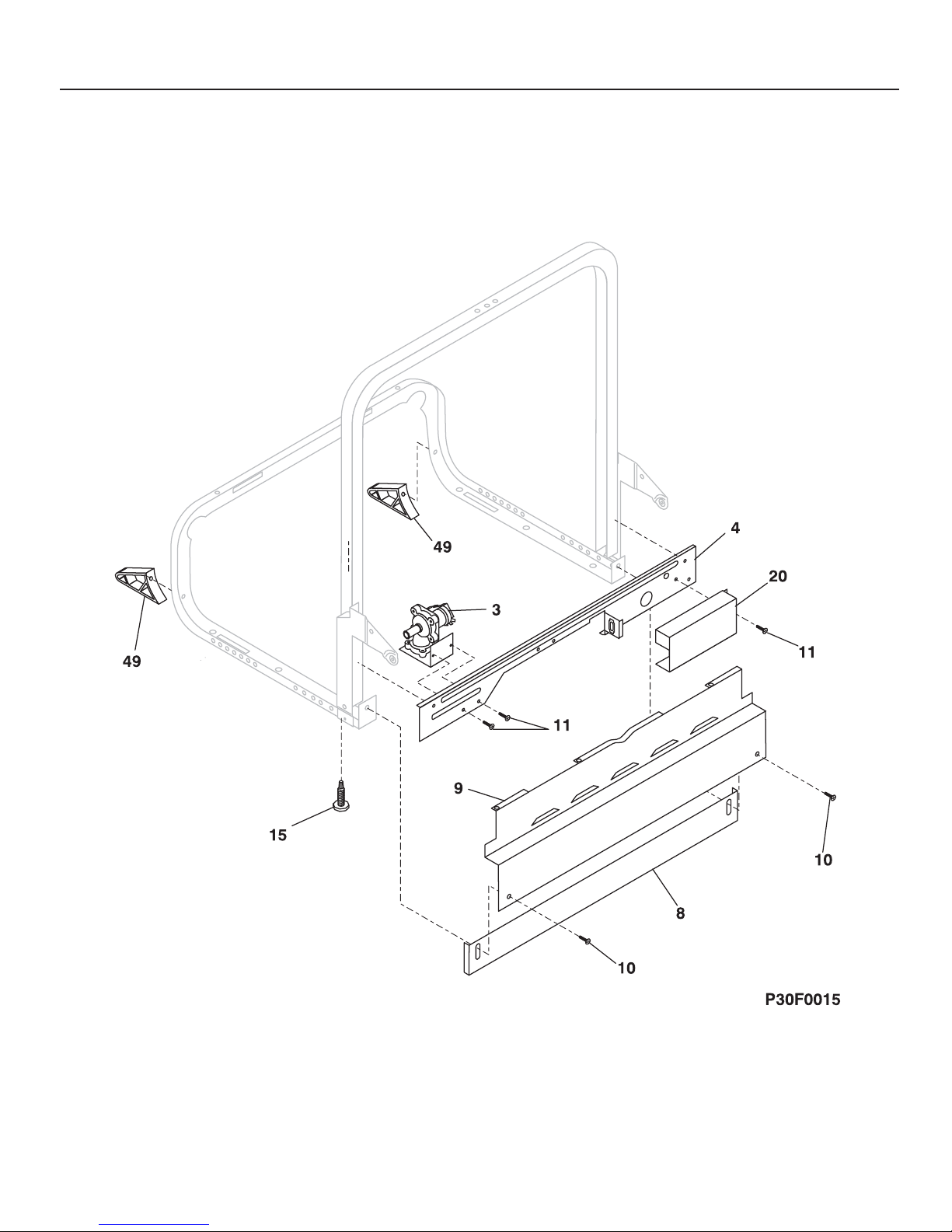

FRAME
