Frigidaire FFC13D7HW0 Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFC13D7HW0 FFC13D7H 134A white 115

MARKET

North America

Publication No.

5995320404

990405

-EN/SERVICE /GS

365

FREEZER

Model No.

FFC13D7HW0

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216651500

OWNER’S GUIDE - # 216657700

MINI MANUAL - # 216651500

101 Masters Blvd.

Anderson,SC 29624

04/99 2

Publication No. FFC13D7HW

5995320404

DOOR

# = Fast-moving Parts 3 04/99

* = Non-Illustrated Parts

FFC13D7HW Publication No.

5995320404

DOOR

POS. NO PART NO DESCRIPTION

1 216481101 Gasket-door,white

2 # 5303925107 Lock Assy

5 # 216388700 Key,lock

9 216056800 Panel-inner door,frzr

10 216141101 Plug button,white

11 216129815 Panel-lid

15 216222700 Light Bulb/Lamp

16 216039700 Socket-light/lamp

18 216205004 Handle,white

23 216212700 Light-signal,amber

27 5303212828 Clip,panel

31 08009392 Gasket,white

34 216160400 Shield-light

35 5303297015 Washer,signal light

36 5306599968 Plate,backup ,light switch

40 5309948647 Fastener,handle

44 # 5303017178 Switch-rocker

45 # 3201509 Switch-defrost

46 08037851 Screw,PH type AB ,8-32x1/2 ,wiring harness

47 216605100 Harness-lid/defrost

53 # 5303208483 Buzzer,alarm

55 216164000 Housing,switch

56 5308037857 Sealing cap

61 5309948955 Clip-panel

93 5303161215 Screw

* 5303925098 Insulation

04/99 4

Publication No. FFC13D7HW

5995320404

CABINET

# = Fast-moving Parts 5 04/99

* = Non-Illustrated Parts

FFC13D7HW Publication No.

5995320404

POS. NO PART NO DESCRIPTION

1 5303208488 Latch-door

1A 216080800 Support,lock

2 216269500 Adapter-drain

3 216502600 Plug-drain,exterior

4 216073900 Plug-drain,interior

6 216110900 Breaker

7 216111500 Breaker,lock side

11 216110800 Breaker,white ,ends

12 216373000 Frame-nameplate

12A 316095402 Label-nameplate

18 216591602 Knob,temp control

21 216562400 Cold control w/ alarm

27 216629600 Screw-hinge

28 216039600 Hinge

30 216110700 Breaker,white ,corners

59 216080300 Basket

71 5303302714 Screw,8-18x3/4 ,(2)

73 216128200 Divider/drain pan

74 5306594584 Support-shelf

75 216034301 Panel-access,white

93 5303161215 Screw

* 5303305324 Paint,touch-up ,white

CABINET

04/99 6

Publication No. FFC13D7HW

5995320404

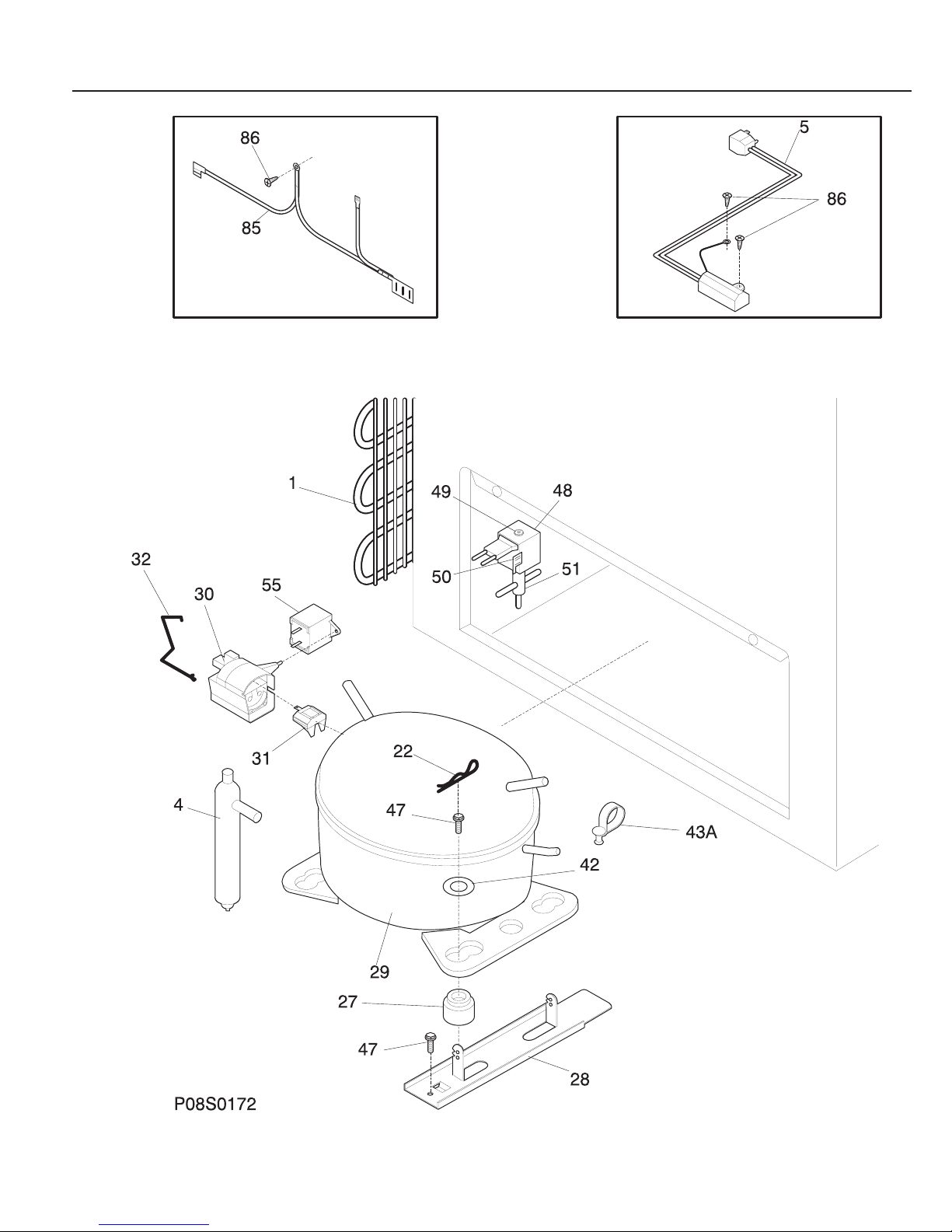

SYSTEM

# = Fast-moving Parts 7 04/99

* = Non-Illustrated Parts

FFC13D7HW Publication No.

5995320404

POS. NO PART NO DESCRIPTION

1 # 5303925238 Condenser

4 216634500 Drier-filter

5 # 216552800 Harness,electrical

22 216056400 Clip-spring mtg

27 5308002681 Grommet,compressor

28 5303212615 Support-compressor

29 # 5303925441 Compressor,Service

29 # 216511100 Compressor,w/o electricals

30 # 216008900 Starter-PTC

31 # 216100114 Overload Protector

32 216147800 Wire-bale

42 216232700 Washer-flat

43A 5303212614 Clip-harness

47 08016776 Screw-compress,.ind hex wshr hd ,10-32T x 0.500,suprt

48 # 3201514 Solenoid

49 3201513 Clip,valve

50 216533700 Wire-ground,solenoid

51 # 216161900 Valve,formed

55 218909901 Capacitor-run,220 VAC ,15 microfarad

85 216533500 Wire,ground

86 216036600 Screw,rwhd (gx-ca) ,8-32 x 1/2

* 216478900 Fastener,energy guide

SYSTEM
