Frigidaire FFU14M2AW Manuale utente

UPRIGHT FREEZER

Model number

FFU14M2AW

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216803100

OWNER’S GUIDE - # 216802800

SERVICE DATA SHEET - #216803100

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFU14M2AW1 FFU14M2AW 134A white 115

MARKET

North America

Publication No.

5995361820

011206

-EN/SERVICE /GS

365

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O BOX 212378, AUGUSTA , GA 30917

12/01 2

Publication No FFU14M2AW1

5995361820

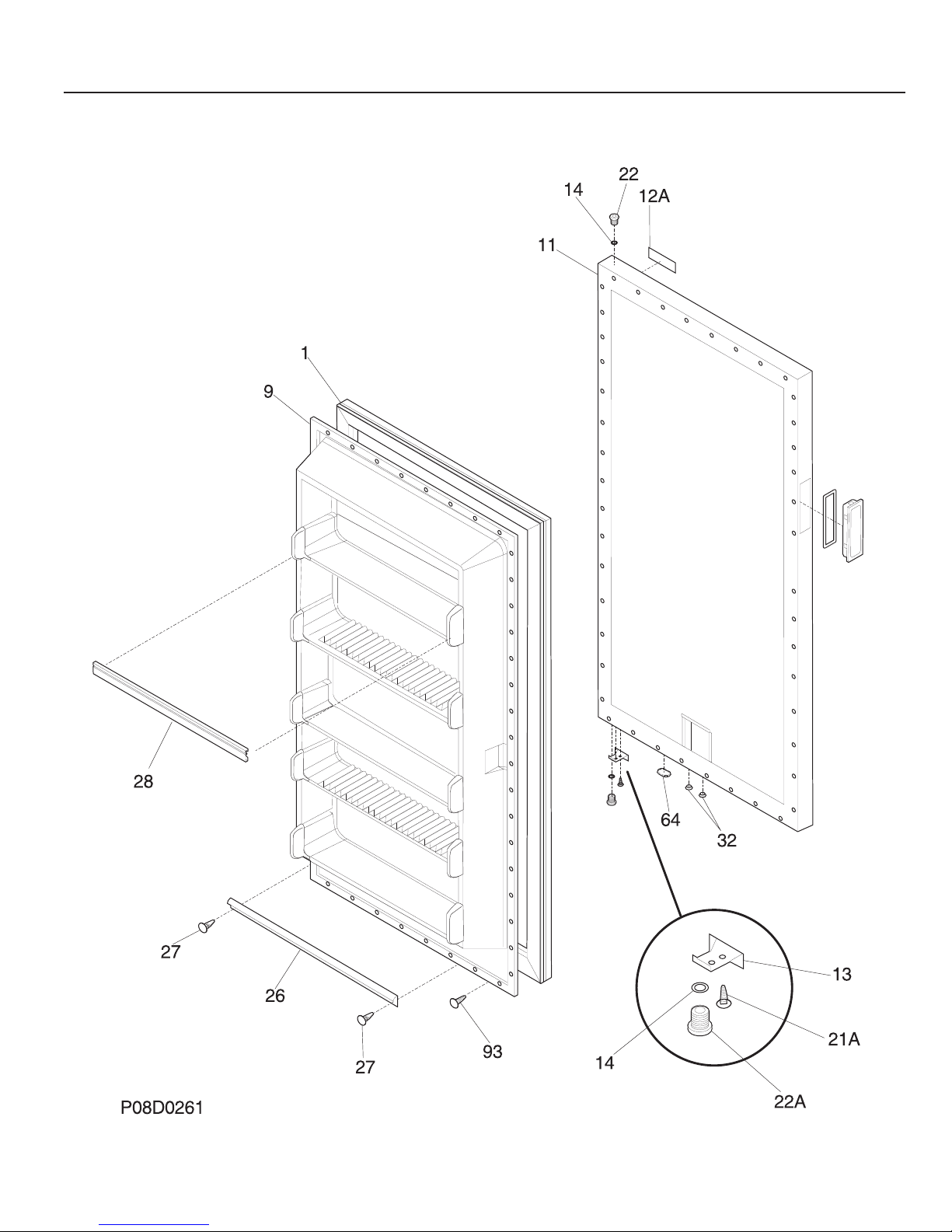

DOOR

# = Fast-moving Parts 3 12/01

* = Non-Illustrated Parts

FFU14M2AW1 Publication No.

5995361820

DOOR

POS. NO PART NO DESCRIPTION

1 216522306 Gasket-door,white

9 216527616 Panel-inner door,frzr

11 216557801 Panel-outer door,white

12A 240415201 Label-nameplate,white

13 08016354 Door Stop

14 5303313518 Washer,sealing

21A 08005520 Screw-door stop mtg,flat hd metric ,4.0 x 0.7-19.7

22 216443600 Bearing

22A 216503200 Bearing-hinge,btm

26 216524300 Gasket,secondary

27 5303212828 Clip,panel

28 216807701 Rack-door

32 5309950074 Valve-breather

64 216403700 Plug-button,door base

93 5303161215 Screw

12/01 4

Publication No FFU14M2AW1

5995361820

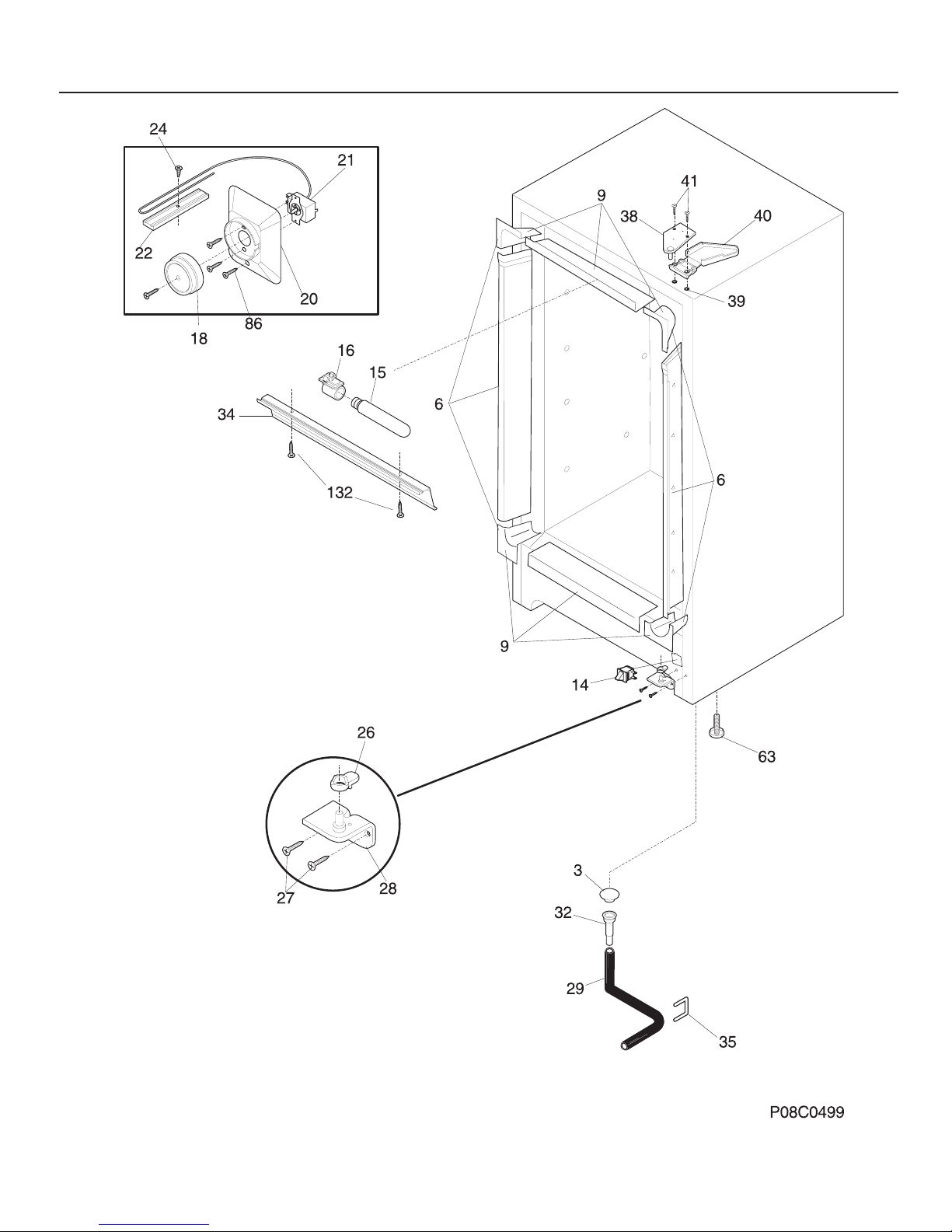

CABINET

# = Fast-moving Parts 5 12/01

* = Non-Illustrated Parts

FFU14M2AW1 Publication No.

5995361820

POS. NO PART NO DESCRIPTION

3 216502600 Plug-drain,interior ,interior

6 216603400 Breaker Kit w/corners,28" ,top or bottom

9 216604300 Breaker Kit w/corners

14 216822900 Light/Lamp,ramp

15 # 216608600 Lamp,light bulb ,40 W ,120 V

16 # 216688600 Socket-light/lamp

18 216707200 Knob-control cold

20 216707300 Cover-control housing

21 # 216788100 Control-temperature

22 08037931 Clamp,cap tube ,cold control

24 5300052943 Screw-clamp,truss hd cr ,control

26 216503300 Ramp,closer ,door

27 5303205738 Screw-hinge,cr ,1/4-20 x 1.000 ,btm

28 216247400 Hinge-bottom

29 216313502 Hose-drain

32 5308005500 Drain

34 216557500 Shield-light

35 216273000 Clip,drain hose

38 5303925086 Hinge-upper

39 5303294372 Nut-insert,hinge

40 5303212912 Cover-hinge

41 5303212937 Screw-top hinge

63 216396900 Foot-adjustable

86 216036600 Screw,rwhd (gx-ca) ,8-32 x 1/2

132 5303283898 Screw,6-20AB x 3/8

* 09948773 Insulation,drain tube

* 216802800 Owners guide

CABINET

12/01 6

Publication No FFU14M2AW1

5995361820

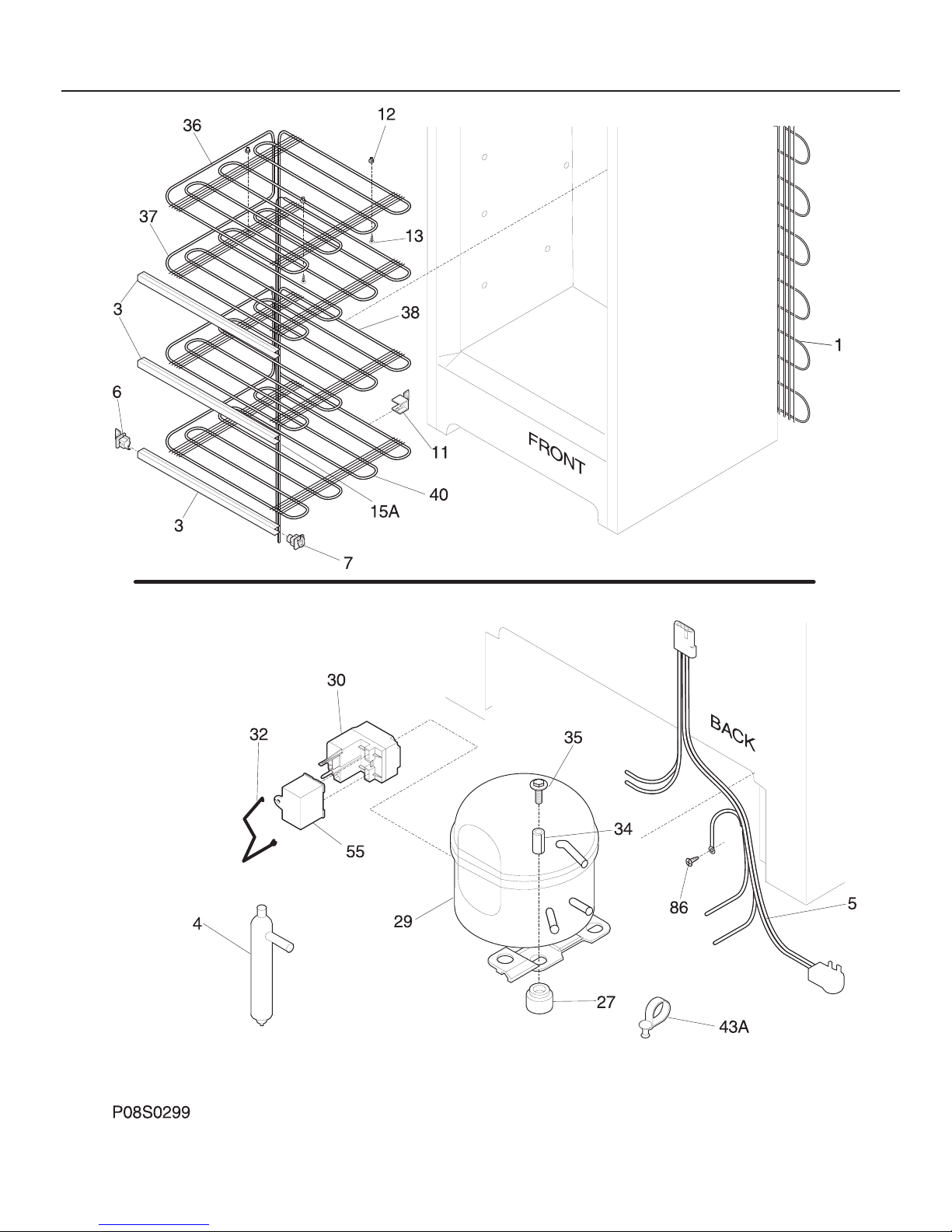

SYSTEM

# = Fast-moving Parts 7 12/01

* = Non-Illustrated Parts

FFU14M2AW1 Publication No.

5995361820

SYSTEM

POS. NO PART NO DESCRIPTION

1 # 5300123788 Condenser

3 216743000 Trim-shelf,evaporator

4 216634500 Drier-filter

5 # 216791000 Harness-ext,main

6 3091418 Support-shelf,front LH

7 08037928 Support-shelf,front RH

11 216474600 Support-rear shelf

12 216225700 Grommet-spacer

13 216138900 Screw,hex sems ,8-18AB x 1.00 ,evap

15A 216404900 Heat Exchanger

27 216498900 Grommet,compressor

29 # 216784300 Compressor,w/o electricals

30 216649313 Controller

32 216649200 Clip,controller

34 5306594529 Sleeve-compressor

35 5303272328 Screw,Ind hex sems ,1/4-28 unfx ,compressor

36 # 216070100 Grid-top evaporator

37 # 216070200 Shelf-top evaporator

38 216070300 Shelf-middle evaporator

40 # 216070400 Shelf-bottom evaporator

43A 216629700 Clip-harness

55 # 216787800 Capacitor-run

86 216036600 Screw,rwhd (gx-ca) ,8-32 x 1/2

* 216502500 Sleeve-tube insert
