Frigidaire FEB27T5ABB Manuale di istruzioni

PRODUCT NO. BASE MODEL NO. FACTORY NO. COLOR MARKET

FEB27T5ABB FEB27T5A 37054732D1062 black North America

FEB27T5ASB FEB27T5A 37054732D1012 white North America

Publication No.

5995366357

020220

-EN/SERVICE /ECL

377

ELECTRIC

WALL OVEN

Model No.

FEB27T5A

FACTORY PARTS CATALOG

RANGE

WIRING DIAGRAM - # 318046112

OWNER’S GUIDE - # 318200919

TIMER INSTRUCTION SHEET - # 318200181

INSTALLATION INSTRUCTIONS - # 318201509

ELECTROLUX HOME PRODUCTS, INC.

P.O. BOX 212378, Augusta, GA 30917

02/02 2

Publication No. FEB27T5A

5995366357

CONTROL PANEL

# = Functional Parts 3 02/02

* = Non-Illustrated Parts

FEB27T5A Publication No.

5995366357

CONTROL PANEL

A = FEB27T5A (FEB27T5ASB)

B = FEB27T5A (FEB27T5ABB)

POS. NO PART NO DESCRIPTION

12 # 318058200 A B Thermostat,oven/non s/c ,lower

14 5303320497 A B Light/Lamp,indicator ,red ,250 V

15 5303302286 A B Support,backguard ,RH

15A 5303302287 A B Support,backguard ,LH

18 5303311208 A - End Cap,white ,RH

18 5303311231 - B End Cap,black ,RH

18A 5303311209 A - End Cap,white ,LH

18A 5303311232 - B End Cap,black ,LH

19 318179809 A - Panel,control ,white

19 318179810 - B Panel,control ,black

20 # 318012953 A - Clock/Timer,electronic ,white

20 # 318012954 - B Clock/Timer,electronic ,black

21 5303302283 A - Trim,canopy ,white ,top

21 5303300968 - B Trim,canopy ,black ,top

23 318015725 A B Bracket,clock mtg

24 # 316005607 A - Switch,rocker ,white

24 # 316005602 - B Switch,rocker ,black

32 318196644 A - Knob,thermostat ,white

32 318196645 - B Knob,thermostat ,black

42 5303318709 A - Trim,vent ,white

42 5303316983 - B Trim,vent ,black

65 318038803 A B Cover,control housing

68 5303302285 A B Housing,control

69 5303323134 A B Screw,switch mtg. ,8-32 x 0.188

78 318036900 - B Cover,oven vent ,black

78 318036901 A - Cover,oven vent ,white

99 5303316956 A - Screw,6-32 x 3/8 ,white ,(2)

99 5303307406 - B Screw,6-32 x 3/8 ,black ,(2)

100 318112200 A B Plate,mounting ,rocker switch

* 3201861 A B Screw,6 x 0.375

02/02 4

Publication No. FEB27T5A

5995366357

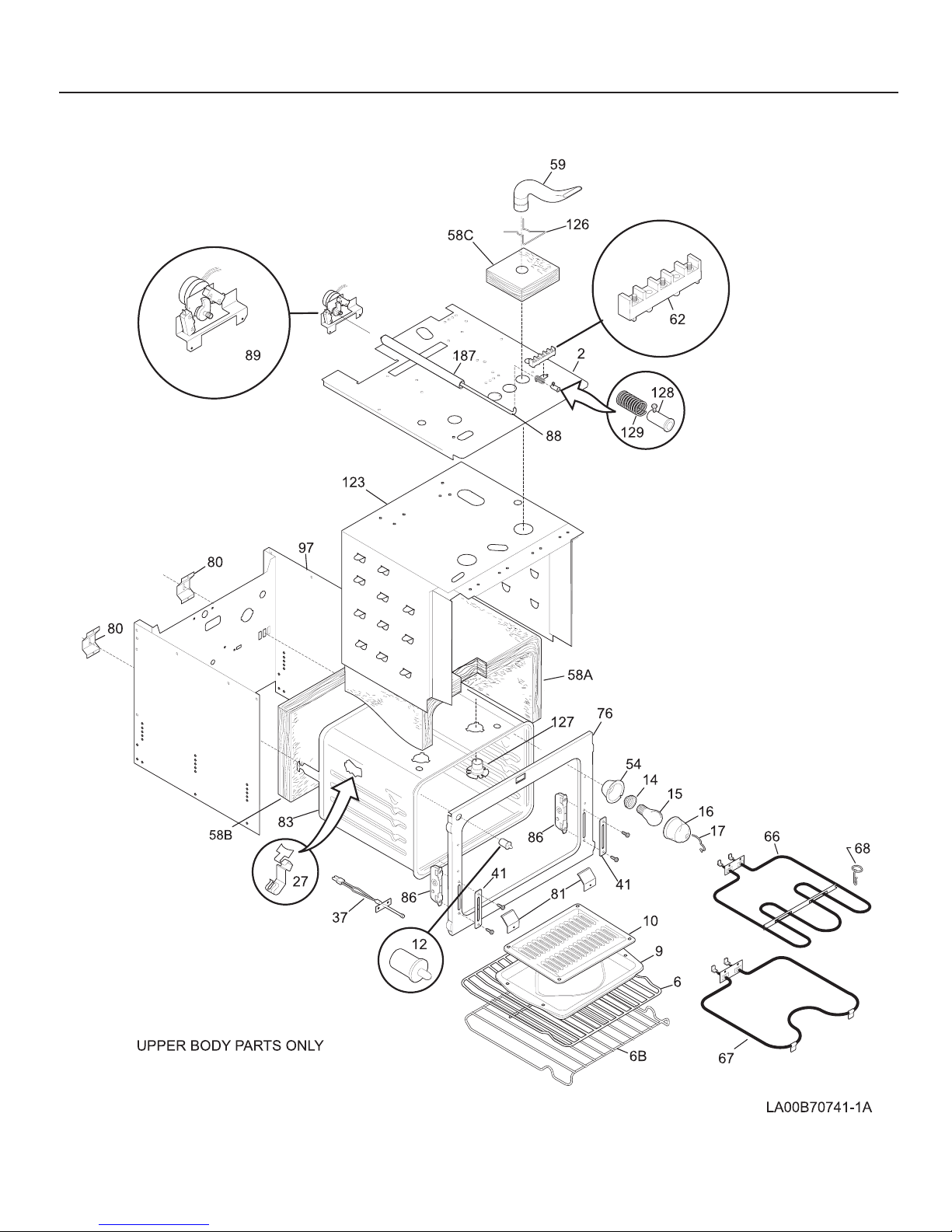

UPPER OVEN

# = Functional Parts 5 02/02

* = Non-Illustrated Parts

FEB27T5A Publication No.

5995366357

UPPER OVEN

A = FEB27T5A (FEB27T5ASB)

B = FEB27T5A (FEB27T5ABB)

POS. NO PART NO DESCRIPTION

2 5303300093 A B Wrapper,oven top

6 5303296873 A B Rack,oven

6B 5303299271 A B Shelf,oven

9 5303317977 A B Pan,broiler

10 5303317976 A B Insert,broiler pan

12 318089910 A B Switch,oven light ,door frame

14 # 5308011085 A B Receptacle,oven light

15 # 3201908 A B Light,oven

16 3201911 A B Cover,oven light ,glass

17 5304400195 A B Retainer,light cover

27 5303284616 A B Clip,thermo bulb mtg

37 # 316111203 A B Sensor,oven temp probe

41 5303310526 A B Cover,hinge cutout

54 5303310514 A B Housing,oven light

58A 318133738 A B Insulation,oven wrapper

58B 318133737 A B Insulation,oven back

58C 5303317714 A B Insulation,oven vent

59 5303300951 A B Tube,oven vent

62 # 5303310518 A B Terminal Block

62* 5303323144 A B Nut,10-32

66 # 5303322963 A B Element,broil

67 # 5303323865 A B Element,bake

68 5304403015 A B Support,element hanger

76 318124212 A B Front,oven

80 318192400 A B Spring,oven

81 5303323710 A B Bracket,oven

83 318089520 A B Liner,oven

86 5303310524 A B Receptacle,hinge

88 5303311222 A B Rod,latch

89 # 318095932 A B Motor,latch assy ,w/brkt & switch

89* 318120711 A B Switch

97 318066500 A B Wrapper,back & sides

123 318071442 A B Shield,insulation ,top & sides

126 3016303 A B Clip,insulator

127 5303310542 A B Adapter,vent tube ,with converter

128 5303311163 A B Bushing

129 5303311164 A B Spring

187 318013501 A B Tube,latch rod

* 08002868 A B Screw,10-24 x 0.500 ,probe,thrm brkt ,shield,drwr,box

* 5303308449 A B Fastener

* 5303323136 A B Screw ground

02/02 6

Publication No. FEB27T5A

5995366357

LOWER OVEN

# = Functional Parts 7 02/02

* = Non-Illustrated Parts

FEB27T5A Publication No.

5995366357

LOWER OVEN

A = FEB27T5A (FEB27T5ASB)

B = FEB27T5A (FEB27T5ABB)

POS. NO PART NO DESCRIPTION

6 5303296873 A B Rack,oven

12 # 5301314211 A B Switch,oven light ,sm door frame

14 # 5308011085 A B Receptacle,oven light

15 # 3201908 A B Light,oven

16 3201911 A B Cover,oven light ,glass

17 5304400195 A B Retainer,light cover

27 5303284616 A B Clip,thermo bulb mtg

41 5303310526 A B Cover,hinge cutout

54 5303310514 A B Housing,oven light

56 5303302282 A - Trim,bodyside ,white ,(2)

56 5303300956 - B Trim,bodyside ,black ,(2)

58A 318133710 A B Insulation,oven wrapper

58B 318133704 A B Insulation,oven back

58C 5303317714 A B Insulation,oven vent

59 318072507 A B Tube,oven vent

66 # 5303322963 A B Element,broil

67 # 5303323865 A B Element,bake

68 5304403015 A B Support,element hanger

71 318071120 A B Shield,rear wall

76 318124206 A B Front,oven

80 318192400 A B Spring,oven

81 5303323710 A B Bracket,oven

82 5303304699 A B Shield,insulation

83 318089522 A B Liner,oven

86 5303310524 A B Receptacle,hinge

96 5303317197 A B Duct,oven vent ,assy

96A 3016325 A B Duct,oven vent ,center

96B 3016327 A B Duct,vent pipe

97 318066702 A B Wrapper,back and sides

98 318029334 A B Trim,side ,inner,RH

98A 318029335 A B Trim,side ,inner,LH

99 5303299686 A B Support,adjustable

101 318039512 A - Bracket,trim ,white

101 318039511 - B Bracket,trim ,black

103 318028701 A - Trim,base ,white

103 318028700 - B Trim,base ,black

121 318145002 A B Wrapper,base

123 318071442 A B Shield,insulation ,top & sides

126 3016303 A B Clip,insulator

127 318072800 A B Adaptor assy

141# 5303302280 A B Thermostat,safety

156 5303317198 A B Bracket,oven vent

227 5303323955 A B Clip,retainer

* # 5303320505 A B Box & wires assy

* 08002868 A B Screw,10-24 x 0.500 ,probe,thrm brkt ,shield,drwr,box

* 5303211311 A B Screw,8 x 0.500

* 5303302745 A B Screw,10-16x1-1/8 ,square drive

02/02 8

Publication No. FEB27T5A

5995366357

DOOR

# = Functional Parts 9 02/02

* = Non-Illustrated Parts

FEB27T5A Publication No.

5995366357

DOOR

A = FEB27T5A (FEB27T5ASB)

B = FEB27T5A (FEB27T5ABB)

POS. NO PART NO DESCRIPTION

3 318026110 A - Trim,oven door ,white

3 318026600 - B Trim,oven door ,black

4 318210502 A - Glass,oven door ,white ,outer

4 318210503 - B Glass,oven door ,black ,outer

6 318073600 A B Shield,air wash

7 318133740 A B Insulation,oven door

8 318211700 A B Glass,oven door ,inner

9 318038601 A B Liner,door baffle ,upper oven

10 5303311217 A B Screw,handle ,door

12 318178800 A B Seal,oven door

12A# 5303316768 A B Seal,oven door

16 5303324250 A B Glass,door ,13 1/2x61/2

17 318139100 A B Spacer,glass ,upper oven

17A 318162601 A B Support,glass

18 3016263 A B Seal,rope ,upper oven

18A 318053204 A B Seal,rope ,lower oven

19 318139201 A B Collar,glass mtg

20 318014301 A - Spacer,handle ,white ,(2)

20 318014300 - B Spacer,handle ,black ,(2)

23 5303311259 A B Hinge,oven door ,(2)

23A 318024702 A B Hinge,oven door

25 318048308 A B Liner,door baffle

25A 318156606 A B Liner,oven door ,lower door

29 318014400 A B Spacer,door

31 318065102 A B Latch,door

39 316091107 A - Handle,door ,white ,oven

39 316091106 - B Handle,door ,black ,oven

54 5303308456 A B Screw,8-18 x 0.531 ,black ,door frame

59 3202113 A B Plug,button

61 5303300414 A B Spacer,cork & rubber

* 5303316982 A B Foam seal,(3)

* 08002868 A B Screw,10-24 x 0.500 ,probe,thrm brkt ,shield,drwr,box

02/02 10

Publication No. FEB27T5A

5995366357

WIRING DIAGRAM
