Frigidaire FEB27T7FCB Manuale di istruzioni

FEB27T7FC.tif CPLEB30T9FCA.eps BUFEB27T6FCA.eps BLFEB27T6FCA.eps

DFEB27S7FCA.eps 318046121.eps

Product No. FEB27T7FCB

37054783F60S2

Series 27" double

Color stainless

Market North America

Wiring Diagram 318046121

Owner's Guide 318200943

Installation Instructions 318201514

Service Data Sheet 318047306

Timer Guide 318200137

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995477360

06/10/24

(EN/SERVICE/BJH)

377

DOUBLE ELECTRIC

WALL OVEN

Model No.

FEB27T7F

Publication No: 5995477360 FEB27T7FCB

10/06 2

CONTROL PANEL

FEB27T7FCB Publication No: 5995477360

# Functional Parts 3 10/06

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

2A 318257301 Shield, oven top

2B 318260101 Cover, box

19 318271536 Control Panel Assembly, steel/glass, stainless/black, w/touch pad

20 # 316443801 Control, electronic, ES610W2, dual oven

77 316247900 Spacer, power board, (4)

77A 316114100 Spacer, (2)

97 316443902 Board, relay, dual oven

* 318231751 Harness, wiring, control-relay

* 5303211311 Screw, 8 x 0.500

* 5303311306 Screw, 8-18 x 0.375, (8)

Publication No: 5995477360 FEB27T7FCB

10/06 4

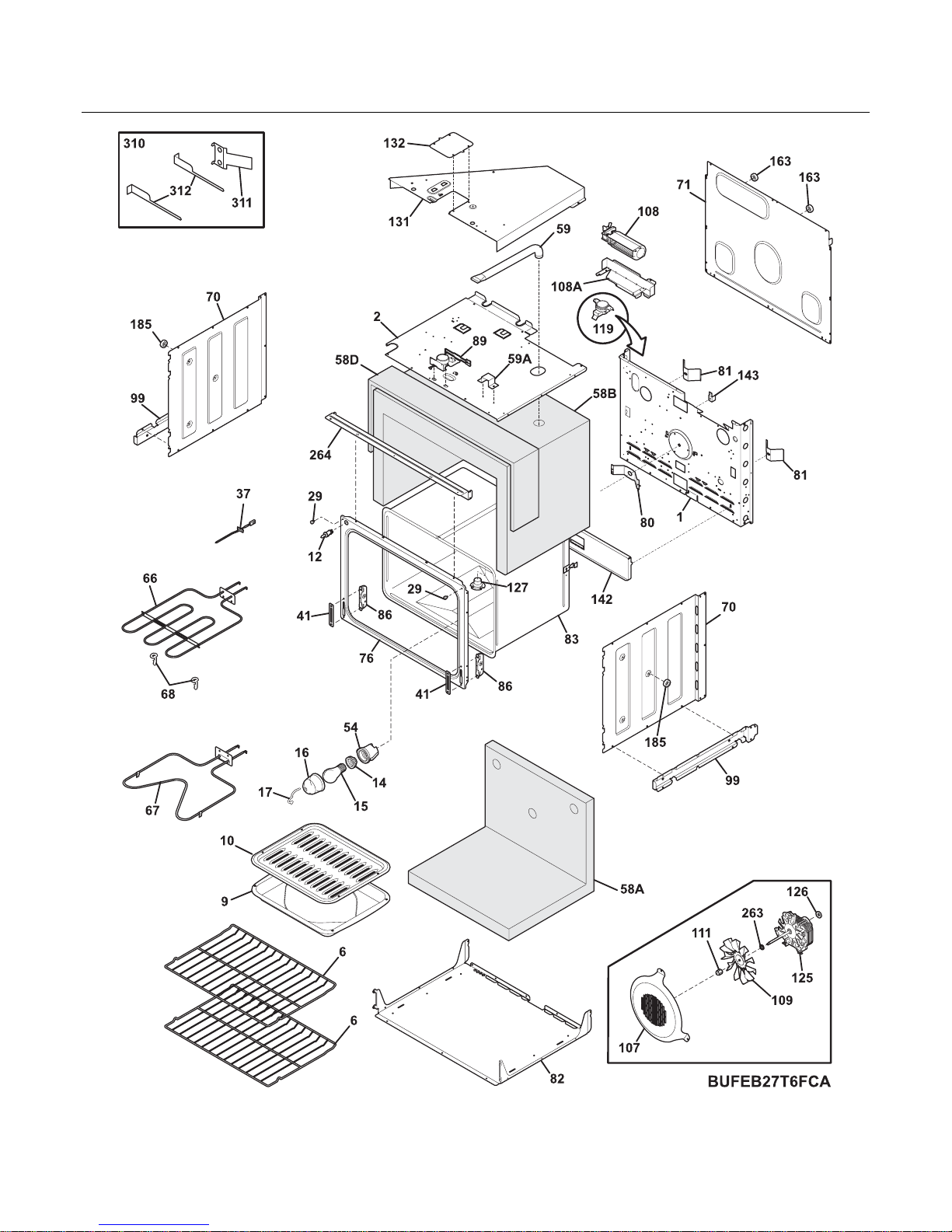

UPPER OVEN

FEB27T7FCB Publication No: 5995477360

# Functional Parts 5 10/06

* Non-Illustrated Parts

UPPER OVEN

POS. NO PART NO. DESCRIPTION

1 318259212 Back, main

2 318258910 Shield, insulation, upper

6 318262602 Rack, oven, (2)

9 5303317977 Pan, broiler

10 5303317976 Insert, broiler pan

12 # 318089917 Switch, light

14 318224000 Receptacle, oven light

14* 318268099 Insulation, oven light

15 5303013071 Bulb/Lamp, light

16 08011086 Lens, oven light, glass

17 5304400195 Retainer, light cover

29 318147411 Bumper, (2)

37 # 316217002 Probe, oven temp

41 5303310526 Cover, hinge cutout

54 318222400 Housing, oven light

58A 318285060 Insulation, rear & bottom, oven wrapper

58B 318285059 Insulation, top & sides, oven wrapper

58D 318285058 Insulation, 1/2" thick, 43 x 9.5

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

66 # 318255601 Element, broil, 3400W

67 # 318255103 Element, bake, 2300W

68 5304403015 Support, hanger, (2), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260001 Panel, rear box

71* 318340200 Bracket, insul. panel

76 318056222 Front, oven

80 5303320846 Plate, oven mtg

* 318249401 Tube, protector

81 318192400 Spring, oven

82 318258710 Shield, insulation, lower

83 318261503 Liner, oven assy

86 318342400 Receptacle, hinge

89 # 318261211 Motor, latch assy

* # 318231750 Harness, wiring, main, latch

* # 318199744 Wiring Harness, latch, BAS

* # 318199746 Wiring Harness, latch, NO BAS

99 318252800 Support, side

* 5303300265 Screw, 8-18 X 1/2, (2)

107 318219401 Cover, fan

108# 318073018 Motor, blower

* 08016432 Screw, truss head, 8-18 x 0.375

108A 318251300 Bracket, fan support

109 316136400 Blade, fan

111 316136600 Nut, fan retainer

119# 318004900 Switch, thermal

125* 5303316994 Insulation, 3.81 x 3.13

125# 316415800 Motor, fan

126 3016303 Clip, insulator

127 318317100 Adapter Assembly, vent tube, w/converter

131 318272900 Box, vent

Publication No: 5995477360 FEB27T7FCB

10/06 6

UPPER OVEN

FEB27T7FCB Publication No: 5995477360

# Functional Parts 7 10/06

* Non-Illustrated Parts

UPPER OVEN

POS. NO PART NO. DESCRIPTION

132 318003000 Plate, shield

142 318123910 Deflector

143 318172904 Support, wire

163 318014111 Spacer

185 318014700 Spacer, oven shield, (4)

263 316136500 Washer, flat

264 318257711 Trim, oven, black, front

310 5304440067 Cabinet Mounting Kit

311 318246010 Bracket, cabinet mtg, (2)

311* 5304438005 Screw, 6 x 1, black

312 318246702 Tool, cabinet bracket, RH

312 318246703 Tool, cabinet bracket, LH

* 318165800 Spacer

* 5303211311 Screw, 8 x 0.500

* 5303323277 Screw, 8-18 X 13/32

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995477360 FEB27T7FCB

10/06 8

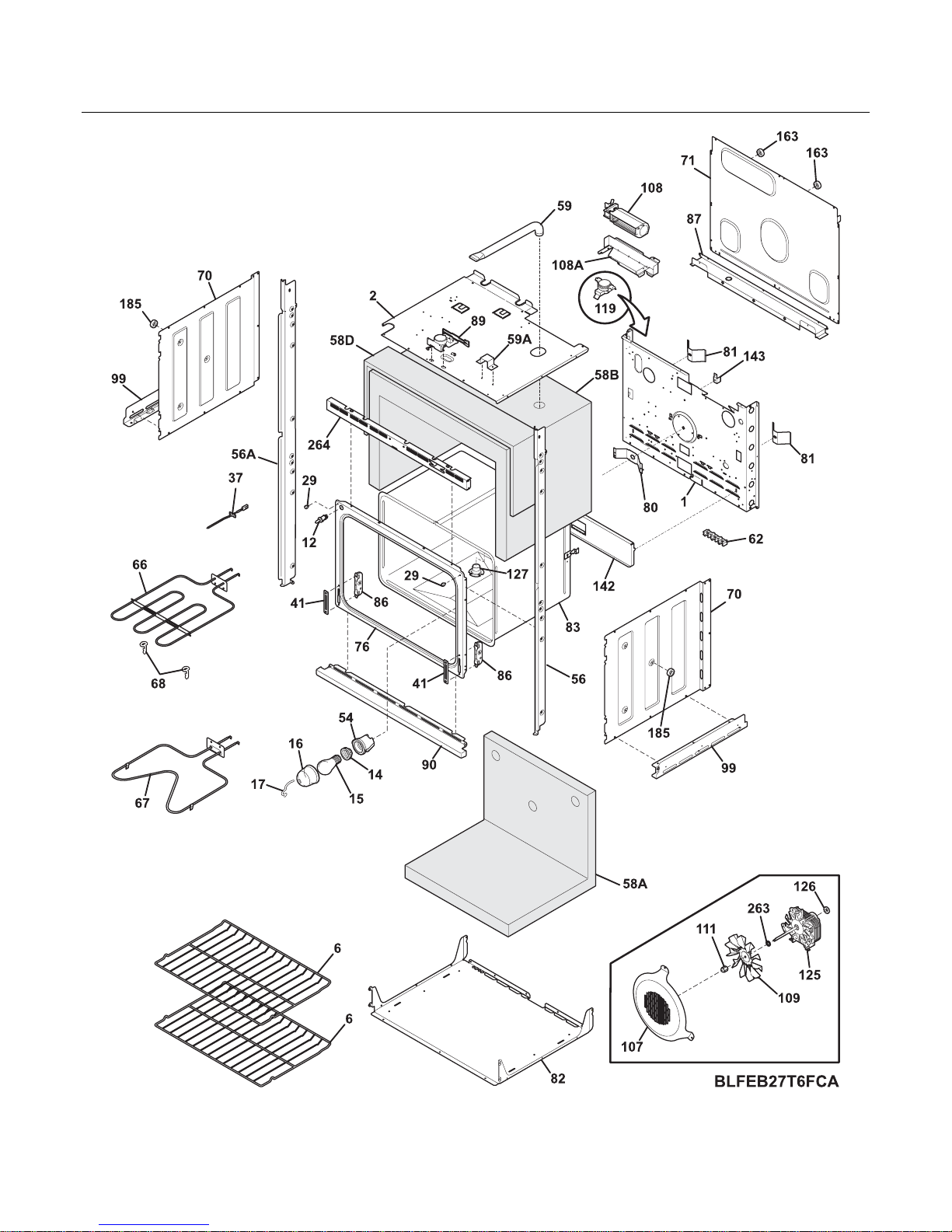

LOWER OVEN

FEB27T7FCB Publication No: 5995477360

# Functional Parts 9 10/06

* Non-Illustrated Parts

LOWER OVEN

POS. NO PART NO. DESCRIPTION

1 318259212 Back, main

2 318258910 Shield, insulation, upper

6 318345209 Rack, oven, (3)

12 # 318089917 Switch, light

14 318224000 Receptacle, oven light

14* 318268099 Insulation, oven light

15 5303013071 Bulb/Lamp, light

16 08011086 Lens, oven light, glass

17 5304400195 Retainer, light cover

29 318147411 Bumper, (2)

37 # 316217002 Probe, oven temp

41 5303310526 Cover, hinge cutout

54 318222400 Housing, oven light

56 318259914 Trim, side filler, black, RH

56A 318259915 Trim, side filler, black, LH

58A 318285060 Insulation, rear & bottom, oven wrapper

58B 318285059 Insulation, top & sides, oven wrapper

58D 318285058 Insulation, 1/2" thick, 43 x 9.5

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

62 316056000 Terminal Block

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

66 # 318255601 Element, broil, 3400W

67 # 318255103 Element, bake, 2300W

68 5304403015 Support, hanger, (2), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260001 Panel, rear box

71* 318340200 Bracket, insul. panel

76 318056222 Front, oven

80 5303320846 Plate, oven mtg

* 318249401 Tube, protector

81 318192400 Spring, oven

82 318258710 Shield, insulation, lower

83 318261503 Liner, oven assy

86 318342400 Receptacle, hinge

87 318260601 Bracket, cable mtg.

89 # 318261211 Motor, latch assy

* # 318231750 Harness, wiring, main, latch

* # 318199744 Wiring Harness, latch, BAS

* # 318199746 Wiring Harness, latch, NO BAS

90 318259812 Trim, base, stainless

99 318256200 Bracket, side, bottom, (2)

107 318219401 Cover, fan

108# 318073018 Motor, blower

* 08016432 Screw, truss head, 8-18 x 0.375

108A 318251300 Bracket, fan support

109 316136400 Blade, fan

111 316136600 Nut, fan retainer

119# 318004900 Switch, thermal

125* 5303316994 Insulation, 3.81 x 3.13

Publication No: 5995477360 FEB27T7FCB

10/06 10

LOWER OVEN
