Frigidaire FED365E Manuale utente

FED365E.eps LA20BG0047.eps B79045492500.eps LA20CT0064.eps

D79046592500.eps 318271906.eps

Product No. FED365EBA FED365EQA FED365ESA

37854336F5061 37854334F5041 37854337F5011

Series 30" drop-in 30" drop-in 30" drop-in

Color black bisque white

Market North America North America North America

Wiring Diagram 318271906 318271906 318271906

Owner's Guide 318203810 318203810 318203810

Installation Instructions 318201613 318201613 318201613

Timer Guide 318200184 318200184 318200184

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995452348

05/10/25

(EN/SERVICE/ECL)

377

30-INCH DROP-IN

ELECTRIC RANGE

Model No.

FED365E

Publication No: 5995452348 FED365E

10/05 2

BACKGUARD

FED365E Publication No: 5995452348

# Functional Parts 3 10/05

* Non-Illustrated Parts

BACKGUARD

Model Index: AFED365E (FED365ESA)

BFED365E (FED365EBA)

CFED365E (FED365EQA)

POS. NO PART NO. DESCRIPTION

14 # 318293900 A B C Light, indicator, 125v, (2)

16 318299100 A - - Console, assy., white

16 318299102 - B - Console, assy., black

16 318299101 - - C Console, assy., bisque

19 318235117 A - - Panel, control, white

19 318235119 - B - Panel, control, black

19 318235118 - - C Panel, control, bisque

19A 318224401 A B C Panel, control mtg.

20 # 318185452 A - - Clock/Timer, electronic, white, ES300

20 # 318185454 - B - Clock/Timer, electronic, black, ES300

20 # 318185453 - - C Clock/Timer, electronic, bisque, ES300

20* 316419104 A - - Overlay, clock, white, ES300

20* 316419103 - B - Overlay, clock, black, ES300

20* 316419105 - - C Overlay, clock, bisque, ES300

20* 5304451726 A B C Screw, control mtg., 8-18 x 1/2"

24 # 318037513 A - - Switch, rocker, white, oven light

24 # 318037515 - B - Switch, rocker, black, oven light

24 # 318037517 - - C Switch, rocker, bisque, flourescent

35 318183101 A - - Support, glass, white, (4)

35 318183100 - B - Support, glass, black

35 318183102 - - C Support, glass, bisque, (4)

36 316223028 A - - Knob, control, white

36 316223027 - B - Knob, control, black

36 316223029 - - C Knob, control, bisque

42 318298001 A B C Trim, vent, black, upper

46 318228300 A B C Lens, indicator light

54 # 318220080 A B C Switch, surface unit, single

54A# 318220081 A B C Switch, surface unit, large

54B# 318191023 A B C Switch, infinite, dual

69 5303323134 A B C Screw, 8-32 x 0.188

99A 318223900 A B C Gasket, dark grey

* # 318228817 A B C Harness, wiring, main, backguard

* # 318224812 A B C Harness, wiring, timer

* # 318224815 A B C Harness, wiring, infinite switch

* 08016432 A B C Screw, truss head, 8-18 x 0.375

* 5303300265 A B C Screw, 8-18 X 1/2, (2)

* 5303311333 A B C Screw, 8-32 x 3/8

Publication No: 5995452348 FED365E

10/05 4

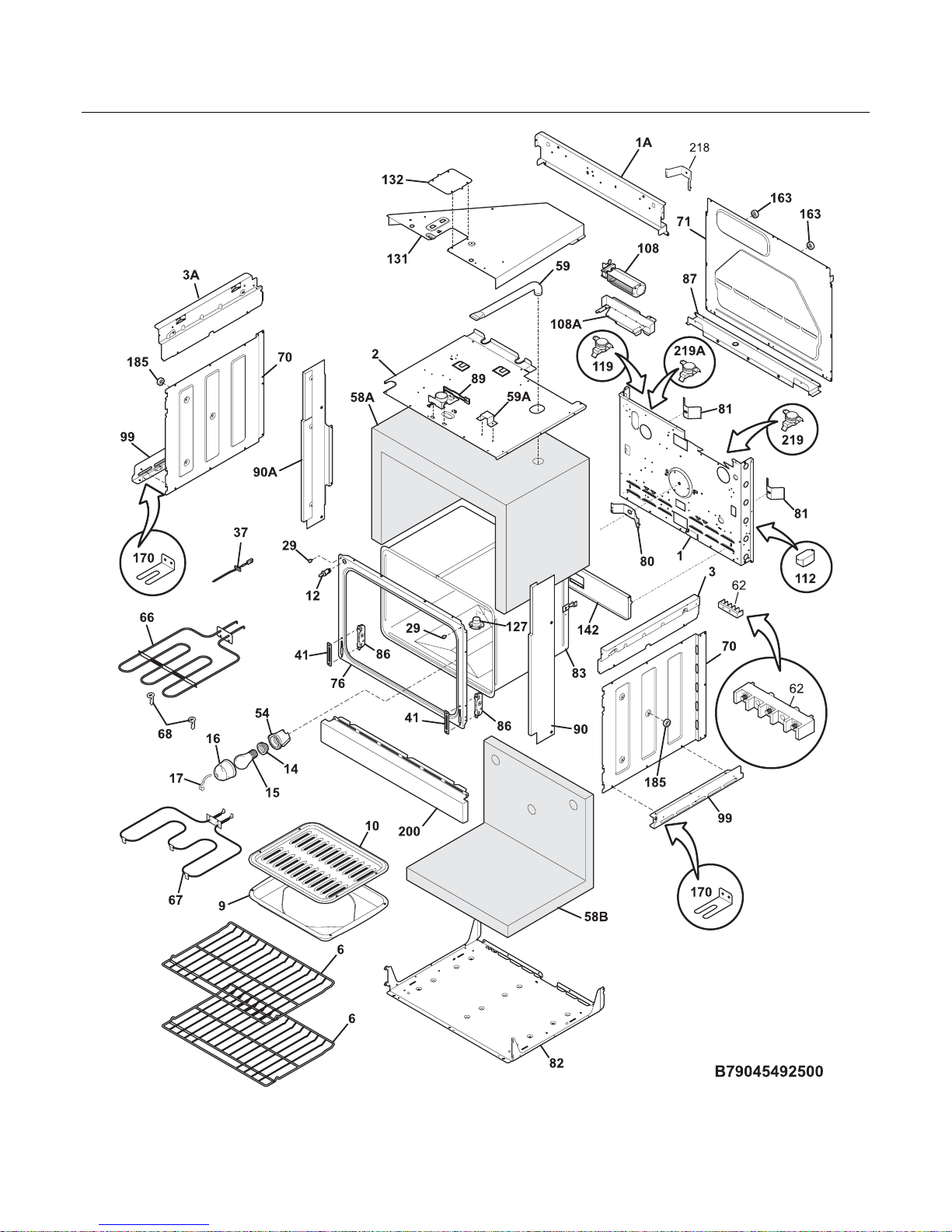

BODY

FED365E Publication No: 5995452348

# Functional Parts 5 10/05

* Non-Illustrated Parts

BODY

Model Index: AFED365E (FED365ESA)

BFED365E (FED365EBA)

CFED365E (FED365EQA)

POS. NO PART NO. DESCRIPTION

1 318259202 A B C Back, main

1A 318225110 A B C Panel, main back, upper

2 318258900 A B C Shield, insulation, upper

3 318225210 A B C Panel, bodyside, upper RH

3A 318225211 A B C Panel, bodyside, upper LH

6 318262502 A B C Rack, oven

9 5303317977 A B C Pan, broiler

10 5303317976 A B C Insert, broiler pan

12 # 318089913 A B C Switch, light

14 318224000 A B C Receptacle, oven light

15 5303013071 A B C Bulb/Lamp, light

16 3201911 A B C Cover, oven light, glass

17 5304400195 A B C Retainer, light cover

29 318147411 A B C Bumper, (2)

37 # 316217002 A B C Probe, oven temp

41 5303310526 A B C Cover, hinge cutout

54 318222400 A B C Housing, oven light

58A 318285055 A B C Insulation, oven wrapper

58B 318285056 A B C Insulation, oven back

59 318072560 A B C Duct, oven vent

59A 318261600 A B C Bracket, vent tube

62 5303935061 A B C Terminal Block Kit

62* 5303323139 A B C Screw, 10-24 x 0.906

62* 5303323144 A B C Nut, 10-32

66 # 318255600 A B C Element, broil, 2750W

67 # 318255401 A B C Element, bake, 3400W

68 5304403015 A B C Support, hanger, (2), broil element

70 318259100 A B C Shield, insulation, sides, (2)

71 318260007 A B C Panel, rear box

76 318056217 A B C Front, oven

80 5303320846 A B C Plate, oven mtg

81 318192400 A B C Spring, oven

* 5303323129 A B C Screw, 8 X 0.750

82 318258707 A B C Shield, insulation, lower

83 318261403 A B C Liner, oven assy

86 5303310524 A B C Receptacle, hinge

87 318260600 - - - Bracket, cable mtg.

89 # 318261202 A B C Motor, latch assy

90 318296922 A - - Panel, filler, white, RH

90 318296924 - B - Panel, filler, black, RH

90 318296926 - - C Panel, filler, bisque, RH

90A 318296923 A - - Panel, filler, white, LH

90A 318296925 - B - Panel, filler, black, LH

90A 318296927 - - C Panel, filler, bisque, LH

99 318256200 A B C Bracket, side, bottom, (2)

108# 318073018 A B C Motor, blower

* 08016432 A B C Screw, truss head, 8-18 x 0.375

108A 318251300 A B C Bracket, fan support

Publication No: 5995452348 FED365E

10/05 6

BODY

FED365E Publication No: 5995452348

# Functional Parts 7 10/05

* Non-Illustrated Parts

BODY

Model Index: AFED365E (FED365ESA)

BFED365E (FED365EBA)

CFED365E (FED365EQA)

POS. NO PART NO. DESCRIPTION

112# 318112703 A B C Relay

119# 318005202 A B C Switch, thermal cutout

127 318317100 A B C Adapter Assembly, vent tube, w/converter

131 318272900 A B C Box, vent

132 318003000 A B C Plate, shield

142 318123910 A B C Deflector

163 318014110 A B C Spacer, (6)

170 318334900 A B C Anti-glide & Accessories

185 318165800 A B C Spacer, (2)

200 318330001 A - - Trim, door opening, white, bottom

200 318330003 - B - Trim, door opening, black, bottom

200 318330002 - - C Trim, door opening, bisque, bottom

218 318054700 A B C Plate, anti-tip

219# 318003614 A B C Thermostat, safety

219A 318003613 A B C Thermostat, safety

* # 318078526 A B C Box & wires assy

* # 318224927 A B C Harness, wiring, main

* 3051050 A B C Screw, shoulder

* 3201861 A B C Screw, 6 x 0.375, (4)

* 5303211311 A B C Screw, 8 x 0.500

* 5303307980 A B C Screw, 8-32 x 0.437, (4)

* 5304415832 A B C Screw, 8-18 x 0.406

* 5304436875 A B C Screw, 8-18 X 1/2, black

Publication No: 5995452348 FED365E

10/05 8

MAIN TOP

FED365E Publication No: 5995452348

# Functional Parts 9 10/05

* Non-Illustrated Parts

MAIN TOP

Model Index: AFED365E (FED365ESA)

BFED365E (FED365EBA)

CFED365E (FED365EQA)

POS. NO PART NO. DESCRIPTION

15 # 318198925 A B C Element, surface, 6/9, 1200/2500W, dual radiant

15A# 318198818 A B C Element, surface, large/8", 2200 W

15B# 318198817 A B C Element, surface, 6", 1200 W, (2)

16 318223612 A - - Main Top, glass assy., white

16 318223614 - B - Main Top, glass assy., black

16 318223613 - - C Main Top, glass assy., bisque

46 318225410 A B C Box, burner

51 # 318044820 A - C Light, indicator, red

51 # 318044822 - B - Light, indicator, clear

52A 318122006 A B C Spring, element mtg, small

52B 318122007 A B C Spring, element mtg, large

52C 318122010 A B C Spring, element mtg, 1000W/2500W

165 318227503 A B C Plate, mounting

* # 318228917 A B C Harness, wiring, cooktop

* 318163600 A B C Cleaner, cooktop

* 5303211311 A B C Screw, 8 x 0.500

* 5303300265 A B C Screw, 8-18 X 1/2, (2)

* 5303311333 A B C Screw, 8-32 x 3/8

Publication No: 5995452348 FED365E

10/05 10

DOOR
