FACTORY PARTS CATALOG

ELECTRIC RANGE

P.O. Box 212378

Augusta, Georgia 30917

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF354BJWA FEF354BJ WHITE USA

FEF354CJSA FEF354CJ WHITE/WHITE USA

FEF354CJTA FEF354CJ ALMOND/ALMOND USA

Publication No.

5995340469

000705

-EN/SERVICE /CML

369

WIRING DIAGRAM # - 316002622

OWNER’S GUIDE # - 316135906

INSTALLATION GUIDE # - 316003025 ELECTRIC - RANGE

FEF354BJWA

FEF354CJSA

FEF354CJTA

07/00 2

Publication number

5995340469 FEF354BJWA,FEF354CJSA,FEF354CJTA

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

# - Fast Moving Parts

* - Non Illustrated Parts 3 6/98

Publication number

FEF354BJWA,FEF354CJSA,FEF354CJTA 5995340469

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

A = FEF354BJ (FEF354BJWA)

B = FEF354CJ (FEF354CJSA)

C = FEF354CJ (FEF354CJTA)

POS. NO PART NO DESCRIPTION

* 316021105 A B C Screw,hex ,8-18 x 0.375 ,back\bodyside

* 316021108 A B C Screw,cup pt ,8-18 x 0.375 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B C Screw,semi gim ,8-18 X 1/2 ,black

* 316112500 A B C Template, Anti-tip bracket

* 5303292005 A B C Screw-switch/handle,8-32 x 5/32

1 316081600 A B C Shield-backguard,rear wall

2 316015907 A B C Shield-backguard,inner

11 316083719 A - - Trim-wrapper,textured ,black

11 316083721 - B - Trim-wrapper, textured,white

11 316083720 - - C Trim-wrapper,textured,almond

14 316022503 A B C Light/Lamp, indicator , surface ,250 V

15 316023108 A B C Support-backguard,RH

15A 316023109 A B C Support-backguard,LH

19 316024494 A - - Panel-control,metal

19 316024495 - B - Panel-control,metal

19 316024496 - - C Panel-control,metal

20 # 316101001 A B C Clock/Timer,electronic

20* 316101502 - B - Overlay-clock

20* 316101503 A - - Overlay-clock

20* 316101504 - - C Overlay-clock

23 316100301 A B C Bracket-timer

24 # 316118100 A - - Switch-rocker, black

24# 316118101 - B - Switch-rocker,white

24# 316118102 - - C Switch-rocker,almond

36 316025106 - B - Knob-control,infinite sw ,white

36 316025108 A - - Knob-control, infinite sw, black

36 316025107 - - C Knob-control,infinite sw,gray

40 316025800 A - - Panel-manifold,black

40 316025808 - B - Panel-manifold,white

40 316025809 - - C Panel-manifold,almond

46 316040201 A B C Lens-light/lamp,indicator ,red

54 # 316021500 A B C Switch-infinite, 6" element

54A# 316021501 A B C Switch-infinite, 8" element

69 5303292005 A B C Screw-switch mtg, 8-32 x5/32

07/00 4

Publication number

5995340469 FEF354BJWA,FEF354CJSA,FEF354CJTA

CAUTION: Use the part number on all orders, not the position number.

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 5 07/00

Publication number

FEF354BJWA,FEF354CJSA,FEF354CJTA 5995340469

CAUTION: Use the part number on all orders, not the position number.

BODY

A = FEF354BJ (FEF354BJWA)

B = FEF354CJ (FEF354CJSA)

C = FEF354CJ (FEF354CJTA)

POS. NO PART NO DESCRIPTION

* 316021105 A B C Screw,hex ,8-18 x 0.375 ,back\bodyside

* 316021108 A B C Screw,cup pt ,8-18 x 0.375,hinge,ind lght brkt,manifold pnl

* 5303051099 A B C Nut,hex ,#10-32

* 5308014215 A B C Screw

3 316081034 A B - Panel-bodyside,white ,RH

3* 316081035 A B - Panel-bodyside,white ,LH

3 316081036 - - C Panel-bodyside,almond,RH

3* 316081037 - - C Panel-bodyside,almond,LH

4 5303271756 A B C Burner Box

5 316129200 A B C Leg-leveling(plastic) w/stop

6 316067902 A B C Rack-oven

7 316007002 A B C Hinge-oven door,(2)

8 3203540 A B C Panel-oven bottom

9 316081900 A B C Pan-broiler

10 316082000 A B C Insert-broiler pan

12 # 316027701 A B C Switch-oven light

13 316026800 A B C Rod-light switch /door

14 316116400 A B C Socket-light

15 5303013071 A B C Light Bulb/Lamp

16 08011086 A B C Lens-light/lamp, glass , oven

17 316087500 A B C Retainer-lens

18 # 316036300 A B C Latch-door

21 3014099 A B C Spacer-bodyside, (8)

25 3200848 A B C Shield-heat,lower

29 3051162 A B C Glide-drawer,front

37 # 316111202 A B C Probe-oven temp

41 3131570 A B C Cover-hinge cutout

57 316081101 A B C Cover-access

58 3200847 A B C Insulation,oven bottom

58A 316047708 A B C Insulation, 2" ,oven wrapper

58B 316054200 A B C Insulation, 2" ,oven back

59 316073600 A B C Tube-oven vent

62 # 5303935061 A B C Terminal Block

63 5301145190 A B C Plate-ground strap

66 # 5303051140 A B C Element-broil

67 # 316075103 A B C Element-bake

68 316075300 A B C Support-element, broil

72 5303285692 A B C Cover-light/switch rod

82 5303289913 A B C Shield-insulation

87 316081200 A B C Bracket-cable mtg

88 316026400 A B C Rod-latch,auto

89 # 316028101 A B C Motor-latch/lock

135* 3131903 A B C Bumper-door/drawer, rubber

170 316107200 A B C Anti-tip bracket

170* 316116000 A B C Screw-Anti tip, 1.75" concrete

170* 5303935180 A B C Kit-Anti-Tip (complete w/template & screws)

07/00 6

Publication number

5995340469 FEF354BJWA,FEF354CJSA,FEF354CJTA

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

# - Fast Moving Parts

* - Non Illustrated Parts 7 07/00

Publication number

FEF354BJWA,FEF354CJSA,FEF354CJTA 5995340469

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

A = FEF354BJ (FEF354BJWA)

B = FEF354CJ (FEF354CJSA)

C = FEF354CJ (FEF354CJTA)

POS. NO PART NO DESCRIPTION

* 316001725 A B C Wiring Harness,surface element

* 316021105 A B C Screw,hex ,8-18 x 0.375 ,back\bodyside

* 316021108 A B C Screw,cup pt ,8-18 x 0.375 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B C Screw,semi gim ,8-18 X 1/2 ,black

* 316089600 A B C Spacer-drawer,(2)

* 5303280311 A B C Screw, waf hd sdr , 10-32 x 5/16 , (2)

* 5308014215 A B C Screw

1 316011501 A B C Drawer-utility

2 3131975 A B C Shield-panel

4 316084405 A B - Panel-drawer,white

4 316084406 - - C Panel-drawer,almond

7 3051163 A B C Glide-drawer,rear

15 # 5303012223 A B C Element-surface,large-8"

15A# 08067762 A B C Element-surface,small-6"

16 316020907 A B - Main Top,white

16 316020908 - - C Main Top,almond

17 316057601 A B C Rod-maintop support

18 5303273062 A B C Hinge-main top,RH

18A 5303273063 A B C Hinge-main top,LH

19 318067051 A - - Pan-surface element,large/8 inch

19 5303935054 - B C Pan-surface element,large/8 inch

19A 318067041 A - - Pan-surface element,small/6 inch

19A 5303935057 - B C Pan-surface element,small/6 inch

27 # 5301167733 A B C Terminal Block Kit,surface element

28 3017801 - B C Medallion,stainless steel ,surf elem

28 5303017715 A - - Medallion,1 1/2"dia ,black ,surface element

07/00 8

Publication number

5995340469 FEF354BJWA,FEF354CJSA,FEF354CJTA

CAUTION: Use the part number on all orders, not the position number.

DOOR

# - Fast Moving Parts

* - Non Illustrated Parts 9 07/00

Publication number

FEF354BJWA,FEF354CJSA,FEF354CJTA 5995340469

CAUTION: Use the part number on all orders, not the position number.

DOOR

A = FEF354BJ (FEF354BJWA)

B = FEF354CJ (FEF354CJSA)

C = FEF354CJ (FEF354CJTA)

POS. NO PART NO DESCRIPTION

* 316065306 A B C Plate-warning/caution

* 3203618 A B C Rivet-pop,warning-plate

* 316021110 A B C Screw,semi gim ,8-18 X 1/2 ,black

* 5303271648 A B C Burner Box, wafer hd sq dr,8-18AB x 1/2

* 5303280311 A B C Screw, waf hd sdr , 10-32 x 5/16 , (2)

* 5303292005 A B C Screw-switch/handle,8-32 x 5/32

* 316132100 A B C Spacer-sponge pad

3 316067802 A - - Trim-oven door,black

3 316067804 - B - Trim-oven door,white

3 316067803 - - C Trim-oven door,almond

4 316089000 A - - Glass-oven door,black ,outer

4 316089005 - B - Glass-oven door,white ,outer

4 316089004 - - C Glass-oven door,almond,outer

5 316088700 A B C Glass-oven door,airwash

6 316088401 A B C Shield-wool

7 316076403 A B C Insulation-door

8 316088600 A B C Glass-oven door,inner

9 316066610 A B C Liner-oven door

10 5303280308 A B C Screw-handle mtg,wafer head ,10-24T x 2

10* 316008401 A B C Washer,3/4 x 1/4 ,steel

12 # 5303131601 A B C Seal-oven door

14 3131361 - B C Reflector,aluminum foil

14 5303208656 A - - Reflector,aluminum foil

14A 3131360 - B C Reflector,aluminum foil

14A 5303208655 A -- - Reflector,aluminum foil

15 316081403 A B C Bracket-glass mtg

16 316085701 A B C Glass-oven door,heat barrier

39 316091114 A - - Handle-door,black ,oven

39 316091115 - B - Handle-door,white ,oven

39 316091116 - - C Handle-door,almond,oven

52 316081301 - B - Shield-oven door,white ,top

52 316081303 A - - Shield-oven door,black ,top

52 316081302 - - C Shield-oven door,almond,top

07/00 10

Publication number

5995340469 FEF354BJWA,FEF354CJSA,FEF354CJTA

CAUTION: Use the part number on all orders, not the position number.

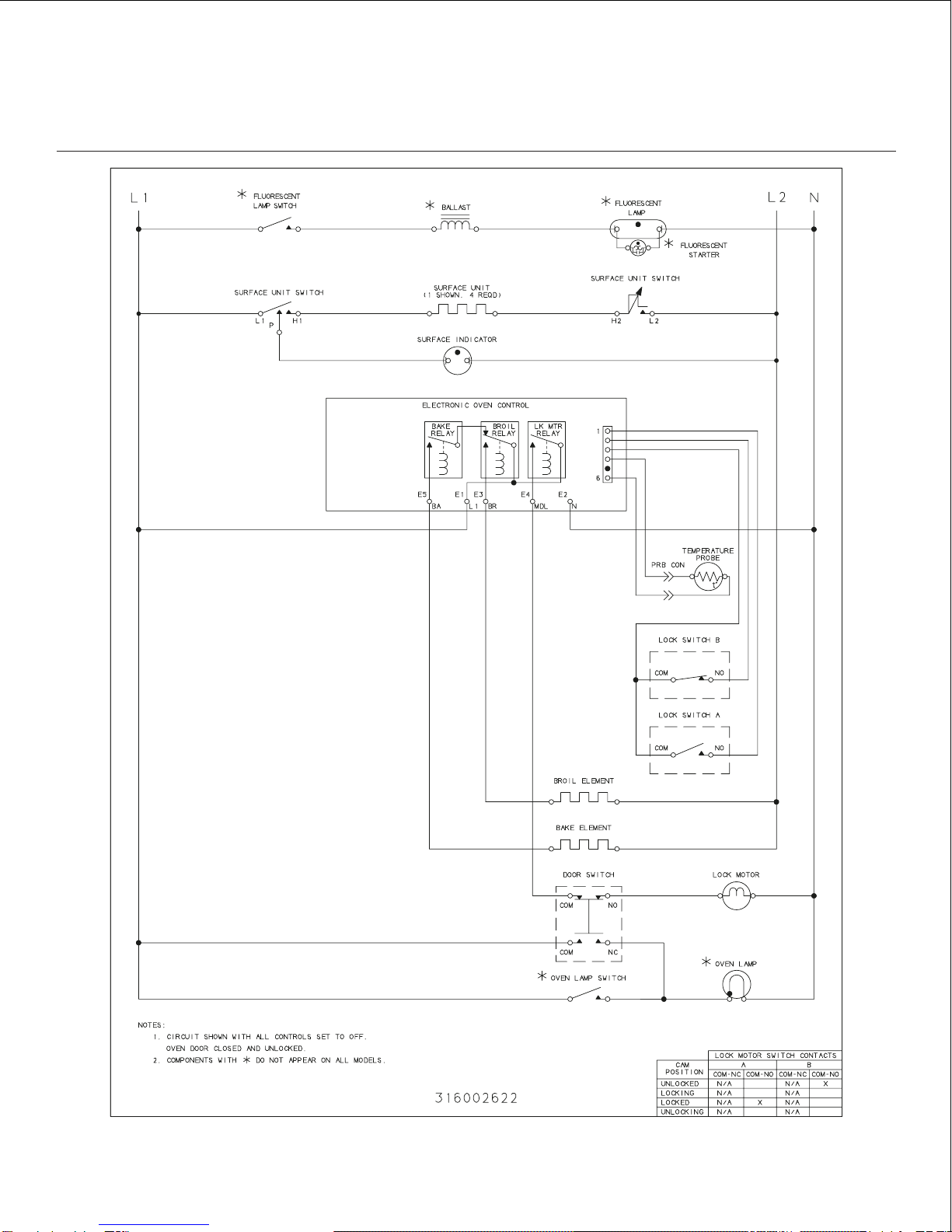

WIRING DIAGRAM
