Frigidaire FRS23H5AS Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRS23H5ASB8 FRS23H5AS R134a stainless/black 115

MARKET

North America

Publication No.

5995394151

030814

-EN/SERVICE/KHB

357

SIDE BY SIDE

REFRIGERATOR

Model No.

FRS23H5AS

WIRING DIAGRAM - # 240389613

OWNER’S GUIDE - # 240389311

SERVICE DATA SHEET - #240389613

ELECTROLUX HOME PRODUCTS, INC.

P.O. BOX 212378, Augusta, GA 30917

FACTORY

PARTS CATALOG

08/03 2

Publication No. FRS23H5ASB8

5995394151

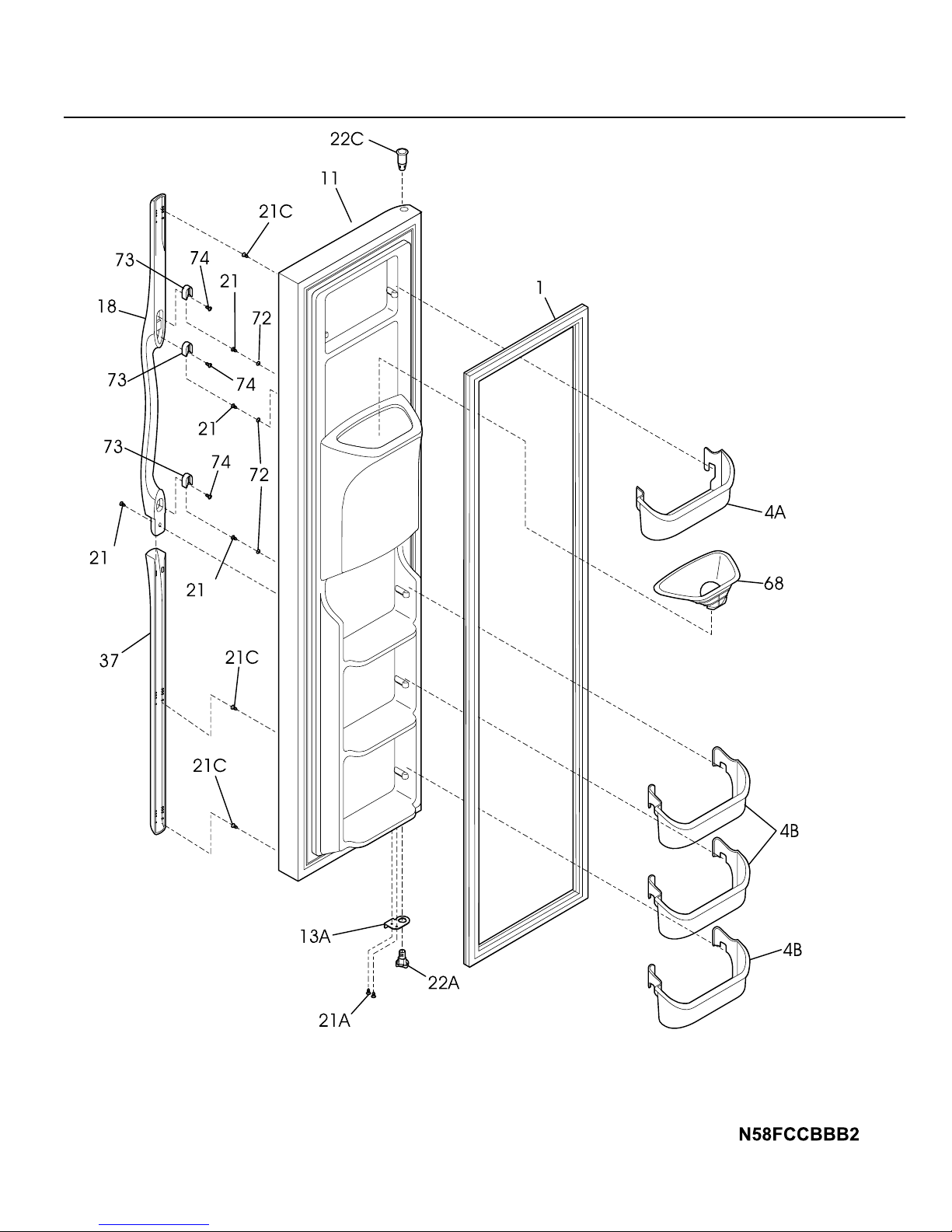

FREEZER DOOR

# = Fast-moving Parts 3 08/03

* = Non-Illustrated Parts

FRS23H5ASB8 Publication No.

5995394151

FREEZER DOOR

POS. NO PART NO DESCRIPTION

1 # 240390608 Gasket-frzr door,black ,magnetic

4A 240367301 Bin-door,frzr-upper

4B 240359001 Bin-door

11 240554231 Door-frzr, stainless steel, complete assy

13A 240581906 Door Stop, black ,frzr

18 240359108 Handle-door, black ,LH

21 218781100 Screw, pan head ,8-18 x 0.625

21A 240598401 Screw, 10-32 x 1/2

21C 240521302 Screw, #8-18 x 3/4

22A 240328202 Bearing-hinge, closer

22C 240328404 Bearing-hinge, black, upper

37 240359203 Trim-handle, 30.13", black ,lower

68 240465801 Chute-ice

72 240421701 Button-handle mtg, dovetail

73 218396700 Block-handle mtg, dovetail

74 215503200 Screw, cr pan hd, 10-16 x 0.500

* 218490900 Cleaner,stainless steel

* 240545101 Connector-water,straight

* 240552101 Harness-wiring,door

* 5303918256 Dispenser heater kit

08/03 4

Publication No. FRS23H5ASB8

5995394151

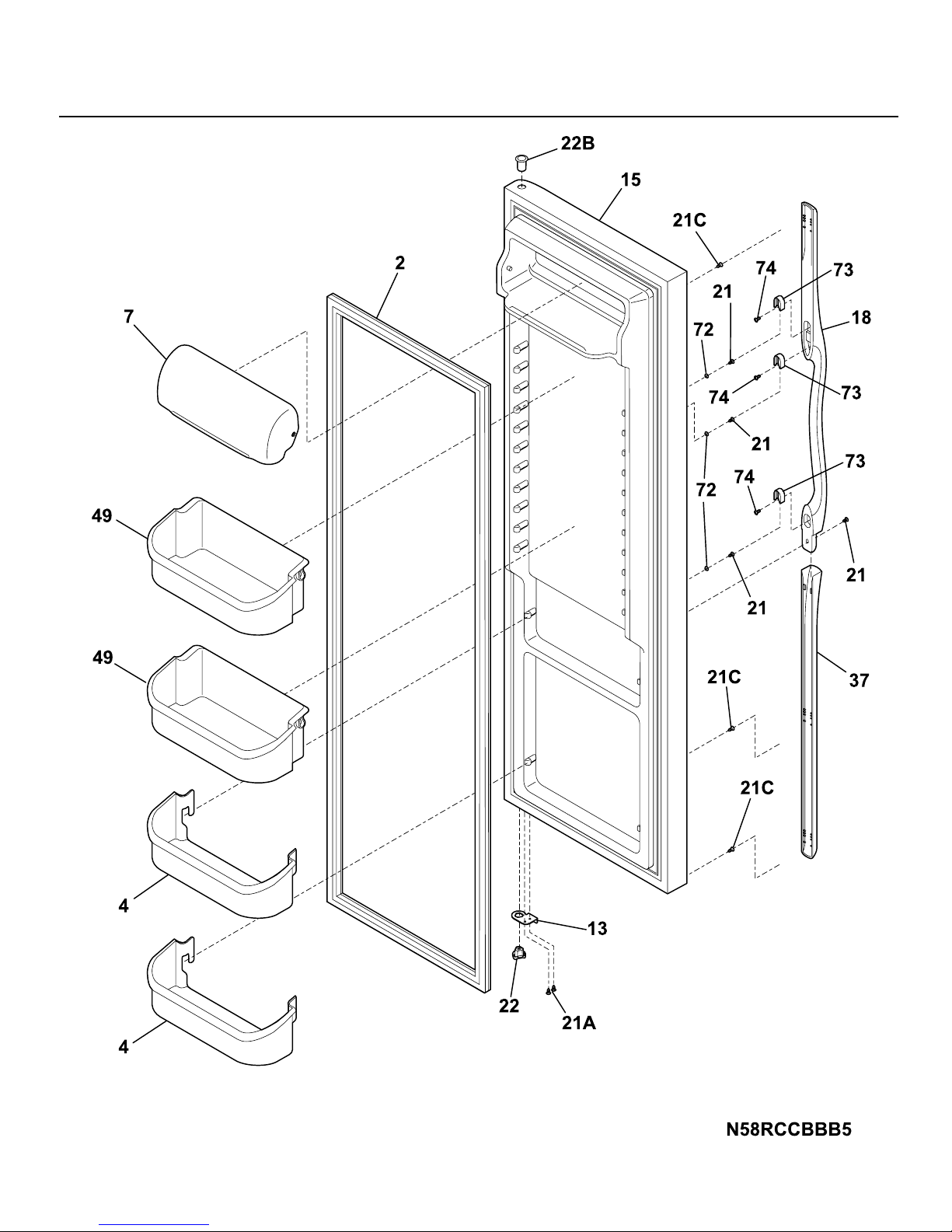

REFRIGERATOR DOOR

# = Fast-moving Parts 5 08/03

* = Non-Illustrated Parts

FRS23H5ASB8 Publication No.

5995394151

POS. NO PART NO DESCRIPTION

2 # 240390607 Gasket-refr door,black ,magnetic

4 240363701 Bin-door,2-liter

7 240338303 Door,dairy ,clear

13 240581905 Door Stop,black ,ref

15 240451985 Door-refr,stainless steel, complete assy

18 240359103 Handle-door,black ,RH

21 218781100 Screw,pan head ,8-18 x 0.625

21A 240598401 Screw,10-32 x 1/2

21C 240521302 Screw,#8-18 x 3/4

22 240328201 Bearing-hinge,closer

22B 240328403 Bearing-hinge,upper

37 240359203 Trim-handle,30.13" ,black ,lower

49 240324501 Bin-door,gallon

72 240421701 Button-handle mtg,dovetail

73 218396700 Block-handle mtg,dovetail

74 215503200 Screw,cr pan hd ,10-16 x 0.500

* 218490900 Cleaner,stainless steel

REFRIGERATOR DOOR

08/03 6

Publication No. FRS23H5ASB8

5995394151

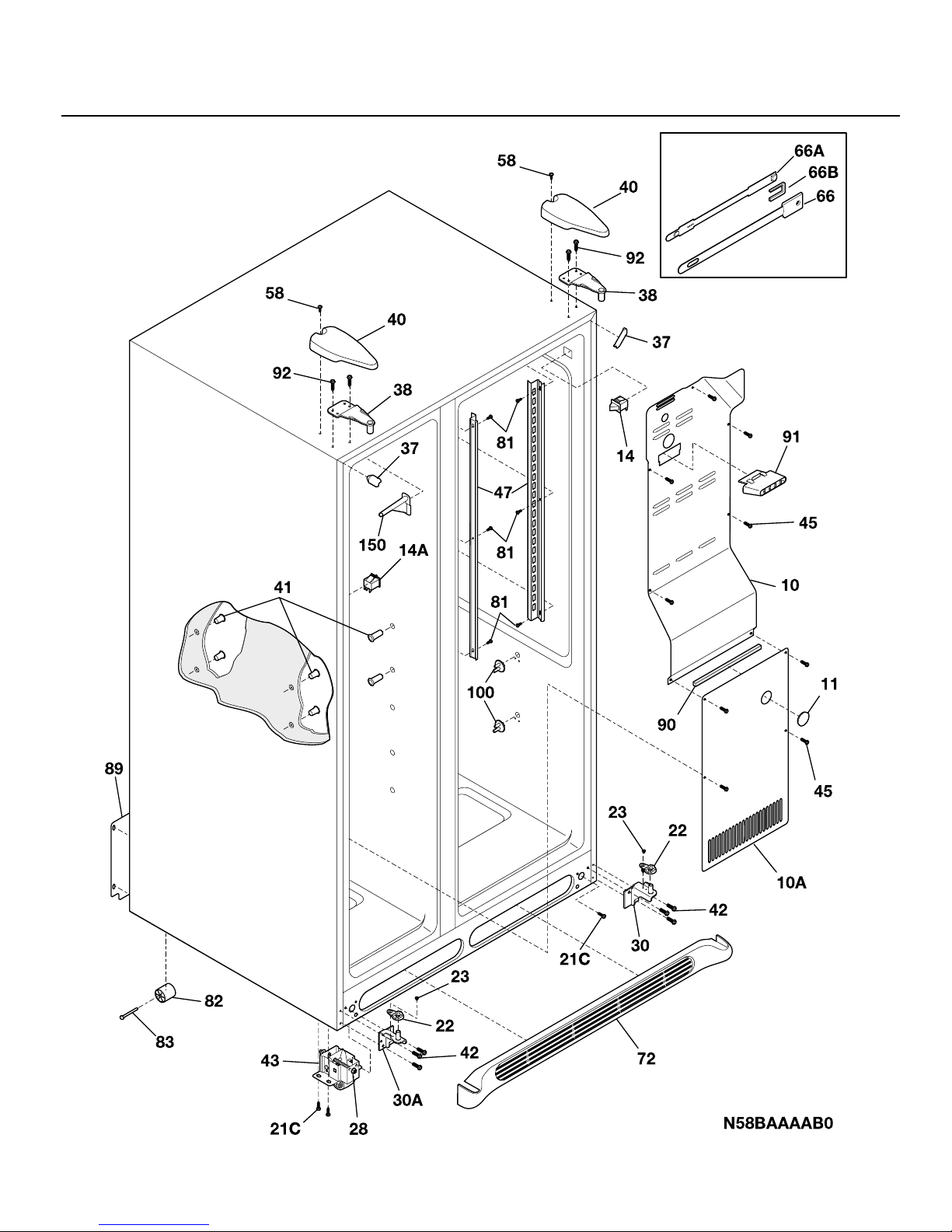

CABINET

# = Fast-moving Parts 7 08/03

* = Non-Illustrated Parts

FRS23H5ASB8 Publication No.

5995394151

POS. NO PART NO DESCRIPTION

10 240435901 Cover-air duct

10A 240475901 Cover-evap coil,lower

11 5303208309 Plug-hole,factory test

14 240505801 Switch,light/lamp

14A# 215486600 Switch-light/lamp

21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500

22 240457701 Plate-door closer

23 240402701 Screw-#10-32 x 1/4 flat hd

28 240335501 Bolt-roller adj,hex wshr hd, 1/4-20 x 4.020, (2), special

30 240419103 Bracket-lower hinge, ref

30A 240419104 Bracket-lower hinge

37 240337603 Trim-cabinet corner,black ,(2)

38 240327202 Bracket-upper hinge

40 240327007 Cover-upper hinge,black

41 240358701 Grommet-shelf mtg,1.40" long

41* 240358801 Grommet-shelf mtg,.875" long

42 240578901 Screw-hinge mtg, hex head ,1/4-20 x 5/8

43 240335003 Roller Assy, front, (2)

45 241500301 Screw, hex washer head, 8-18AB x 0.500

47 240349402 Channel-shelf mt, side, (2)

58 218781100 Screw, pan head, 8-18 x 0.625

66 240504901 Cover-damper

66* 240518802 Pin-push, push-in, plastic

66A 240505001 Damper-meat keeper

66B 240355901 Insulation-damper

72 240324405 Grille/Kickplate, black

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 240326103 Cover,access ,system compt ,with label

90 218249807 Seal-coil cover

91 240380101 Duct-ice maker

92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 Support,crisper cover ,front ,(4)

100* 240350802 Support,crisper cover ,rear ,(4)

150 240368701 Guide-control bulb

* 218515401 Clip

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 240479601 Plug, button, cab liner holes, (2)

* 240481601 Shim-lower hinge

* 5303305345 Paint, touch-up, black

CABINET

08/03 8

Publication No. FRS23H5ASB8

5995394151

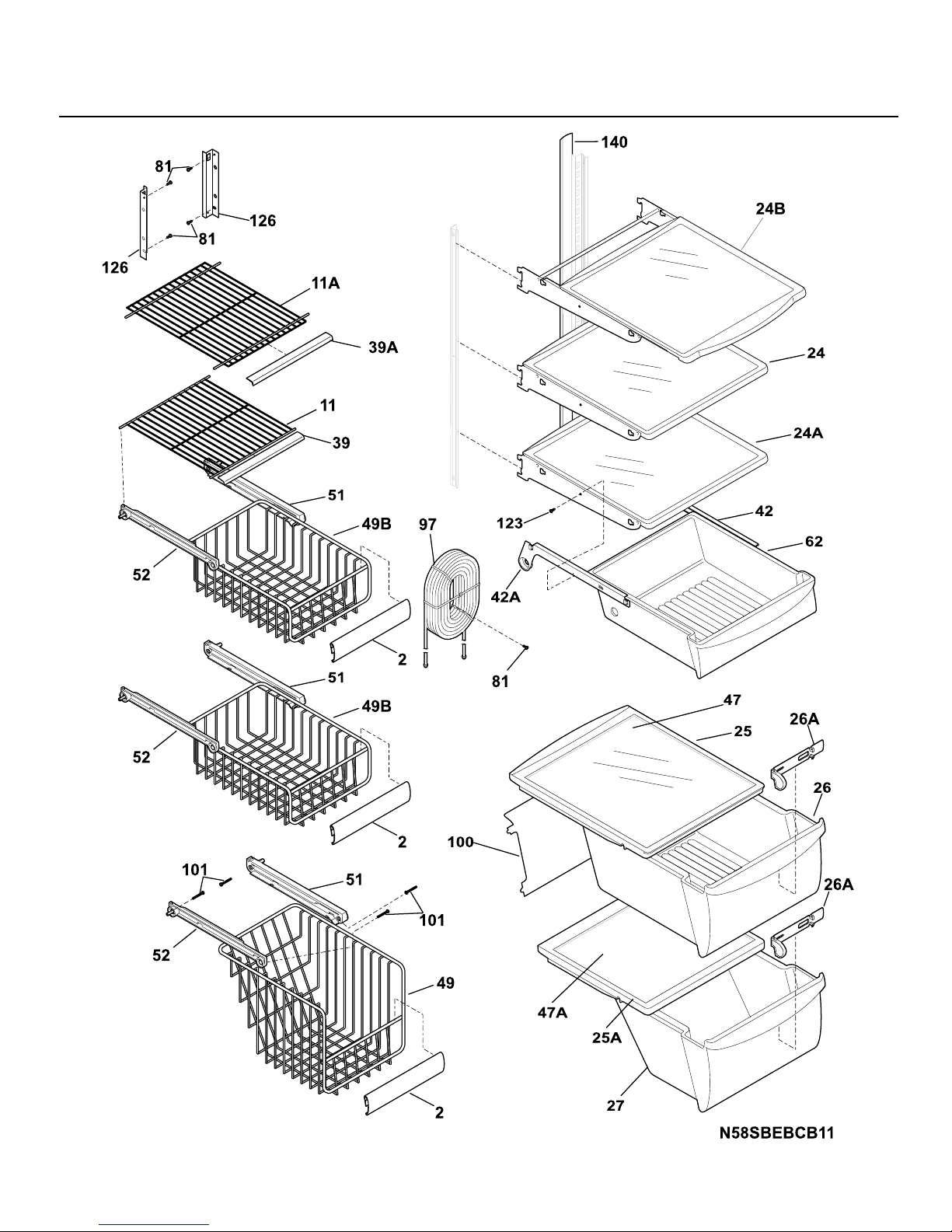

SHELVES

# = Fast-moving Parts 9 08/03

* = Non-Illustrated Parts

FRS23H5ASB8 Publication No.

5995394151

POS. NO PART NO DESCRIPTION

2 240434603 Trim-basket

11 240338801 Shelf-freezer,flip-up

11A 240338703 Shelf-freezer,fixed wire

24 240355211 Shelf-"Spill-Safe", fixed

24A 240355209 Shelf-"Spill-Safe", fixed

24B 240350107 Shelf-"Spill-Safe", cantilever ,sliding

25 240354502 Cover-crisper pan, upper

25* 240362101 Clip-slide, cover-crisper

25A 240354602 Cover-crisper pan, lower

26 240354705 Pan-crisper, upper

26* 240349801 Clip-slide, pan-crisper

26A 240351101 Control-humidity

27 240354805 Pan-crisper, lower

39 240430705 Trim-shelf,front

39A 240430701 Trim-shelf,front

42 240356501 Track,meat pan hanger ,RH

42A 240349701 Hanger-meat pan,LH

42A* 240349901 Block-meat pan rail,LH

42A* 240350001 Spring-meat pan rail

47 240350635 Insert-pan cover,glass

47A 240350614 Insert-pan cover,glass

49 240530401 Basket-sliding

49B 240530501 Basket-sliding,upper ,half

51 240343002 Hanger-basket,RH

52 240343102 Hanger-basket,LH

62 240355505 Pan-meat

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

97 240545303 Water Tank Assy,coiled tubing, front filter

100 240326301 Cover-water tank

101 218493100 Screw,hex washer head ,8-18AB x 1-3/4

123 215005100 Screw,hanger/rlr mtg ,8-10 x 0.438

126 218867405 Channel,auger mtg ,LH

126 218867406 Channel,auger mtg ,RH

140 240430501 Channel,wtr tube cover

SHELVES

08/03 10

Publication No. FRS23H5ASB8

5995394151

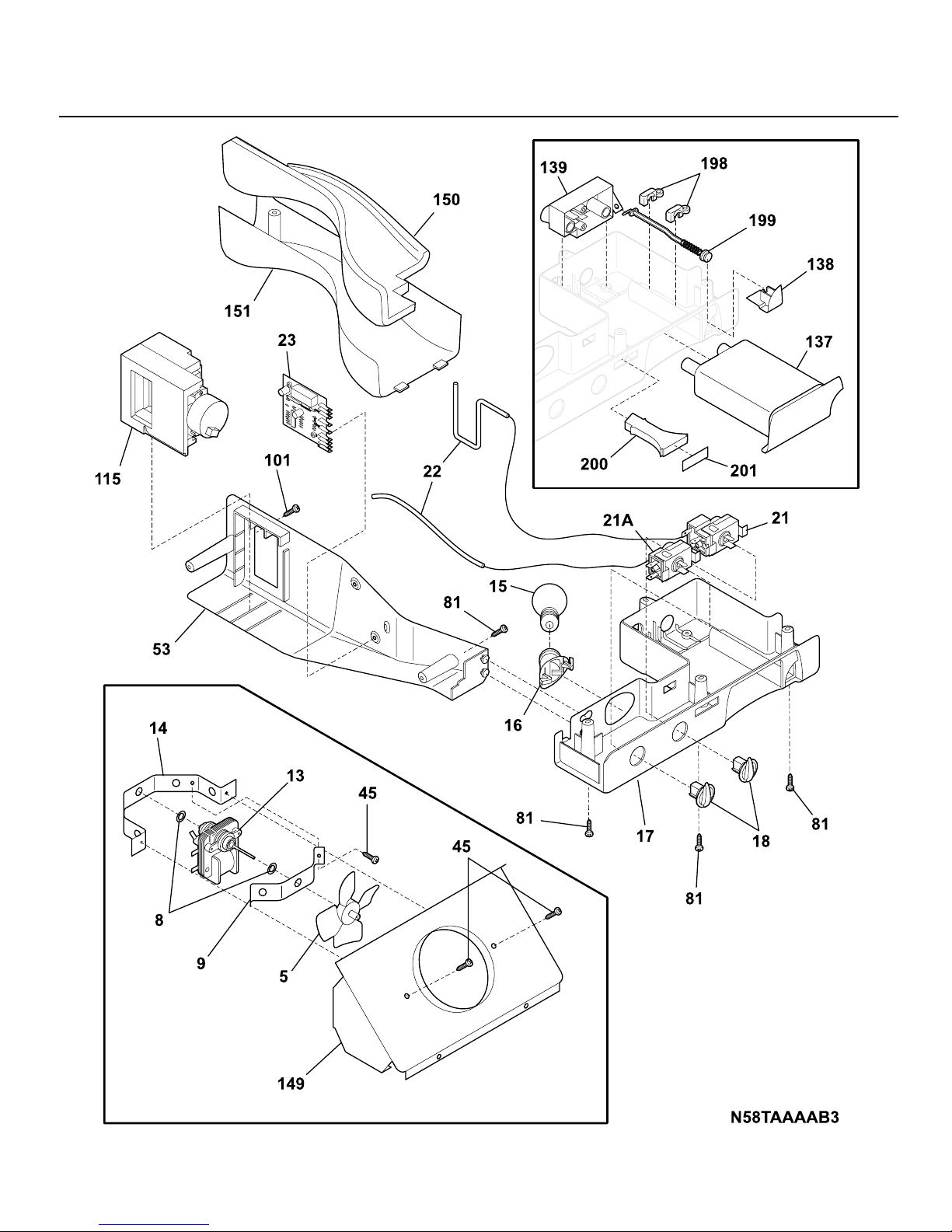

CONTROLS
