Frigidaire FRS6L7EE Manuale di istruzioni

N58L00001.eps N58FFCBBC1.eps N58RFCBBC6.eps N58BAAAAB3.eps

N58SKDMBD1.eps N58TCAAAB0.eps N58CAAAAC4.eps N58XEAAAA0.eps

N58YBAAAA0.eps N58I115.eps W241660401.eps S241660401.eps

Product No. FRS6L7EES5 FRS6L7EES9

Series 134A 134A

Color stain/blk stain/blk

Volts 115 115

Wiring Diagram 241660401 241660401

Owner's Guide 241632002 241660600

Market North America North America

Energy Guide 241607598 241607598

Service Data Sheet 240389624 240389624

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995442521

05/07/22

(EN/SERVICE/DCS)

357

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS6L7EE

Publication No: 5995442521 FRS6L7EE

07/05 2

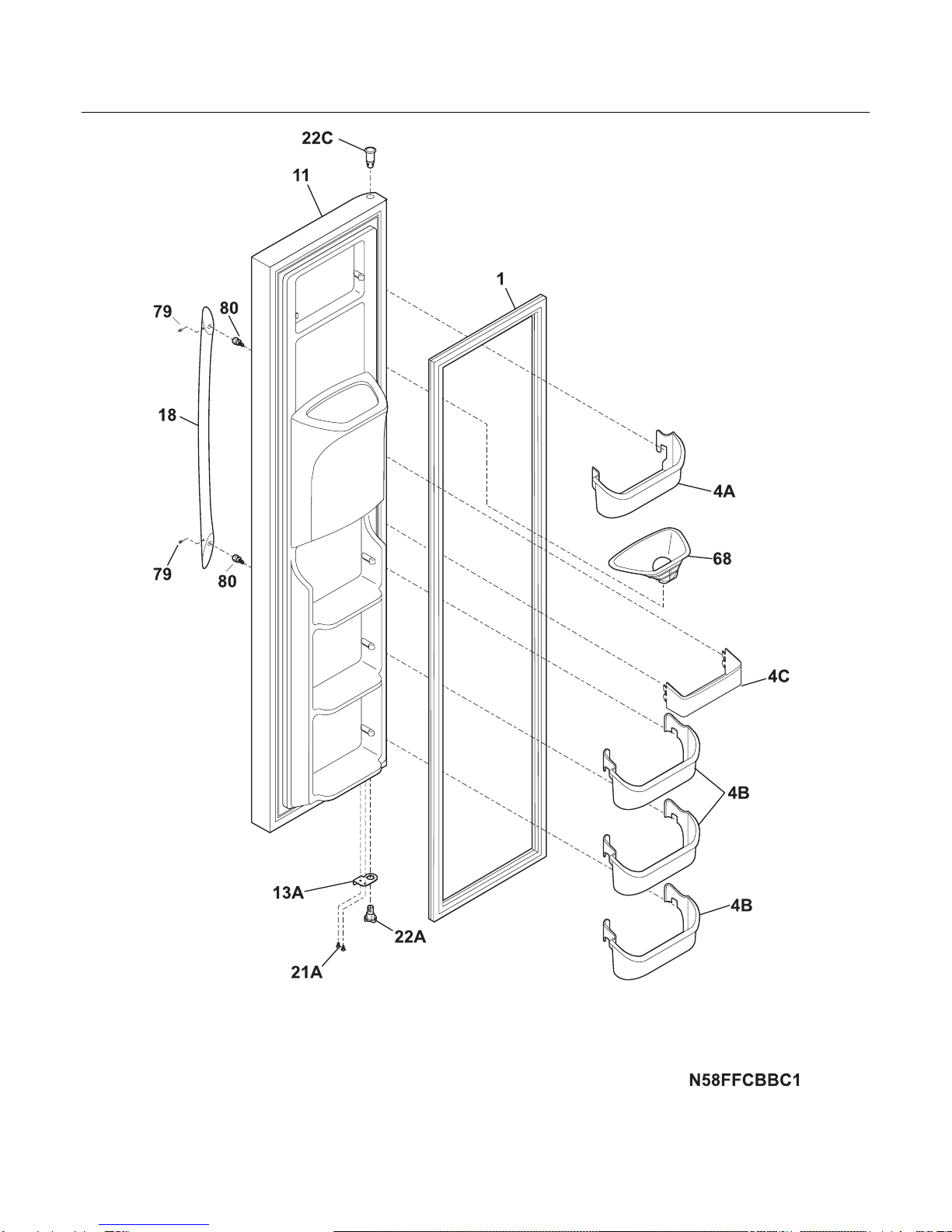

FREEZER DOOR

FRS6L7EE Publication No: 5995442521

# Functional Parts 3 07/05

* Non-Illustrated Parts

FREEZER DOOR

Model Index: AFRS6L7EE (FRS6L7EES5)

BFRS6L7EE (FRS6L7EES9)

POS. NO PART NO. DESCRIPTION

1 # 241569806 A B Gasket-frzr door, black, magnetic

4A 240334201 A B Bin-door, frzr-upper

4B 240351601 A B Bin-door

4C 240351701 A B Bin-door, frzr-dispenser

11 241615116 A B Door-frzr, stainless, complete assy

13A 240581906 A B Door Stop, black, frzr

18 240536801 A B Handle-door, stainless steel, with insert

21A 240598401 A B Screw, 10-32 x 1/2

22A 240328204 A B Bearing-hinge(frz), black, closer

22C 240328404 A B Bearing-hinge, black, upper

68 241525101 A B Chute-ice

79 218755402 A B Screw-set, 10-32 x 0.375

80 218755503 A B Screw-shoulder, #10 AB, handle mounting

* 240352102 A B Connector-water, straight

* 240552102 A B Harness-wiring, door

* 5303918256 A B Dispenser heater kit

Publication No: 5995442521 FRS6L7EE

07/05 4

REFRIGERATOR DOOR

FRS6L7EE Publication No: 5995442521

# Functional Parts 5 07/05

* Non-Illustrated Parts

REFRIGERATOR DOOR

Model Index: AFRS6L7EE (FRS6L7EES5)

BFRS6L7EE (FRS6L7EES9)

POS. NO PART NO. DESCRIPTION

2 # 241569805 A B Gasket-refr door, black, magnetic

4 240323002 A B Bin-door, pseudo, bottom

7 240326203 A B Door-dairy

12 240572601 A B Label-nameplate

13 240581905 A B Door Stop, black, ref

15 241534541 A B Door-refr, stainless steel, complete assy

18 240536801 A B Handle-door, stainless steel, with insert

21A 240598401 A B Screw, 10-32 x 1/2

22 240328203 A B Bearing-hinge, black, closer

22B 240328404 A B Bearing-hinge, black, upper

27A 240396102 A B Retainer, tall bottle

49 240356410 A B Bin-door, gallon

79 218755402 A B Screw-set, 10-32 x 0.375

80 218755503 A B Screw-shoulder, #10 AB, handle mounting

Publication No: 5995442521 FRS6L7EE

07/05 6

CABINET

40 66

14A

100

21C

30A

10A

N58BAAAAB3

FRS6L7EE Publication No: 5995442521

# Functional Parts 7 07/05

* Non-Illustrated Parts

CABINET

Model Index: AFRS6L7EE (FRS6L7EES5)

BFRS6L7EE (FRS6L7EES9)

POS. NO PART NO. DESCRIPTION

10 240435906 A B Cover-air duct

10A 240475907 A B Cover-evap coil, lower

11 5303208309 A B Plug-hole, factory test

14 240505801 A B Switch, light/lamp

14A 241547901 A B Switch-light/lamp, frzr door

21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 A B Plate-door closer

23 240402701 A B Screw-#10-32 x 1/4 flat hd

28 240335501 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603701 A B Bracket-lower hinge, ref

30A 241603702 A B Bracket-lower hinge

37 240337603 A B Trim-cabinet corner, black, (2)

38 240327201 A B Bracket-upper hinge

40 240327007 A B Cover-upper hinge, black

41 241550801 A B Grommet-shelf mtg, 1.40" long

41* 241550701 A B Grommet-shelf mtg, .96" long

42 240578901 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 A B Roller Assy, adjustable, front, (2)

45 241500301 A B Screw, hex washer head, 8-18AB x 0.500

47 240349402 A B Channel-shelf mtg, side, (2)

58 218781100 A B Screw, pan head, 8-18 x 0.625

66 5304424968 A B Damper Cover Assy

66* 240518802 A B Pin-push, push-in, plastic

72 240324406 A B Grille/Kickplate, black

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574602 A B Cover access

90 218249808 A B Seal-coil cover

91 240380101 A B Duct-ice maker

92 216850900 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 A B Support, crisper cover, front, (4)

100* 240350802 A B Support, crisper cover, rear, (4)

* 240396801 A B Clamp, tube/wiring, nylon, black/natural

* 240479601 A B Plug, button, cab liner holes, (2)

* 240481601 A B Shim-lower hinge

* 5303305345 A B Paint, touch-up, black

Publication No: 5995442521 FRS6L7EE

07/05 8

SHELVES

11A

126

52A

109

51A

49B

101

N58SKDMBD1

100

25A

47A

15A

16A

26A

42A

123

24A

140

24B

11C

136

FRS6L7EE Publication No: 5995442521

# Functional Parts 9 07/05

* Non-Illustrated Parts

SHELVES

Model Index: AFRS6L7EE (FRS6L7EES5)

BFRS6L7EE (FRS6L7EES9)

POS. NO PART NO. DESCRIPTION

2 241510604 A B Trim-basket

11 240350668 A B Shelf-freezer, glass, lower

11A 240350667 A B Shelf-freezer, glass, upper

11C 240324101 A B Shelf-pizza

15A 241555401 A B Light Bulb

16A# 241513901 A B Socket-light

16A* 241537602 A B Harness-wiring

24 240355203 A B Shelf-"Spill-Safe", fixed

24A 240355205 A B Shelf-"Spill-Safe", fixed

24B 240350106 A B Shelf-"Spill-Safe", cantilever, sliding

25 240350702 A B Cover-crisper pan, upper

25* 240362101 A B Clip-slide, cover-crisper

25A 240350902 A B Cover-crisper pan, lower

26 240351005 A B Pan-crisper, upper

26* 240349801 A B Clip-slide, pan-crisper

26A 240362201 A B Control-humidity

27 240351205 A B Pan-crisper, lower

39 240367602 A B Trim-shelf, front

42 240356501 A B Track, meat pan hanger, RH

42A 240349701 A B Hanger-meat pan, LH

42A* 240349901 A B Block-meat pan rail, LH

42A* 240350001 A B Spring-meat pan rail

47 240350602 A B Insert-pan cover, glass

47A 240350603 A B Insert-pan cover, glass

49 240564401 A B Basket-sliding

49B 240530504 A B Basket-sliding, upper, full

51 240343002 A B Hanger-basket, RH

51A 240395502 A B Hanger-basket, RH

52 240343102 A B Hanger-basket, LH

52A 240395602 A B Hanger-basket, LH

62 240342805 A B Pan-meat

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

97 240545303 A B Water Tank Assy, coiled tubing, front filter

100 240326302 A B Cover-water tank

101 218493100 A B Screw, hex washer head, 8-18AB x 1-3/4

109 240351301 A B Base-crisper light socket

123 215005100 A B Screw, hanger/rlr mtg, 8-10 x 0.438

126 241630701 A B Channel, auger mtg, LH

126 241630702 A B Channel, auger mtg, RH

136 240424501 A B Dispenser-can, white

140 240430501 A B Channel, wtr tube cover

Publication No: 5995442521 FRS6L7EE

07/05 10

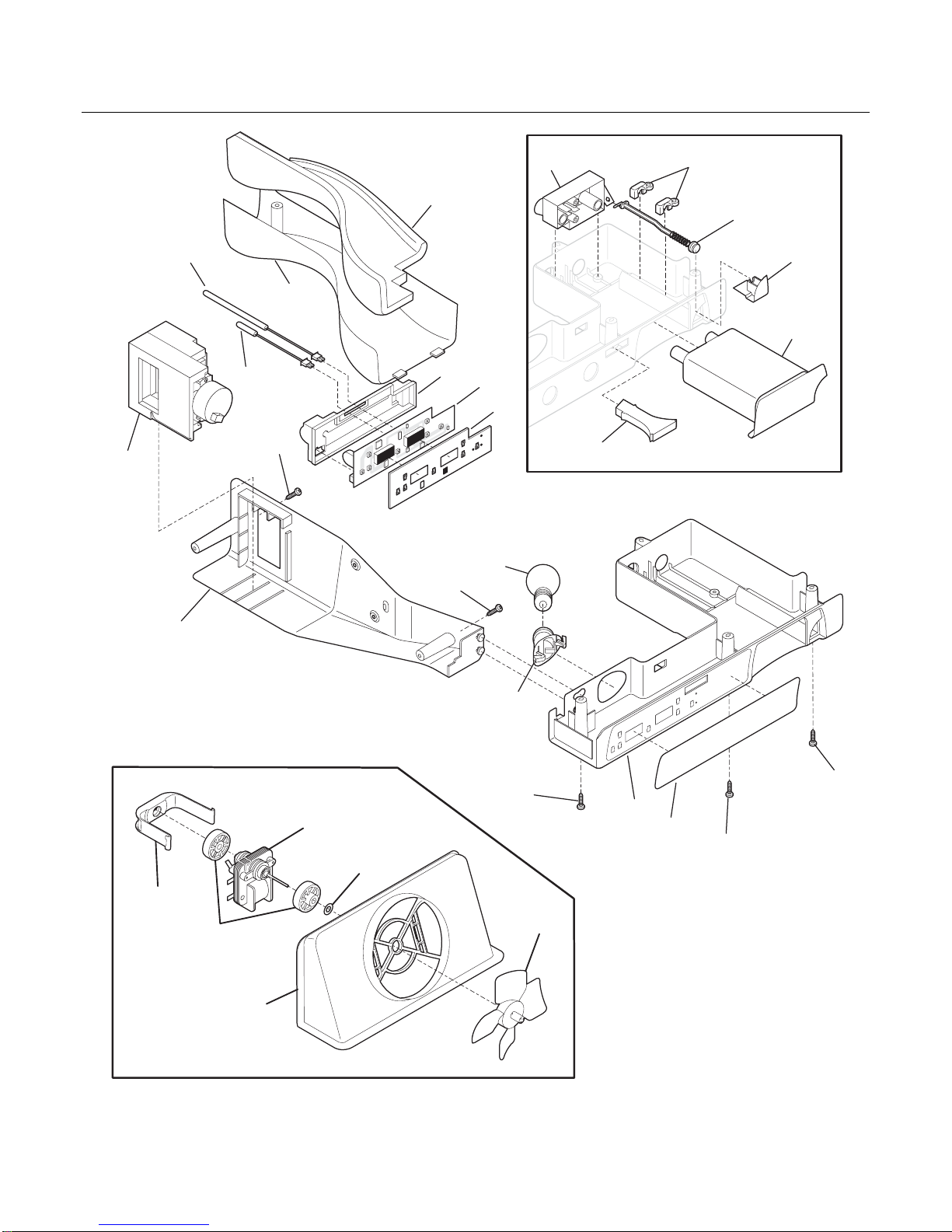

CONTROLS

149

139

138

198

199

137

200

151

150

21A 23

115

101

N58TCAAAB0
