Frigidaire FRS23X5A Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRS23X5AW0 FRS23X5A R134a white 115

FRS23X5AW1 FRS23X5A R134a white 115

MARKET

North America

Publication No.

5995351375

010320

-EN/SERVICE/KHB

357

SIDE BY SIDE

REFRIGERATOR

Model No.

FRS23X5A

FACTORY PARTS CATALOG

SIDE BY SIDE

REFRIGERATOR

WIRING DIAGRAM - # 240426101

OWNER’S GUIDE - # 240389301

SERVICE DATA SHEET - # 240389601

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. BOX 212378, Augusta, GA 30917

03/01 2

Publication No. FRS23X5A

5995351375

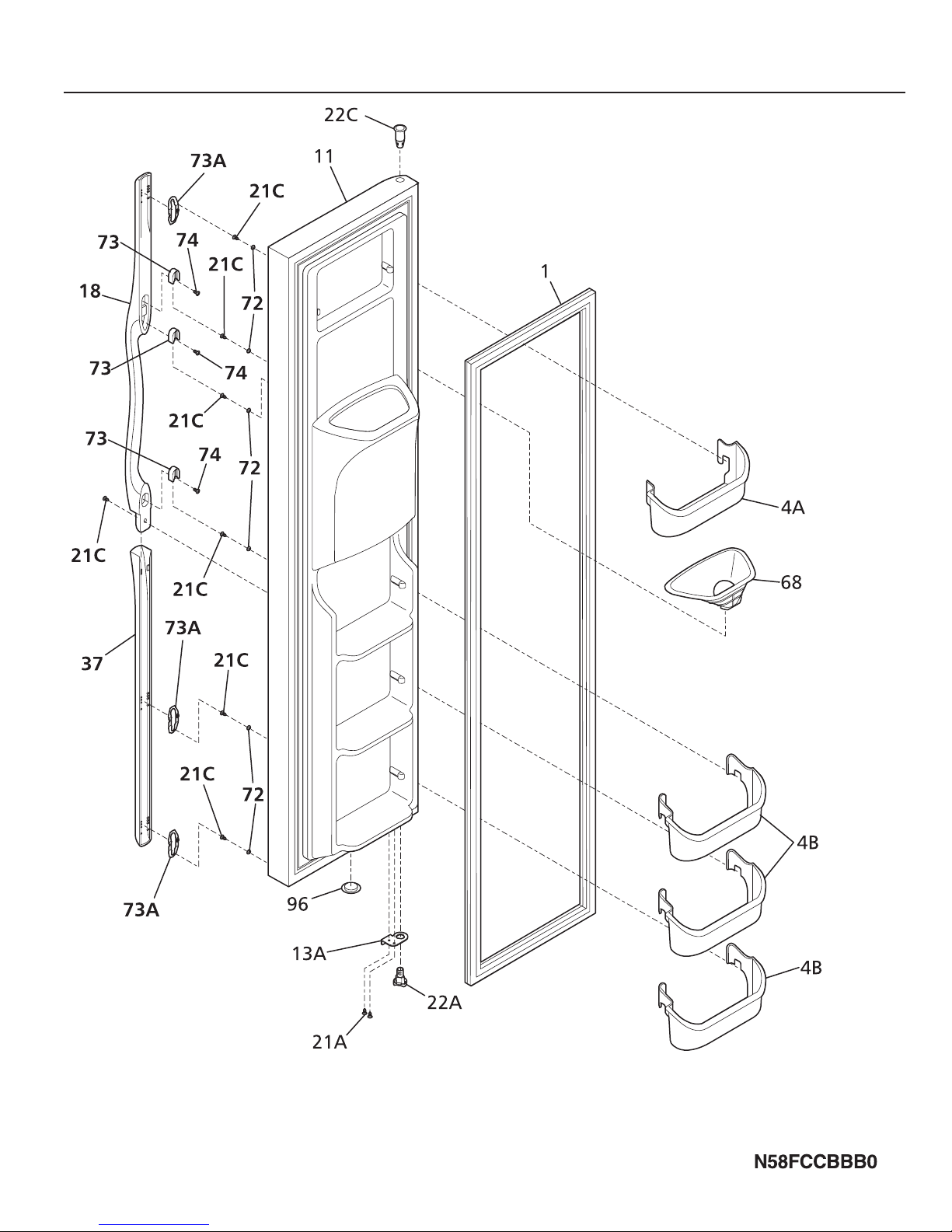

FREEZER DOOR

# = Fast-moving Parts 3 03/01

* = Non-Illustrated Parts

FRS23X5A Publication No.

5995351375

FREEZER DOOR

A = FRS23X5A (FRS23X5AW0)

B = FRS23X5A (FRS23X5AW1)

POS. NO PART NO DESCRIPTION

1 240390604 A B Gasket-door,white

4A 240367301 A B Bin-door,frzr-upper

4B 240359001 A B Bin-door

11 240451820 A B Panel-frzr door,white ,complete assy.

13A 240326002 A B Door Stop,white ,frzr

18 240359106 A B Handle-door

21C 218781100 A B Screw,pan head ,8-18 x 0.625

21A 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile

22A 240328202 A B Bearing-hinge,closer

22C 240328402 A B Bearing-hinge,upper

37 240359201 A B Trim-handle,30.13" ,white ,lower

68 240321902 A B Chute-ice

72 240421701 A B Button-handle mtg,dovetail

73 218396700 A B Block-handle mtg,dovetail

73A 240339101 A B Clip-trim

74 215503200 A B Screw,cr pan hd ,10-16 x 0.500

96 240345501 A B Plug-foam hole,white

* 240323201 A B Wiring Harness

* 240352101 A B Connector-water,straight

* 218915701 A B Plug-button,white

03/01 4

Publication No. FRS23X5A

5995351375

REFRIGERATOR DOOR

# = Fast-moving Parts 5 03/01

* = Non-Illustrated Parts

FRS23X5A Publication No.

5995351375

A = FRS23X5A (FRS23X5AW0)

B = FRS23X5A (FRS23X5AW1)

POS. NO PART NO DESCRIPTION

2 # 240390603 A B Gasket-refr door,white ,magnetic

4 240363701 A B Bin-door,2-liter

7 240338303 A B Door-dairy

13 240326001 A B Door Stop,white ,ref

15 240451913 A B Panel-refr door,white ,complete assy.

18 240359101 A B Handle-door

21A 5308016566 A B Screw,hex wshr hd, 8-15A x 0.625, low profile

21C 218781100 A B Screw,pan head ,8-18 x 0.625

22 240328201 A B Bearing-hinge,closer

22B 240328401 A B Bearing-hinge,upper

37 240359201 A B Trim-handle,30.13" ,white ,lower

49 240324501 A B Bin-door,gallon

72 240421701 A B Button-handle mtg,dovetail

73 218396700 A B Block-handle mtg,dovetail

73A 240339101 A B Clip-trim

74 215503200 A B Screw,cr pan hd ,10-16 x 0.500

96 240345501 A B Plug-foam hole,white

* 218915701 A B Plug-button,white

REFRIGERATOR DOOR

03/01 6

Publication No. FRS23X5A

5995351375

CABINET

# = Fast-moving Parts 7 03/01

* = Non-Illustrated Parts

FRS23X5A Publication No.

5995351375

A = FRS23X5A (FRS23X5AW0)

B = FRS23X5A (FRS23X5AW1)

POS. NO PART NO DESCRIPTION

10 240435901 A B Cover-air duct

10A 240435801 A B Cover-evap coil,lower

11 5303208309 A B Plug-hole,factory test

14 # 240413601 A B Switch-light/lamp

14A# 215486600 A B Switch-light/lamp

21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

22 240407801 A B Plate-door closer

23 240402701 A B Screw-#10-32 x 1/4 flat hd

28 240335501 A B Bolt-roller adj,hex wshr hd, 1/4-20 x 4.020,(2),special

30 240419101 A B Bracket-lower hinge, ref

30A 240419102 A B Bracket-lower hinge

37 240337601 A B Trim-cabinet corner,white ,(2)

38 240327201 A B Bracket-upper hinge

40 240327001 A B Cover-hinge

41 240358701 A B Grommet-shelf mtg,1.40" long

41* 240358801 A B Grommet-shelf mtg,.875" long

42 240315301 A B Screw-hinge mtg,hex head ,1/4-20 x 0.75

43 240335003 A B Roller Assy,front ,(2)

45 241500301 A B Screw,#8 18 x .500 ,(3)

47 218659500 A B Channel-shelf mtg,side ,(2)

58 218749600 A B Screw,#10 pan hd ,8-18 x .5

66 240324801 A B Cover-damper

66A 240324901 A B Damper-meat keeper

66B 240355901 A B Insulation-damper

72 240324401 A B Grille/Kickplate,white

81 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile

82 5304418225 A B Roller-rear,comp base ,(2)

83 215164200 A B Pin-roller,(2)

89 240326103 A B Cover-access,w/label

89* 240345702 A B Screw-compr plate mtg, truss hd, #10-16 x .500

90 218249804 A B Seal-coil cover

91 240380101 A B Duct-ice maker

92 5303001479 A B Screw-hinge mtg,hex hd ,1/4-20 x 0.875

100 240423701 A B Support-crspr cover,(4)

100* 240350802 A B Support-crspr cover,(4)

150 240368701 A B Guide-control bulb

* 240396801 A B Clamp-tube

* 5303305324 A B Paint,touch-up ,white

CABINET

03/01 8

Publication No. FRS23X5A

5995351375

SHELVES

# = Fast-moving Parts 9 03/01

* = Non-Illustrated Parts

FRS23X5A Publication No.

5995351375

A = FRS23X5A (FRS23X5AW0)

B = FRS23X5A (FRS23X5AW1)

POS. NO PART NO DESCRIPTION

2 240339601 A B Trim-basket

11 240338801 A B Shelf-freezer,flip-up

11B 240338703 A B Shelf-freezer,fixed wire

24 240355211 A B Shelf-"Spill-Safe",fixed

24A 240350107 A B Shelf-"Spill-Safe",cantilever ,sliding

25 240354501 A B Cover-crisper pan,upper

25* 240362101 A B Clip-slide,cover-crisper

25A 240354601 A B Cover-crisper pan,lower

26 240354705 A B Pan-crisper,upper

26* 240349801 A B Clip-slide,pan-crisper

26A 240351101 A B Control-humidity

27 240354805 A B Pan-crisper,lower

39 240367701 A B Trim-shelf,front

47 240350635 A B Insert-pan cover,glass

47A 240350614 A B Insert-pan cover,glass

49 240338401 A B Basket-sliding

49B 240338501 A B Basket-sliding,upper ,half

51 240343001 A B Hanger-basket,RH

52 240343101 A B Hanger-basket,LH

54 240351901 A B Plug-hanger,right hand

55 240352001 A B Plug-hanger,left hand

81 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile

97 240322001 A B Water Tank

100 240326301 A B Cover-water tank

101 218493100 A B Screw,hex washer head ,8-18AB x 1-3/4

126 218867401 A B Channel,auger mtg ,LH

126 218867402 A B Channel,auger mtg ,RH

SHELVES

03/01 10

Publication No. FRS23X5A

5995351375

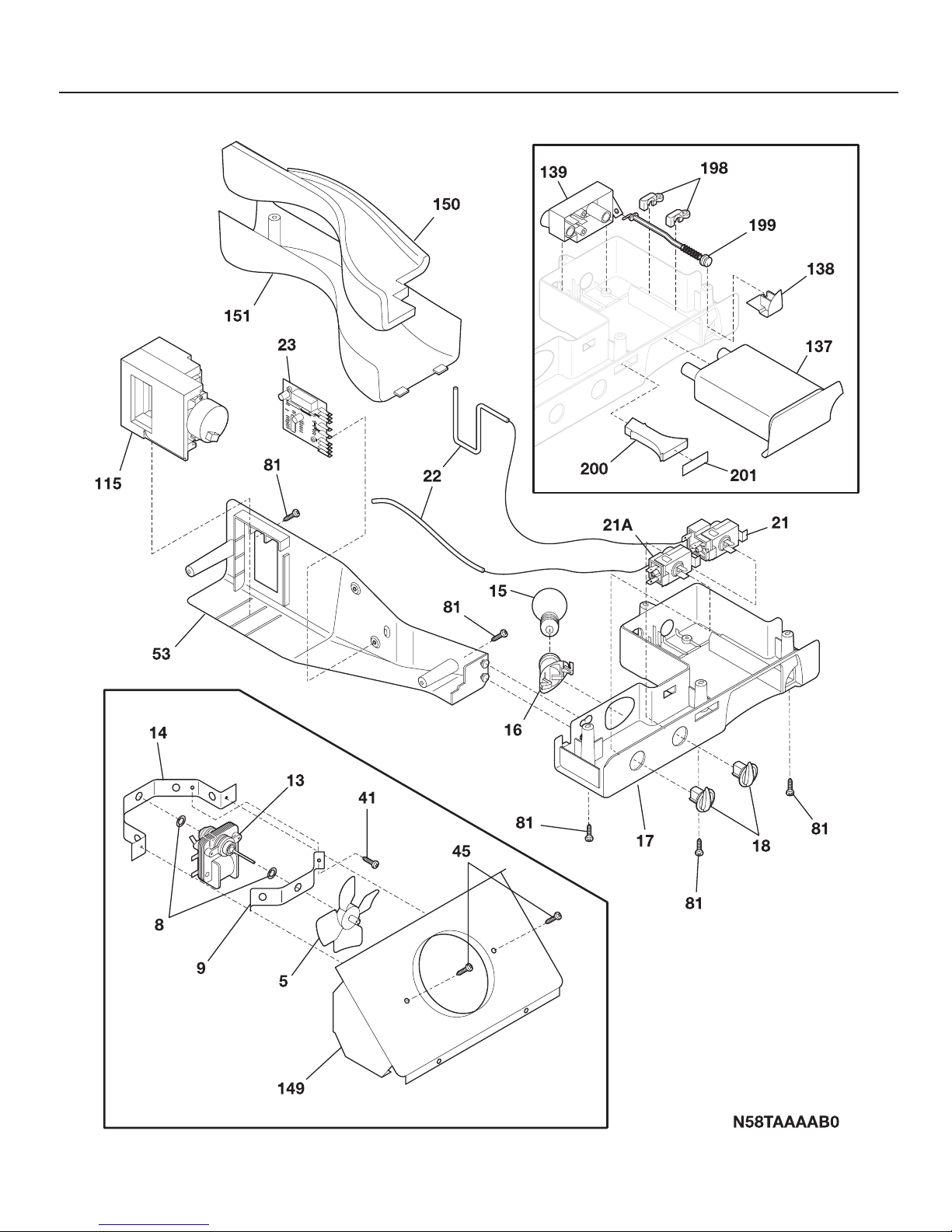

CONTROLS
