Frigidaire FRS26HR4D Manuale utente

Product No. FRS26HR4DWB

Series R134a

Color white

Volts 115

Wiring Diagram 241708401

Owner's Guide 241856000

Market North America

Energy Guide 241538730

Service Data Sheet 240389629

N58L00001.eps N58FACBBB4.eps N58RACBBB6.eps N58BAAAAA0.eps

N58SJCAAB15.eps N58TAAAAA7.eps N58CAAAAC10.eps N58XDAAAA1.eps

N58YBAAAA3.eps N58I1151.eps W241708401.eps S241708401.eps

u x Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995503629

07/11/06

(EN/SERVICE/KHB)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS6HR4D

Publication No: 5995503629 FRS26HR4DWB

11/07 2

FREEZER DOOR

FRS26HR4DWB Publication No: 5995503629

# Functional Parts 3 11/07

* Non-Illustrated Parts

FREEZER DOOR

POS. NO PART NO. DESCRIPTION

1 241786002 Gasket-frzr door, white, magnetic

4A 240334201 Bin-door, frzr-upper

4B 240351601 Bin-door

11 241668110 Door-frzr, white, complete assy

13A 240581902 Door Stop, white, frzr

18 218762701 Handle-door, white

21A 240598402 Screw, 10-32 x 1/2

21C 218781101 Screw, pan head, 8-18 x 0.625

22A 240328202 Bearing-hinge(frz), closer

22C 240328402 Bearing-hinge, natural, upper

37 218811618 Trim-handle, white, upper

37* 218676004 Band-decorative, satin aluminum, handle trim

37A 218811615 Trim-handle, white, lower

37A* 215782300 Lock-handle trim, snap-in

68 241525101 Chute-ice

* 240552101 Harness-wiring, door

* 241806601 Connector-water, straight

* 5303918256 Dispenser heater kit

Publication No: 5995503629 FRS26HR4DWB

11/07 4

REFRIGERATOR DOOR

FRS26HR4DWB Publication No: 5995503629

# Functional Parts 5 11/07

* Non-Illustrated Parts

REFRIGERATOR DOOR

POS. NO PART NO. DESCRIPTION

2 241786001 Gasket-refr door, white, magnetic

4 240323001 Bin-door, pseudo, bottom

7 240326203 Door-dairy

13 240581901 Door Stop, white, refr

15 240451901 Door-refr, white, complete assy

18 218762701 Handle-door, white

21A 240598402 Screw, 10-32 x 1/2

21C 218781101 Screw, pan head, 8-18 x 0.625

22 240328201 Bearing-hinge(ref), closer

22B 240328402 Bearing-hinge, natural, upper

37 218811618 Trim-handle, white, upper

37* 218676004 Band-decorative, satin aluminum, handle trim

37A 218811615 Trim-handle, white, lower

37A* 215782300 Lock-handle trim, snap-in

49 240356401 Bin-door, gallon

Publication No: 5995503629 FRS26HR4DWB

11/07 6

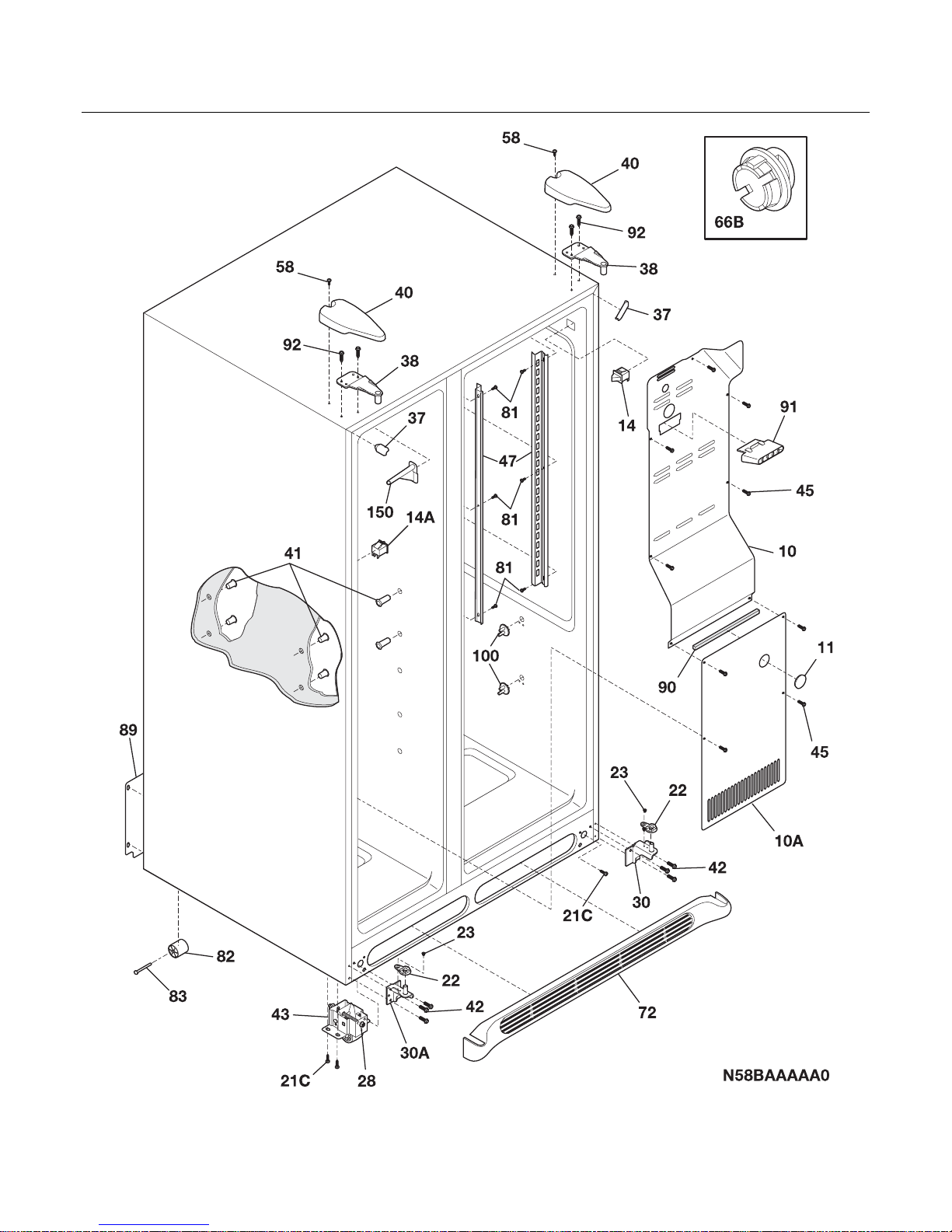

CABINET

FRS26HR4DWB Publication No: 5995503629

# Functional Parts 7 11/07

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

10 240435912 Cover-air duct

10A 241719711 Cover-evap coil, lower

11 5303208309 Plug-hole, factory test

14 240505801 Switch, light/lamp

14A 241547901 Switch-light/lamp, frzr door

21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500

22 240457701 Plate-door closer

23 240402702 Screw-#10-32 x 1/4 flat hd

28 241708801 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603703 Bracket-lower hinge, ref

30A 241603704 Bracket-lower hinge

37 240337608 Trim-cabinet corner, white, (2)

38 240327207 Bracket-upper hinge

40 240327005 Cover-upper hinge, white

41 241550801 Grommet-shelf mtg, 1.40" long

41* 241550701 Grommet-shelf mtg, .96" long

42 240578902 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 241709301 Roller Assy, adjustable, front, (2)

45 241500303 Screw, hex washer head, 8-18AB x 0.500

47 218659500 Channel-shelf mtg, side, (2)

58 218781101 Screw, pan head, 8-18 x 0.625

66B 240374301 Diffuser-air

66B* 240518802 Pin-push, push-in, plastic

72 240324409 Grille/Kickplate, white

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733902 Cover-access, w/label

90 218249808 Seal-coil cover

91 240380101 Duct-ice maker

92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 Support, crisper cover, front, (4)

100* 240350802 Support, crisper cover, rear, (4)

150 240368701 Guide-control bulb

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 240479601 Plug, button, cab liner holes

* 5303321319 Paint, touch-up, white

Publication No: 5995503629 FRS26HR4DWB

11/07 8

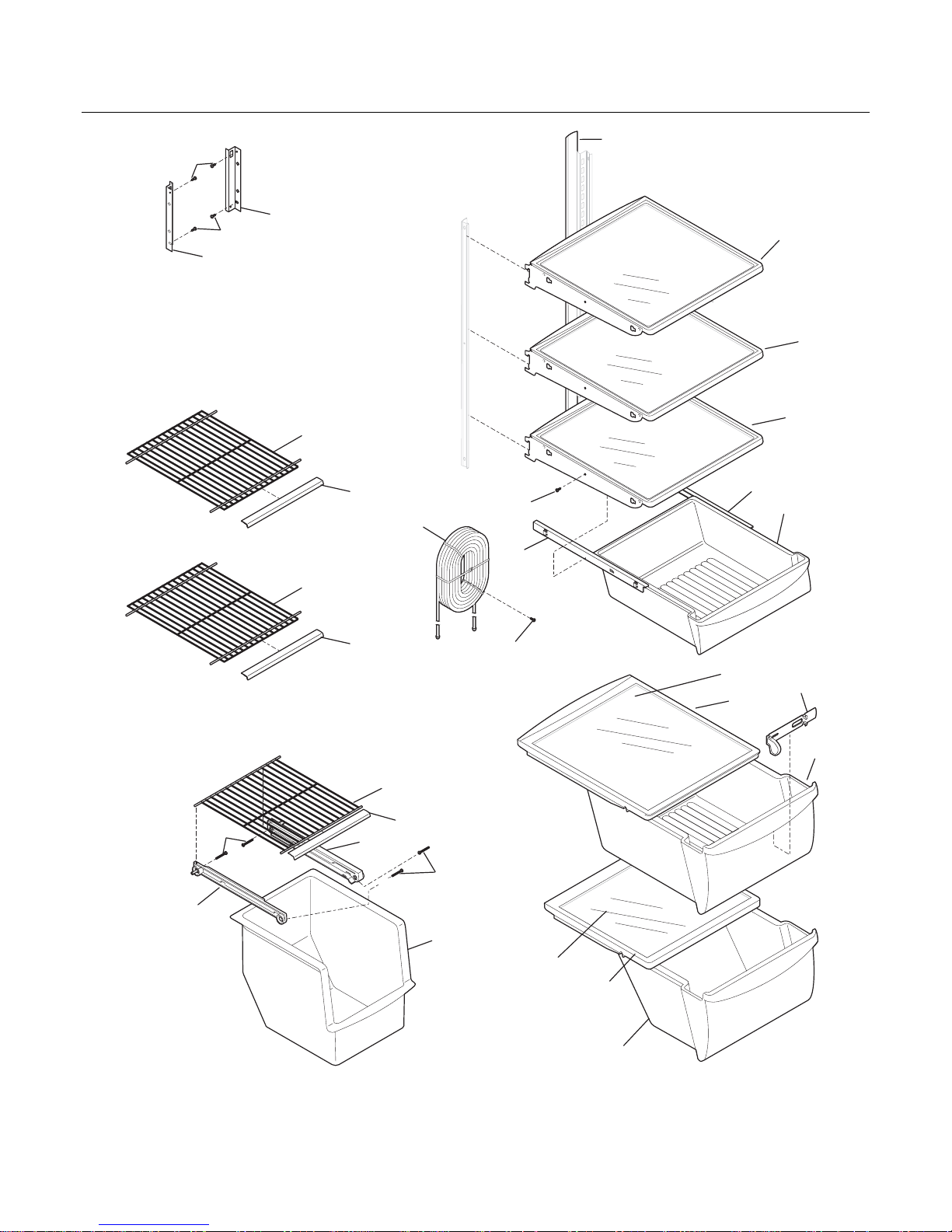

SHELVES

N58SJCAAB15

11B

11A

126

39B

123

25A

47A

101

26A

140

FRS26HR4DWB Publication No: 5995503629

# Functional Parts 9 11/07

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

11 241657602 Shelf, flip up, wire

11A 241657502 Shelf, fixed, freezer

11B 241657504 Shelf, fixed, upper, freezer

21 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625

24 240355208 Shelf-"Spill-Safe", fixed

25 240350702 Cover-crisper pan, upper

25* 240362101 Clip-slide, cover-crisper

25A 240350902 Cover-crisper pan, lower

26 240351005 Pan-crisper, upper

26* 240349801 Clip-slide, pan-crisper

26A 240362201 Control-humidity

27 240351206 Pan-crisper, lower

39 240430706 Trim-shelf, 11.21", front

39B 240430702 Trim-shelf, 12.39", front

42 240356501 Track, meat pan hanger, RH

42 240365401 Track, meat pan hanger, LH

47 240350633 Insert-pan cover, glass

47A 240350603 Insert-pan cover, glass

49 240564401 Basket-sliding

51 240343002 Hanger-basket, RH

52 240343102 Hanger-basket, LH

62 240342806 Pan-meat

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

97 240545308 Water Tank

101 218493101 Screw, hex washer head, 8-18AB x 1-3/4

123 215005101 Screw, hanger/rlr mtg, 8-10 x 7/16

126 241674401 Channel, auger mtg, LH

126 241674402 Channel, auger mtg, RH

140 240430501 Channel, wtr tube cover

* 241538730 Energy Guide

Publication No: 5995503629 FRS26HR4DWB

11/07 10

CONTROLS

140

139

138

137

151

150

115

101

21A 21

N58TAAAAA7

149
