Frigidaire FRS26LF8C Manuale di istruzioni

N58L00001.eps N58FFCBBC1.eps N58RFCBBC7.eps N58BAAAAB1.eps

N58SLDGBE13.eps N58TAAAAB3.eps N58CAAAAC0.eps N58XEAAAA0.eps

N58YAAAAA0.eps N58I115.eps W241526901A.eps S241526901A.eps

Product No. FRS26LF8CS1

Series R134a

Color stain/blk

Volts 115

Wiring Diagram 241526901

Owner's Guide 240389311

Market North American

Energy Guide 241538713

Service Data Sheet 240389615

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995403663

04/02/11

(EN/SERVICE/DCS)

357

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS26LF8C

Publication No: 5995403663 FRS26LF8CS1

02/04 2

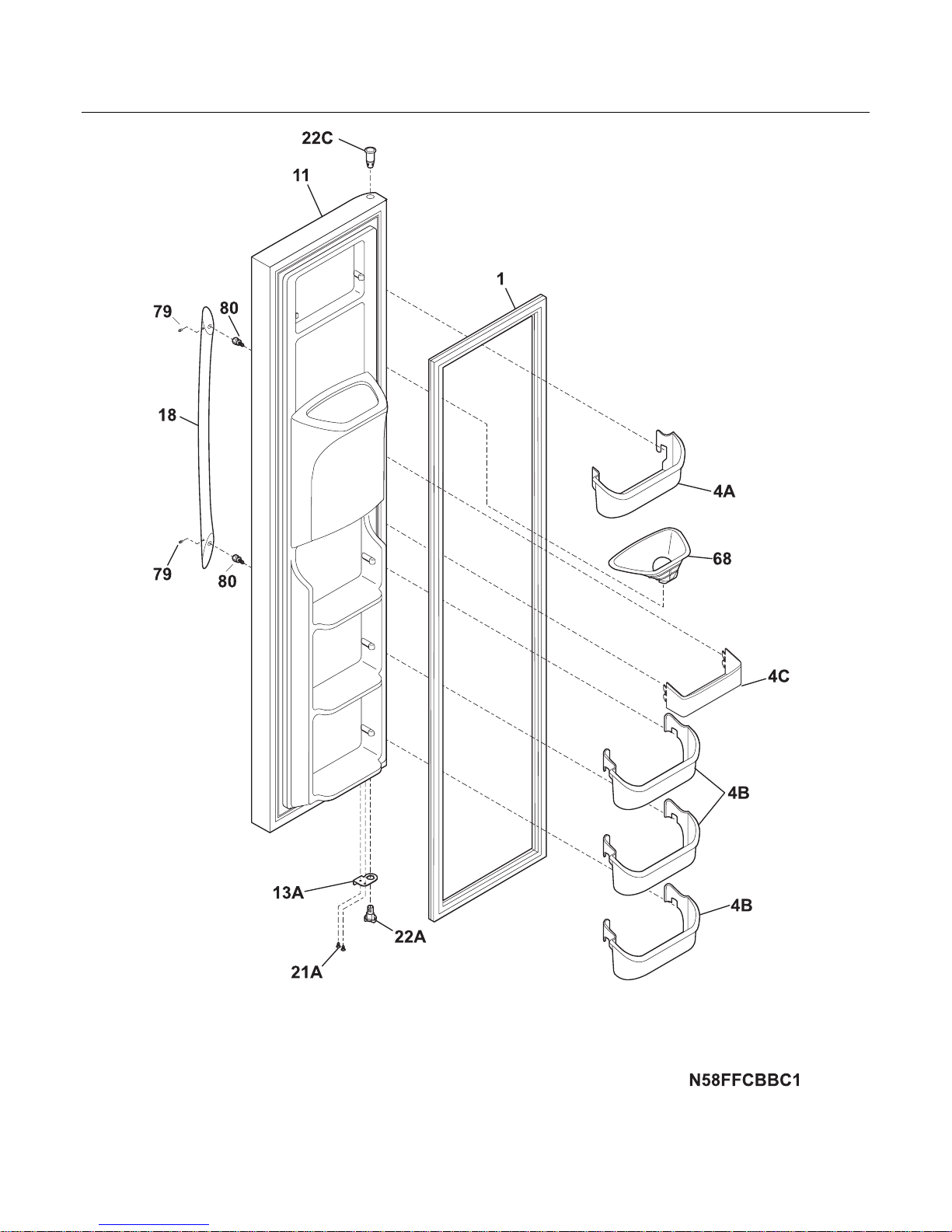

FREEZER DOOR

FRS26LF8CS1 Publication No: 5995403663

# Functional Parts 3 02/04

* Non-Ilustrated Parts

FREEZER DOOR

POS. NO PART NO. DESCRIPTION

1 # 240390606 Gasket-frzr door, black, magnetic

4A 240334202 Bin-door, frzr-upper

4B 240351602 Bin-door

4C 240351702 Bin-door, frzr-dispenser

11 240554227 Door-frzr, stainless steel, complete assy

13A 240581906 Door Stop, black, frzr

18 240409801 Handle-door, stainless steel, with insert

18 240536801 Handle-door, stainless steel, with insert

21A 240598401 Screw, 10-32 x 1/2

22A 240328202 Bearing-hinge, closer

22C 240328404 Bearing-hinge, black, upper

68 241525101 Chute-ice

79 218755402 Screw-set, 10-32 x 0.375

80 218755503 Screw-shoulder, #10 AB, handle mounting

* 240352102 Connector-water, straight

* 240470401 Connector-amp

* 240552102 Harness-wiring, door

* 5303918256 Dispenser heater kit

Publication No: 5995403663 FRS26LF8CS1

02/04 4

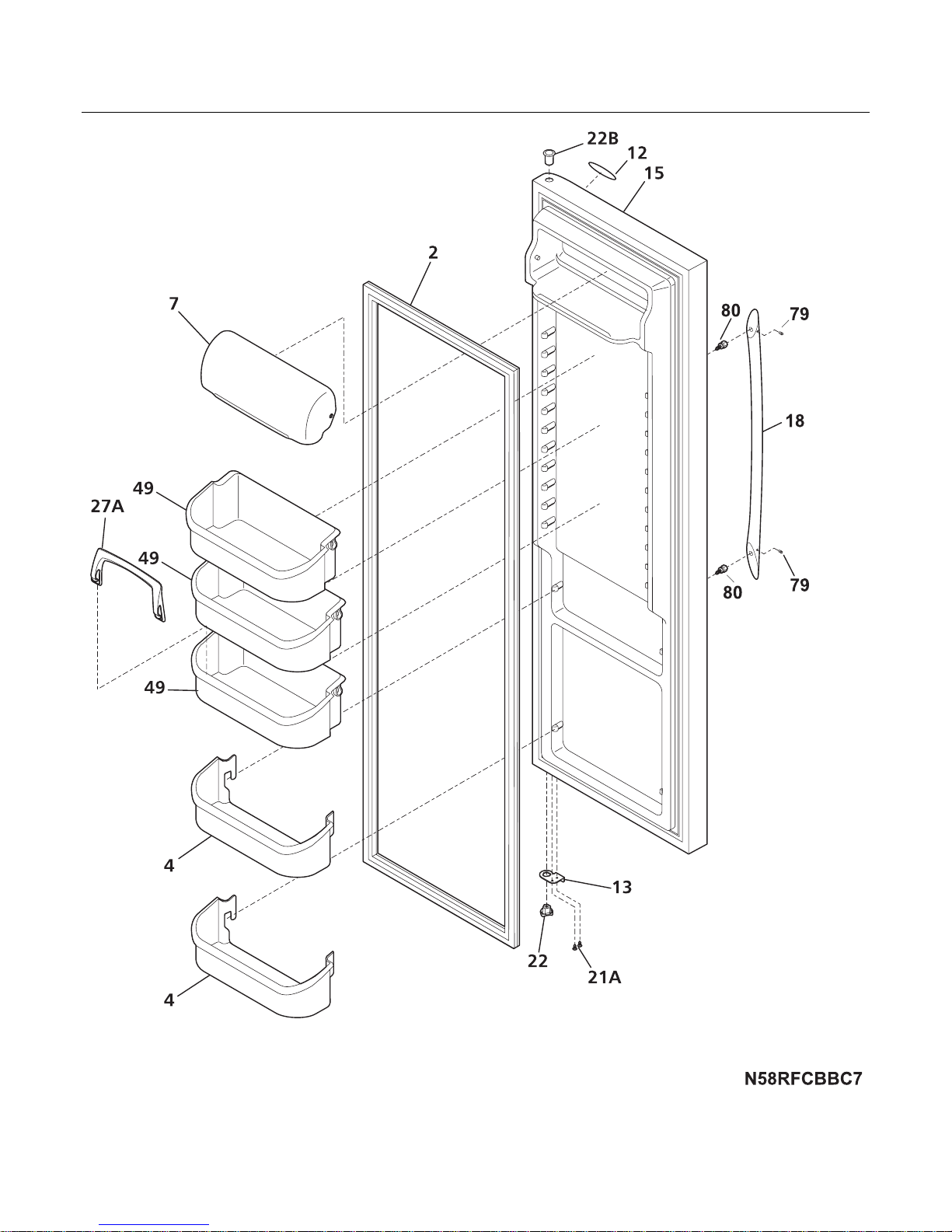

REFRIGERATOR DOOR

FRS26LF8CS1 Publication No: 5995403663

# Functional Parts 5 02/04

* Non-Ilustrated Parts

REFRIGERATOR DOOR

POS. NO PART NO. DESCRIPTION

2 240390605 Gasket-refr door, black, magnetic

4 240323002 Bin-door, pseudo, bottom

7 240326203 Door-dairy

12 240572601 Label-nameplate

13 240581905 Door Stop, black, ref

15 240451981 Door-refr, stainless steel, complete assy

18 240536801 Handle-door, stainless steel, with insert

21A 240598401 Screw, 10-32 x 1/2

22 240328201 Bearing-hinge, closer

22B 240328404 Bearing-hinge, black, upper

27A 240396102 Retainer, tall bottle

49 240356402 Bin-door, gallon

79 218755402 Screw-set, 10-32 x 0.375

80 218755503 Screw-shoulder, #10 AB, handle mounting

Publication No: 5995403663 FRS26LF8CS1

02/04 6

CABINET

40 66

14A

100

21C

30A

10A

N58BAAAAB1

150

FRS26LF8CS1 Publication No: 5995403663

# Functional Parts 7 02/04

* Non-Ilustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

10 240435906 Cover-air duct

10A 240475907 Cover-evap coil, lower

11 5303208309 Plug-hole, factory test

14 # 240505801 Switch, light/lamp

14A# 215486600 Switch-light/lamp

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 240457701 Plate-door closer

23 240402701 Screw-#10-32 x 1/4 flat hd

28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240419103 Bracket-lower hinge, ref

30A 240419104 Bracket-lower hinge

37 240337603 Trim-cabinet corner, black, (2)

38 240327202 Bracket-upper hinge

40 240327007 Cover-upper hinge, black

41 240358701 Grommet-shelf mtg, 1.40" long

41* 240358801 Grommet-shelf mtg, .875" long

42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 Roller Assy, front, (2)

45 241500301 Screw, hex washer head, 8-18AB x 0.500

47 240349402 Channel-shelf mtg, side, (2)

58 218781100 Screw, pan head, 8-18 x 0.625

66 5304424968 Damper Cover Assy

72 240324406 Grille/Kickplate, black

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 240326111 Cover, access, system compt, with label

90 218249808 Seal-coil cover

91 240380101 Duct-ice maker

92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 Support, crisper cover, front, (4)

100* 240350802 Support, crisper cover, rear, (4)

150 240368701 Guide-control bulb

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 240479601 Plug, button, cab liner holes, (2)

* 240481601 Shim-lower hinge

* 5303305345 Paint, touch-up, black

Publication No: 5995403663 FRS26LF8CS1

02/04 8

SHELVES

11A

16 15

141

142

140A

126

52A

109

51A

49B

49A

101

N58SLDGBE13

100

25A

47A

15A

16A

26A

27A

42A

123

24A

140

120

11C

24B

136

FRS26LF8CS1 Publication No: 5995403663

# Functional Parts 9 02/04

* Non-Ilustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

2 241510604 Trim-basket

11 240350668 Shelf-freezer, glass, lower

11A 240350667 Shelf-freezer, glass, upper

11C 240324101 Shelf-pizza

15 240588001 Light Bulb

15A 240436702 Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature

16 240590401 Socket-light

16A# 241513901 Socket-light

16A* 241537502 Harness-wiring

24 240355203 Shelf-"Spill-Safe", fixed

24A 240350106 Shelf-"Spill-Safe", cantilever, sliding

24B 240424602 Shelf-"Spill-Safe", sliding, "Aspect", complete

25 240350702 Cover-crisper pan, upper

25* 240362101 Clip-slide, cover-crisper

25A 240350902 Cover-crisper pan, lower

26 240351009 Pan-crisper, upper

26* 240349801 Clip-slide, pan-crisper

26* 240423101 Channel-divider

26* 240423201 Retainer

26* 240423301 Divider-crisper pan

26A 241552301 Control-humidity

26A* 240423001 Frame-humidity control, upper

27 240351205 Pan-crisper, lower

27A 240362201 Control-humidity

39 240367602 Trim-shelf, front

42 240356501 Track, meat pan hanger, RH

42A 240349701 Hanger-meat pan, LH

42A* 240349901 Block-meat pan rail, LH

42A* 240350001 Spring-meat pan rail

47 240350602 Insert-pan cover, glass

47A 240350603 Insert-pan cover, glass

49 240564401 Basket-sliding

49A 240530502 Basket-sliding, upper, half

49B 240530504 Basket-sliding, upper, full

51 240343002 Hanger-basket, RH

51A 240395502 Hanger-basket, RH

52 240343102 Hanger-basket, LH

52A 240395602 Hanger-basket, LH

62 240342805 Pan-meat

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

97 240545303 Water Tank Assy, coiled tubing, front filter

100 240326302 Cover-water tank

101 218493100 Screw, hex washer head, 8-18AB x 1-3/4

109 240351301 Base-crisper light socket

120 240342902 Shelf-ice cream

123 215005100 Screw, hanger/rlr mtg, 8-10 x 0.438

126 218867405 Channel, auger mtg, LH

126 218867406 Channel, auger mtg, RH

136 240424502 Dispenser-can, clear

140 240430501 Channel, wtr tube cover

140A 240430503 Channel, wtr tube cover

141 240585404 Bracket-light socket

142 240582701 Shield-light, deli pan

* 241538713 Energy Guide

Publication No: 5995403663 FRS26LF8CS1

02/04 10

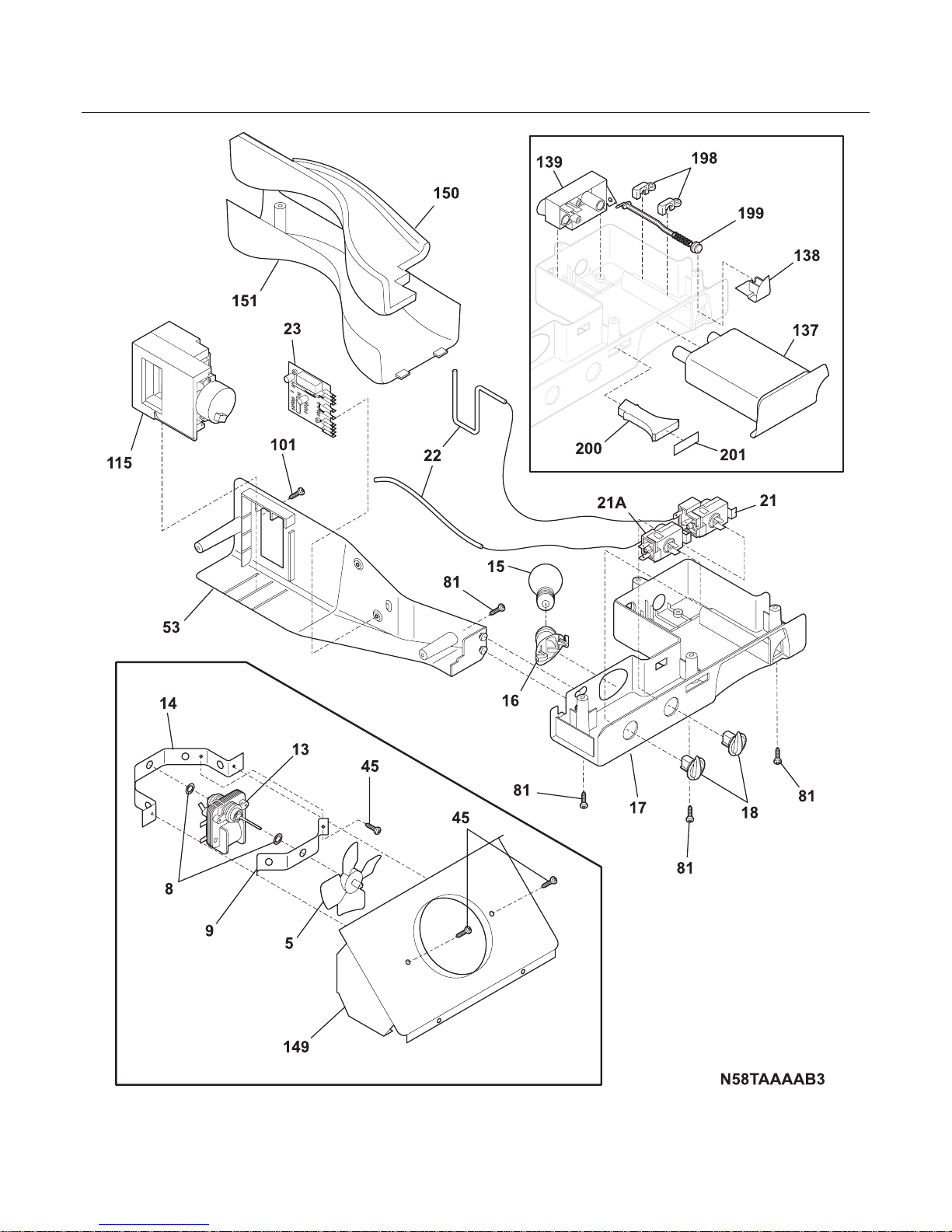

CONTROLS
