Frigidaire PHSC239D Manuale utente

E23CS75DSS0.eps N58FFDCFA0.eps N58RFDCIA0.eps N58BABAAD0.eps

N58SDDLBE1.eps N58TBAAAB1.eps N58CACBAA0.eps N58XEAAAA0.eps

N58YDAAACO.eps n58I115T.eps W241516401A.eps S241516401A.eps

Product No. PHSC239DSB0

Series counter depth

Color black

Volts 115

Wiring Diagram 241516401A

Owner's Guide 241540300

Market North America

Energy Guide 241538719

Service Data Sheet 241532603

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995412235

04/06/25

(EN/SERVICE/KHB)

357

SIDE-BY-SIDE

REFRIGERATOR

Model No.

PHSC239D

Publication No: 5995412235 PHSC239DSB0

06/04 2

FREEZER DOOR

22C

22A

21A

13A

N58FFDCFA0

79 80

PHSC239DSB0 Publication No: 5995412235

# Functional Parts 3 06/04

* Non-Illustrated Parts

FREEZER DOOR

POS. NO PART NO. DESCRIPTION

1 # 241510204 Gasket-frzr door, black, magnetic

4B 241511605 Bin-door, frzr

5 241545001 Bin-tilt out, tilt-out

11 240554279 Door-frzr, stainless, complete assy

13A 240581906 Door Stop, black, frzr

18 240536801 Handle-door, stainless steel, with insert

21A 240598401 Screw, 10-32 x 1/2

22A 240328204 Bearing-hinge, closer

22C 240328404 Bearing-hinge, black, upper

68 241525101 Chute-ice

79 218755402 Screw-set, 10-32 x 0.375

80 218755503 Screw-shoulder, #10 AB, handle mounting

* 240545101 Connector-water, straight

* 240552102 Harness-wiring, door

Publication No: 5995412235 PHSC239DSB0

06/04 4

REFRIGERATOR DOOR

N58RFDCIA0

49A

22B

21A

27A

PHSC239DSB0 Publication No: 5995412235

# Functional Parts 5 06/04

* Non-Illustrated Parts

REFRIGERATOR DOOR

POS. NO PART NO. DESCRIPTION

2 # 241510203 Gasket-refr door, black, magnetic

5 241516102 Rack-can

6 241515901 Lug-dairy compartment

7 241515601 Door-dairy

12 240558802 Label-nameplate

13 240581905 Door Stop, black, ref

15 241534509 Door-refr, stainless, complete assy

18 240536801 Handle-door, stainless steel, with insert

21A 240598401 Screw, 10-32 x 1/2

22 240328203 Bearing-hinge, closer

22B 240328404 Bearing-hinge, black, upper

27A 240396102 Retainer, tall bottle

48 241511703 Bin-door, ref

49 240430319 Bin-door, 2-liter

49A 240430320 Bin-door, gallon

50 241508401 Cover-magnet

70 241515801 Compartment-dairy, removable

79 218755402 Screw-set, 10-32 x 0.375

80 218755503 Screw-shoulder, #10 AB, handle mounting

Publication No: 5995412235 PHSC239DSB0

06/04 6

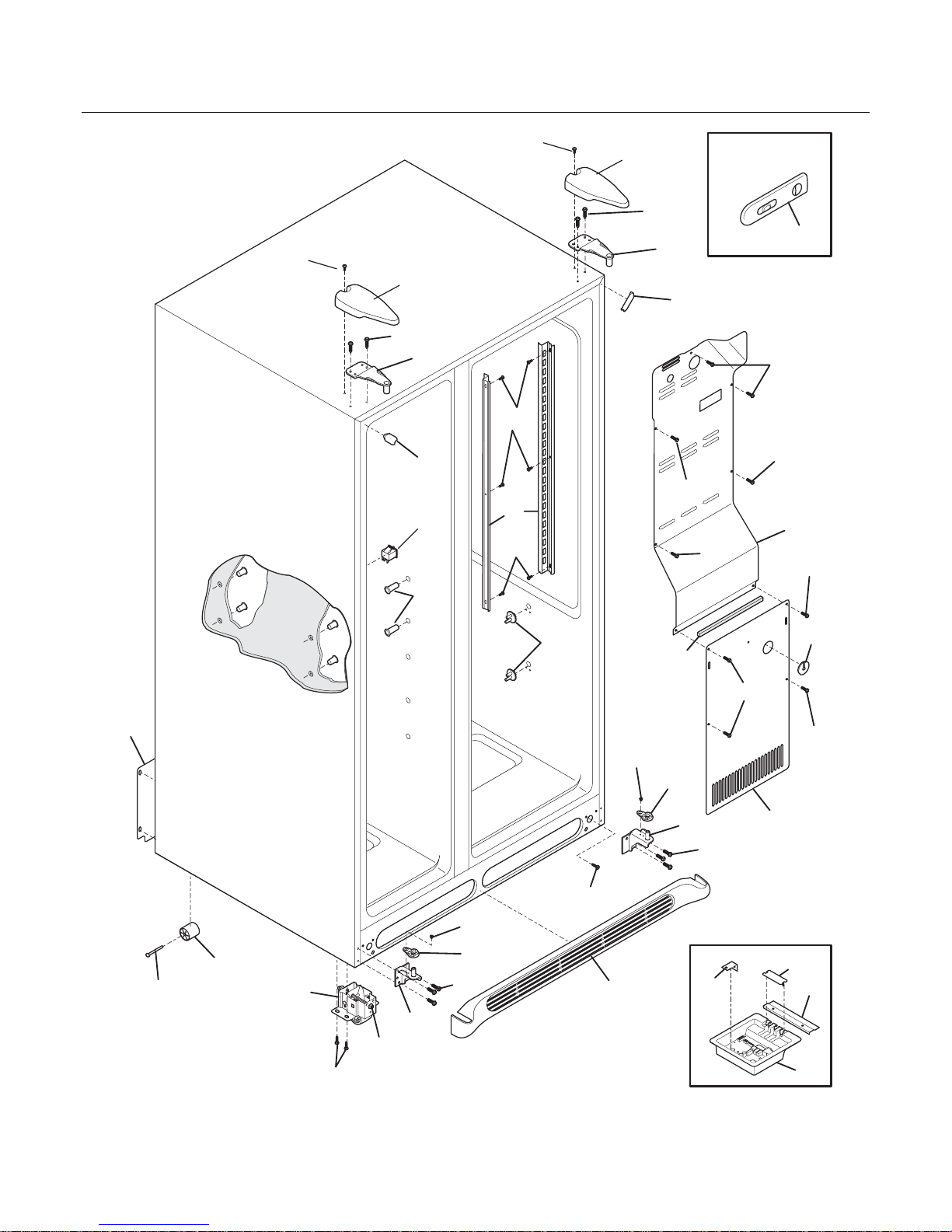

CABINET

100

30A

21C

10A

N58BABAAD0

14A

PHSC239DSB0 Publication No: 5995412235

# Functional Parts 7 06/04

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

10 241509802 Cover-air duct

10A 240475907 Cover-evap coil, lower

11 241529301 Plug-hole, factory test

14A 241547901 Switch-light/lamp, frzr door

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 Plate-door closer

23 240402701 Screw-#10-32 x 1/4 flat hd

28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240419101 Bracket-lower hinge, ref

30A 240419102 Bracket-lower hinge

37 240337603 Trim-cabinet corner, black, (2)

38 240327201 Bracket-upper hinge

40 240327007 Cover-upper hinge, black

41 241550801 Grommet-shelf mtg, 1.40" long

41* 241550701 Grommet-shelf mtg, .96" long

42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 Roller Assy, front, (2)

45 241500301 Screw, hex washer head, 8-18AB x 0.500

47 241513001 Channel-shelf mtg, side, (2)

50 241511102 Board-main power

50* 241532501 Clip-harness

52 241524802 Seal, housing

53 241509101 Bracket

54 241532401 Channel

58 218781100 Screw, pan head, 8-18 x 0.625

66 241513601 Damper Assy

72 241521610 Grille/Kickplate, bisque

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574602 Cover access

90 218249808 Seal-coil cover

92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 Support, crisper cover, front, (4)

100* 240350802 Support, crisper cover, rear, (4)

* 240479601 Plug, button, cab liner holes, (2)

* 241591701 Louver

* 5303305345 Paint, touch-up, black

Publication No: 5995412235 PHSC239DSB0

06/04 8

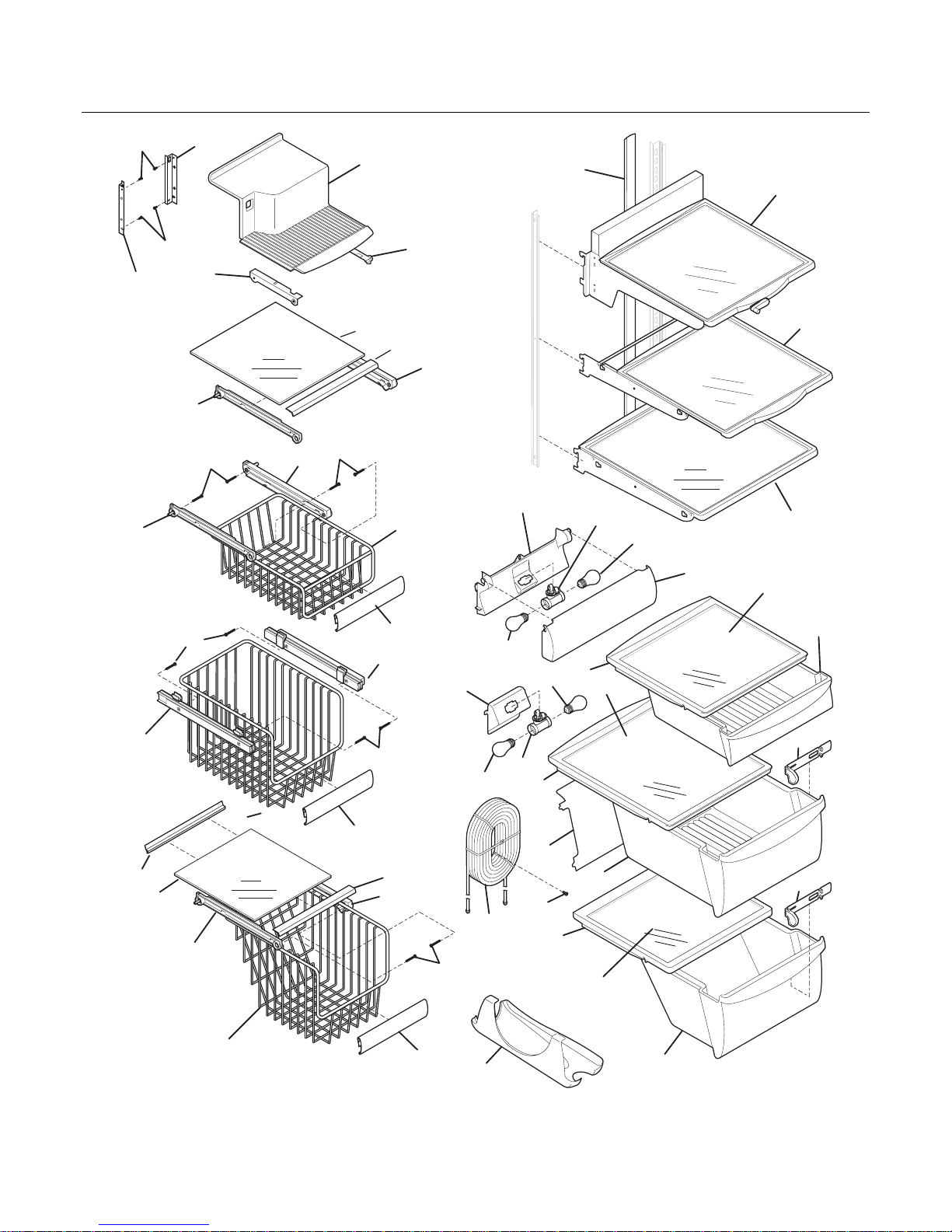

SHELVES

51A

140

136

126

122

121

120

109

108

107

101 101

101

100

52B

52A

51B

51A

49B

49A

47B

47A

27A

26A

25B

25A

24C

24B

N58SDDLBE1

11A

PHSC239DSB0 Publication No: 5995412235

# Functional Parts 9 06/04

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

2 241510605 Trim-basket

11 240443353 Shelf-freezer, glass, lower

11A 240443354 Shelf-freezer, glass, upper

16 241507803 Socket-light

16* 241513101 Harness-wiring

24 240355239 Shelf-"Spill-Safe", fixed

24B 240350126 Shelf-"Spill-Safe", cantilever, sliding

24C 240424607 Shelf-"Spill-Safe", sliding, "Aspect", complete

25 240599301 Cover-crisper pan, upper

25* 240362101 Clip-slide, cover-crisper

25A 240350902 Cover-crisper pan, lower

25B 240599801 Cover-meat pan

26 240351022 Pan-crisper, upper

26* 240349801 Clip-slide, pan-crisper

26* 240423101 Channel-divider

26* 240423201 Retainer

26* 240423301 Divider-crisper pan

26A 241552301 Control-humidity

26A* 241552401 Frame-humidity control, upper

27 240351219 Pan-crisper, lower

27A 240362201 Control-humidity

39 240367603 Trim-shelf, 11.65", front

41 241571201 Trim-shelf, rear

47 240350602 Insert-pan cover, glass

47A 240350603 Insert-pan cover, glass

47B 240443352 Insert-pan cover, glass

49 241515001 Basket-sliding

49A 241528001 Basket-sliding, upper, half

49B 241514901 Basket-sliding, upper, full

51 241514501 Hanger-basket, RH

51A 241514701 Hanger-shelf glass, RH

51B 240579803 Hanger-basket, RH

52 241514601 Hanger-basket, LH

52A 241514801 Hanger-shelf glass, LH

52B 240579804 Hanger-basket, LH

60 5303207328 Screw, hex washer head, 8-15A x 1.000, (2)

62 240599703 Pan-meat

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

97 241532002 Water Tank

100 241549901 Cover-water tank

101 218493100 Screw, hex washer head, 8-18AB x 1-3/4

107 241513401 Shield-light, crisper

108 241513301 Cover-wiring, crisper light

109 241513201 Base-crisper light socket

120 241504501 Shelf-ice cream

121 241504701 Rail-ice cream shelf, LH

122 241504702 Rail-ice cream shelf, RH

123 215005100 Screw, hanger/rlr mtg, 8-10 x 0.438

126 218867405 Channel, auger mtg, LH

126 218867406 Channel, auger mtg, RH

136 240424502 Dispenser-can, clear

140 240430505 Channel, wtr tube cover

Publication No: 5995412235 PHSC239DSB0

06/04 10

CONTROLS

201

199

198

151

149

139

138

137

116

115

N58TBAAAB1
