Frigidaire FRS26R2A Manuale di istruzioni
PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRS26R2AQ2 FRS26R2A R134a bisque 115
FRS26R2AQ3 FRS26R2A R134a bisque 115
FRS26R2AW2 FRS26R2A R134a white 115
FRS26R2AW3 FRS26R2A R134a white 115
MARKET
North America
Publication No.
5995367439
020305
-EN/SERVICE /ECL
357
SIDE BY SIDE
REFRIGERATOR
Model No.
FRS26R2A
©2002 Electrolux Home Products, Inc.
All rights reserved
WIRING DIAGRAM - 2 = # 240389604/3=#240389607
OWNER’S GUIDE - # 240389304
SERVICE DATA SHEET - 2 = # 240389604/3=#240389607
ELECTROLUX HOME PRODUCTS, INC
P.O. BOX 212378, Augusta, GA 30917
FACTORY
PARTS CATALOG
03/02 2
Publication No. FRS26R2A
5995367439

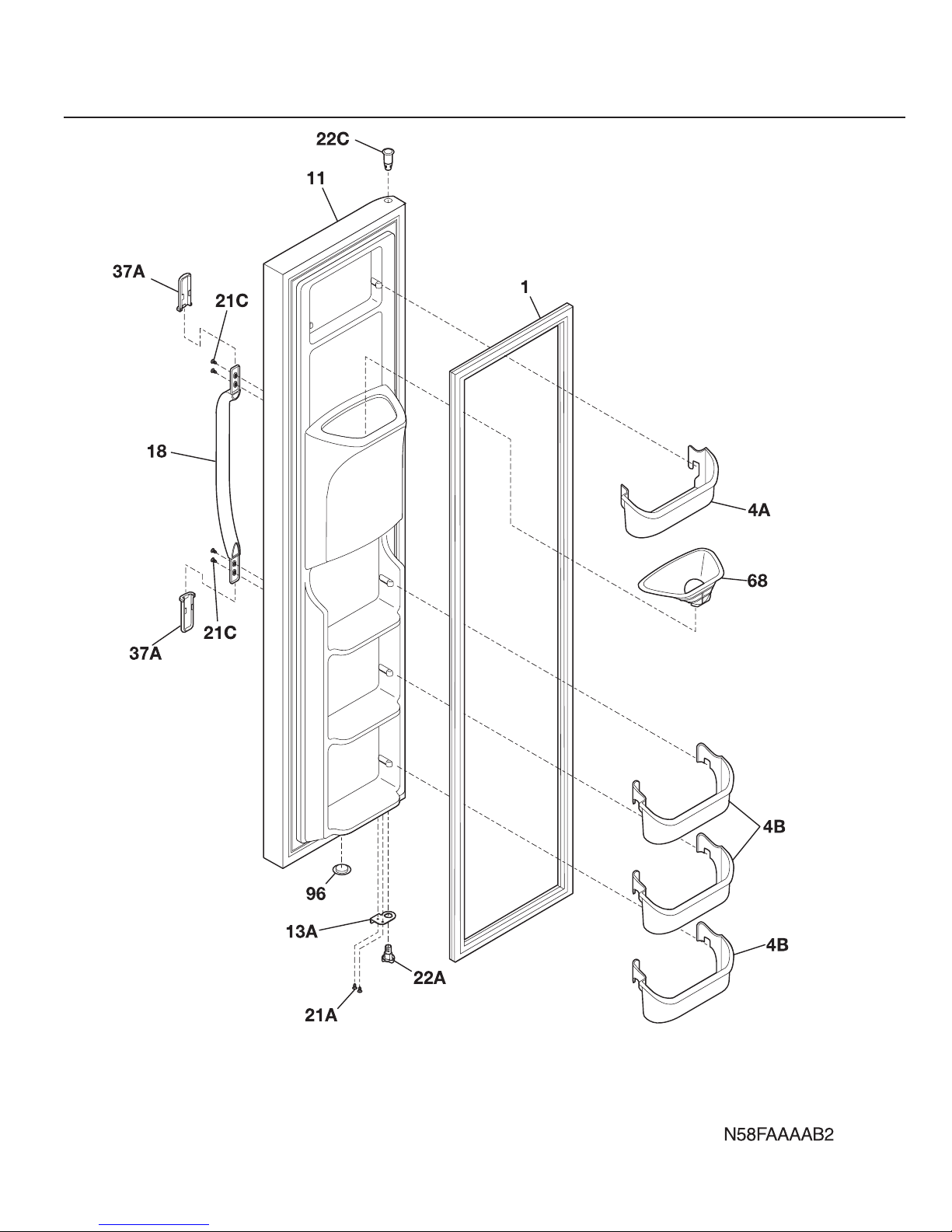

FREEZER DOOR
# = Fast-moving Parts 3 03/02
* = Non-Illustrated Parts
FRS26R2A Publication No.
5995367439
FREEZER DOOR
A = FRS26R2A (FRS26R2AW2)
B = FRS26R2A (FRS26R2AW3)
C = FRS26R2A (FRS26R2AQ2)
D = FRS26R2A (FRS26R2AQ3)
POS. NO PART NO DESCRIPTION
1 # 240390602 A B C D Gasket-frzr door,white ,magnetic
4A 240334201 A B C D Bin-door,frzr-upper
4B 240351601 A B C D Bin-door
11 240451802 A B - - Door-frzr,white ,complete assy
11 240451808 - - C D Door-frzr,bisque ,complete assy
13A 240456902 A - - - Door Stop,white ,frzr
13A 240537102 - B - - Door Stop,white ,frzr
13A 240456904 - - C - Door Stop,bisque ,frzr
13A 240537104 ---D Door Stop,bisque ,frzr
18 218762701 A B - - Handle-door,white
18 218762706 - - C D Handle-door,bisque
21A 5308016566 A B C D Screw,hex washer head ,8-15A x 0.625 ,low profile
21C 218781100 A B C D Screw,pan head ,8-18 x 0.625
22A 240328202 A B C D Bearing-hinge,closer
22C 240328402 A B C D Bearing-hinge,upper
37A 215870629 A B - - Trim-handle,2.47" ,white ,w/satin AL band
37A 215870633 - - C D Trim-handle,2.47" ,bisque ,w/satin AL band
68 240467701 A B C D Chute-ice
96 240345505 A B C D Plug,door foam hole ,white
* 240323201 A B C D Wiring Harness
* 240352101 A B C D Connector-water,straight
* 5303918256 A B C D Dispenser heater kit
03/02 4
Publication No. FRS26R2A
5995367439

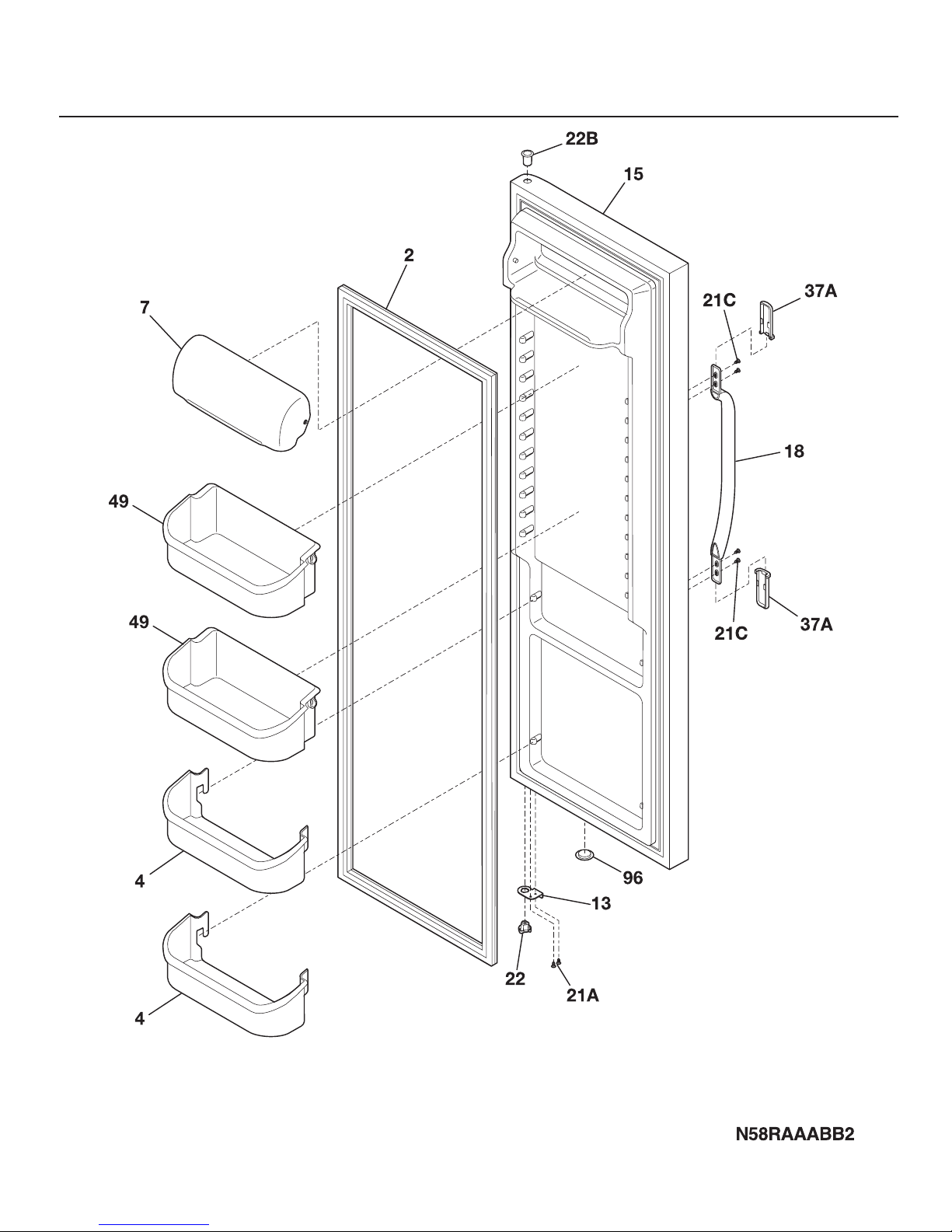

REFRIGERATOR DOOR
# = Fast-moving Parts 5 03/02
* = Non-Illustrated Parts
FRS26R2A Publication No.
5995367439
A = FRS26R2A (FRS26R2AW2)
B = FRS26R2A (FRS26R2AW3)
C = FRS26R2A (FRS26R2AQ2)
D = FRS26R2A (FRS26R2AQ3)
POS. NO PART NO DESCRIPTION
2 # 240390601 A B C D Gasket-refr door,white ,magnetic
4 240323001 A B C D Bin-door,pseudo ,bottom
7 240326203 A B C D Door-dairy
13 240456901 A - - - Door Stop,white ,ref
13 240537101 - B - - Door Stop,white ,ref
13 240456903 - - C - Door Stop,bisque ,ref
13 240537103 ---D Door Stop,bisque ,ref
15 240451902 A B - - Door-refr,white ,complete assy
15 240451906 - - C D Door-refr,bisque ,complete assy
18 218762701 A B - - Handle-door,white
18 218762706 - - C D Handle-door,bisque
21A 5308016566 A B C D Screw,hex washer head ,8-15A x 0.625 ,low profile
21C 218781100 A B C D Screw,pan head ,8-18 x 0.625
22 240328201 A B C D Bearing-hinge,closer
22B 240328401 A B C D Bearing-hinge,upper
37A 215870629 A B - - Trim-handle,2.47" ,white ,w/satin AL band
37A 215870633 - - C D Trim-handle,2.47" ,bisque ,w/satin AL band
49 240356401 A B C D Bin-door,gallon
96 240345505 A B C D Plug,door foam hole ,white
REFRIGERATOR DOOR
03/02 6
Publication No. FRS26R2A
5995367439
CABINET
# = Fast-moving Parts 7 03/02
* = Non-Illustrated Parts
FRS26R2A Publication No.
5995367439
A = FRS26R2A (FRS26R2AW2)
B = FRS26R2A (FRS26R2AW3)
C = FRS26R2A (FRS26R2AQ2)
D = FRS26R2A (FRS26R2AQ3)
POS. NO PART NO DESCRIPTION
10 240435902 A B C D Cover-air duct
10A 240475902 A B C D Cover-evap coil,lower
11 5303208309 A B C D Plug-hole,factory test
14 # 240413601 A B C D Switch,light/lamp ,rocker
14A# 215486600 A B C D Switch-light/lamp
21C 218252200 A B C D Screw,#8 truss hd ,10-32CA x 0.500
22 240457701 A B C D Plate-door closer
23 240402701 A B C D Screw-#10-32 x 1/4 flat hd
28 240335501 A B C D Bolt-roller adj,hx wshr hd ,1/4-20 x 4.020,(2) ,special
30 240419103 A B C D Bracket-lower hinge, ref
30A 240419104 A B C D Bracket-lower hinge
37 240337601 A B - - Trim-cabinet corner,white ,(2)
37 240337604 - - C D Trim-cabinet corner,bisque ,(2)
38 240327202 A B C D Bracket-upper hinge
40 240327001 A B - - Cover-upper hinge,white
40 240327002 - - C D Cover-upper hinge,bisque
41 240358701 A B C D Grommet-shelf mtg,1.40" long
41* 240358801 A B C D Grommet-shelf mtg,.875" long
42 240315301 A B C D Screw-hinge mtg,hex head ,1/4-20 x 0.75
43 240335003 A B C D Roller Assy,front ,(2)
45 241500301 A B C D Screw,hex washer head ,8-18AB x 0.500
47 218659500 A B C D Channel-shelf mtg,side ,(2)
58 218749600 A B C D Screw,#10 pan hd ,8-18 x .5
66B 240374301 A B C D Diffuser-air
66B* 240518802 A B C D Pin-push,push-in ,plastic
72 240324402 A B - - Grille/Kickplate,white
72 240324404 - - C D Grille/Kickplate,bisque
81 5308016566 A B C D Screw,hex washer head ,8-15A x 0.625 ,low profile
82 5304418225 A B C D Roller,compressor base ,rear ,(2)
83 5303316859 A B C D Rivet,flat head ,1/4 OD x 1-3/4 ,roller pin
89 240326104 A B C D Cover,access ,system compt ,with label
90 218249808 A B C D Seal-coil cover
91 240380101 A B C D Duct-ice maker
92 5303001479 A B C D Screw-hinge mtg,hex hd ,1/4-20 x 0.875
100 240423701 A B C D Support,crisper cover ,front ,(4)
100* 240350802 A B C D Support,crisper cover ,rear ,(4)
150 240368701 A B C D Guide-control bulb
* 240396801 A B C D Clamp,tube/wiring ,nylon ,black/natural
* 240479601 A B C D Plug,button ,cab liner holes
* 240481601 A B C D Shim-lower hinge
* 5303305324 A B C D Paint,touch-up ,white
* 5304414035 - - C D Paint,touch-up ,bisque
CABINET
03/02 8
Publication No. FRS26R2A
5995367439
SHELVES
# = Fast-moving Parts 9 03/02
* = Non-Illustrated Parts
FRS26R2A Publication No.
5995367439
A = FRS26R2A (FRS26R2AW2)
B = FRS26R2A (FRS26R2AW3)
C = FRS26R2A (FRS26R2AQ2)
D = FRS26R2A (FRS26R2AQ3)
POS. NO PART NO DESCRIPTION
2 240434602 A - C - Trim-basket
2 240434604 - B - D Trim-basket
11 240338802 A B C D Shelf-freezer,flip-up
11A 240338702 A B C D Shelf-freezer,fixed wire
11B 240338704 A B C D Shelf-freezer,fixed wire
24 240355208 A B C D Shelf-"Spill-Safe",fixed
25 240350702 A B C D Cover-crisper pan,upper
25* 240362101 A B C D Clip-slide,cover-crisper
25A 240350902 A B C D Cover-crisper pan,lower
26 240351007 A B C D Pan-crisper,upper
26* 240349801 A B C D Clip-slide,pan-crisper
27 240351207 A B C D Pan-crisper,lower
39 240430706 A B C D Trim-shelf,11.21" ,front
39A 240430702 A B C D Trim-shelf,12.39" ,front
47 240350633 A B C D Insert-pan cover,glass
47A 240350603 A B C D Insert-pan cover,glass
49 240338402 A - C - Basket-sliding
49 240530402 - B - D Basket-sliding
51 240343002 A B C D Hanger-basket,RH
52 240343102 A B C D Hanger-basket,LH
54 240351901 A B C D Plug-hanger,right hand
55 240352001 A B C D Plug-hanger,left hand
81 5308016566 A B C D Screw,hex washer head ,8-15A x 0.625 ,low profile
97 240453002 A B C D Water Tank Assy,coiled tubing ,rear filter
100 240326302 A B C D Cover-water tank
101 218493100 A B C D Screw,hex washer head ,8-18AB x 1-3/4
126 218867401 A B C D Channel,auger mtg ,LH
126 218867402 A B C D Channel,auger mtg ,RH
140 240430501 A B C D Channel,water tube cvr
SHELVES
03/02 10
Publication No. FRS26R2A
5995367439

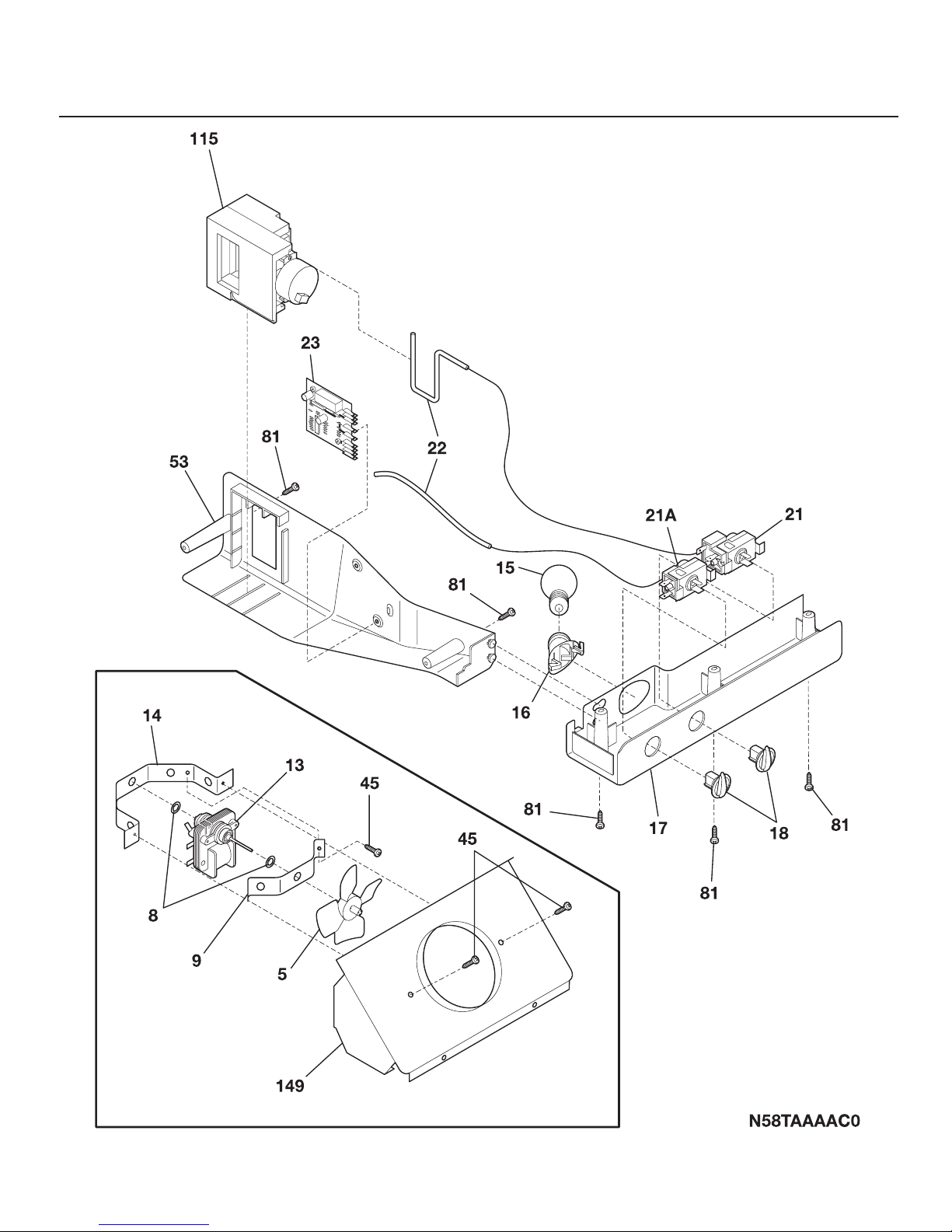

CONTROLS
