Frigidaire FRS3HR35KB - 23 Cu Ft Refrigerator Guida utente

N58L00002.eps N58FAAAAB4.eps N58RAAABB4.eps N58BAAAAA0.eps

N58SJCAFB2.eps N58TAAAAA7.eps N58CAAAAC14.eps N58XDAAAA1.eps

N58YBAAAA5.eps N58I1151-1.eps W241970401.eps S241970401.eps

Product No. FRS3HR35KB0 FRS3HR35KM0 FRS3HR35KS0 FRS3HR35KW0

Series R134a R134a R134a R134a

Color black silver mist stainless white

Volts 115 115 115 115

Wiring Diagram 241970401 241970401 241970401 241970401

Owner's Guide 241856000 241856000 241856000 241856000

Market North America North America North America North America

Energy Guide 242028504 242028504 242028504 242028504

Service Data Sheet 240389636 240389636 240389636 240389636

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995539235

09/04/30

(EN/SERVICE/DCS)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS3HR35K

Publication No: 5995539235 FRS3HR35K

04/09 2

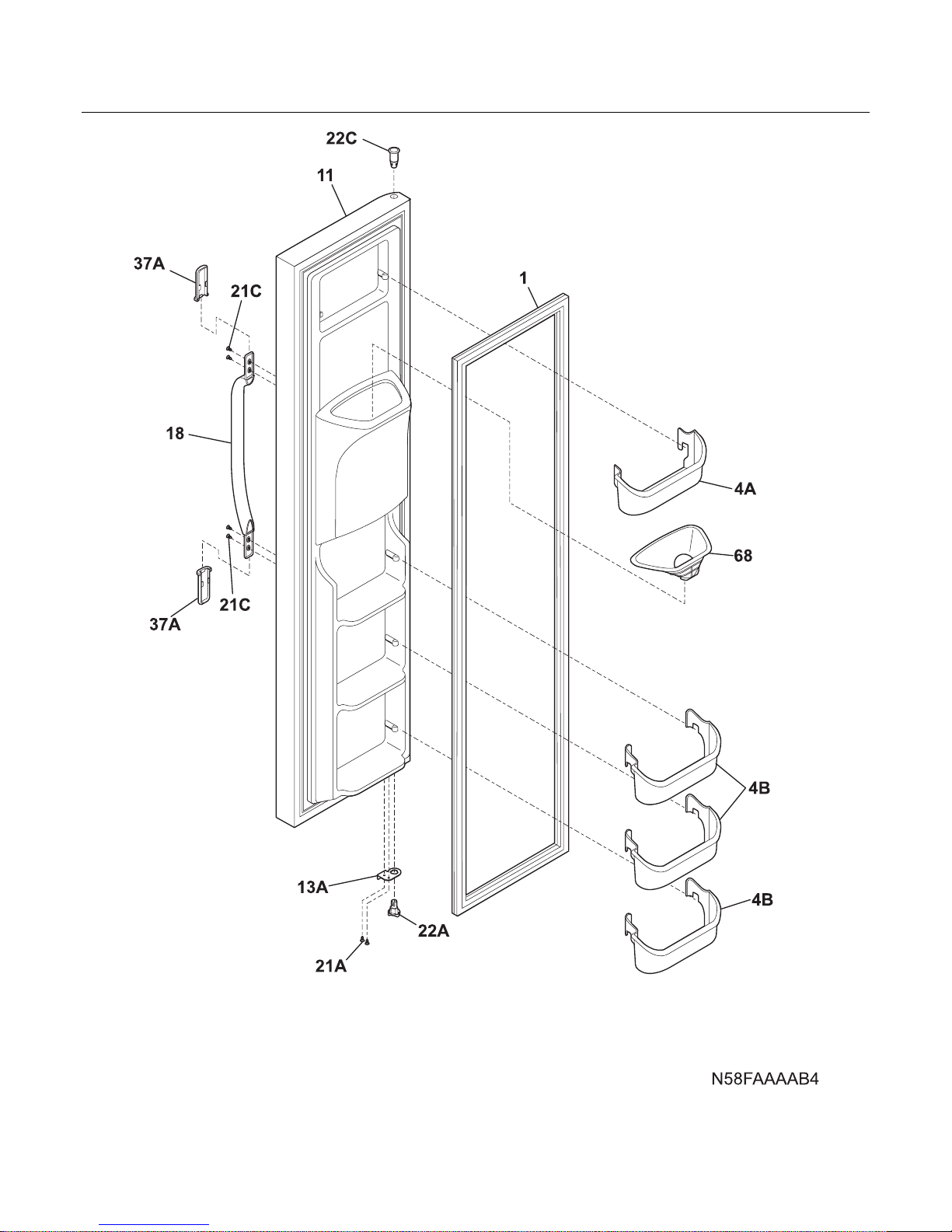

FREEZER DOOR

FRS3HR35K Publication No: 5995539235

# Functional Parts 3 04/09

* Non-Illustrated Parts

FREEZER DOOR

Model Index: AFRS3HR35K (FRS3HR35KB0)

BFRS3HR35K (FRS3HR35KM0)

CFRS3HR35K (FRS3HR35KS0)

DFRS3HR35K (FRS3HR35KW0)

POS. NO PART NO. DESCRIPTION

1 241786008 A B C - Gasket-frzr door, black,magnetic

1 241786004 - - - D Gasket-frzr door, white, magnetic

4A 240367301 A B C D Bin-door, frzr-upper

4B 240359001 A B C D Bin-door

11 241837135 A - - - Door-frzr, black, complete assy

11 242026409 - B - - Door-frzr, silver mist, complete assy

11 242026410 - - C - Door-frzr, stainless, complete assy

11 241668103 - - - D Door-frzr, white,completeassy

13A 240581906 A B C - Door Stop, black, frzr

13A 240581902 - - - D Door Stop, white, frzr

18 218762703 A B C - Handle-door, black

18 218762701 - - - D Handle-door, white

21A 240598402 A B C D Screw, 10-32 x 1/2

21C 218781101 A B C D Screw, pan head, 8-18 x 0.625

22A 242000502 A B C - Bearing-hinge, black, lower

22A 242000501 - - - D Bearing-hinge, natural, lower

22C 240328404 A B C - Bearing-hinge, black, upper

22C 240328402 - - - D Bearing-hinge, natural, upper

37A 215870636 A B C - Trim-handle, 2.47", black, w/satin AL band

37A 215870629 - - - D Trim-handle, 2.47", white, w/satin AL band

68 241525101 A B C D Chute-ice

* 240451503 A B C D Screw, ind hex wshr hd, 8-32 x 0.375, trilobe

* 240552101 A B C D Harness-wiring, door

* 241806601 A B C D Connector-water, straight

* 5303918256 A B C D Dispenser heater kit

Publication No: 5995539235 FRS3HR35K

04/09 4

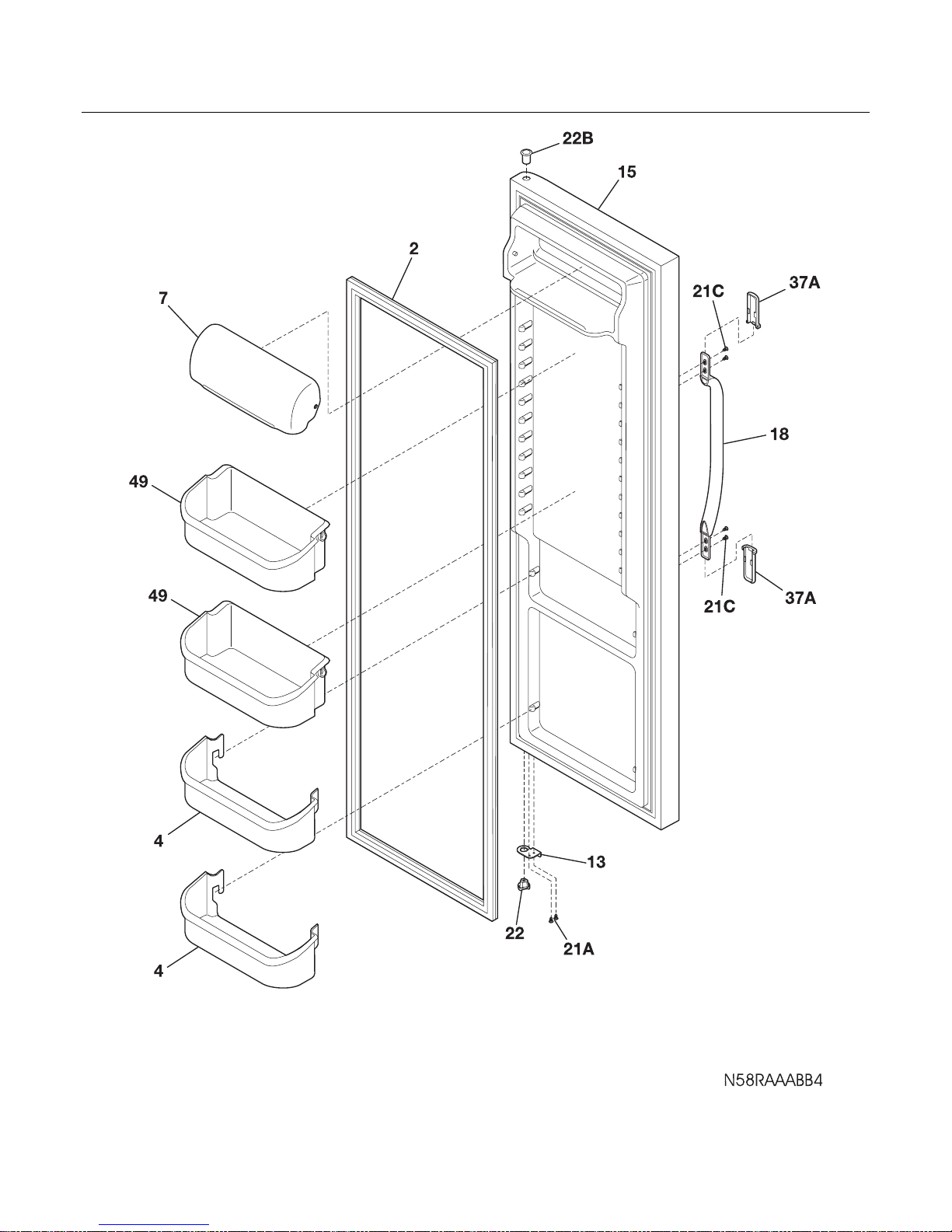

REFRIGERATOR DOOR

FRS3HR35K Publication No: 5995539235

# Functional Parts 5 04/09

* Non-Illustrated Parts

REFRIGERATOR DOOR

Model Index: AFRS3HR35K (FRS3HR35KB0)

BFRS3HR35K (FRS3HR35KM0)

CFRS3HR35K (FRS3HR35KS0)

DFRS3HR35K (FRS3HR35KW0)

POS. NO PART NO. DESCRIPTION

2 241786007 A B C - Gasket-refr door, black, magnetic

2 241786003 - - - D Gasket-refr door, white, magnetic

4 240363701 A B C D Bin-door, 2-liter

7 240338303 A B C D Door, dairy, clear

13 240581905 A B C - Door Stop, black, ref

13 240581901 - - - D Door Stop, white, refr

15 241837227 A - - - Door-refr, black, complete assy

15 241837295 - B - - Door-refr, silver mist, complete assy

15 242038807 - - C - Door-refr, stainless, complete assy

15 240451911 - - - D Door-refr, white, complete assy

18 218762703 A B C - Handle-door, black

18 218762701 - - - D Handle-door, white

21A 240598402 A B C D Screw, 10-32 x 1/2

21C 218781101 A B C D Screw, pan head, 8-18 x 0.625

22 240328206 A B C - Bearing-hinge, black, closer

22 240328205 - - - D Bearing-hinge(ref), closer

22B 240328404 A B C - Bearing-hinge, black, upper

22B 240328402 - - - D Bearing-hinge, natural, upper

37A 215870636 A B C - Trim-handle, 2.47", black, w/satin AL band

37A 215870629 - - - D Trim-handle, 2.47", white, w/satin AL band

49 240324501 A B C D Bin-door, gallon

Publication No: 5995539235 FRS3HR35K

04/09 6

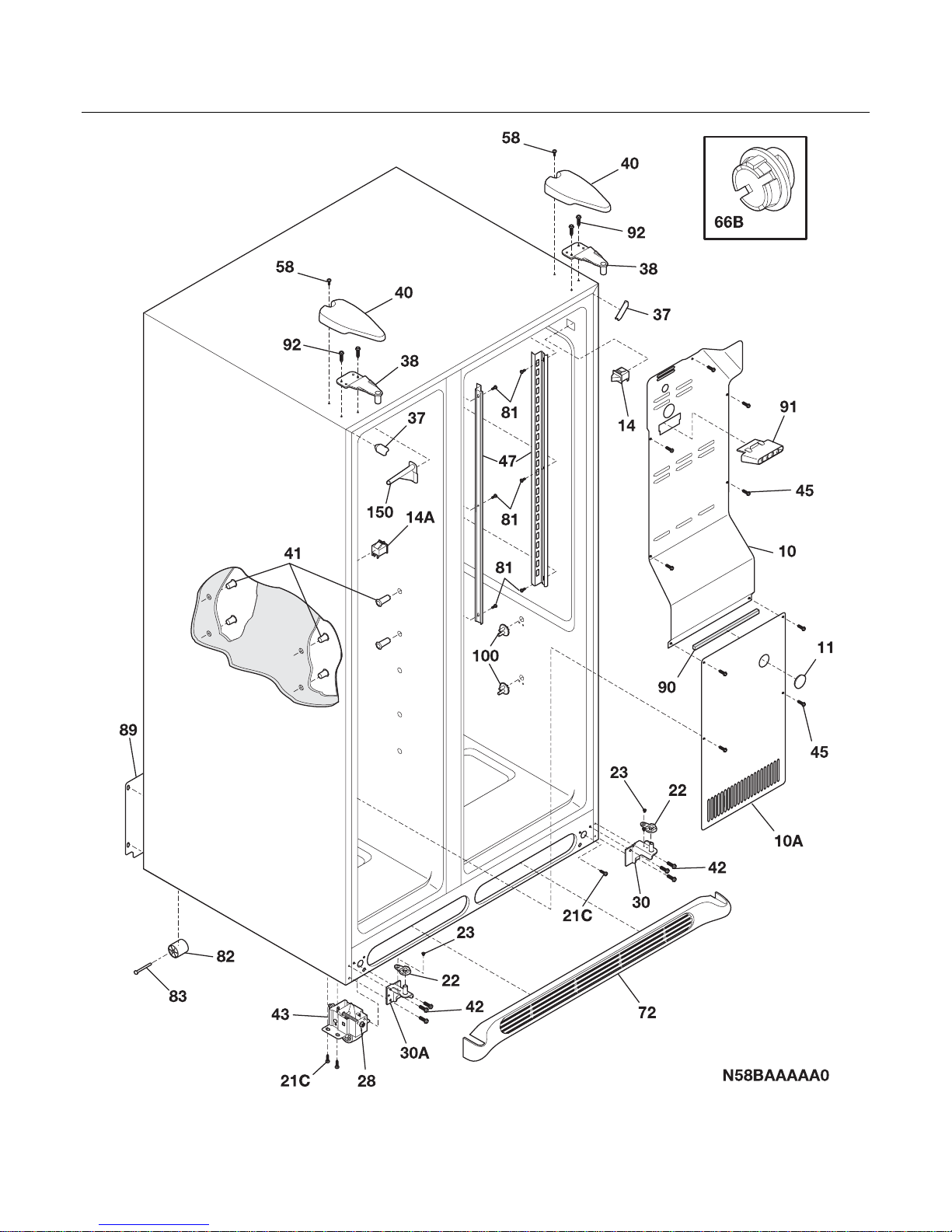

CABINET

FRS3HR35K Publication No: 5995539235

# Functional Parts 7 04/09

* Non-Illustrated Parts

CABINET

Model Index: AFRS3HR35K (FRS3HR35KB0)

BFRS3HR35K (FRS3HR35KM0)

CFRS3HR35K (FRS3HR35KS0)

DFRS3HR35K (FRS3HR35KW0)

POS. NO PART NO. DESCRIPTION

10 240435911 A B C D Cover-air duct

10A 241719710 A B C D Cover-evap coil, lower

11 5303208309 A B C D Plug-hole, factory test

14 # 240505801 A B C D Switch, light/lamp

14A 241547901 A B C D Switch-light/lamp, frzr door

21C 218252201 A B C D Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 A B C - Plate-door closer

22 240457701 - - - D Plate-door closer

23 240402702 A B C D Screw-#10-32 x 1/4 flat hd

28 240335502 A B C D Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603703 A B C D Bracket-lower hinge, ref

30A 241603704 A B C D Bracket-lower hinge

37 240337610 A B C - Trim-cabinet corner, black, (2)

37 240337608 - - - D Trim-cabinet corner, white, (2)

38 240327207 A B C D Bracket-upper hinge

40 240327007 A B C - Cover-upper hinge, black

40 240327005 - - - D Cover-upper hinge, white

41 241550801 A B C D Grommet-shelf mtg, 1.40" long

41* 241550701 A B C D Grommet-shelf mtg, .96" long

42 240578902 A B C D Screw, hex head, 1/4-20 x 5/8

43 240335006 A B C D Roller Assy, front, (2)

45 241500303 A B C D Screw, hex washer head, 8-18AB x 0.500

47 218659500 A B C D Channel-shelf mtg, side, (2)

58 218781101 A B C D Screw, pan head, 8-18 x 0.625

66B 240374301 A B C D Diffuser-air

66B* 240518802 A B C D Pin-push, push-in, plastic

72 240324405 A B C - Grille/Kickplate, black

72 240324401 - - - D Grille/Kickplate, white

81 5304455650 A B C D Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B C D Roller, compressor base, rear, (2)

83 5304455655 A B C D Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733901 A B C D Cover-access, w/label

90 218249807 A B C D Seal-coil cover

91 240380101 A B C D Duct-ice maker

92 241710601 A B C D Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 A B C D Support, crisper cover, front, (4)

100* 240350802 A B C D Support, crisper cover, rear, (4)

150 240368701 A B C D Guide-control bulb

* 240396801 A B C D Clamp, tube/wiring, nylon, black/natural

* 240479601 A B C D Plug, button, cab liner holes

* 5303321321 A B C - Paint, touch-up, black

* 5303321319 - - - D Paint, touch-up, white

Publication No: 5995539235 FRS3HR35K

04/09 8

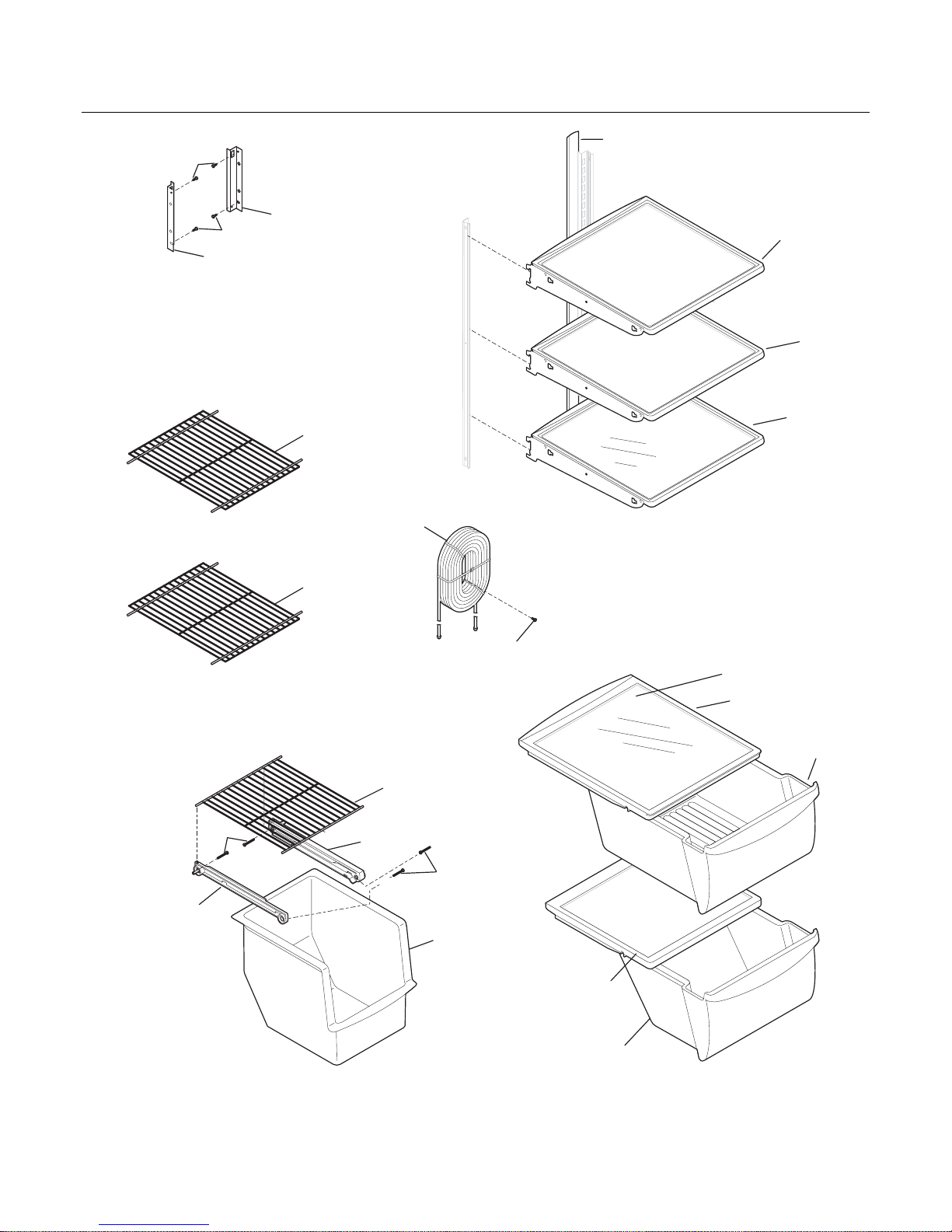

SHELVES

N58SJCAFB2

11B

11A

126

25A

101

140

FRS3HR35K Publication No: 5995539235

# Functional Parts 9 04/09

* Non-Illustrated Parts

SHELVES

Model Index: AFRS3HR35K (FRS3HR35KB0)

BFRS3HR35K (FRS3HR35KM0)

CFRS3HR35K (FRS3HR35KS0)

DFRS3HR35K (FRS3HR35KW0)

POS. NO PART NO. DESCRIPTION

11 241657601 A B C D Shelf, flip up, wire

11A 241657501 A B C D Shelf, fixed, freezer

11B 241657503 A B C D Shelf, fixed upper, freezer

21 5304455658 A B C D Screw, hx wshr hd sems, 8-15A x 0.625

24 240355211 A B C D Shelf-"Spill-Safe", fixed

25 240354502 A B C D Cover-crisper pan, upper

25A 240354602 A B C D Cover-crisper pan, lower

26 240354706 A B C D Pan-crisper, upper

27 240354806 A B C D Pan-crisper, lower

47 240350631 A B C D Insert-pan cover, glass

49 240564301 A B C D Basket-sliding

51 240343002 A B C D Hanger-basket, RH

52 240343102 A B C D Hanger-basket, LH

81 5304455650 A B C D Screw, hex washer head, 8-15A x 0.625, low profile

97 240545308 A B C D Water Tank

101 218493101 A B C D Screw, hex washer head, 8-18AB x 1-3/4

126 241674401 A B C D Channel, auger mtg, LH

126 241674402 A B C D Channel, auger mtg, RH

140 240430501 A B C D Channel, wtr tube cover

* 242028504 A B C D Energy Guide

Publication No: 5995539235 FRS3HR35K

04/09 10

CONTROLS

140

139

138

137

151

150

115

101

21A 21

N58TAAAAA7

149
