Frigidaire FRS6B6EE Manuale di istruzioni

N58L00001.eps N58FCCBBC3.eps N58RCCBBB11.eps N58BAAAAB3.eps

N58SKBCBB1.eps N58TCAAAA0.eps N58CAAAAA10.eps N58XBAAAA0.eps

N58YAAAAA0.eps N58I115.eps W241660401.eps S241660401.eps

Product No. FRS6B5EEQ2 FRS6B5EEW2

Series R134a R134a

Color white white

Volts 115 115

Wiring Diagram 241660401 241660401

Owner's Guide 241660600 241660600

Market North America North America

Energy Guide 241615414 241615414

Service Data Sheet 240389624 240389624

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995452793

05/10/28

(EN/SERVICE/KHB)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS6B6EE

Publication No: 5995452793 FRS6B6EE

10/05 2

FREEZER DOOR

FRS6B6EE Publication No: 5995452793

# Functional Parts 3 10/05

* Non-Illustrated Parts

FREEZER DOOR

Model Index: AFRS6B5EE (FRS6B5EEQ2)

BFRS6B5EE (FRS6B5EEW2)

POS. NO PART NO. DESCRIPTION

1 # 241569802 A B Gasket-frzr door, white, magnetic

4A 240334201 A B Bin-door, frzr-upper

4B 240351601 A B Bin-door

11 241668135 A - Door-frzr, bisque, complete assy

11 241668112 - B Door-frzr, white, complete assy

13A 240581904 A - Door Stop, bisque, frzr

13A 240581902 - B Door Stop, white, frzr

18 240359109 A - Handle-door, bisque

18 240359106 - B Handle-door, white

21 218781100 A B Screw, pan head, 8-18 x 0.625

21A 240598401 A B Screw, 10-32 x 1/2

21C 240521302 A B Screw, #8-18 x 3/4

22A 240328202 A B Bearing-hinge(frz), closer

22C 240328402 A B Bearing-hinge, natural, upper

37 240359204 A - Trim-handle, 30.13", bisque, lower

37 240359201 - B Trim-handle, 30.13", white, lower

68 241525101 A B Chute-ice

72 240421701 A B Button-handle mtg, dovetail

73 218396700 A B Block-handle mtg, dovetail

74 215503200 A B Screw, cr pan hd, 10-16 x 0.500

* 240352102 A B Connector-water, straight

* 240552102 A B Harness-wiring, door

* 5303918256 A B Dispenser heater kit

Publication No: 5995452793 FRS6B6EE

10/05 4

REFRIGERATOR DOOR

21C

21A

22B

N58RCCBBB11

FRS6B6EE Publication No: 5995452793

# Functional Parts 5 10/05

* Non-Illustrated Parts

REFRIGERATOR DOOR

Model Index: AFRS6B5EE (FRS6B5EEQ2)

BFRS6B5EE (FRS6B5EEW2)

POS. NO PART NO. DESCRIPTION

2 # 241569801 A B Gasket-refr door, white, magnetic

4 240323002 A B Bin-door, pseudo, bottom

7 240326203 A B Door-dairy

13 240581903 A - Door Stop, bisque, ref

13 240581901 - B Door Stop, white, refr

15 240451904 A - Door-refr, white, complete assy

15 240451900 - B Door-refr, white, complete assy

18 240359104 A - Handle-door, bisque

18 240359101 - B Handle-door, white

21 218781100 A B Screw, pan head, 8-18 x 0.625

21A 240598401 A B Screw, 10-32 x 1/2

21C 240521302 A B Screw, #8-18 x 3/4

22 240328201 A B Bearing-hinge(ref), closer

22B 240328402 A B Bearing-hinge, natural, upper

37 240359204 A - Trim-handle, 30.13", bisque, lower

37 240359201 - B Trim-handle, 30.13", white, lower

49 240356402 A B Bin-door, gallon

72 240421701 A B Button-handle mtg, dovetail

73 218396700 A B Block-handle mtg, dovetail

74 215503200 A B Screw, cr pan hd, 10-16 x 0.500

Publication No: 5995452793 FRS6B6EE

10/05 6

CABINET

40 66

14A

100

21C

30A

10A

N58BAAAAB3

FRS6B6EE Publication No: 5995452793

# Functional Parts 7 10/05

* Non-Illustrated Parts

CABINET

Model Index: AFRS6B5EE (FRS6B5EEQ2)

BFRS6B5EE (FRS6B5EEW2)

POS. NO PART NO. DESCRIPTION

10 240435906 A B Cover-air duct

10A 240475907 A B Cover-evap coil, lower

11 5303208309 A B Plug-hole, factory test

14 240505801 A B Switch, light/lamp

14A 241547901 A B Switch-light/lamp, frzr door

21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240457701 A B Plate-door closer

23 240402701 A B Screw-#10-32 x 1/4 flat hd

28 240335501 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603701 A B Bracket-lower hinge, ref

30A 241603702 A B Bracket-lower hinge

37 240337604 A - Trim-cabinet corner, bisque, (2)

37 240337601 - B Trim-cabinet corner, white, (2)

38 240327201 A B Bracket-upper hinge

40 240327006 A - Cover-upper hinge, bisque

40 240327005 - B Cover-upper hinge, white

41 241550801 A B Grommet-shelf mtg, 1.40" long

41* 241550701 A B Grommet-shelf mtg, .96" long

42 240578901 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 A B Roller Assy, adjustable, front, (2)

45 241500301 A B Screw, hex washer head, 8-18AB x 0.500

47 240349402 A B Channel-shelf mtg, side, (2)

58 218781100 A B Screw, pan head, 8-18 x 0.625

66 5304424968 A B Damper Cover Assy

66* 240518802 A B Pin-push, push-in, plastic

72 240324404 A - Grille/Kickplate, bisque

72 240324402 - B Grille/Kickplate, white

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574602 A B Cover access

90 218249808 A B Seal-coil cover

91 240380101 A B Duct-ice maker

92 216850900 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 A B Support, crisper cover, front, (4)

100* 240350802 A B Support, crisper cover, rear, (4)

* 240481601 A B Shim-lower hinge

* 240479601 A B Plug, button, cab liner holes, (2)

* 5304414035 A - Paint, touch-up, bisque

* 5303321319 - B Paint, touch-up, white

Publication No: 5995452793 FRS6B6EE

10/05 8

SHELVES

24A

126

52 109

49B

101

N58SKBCBB1

100

25A

47A

15A

16A

26A

42A

123

24A

140

120

11C

11A

39A

FRS6B6EE Publication No: 5995452793

# Functional Parts 9 10/05

* Non-Illustrated Parts

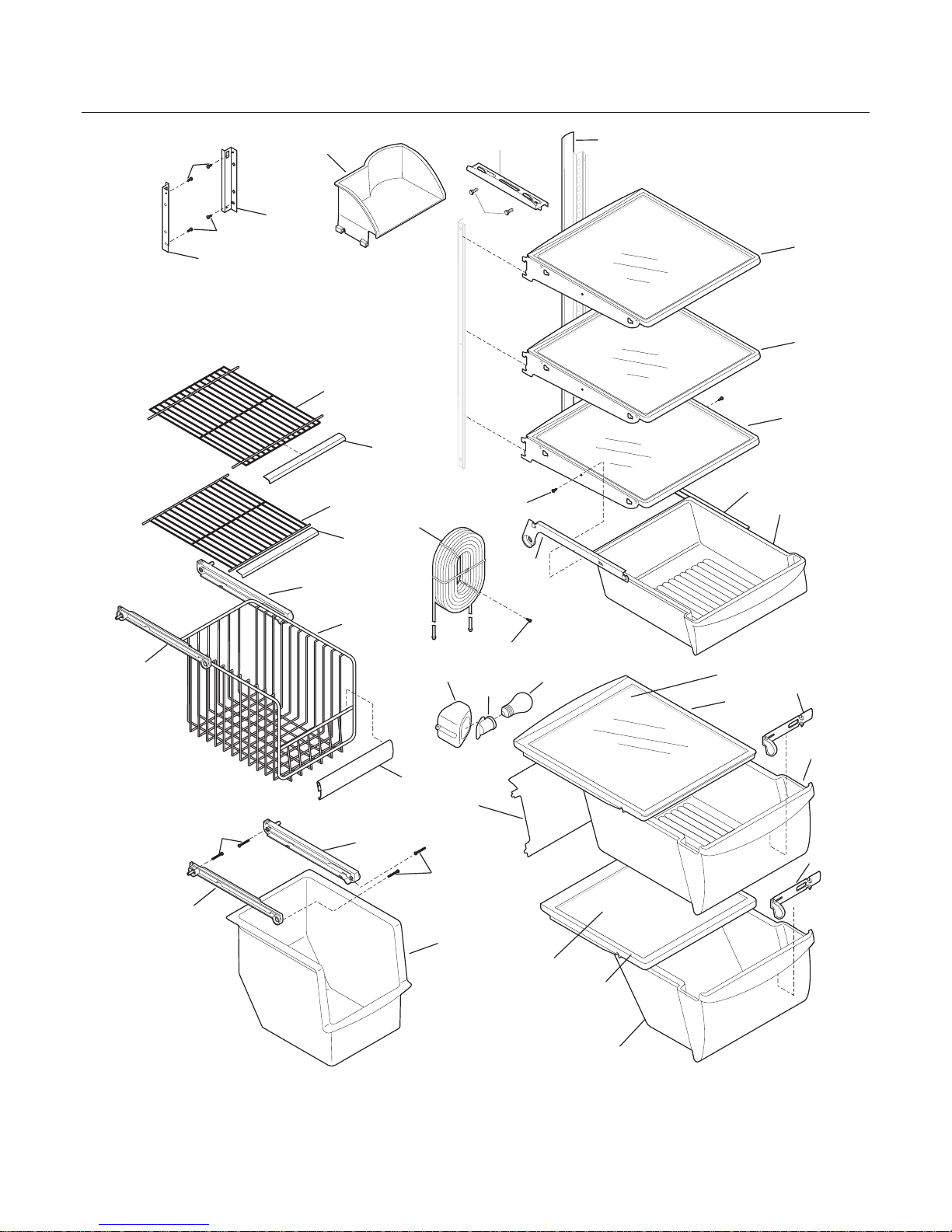

SHELVES

Model Index: AFRS6B5EE (FRS6B5EEQ2)

BFRS6B5EE (FRS6B5EEW2)

POS. NO PART NO. DESCRIPTION

2 241510604 A B Trim-basket

11 241657602 A B Shelf, flip up, wire

11B 241657504 A B Shelf, fixed, upper, freezer

11C 240324101 A B Shelf-pizza

15A 241555401 A B Light Bulb

16A# 241513901 A B Socket-light

16A* 241537602 A B Harness-wiring

24 240355203 A B Shelf-"Spill-Safe", fixed

24A 240355205 A B Shelf-"Spill-Safe", fixed

25 240350702 A B Cover-crisper pan, upper

25* 240362101 A B Clip-slide, cover-crisper

25A 240350902 A B Cover-crisper pan, lower

26 240351005 A B Pan-crisper, upper

26* 240349801 A B Clip-slide, pan-crisper

26A 240362201 A B Control-humidity

27 240351205 A B Pan-crisper, lower

39 240430706 A B Trim-shelf, 11.21", front

39A 240430702 A B Trim-shelf, 12.39", front

42 240356501 A B Track, meat pan hanger, RH

42A 240349701 A B Hanger-meat pan, LH

42A* 240349901 A B Block-meat pan rail, LH

42A* 240350001 A B Spring-meat pan rail

47 240350602 A B Insert-pan cover, glass

47A 240350603 A B Insert-pan cover, glass

49 240564401 A B Basket-sliding

49B 240530504 A B Basket-sliding, upper, full

51 240343002 A B Hanger-basket, RH

52 240343102 A B Hanger-basket, LH

62 240342805 A B Pan-meat

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

97 240545302 A B Water Tank Assy, coiled tubing, rear filter

100 240326302 A B Cover-water tank

101 218493100 A B Screw, hex washer head, 8-18AB x 1-3/4

109 240351301 A B Base-crisper light socket

120 240342901 A B Shelf-ice cream

123 215005100 A B Screw, hanger/rlr mtg, 8-10 x 0.438

126 241674401 A B Channel, auger mtg, LH

126 241674402 A B Channel, auger mtg, RH

140 240430501 A B Channel, wtr tube cover

Publication No: 5995452793 FRS6B6EE

10/05 10

CONTROLS

140

139

138

137

151

150

115

101

N58TCAAAA0

149

21A 23
