Frigidaire FRS6R5ES Manuale di istruzioni

N58L00001.eps N58FCCBBB2.eps N58RCCBBB11.eps N58BAAAAA0.eps

N58SJCAAB12.eps N58TAAAAA6.eps N58CAAAAA5.eps N58XDAAAA1.eps

N58YBAAAA0.eps N58I115.eps W241526901A.eps S241526901A.eps

Product No. FRS6R5ESB0 FRS6R5ESB2

Series R134a R134a

Color stain/blk stain/blk

Volts 115 115

Wiring Diagram 241526901 241526901

Owner's Guide 241661500 241661500

Market North America North America

Energy Guide 241615421 241615421

Service Data Sheet 240389616 240389616

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995444311

05/08/10

(EN/SERVICE/DCS)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS6R5ES

Publication No: 5995444311 FRS6R5ES

08/05 2

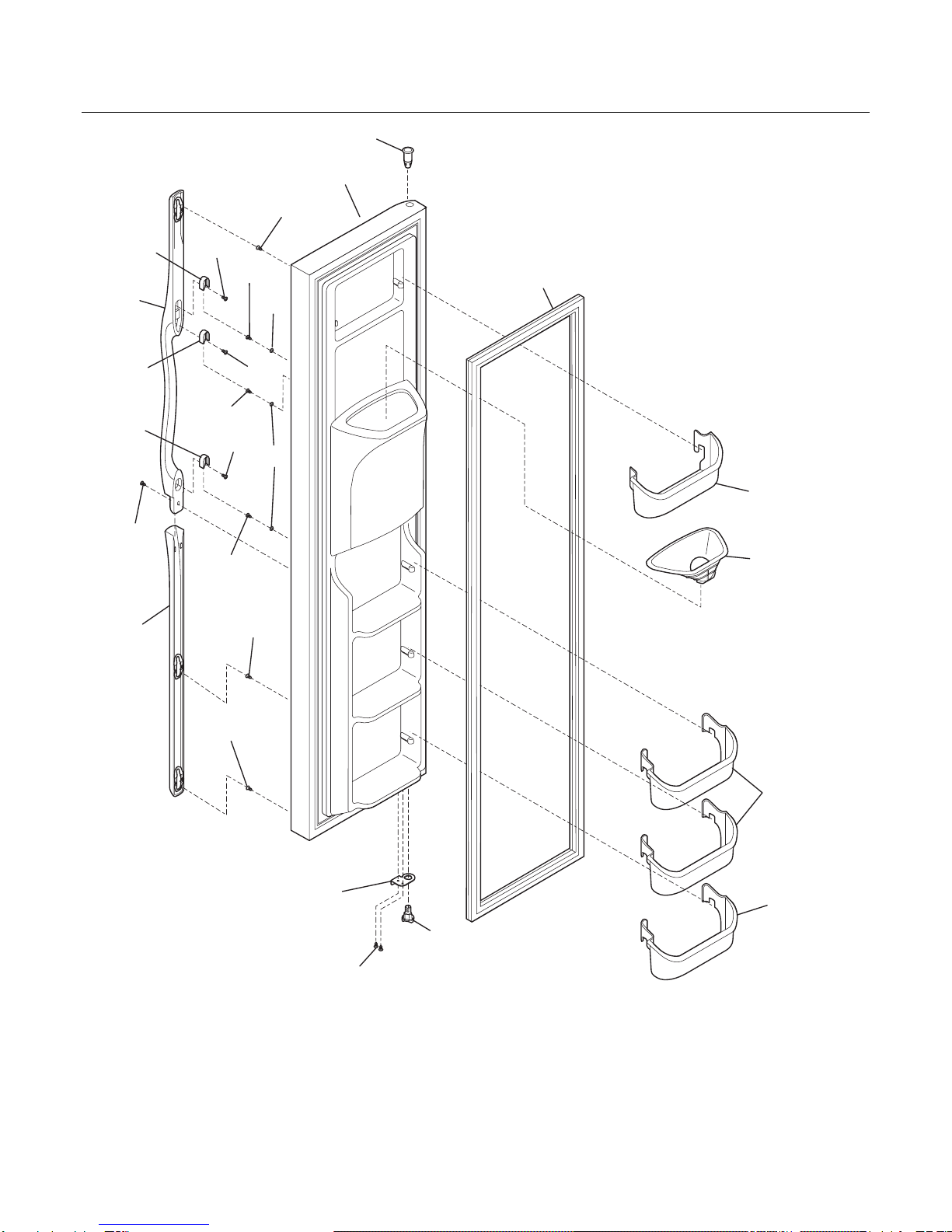

FREEZER DOOR

21C

22C

13A

22A

21A

N58FCCBBB2

FRS6R5ES Publication No: 5995444311

# Functional Parts 3 08/05

* Non-Illustrated Parts

FREEZER DOOR

Model Index: AFRS6R5ES (FRS6R5ESB0)

BFRS6R5ES (FRS6R5ESB2)

POS. NO PART NO. DESCRIPTION

1 241569806 A B Gasket-frzr door, black, magnetic

4A 240334201 A B Bin-door, frzr-upper

4B 240351601 A B Bin-door

11 241615103 A B Door-frzr, stainless, complete assy

13A 240581906 A B Door Stop, black, frzr

18 240359108 A B Handle-door, black, LH

21 218781100 A B Screw, pan head, 8-18 x 0.625

21A 240598401 A B Screw, 10-32 x 1/2

21C 240521302 A B Screw, #8-18 x 3/4

22A 240328204 A B Bearing-hinge(frz), black, closer

22C 240328404 A B Bearing-hinge, black, upper

37 240359203 A B Trim-handle, 30.13", black, lower

68 241525101 A B Chute-ice

72 240421701 A B Button-handle mtg, dovetail

73 218396700 A B Block-handle mtg, dovetail

74 215503200 A B Screw, cr pan hd, 10-16 x 0.500

* 218490901 A B Cleaner, stainless steel

* 240352102 A B Connector-water, straight

* 240552101 A B Harness-wiring, door

* 5303918256 A B Dispenser heater kit

Publication No: 5995444311 FRS6R5ES

08/05 4

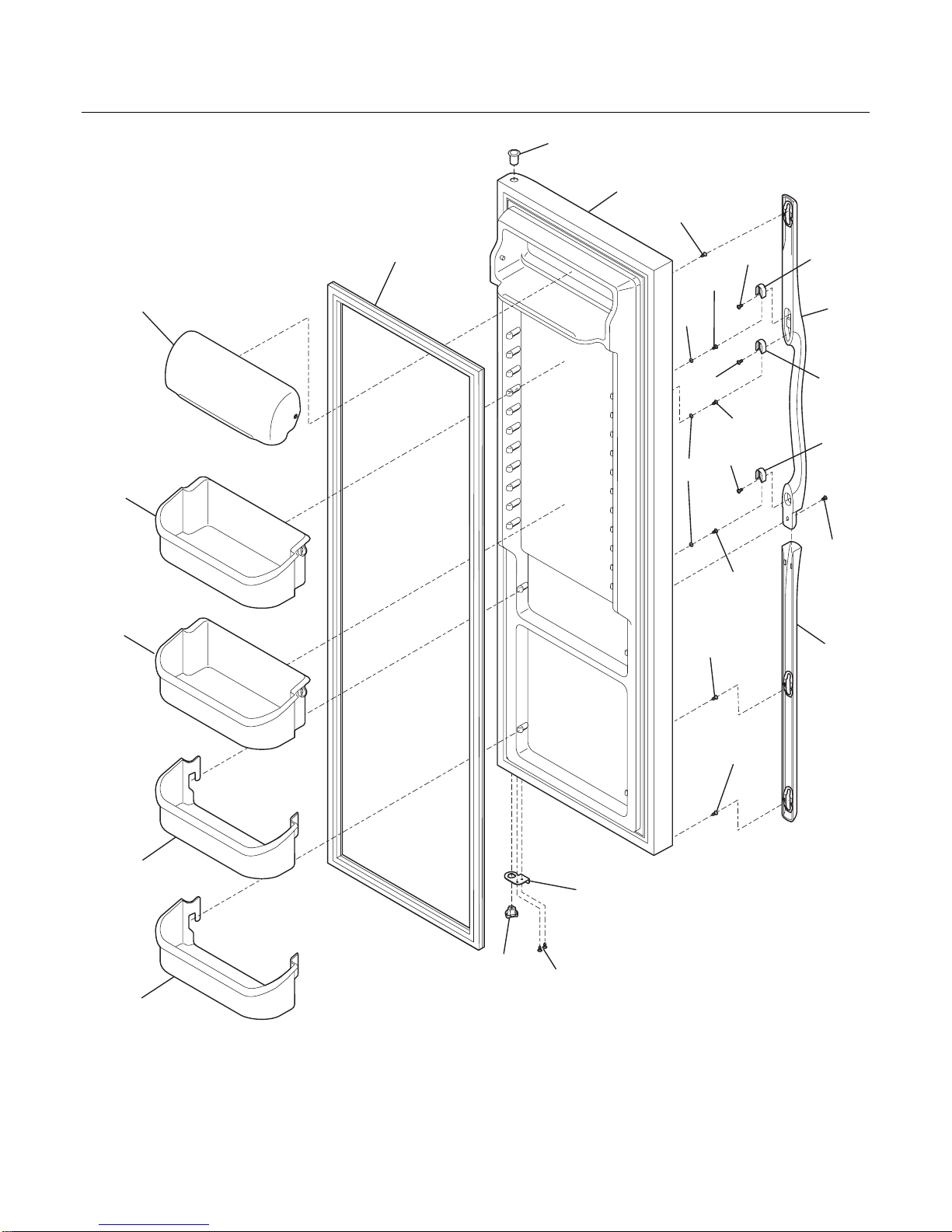

REFRIGERATOR DOOR

21C

21A

22B

N58RCCBBB11

FRS6R5ES Publication No: 5995444311

# Functional Parts 5 08/05

* Non-Illustrated Parts

REFRIGERATOR DOOR

Model Index: AFRS6R5ES (FRS6R5ESB0)

BFRS6R5ES (FRS6R5ESB2)

POS. NO PART NO. DESCRIPTION

2 241569805 A B Gasket-refr door, black, magnetic

4 240323001 A B Bin-door, pseudo, bottom

7 240326203 A B Door-dairy

13 240581905 A B Door Stop, black, ref

15 241534532 A B Door-refr, stainless, complete assy

18 240359103 A B Handle-door, black, RH

21 218781100 A B Screw, pan head, 8-18 x 0.625

21A 240598401 A B Screw, 10-32 x 1/2

21C 240521302 A B Screw, #8-18 x 3/4

22 240328203 A B Bearing-hinge, black, closer

22B 240328404 A B Bearing-hinge, black, upper

37 240359203 A B Trim-handle, 30.13", black, lower

49 240356401 A B Bin-door, gallon

72 240421701 A B Button-handle mtg, dovetail

73 218396700 A B Block-handle mtg, dovetail

74 215503200 A B Screw, cr pan hd, 10-16 x 0.500

* 218490901 A B Cleaner, stainless steel

Publication No: 5995444311 FRS6R5ES

08/05 6

CABINET

FRS6R5ES Publication No: 5995444311

# Functional Parts 7 08/05

* Non-Illustrated Parts

CABINET

Model Index: AFRS6R5ES (FRS6R5ESB0)

BFRS6R5ES (FRS6R5ESB2)

POS. NO PART NO. DESCRIPTION

10 240435906 A B Cover-air duct

10A 240475907 A B Cover-evap coil, lower

11 5303208309 A B Plug-hole, factory test

14 240505801 A B Switch, light/lamp

14A 241547901 A B Switch-light/lamp, frzr door

21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 A B Plate-door closer

23 240402701 A B Screw-#10-32 x 1/4 flat hd

28 240335501 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603701 A B Bracket-lower hinge, ref

30A 241603702 A B Bracket-lower hinge

37 240337603 A B Trim-cabinet corner, black, (2)

38 240327201 A B Bracket-upper hinge

40 240327007 A B Cover-upper hinge, black

41 241550801 A B Grommet-shelf mtg, 1.40" long

41* 241550701 A B Grommet-shelf mtg, .96" long

42 240578901 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 A B Roller Assy, adjustable, front, (2)

45 241500301 A B Screw, hex washer head, 8-18AB x 0.500

47 218659500 A B Channel-shelf mtg, side, (2)

58 218781100 A B Screw, pan head, 8-18 x 0.625

66B 240374301 A B Diffuser-air

66B* 240518802 A B Pin-push, push-in, plastic

72 240324406 A B Grille/Kickplate, black

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574602 A B Cover access

90 218249808 A B Seal-coil cover

91 240380101 A B Duct-ice maker

92 216850900 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 A B Support, crisper cover, front, (4)

100* 240350802 A B Support, crisper cover, rear, (4)

150 240368701 A B Guide-control bulb

* 240396801 A B Clamp, tube/wiring, nylon, black/natural

* 240479601 A B Plug, button, cab liner holes, (2)

* 241581804 A B Paint-pen, black

Publication No: 5995444311 FRS6R5ES

08/05 8

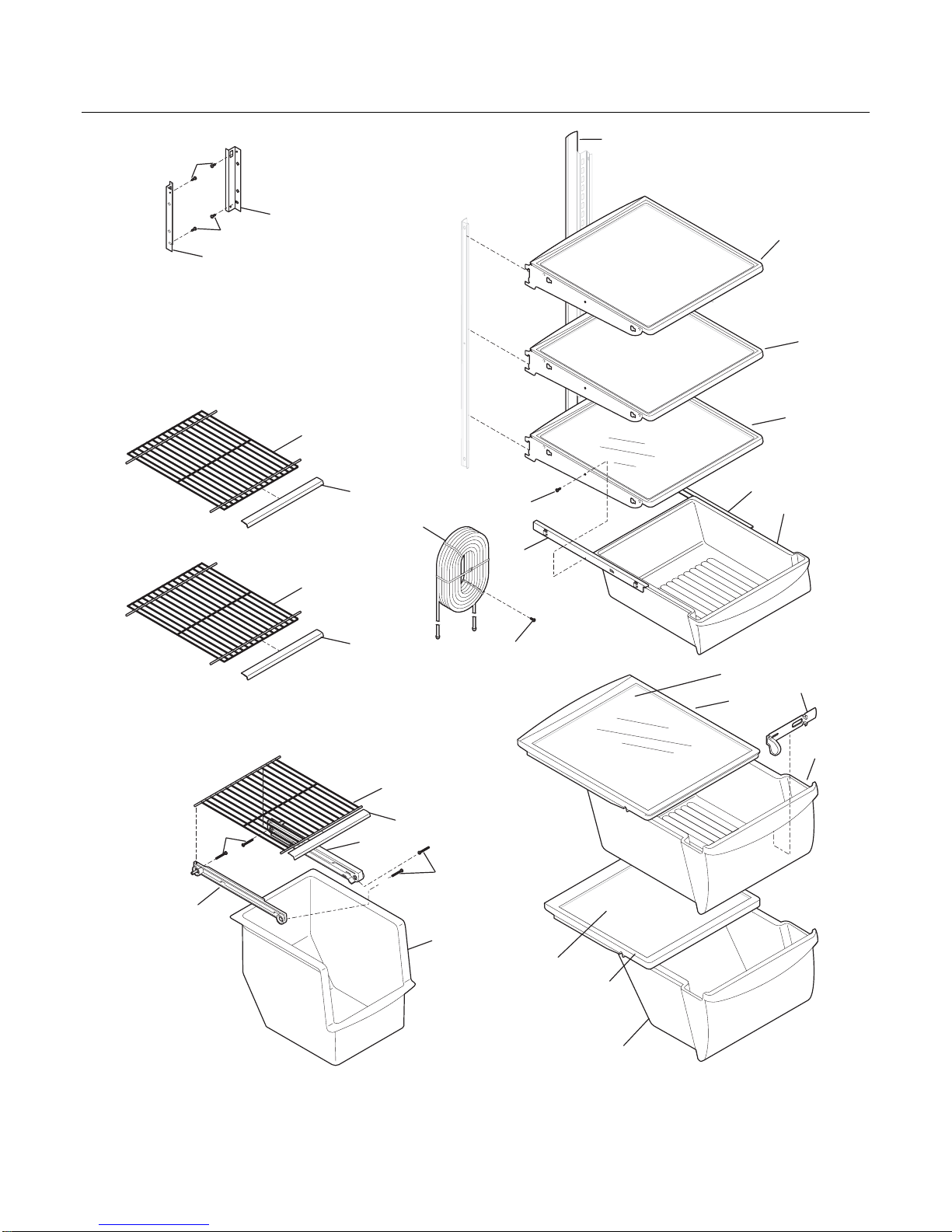

SHELVES

N58SJCAAB12

11B

11A

126

39B

123

25A

47A

101

26A

140

FRS6R5ES Publication No: 5995444311

# Functional Parts 9 08/05

* Non-Illustrated Parts

SHELVES

Model Index: AFRS6R5ES (FRS6R5ESB0)

BFRS6R5ES (FRS6R5ESB2)

POS. NO PART NO. DESCRIPTION

11 240338802 A - Shelf-freezer, flip-up

11 241657602 - B Shelf, flip up, wire

11A 240338702 A - Shelf-freezer, fixed wire

11A 241657502 - B Shelf, fixed, freezer

11B 240338704 A - Shelf-freezer, fixed wire

11B 241657504 - B Shelf, fixed, freezer

24 240355208 A B Shelf-"Spill-Safe", fixed

25 240350702 A B Cover-crisper pan, upper

25* 240362101 A B Clip-slide, cover-crisper

25A 240350902 A B Cover-crisper pan, lower

26 240351005 A B Pan-crisper, upper

26* 240349801 A B Clip-slide, pan-crisper

26A 240362201 A B Control-humidity

27 240351206 A B Pan-crisper, lower

39 240430706 A B Trim-shelf, 11.21", front

39B 240430702 A B Trim-shelf, 12.39", front

42 240356501 A B Track, meat pan hanger, RH

42 240365401 A B Track, meat pan hanger, LH

47 240350633 A B Insert-pan cover, glass

47A 240350603 A B Insert-pan cover, glass

49 240564401 A B Basket-sliding

51 240343002 A B Hanger-basket, RH

52 240343102 A B Hanger-basket, LH

62 240342806 A B Pan-meat

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

97 240545302 A B Water Tank Assy, coiled tubing, rear filter

101 218493100 A B Screw, hex washer head, 8-18AB x 1-3/4

123 215005100 A B Screw, hanger/rlr mtg, 8-10 x 0.438

126 241630701 A B Channel, auger mtg, LH

126 241630702 A B Channel, auger mtg, RH

140 240430501 A B Channel, wtr tube cover

Publication No: 5995444311 FRS6R5ES

08/05 10

CONTROLS

140

139

138

137

151

150

115

101

21A 21

N58TAAAAA6

149
