Frigidaire FRT15IB3A Manuale utente

N05L00004.eps N05DBDCJA1.eps N05BBAAAA6.eps N05SACDCA2.eps

N05CBBBAB0.eps 115.eps 240398801.eps 240398601.eps

Product No. FRT15IB3AW4 FRT15IB3AZ4

Series R134a R134a

Color white-RH white-LH

Volts 115 115

Wiring Diagram 240398801 240398801

Owner's Guide 240400110 240400110

Market North America North America

Energy Guide 218791438 218791438

Service Data Sheet 240379011 240379011

Installation Instructions 240568300 240568300

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995402046

04/01/20

(EN/SERVICE/DCS)

390

TOP-MOUNT

REFRIGERATOR WITH

ICE-MAKER

Model No.

FRT15IB3A

Publication No: 5995402046 FRT15IB3A

01/04 2

DOOR

FRT15IB3A Publication No: 5995402046

# Functional Parts 3 01/04

* Non-Ilustrated Parts

DOOR

Model Index: AFRT15IB3A (FRT15IB3AW4)

BFRT15IB3A (FRT15IB3AZ4)

POS. NO PART NO. DESCRIPTION

1 # 240554101 A B Gasket-frzr door, white, magnetic

2 # 240542102 A B Gasket, refr door seal, white, magnetic

4 240535101 A B Rack-door

4A 240535301 A B Rack-door

4B 240535201 A B Rack-door

7 240337701 A B Door-dairy, w/o graphics, white

8 240535001 A B Rack-door

10 240381301 A B Plug-button, white, hinge brg hole, (2)

11 240415401 A B Door, frzr, white

12 240415201 A B Label-nameplate, white

13 240312403 A B Door Stop, white, ref

13A 240312404 A B Door Stop, white, frzr

14 240494001 A B Plug-button, white

15 240415501 A B Door, refr, white

18A 218428101 A B Handle-door, white, w/block & screw

21 240383401 A B Screw, truss hd quad, #10-16 x .500

21A 240521301 A B Screw, #10-16 x 1/2

21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240527101 A B Bearing-hinge, natural color

73 218396700 A B Block-handle mtg, dovetail

74 215503200 A B Screw, cr pan hd, 10-16 x 0.500

Publication No: 5995402046 FRT15IB3A

01/04 4

CABINET

FRT15IB3A Publication No: 5995402046

# Functional Parts 5 01/04

* Non-Ilustrated Parts

CABINET

Model Index: AFRT15IB3A (FRT15IB3AW4)

BFRT15IB3A (FRT15IB3AZ4)

POS. NO PART NO. DESCRIPTION

1 240355401 A B Cover-fan

2 240367001 A B Knob-damper control

3 5303001028 A B Nut, push-on

4 241523701 A B Damper-fan cover

5 # 5308000010 A B Fan Blade, red, evaporator fan

8 5300157666 A B Bushing-motor mtg, (2)

9 5303292396 A B Bracket-motor mtg, front

10 240462011 A B Cover-evap coil

10* 240568601 A B Seal-coil cover

10* 241520701 A B Harness-wiring

11 5303208309 A B Plug-hole, factory test

13 # 240369701 A B Motor-evap fan

13* 215474201 A B Washer, "slinger", nylon, evap fan shaft

13* 218931001 A B Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 A B Bracket-motor mtg, rear

14* 240433201 A B Screw, hex washer head, 8-18 x 0.375

18 240411901 A B Support-evap cover, (2)

21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

22 215774901 A B Plug-button, white, upr hinge holes

28 240335501 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240357102 A B Bracket, bottom hinge, white

34 240311303 A B Washer, hinge, nylon, (2)

35 240357002 A B Bracket, center hinge, white

35A 240336802 A B Spacer-hinge, center

36 240516401 A B Pin-center hinge

37 240337601 A B Trim-cabinet corner, white, (2)

38 240356901 A B Bracket, upper hinge

40 240354401 A B Cover-upper hinge, white

41 5303001609 A B Grommet, shelf mtg, 0.69", RH

41* 5308009759 A B Grommet, shelf mtg, 1.25", LH

42 240578901 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 A B Roller Assy, front, (2)

56 240516501 A B Pin-lower hinge

58 5303001343 A B Screw, hex washer head, 8-15A x 0.500

59 240442702 A B Screw-#10-32 X 3/4, white

72 240368301 A B Grille/Kickplate, white

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

92 5303001479 A B Screw-hinge mtg, hex hd, 1/4-20 x 0.875

* 5303305324 A B Paint, touch-up, white

Publication No: 5995402046 FRT15IB3A

01/04 6

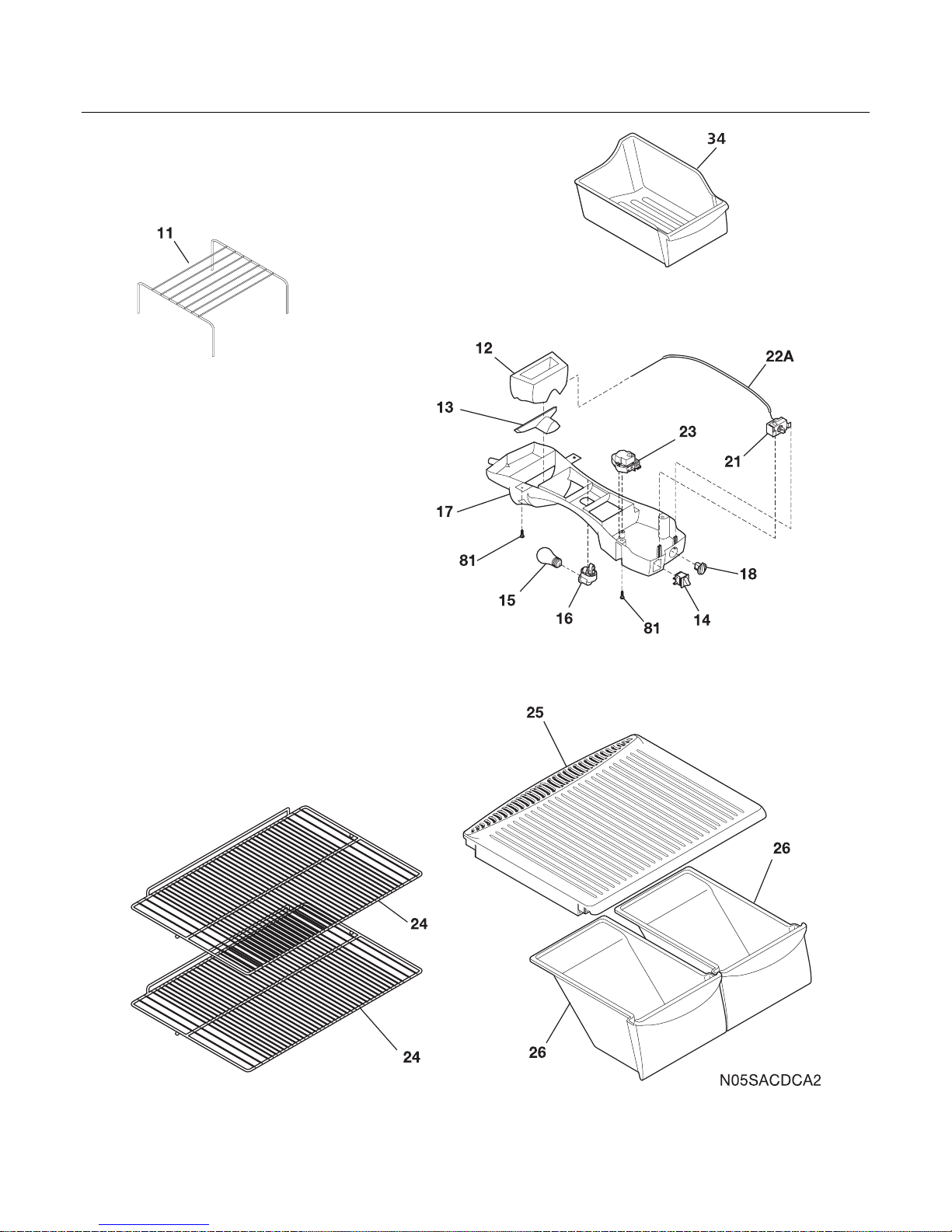

SHELVES

FRT15IB3A Publication No: 5995402046

# Functional Parts 7 01/04

* Non-Ilustrated Parts

SHELVES

Model Index: AFRT15IB3A (FRT15IB3AW4)

BFRT15IB3A (FRT15IB3AZ4)

POS. NO PART NO. DESCRIPTION

11 5303282284 A B Shelf-freezer, "table type"

12 240545001 A B Diffuser, air, top

13 240362601 A B Diffuser, air, bottom

14 # 241554901 A B Switch-light/lamp

15 240436702 A B Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature

16 # 241500701 A B Socket-light/lamp

17 240368001 A B Control Box

17*# 240388701 A B Wiring Harness, control box

18 240360801 A B Knob, temp control

21 # 5304421256 A B Control, temperature

22A 240468201 A B Tube, sensor sleeve, 31 inch, plastic, white

23 # 240371001 A B Timer-defrost

23* 5303001259 A B Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240360902 A B Shelf, sliding, wire

25 240364706 A B Cover, crisper pan

26 240364501 A B Pan, crisper, (2)

34 240385201 A B Container, ice bin

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

* 218791438 A B Energy Guide, tag

Publication No: 5995402046 FRT15IB3A

01/04 8

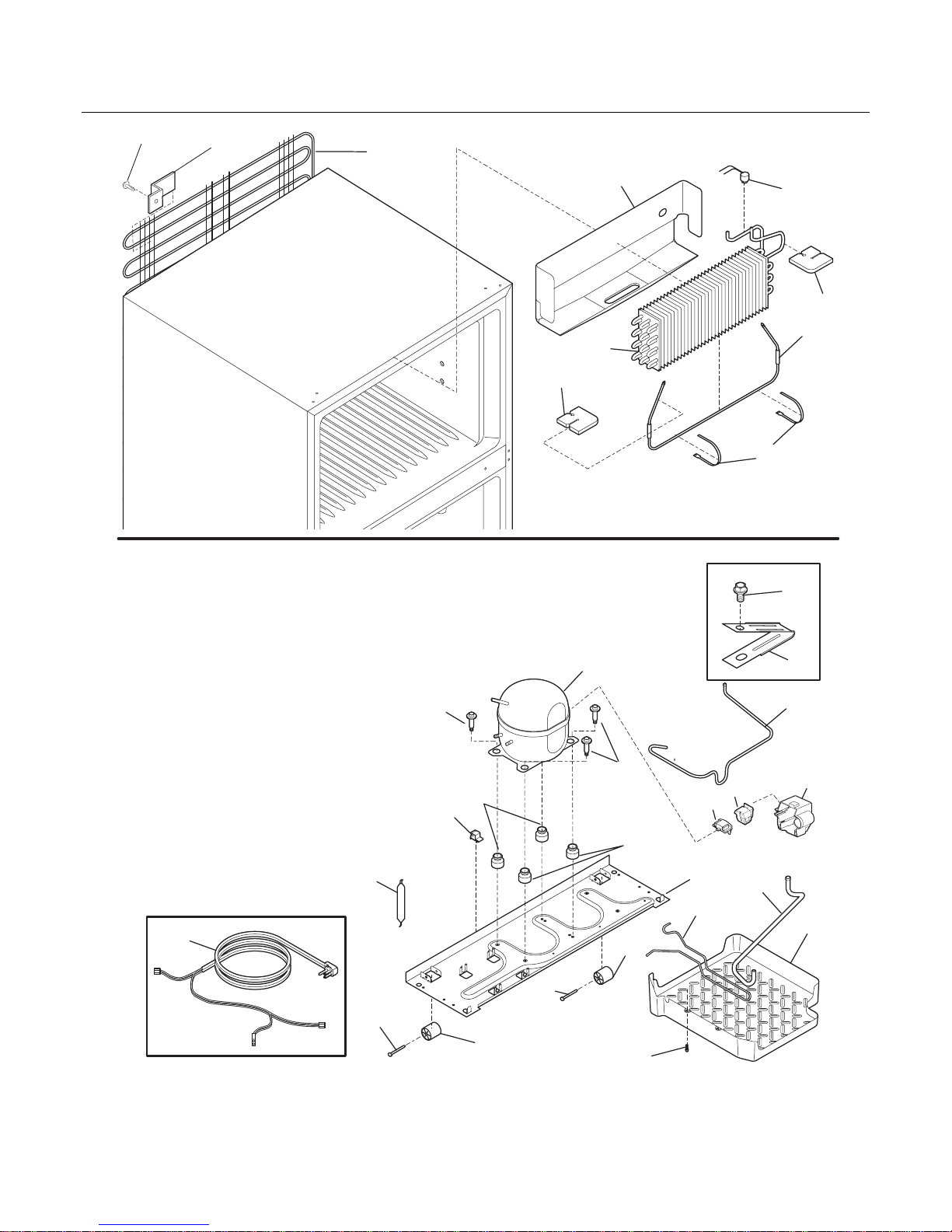

SYSTEM

N05CBBBAB0

30 56

FRT15IB3A Publication No: 5995402046

# Functional Parts 9 01/04

* Non-Ilustrated Parts

SYSTEM

Model Index: AFRT15IB3A (FRT15IB3AW4)

BFRT15IB3A (FRT15IB3AZ4)

POS. NO PART NO. DESCRIPTION

1 # 240406405 A B Condenser, static

1* 240405201 A B Grommet, rubber, black, cond tube/wire

1* 5303208866 A B Spacer, condenser tube, black

2 5308000296 A B Bracket, condenser mtg, (4)

4 # 218944001 A B Drier-filter, R134a System

6 # 240581601 A B Harness-wiring, machine compt

6* 241520701 A B Harness-wiring

6* # 240388701 A B Wiring Harness, control box

6* # 240581801 A B Harness-wiring, compressor

14 # 5303918203 A B Defrost Heater Kit

15 5303918275 A B Evaporator Kit

16 5308000110 A B Strap-evap/heater, aluminum, (2)

17 240434003 A B Trough-drain

20 240518402 A B Insulation, evap block, foam, LH/RH

21 # 5303918202 A B Thermostat-defrost, kit

22 240330005 A B Base-compressor

22* 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 A B Grommet-compr mtg, (4)

25 240491501 A B Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF

26 240332605 A B Pan-defrost drain

29 # 5303918297 A B Compressor, w/electricals

30 # 5304433579 A B Relay

31 # 5304433578 A B Overload Protector

41 240433202 A B Screw, hex washer head, 8-18 x 5/16

44 5303001199 A B Clamp-wiring harness, strain relief, galv steel

45 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

56 240582001 A B Cover-terminal

57 240542601 A B Clip-wiring harness

82 5304418225 A B Roller, compressor base, rear, (2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

84 240500801 A B Tube-drain, rubber, lower

85 241544301 A B Tube-connector, suction

87 240533004 A B Tube-Condensate, 87

* 5303918263 A B Heat Exchanger Kit, suction line

* # 5303918234 A B Hot Tube Repair Kit, Service

Publication No: 5995402046 FRT15IB3A

01/04 10

ICE MAKER
