Frigidaire FRT18B6C Manuale utente

Product No. FRT18B6CB7

Series R134a

Color black

Volts 115

Wiring Diagram 240398801

Owner's Guide 240400111

Market North America

Energy Guide 240572124

Service Data Sheet 240379014

Installation Instructions 240568300

N05L00002.eps N05DCDBCA1.eps N05BBAABA6.eps N05SAADDA11.eps

N05CABBAB4.eps 240398801.eps 240398601.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995411807

04/06/21

(EN/SERVICE/WC)

390

TOP-MOUNT

REFRIGERATOR

Model No.

FRT18B6C

Publication No: 5995411807 FRT18B6CB7

06/04 2

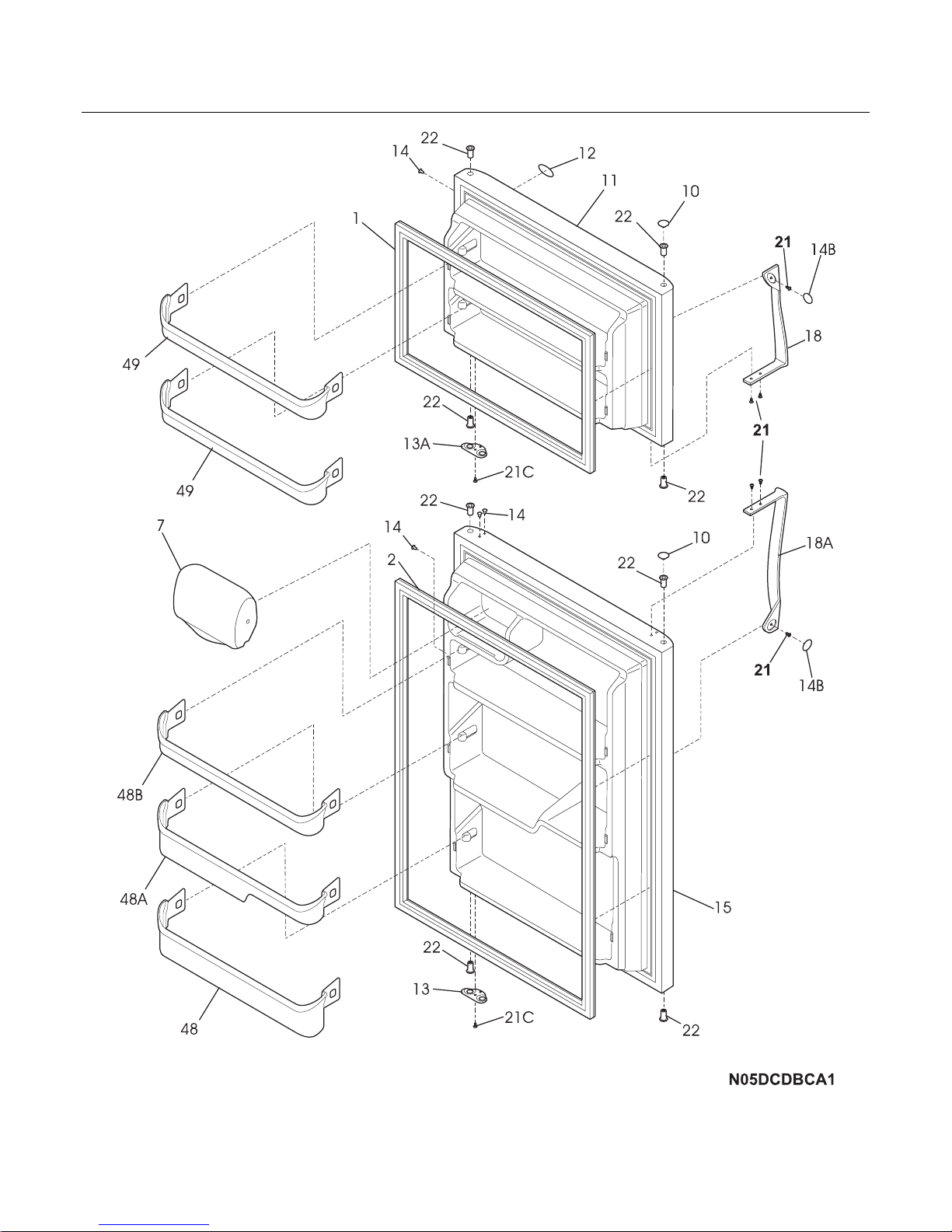

DOOR

FRT18B6CB7 Publication No: 5995411807

# Functional Parts 3 06/04

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 # 240514609 Gasket, frzr door seal, black, magnetic

2 # 240514612 Gasket, seal, black, refr door, magnetic

7 240337701 Door-dairy, w/o graphics, white

10 240381303 Plug-button, black, hinge brg hole

11 240476203 Panel-frzr door, black, complete assy

12 240415204 Label-nameplate, black

13 240312405 Door Stop, black, refr

13A 240312406 Door Stop, black, frzr

14 240494003 Plug-button, black

14B 240383603 Plug-button, black, door handle

15 240476303 Panel-refr door, black, complete assy

18 240339203 Handle-door, black

18A 240339208 Handle-door, black

21 240383401 Screw, truss hd quad, #10-16 x .500

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 240527102 Bearing-hinge, black

48 240338101 Bin-door, pseudo, bottom

48A 240337901 Bin-door, refr

48B 240338001 Bin-door, pseudo, gallon, refr

49 240495804 Bin-door, pseudo, frzr

Publication No: 5995411807 FRT18B6CB7

06/04 4

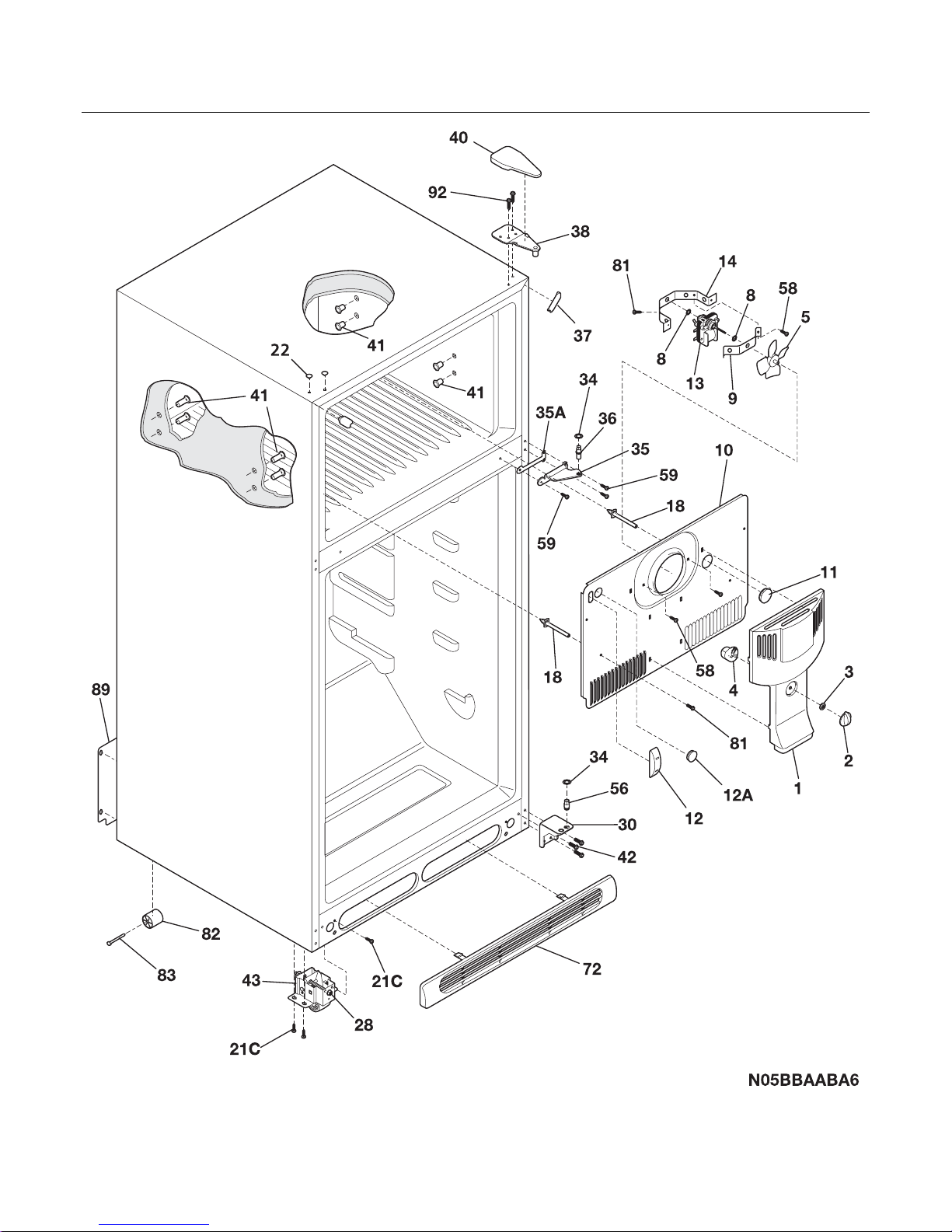

CABINET

FRT18B6CB7 Publication No: 5995411807

# Functional Parts 5 06/04

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

1 240355401 Cover-fan

2 240367001 Knob-damper control

3 5303001028 Nut, push-on

4 240367401 Damper-fan cover

5 # 5308000010 Fan Blade, red, evaporator fan

8 5300157666 Bushing-motor mtg, (2)

9 5303292396 Bracket-motor mtg, front

10 240462010 Cover-evap coil

10* 240568605 Seal-coil cover

11 5303208309 Plug-hole, factory test

13 # 240369701 Motor-evap fan

13* 218931001 Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 Bracket-motor mtg, rear

18 240411901 Support-evap cover, (2)

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 215774918 Plug-button, black, upr hinge holes

28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314003 Bracket-lower hinge, black

34 240311303 Washer, hinge, nylon, (2)

35 240313803 Bracket-ctr hinge, black

35A 240336802 Spacer-hinge, center

36 240516401 Pin-center hinge

37 240337603 Trim-cabinet corner, black, (2)

38 240313701 Bracket-upper hinge

40 240354404 Cover-upper hinge, black

41 5303001609 Grommet, shelf mtg, 0.69", RH

41* 5308009759 Grommet, shelf mtg, 1.25", LH

42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 Roller Assy, front, (2)

56 240516501 Pin-lower hinge

58 5303001343 Screw, hex washer head, 8-15A x 0.500

59 240442703 Screw-#10-32 X 3/4, black

72 240368207 Grille/Kickplate, black

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574607 Cover-access, w/label

89* 241500301 Screw, hex washer head, 8-18AB x 0.500

92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

* 5303305345 Paint, touch-up, black

Publication No: 5995411807 FRT18B6CB7

06/04 6

SHELVES

FRT18B6CB7 Publication No: 5995411807

# Functional Parts 7 06/04

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

10 215667501 Tray, ice cube, plastic

11 5303282284 Shelf-freezer, "table type"

12 240362502 Diffuser, air, top

13 240362601 Diffuser, air, bottom

14 # 241554901 Switch-light/lamp

15 240436702 Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature

16 241500701 Socket-light/lamp

17 240352701 Control Box

17*# 240388701 Wiring Harness, control box

18 240360801 Knob, temp control

21 # 5304421256 Control, temperature

22A 5303916855 Tube, sensor sleeve, plastic, clear

23 # 240371001 Timer-defrost

23* 5303001259 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240360905 Shelf, sliding, wire

25 240364701 Cover-crisper pan, w/ beam, less insert

26 240337101 Pan-crisper, white, (2), no graphics

30 240361801 Cover, meat pan hanger, drop through

31 240530801 Pan-meat, w/o graphics, white

47 240350608 Insert-pan cover, 23.82" x 15.50", glass

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

Publication No: 5995411807 FRT18B6CB7

06/04 8

SYSTEM

N05CABBAB4

FRT18B6CB7 Publication No: 5995411807

# Functional Parts 9 06/04

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 240444401 Condenser, dynamic

4 # 218944001 Drier-filter, R134a System

6 # 240581701 Harness-wiring, machine compt

6* # 240388701 Wiring Harness, control box

6* # 240524701 Wiring Harness, freezer section

14 # 5303918208 Defrost Heater Kit

15 # 5303918274 Evaporator Kit

16 5308000110 Strap-evap/heater, aluminum, (2)

17 241551801 Trough-drain

20 240518402 Insulation, evap block, foam, LH/RH

21 # 5303918202 Thermostat-defrost, kit

22 240330001 Plate-compr mtg

22* 218252200 Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 Grommet-compr mtg, (4)

25 240491501 Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF

26 240332601 Pan-defrost drain

29 # 5303918297 Compressor, w/electricals

30 # 5304433579 Relay

31 # 5304433578 Overload Protector

34 240405201 Grommet, rubber, black, cond tube/wire

41 240555001 Screw-#8-32 X 3/8

44 215174700 Clamp-service cord, strain relief, galv steel

45 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

56 240582001 Cover-terminal

57 240542601 Clip-wiring harness

58 218897002 Screw, hex washer head, 8-32 x 0.375

59 5304430246 Bracket-cond motor assy

59* 240346701 Tape-foam seal, shroud

59* 240359401 Screw-fan shroud, (2)

60 # 240525401 Motor-condenser fan

61 # 240524101 Fan Blade, galv steel, condenser fan

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

85 240493101 Tube-connector, suction

86 240409302 Spacer-cond tube, black

* 240396801 Clamp, tube/wiring, nylon, black/natural

* # 5303918207 Heat Exchanger Kit, suction line

* # 5303918222 Hot Tube Repair Kit, Service

Publication No: 5995411807 FRT18B6CB7

06/04 10

WIRING SCHEMATIC
