Frigidaire FSC23F7D Manuale di istruzioni

E23CS75DSS0.eps N58FCFEFA0.eps N58RCFCHA0.eps N58BABAAD0.eps

N58SEHLBC1.eps N58TBAAAB1.eps N58CAAAAC1.eps N58XEAAAA0.eps

N58YDAAACO.eps N58I115T.eps W241516401A.eps S241516401A.eps

Product No. FSC23F7DB3 FSC23F7DW3

Series counter depth counter depth

Color black white

Volts 115 115

Wiring Diagram 241516401A 241516401A

Owner's Guide 241540301 241540301

Market North America North America

Energy Guide 240598639 240598639

Service Data Sheet 241532603 241532603

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995435632

05/04/27

(EN/SERVICE/DCS)

357

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FSC23F7D

Publication No: 5995435632 FSC23F7D

04/05 2

FREEZER DOOR

22C

22A

21A

13A

N58FCFEFA0

21C

FSC23F7D Publication No: 5995435632

# Functional Parts 3 04/05

* Non-Illustrated Parts

FREEZER DOOR

Model Index: AFSC23F7D (FSC23F7DB3)

BFSC23F7D (FSC23F7DW3)

POS. NO PART NO. DESCRIPTION

1 # 241510204 A - Gasket-frzr door, black, magnetic

1 # 241510202 - B Gasket-frzr door, white, magnetic

4B 241511602 A B Bin-door

5 241545001 A B Bin-tilt out, tilt-out

11 240554271 A - Door-frzr, black, complete assy

11 240554270 - B Door-frzr, white, complete assy

13A 240537106 A - Door Stop, black, frzr

13A 240537102 - B Door Stop, white, frzr

18 240359108 A - Handle-door, black, LH

18 240359106 - B Handle-door, white

21 218781100 A B Screw, pan head, 8-18 x 0.625

21A 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

21C 240521302 A B Screw, #8-18 x 3/4

22A 240328204 A - Bearing-hinge(frz), black, closer

22A 240328202 - B Bearing-hinge(frz), closer

22C 240328404 A - Bearing-hinge, black, upper

22C 240328402 - B Bearing-hinge, natural, upper

37 240359203 A - Trim-handle, 30.13", black, lower

37 240359201 - B Trim-handle, 30.13", white, lower

68 241525101 A B Chute-ice

72 240421701 A B Button-handle mtg, dovetail

73 218396700 A B Block-handle mtg, dovetail

74 215503200 A B Screw, cr pan hd, 10-16 x 0.500

* 240352102 A B Connector-water, straight

* 240552102 A B Harness-wiring, door

* 5303918256 A B Dispenser heater kit

Publication No: 5995435632 FSC23F7D

04/05 4

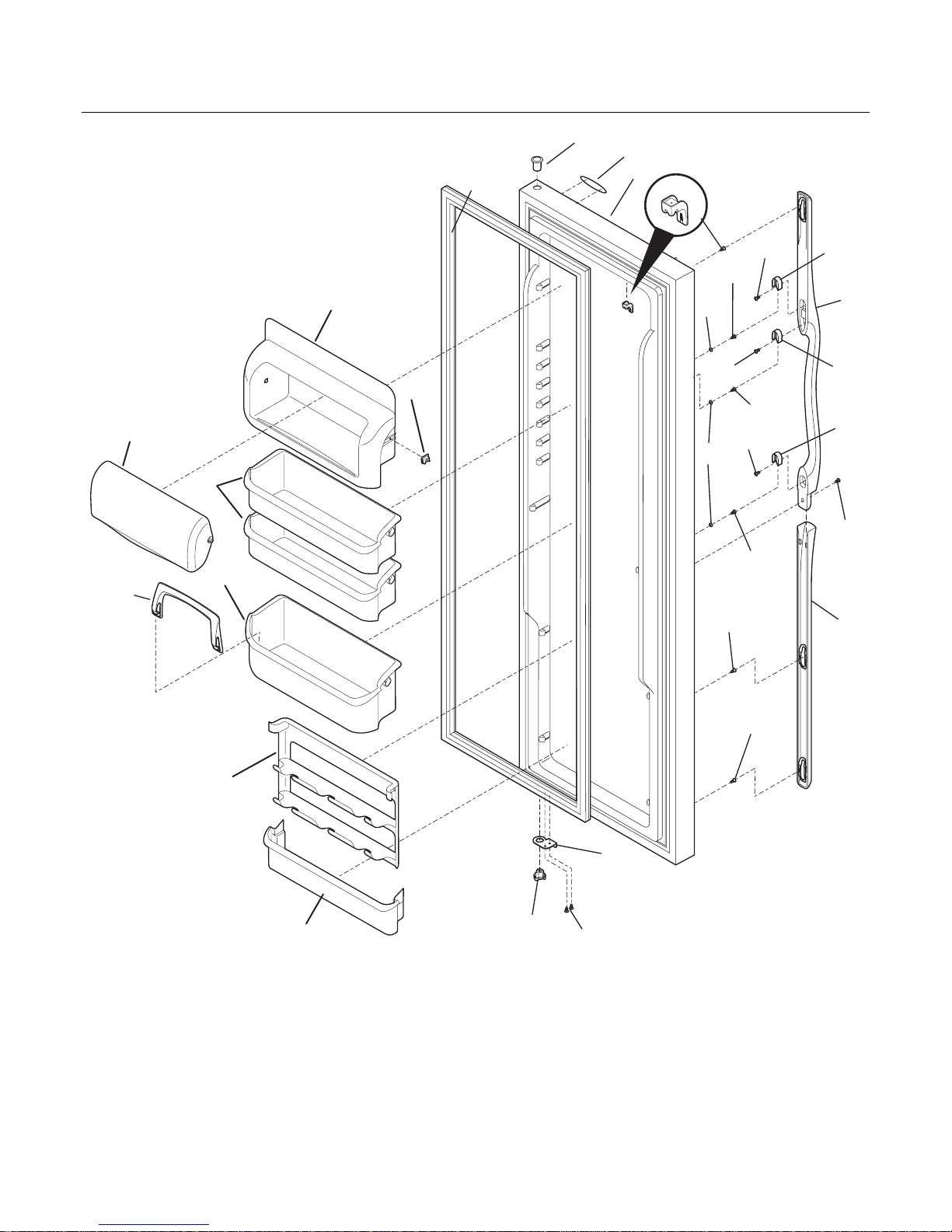

REFRIGERATOR DOOR

49A

21A

22B

N58RCFCHA0

21C

27A

FSC23F7D Publication No: 5995435632

# Functional Parts 5 04/05

* Non-Illustrated Parts

REFRIGERATOR DOOR

Model Index: AFSC23F7D (FSC23F7DB3)

BFSC23F7D (FSC23F7DW3)

POS. NO PART NO. DESCRIPTION

2 # 241510203 A - Gasket-refr door, black, magnetic

2 # 241510201 - B Gasket-refr door, white, magnetic

5 241516102 A B Rack-can

6 241515901 A B Lug-dairy compartment

7 241515601 A B Door-dairy

12 240449710 A - Nameplate

12 240449708 - B Nameplate

13 240537105 A - Door Stop, black, ref

13 240537101 - B Door Stop, white, ref

15 241534505 A - Door-refr, complete assy

15 241534504 - B Door-refr, white, complete assy

18 240359103 A - Handle-door, black, RH

18 240359101 - B Handle-door, white

21 218781100 A B Screw, pan head, 8-18 x 0.625

21A 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

21C 240521302 A B Screw, #8-18 x 3/4

22 240328203 A - Bearing-hinge, black, closer

22 240328201 - B Bearing-hinge(ref), closer

22B 240328403 A - Bearing-hinge, black, upper

22B 240328401 - B Bearing-hinge(ref), natural, upper

27A 240396102 A B Retainer, tall bottle

37 240359203 A - Trim-handle, 30.13", black, lower

37 240359201 - B Trim-handle, 30.13", white, lower

48 241511701 A B Bin-door, ref

49 241505301 A B Bin-door, 2-liter

49A 241505501 A B Bin-door, gallon

50 241508401 A B Cover-magnet

70 241515801 A B Compartment-dairy, removable

72 240421701 A B Button-handle mtg, dovetail

73 218396700 A B Block-handle mtg, dovetail

74 215503200 A B Screw, cr pan hd, 10-16 x 0.500

Publication No: 5995435632 FSC23F7D

04/05 6

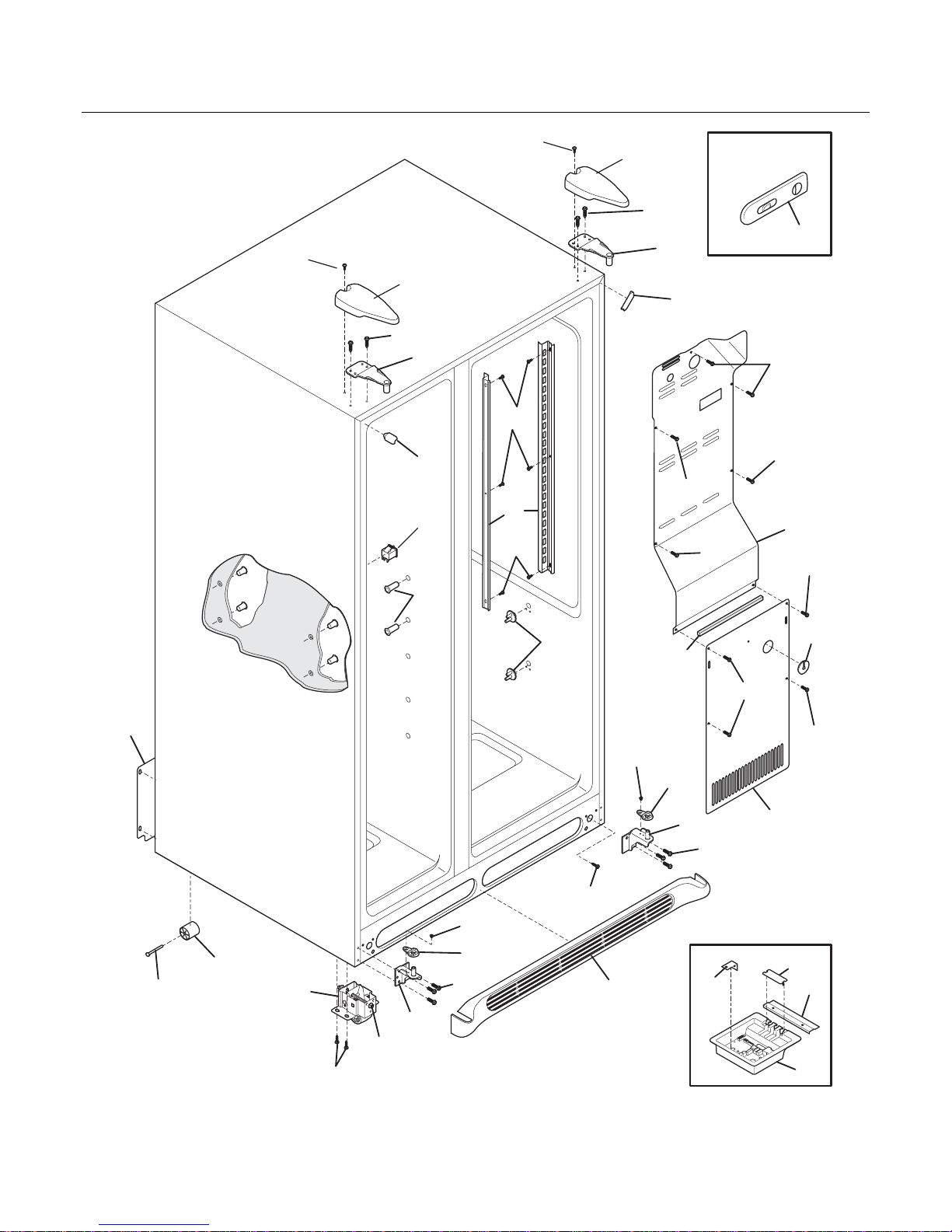

CABINET

100

30A

21C

10A

N58BABAAD0

14A

FSC23F7D Publication No: 5995435632

# Functional Parts 7 04/05

* Non-Illustrated Parts

CABINET

Model Index: AFSC23F7D (FSC23F7DB3)

BFSC23F7D (FSC23F7DW3)

POS. NO PART NO. DESCRIPTION

10 241509802 A B Cover-air duct

10A 240475907 A B Cover-evap coil, lower

11 5303208309 A B Plug-hole, factory test

14A 241547901 A B Switch-light/lamp, frzr door

21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 A - Plate-door closer

22 240457701 - B Plate-door closer

23 240402701 A B Screw-#10-32 x 1/4 flat hd

28 240335501 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240419101 A B Bracket-lower hinge, ref

30A 240419102 A B Bracket-lower hinge

37 240337603 A - Trim-cabinet corner, black, (2)

37 240337601 - B Trim-cabinet corner, white, (2)

38 240327201 A B Bracket-upper hinge

40 240327007 A - Cover-upper hinge, black

40 240327005 - B Cover-upper hinge, white

41 241550801 A B Grommet-shelf mtg, 1.40" long

41* 241550701 A B Grommet-shelf mtg, .96" long

42 240578901 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 A B Roller Assy, front, (2)

45 241500301 A B Screw, hex washer head, 8-18AB x 0.500

47 241513001 A B Channel-shelf mtg, side, (2)

50 241511101 A B Board-main power

50* 241524801 A B Seal-Mother Board Housing

50* 241532501 A B Clip-harness

52 241524802 A B Seal, housing

53 241509101 A B Bracket

54 241532401 A B Channel

58 218781100 A B Screw, pan head, 8-18 x 0.625

66 241513601 A B Damper Assy

72 241521610 A - Grille/Kickplate, black

72 241521608 - B Grille/Kickplate, white

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574602 A B Cover access

90 218249808 A B Seal-coil cover

92 216850900 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 A B Support, crisper cover, front, (4)

100* 240350802 A B Support, crisper cover, rear, (4)

* 240479601 A B Plug, button, cab liner holes, (2)

* 241591701 A B Louver

* 5303305345 A - Paint, touch-up, black

* 5303305324 - B Paint, touch-up, white

Publication No: 5995435632 FSC23F7D

04/05 8

SHELVES

49B

N58SEHLBC1

24B

140

25A

47A

26A

101

100

109 15A

16A

126

120

24B

52A

11A

51A

122

121

136

47B

25B

FSC23F7D Publication No: 5995435632

# Functional Parts 9 04/05

* Non-Illustrated Parts

SHELVES

Model Index: AFSC23F7D (FSC23F7DB3)

BFSC23F7D (FSC23F7DW3)

POS. NO PART NO. DESCRIPTION

2 241510605 A B Trim-basket

11 240443357 A B Shelf-freezer, glass, lower

11A 240443358 A B Shelf-freezer, glass, upper

15A 241552801 A B Light Bulb

16A 241507803 A B Socket-light

16A* 241523201 A B Harness-wiring

24 240355240 A B Shelf-"Spill-Safe", fixed, (3)

24B 240350129 A B Shelf-"Spill-Safe", cantilever, sliding

25 240599301 A B Cover-crisper pan, upper

25* 240362101 A B Clip-slide, cover-crisper

25A 240350902 A B Cover-crisper pan, lower

25B 240599801 A B Cover-meat pan

26 240351005 A B Pan-crisper, upper

26* 240349801 A B Clip-slide, pan-crisper

26A 240362201 A B Control-humidity

27 240351205 A B Pan-crisper, lower

39 240367603 A B Trim-shelf, 11.65", front

41 241571201 A B Trim-shelf, rear

47 240350633 A B Insert-pan cover, glass

47A 240350603 A B Insert-pan cover, glass

47B 240443360 A B Insert-pan cover, glass

49 241515001 A B Basket-sliding

49B 241514901 A B Basket-sliding, upper, full

51 241514501 A B Hanger-basket, RH

51A 241514701 A B Hanger-shelf glass, RH

52 241514601 A B Hanger-basket, LH

52A 241514801 A B Hanger-shelf glass, LH

62 240599701 A B Pan-meat

66 5303295947 A B Rack-wine

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

97 241532002 A B Water Tank

100 241549901 A B Cover-water tank

101 218493100 A B Screw, hex washer head, 8-18AB x 1-3/4

109 241513202 A B Base-crisper light socket

120 241504501 A B Shelf-ice cream

121 241504701 A B Rail-ice cream shelf, LH

122 241504702 A B Rail-ice cream shelf, RH

126 241630701 A B Channel, auger mtg, LH

126 241630702 A B Channel, auger mtg, RH

136 240424502 A B Dispenser-can, clear

140 240430504 A B Channel, wtr tube cover

Publication No: 5995435632 FSC23F7D

04/05 10

CONTROLS

201

199

198

151

149

139

138

137

116

115

N58TBAAAB1
