Frigidaire FRT18G5F Manuale utente

Product No. FRT18G5FB5

Series R134a

Color black

Volts 115

Wiring Diagram 240398801

Owner's Guide 241694400

Market North America

Energy Guide 241613724

Service Data Sheet 240379018

Installation Instructions 240568301

N05L00006.eps N05DAACKA1.eps N05BBAABA19.eps N05SAAAEF16.eps

N05CBBBAC3.eps 240398801.eps 240398801.eps

u x Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995466405

06/05/12

(EN/SERVICE/RLF)

390

TOP-MOUNT

REFRIGERATOR

Model No.

FRT18G5F

Publication No: 5995466405 FRT18G5FB5

05/06 2

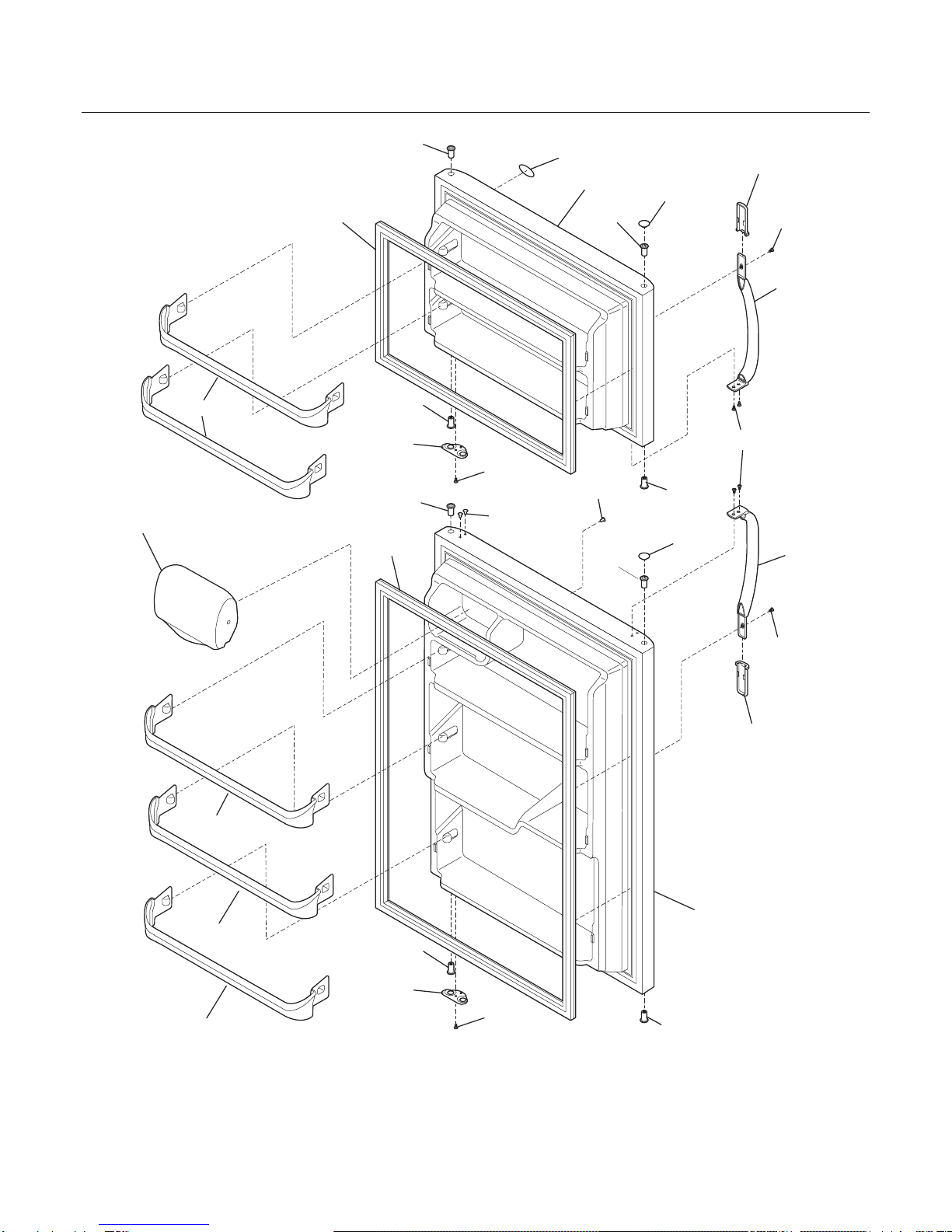

DOOR

13A

21C

N05DAACKA1

FRT18G5FB5 Publication No: 5995466405

# Functional Parts 3 05/06

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 240542121 Gasket-frzr door, black, magnetic

2 240542124 Gasket-refr door, black, magnetic

4 240534901 Rack-door

4B 240534701 Rack-door, 4B

7 240337703 Door-dairy, w/o graphics, clear

8 240534801 Rack-door

10 240381303 Plug-button, black, hinge brg hole

11 240410203 Door-frzr, black, complete assy

12 240415204 Label-nameplate, black

13 240312405 Door Stop, black, refr

13A 240312406 Door Stop, black, frzr

14 240494003 Plug-button, black

15 240410305 Door-refr, black, complete assy

18 218668003 Handle-door, black

21 240383401 Screw, truss hd quad, #10-16 x .500

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 240527102 Bearing-hinge, black

37 215870636 Trim-handle, 2.47", black, w/satin AL band

37* 218676004 Band-decorative, satin aluminum, handle trim

Publication No: 5995466405 FRT18G5FB5

05/06 4

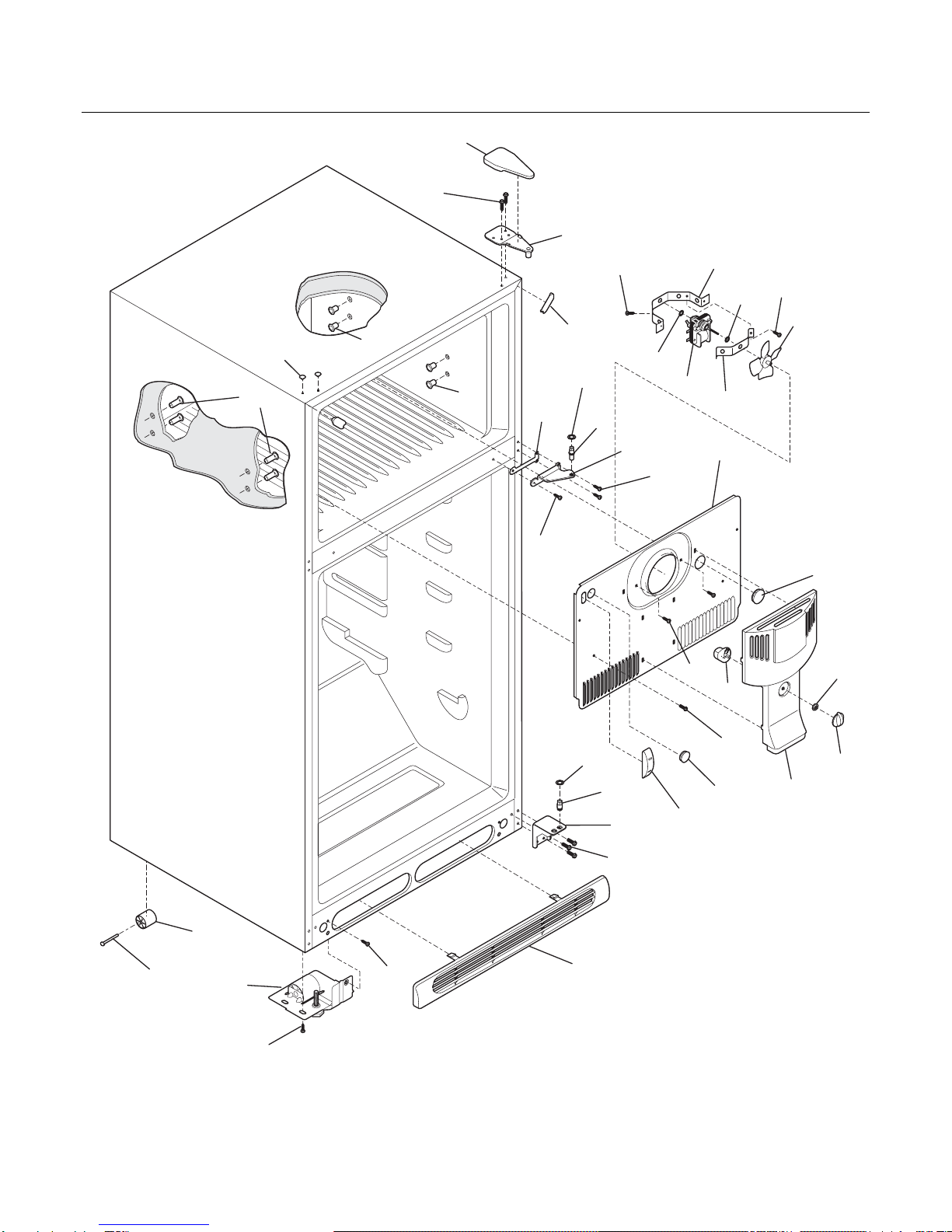

CABINET

12A

35A 36

N05BBAABA19

43 21C

21C

FRT18G5FB5 Publication No: 5995466405

# Functional Parts 5 05/06

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

1 241652301 Cover-fan

2 240367001 Knob-damper control

3 5303001028 Nut, push-on

4 241523701 Damper-fan cover

5 # 5308000010 Fan Blade, red, evaporator fan

8 5300157666 Bushing-motor mtg, (2)

9 5303292396 Bracket-motor mtg, front

10 241652210 Cover-evap coil

10* 240568601 Seal-coil cover

10* 241520701 Harness-wiring, freezer

11 5303208309 Plug-hole, factory test

12 241557601 Plug-ice maker harness, rectangular

12A 240374401 Plug-wtr inlet tube, round, 1"

12A* 241586701 Plug-foam-wtr-inlet, round

13 # 240369702 Motor-evap fan

13* 215474201 Washer, "slinger", nylon, evap fan shaft

13* 218931001 Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 Bracket-motor mtg, rear

14* 240433201 Screw, hex washer head, 8-18 x 0.375

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 215774918 Plug-button, black, upr hinge holes

30 240314003 Bracket-lower hinge, black

34 240311303 Washer, hinge, nylon, (2)

35 240313803 Bracket-ctr hinge, black

35A 240336802 Spacer-hinge, center

36 240516401 Pin-center hinge

37 241611303 Trim-cabinet corner, black, (2)

38 240313701 Bracket-upper hinge

40 240354404 Cover-upper hinge, black

41 5308009759 Grommet, shelf mtg, 1.25", LH, (4)

42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 241559602 Roller Assy, fixed, front LH

43* 241559601 Roller Assy, fixed, front RH

56 240516501 Pin-lower hinge

58 5303001343 Screw, hex washer head, 8-15A x 0.500

59 240442703 Screw-#10-32 X 3/4, black

72 240368207 Grille/Kickplate, black

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

* 218515401 Clip

* 240479601 Plug, button, cab liner holes

* 5303321321 Paint, touch-up, black

Publication No: 5995466405 FRT18G5FB5

05/06 6

SHELVES

25 47

N05SAAAEF16

22A

24A

123

25C

FRT18G5FB5 Publication No: 5995466405

# Functional Parts 7 05/06

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

10 215667501 Tray, ice cube, plastic

11 240358005 Shelf, freezer, full-width, wire

11* 5303299664 Spacer, shelf

12 241542001 Diffuser, air, top

13 240362601 Diffuser, air, bottom

14 241554901 Switch-light/lamp

15 240436702 Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature

16 241559801 Socket-light

17 240352701 Control Box

17* 240568607 Seal

17*# 240388701 Wiring Harness, control box

18 240360801 Knob, temp control

21 # 5304421256 Control, temperature

22A 240468201 Tube, sensor sleeve, 31 inch, plastic, white

23 # 241621501 Timer-defrost

23* 5303001259 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240372409 Frame, sliding shelf, full width

24A 240372410 Frame, sliding shelf, full width, w/hanger tabs

25 240364713 Cover-crisper pan, with beam, humid cont

25C 241613502 Control-humidity, LH

26 240337107 Pan-crisper, clear, (2), no graphics

29 240357704 Trim-shelf, front

31 240530810 Pan, meat bin

40 240350620 Glass-shelf, 23.78" x 16.34"

41 240561502 Trim-shelf, rear

42 240530601 Track, meat pan hanger, LH

42 240530701 Track, meat pan hanger, RH

47 240350608 Insert-pan cover, 23.82" x 15.50", glass

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

123 215005100 Screw, hanger/rlr mtg, 8-10 x 0.438

Publication No: 5995466405 FRT18G5FB5

05/06 8

SYSTEM

FRT18G5FB5 Publication No: 5995466405

# Functional Parts 9 05/06

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 241674102 Condenser, static

1* 240405201 Grommet, rubber, black, cond tube/wire

1* 5303208866 Spacer, condenser tube, black

2 241658801 Bracket, condenser mtg

4 # 218944001 Drier-filter, R134a System

6 # 241678801 Harness-wiring, machine compt

6* # 240388701 Wiring Harness, control box

6* # 241520701 Harness-wiring, freezer

14 # 240356214 Heater-defrost

15 # 5303918274 Evaporator Kit

16 5308000110 Strap-evap/heater, aluminum, (2)

17 241551801 Trough-drain

20 241551901 Insulation Block

21 # 5303918202 Thermostat-defrost, kit

22 241665501 Base-compressor

22* 218252200 Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 Grommet-compr mtg, (4)

25 240491502 Screw-compressor mtg, 1/4-28 x 1.16, (4)

26 240598501 Pan-defrost drain

26* 5303307896 Thermal Mastic

29 # 5303918326 Compressor, w/electricals

30 # 241667501 Relay Combo

41 240433202 Screw, hex washer head, 8-18 x 5/16

44 5303001199 Clamp-wiring harness, strain relief, galv steel

45 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

57 240542601 Clip-wiring harness

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

84 241505701 Tube-drain, lower

85 241544301 Tube-connector, suction

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 5303918234 Hot Tube Repair Kit, service

* 5303918263 Heat Exchanger Kit, suction line

Publication No: 5995466405 FRT18G5FB5

05/06 10

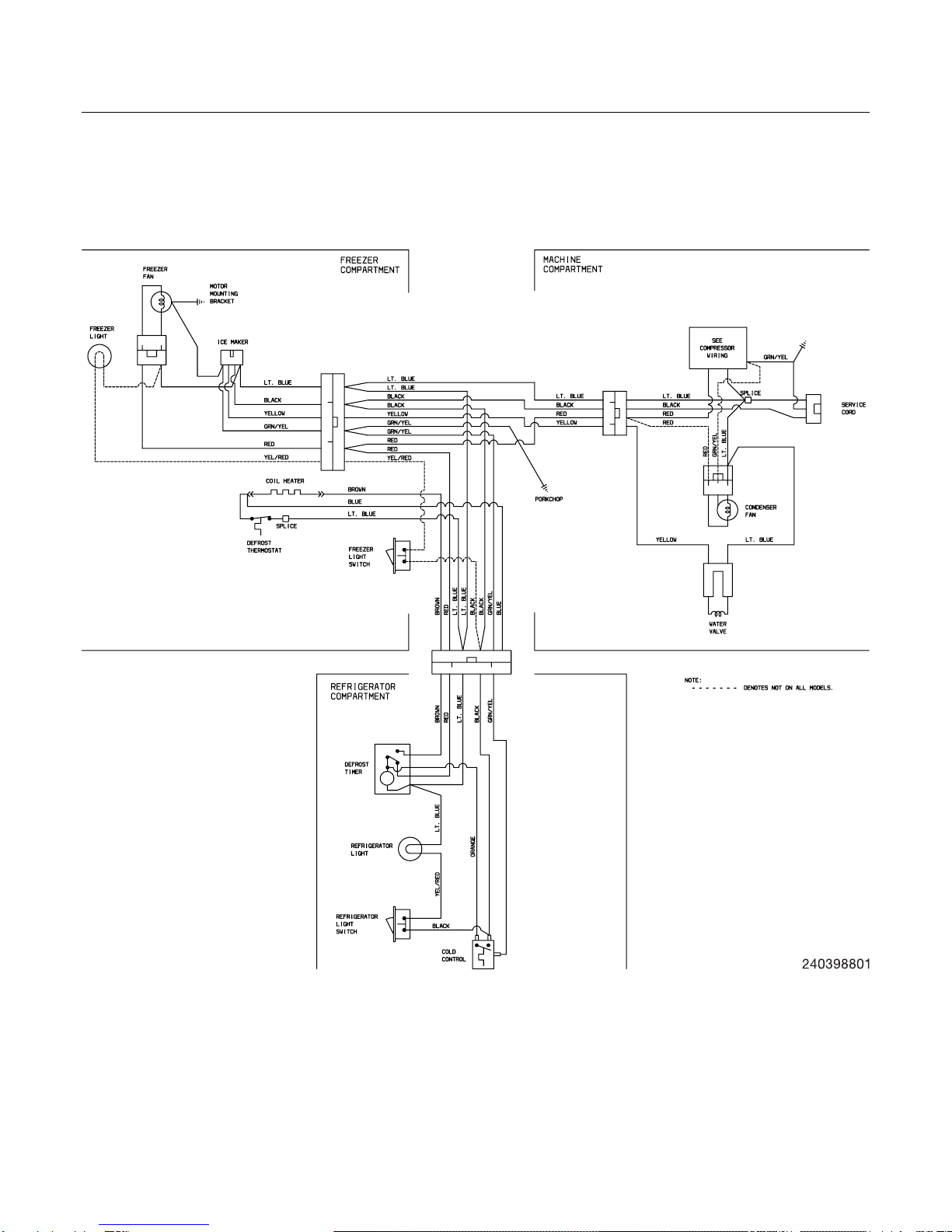

WIRING SCHEMATIC
