Frigidaire FRT18KG3D Manuale utente

N05L00004.eps N05DBDCKA0.eps N05BBAABA19.eps N05SAAAEF16.eps

N05CBABAB4.eps W241582401.eps S241582801.eps

Product No. FRT18KG3DWD

Series R134a

Color white

Volts 115

Wiring Diagram 241582401

Owner's Guide 241857201

Market North America

Energy Guide 240598697

Service Data Sheet 241588203

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995514733

08/05/19

(EN/SERVICE/DCS)

390

TOP-MOUNT

REFRIGERATOR

Model No.

FRT18KG3D

Publication No: 5995514733 FRT18KG3DWD

05/08 2

DOOR

21A

18A

13A

21C

22 18A

21A

N05DBDCKA0

FRT18KG3DWD Publication No: 5995514733

# Functional Parts 3 05/08

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 # 241872503 Gasket-frzr door, white, magnetic

2 241872506 Gasket-refr door, white, magnetic

4 240534901 Rack-door

4B 240534701 Rack-door, 4B

7 240337712 Door-dairy

8 240534801 Rack-door

10 240381301 Plug-button, white, hinge brg hole, (2)

11 240410201 Door-frzr, white, complete assy

12 241808601 Label-nameplate

13 240312403 Door Stop, white, ref

13A 240312404 Door Stop, white, frzr

14 240494001 Plug-button, white

15 240410301 Door-refr, white, complete assy

18A 218428101 Handle-door, white, w/block & screw

21 240383406 Screw, truss hd quad, #10-16 x .500, zinc

21A 240521303 Screw, #10-16 x 1/2

21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500

22 240527101 Bearing-hinge, natural color

73 218396701 Block-handle mtg, dovetail

74 215503203 Screw, cr pan hd, 10-16 x 0.500

Publication No: 5995514733 FRT18KG3DWD

05/08 4

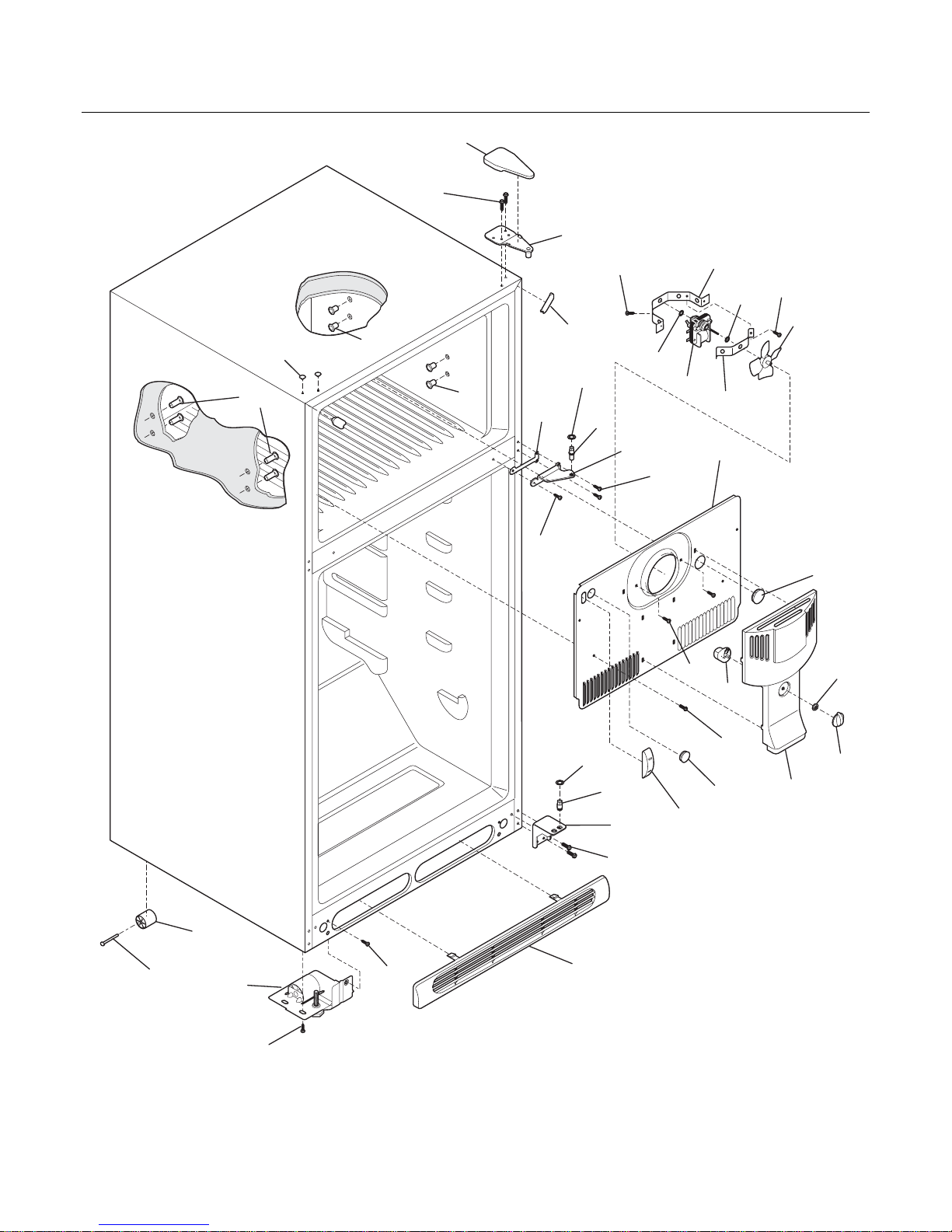

CABINET

12A

35A 36

N05BBAABA19

43 21C

21C

FRT18KG3DWD Publication No: 5995514733

# Functional Parts 5 05/08

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

1 241652301 Cover-fan

2 240367001 Knob-damper control

3 5303001028 Nut, push-on

4 241523701 Damper-fan cover

5 # 5308000010 Fan Blade, red, evaporator fan

8 5300157666 Bushing-motor mtg, (2)

9 5303292396 Bracket-motor mtg, front

10 241652214 Cover-evap coil

10* 240568601 Seal-coil cover

11 5303208309 Plug-hole, factory test

12 241557601 Plug-ice maker harness, rectangular

12A 240374401 Plug-wtr inlet tube, round, 1"

12A* 241586701 Plug-foam-wtr-inlet, round

13 # 241854301 Motor-fan

13* 215474201 Washer, "slinger", nylon, evap fan shaft

13* 218931001 Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 Bracket-motor mtg, rear

14* 240433204 Screw, hex washer head, 8-18 x 5/16

21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500

22 215774901 Plug-button, white, upr hinge holes

30 240314011 Bracket-lower hinge, zinc

34 240311303 Washer, hinge, nylon, (2)

35 240313806 Bracket-ctr hinge, zinc

35A 240336802 Spacer-hinge, center

36 240516402 Pin-center hinge

37 241611301 Trim-cabinet corner, white, (2)

38 240313701 Bracket-upper hinge

40 240354401 Cover-upper hinge, white

41 5308009759 Grommet, shelf mtg, 1.25", LH, (4)

42 240578902 Screw, hex head, 1/4-20 x 5/8

43 241889002 Roller Assy, front LH, (2)

43* 241889001 Roller Assy, front RH, (2)

56 240516502 Pin-lower hinge

58 5304456287 Screw, hex washer head, 8-15A x 0.500

59 240442706 Screw-#10-32 X 3/4, zinc

72 241839405 Grille/Kickplate, white

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

* 240479601 Plug, button, cab liner holes

* 5303321319 Paint, touch-up, white

Publication No: 5995514733 FRT18KG3DWD

05/08 6

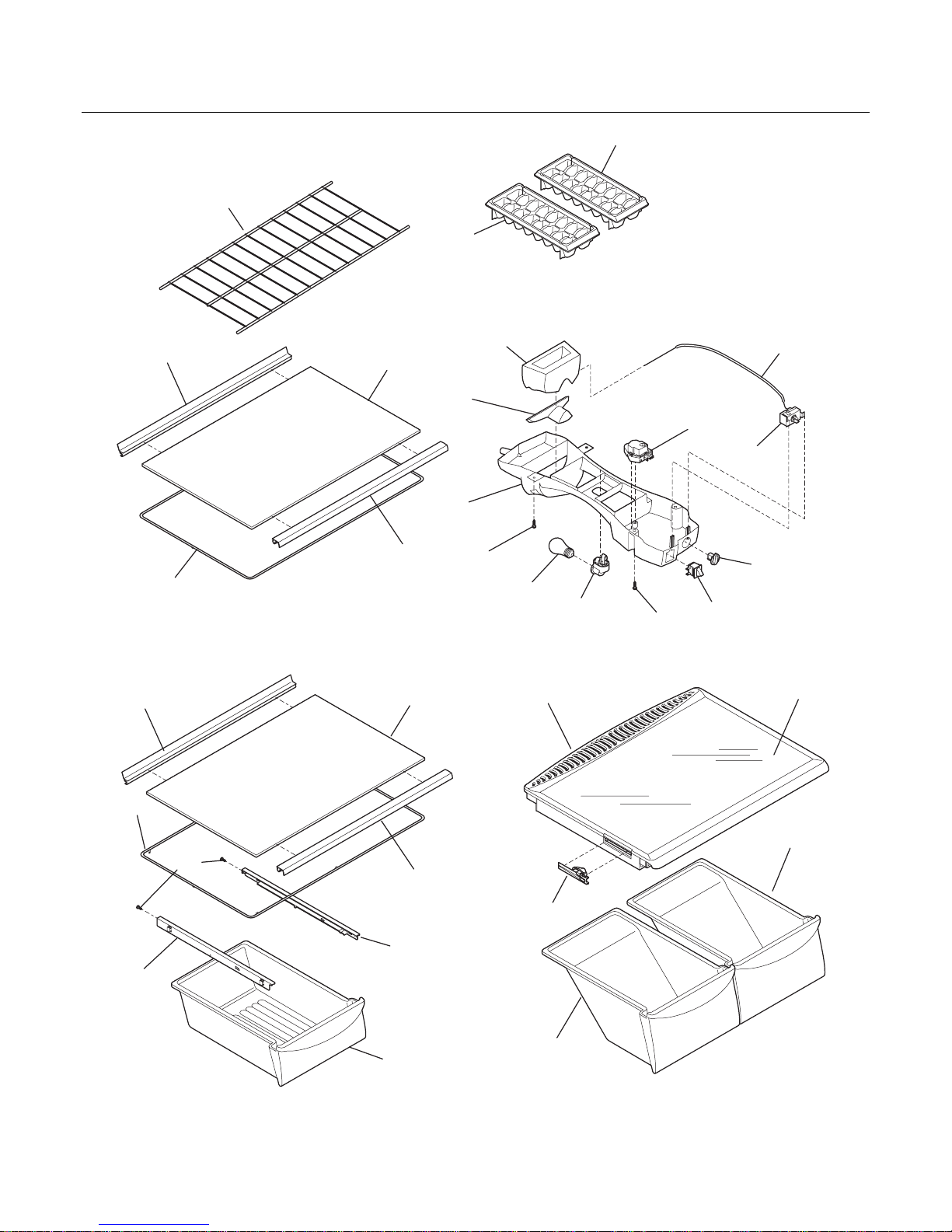

SHELVES

25C

24A

123

N05SAAAEF16

22A

FRT18KG3DWD Publication No: 5995514733

# Functional Parts 7 05/08

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

10 215667501 Tray, ice cube, plastic

11 240358005 Shelf, freezer, full-width, wire

12 241542001 Diffuser, air, top

13 240362601 Diffuser, air, bottom

14 # 241554901 Switch-light/lamp

15 241555401 Light Bulb

16 241559801 Socket-light

17 240352702 Control Box

17* 240568607 Seal

17*# 240388701 Wiring Harness, control box

18 240360801 Knob, temp control

21 # 5304421256 Control, temperature

22A 240468201 Tube, sensor sleeve, 31 inch, plastic, white

23 # 241621501 Timer-defrost

23* 5304455649 Screw, pan hd, 6-20 x 0.438

24 240372409 Frame, sliding shelf, full width

24A 240372410 Frame, sliding shelf, full width, w/hanger tabs

25 240364713 Cover-crisper pan, with beam, humid cont

25C 241613502 Control-humidity, LH

26 240337103 Pan-crisper, clear, (2), no graphics

29 240357704 Trim-shelf, front

31 240530811 Pan-meat, w/o graphics, clear

40 240350620 Glass-shelf, 23.78" x 16.34"

41 240561502 Trim-shelf, rear

42 240530601 Track, meat pan hanger, LH

42 240530701 Track, meat pan hanger, RH

47 240350608 Insert-pan cover, 23.82" x 15.50", glass

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

123 215005101 Screw, hanger/rlr mtg, 8-10 x 7/16

* 240598697 Energy Guide

Publication No: 5995514733 FRT18KG3DWD

05/08 8

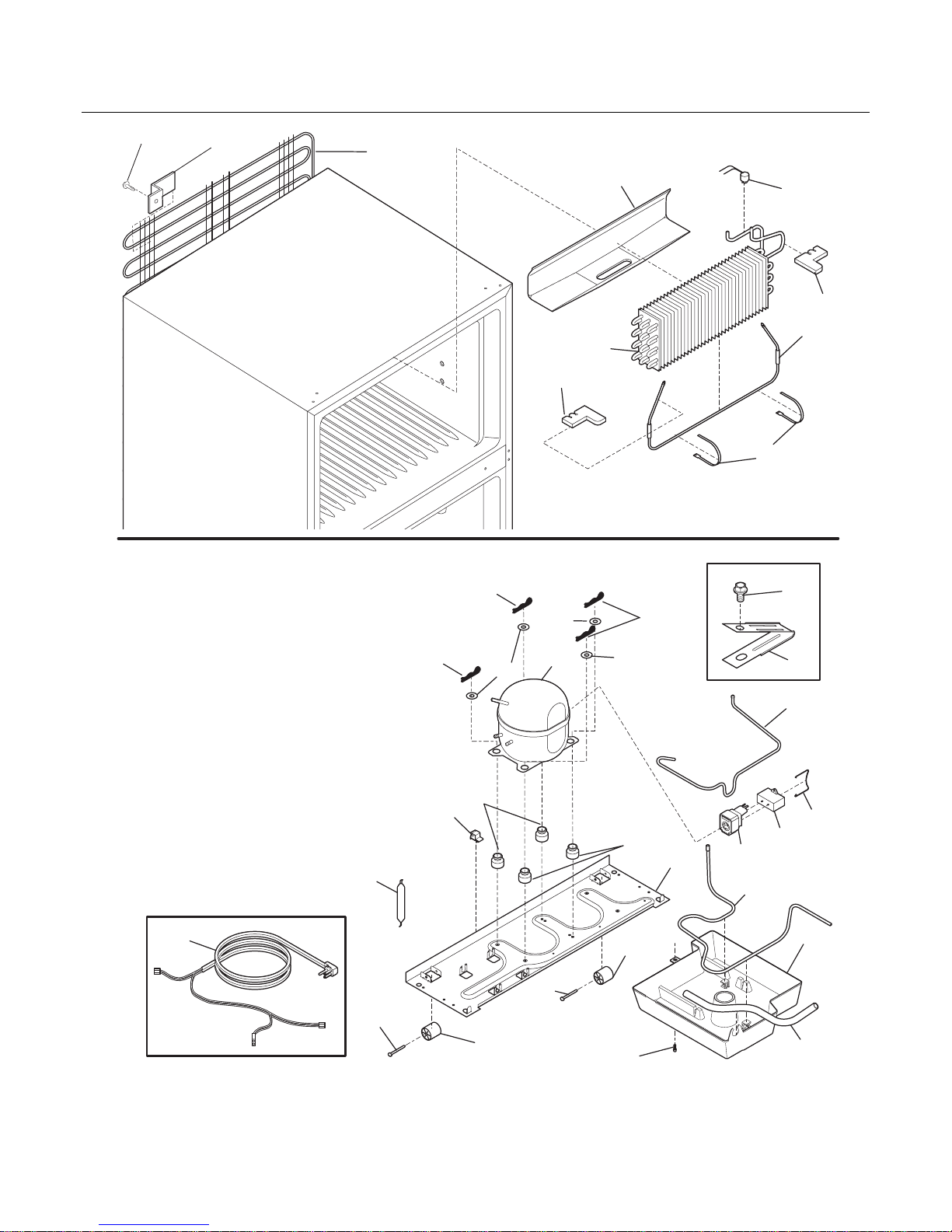

SYSTEM

N05CBABAB4

FRT18KG3DWD Publication No: 5995514733

# Functional Parts 9 05/08

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 241861903 Condenser, static

1* 240405201 Grommet, rubber, black, cond tube/wire

1* 5303208866 Spacer, condenser tube, black

1* 5304406721 Spacer-cond tube, round, 5/8 OD x .81"lg

2 241658801 Bracket, condenser mtg

4 218944002 Drier-filter, R134a System

6 # 241949801 Harness-wiring, machine compt

6* # 240388701 Wiring Harness, control box

14 # 240356221 Heater-defrost

15 # 5303918274 Evaporator Kit

16 5308000110 Strap-evap/heater, aluminum, (2)

17 241801301 Trough-drain

20 241551902 Insulation Block

21 # 5303918202 Thermostat-defrost, kit

22 241665606 Base-compressor

22* 218252201 Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 Grommet-compr mtg, (4)

24 241812301 Washer-compr mtg

25 216056401 Clip-compressor mtg

26 241949701 Pan-defrost

29 # 5303918347 Compressor Kit

30 # 241707702 Starter, PTC

32 241715901 Strap-cover

41 240433204 Screw, hex washer head, 8-18 x 5/16

44 5304456288 Clamp-wiring harness, strain relief, galv steel

45 241500304 Screw, hex washer head, 8-18AB x 0.625

45* 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

55 218909913 Capacitor, run, 220 VAC, 15 microfarad

57 240542601 Clip-wiring harness

82 5304418225 Roller, compressor base, rear, (2)

83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

84 241949901 Tube-drain, lower

85 241844601 Tube-connector, suction

87 241949601 Tube-Condensate, 87

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 5303918234 Hot Tube Repair Kit, service

* 5303918263 Heat Exchanger Kit, suction line

Publication No: 5995514733 FRT18KG3DWD

05/08 10

WIRING SCHEMATIC
