Frigidaire FRT18S6A Manuale utente

Product No. FRT18S6AQJ

Series R134a

Color bisque

Volts 115

Wiring Diagram 240398801

Owner's Guide 240400112

Market North America

Energy Guide 218791400

Service Data Sheet 240379015

Installation Instructions 240568300

N05L00002.eps N05DCDBCA1.eps N05BBAABA22.eps N05SAAAFI14.eps

N05CABBAB5.eps 240398801.eps 240398601.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378

Augusta, GA 30917

Publication No.

5995432738

05/03/29

(EN/SERVICE/WC)

390

TOP-MOUNT

REFRIGERATOR

Model No.

FRT18S6A

Publication No: 5995432738 FRT18S6AQJ

03/05 2

DOOR

48A

48B

13A

21C

N05DCDBCA1

21 14B

14B

18A

FRT18S6AQJ Publication No: 5995432738

# Functional Parts 3 03/05

* Non-Illustrated Parts

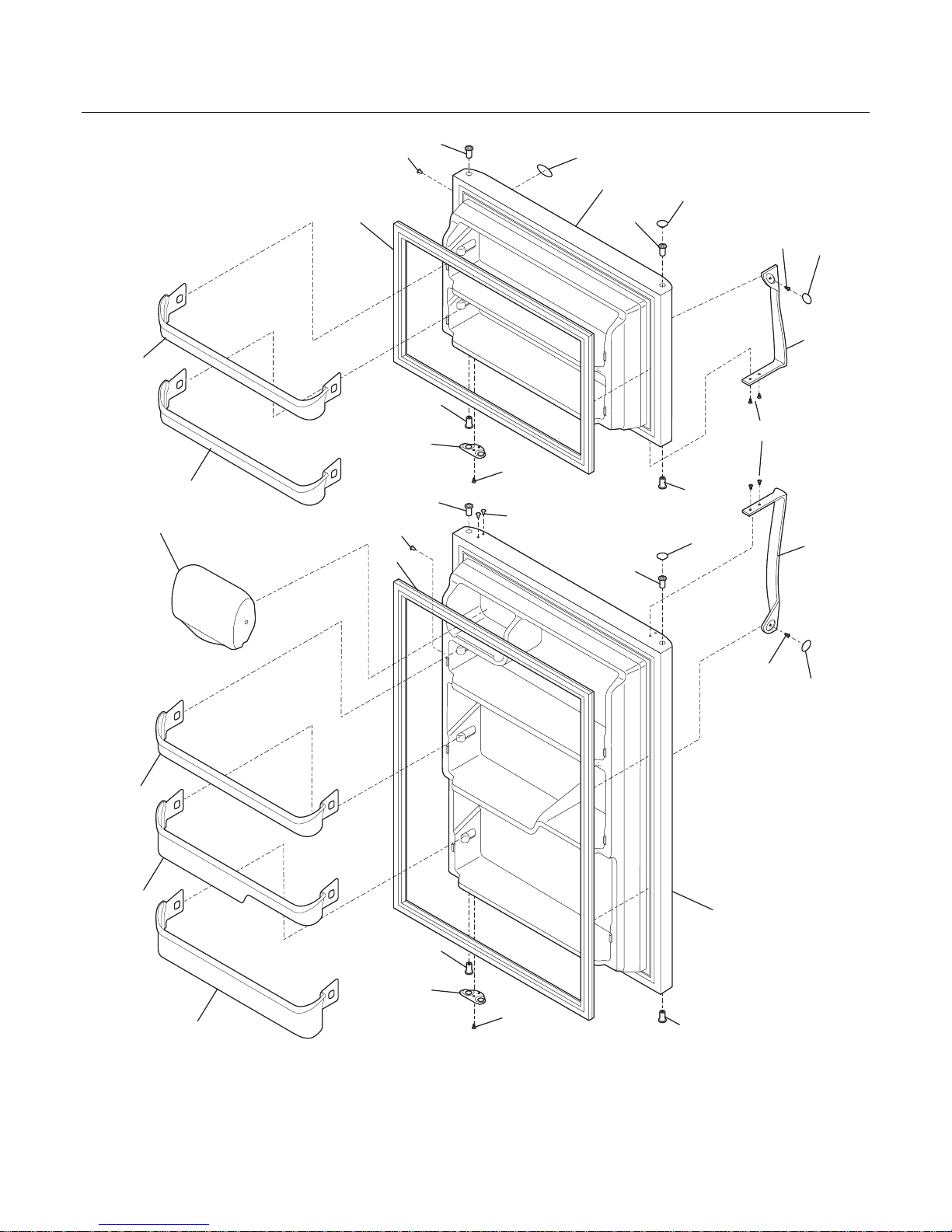

DOOR

POS. NO PART NO. DESCRIPTION

1 240542103 Gasket-frzr door, white, magnetic

2 240542106 Gasket-refr door, white, magnetic

7 240337703 Door-dairy, w/o graphics, clear

10 240381302 Plug-button, bisque, hinge brg hole, (2)

11 240409902 Panel-frzr door, bisque, complete assy

12 240416303 Label-nameplate, bisque

13 240312407 Door Stop, bisque, ref

13A 240312408 Door Stop, bisque, frzr

14 240494002 Plug-button, bisque

14B 240383602 Plug-button, bisque, door handle

15 240410002 Panel-refr door, bisque, complete assy

18 240339204 Handle-door, bisque

18A 240339209 Handle-door, bisque

21 240383401 Screw, truss hd quad, #10-16 x .500

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 240527101 Bearing-hinge, natural color

48 240338101 Bin-door, pseudo, bottom

48A 240337901 Bin-door, refr

48B 240338001 Bin-door, pseudo, gallon, refr

49 240495804 Bin-door, pseudo, frzr

Publication No: 5995432738 FRT18S6AQJ

03/05 4

CABINET

12A

35A 36

N05BBAABA22

43 21C

21C

FRT18S6AQJ Publication No: 5995432738

# Functional Parts 5 03/05

* Non-Illustrated Parts

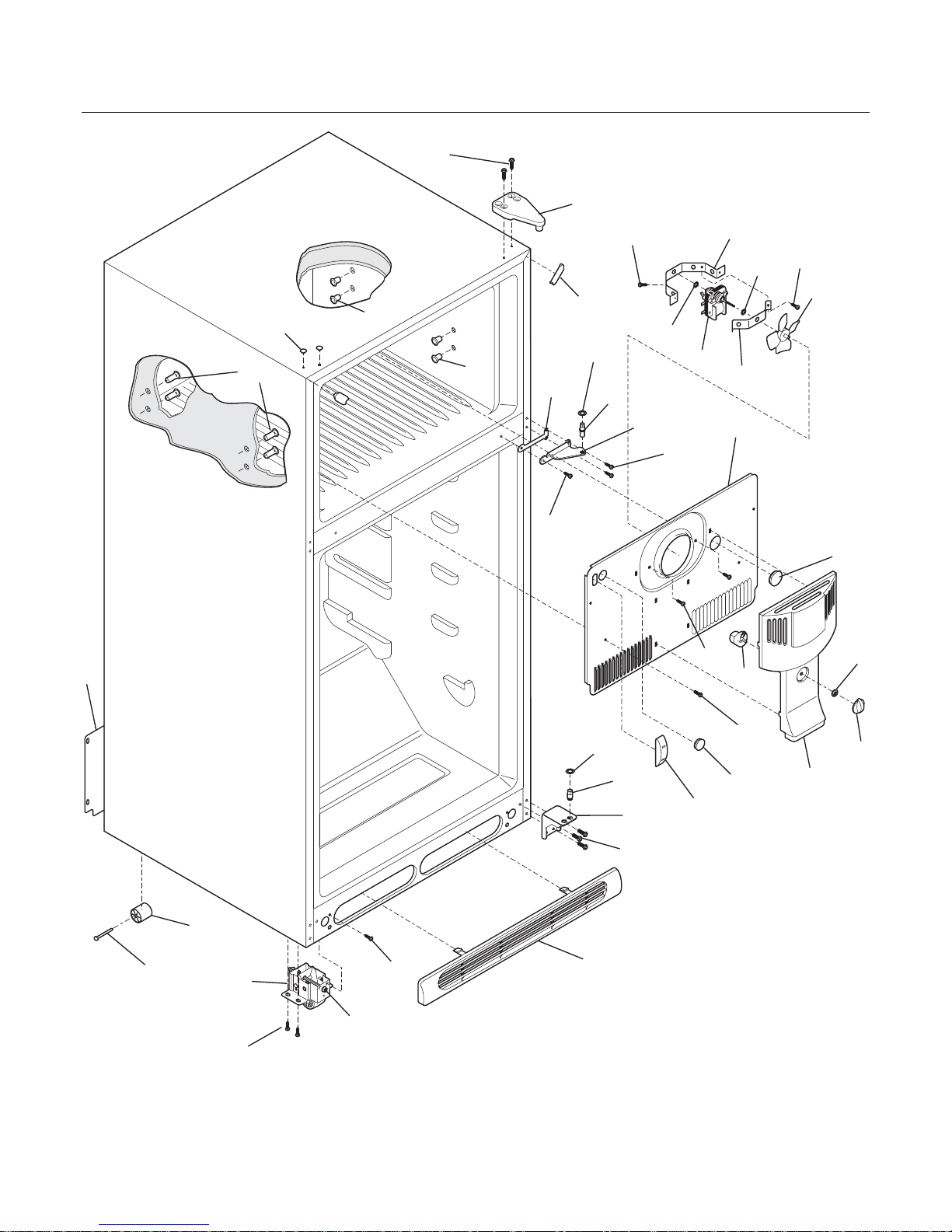

CABINET

POS. NO PART NO. DESCRIPTION

1 240355401 Cover-fan

2 240367001 Knob-damper control

3 5303001028 Nut, push-on

4 241523701 Damper-fan cover

5 # 5308000010 Fan Blade, red, evaporator fan

8 5300157666 Bushing-motor mtg, (2)

9 5303292396 Bracket-motor mtg, front

10 240462010 Cover-evap coil

10* 240568601 Seal-coil cover

10* 241520701 Harness-wiring, freezer

11 5303208309 Plug-hole, factory test

12 241557601 Plug-ice maker harness, rectangular

12* 218843800 Screw, hex wshr hd, 8-15A x 0.500

12A 240374401 Plug-wtr inlet tube, round, 1"

12A* 241586701 Plug-foam-wtr-inlet, round

13 240369702 Motor-evap fan

13* 215474201 Washer, "slinger", nylon, evap fan shaft

13* 218931001 Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 Bracket-motor mtg, rear

14* 240433201 Screw, hex washer head, 8-18 x 0.375

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 215774919 Plug-button, bisque, upr hinge holes

28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314001 Bracket-lower hinge, zinc

34 240311303 Washer, hinge, nylon, (2)

35 240313801 Bracket-ctr hinge, zinc

35A 240336802 Spacer-hinge, center

36 240516401 Pin-center hinge

37 241611304 Trim-cabinet corner, bisque, (2)

38 241622604 Hinge-up-plastic-bis, plastic, bisque

41 5303001609 Grommet, shelf mtg, 0.69", RH

41* 5308009759 Grommet, shelf mtg, 1.25", LH, (4)

42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 Roller Assy, front, (2)

56 240516501 Pin-lower hinge

58 5303001343 Screw, hex washer head, 8-15A x 0.500

59 240442701 Screw-#10-32 X 3/4, zinc

72 240368206 Grille/Kickplate, bisque

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574607 Cover-access, w/label

89* 241500302 Screw, hex washer head, 8-18AB x 0.625

92 241624301 Screw-hinge mtg, hex head, 1/4-20 x 1.00

* 240479601 Plug, button, cab liner holes, (2)

* 5304414035 Paint, touch-up, bisque

Publication No: 5995432738 FRT18S6AQJ

03/05 6

SHELVES

FRT18S6AQJ Publication No: 5995432738

# Functional Parts 7 03/05

* Non-Illustrated Parts

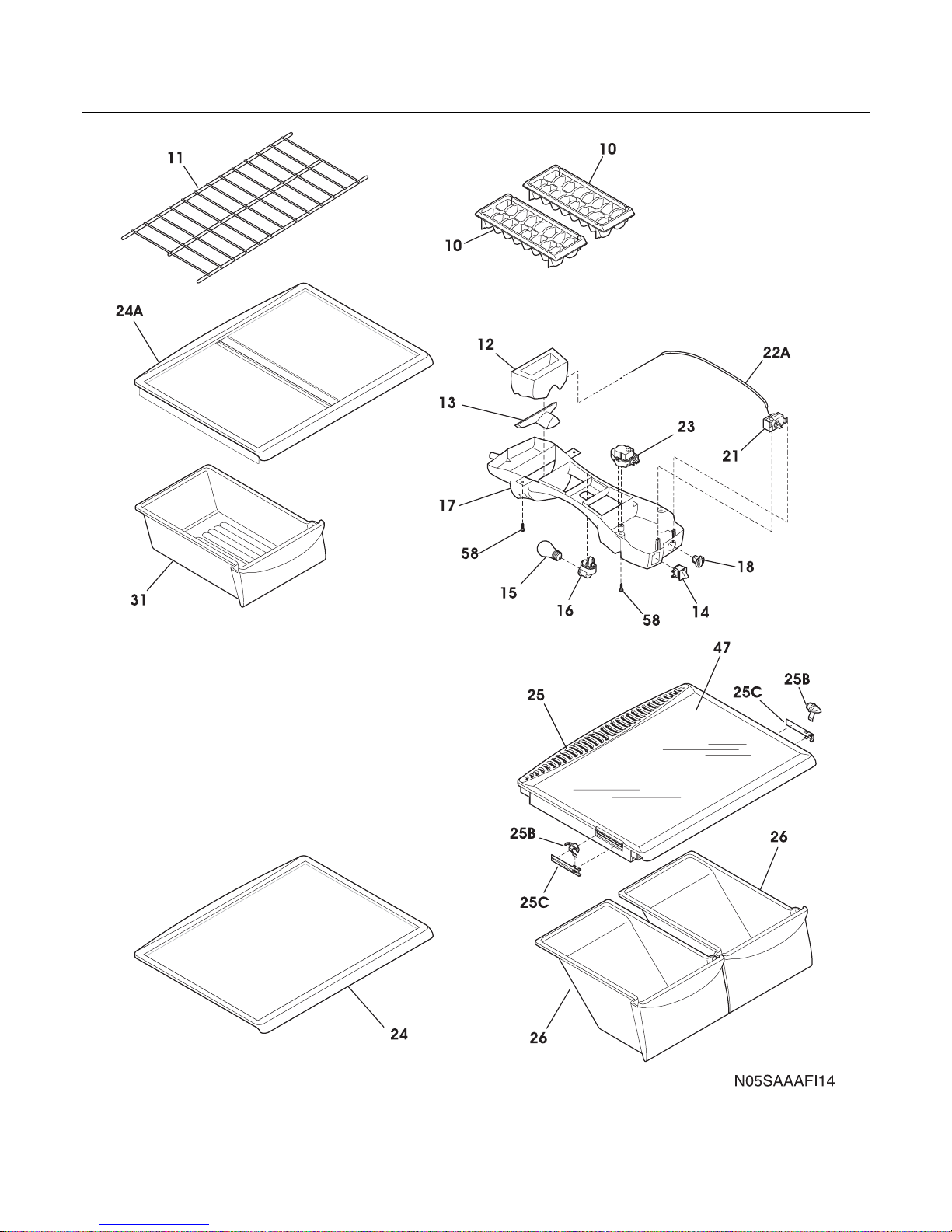

SHELVES

POS. NO PART NO. DESCRIPTION

10 215667501 Tray, ice cube, plastic

11 240358005 Shelf, freezer, full-width, wire

11 5303299664 Spacer, shelf

12 241542001 Diffuser, air, top

13 240362601 Diffuser, air, bottom

14 # 241554901 Switch-light/lamp

15 240436702 Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature

16 241559801 Socket-light

17 240352701 Control Box

17* 240568607 Seal

17*# 240388701 Wiring Harness, control box

18 240360801 Knob, temp control

21 # 5304421256 Control, temperature

22A 240468201 Tube, sensor sleeve, 31 inch, plastic, white

23 # 241621501 Timer-defrost

23* 5303001259 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240358905 Shelf-"Spill-Safe", sliding

24A 240358906 Shelf-"Spill-Safe", sliding, w/pan hanger

25 240364714 Cover-crisper pan

25B 240361201 Control-humidity

25C 240361301 Damper, humidity cont.

26 240337103 Pan-crisper, clear, (2), no graphics

26 240337107 Pan-crisper, clear, (2), no graphics

31 240530810 Pan, meat bin

47 240350643 Insert-pan cover, glass

58 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

Publication No: 5995432738 FRT18S6AQJ

03/05 8

SYSTEM

N05CABBAB5

FRT18S6AQJ Publication No: 5995432738

# Functional Parts 9 03/05

* Non-Illustrated Parts

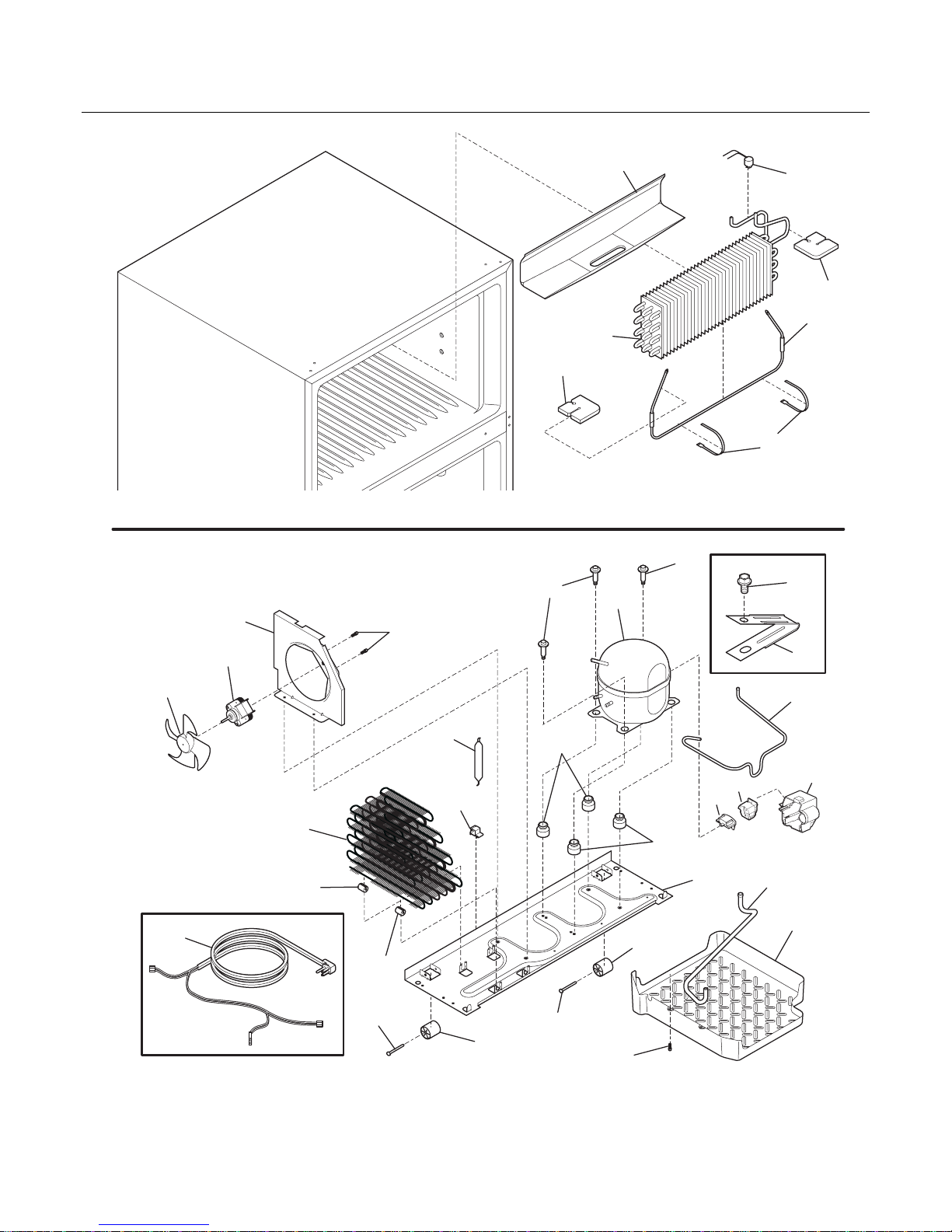

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 240444401 Condenser, dynamic

4 # 218944001 Drier-filter, R134a System

6 240581701 Harness-wiring, machine compt

6* 240581801 Harness-wiring, compressor

6* 241520701 Harness-wiring, freezer

6* # 240388701 Wiring Harness, control box

14 # 5303918208 Defrost Heater Kit

15 # 5303918274 Evaporator Kit

16 5308000110 Strap-evap/heater, aluminum, (2)

17 241551801 Trough-drain

20 241551901 Insulation Block

21 # 5303918202 Thermostat-defrost, kit

22 241602001 Base-compressor

22* 218252200 Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 Grommet-compr mtg, (4)

25 240491501 Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF

26 240332608 Pan-defrost drain

29 # 5303918297 Compressor, w/electricals

30 # 5304433579 Relay

31 # 5304433578 Overload Protector

34 240405201 Grommet, rubber, black, cond tube/wire

41 240433202 Screw, hex washer head, 8-18 x 5/16

44 5303001199 Clamp-wiring harness, strain relief, galv steel

45 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

56 240582001 Cover-terminal

57 240542601 Clip-wiring harness

58 218897002 Screw, hex washer head, 8-32 x 0.375

59 5304430246 Bracket-cond motor assy

59* 240346701 Tape-foam seal, shroud

59* 240359401 Screw-fan shroud, (2)

60 # 240525402 Motor, condensor fan

61 # 240524101 Fan Blade, galv steel, condenser fan

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

84 240500801 Tube-drain, rubber, lower

85 240493101 Tube-connector, suction

* 5303918222 Hot Tube Repair Kit, service

* 5303918263 Heat Exchanger Kit, suction line

Publication No: 5995432738 FRT18S6AQJ

03/05 10

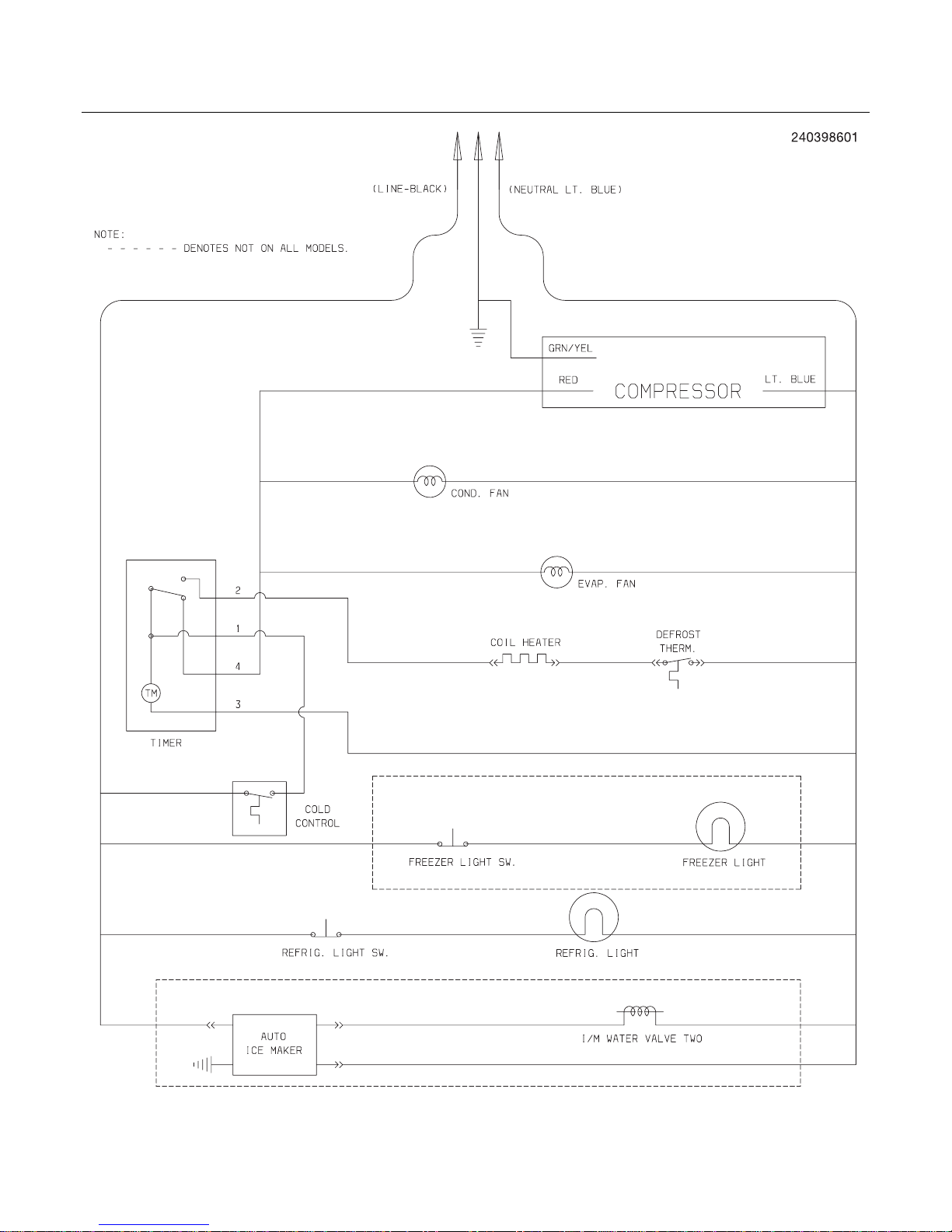

WIRING SCHEMATIC
