Frigidaire PLRU1778ES Manuale utente

P08F0072.eps P08D0562.eps P08C1111.eps P08S0472.eps

Product No. PLRU1778ES4

Series Twins

Color black-s/s

Volts 115

Wiring Diagram 297005300

Owner's Guide 297081600

Market North America

Energy Guide 216697904

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995517835

08/06/26

(EN/SERVICE/MLR)

365

REFRIGERATOR

Model No.

PLRU1778ES

Publication No: 5995517835 PLRU1778ES4

06/08 2

DOOR

48B

P08D0562

21A

22A

27A

PLRU1778ES4 Publication No: 5995517835

# Functional Parts 3 06/08

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 216522311 Gasket-door, black

7 240338313 Door, dairy, clear

9 216953600 Panel-inner door, refr

11 297245224 Panel-outer door, stainless

12 240558802 Nameplate, door badge, stainless

13 297257000 Door Stop, chrome, RH/LH

18 240536818 Handle-door, stainless steel, with insert, & set screw

* 218755402 Screw-set, 10-32 x 0.375

* 218755504 Screw-shoulder, #10 AB, handle mounting

* 240537301 Nut-anchor, door hdl screw

21A 297197500 Screw, door stop mtg, FH38-16X.750, P Twin

22 216970800 Bearing, hinge w/o'ring, top

22A 297006800 Bearing-hinge, btm, w/o'ring

26 216524200 Gasket, secondary

27 5303212828 Clip, panel mtg

27* 5304406520 Clip, panel mtg kit, (40)

27A 240396102 Retainer, tall bottle

32 5309950074 Valve, breather

48B 240338001 Bin-door, pseudo, gallon, refr

49 216959802 Bin-door, 2-liter, (4)

64 216403700 Plug-button, hole filler, door base

93 5304460605 Screw, ph truss head, 8-18AB x 0.500

Publication No: 5995517835 PLRU1778ES4

06/08 4

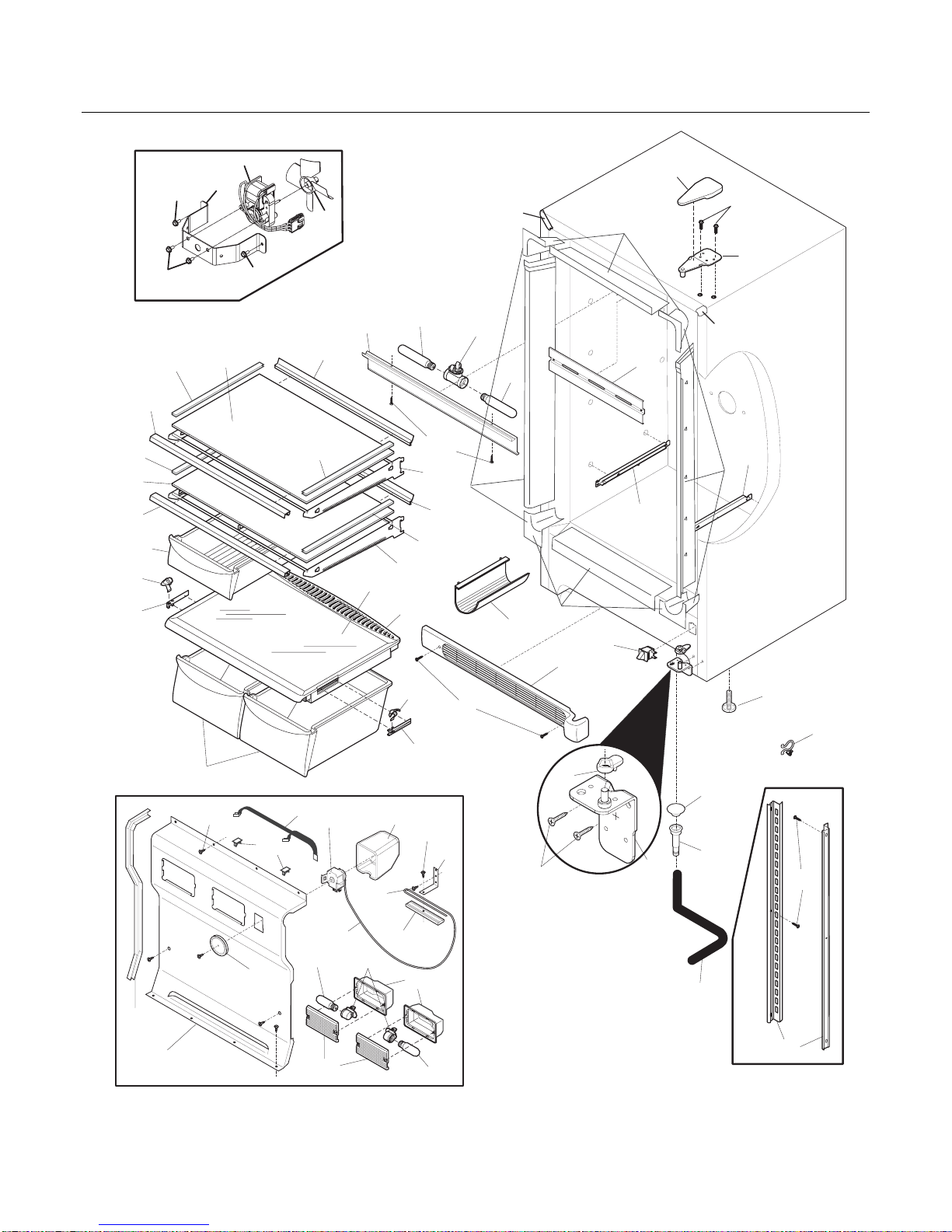

CABINET

93A

169

41 28

131

139

138

138A

138B

137

150

149

137A

139A

15 16

132

151

71A 21

155

154 20

93B

22A

15A

34A

15A

16A

34B

P08C1111

31A

47A

148

26A

PLRU1778ES4 Publication No: 5995517835

# Functional Parts 5 06/08

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 297200600 Breaker Kit w/corners, no lock slot

9 297200100 Breaker Kit w/corners, 32", top and bottom

13 # 216934100 Motor, fan, 115 V

14 216998100 Switch, light/lamp, black, ramp

15 216988100 Light Bulb/Lamp, long, blue tint, 40 W, 120V

15A 297048600 Light Bulb/Lamp, short

16 241507803 Socket-light

16* 297109500 Washer, vinyl

16A 216817600 Socket, light/lamp, 25 W

18 216707200 Knob, temp control

19 216204902 Gasket-evap cover

20 216967200 Cover, temp control

21 # 216715500 Control temperature

22 216823500 Clamp, cap tube, cold control

22A 297058500 Tube, 10", plastic

24 5304460604 Screw, type A, 10-24 x 3/8

25 297099253 Cover-evaporator

26 216503300 Ramp, door closer

26A 216959900 Pan-crisper, (2)

28 297240800 Hinge-bottom, stepped pin

29 216313501 Hose-drain

31A 240530811 Pan-meat, w/o graphics, clear

32 5308005500 Drain

34 216979500 Shield-light

34A 297053100 Shield-light

34B 297053200 Lens, light

35 216273000 Clip, drain hose

37 241611303 Trim-cabinet corner, black, (2)

38 297164300 Hinge-upper

40 297164401 Cover-upper hinge, black

41 240578902 Screw, hex head, 1/4-20 x 5/8

42 216983101 Glass-shelf, full shelf

47 216661601 Baffle-plate

47A 240350650 Insert-pan cover, glass

50 216394050 Bracket, fan motor mount

63 216396900 Screw, leveling foot, plastic, adjustable

66 5303295947 Rack-wine

71A 297146800 Screw, 8-18AB x 0.470, EVAP PANEL

72 297036901 Grille/Kickplate, 32", black

80 06594601 Bracket, control

93 5304460605 Screw, ph truss head, 8-18AB x 0.500

93A 216629601 Screw, hex washer head, 10-16 x 0.500, tapping

93B 216036601 Screw, RWHD, 8-32A x 0.500, GX-CA

131 241513001 Channel-shelf mtg, side, (2)

132 5304460601 Screw, 6-20AB x 3/8

137 297050600 Frame-shelf, cantilever

137A 297050601 Frame-shelf, cantilever

138 297050700 Trim-shelf, front

138A 216983601 Trim-shelf, side

Publication No: 5995517835 PLRU1778ES4

06/08 6

CABINET

93A

169

41 28

131

139

138

138A

138B

137

150

149

137A

139A

15 16

132

151

71A 21

155

154 20

93B

22A

15A

34A

15A

16A

34B

P08C1111

31A

47A

148

26A

PLRU1778ES4 Publication No: 5995517835

# Functional Parts 7 06/08

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

138B 297050701 Trim-shelf, front

139 297050800 Trim-shelf, rear

139A 297050801 Trim-shelf, rear

148 216995501 Cover-crisper pan

149 240361301 Damper, humidity cont.

150 240361202 Knob, humidity cont.

151 216988200 Support-crspr cover, RH

151 216988201 Support-crspr cover, LH

154 297053000 Wire, jumper

155 5303313703 Clip, (2)

169 216912401 Screw, hex washer head, 8-32 x 0.500, bracket fan mtr, (2)

* 216697904 Energy Guide

* 297001704 Insulation, 24", drain tube

Publication No: 5995517835 PLRU1778ES4

06/08 8

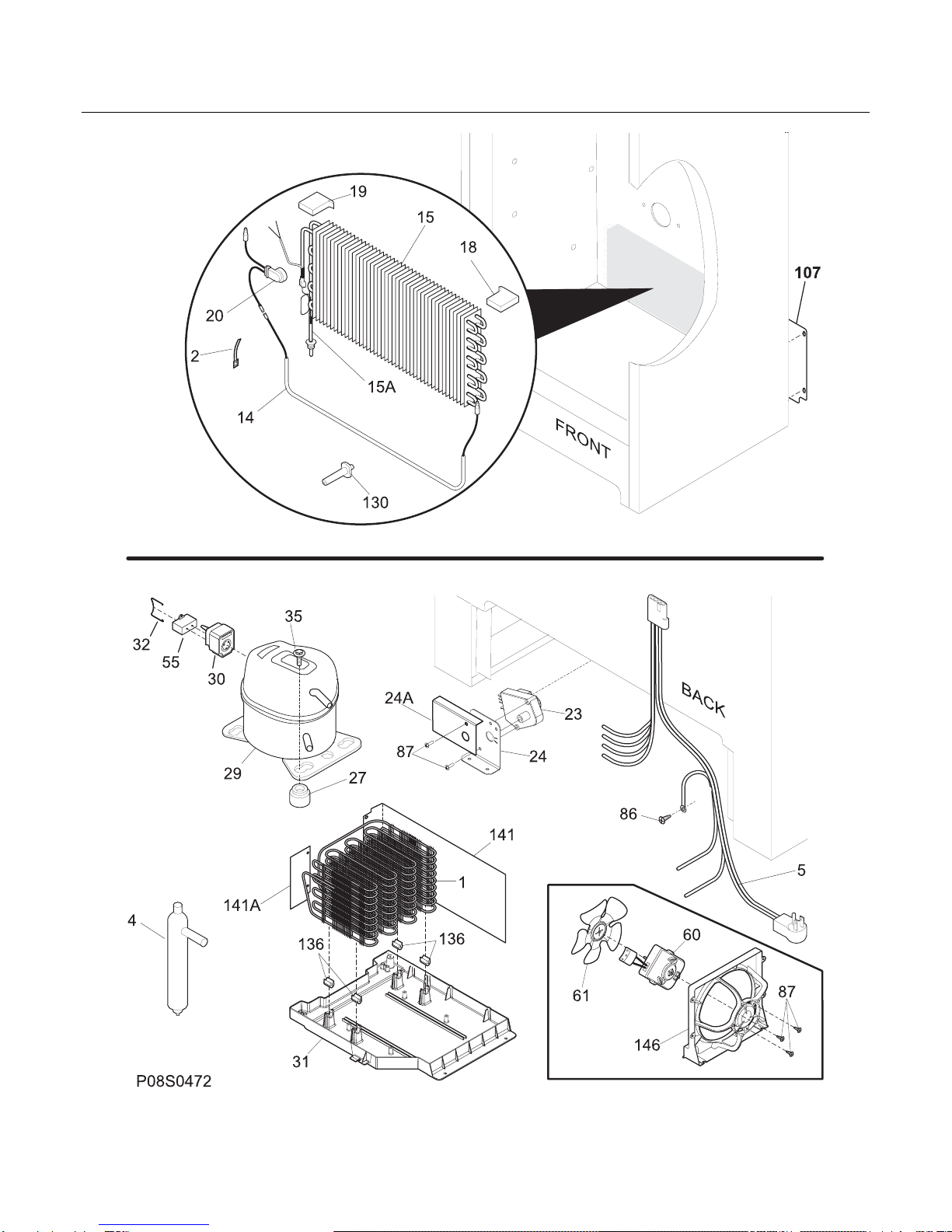

SYSTEM

PLRU1778ES4 Publication No: 5995517835

# Functional Parts 9 06/08

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 297152200 Condenser, dynamic

2 5308000110 Strap-evap/heater, aluminum, (2)

4 # 216938600 Drier-filter

5 # 297171800 Harness-main

5* 240555002 Screw-#8-32 X 3/8

* 297048400 Clip

14 216730700 Heater-defrost

15 # 216997300 Evaporator

15A 297231800 Heat Exchanger

18 297078700 Insulator-evap, styrofoam

19 297078800 Insulator-evap, styrofoam

20 216731001 Thermostat, defrost

23 # 216744500 Timer-defrost

24 216968501 Bracket-timer

24A 297207900 Guard, timer

27 5308002681 Grommet, compressor

29# 216966300 Compressor, w/o electricals

30 216954200 Controller, compressor, 5 speed

31 297165800 Pan-drain

32 216954300 Clip, controller

35 297177200 Bolt, compressor

55 218909911 Capacitor, run

60 241584301 Motor-condenser fan

61 241639501 Blade-condenser fan

86 216036601 Screw, RWHD, 8-32A x 0.500, GX-CA

87 5304463290 Screw, hi-lo blunt, #8-18X1/2

107 297165400 Shield, compressor, Compartment

* 5304460605 Screw, ph truss head, 8-18AB x 0.500

130 297244700 Support, evaporator mtg

136 240405201 Grommet, rubber, black, cond tube/wire

141 297164200 Divider, air flow

141A 297194700 Divider, small, air flow

146 297164000 Shroud-fan orfice

* 216502500 Sleeve, suction line

* # 297169901 Cord-power, flat
