Frigidaire GLTR1670F Manuale utente

Product No. GLTR1670FS0

Series Frig Gallery

Market North America

Color white

Volts 120

Wiring Diagram 134832400

Owner's Guide 134837900

Energy Guide 134814700

Installation Instructions 134836900

Operating Instructions 134836700

P12L0043.eps P12C0348.eps P12V0076.eps P12T0087.eps 134832400-1.eps

134832400-2.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995483632

07/02/05

(EN/SERVICE/WC)

361

FRONT-LOAD

WASHING MACHINE

Model No.

GLTR1670F

Publication No: 5995483632 GLTR1670FS0

02/07 2

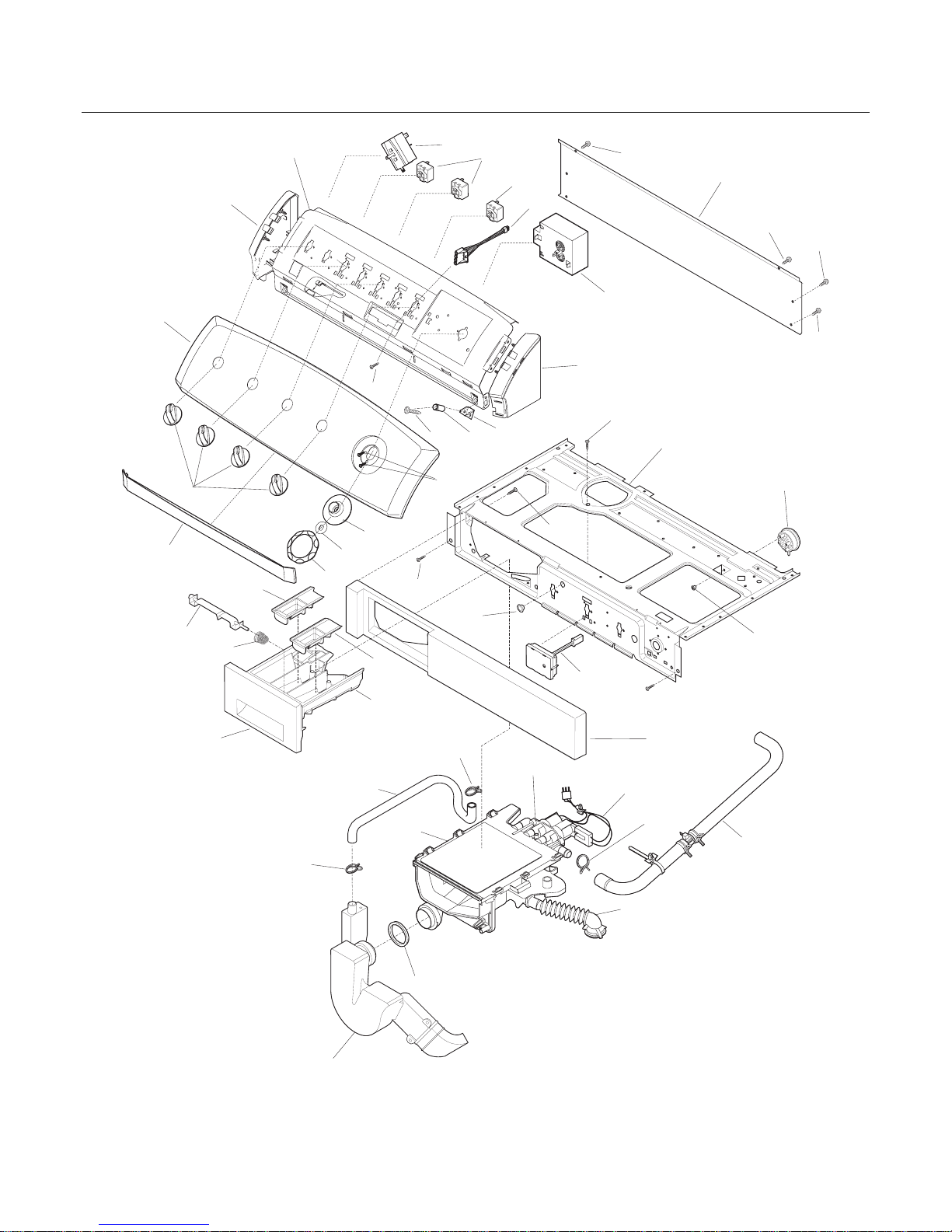

CONTROL PANEL

MAX

LIQUID

BLEACH

LIQUID

BLEACH

MAX

FABRIC

SOFTEN

FABRIC

SOFTEN

P12C0348

64 13 14

GLTR1670FS0 Publication No: 5995483632

# Functional Parts 3 02/07

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

1 131272100 Cover, bleach

2 131272000 Cover, softener

3 131271910 Drawer, dispenser

6 131714900 Latch, drawer handle, white

7 131427500 Spring

9 131729500 Handle, dispenser, with trim

11 131205100 Screw, #8 pan head, 10-10B x 0.500, cr/sq drive

13 # 134401700 Switch, temp selector, 7 position

14 # 131243200 Switch, 2 position

17 # 134818201 Switch, pressure, single level

18 # 134795000 Timer

19 131243800 Screw, pan hd locking, 8-32CA x 0.375, cup point

21 131243700 Screw, pan head, 8-18AB x 0.375

26 131823400 Screw, 8-18 x 2.00

27 131870600 Panel, disp drawer mt.

28 134073700 Panel, trimplate, console front

29 134034910 Knob, rotary, white

30 134034800 Knob, timer, white, assy

31 134034700 Pointer, timer

32 131786100 Hose, siphon/valve

33 131306216 Clamp

36 # 131974700 Valve, dispenser, w/seal

37 131271600 Hose, tub

38 131803710 Dispenser Assy

39 131863300 Siphon

39* 131307900 Clamp, siphon/bellows

42 131168200 Screw, pan head, 8-18B x 0.31

43 131749200 Gasket, seal

44 # 131899800 Thermistor, w/hose & clamp

45 5303321107 Bushing, idler

46 134191412 Panel, control mtg., wing bend

* # 134073400 Wiring Harness, console

* 131931201 Dampener, vibration, 3.5 x 2 x 2 in., foam

54 5308015493 Spacer, washer, timer shaft

56 131266330 Screw, 8-18 x 1.250

57 131197000 Clip, console mtg

59 134019600 End Cap, white, RH

61 134019900 Closure, console trim, white, front

63 # 131908500 Switch, speed, 3 posn rotary

64 131993040 Bracket, control mtg.

65 134019610 End Cap, white, LH

68 131992900 Panel, backsheet, console

69 # 134565900 Wiring Harness, main

71 134096100 Spacer, console mtg

73 # 131963800 Beeper, signal switch

75 134062801 Lamp, status ind., with bracket

Publication No: 5995483632 GLTR1670FS0

02/07 4

CABINET/TOP

GLTR1670FS0 Publication No: 5995483632

# Functional Parts 5 02/07

* Non-Illustrated Parts

CABINET/TOP

POS. NO PART NO. DESCRIPTION

1 131279602 Hose, water inlet, cold

2 131168200 Screw, pan head, 8-18B x 0.31

3 131279603 Hose, water inlet, hot

4 # 134149220 Controller Assy, speed, w/base & shield

7 131205300 Screw, 10-16 x 0.750

8 # 131763245 Door Lock/Switch Assy

9 131303300 Screw, pan head, 10-16AB x 0.500, locking

10 131278700 Frame, outer door, white

11 131278800 Panel, door glass

12 131278900 Frame, inner door, white

13 134227100 Screw, flat head, 10-16 x 0.600, quadrex

14 131763310 Striker, door/lock/sw

15 134264600 Hinge, door

16 131696300 Screw, quad pan head, 10-16 x 0.312

17 131346400 Pin, panel locator

18 131279300 Panel, service, white, front

19 131358400 Screw, hex washer hd, 8-18AB x 1.125

20 131460900 Bracket, top panel mtg., front

21 131243700 Screw, pan head, 8-18AB x 0.375

22 131279500 Retainer, spring steel

23 131243800 Screw, pan hd locking, 8-32CA x 0.375, cup point

24 134086832 Panel, washer top, white, console mtg

25 131668200 Bracket, top panel mtg.

26 134178901 Screw, 8-18AB x 0.455

28 131978500 Panel, back

29 131752030 Panel, cabinet front, white

30 131859600 Shield, overflow

31 # 134501000 Power Cord, electric svce

32 5303209428 Bushing, power cord

33 # 134812800 Valve, water, 115 V

35 131732902 Bracket, reinforcement, top rear

36 131841600 Leveling Leg Assy, bolt, pad & nut

44 131707800 Ring, drain hose

45 # 134592700 Hose, drain

58 131800410 Insulation, noise absorber

58A 131744202 Damper, vibration

64 # 134224300 Control Board, temperature, automatic

65 131894600 Housing, temp cont board

70 134048600 Shield, drip protector

71 134048400 Base, controller mtg

76 134390701 Panel, side, white, RS/LS, (2)

77 131458240 Base Plate

80 134547800 Screw, 10-16AB x 0.375

* 131931201 Dampener, vibration, 3.5 x 2 x 2 in., foam

* 5303937142 Shipping Brace Kit

Publication No: 5995483632 GLTR1670FS0

02/07 6

MOTOR/TUB

14 16

13 19

42 32

P12T0087

GLTR1670FS0 Publication No: 5995483632

# Functional Parts 7 02/07

* Non-Illustrated Parts

MOTOR/TUB

POS. NO PART NO. DESCRIPTION

3 131793302 Bolt, carriage, 1/4-20 x 4.00

6 131975300 Counterweight, one piece

7 131277300 Spring, boot retainer

8 134177600 Bellows, door boot

10 131304700 Nut, hex, 1/4-20 UNC-2B, (2)

11 131276900 Washer, Bellville, spring steel

12 131793500 Plate, counterweight

13 131618600 Shell, outer tub, front

14 134144700 Spring Assy, suspension, w/sleeves

14* 131560000 Sleeve, protector, lwr spring hook

14* 131592200 Sleeve, protector, upr spring hook

15 131303900 Screw, hex washer head, 1/4-10A x 2.165

16 131618500 Drum Assy, spin basket

17 131274600 Vane

18 131302800 Screw, 10-16AB x 0.375

19 # 131770600 Motor

20 131303500 Screw, 12-14AB x 1.50, motor mtg.

21 134146100 O-ring, tub

22 131462800 Shell, outer tub, rear, with bearing

23 134125900 Counterweight, drum rear

25 # 134051000 Belt, drive, 6-rib

26 # 131883400 Pulley, drum drive, large, rear

27 131304400 Washer, 0.41 x 1.50, 0.12 thick

28 131304500 Washer, lock, 3/8

29 131303700 Screw, pulley mtg., m10 x 0.92, metric

30 131268200 Shock Absorber, air, stabilizer

31 131268300 Pin, shock mtg.

32 131268100 Bracket, shock mtg.

33 134532200 Screw, 10-16AB x 0.500

35 # 134051100 Pump, drain

40 134565200 Filter, pump

41 134044200 Hose, coin trap, tub-to-pump

42 134737300 Clamp, hose

43 131277500 Chamber, air

44 131277600 Hose, air pressure

45 131306202 Clamp, hose

48 131306234 Clamp, hose, wire

49 134266500 Clamp, bellows/boot, 0.059 OD wire, spring held

58 134160900 Screw, washer hd, 10-16AB X 0.75

* 134814700 Energy Guide

Publication No: 5995483632 GLTR1670FS0

02/07 8

WIRING DIAGRAM

GLTR1670FS0 Publication No: 5995483632

# Functional Parts 9 02/07

* Non-Illustrated Parts

WIRING DIAGRAM
